Cement Clinker Wollastonite Talc Dolomite Calcium Carbonate Powder Grinding Mill
- Category: >>>
- Supplier: Shanghai Clirik Machinery Co. Ltd.Shanghai Ltd.
Share on (1601241001908):
Product Overview
Description
Rock Powder Carbon Black Quartz Sand Granite Calcite Grinding Mill Machine Price
*every production line needed machines has difference*
*the final quotation will according to your project case*
Product Description

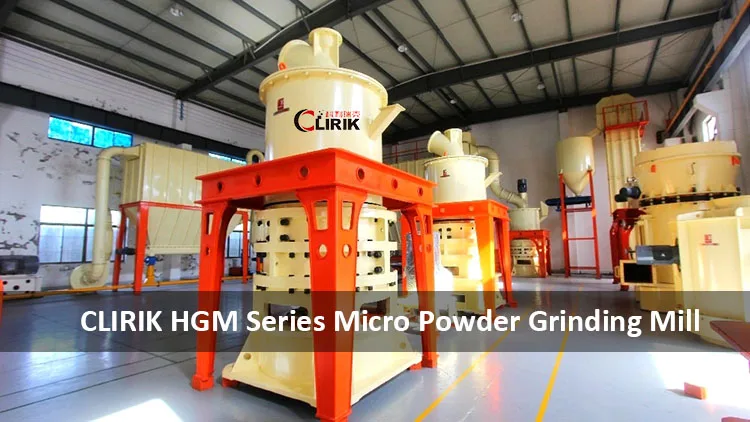

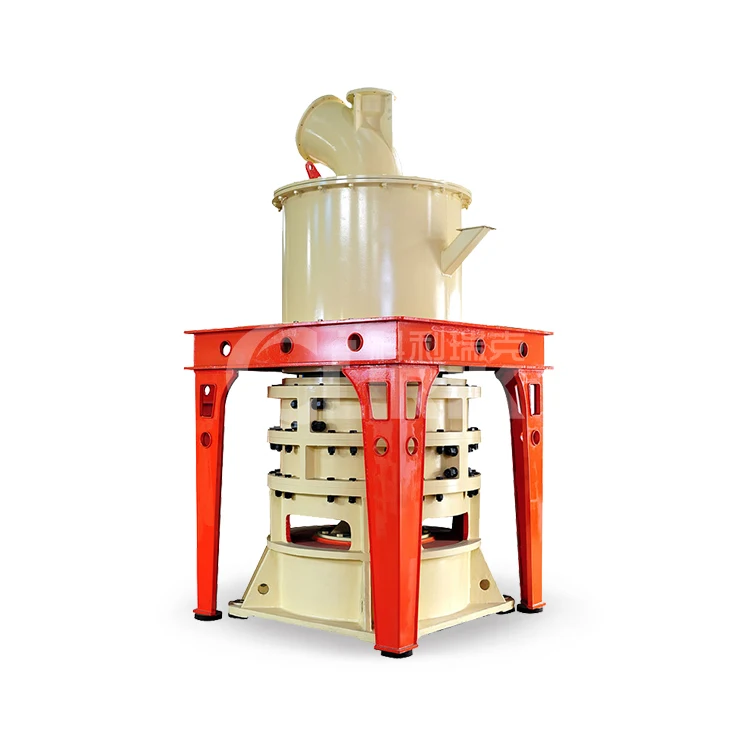

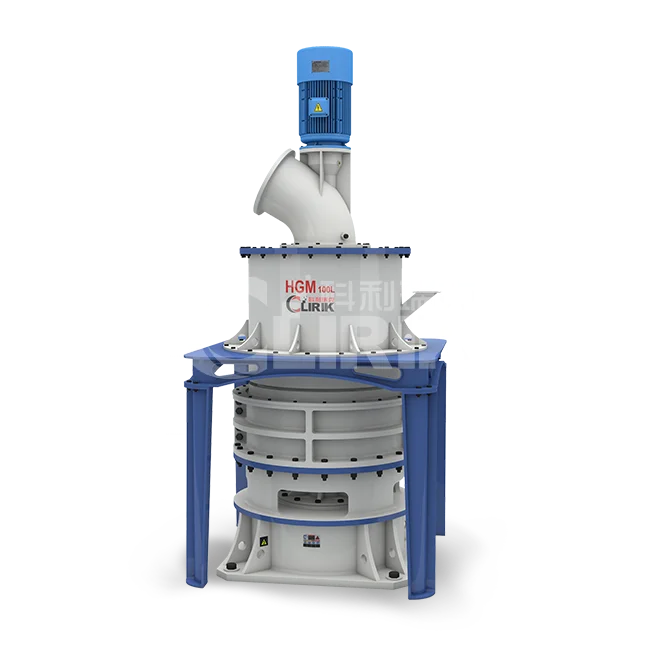

HGM Micro Powder Grinding Mill
Capacity: 0.5-45 t/h
Max feeding size: < 20 mm
Output size: 150-3000 mesh
Range of application: Quartz, feldspar, mica, calcite, talc, apatite, gypsum, fluorite, limestone, dolomite, ceramic soil, clay, marble, granite, fly ash, kaolin, calcium carbonate, slag, bauxite, glass, etc.
Max feeding size: < 20 mm
Output size: 150-3000 mesh
Range of application: Quartz, feldspar, mica, calcite, talc, apatite, gypsum, fluorite, limestone, dolomite, ceramic soil, clay, marble, granite, fly ash, kaolin, calcium carbonate, slag, bauxite, glass, etc.
Application area: used in Mining, metallurgy, building materials, chemical and mine industries.
More Details Welcome Ask Our Online Service
>>>Clirik<<<
Clirik HGM Micro Powder Grinding Mill Certification&Patents
Clirik owns the patent of this machine, welcome you to inspect our patent certificate in our company ! Please check our patent certificate vbove
Specification
HGM Micro Powder Grinding Mill Parameter
Model | HGM80 | HGM90 | HGM100 | HGM125 | HGM1680 |
Ring Diameter(mm) | 800 | 900 | 1000 | 1250 | 1680 |
Ring Number(layer) | 3 | 3 | 4 | 4 | 4 |
Roller Number(piece) | 18-21 | 24-29 | 28-36 | 30-40 | 30-44 |
Main Shaft Speed (r.p.m) | 230-240 | 200-220 | 180-200 | 135-155 | 120-130 |
Input Size(mm) | ≤20 | ≤20 | ≤20 | ≤20 | ≤20 |
Finished Size(mesh) | 150-3000 | 150-3000 | 150-3000 | 300-2500 | 300-2500 |
Capacity(t/h) | 0.5-4.5 | 0.6-6.5 | 1-9 | 2.8-20 | 5-45 |
Overall Dimension(L*W*H,m) | 13.9*4*6.2 | 14.7*4.8*7.2 | 18*4.6*8.6 | 14*9*10.25 | 26.3*7.5*11.9 |
Note: The capacity is based on the domestic CaCO3 powder factory's feedback.
Powder Parameter
Unit:KW | HGM80 | HGM90 | HGM100 | HGM125 | HGM1680 |
Main unit | 55-75 | 2*45 | 132-150 | 185-200 | 315 |
Classifier | 18.5 | 18.5 | 30 | 37-4*15 | 5*18.5 |
Blower | 45 | 55 | 75 | 110 | 2*75-2*90 |
Crusher | 18.5 | 18.5 | 18.5 | 45 | 45 |
Bucket Elevator | 3 | 3 | 4 | 4 | 7.5 |
Feeder | 1.5 | 1.5 | 1.5 | 1.5 | 2.2 |
Discharging Valve | 2*0.75 | 1*0.75-1*1.1 | 2*1.1 | 2*1.1 | 2*0.75-2*1.5 |
Air Compressor | 11 | 15 | 22 | 37 | 55 |
Note: For the data with prefix such as "2*xx",which means there are two same motors configured for one item
Recommend Products
As professional mining equipment R&D and Manufacturing factory, Shanghai Clirik Machinery also can offer other mining machinery. If you need interested, you can visit our website
Company Profile
Shanghai Clirik Machinery Co., Ltd located in Pudong New district of Shanghai china, as a pioneer enterprise, which is
specializing in research, manufacture and sales of all kinds of grinding mill, from coarse grinding mill, fine grinding mill and ultra fine grinding mill, grinding mill related equipment, such as powder modifying machine, powder packing machine.powder conveying system, etc. We have devoted into grinding field for more than 30 years, we beliveonly focus can be professional.
Our company has already formed a full set of modern production line, equipped with intelligent, standardized testing and
controlling laboratories, owned a professional team for R&D, production, sales and service.
specializing in research, manufacture and sales of all kinds of grinding mill, from coarse grinding mill, fine grinding mill and ultra fine grinding mill, grinding mill related equipment, such as powder modifying machine, powder packing machine.powder conveying system, etc. We have devoted into grinding field for more than 30 years, we beliveonly focus can be professional.
Our company has already formed a full set of modern production line, equipped with intelligent, standardized testing and
controlling laboratories, owned a professional team for R&D, production, sales and service.

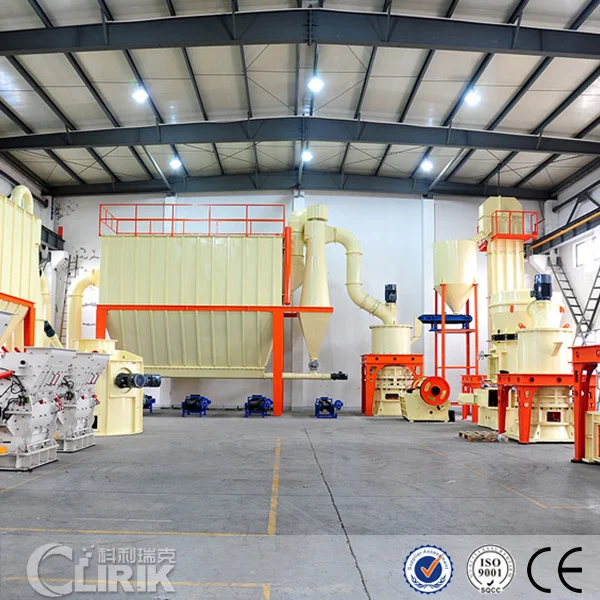

Our Factory
Our Technology
Customer Visit
Exhibition We Attend

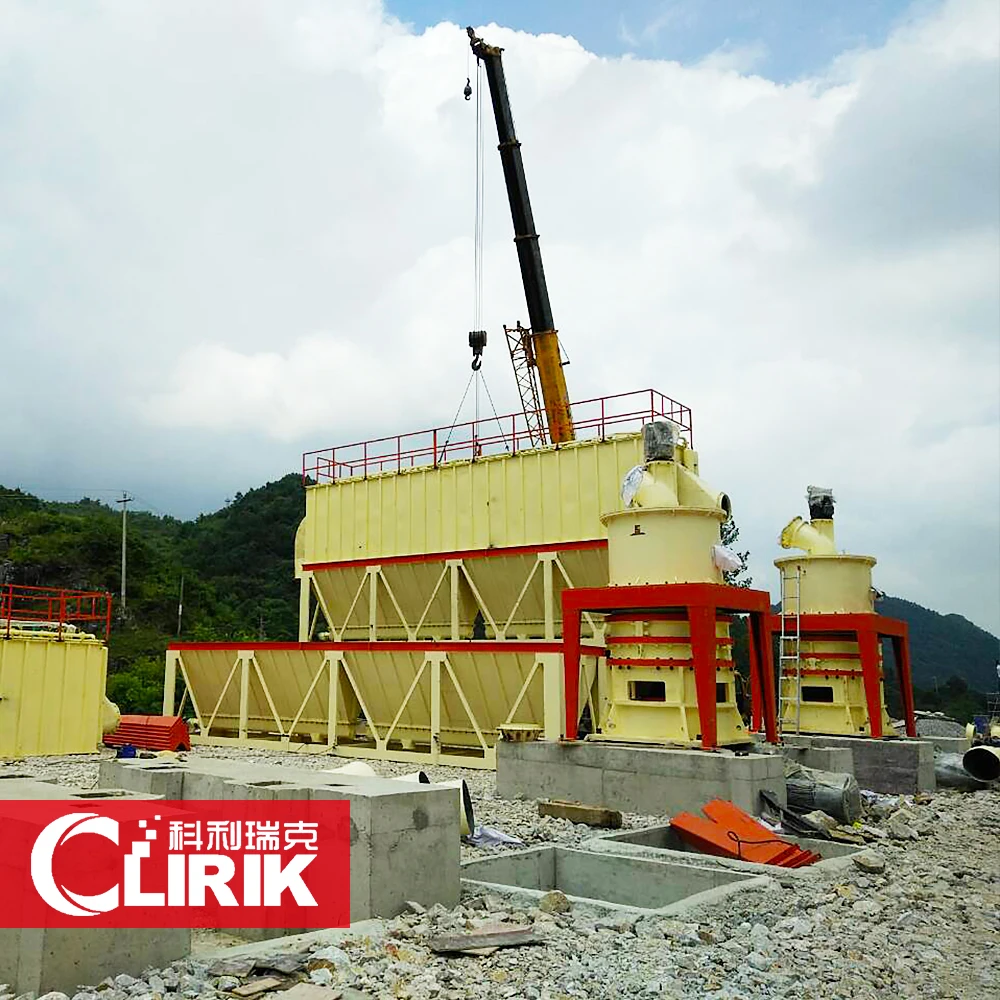

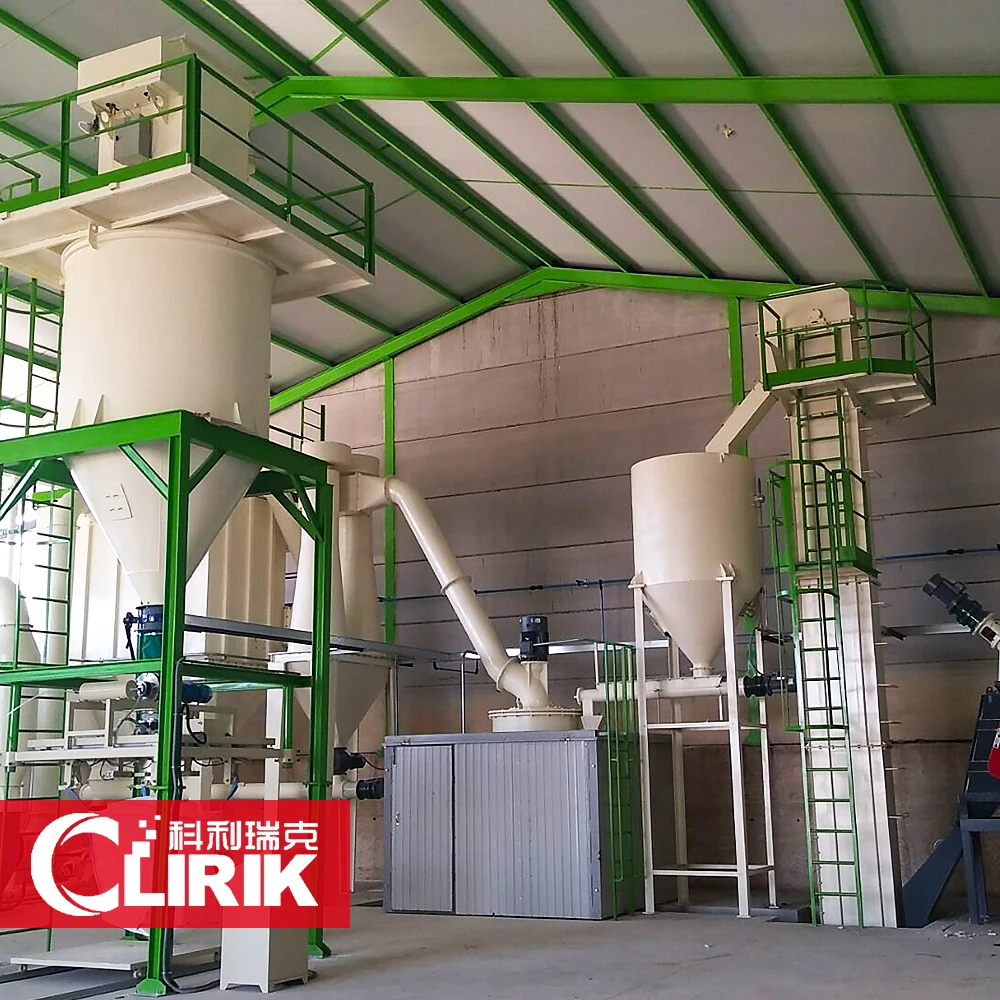

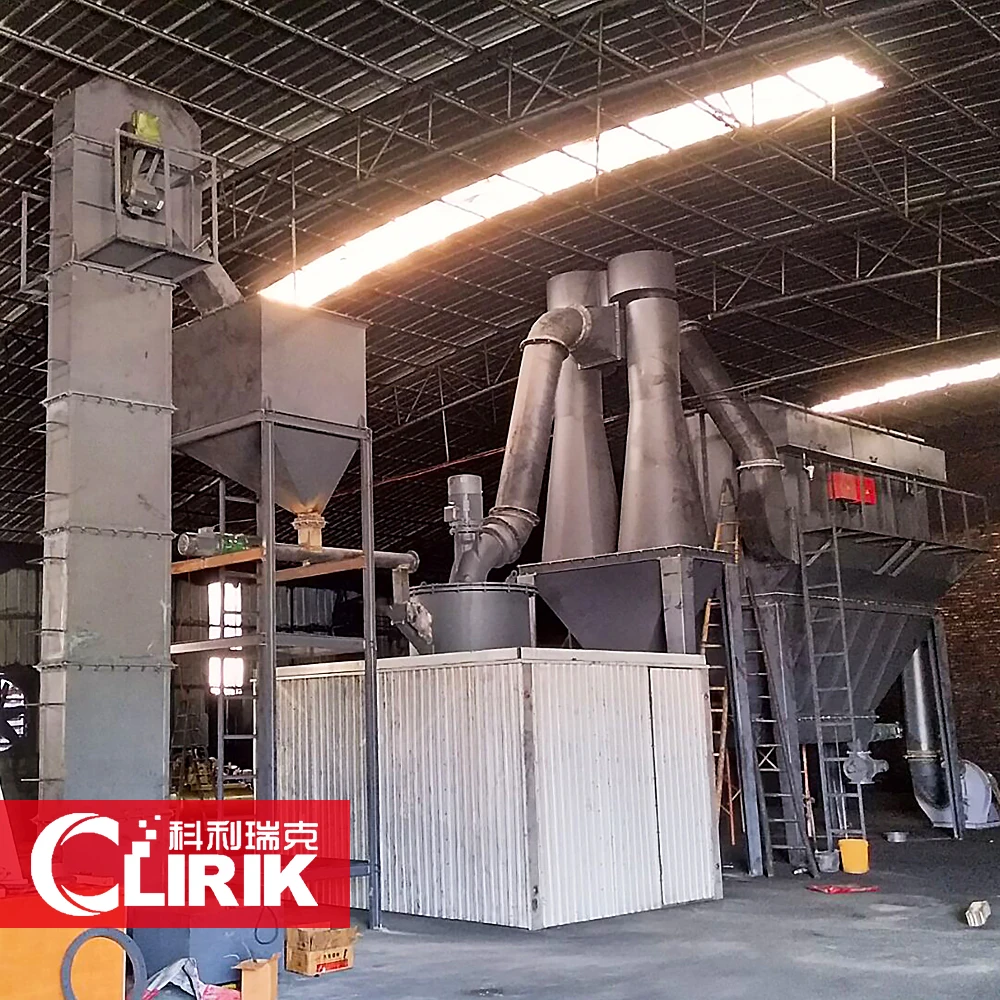

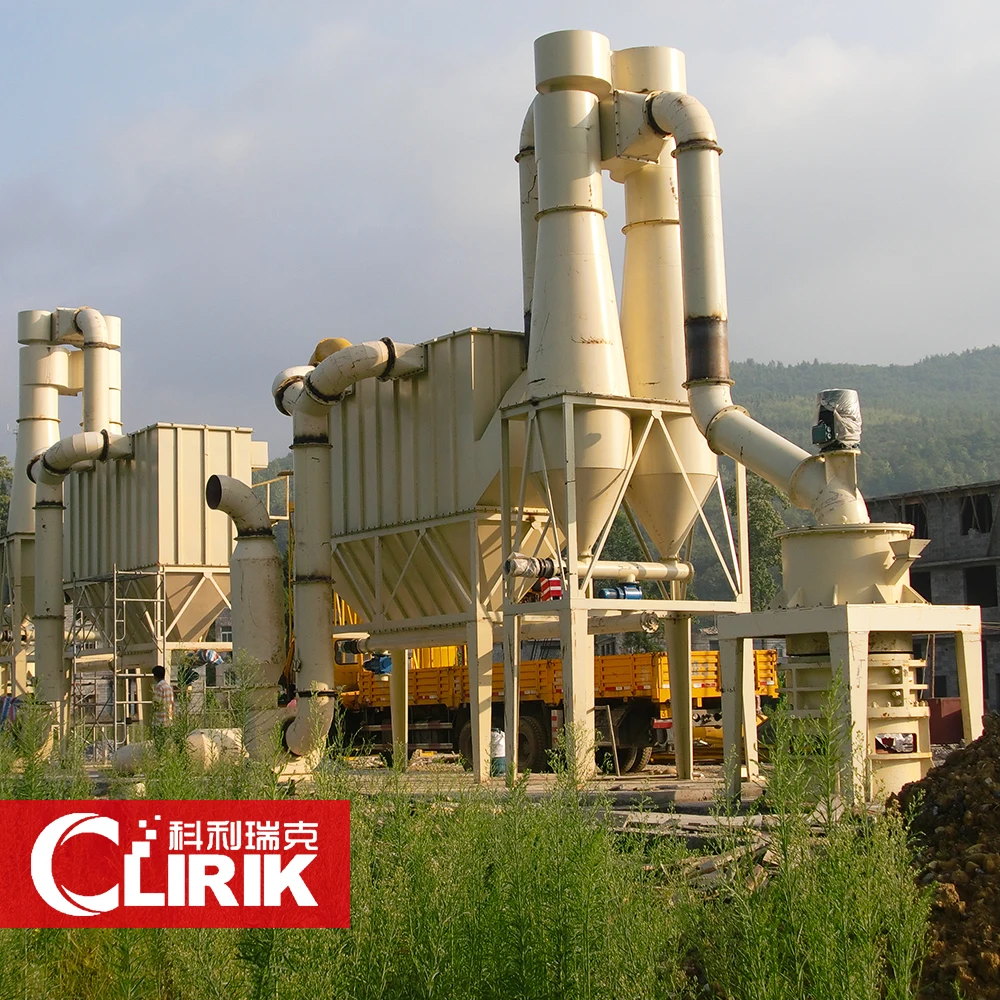

Customer Sites
FAQ
1. Quality control
All the equipment offered by Shanghai Clirik Machinery Co., Ltd. are produced by China national standard drawings, nonstandard equipment will be produced by the drawings confirmed by clients. Clirik Machinery strictly follows ISO 9001: 2008 Quality management system. Most equipment will be test for at least 8 hours in the factory before delivery. There is record in computer for each equipment, spares can be easily confirmed when it is necessary.
2. Way of payment
Welcome clients place the order by alibaba online one-touch! Deya also offers various ways of payment, T/T, against copy of B/L, L/C, D/A, D/P, West union, etc. All can be negotiated.
3. Delivery time
Normal delivery time within 10 to 20 working days, complete production line or larger equipment may take longer. Exact delivery shall be confirmed when place the order.
4. Trade terms
Typically EXW, FOB, CIF, CFR, DAF follows International Rules for the Interpretation of Trade Terms 2010(INCOTERMS 2010).(you are also welcome to take the rule of Alibaba Trade Assurance)
5. Shipping lines
Priority rule based on clients' request, and freight cost, service, shipping date, date of arrival shall be considered.
All the equipment offered by Shanghai Clirik Machinery Co., Ltd. are produced by China national standard drawings, nonstandard equipment will be produced by the drawings confirmed by clients. Clirik Machinery strictly follows ISO 9001: 2008 Quality management system. Most equipment will be test for at least 8 hours in the factory before delivery. There is record in computer for each equipment, spares can be easily confirmed when it is necessary.
2. Way of payment
Welcome clients place the order by alibaba online one-touch! Deya also offers various ways of payment, T/T, against copy of B/L, L/C, D/A, D/P, West union, etc. All can be negotiated.
3. Delivery time
Normal delivery time within 10 to 20 working days, complete production line or larger equipment may take longer. Exact delivery shall be confirmed when place the order.
4. Trade terms
Typically EXW, FOB, CIF, CFR, DAF follows International Rules for the Interpretation of Trade Terms 2010(INCOTERMS 2010).(you are also welcome to take the rule of Alibaba Trade Assurance)
5. Shipping lines
Priority rule based on clients' request, and freight cost, service, shipping date, date of arrival shall be considered.
