YGM 178 High Pressure Suspension Raymond Mill Machine New Aluminum Hydroxide Roller Mill with Engine Motor Core Components Plant

Share on (1601241044787):


Price:$25,000.00-29,800.00

Quantity:


Product Overview

Description



Product Description






High-pressure suspension roller mill equipment is suitable for crushing barite, limestone, ceramics, slag and other materials with Mohs hardness ≤9.3. It can be used to grind more than 280 non-flammable and explosive materials with a humidity below 6% to produce high-fine powder, which is widely used in mining, metallurgy, chemical industry, building materials and other industries, the output size of the finished material is about 80-425 mesh.

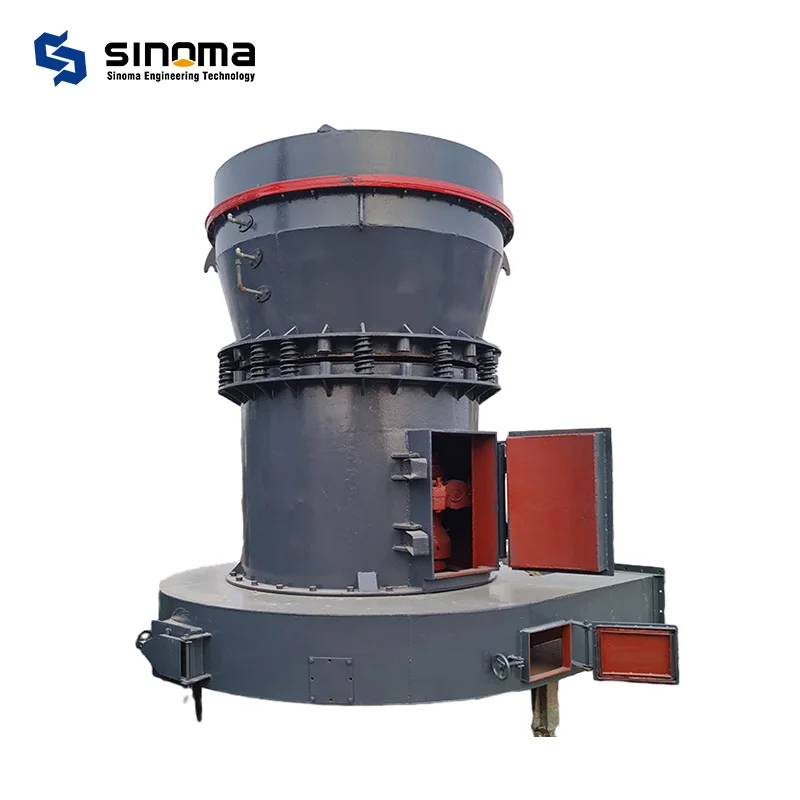

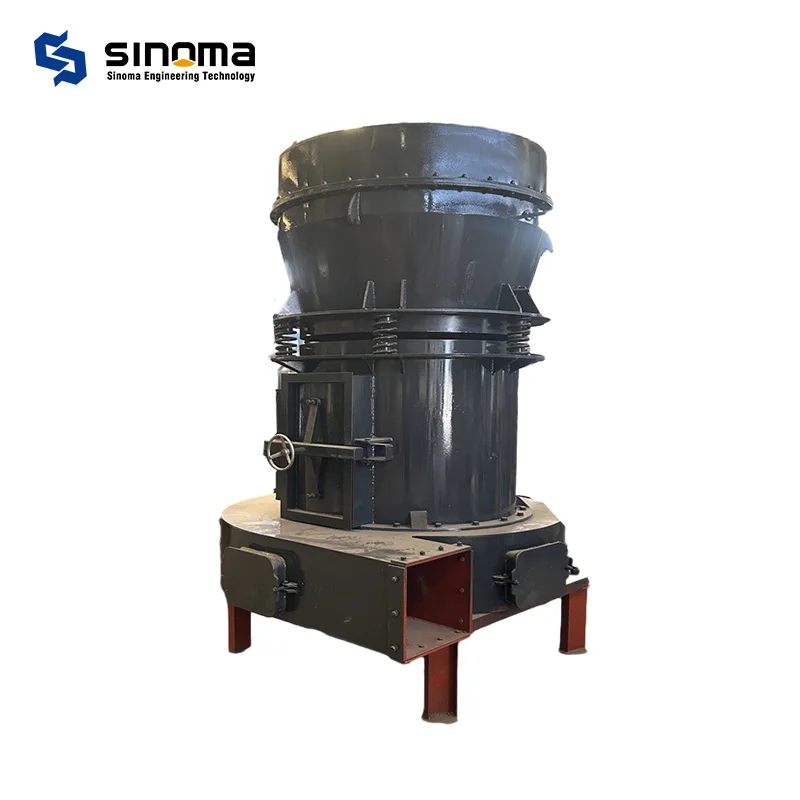

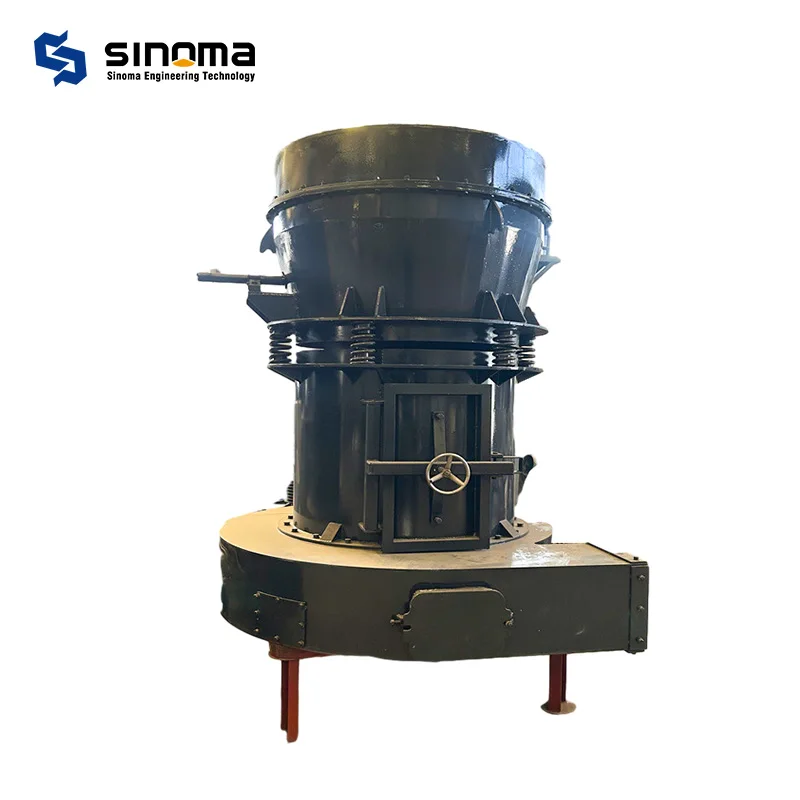

Details Images






Features:
1. Automatic operation, advanced technology.
2. The output is increased by 10-20%, and the grinding force of the grinding roller on the material is increased by 800-1200 kg.
3. It has a wide range of applications. Mineral materials with a Mohs hardness of less than 9.3 can be processed and crushed.
4. The final particle size is adjustable, the coarsest particle size can reach 0.613 mm (30 mesh), the particle size can generally reach 0.033 mm (425), and the finest particle size of a few materials can reach 0.013 (mm).


Product Paramenters


Model
Roller Qty.
(pcs.)
Main mill speed
(r/min)
Max input size
(mm)
Final size
(mesh)
Capacity
(t/h)
L*W*H
(mm)
YGM95Q
4
132
≤25
80-425
0.5-6.5
7350*5900*7900
YGM130Q
4
103
≤30
80-425
2-13.8
8000*8550*9700
YGM138Q
4
99
≤30
80-425
2.9-17.5
9700*8500*10200
YGM165Q
4
87
≤30
80-425
5-25
9230*10116*10510
YGM178Q
4
78
≤35
80-425
6.5-32
9368*11500*11000
YGM190Q
4
72
≤35
80-425
8.4-40
10465*11372*11500


* Note: The capacity may vary with different materials and feeding sizes. Technical parameters are subject to change without notice.


Application Areas&Materials


Functions: Raymond grinding mill is an ultra-fine ore grinding mill equipment. Suitable for processing calcite, potash feldspar, talc, marble, limestone, dolomite, fluorite, lime, activated clay, activated carbon, bentonite, kaolin, cement, fly ash, coal, phosphate rock, gypsum, glass , insulation materials and other 280 kinds of materials.








Packing & Delivery




Company Profile


Zhengzhou Sinoma Engineering Technology Co., Ltd. is a large-scale equipment manufacturer that integrates researching & development, production and sales together. We provide cement machinery, concrete machinery, and stone crushing machinery, including: concrete batching plant, complete cement production line, rotary kiln, vertical mill, ball mill, Raymond mill, jaw crusher, impact crusher, cone crusher, VSI sand maker, vibrating screen, etc...
Our equipment is widely used in building, mining, construction industry. We are the largest EPC new sand gravel aggregate production line supplier in China. And we use standardized production processes and strict quality control to ensure the quality of all products.

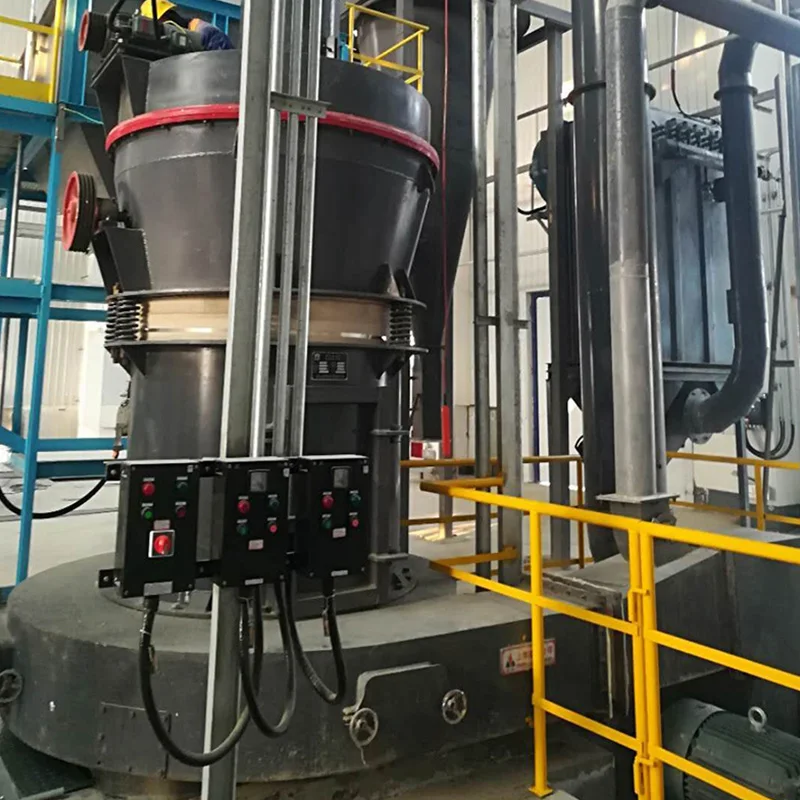

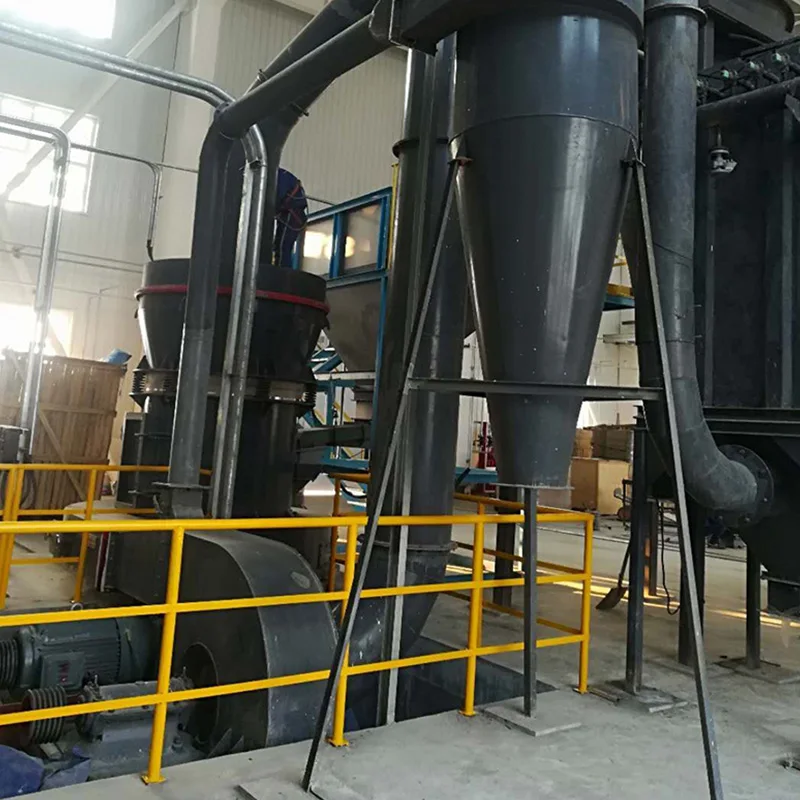

Customer Site




FAQ


1. What is your payment method?
The payment methods can be discussed with our sales manager up to you.

2. How is the product packaged and shipped?

The package is suitable for oversea exporting. We can also choose a special package depending on your needs.

3. How long is the production time?
In stock, can be shipped anytime. And it can also be customized according to your requirements

4. How long is the warranty? Does your company supply the spare parts?
1-3 year. We supply spare parts for you with lowest price.

5. If I need a complete project, can you help us to build it?
Definitely. We can help you to set up a complete production line and give the best professional design. We have already set up over 500 projects in China & Overseas.

6. How about the service?
24 hours online service, various language support, professional technical team to solve all your problems and engineers can be oversea to guide the installation on site.
