EG elektrisch golf sightseeing car luxury tourist new energy attraction sightseeing bus euro vehicles
- Category: >>>
- Supplier: Suzhou Eagle Electric Vehicle Manufacturing Co. Ltd.
Share on (1601241135409):
Product Overview
Description
Company Profile
Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd
Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd. was founded 1999, and it's a leading manufacturer specialized in designing and manufacturing 4-wheel electric vehicles, includes: electric golf cart, electric utility car, electric personal carrier, electric shuttle bus, electric industrial car, various customized electric vehicles based on standard ones, etc.. It has a workshop area of 20,000 square meters with 2 assembly lines inside. Its daily production capacity is 100 units per day; this can be adjusted with the order volume increasing. It has more than 400 empolyees including 70 engineers in R&D department and 10 engineers in QC department.
Product Paramenters

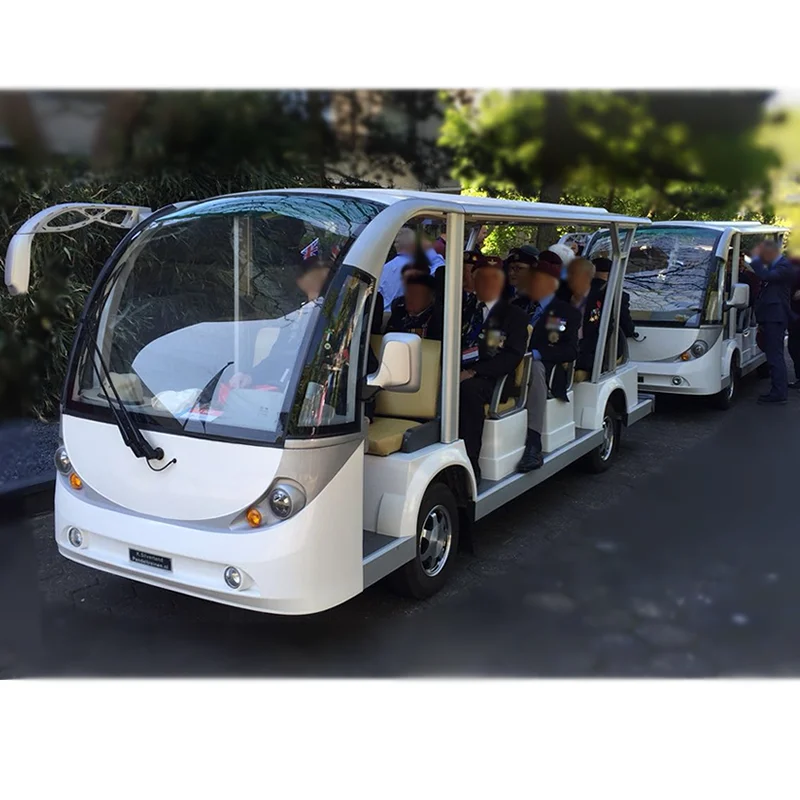

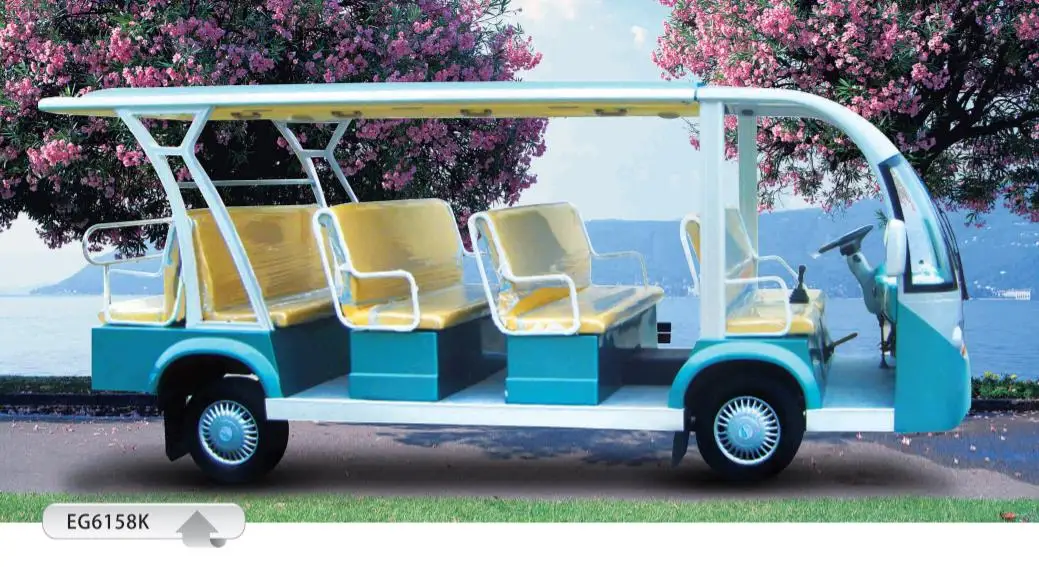

001 Sightseeing buses
The company customized 2 seats, 4 seats, 6 seats, 8 seats electric golf carts, sightseeing buses, but also customized more than 8 seats golf carts, sightseeing buses,If you have any other needs, please contact us.
Model | EG6088K | EG6118KA | EG6118KB | EG6158K | EG6230K | ||
Passenger Capacity | 8 | 11 | 11 | 14 | 23 | ||
Motor Power (KW) | 3/5 DC 7.5 AC | 5 DC/7.5AC | 5 DC /7.5 AC | 5 DC /7.5 AC | 6.3/10 DC | ||
Voltage (V) | 48/72 | 72 | 72/48(Dual) | 72/48(Dual) | 72 | ||
Range (loaded)(km) | 60/100/110 | 100/110 | 80/90/100/110 | 75/90/100/105 | 70 | ||
Max, speed (km/h) | 32/35/40 | 32/42 | 30/50/40 | 48/40/50 | 45 | ||
Min. Turning Radilus (m) | 4.5 | 4.5 | 5.35 | 5.35 | 6.5 | ||
Climbing Ability (loaded) | 15%/20% | 15%/20% | 20%/15%/18% | 20%/15% | 15%/20% | ||
Overall Dimension (mm) | 4230X1490X2050 | 4230X1490X2050 | 5000x1490x2050 | 5000x1490x2050 | 5950*1950*2170 | ||

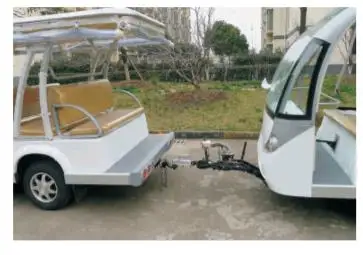

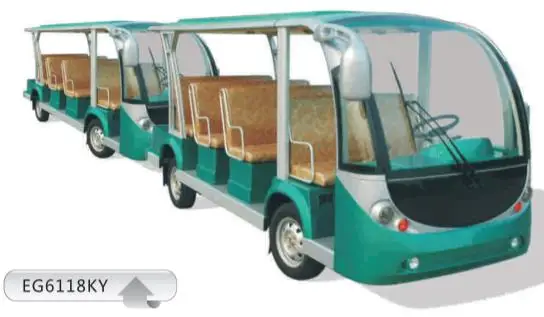

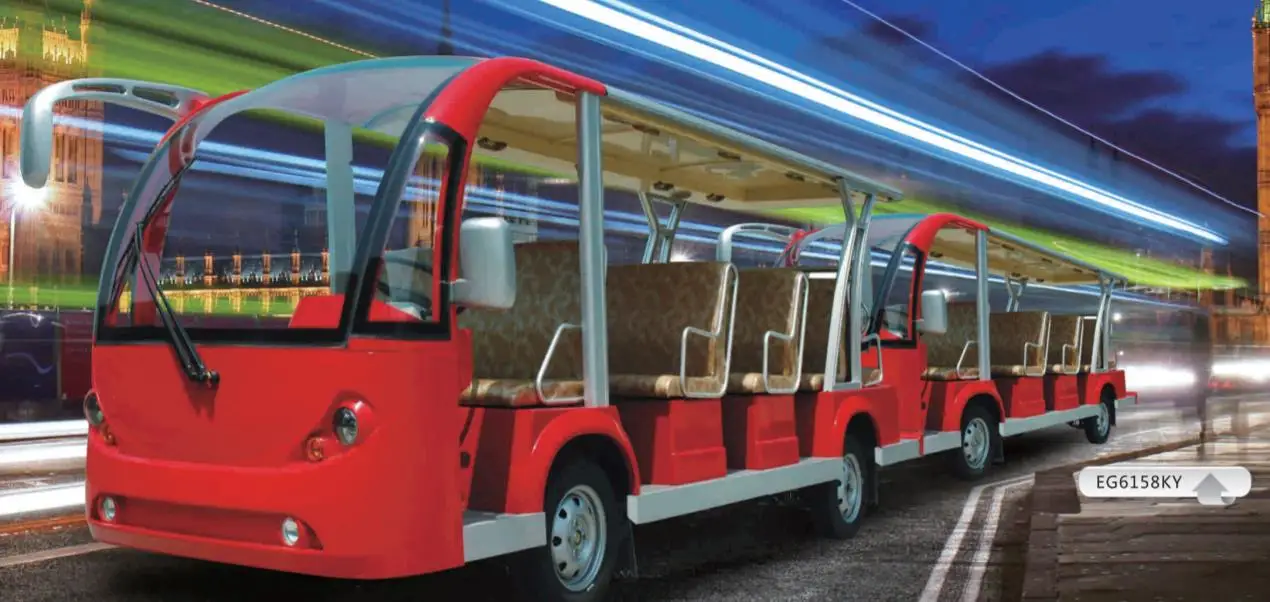

002 Sightseeing buses train
The company customized 2 seats, 4 seats, 6 seats, 8 seats and more than 8 seats electric golf carts, sightseeing buses, but also customized more than 20 seats golf carts, sightseeing buses.If you have any other needs, please contact us.
Model | EG6118KY | EG6158KY | |
Passenger Capacity | 23 | 29 | |
Valtage(V) | 72 | 72 | |
Motor Power(KW) | 6.3 /7.5 | 6.3 /7.5 | |
Max. Speed (km/h) | 40 | 40 | |
Range (loaded)(km) | 75 | 75 | |
Minimum Turning Radius (m) | 9 | 9 | |
Climbing Ability (loaded) | 1760kgs | 2320kgs | |
Overall Dimensions (mm) | 2pcs,5000x1490x2050 | 2pcs,5000x1490x2050 | |

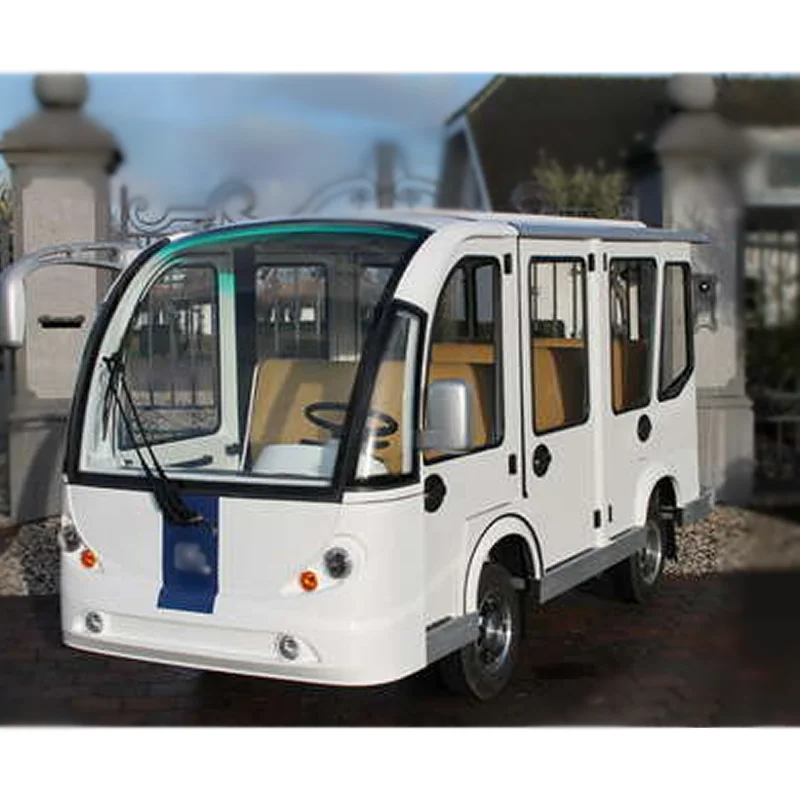

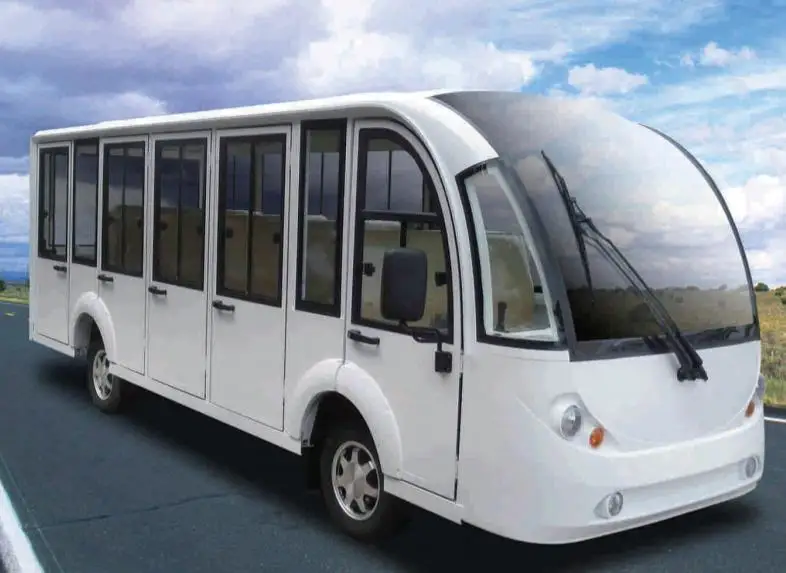

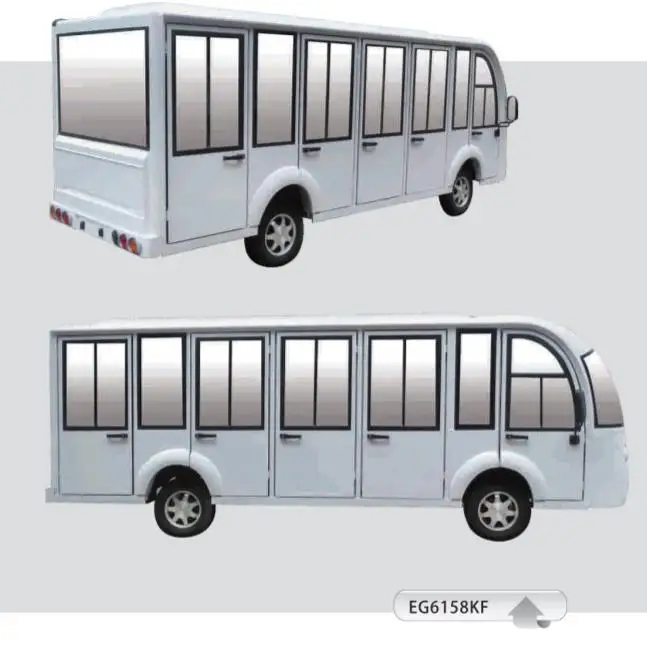

003 Electric mini bus
The company customized 2 seats, 4 seats, 6 seats, 8 seats and more than 8 seats electric golf carts, sightseeing buses, but also customized more than 20 seats golf carts, sightseeing buses, and electric mini buses,If you have any other needs, please contact us.
Model | EG6088KF | EG6118KAF | EG6118KAF | EG6158KF | ||
Passenger Capacity | 8 | 11 | 11 | 14 | ||
Motor Power (KW) | 3/5/7.5 AC | 5 /7.5AC | 5 /7.5 AC | 5 /7.5 AC | ||
Voltage (V) | 48/72 | 72 | 48/72 | 48/72 | ||
Range (loaded)(km) | 60/100/115 | 100/110 | 80/90/100/110 | 75/90/100/105 | ||
Max, speed (km/h) | 32/35/40 | 32 | 30/35/40/50 | 30/40/48/50 | ||
Min. Turning Radilus (m) | 4.5 | 4.5 | 5.35 | 5.35 | ||
Climbing Ability (loaded) | 15%/20% | 15%/28% | 20%/15%/18% | 20%/15% | ||
Overall Dimension (mm) | 4230X1490X2050 | 4230X1490X2050 | 5000x1490x2050 | 5000x1490x2050 | ||

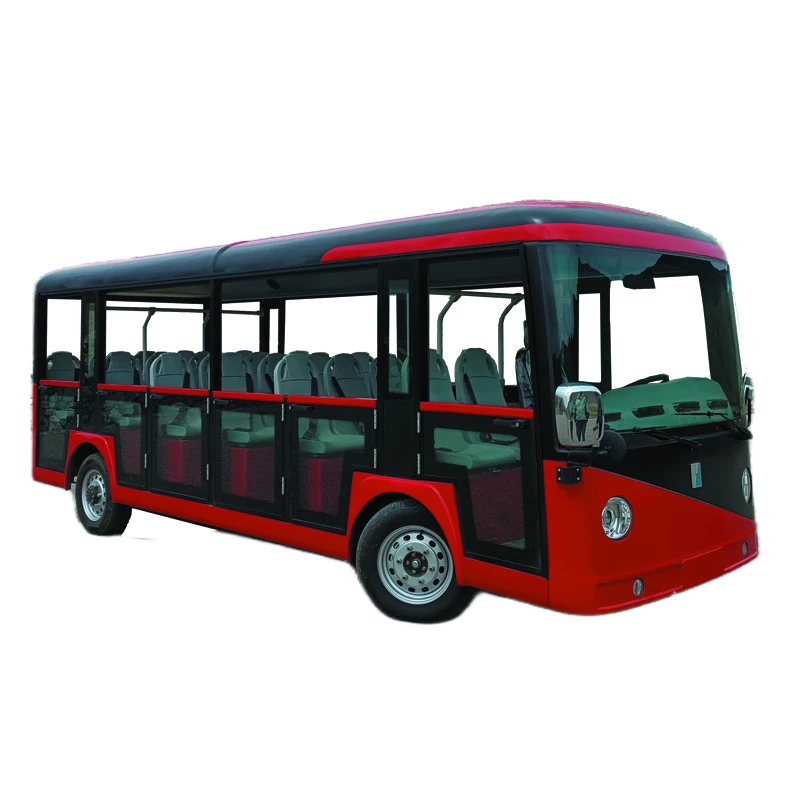

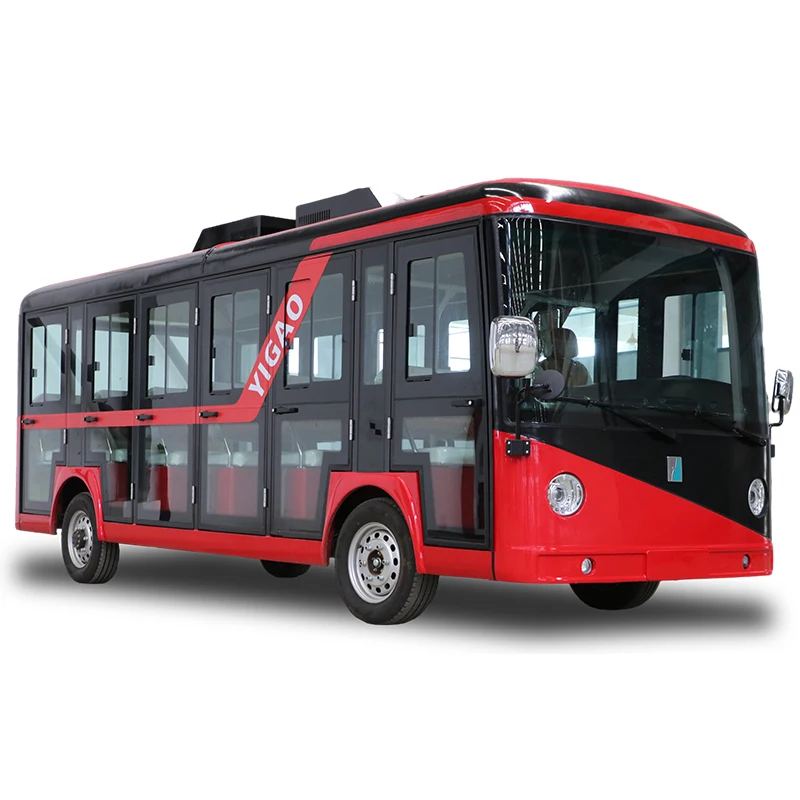

EG6232K、EG6232K with closed doors、EG6232K with half doors
Passenger capacity | 23 | |
Components | Controller | USA Curtis 1238E |
Motor | 16.6kw AC motor | |
Battery | 24xT105(185Ah@5hr rate) | |
Charger | 2pcs off board chargers | |
Charging time | 8 -10h | |
Body | Windshield | Double laminated glass, wiper (double arm type) |
Body | Metal side trims, magnesium aluminum alloy structure | |
Seat | Plastic bus seats + metal armrest, with safety chain, with 2 points seat belts | |
Floor | Bamboo + aluminum floor | |
Dashboard | Digital meter, combination switch, alarm switch, fog lights switch | |
Mirror | 2pcs | |
Lighting system | Front: 2 Headlights (High beam and low beam headlight), 2 front turn signals, 2 fog lights; Back: 2 rear turn signals, 2 taillights (position light & brake light, 1 fog light, 1 reverse light),reversing lights, license lights | |
Audio System | Radio, louder , reversing alarm, horn | |
Frame | Chassis | Integral welded frame assembly, high-strength square steel welded structure, phosphate paint anti-rust treatment |
Rear Axle | 24 gears | |
Driving mode | Motor drive | |
Front suspension | Independent suspension, helix spring + shock absorber | |
Rear suspension | rear plate spring + shock absorber | |
Brake system | Front disc brake and rear drum brake, with vacuum booster, hand parking | |
Steering system | Electric power steering | |
Tire | 215/70R15C-10PR |
Performanc | Overall dimension | 6170×1940×2350（mm） |
Range | 80-100km | |
Min. ground clearance | 130mm | |
Net weight | 2300kgs | |
Max. loading weight | 1955kgs | |
Max. climbing ability (loaded) | 20% | |
Minimum turning radius | 7.2m | |
Max. speed | 30km/h |
Model | EG6120K | EG6090K | |
Passenger Capacity | 12 | 9 | |
Valtage(V) | 48/72 | 48/72 | |
Motor Power(KW) | 5 | 5 | |
Max. Speed (km/h) | 22/28 | 22/28 | |
Range (loaded)(km) | 70/90 | 70/90 | |
Minimum Turning Radius (m) | 7.5 | 7.2 | |
Climbing Ability (loaded) | 15% | 15% | |
Max loading Weight | 960kg | 720kg | |
Overall Dimensions (mm) | 5180*1630*1950 | 4930*1610*1920 | |
