Ampinvt inverter 6000 Watt inverter 6kw 6000W 48V Pure Sine Wave Inverter with mppt
- Category: >>>
- Supplier: Foshan Top One Power Technology Co. Ltd.Foshan Ltd.
Share on (1601241285892):
Product Overview
Description
Products Description

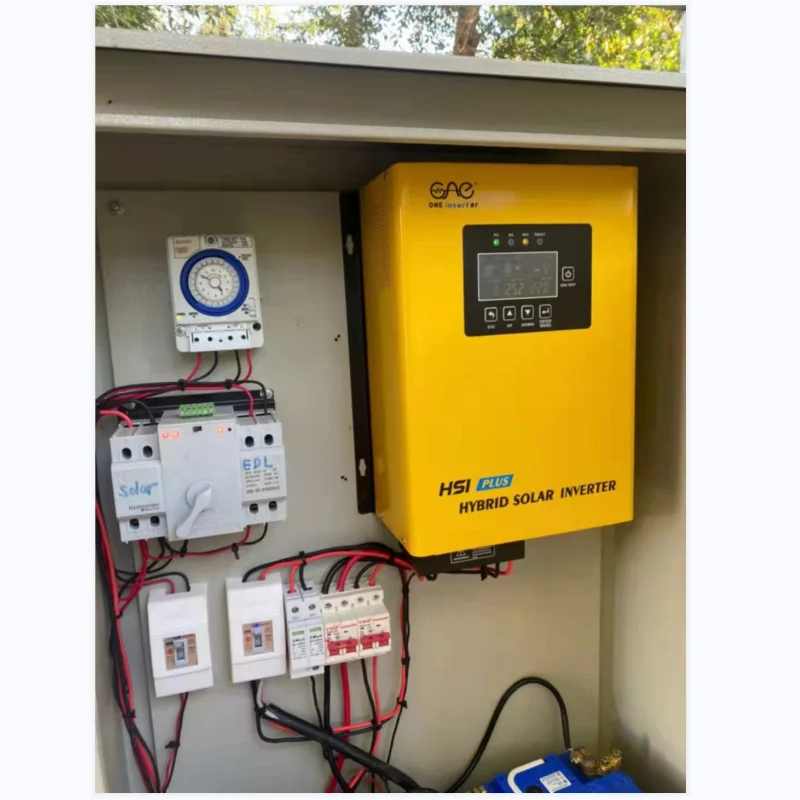

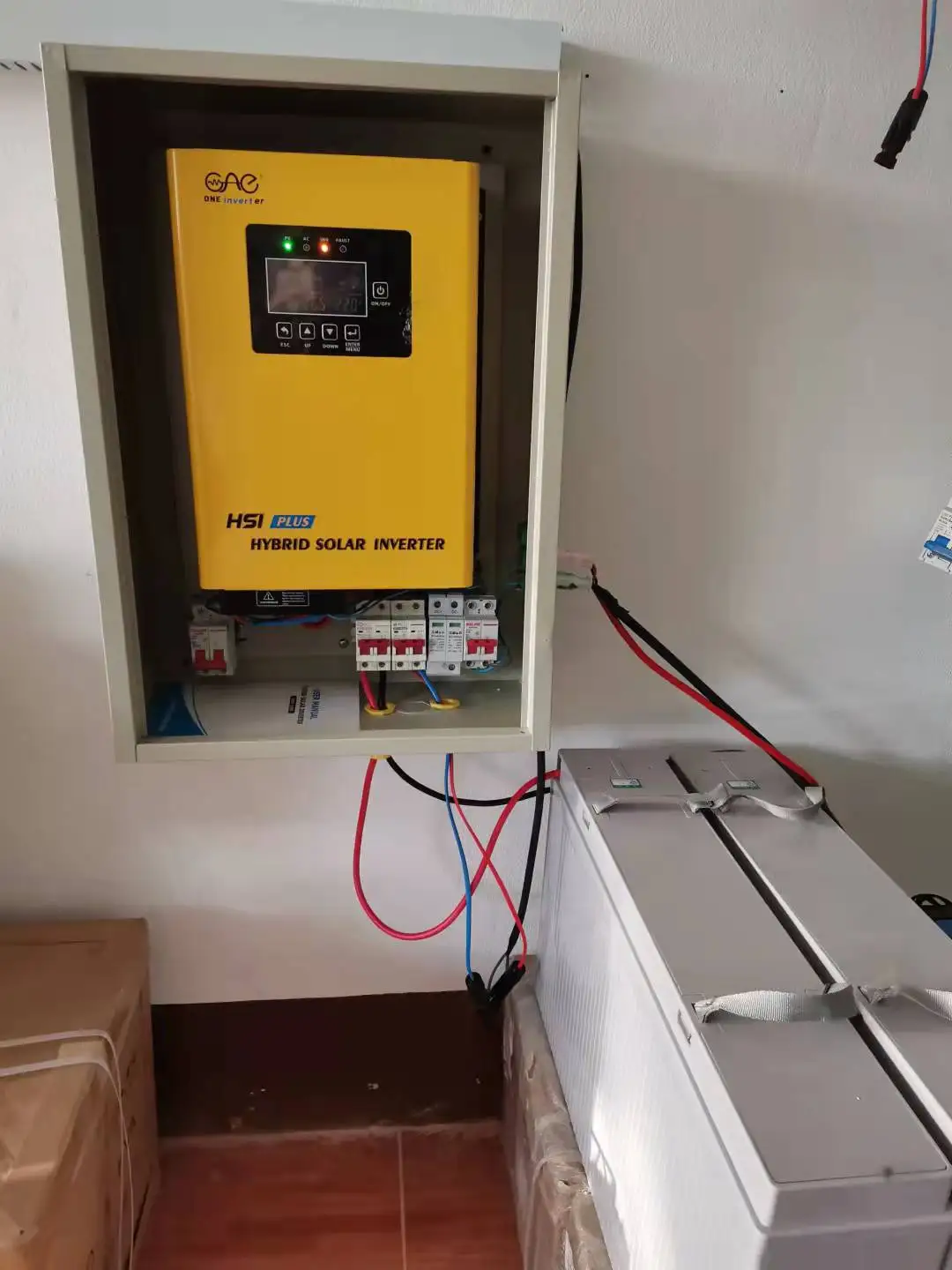

Customer Photos
Product Paramenters
Model | HSIplus-102 | HSIplus-122 | ||
Rated power | 1000W | 1200W | ||
Surge power | 3000W | 3600W | ||
AC Input & Output | ||||
Voltage | 220VAC | |||
Selectable Voltage Range | 165-275VAC | |||
Frequency Range | 50Hz/60Hz automatic recognition | |||
AC Voltage Regulation (BATT. Mode) | (DC Batt.mode)220vac±3% | |||
Transfer Time | ≤5ms | |||
Wave Form | Pure Sine Wave | |||
Transformer type | Toroidal | |||
Transfer efficiency | ≥85% | |||
Battery | ||||
Battery Voltage | 12V/24V | |||
Type | Gel/SLA/AGM/Water/Lithium(lifepo4) Battery | |||
DC Charge Voltage | 12~16VDC(12V)/24~32VDC(24V) | |||
Overcharge Protection | Battery voltage ≧16VDC (12V) ≧32VDC (24V), stop charging after 60s alarm | |||
Solar Charge & Ac Charger | ||||
Maximum PVArray Open Circuit Voltage | Max. 100V | |||
Maximum Pv Array Power | 450W(12V)/900W(24V) | 600W(12V)/1200W(24V) | ||
Maximum Ac Charge Current | 15A | |||
Maximum Solar Charge Current | 30A MPPT | 40A MPPT | ||
Maximum Charging Current | 45A | 55A | ||
Working mode | ||||
01 mode | AC mains priority | |||
02 mode | ECO mode | |||
03 mode | DC battery priority | |||
04 mode | Unattended mode | |||
Communication Port | ||||
Type | RS485, available for wifi box & external control screen | |||
Physical | ||||
Dimension, D*W*H(MM) | 396*294*145 | |||
G.W.(KGS) | 10 | 11 | ||
Environment | ||||
Humidity | 0~95%（NO CONDESNSATION) | |||
Operating Temperature | 0~55℃ | |||
Storage Temperature | 0~55℃ | |||
*Product Specifications Are Subject To Change Without Further Notice | ||||
