SUN 6K SG01HP3 EU AM2 Solar Inverter High Efficiency 6Kw Hybrid Power Inverter 6000W Hv Inverter Battery
- Category: >>>
- Supplier: Sunlink (xiamen) New Energy Technology Co. Ltd.
Share on (1601241349152):
Product Overview
Description
SUN-6K-SG01HP3-EU-AM2 Solar Inverter High Efficiency 6Kw Hybrid Power Inverter 6000W Hv Inverter Battery
Product Introduction
SUN-6K-SG01HP3-EU-AM2 Solar Inverter High Efficiency 6Kw Hybrid Power Inverter 6000W Hv Inverter Battery
Higher yields / Safe & Reliable / Smart / User-friendly
SUN 5/6/8/10/12/15/20/25K-SG01HP3-EU-AM2 is brand new three phase hybrid inverter with High voltage battery 160-700V, ensuring system efficiency and less heat dissipation. With compact design and high-power density, this series supports 1.3 DC/AC ratio, saving device investment. It supports three phase unbalanced output, extending the application scenarios.

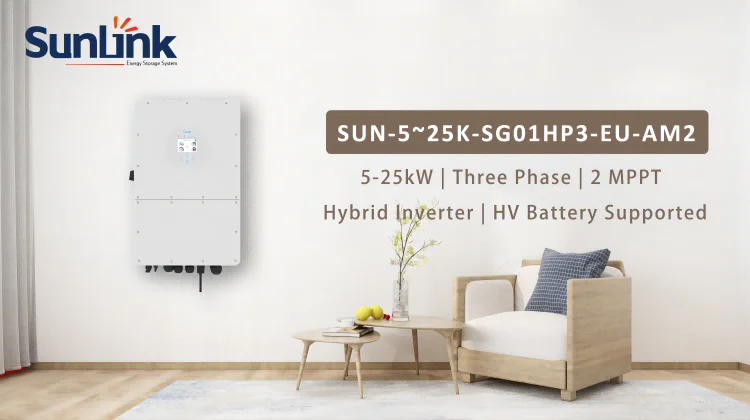

SUN-5~25K-SG01HP3-EU-AM2
5-25kW | Three Phase | 2 MPPT | Hybrid Inverter
- 100% unbalanced output, each phase
- AC couple to retrofifit existing solar system
- Max. 10 pcs parallel for on-grid and off-grid
operation; Support multiple batteries parallel
operation; Support multiple batteries parallel
- Max. charging/discharging current of 50A
- High voltage battery, higher effificiency
- 6 time periods for battery charging / discharging
- Support storing energy from diesel generator
The following illustration shows basic application of this inverter. It also includes following devices to have a complete running system.
- Generator or Utility
- PV modules
Smart Monitoring Platform
Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.
Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.
Product Paramenters
Model | SUN-5K-SG01 HP3-EU-AM2 | SUN-6K-SG01 HP3-EU-AM2 | SUN-8K-SG01 HP3-EU-AM2 | SUN-10K-SG01 HP3-EU-AM2 | SUN-12K-SG01 HP3-EU-AM2 | SUN-15K-SG01 HP3-EU-AM2 | SUN-20K-SG01 HP3-EU-AM2 | SUN-25K-SG01 HP3-EU-AM2 | ||||||||
Battery Input Data | ||||||||||||||||
Battery Type | Lithium-ion | |||||||||||||||
Battery Voltage Range (V) | 160~700 | |||||||||||||||
Max. Charging Current (A) | 30 | 37 | 50 | |||||||||||||
Max. Discharging Current (A) | 30 | 37 | 50 | |||||||||||||
Number of battery input | 1 | |||||||||||||||
Charging Strategy for Li-Ion Battery | Self-adaption to BMS | |||||||||||||||
PV String Input Data | ||||||||||||||||
Max. DC Input Power (W) | 6500 | 7800 | 10400 | 13000 | 15600 | 19500 | 26000 | 32500 | ||||||||
Max. DC Input Voltage (V) | 1000 | |||||||||||||||
Start-up Voltage (V) | 180 | |||||||||||||||
MPPT Range (V) | 150-850 | |||||||||||||||
Full Load DC Voltage Range (V) | 195-850 | 195-850 | 260-850 | 325-850 | 340-850 | 420-850 | 500-850 | 625-850 | ||||||||
Rated DC Input Voltage (V) | 600 | |||||||||||||||
PV Input Current (A) | 20+20 | 26+20 | 26+26 | |||||||||||||
Max. PV I (A) | 30+30 | 39+30 | 39+39 | |||||||||||||
No.of MPP Trackers | 2 | |||||||||||||||
No.of Strings per MPP Tracker | 1+1 | 2+1 | 2+2 | |||||||||||||
AC Output Data | ||||||||||||||||
Rated AC Output and UPS Power (W) | 5000 | 6000 | 8000 | 10000 | 12000 | 15000 | 20000 | 25000 | ||||||||
Max. AC Output Power (W) | 5500 | 6600 | 8800 | 11000 | 13200 | 16500 | 22000 | 27500 | ||||||||
AC Output Rated Current (A) | 7.6/7.3 | 9.1/8.7 | 12.2/11.6 | 15.2/14.5 | 18.2/17.4 | 22.8/21.8 | 30.4/29 | 37.9/36.3 | ||||||||
Max. AC Output Rated Current (A) | 8.4/8 | 10/9.6 | 13.4/12.8 | 16.7/16 | 20/19.2 | 25/24 | 33.4/31.9 | 41.7/39.9 | ||||||||
Max. Three-phase Unbalanced Output Current(A) | 13 | 13 | 18 | 22 | 25 | 30 | 35 | 41.7 | ||||||||
Max. Continuous AC Passthrough (A) | 40 | 80 | ||||||||||||||
Peak Power (off grid) | 1.5 time of rated power, 10 S | |||||||||||||||
Generator Input/Smart Load /AC Couple Current (A) | 7.6/40/7.6 | 9.1/40/9.1 | 12.2/40/12.2 | 15.2/40/15.2 | 18.2/80/18.2 | 22.8/80/22.8 | 30.4/80/30.4 | 37.9/80/37.9 | ||||||||
Power Factor | 0.8 leading to 0.8 lagging | |||||||||||||||
Output Frequency and Voltage | 50/60Hz; 3L/N/PE 220/380, 230/400Vac | |||||||||||||||
Grid Type | Three Phase | |||||||||||||||
Total Harmonic Distortion (THD) | <3% (of nominal power) | |||||||||||||||
DC Current Injection | <0.5% In | |||||||||||||||
Efficiency | ||||||||||||||||
Max. Efficiency | 97.60% | |||||||||||||||
Euro Efficiency | 97.00% | |||||||||||||||
MPPT Efficiency | 99.90% | |||||||||||||||
