Single Colors Plastic Bag Label Printer Flexo Printing Machine Flexographic Printer
$34,000.00-35,000.00
High Speed Automatic Label Stickers Uv Digital Flexo Printing Machine For Roll To Roll Flexo Printing Machine
- Category: >>>
- Supplier: Zhejiang Jingle Blue Printing Machinery Co. Ltd.
Share on (1601241435546):
Product Overview
Description

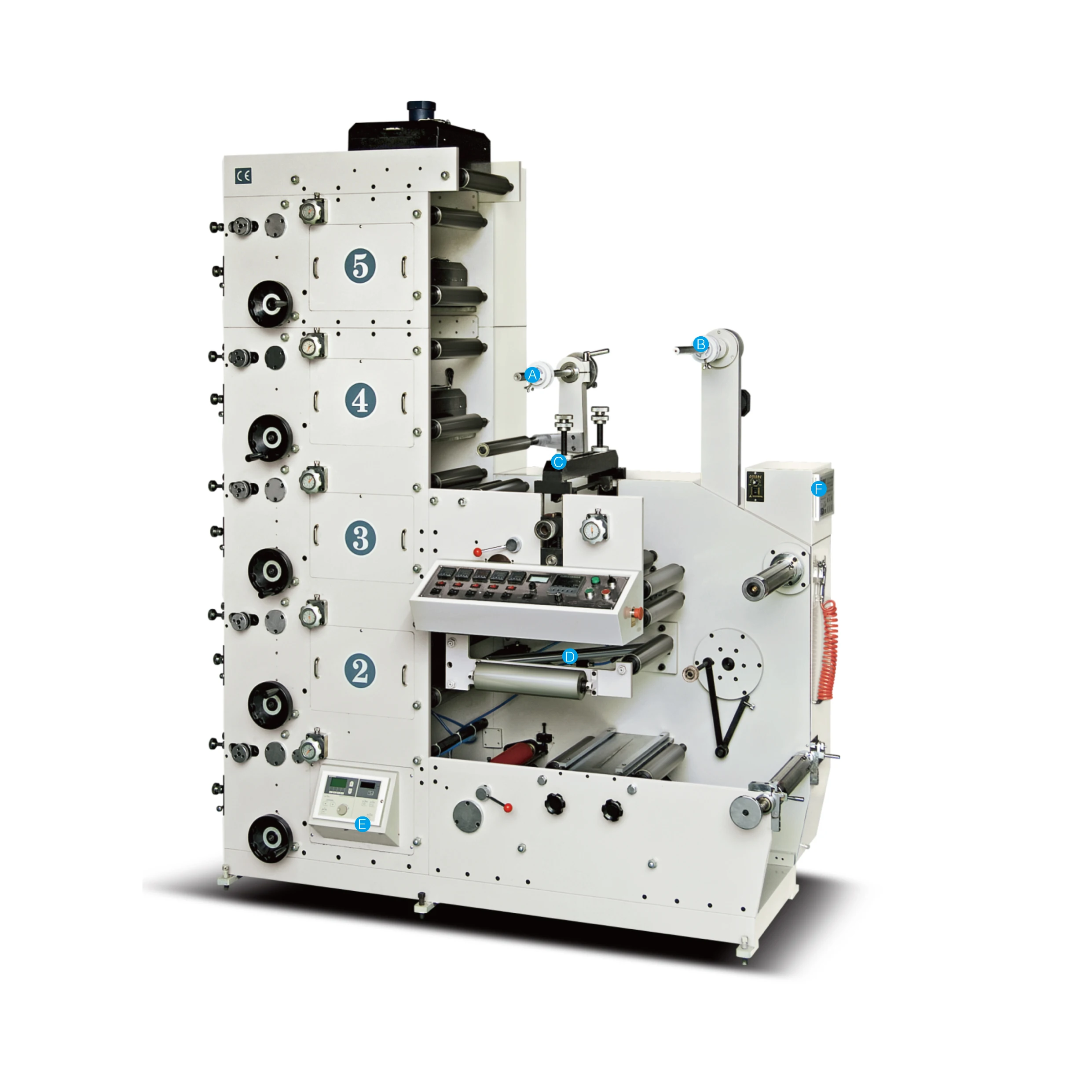

RY480 FLEXO PRINTING MACHINE
1.One mounting machine
2.One anilox roller for each group (lpi is optional, made in shanghai)
3.Three sets printing rollers
4.With the lamination station
5.One unwinding tension controller (Chinese brand ZXT, optional is Mitsubishi from Japan)
6.One rewinding tension controller (Chinese brand ZXT, optional is Mitsubishi from Japan)
7.One rotary die cutting station
2.One anilox roller for each group (lpi is optional, made in shanghai)
3.Three sets printing rollers
4.With the lamination station
5.One unwinding tension controller (Chinese brand ZXT, optional is Mitsubishi from Japan)
6.One rewinding tension controller (Chinese brand ZXT, optional is Mitsubishi from Japan)
7.One rotary die cutting station
8.One lamination unit
9.Chinese web guiding system
Optional
A1.Slitting station
A2. LED UV
A3. Corona Treater
A4 More rotary die cutting station
A5. Video monitor system
A6 Magnetic Roller
A7
Model | RY480-5D |
Printing speed | 5-60m/min |
Printing color | 5 colours |
Max. Web width | 480mm |
Max. Printing width | 450mm |
Max. Unwinding diameter | 800mm |
Max. Rewinding diameter | 750mm |
Printing girth | 180-580mm |
Precision of registration | ±0.10mm |
Dimensions | 2100*1300*3300(mm) |
Machine weight | About 2000--5000 kg |

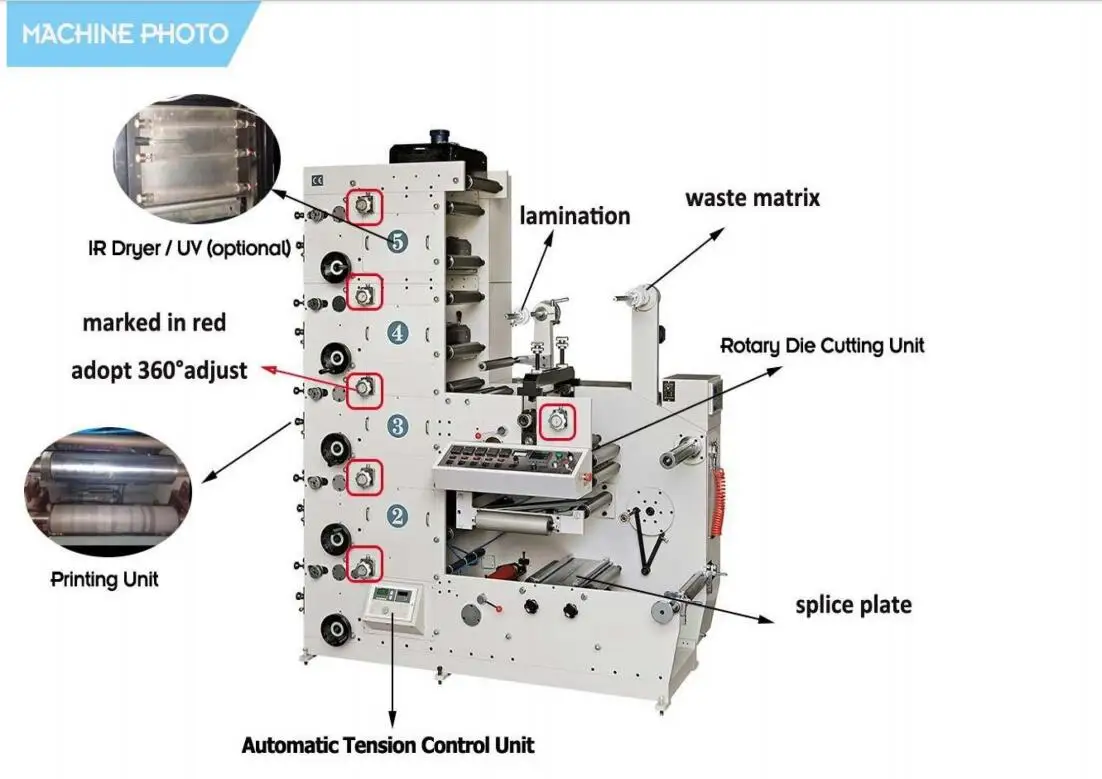

Characteristics:
1.Adopt the anilox roller to spread ink.
2.Unwinding and rewinding are controlled by magnetism power brake, clutch. (or by automatic tension controller of mitsubishi , made in Japan).
3.Printing unit adopt 360º for registration.
4.Printing unit have one infrared to dry the device group each.
5.The rubber roller can break away from automatically while parking, and running at a low speed, in order to avoid water being black to be dry.
6.The main motor is adopted the import stepless regulation of frequency conversion.
7.Unwinding, printing, varnishing, IR drying, laminating and rewinding can be finished in one process, this kind of printing machine is best for each printing companies to print on adhesive-paper labels and other commercial label.
1.Adopt the anilox roller to spread ink.
2.Unwinding and rewinding are controlled by magnetism power brake, clutch. (or by automatic tension controller of mitsubishi , made in Japan).
3.Printing unit adopt 360º for registration.
4.Printing unit have one infrared to dry the device group each.
5.The rubber roller can break away from automatically while parking, and running at a low speed, in order to avoid water being black to be dry.
6.The main motor is adopted the import stepless regulation of frequency conversion.
7.Unwinding, printing, varnishing, IR drying, laminating and rewinding can be finished in one process, this kind of printing machine is best for each printing companies to print on adhesive-paper labels and other commercial label.

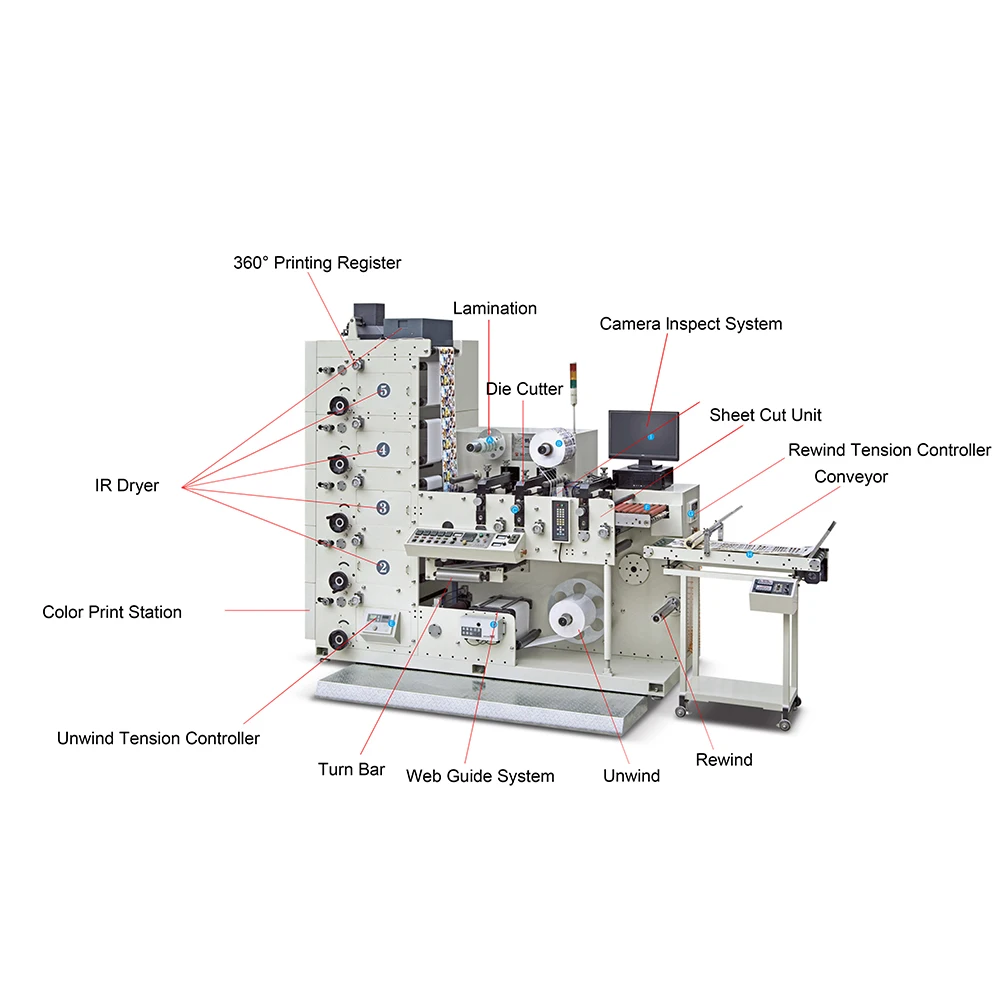

1. Unwinder Unit
2. Web guiding system
3. Rotary die cutting unit
4. IR heater
5. Tension controller ( Mitsubishi brand)
6. Tension controller ( Chinese brand)
7. Corona treater ( Hefeng Chinese brand)
8. electric appliance cabinet
9. Schneider Inverter
10. Schneider breaker
11. UV lines
12. Metal Tag
