Tonheflow 3 way valve with manual override DN20 SS304 motorized water valve controller electric water valve
- Category: >>>
- Supplier: Taizhou Tonhe Flow Control Co. Ltd.Taizhou Ltd.
Share on (1601241520068):
Product Overview
Description
Product Description
A20-S20-S3-B 3 way DN20 SS304 motorized valve
| Size | NPT/BSP 3/4'' |
| Material | SS304 |
| Fields of applications | Water |
| Maximum working pressure | 1.0MPa |
| Rated Voltage | DC9-24v |
| Packaging | Standard export package or Customized |
| Payment | L/C,D/P,T/T |
| Delivery | Ningbo Port,3-20 days after payment |

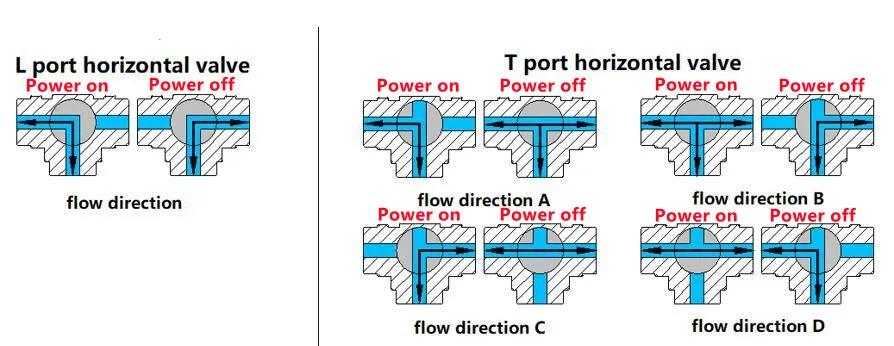

| 3 way flow direction | 3 way L port |
Technical Parameters:
Model: A20-T20-S3-B
Size: 3/4''
Internal diameter: 20mm
Working current: less than 800MA
Open/close time: less than 5S
Life time: 70000 times
Manual override: YES
Indicator: YES
Max. working pressure: 1.0MPa
Actuator material: Engineering Plastics
Sealing material:EPDM & PTFE
Max. torque force: 2 Nm
Cable length: 50cm
Actuator rotation: 90 degree
Liquid temperature: 2 Celsius-90 Celsius
Environment temperature: -15 Celsius-50 Celsius
Protection class: IP67
Application
Water meter , water leak detection system and water treatment etc equipment
HAV and fire works. Automatic drain system
Irrigation ect small control equipment
Pls confirm the above different versions of actuators
When you inquiry the valve, pls confirm the detail technical data :
1, valve size , materail
2, 3 way which flow direciton?
3, actuator cable length 0.5m or 1.5m?
