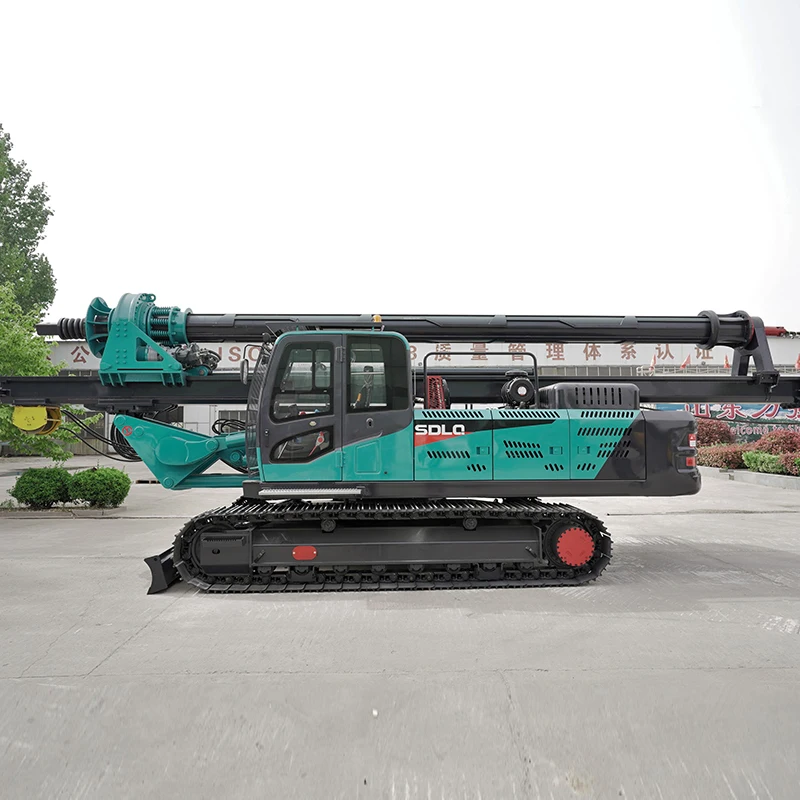

SDLQ High Quality Drilling Rig Pile rig Hydraulic Rotatory Drilling Rig Drilling Equipment
SDLQ High Quality Drilling Rig Pile rig Hydraulic Rotatory Drilling Rig Drilling Equipment
SDLQ High Quality Drilling Rig Pile rig Hydraulic Rotatory Drilling Rig Drilling Equipment
SDLQ High Quality Drilling Rig Pile rig Hydraulic Rotatory Drilling Rig Drilling Equipment
SDLQ High Quality Drilling Rig Pile rig Hydraulic Rotatory Drilling Rig Drilling Equipment
SDLQ High Quality Drilling Rig Pile rig Hydraulic Rotatory Drilling Rig Drilling Equipment
SDLQ High Quality Drilling Rig Pile rig Hydraulic Rotatory Drilling Rig Drilling Equipment

SDLQ High Quality Drilling Rig Pile rig Hydraulic Rotatory Drilling Rig Drilling Equipment

Share on (1601241635101):


Price:

Quantity:


Product Overview

Description



VR




order number

unit
LQR150
1
Maximum drilling diameter
mm
400-2500
2
Maximum drilling depth
m
40
3
Safe drilling operation range (from the rotary center)
mm
3500
4
Drilling rig size under working condition (length * width * height)
mm
6700*4000*15500
5
Drilling rig size in transportation state (length * width * height)
mm
13500*3000*3650
6
Operating weight (including drilling tool under standard configuration)
t
42.5



Motor
Brand
。
Cummins
7
Engine model
/
QSB7
Engine rated power/speed
kW
169
Emission stage
/
3Stages
8
Hydraulic system
Maximum working pressure of main pump
MPa
30
9
Power head
Rated output torque
kN·m
150
Operating speed
r/min
8-48
10

Feed cylinder
Maximum pressurization
kN
120
Maximum lifting force
kN
120
Pressurization stroke
mm
2500
11


Main winch
Main winch lifting force
kN
150
Maximum single rope speed of main winch
m/min
60
Diameter of main winch wire rope
mm
24
12


Auxiliary winch
Auxiliary winch lifting force
kN
30
Maximum single rope speed of auxiliary winch
m/min
55
Diameter of auxiliary winch wire rope
mm
12
13

Drill mast
Left/right inclination of mast
°
±4
Mast rake
°
±4
14
Turntable rotation
Turntable rotation angle
°
360
15

Speed
Maximum traveling speed of the whole machine
km/h
5
Maximum gradient of the whole machine
%
30
16

chassis
track width
mm
600
Total track width
mm
Telescopic chassis (3000-4000）
Wheel distance
mm
56000
17
Drill pipe specification
360Machine lock


Products Description






Contact Us

How to customize (design, material, packaging, logo)?
The lowest price ?
How to ensurequality ?
calculate the shipment cost ?

Contact Us For More Detail>
...


More products






Drill bit specifications available

1: Select drill bit specifications according to work requirements and soil quality

2: After determining the specifications, customize the drill bit according to the drilling diameter you need

3: The drill bit is a wearing part. Please buy as many as possible

4: The drill bit does not provide warranty

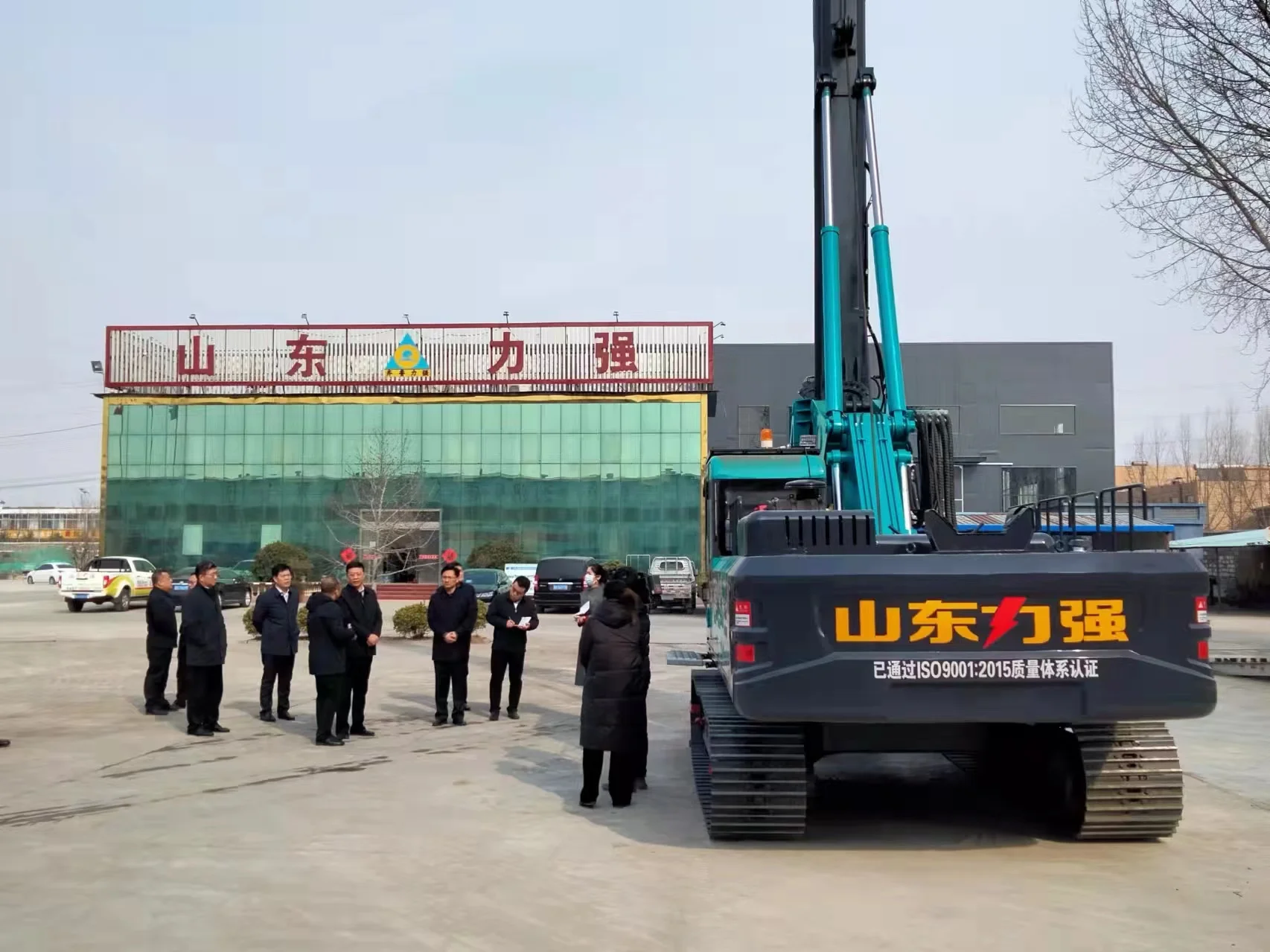

about us




Production scenario




Our customers




Our certificate






Packaging and shipping




FAQ




1.Are you trading company or manufacturer?
We are a professional manufacturer with 18 years of production history. Our professional engineers provide customized services, and we welcome on-site inspections.

2. How about your machine quality?
We haveISO, CE, and SGS certificates, and each machine is inspected and shipped with a one-year warranty.

3.what can you buy from us?
Pile driver,Mini excavator,Rotary Drilling Rig

4. What about the qaulity warranty?
We offer one-year quality warra

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW； Accepted Payment Currency:USD; Accepted Payment Type:
T/T,L/C,Credit Card,PayPal,Western Union,Cash; Language Spoken:English,Chin
