Hot Sell Automatic Heat Press Stamping Machine Hot For Leather Paper
- Category: >>>
- Supplier: Ruian Koten Machinery Co. Ltd.Ruian Ltd.
Share on (1601241819094):
Product Overview
Description
Product Description
Hot foil stamping machine
The hot foil stamping machine is used for hot stamping all kinds of sheet printing papers by aluminum foil, it can do both convex and flat stamping, make the printing products more beautiful. Suitbable for hot stamping the book covers, rigid box covers, packaging products surface.
This machine is suitable for hot stamping anodized aluminum on various paper products, all kinds of advanced fine printing, can be in this machine for concave and convex hot stamping， flat hot stamping，in order to get three-dimensional sense, exquisite and beautiful packaging, decoration products.

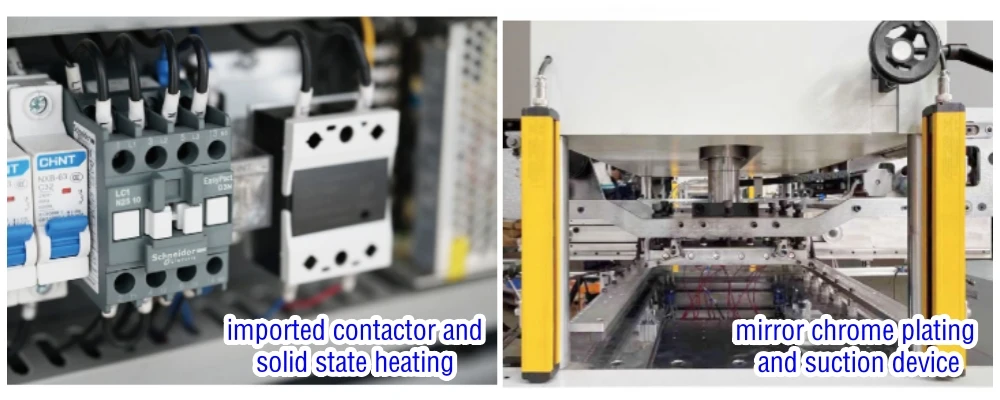

Details Images
Main Parameters
JX-55 | JX-60 | JX-75 | ||||
Max.Paper-feeding area | 540 x450mm | 600x500mm | 750x600mm | |||
Min.Paper-feeding area | 100x100mm | 150x150mm | 150x150mm | |||
Max.Hot stamping area | 300x250mm | 500 x 400mm | 500x400mm | |||
Max.Mechanical speed | 40 times/min | 35 times/min | 35 times/min | |||
Max.Feeding pile height | 420mm | 450mm | 420mm | |||
Working voltage | 220V | 220V | 380V | |||
Dimension | 1500x1200x1600mm | 1800x1250x1800mm | 2100x1300x2050mm | |||
Total weight | 700kg | 1000kg | 1450kg | |||
Power | 5kw | 5kw | 9kw | |||
Parameters are for reference only, subject to final confirmation | ||||||
Configuration list
No | Name | Brand | Origin |
1 | PLC | XINJE | China |
2 | Approach switch | Schneider | Germany |
3 | Stepper motors | SOYO | China |
4 | Photoelectric enlightenment | Sick | Germany |
5 | Laser photoelectric opening | Omron | Japan |
6 | Open light power | MingWei | Taiwan，China |
7 | AC Contactors | Schneider | Germany |
8 | Air Switch | Schneider | Germany |
9 | Buttons | Schneider | Germany |
10 | Cylinder | AirTAC | Taiwan，China |
Application
