LH Type Electric Hoist Double Girder Bridge Overhead Cranes
$1,800.00-2,000.00

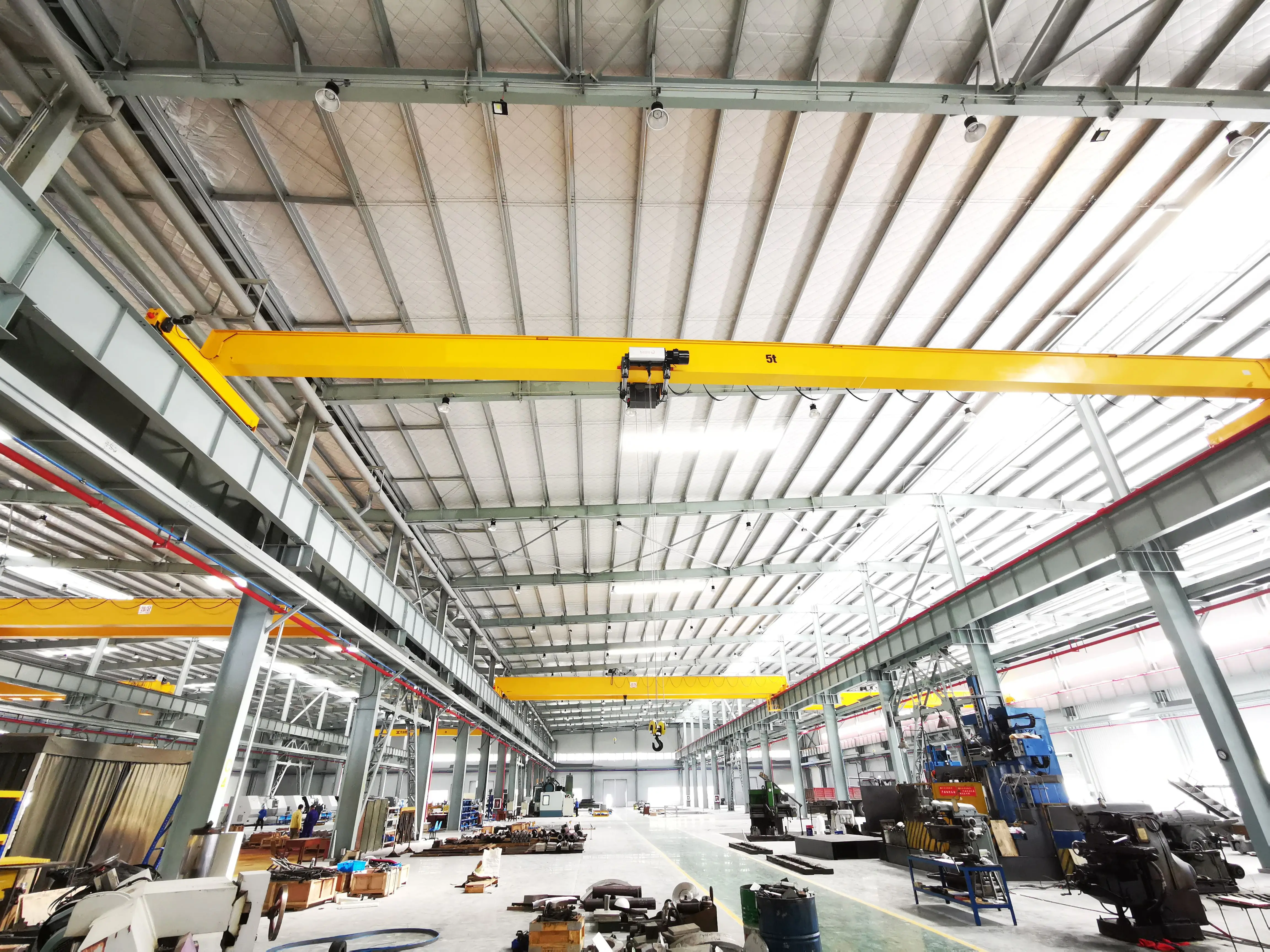

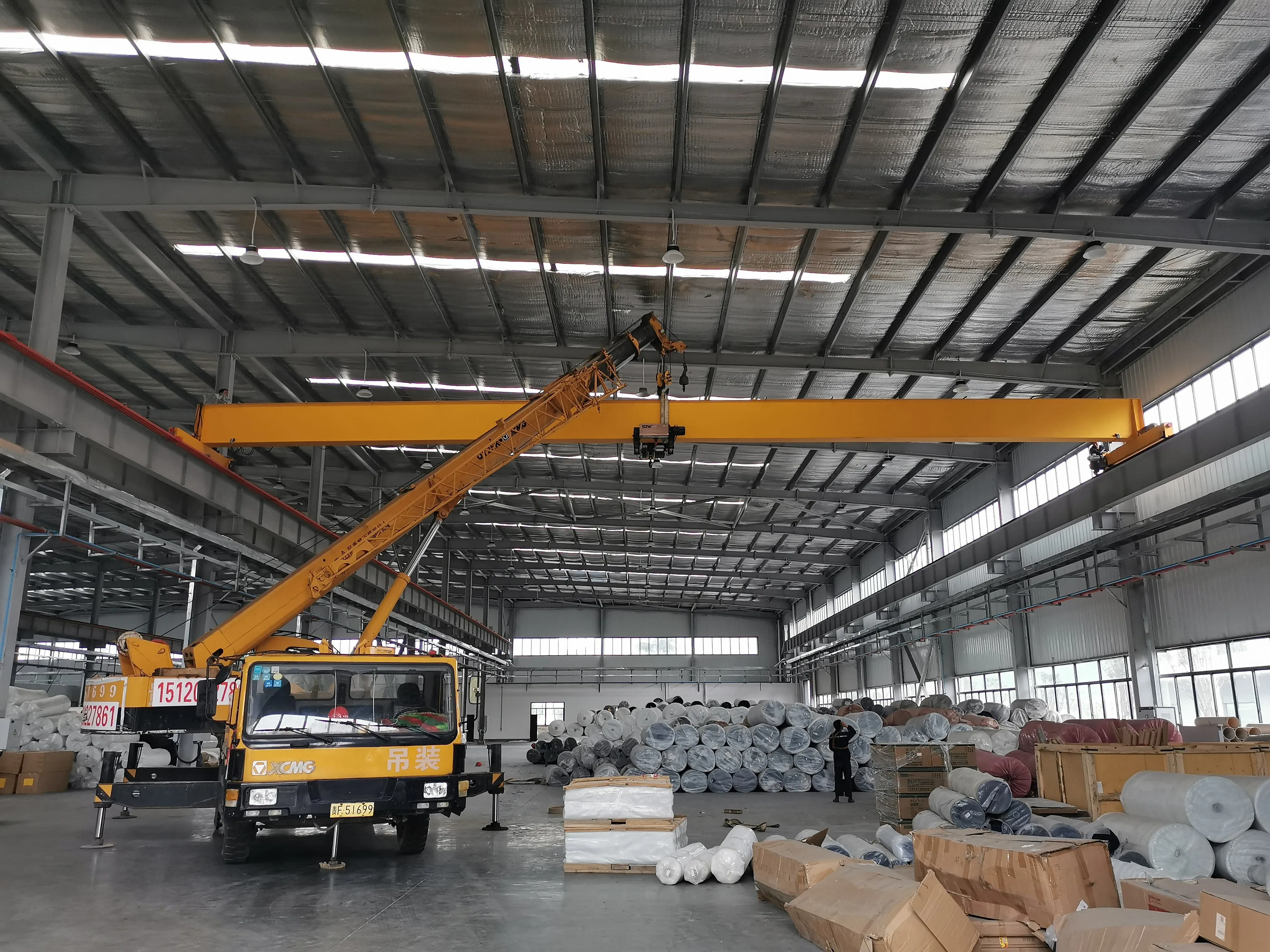

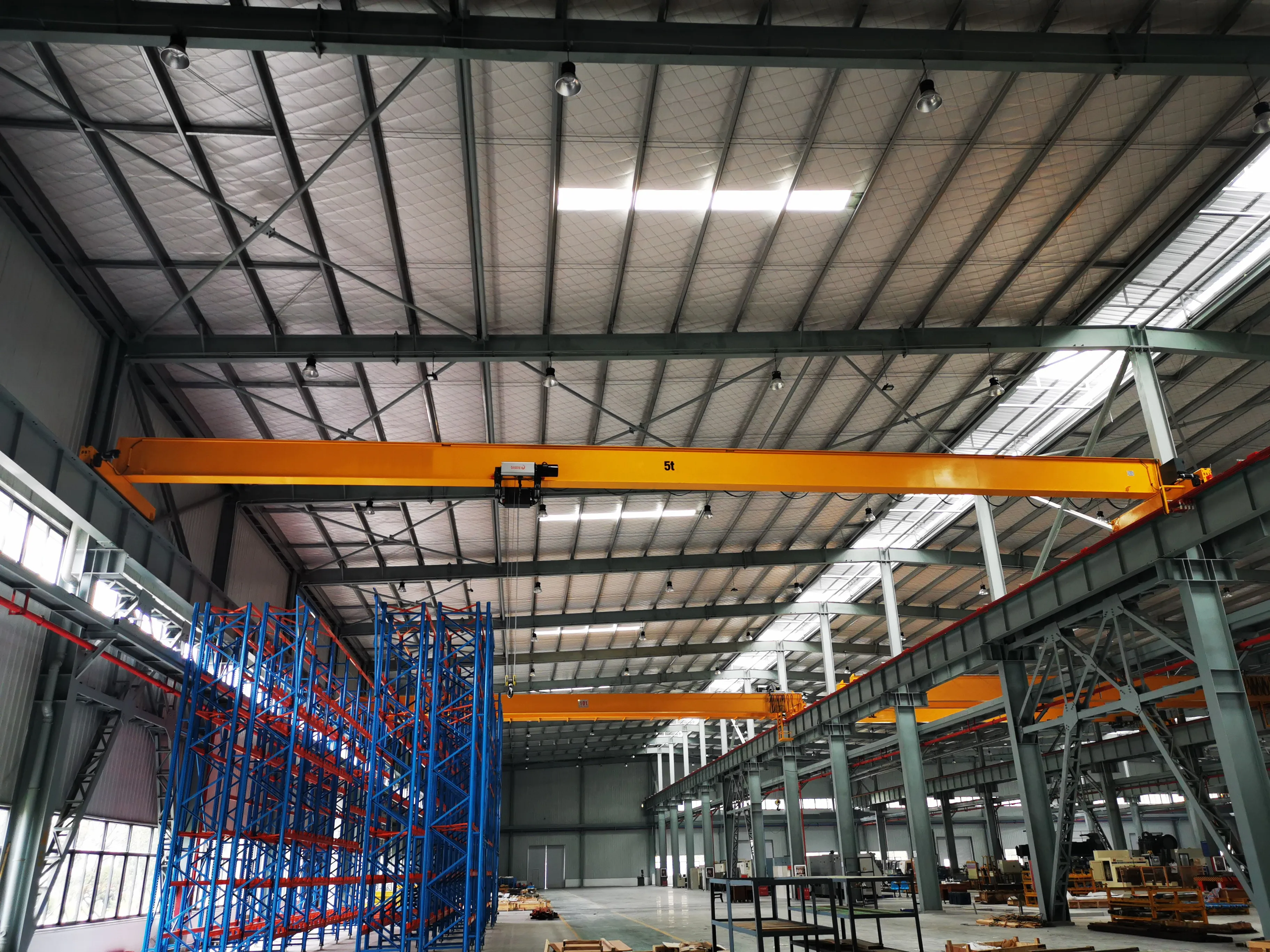

Protection class IP54 15 tons Single girder electronic crane lifting equipment bridge crane in steel plant
- Category: >>>
- Supplier: Huahang Transportation Equipment Technology (shenzhen) Co. Ltd.
Share on (1601241835014):
Product Overview
Description

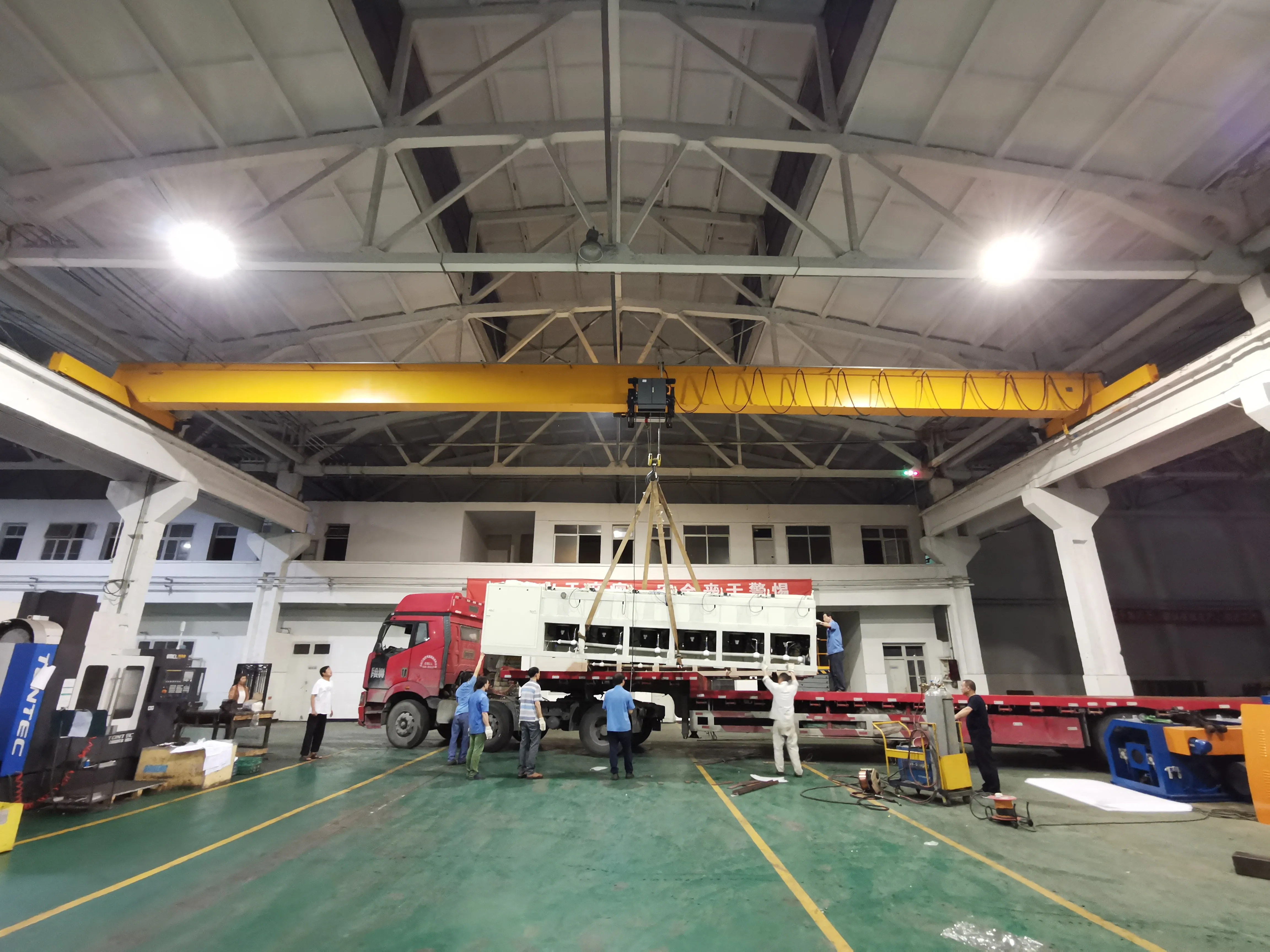

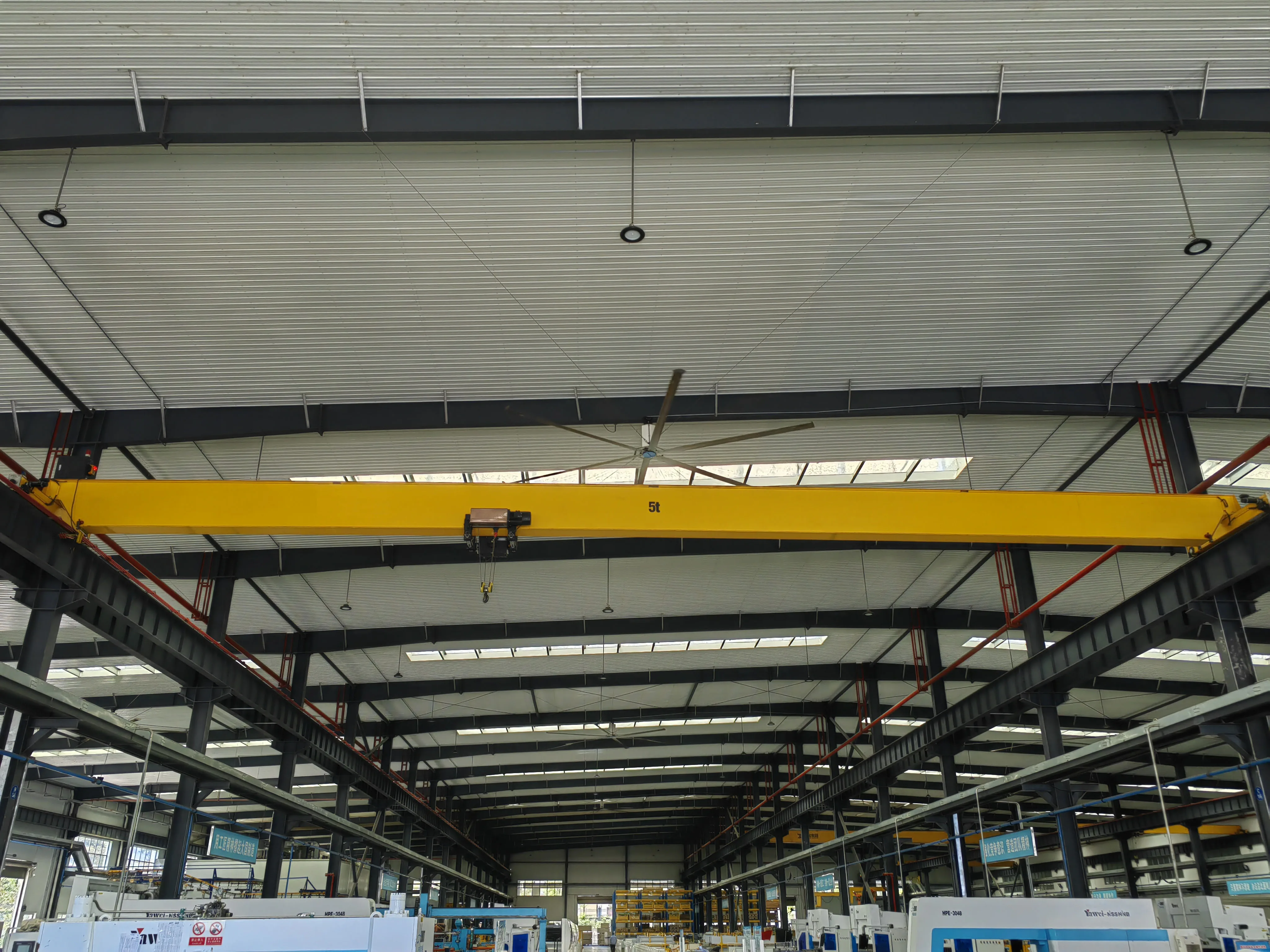

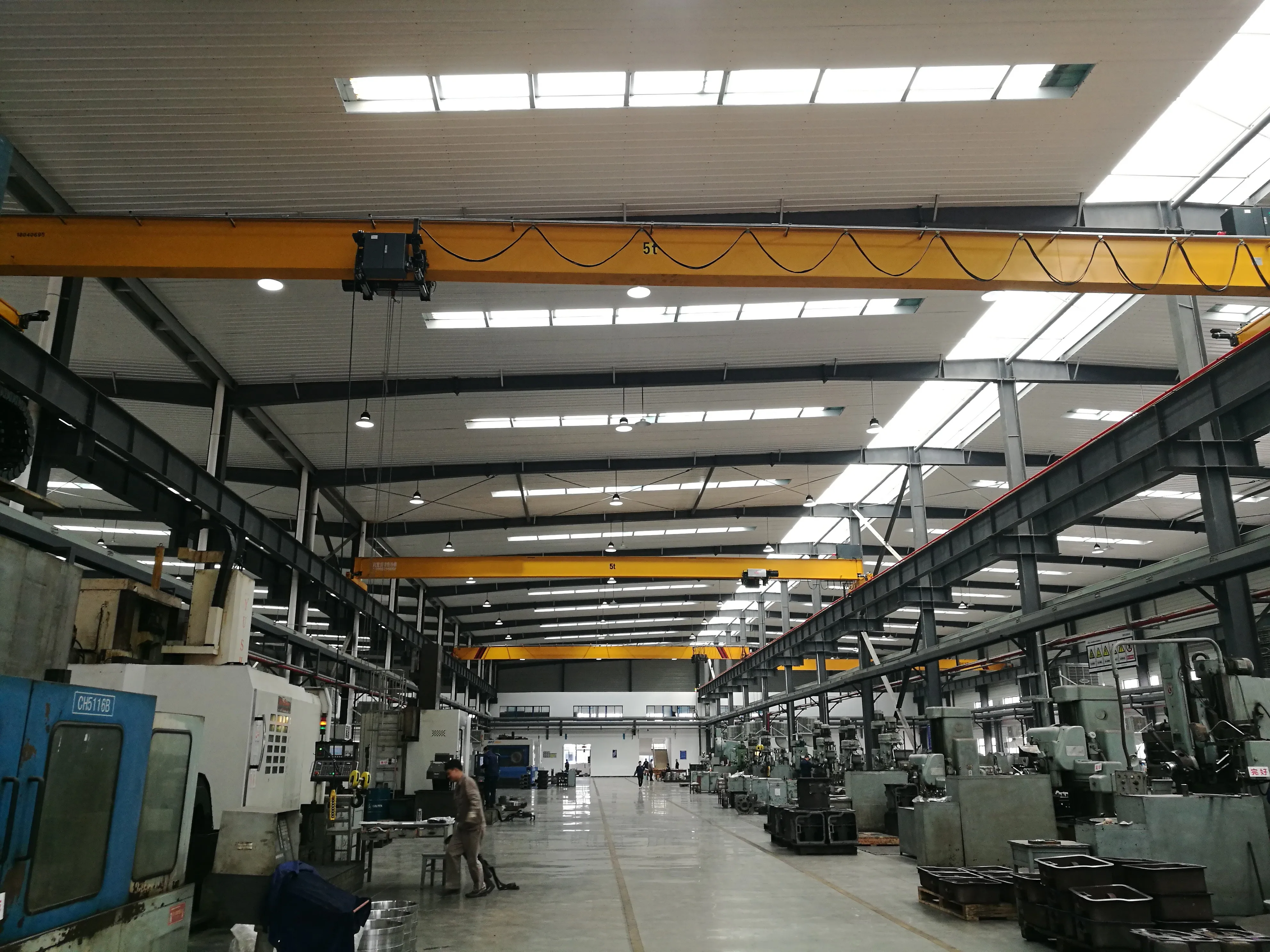

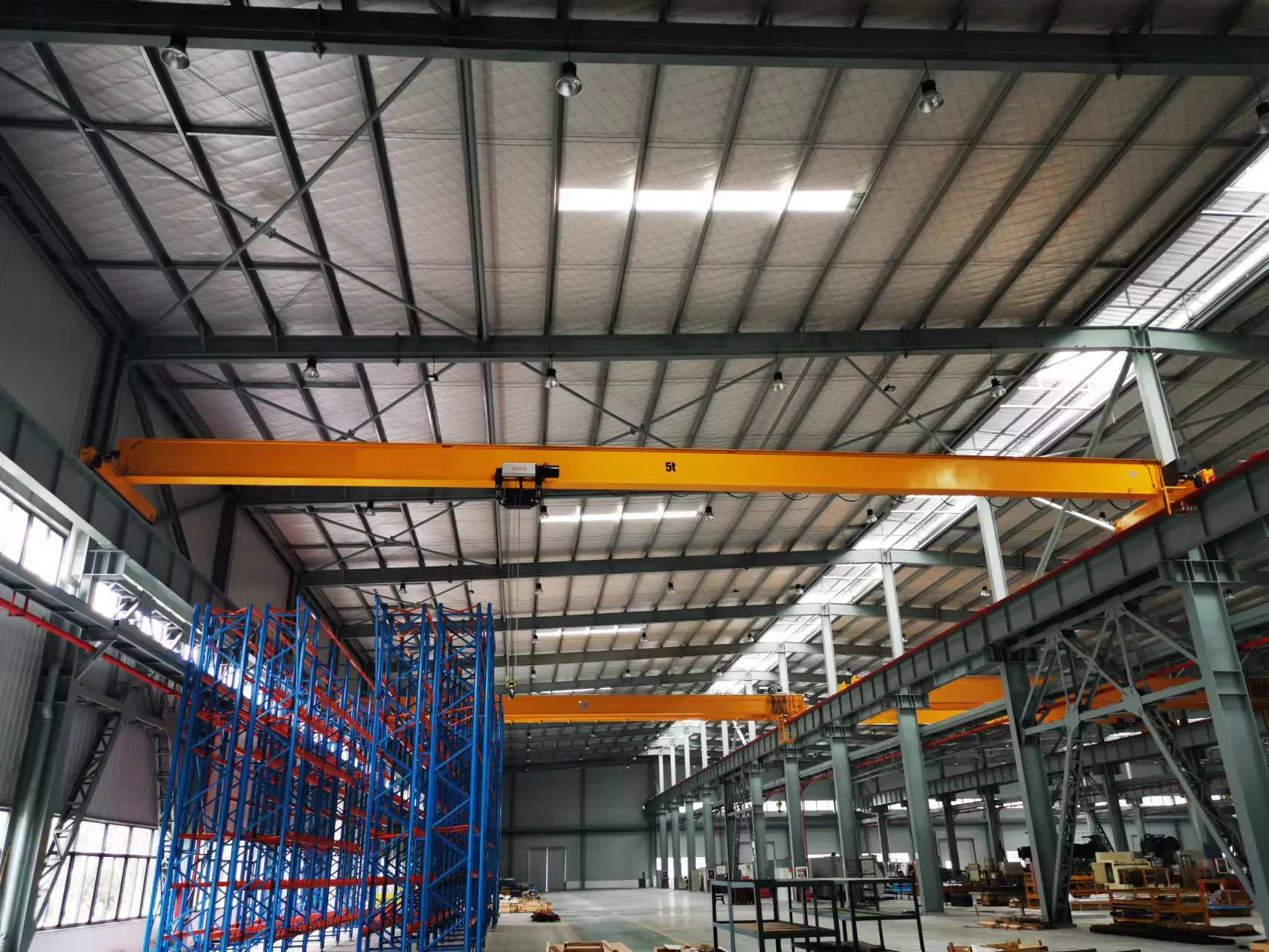

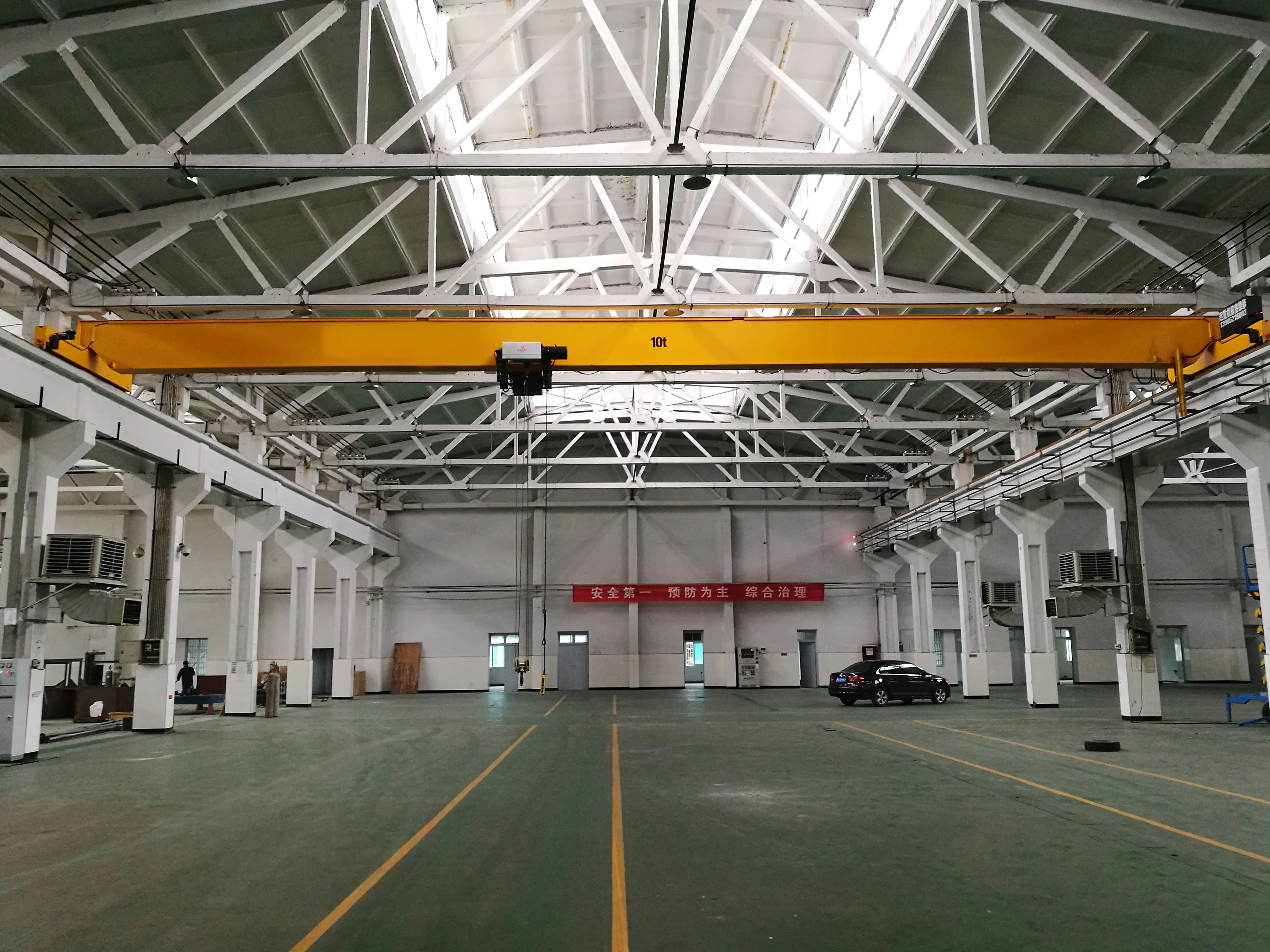

MATE-LD SINGLE GIRDER OVERHEAD CRANE(WITH EUROPEAN STANDARD WIRE ROPE HOIST)
MATE-LD series electric single-beam bridge crane adopts European design standards and is a new type of crane designed for low workshops and high lifting height requirements. Its technology is advanced and the design is based on European standards: FEM working level is M5. Electric single-beam bridge cranes are widely used in various workshops and warehouses with low clearance but large lifting height. Such as parts manufacturing workshops, automobile manufacturing, mechanical processing, warehouses, transfer equipment, heavy material transfer, etc.

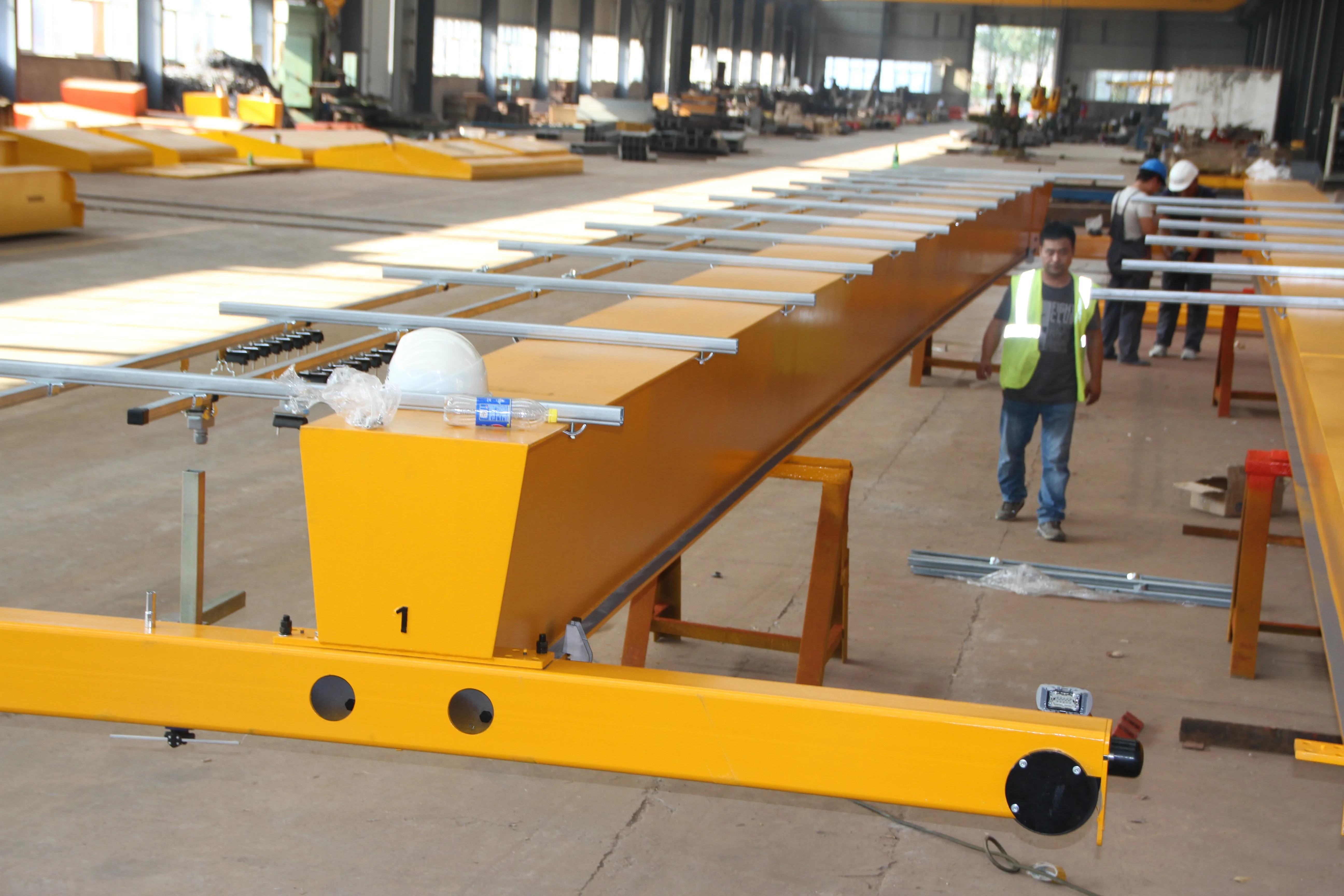

Main Beam
■ Adopt box beam, submerged arc automatic welding, non-destructive detection arc meets and exceeds national standards.
■ High-quality carbon steel Q235B or Q355B or Q355E.
■ Adopt box beam, submerged arc automatic welding, non-destructive detection arc meets and exceeds national standards.
■ High-quality carbon steel Q235B or Q355B or Q355E.
PRODUCT PARAMETERS | ||||
NUMBER | ITEM | PARAMETERS | ||
1 | Span | 1-31m | ||
2 | Lifting capacity | 1-150 tons | ||
3 | Lifting height | 1-50m | ||
4 | Working level | A3-A8 | ||
5 | Crane running speed | 0-20 m/min | ||
6 | Lifting speed | 0-8 m/min | ||
7 | Certifications | CE, ISO | ||
8 | Control method | Remote control, | ||
9 | Power supply | 3P 380V 50HZ | ||
10 | Protection class | IP54, IP44 | ||
11 | Lifting mechanism | European standard Wire rope hoist | ||
12 | Model | MATE LD | ||
Feature
The main girder is made by high-quality I steel and a high-quality u-shaped slot into the composition,
■ End carriages are welded with rectangular tubes.
■ Main girder and End carriages are assembled with bolts and nuts easily and quickly.
■ Hoist can be single-speed or double-speed lifting and traveling.
■ Electrics could use Schneider brand original from France.
■ Motor,reducer, bearings use the best brand in China
■ Control can be pendant control, wireless remote control, and cabin control.
■ Safety devices included, such as buffer, limit switch, overload limiter, voltage and current protection equipment, etc.
■ End carriages are welded with rectangular tubes.
■ Main girder and End carriages are assembled with bolts and nuts easily and quickly.
■ Hoist can be single-speed or double-speed lifting and traveling.
■ Electrics could use Schneider brand original from France.
■ Motor,reducer, bearings use the best brand in China
■ Control can be pendant control, wireless remote control, and cabin control.
■ Safety devices included, such as buffer, limit switch, overload limiter, voltage and current protection equipment, etc.
Advantages
High lifting efficiency: The mechanical transmission system is highly efficient, and combined with the fast motor drive, it can achieve high-speed and efficient lifting operation
■ Light weight, small wheel pressure, compact steel structure design
■ Frequency conversion speed regulation, stable operation, low noise.
■ Less maintenance, saving maintenance costs.
■ The end beam is welded with rectangular tubes and processed by boring and milling machines.
■ The main beam and the end beam are easily and quickly assembled with bolts and nuts.
■ The crane is a low-headroom type, and the hook can lift a higher height.
Drive Mechanism
■ The operating mechanism adopts a three-in-one drive system of motor, reducer and brake to achieve three-in-one drive and improve the safety and reliability of the equipment.
■ The motor adopts a three-phase AC variable frequency motor.
■ The reducer adopts a hardened gear reducer.
■ The brake adopts an electromagnetic brake, and asbestos-free brake pads and brake discs are used.
■ The operating mechanism adopts a three-in-one drive system of motor, reducer and brake to achieve three-in-one drive and improve the safety and reliability of the equipment.
■ The motor adopts a three-phase AC variable frequency motor.
■ The reducer adopts a hardened gear reducer.
■ The brake adopts an electromagnetic brake, and asbestos-free brake pads and brake discs are used.
Electrical system
■ The running speed, micro speed and double speed of the crane can be adjusted by the frequency converter.
■ It has the advantages of stable walking and lifting operation and small inertia.
■ The control box is reasonably designed and easy to maintain.
■ High protection level, up to IP55.
■ The main power supply is optional.
■ The running speed, micro speed and double speed of the crane can be adjusted by the frequency converter.
■ It has the advantages of stable walking and lifting operation and small inertia.
■ The control box is reasonably designed and easy to maintain.
■ High protection level, up to IP55.
■ The main power supply is optional.
Protective device
■ Protective cover and guardrail are provided to prevent the hook from hitting the top device.
■ Equipped with circuit self-checking protection device
■ When the crane is placed outdoors, the lifting mechanism and the electric control box are equipped with rainproof devices
■ Equipped with anti-collision, sound and light alarm devices
■ Lifting weight limit, height limit
■ Overspeed protection, zero pressure protection
■ Protective cover and guardrail are provided to prevent the hook from hitting the top device.
■ Equipped with circuit self-checking protection device
■ When the crane is placed outdoors, the lifting mechanism and the electric control box are equipped with rainproof devices
■ Equipped with anti-collision, sound and light alarm devices
■ Lifting weight limit, height limit
■ Overspeed protection, zero pressure protection
COMPANY PROFILE
HUAHANG TRANSPORTATION EQUIPMENT TECHNOLOGY(SHENZHEN) CO., LTD
CATET is affiliated to Dongqi Group, which was founded in 1987. It is an enterprise approved by the State Administration for Industry and Commerce to engage in the design, manufacture, installation and related services of various types of lifting and transportation machinery. The group has a total investment of 240 million yuan, more than 1,254 sets of various production and testing equipment, and more than 800 employees, including 2 doctoral supervisors, 2 overseas experts, 2 people enjoying State Council subsidies, 5 professor-level senior engineers, 25 senior engineers, 58 engineers, and more than 200 other management and technical personnel. The leading products are bridge cranes, gantry cranes, electric wire rope hoists, chain hoists, KBK modular cranes, cantilever cranes, electric transport vehicles, and various crane accessories. The company has passed CE, ISO and other international standard certifications. The products are widely used in machinery manufacturing, steel metallurgy, nuclear power, mining, hydropower engineering, highway and railway, electricity, automobile manufacturing, petrochemical, port logistics, shipbuilding and other material handling fields. The products are distributed throughout the country and in countries such as the United Kingdom, Russia, Dubai, Singapore, South Korea, Vietnam, Thailand, Kazakhstan, Iran, Mexico, Saudi Arabia and so on.
FACTORY AND WORKSHOP
Located in China's Crane Town - Changyuan City, Henan Province
CUSTOMER VISIT
Customer from Russia
Customer from UK
Customer from Dubai
CE,ISO,TUV......
Russia Moscow Construction Machinery Exhibition, Uzbekistan Construction Machinery Exhibition, Dubai Machinery and Engineering Machinery Exhibition, Vietnam Industrial Machinery Exhibition, etc......
Contains stretch film, waterproof colored plastic sheet, wooden box packaging.
FAQ
1. What products can you get from us?Overhead Crane, gantry Crane, Jib crane, KBK crane, track and trackless transfer cart,electric hoist, chain hoist, Agv robots, electric winch.etc.
2. How can we guarantee quality?
Our factory has passed the GB/T19001-2016/ISO9001: 2015 quality management system certification, all products comply with CE
certificates, guaranteed for 1-3 years.
3. Why should you buy from us not from other suppliers?
Bestaro Machinery Co., Ltd ( Huahang transportation) is a well-known professional manufacturer of cranes and handling equipments,
choosing us means quality and service are both guaranteed.
4. What services can we provide?
a.Professional sales team, inquiry will be responded within 24 hours.
b.Fast delivery.
c.professional research and design team,OEM and ODM are welcome.
5. How is your after-sales service?
a.guarantee the whole set machine for 12 months,
b.free parts would be sent during guarantee period if quality problem occurs.
c.lifelong technical consulting for free ,
d.low-maintaining cost service beyond guarantee.
e.long distance and on-site technical support even for overseas customers.
6.How about OEM & ODM?
Yes, we offer professional OEM & ODM service, we've cooperated with many world famous brands in different fields,such asSiemens,China Shipbuilding Industry Corporation, CRRC.etc.]
