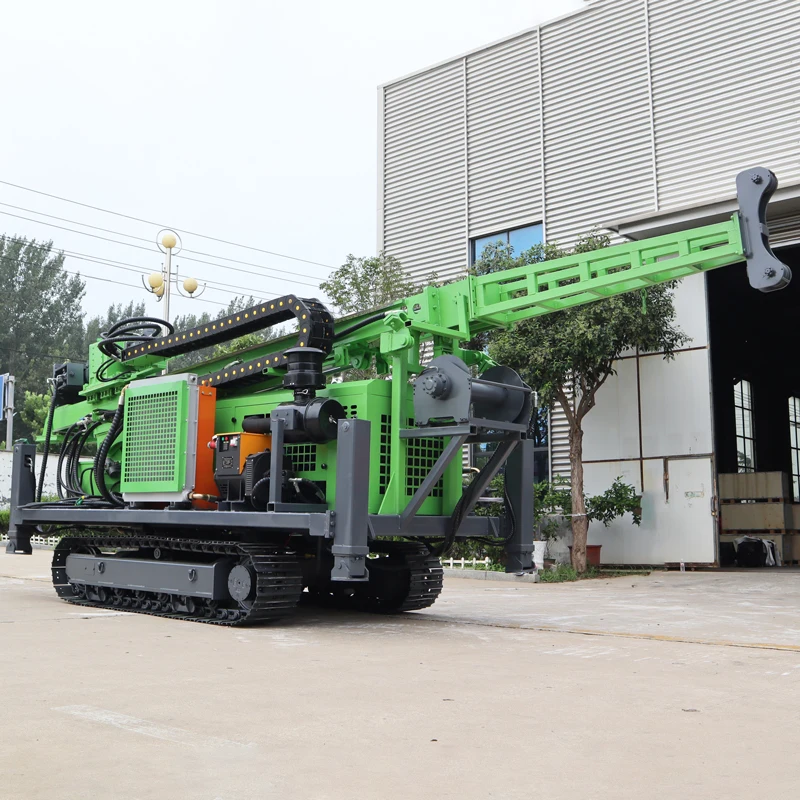

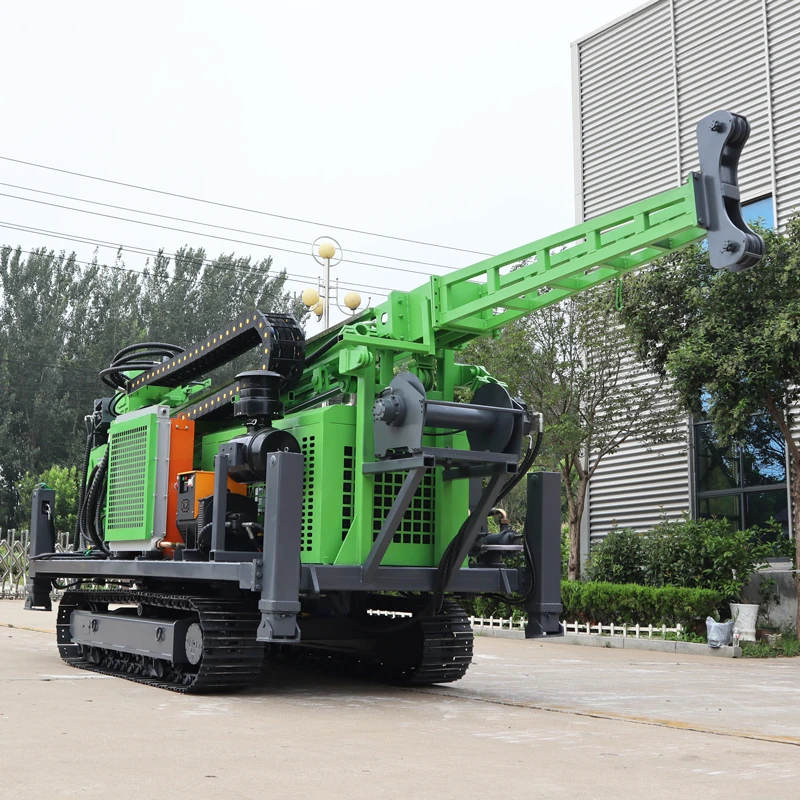

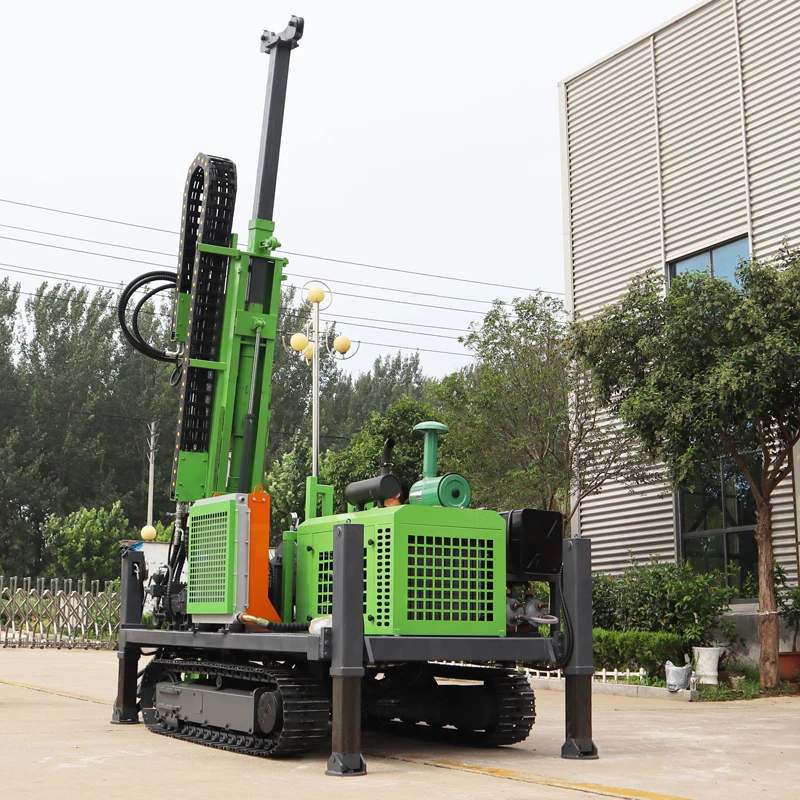

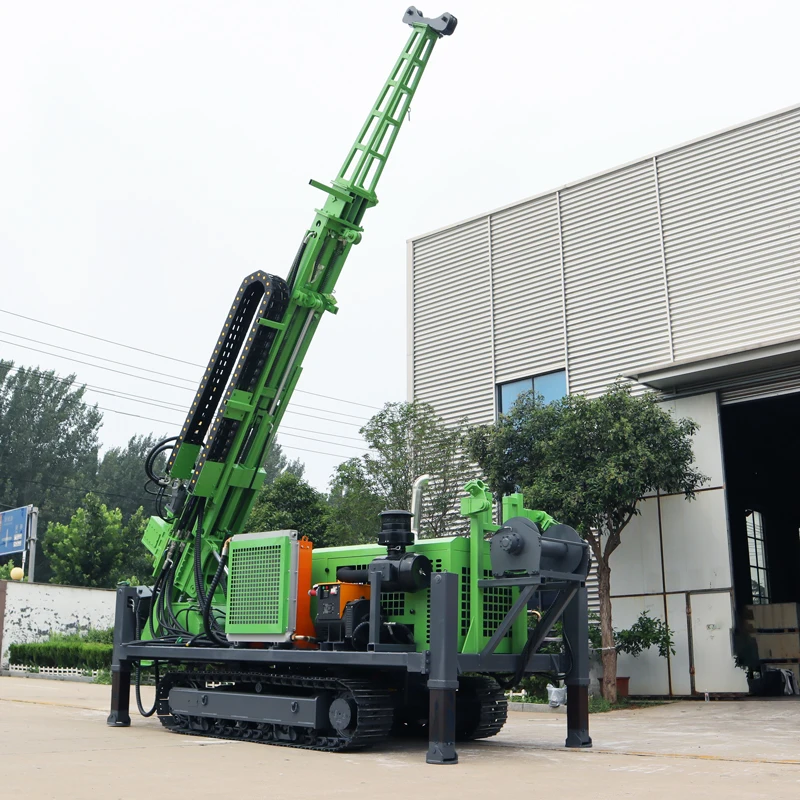

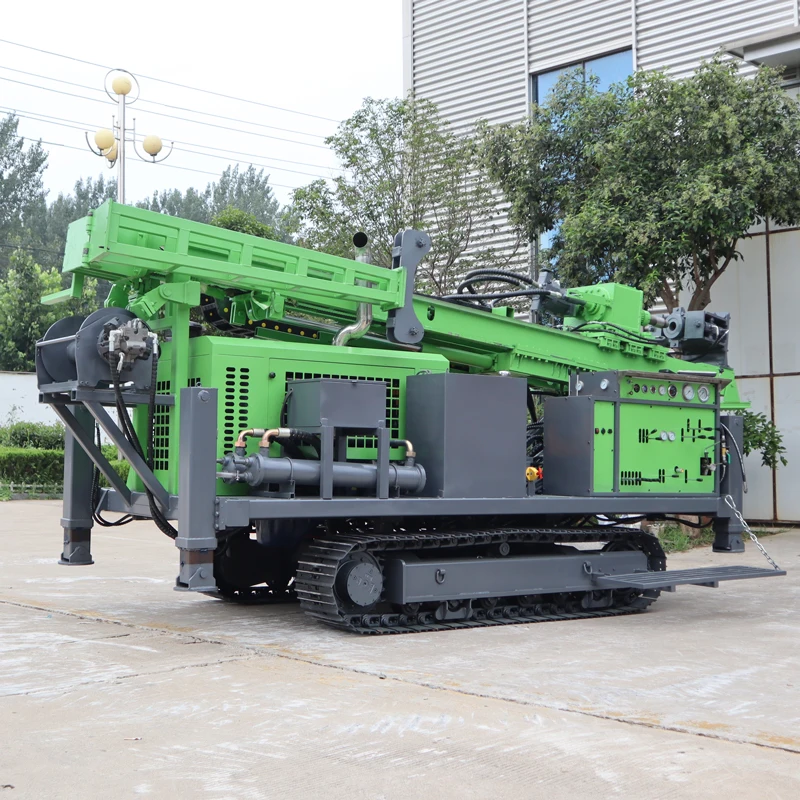

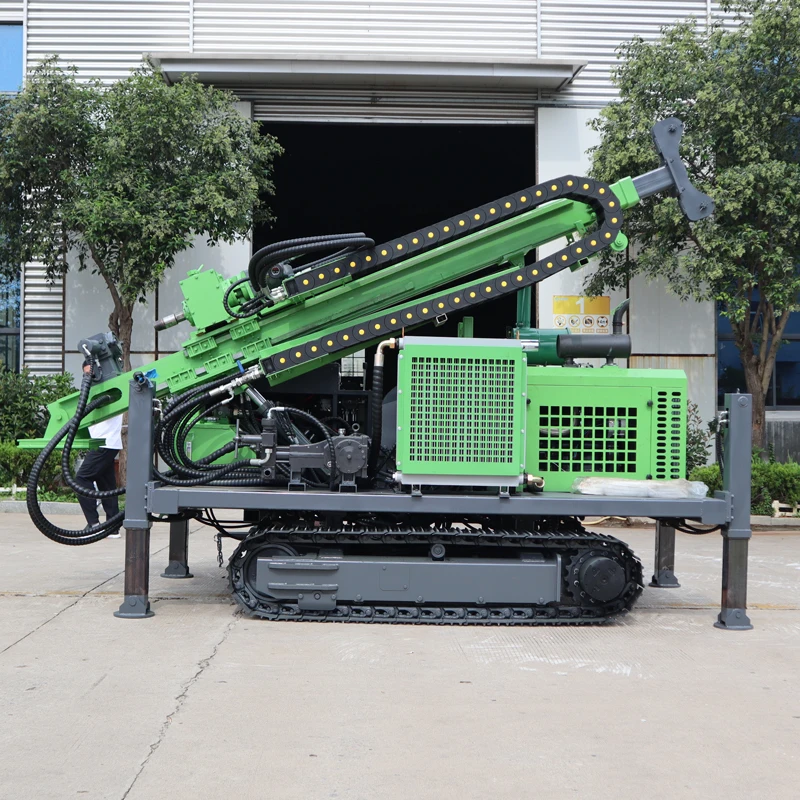

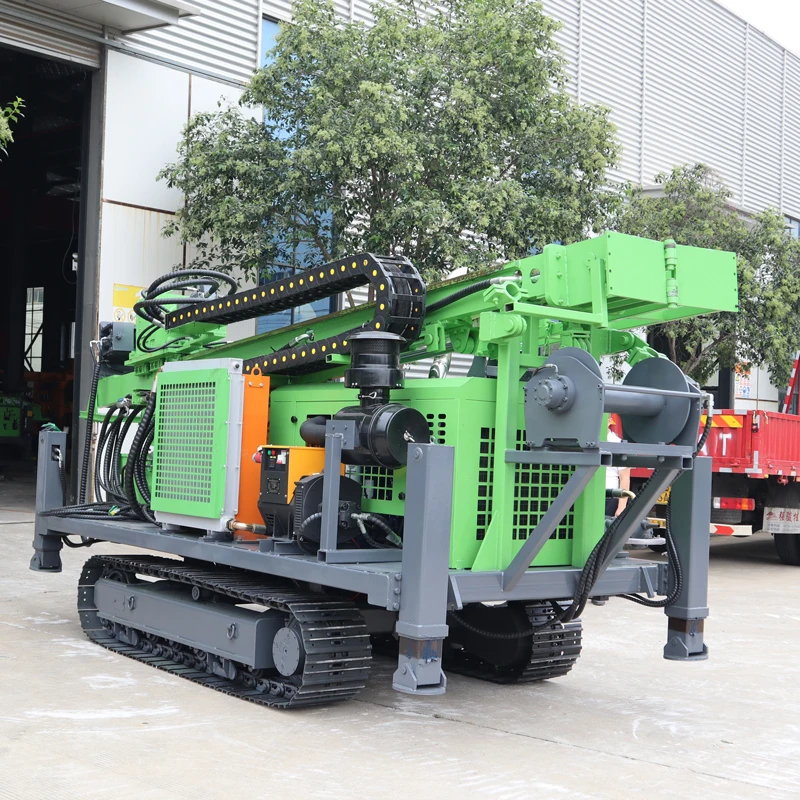

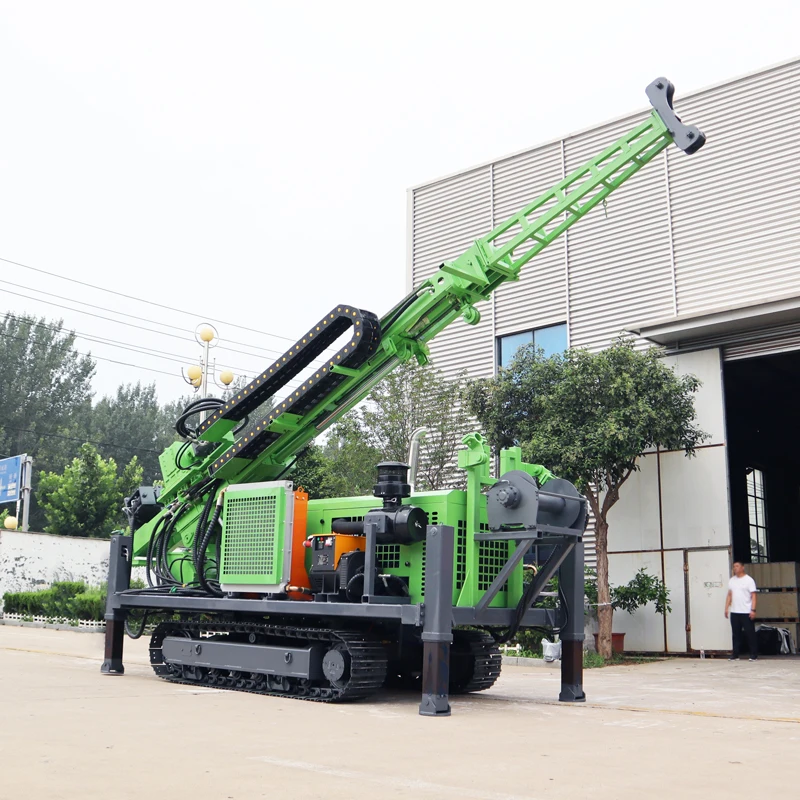

200m Mine Drilling Rig Borehole Water Well Surface Drilling Rig 600m Water Well Crawler Hydraulic Portable Drilling Rig Machine
- Category: >>>
- Supplier: Shandong Eachan Machinery Group Co. Ltd.Shandong Ltd.
Share on (1601242017532):
Product Overview
Description

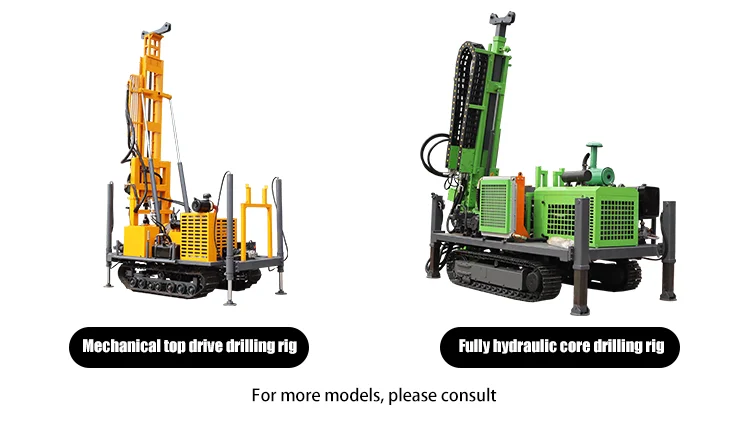

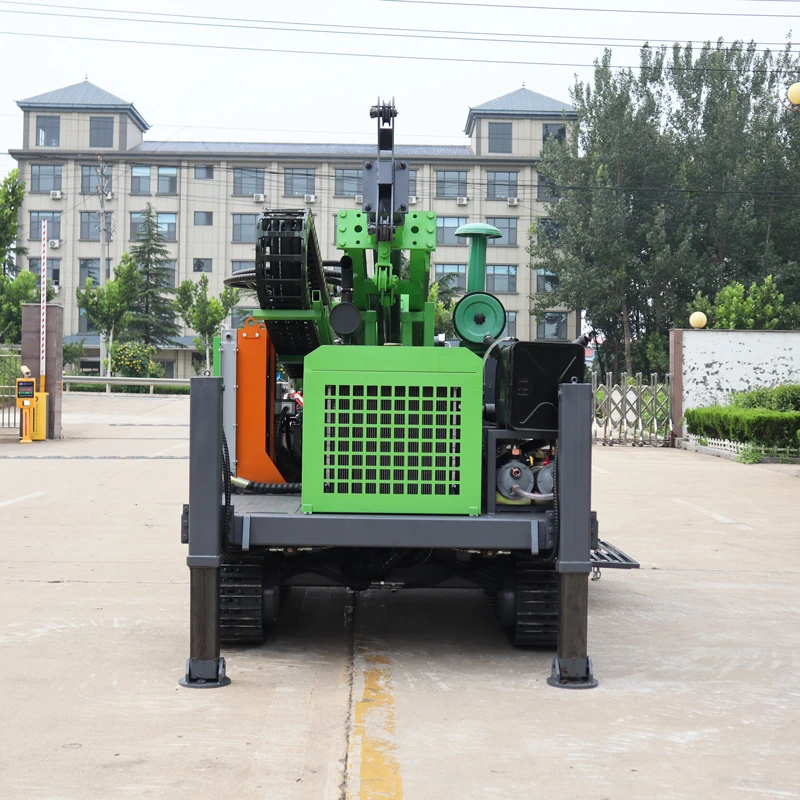

Fully Hydraulic Core Drilling Rig
1. Adopting axial piston pump and triple gear pump fully hydraulic drive.
2. The drilling rig adopts a fully hydraulic drive method, a floating spindle, and can use 3-meter drill rods.
3. Driven by axial piston pump and inclined shaft piston motor (small volume, high power).
4. Equipped with a power head lateral translation mechanism (convenient for lifting and lowering drilling tools), the mast can slide as a whole by using an oil cylinder for lifting and lowering, and can drill holes within a range of 45-90 ° during construction.
2. The drilling rig adopts a fully hydraulic drive method, a floating spindle, and can use 3-meter drill rods.
3. Driven by axial piston pump and inclined shaft piston motor (small volume, high power).
4. Equipped with a power head lateral translation mechanism (convenient for lifting and lowering drilling tools), the mast can slide as a whole by using an oil cylinder for lifting and lowering, and can drill holes within a range of 45-90 ° during construction.
Fully Hydraulic Core Drilling Rig Feature

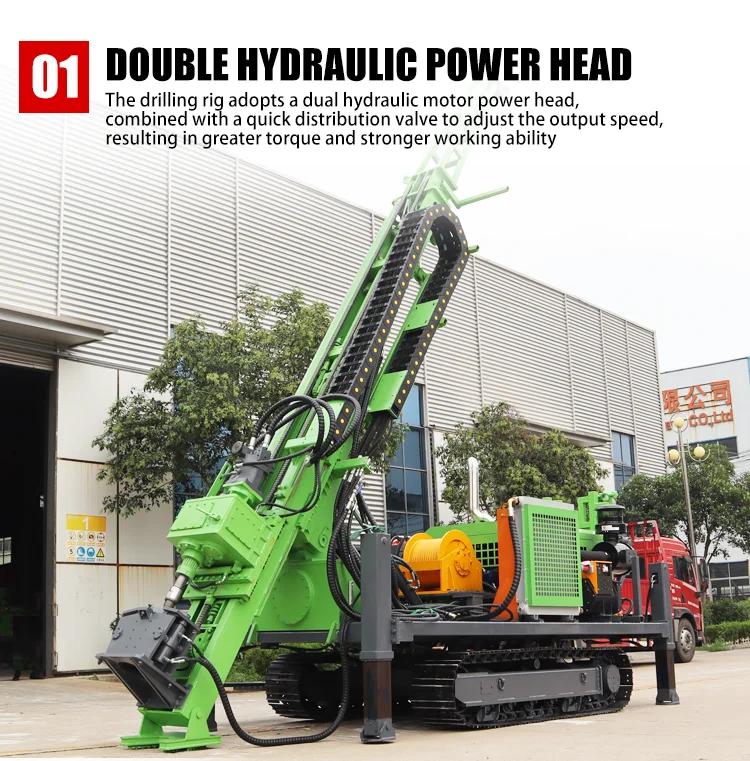

Power head:The rotation is driven by axial piston pump and inclined shaft piston motor, with two mechanical gears and speed regulation, and an advanced structure.
Adopting a double speed feeding mechanism with an oil cylinder chain, the movement is stable and reliable, equipped with a lateral translation mechanism for the power head,

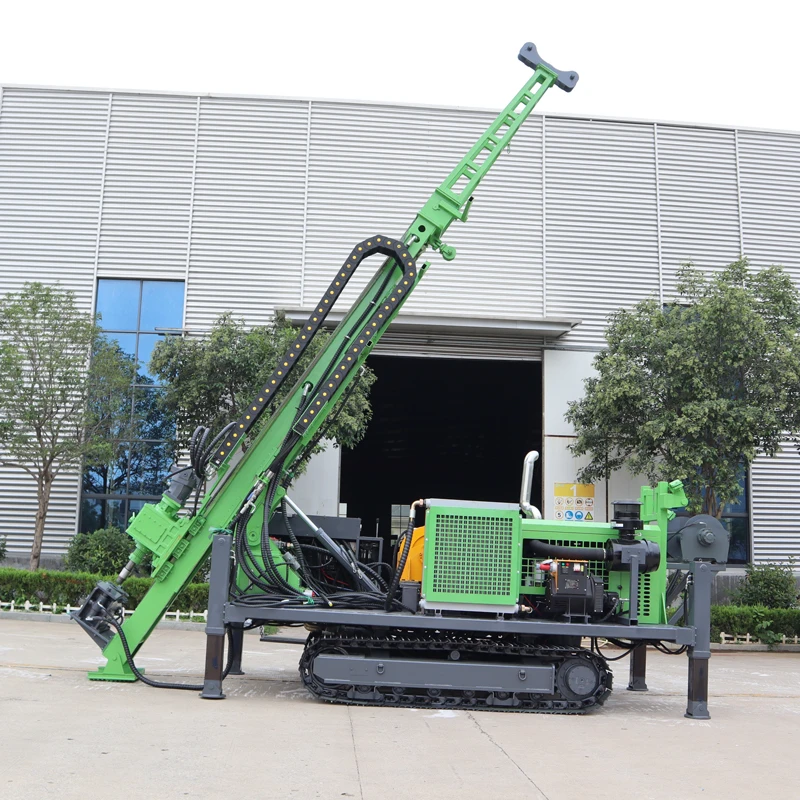

Mast:The use of hydraulic cylinders allows for overall sliding and drilling within a range of 45-90 ° during construction.
Hydraulic system:Adopting load sensitive control, high work efficiency and high torque.

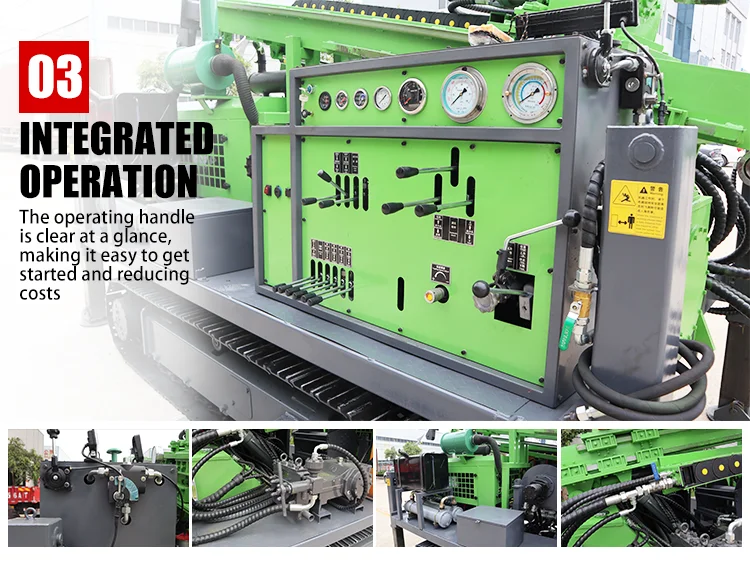

To configure:Equipped with hydraulic horse clamps, hydraulic leveling legs, extendable mast and other devices, it is convenient for the drilling rig to quickly locate.

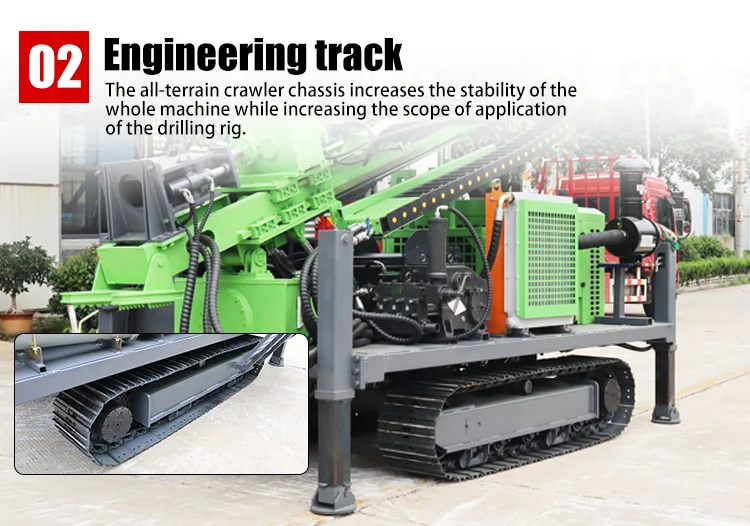

Wireless remote control track:Suitable for various terrains, controls the crawling of the drilling rig within a safe distance to prevent sudden danger.
We provide to all customers:
1. Video about machine details (shot as needed)
2.24h customer service online guidance, and provide guidance videos and product manuals
3. Before shipment, technical personnel test the machines one by one to ensure quality
4. If special parts are damaged, they will be sent by air express delivery.
5. If you have any other goods, please send them to us and they can be packaged together with our machines
6. Design machine posters and logos for your website for free (professional design)
2.24h customer service online guidance, and provide guidance videos and product manuals
3. Before shipment, technical personnel test the machines one by one to ensure quality
4. If special parts are damaged, they will be sent by air express delivery.
5. If you have any other goods, please send them to us and they can be packaged together with our machines
6. Design machine posters and logos for your website for free (professional design)
Fully Hydraulic Core Drilling Rig
Mainly suitable for drilling solid mineral deposits, it can also be used for engineering geology, shallow oil, natural gas, groundwater drilling, as well as engineering drilling for tunnel ventilation, drainage, and dam grouting.
Product Paramenters
Hydraulic Core Drilling Rig Model | YC-600 | YC-1000A | YC-1000B | YC-1600 |
Rated power Kw | 92 | 129 | 129 | 129/154（option） |
Torque N.m | 1400 | 2600 | 2600 | 3500 |
Journey m | 1.8 | 1.8/2(option) | 3.5 | 3.5 |
Mast height m | 6.1 | 6.6 | 8.5 | 8.5 |
Mast slip stroke mm | 800 | 1200 | 1200 | 1200 |
L * W * H mm | 4500*1900*2300 | 5000*2050*2600 | 5600*2100*2600 | 5900*2200*2800 |
Weight (T) | 4.6 | 7.8 | 8.8 | 10 |
Mechanized operation Drilling Rig Model | YC-280 | YC-350 | YC-350 straight/diagonal |
Drilling depth for water well | 280m | 350m | 200m |
Lifting capacity | 100kN | 120kN | 75KN |
Thrusting capacity | 50kN | 85kN | 65KN |
Drill pipe length | 2000mm | 3000mm | 3000mm |
Climbing angle | Max. 25°~30° | Max. 25°~30° | Max. 25°~30° |
Size（mm） | 4600*1900*2540 | 6300*2000*2600 | 6300*2000*2500 |
Weight | 3500kg | 6500kg | 7500kg |
Automatic Mechanics Drilling Rig | YC-350B | YC-400B |
Drilling depth (m) | 530 | 1200 |
Lifting capacity （Ton） | 12 | 24 |
Thrusting capacity（Ton） | 8.5 | 18 |
Rotary speed（ r/min） | 55/93/192/263/384/441/905/1030 | 110/308/518/900 |
Max. Torque（N.m） | 9500 | 12000 |
Size（mm） | 5200*1575*2300 | 6300*200*2650 |
Weight （kg） | 6300 | 9000 |
Thank you to global buyers for their trust in SDYC
We guarantee to conscientiously do a good job in every machine, provide attentive service every time, strictly require all processes, and make global buyers feel convenient in purchase and at ease in use. We provide serious service, high-quality delivery, and satisfy customers,this is our mission.
What benefits can we bring to you
(1) For consumers: Our products are affordable, have a long service life, 1 year of free after-sales service, and provide 24-hour online response to machine operation issues. The product suitable for various work scenarios, can meet any of your needs, and support customization.
(2) For suppliers: We will provide you with sufficient profit margins, after-sales service, and shipping services for vulnerable parts and certificates. We will customize the design logo and color for free. Batch orders offer free machine parts.
Welcome global buyers to visit the factory
Every year, company receives a large number of foreign customers to visit and inspect the factory, and repeatedly places new orders. Each time, it leaves a very good reputation and impression on customers. From production to quality, as well as the professionalism and literacy of employees, it makes foreigners feel respected and have to give them a thumbs up.
In order to provide global customers with a deep experience of the products, the factory exhibition hall is equipped with overseas popular models, spare parts products arranged neatly, and a professional technical team to explain the product performance and technical advantages to customers in detail.
Since its establishment ten years ago, SDYC has extensive overseas sales experience. Our customers come from multiple overseas countries, and the quality and professional level of its products are beyond doubt.
In order to provide global customers with a deep experience of the products, the factory exhibition hall is equipped with overseas popular models, spare parts products arranged neatly, and a professional technical team to explain the product performance and technical advantages to customers in detail.
Since its establishment ten years ago, SDYC has extensive overseas sales experience. Our customers come from multiple overseas countries, and the quality and professional level of its products are beyond doubt.
FAQ
Q.Are you manufacture？
A:Yes,we are factory with more than 10 years of manufacturing experience .
Q.What is your terms of payment?
A:T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages beforyou pay the balance.
Q.What is your terms of delivery?
A: EXW, FOB,CFR, CIF.
Q.How about your delivery time?
A:Generally,it will take 7-10 working days after receiving your advance payment.The specific delivery time depends on the items and the quantity of your order.
Q.What is your terms of packing?
A: Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.
Q.Do you test all your goods before delivery?
A:Yes, we have 100% test before delivery.
Q.How d0 you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefits;
2.We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
Q.What is your terms of payment?
A:T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages beforyou pay the balance.
Q.What is your terms of delivery?
A: EXW, FOB,CFR, CIF.
Q.How about your delivery time?
A:Generally,it will take 7-10 working days after receiving your advance payment.The specific delivery time depends on the items and the quantity of your order.
Q.What is your terms of packing?
A: Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.
Q.Do you test all your goods before delivery?
A:Yes, we have 100% test before delivery.
Q.How d0 you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefits;
2.We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
The listing price is just deposit price and excluding freight fee. If you want to get the specific price, please contact me or send an inquiry, then we will send you formal quotation, thanks！
