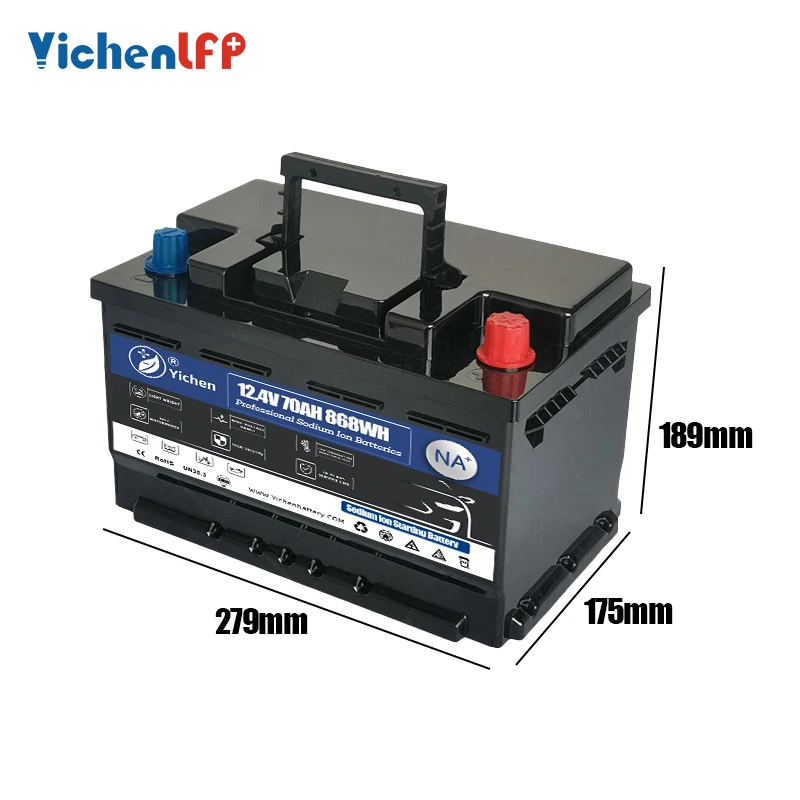

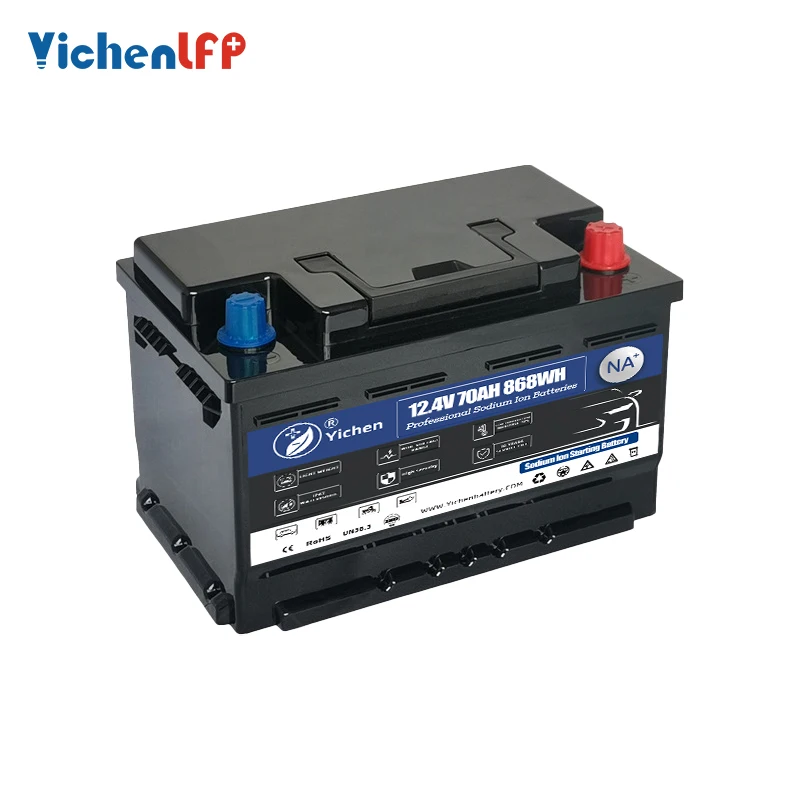

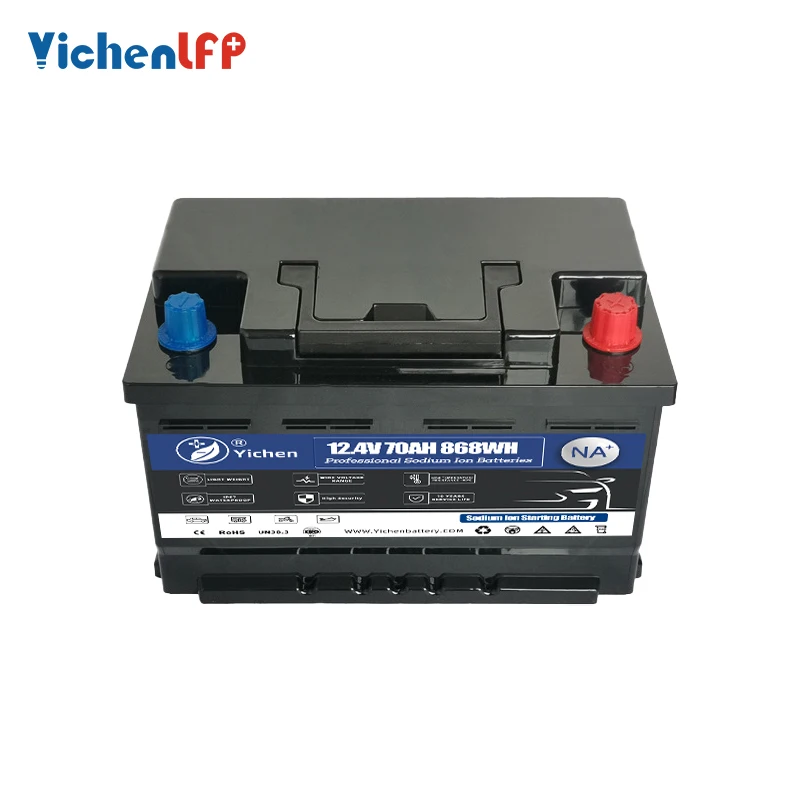

Marine Application Cranking Sodium Ion Battery 12V 70Ah Battery
- Category: >>>
- Supplier: Shenzhen Yichen S-Power Tech Co. Ltd.Shenzhen Ltd.
Share on (1601242068952):
Product Overview
Description
Product Description
12.4V 70Ah Sodium-ion Car battery
Our this YCST-N-1270 12V 70Ah Sodium-ion battery adopt the newest sodium ion battery technology, achieved advanced high cranking ability, CCA1500, is designed to replace the traditional Flooded, AGM, and Gel cell lead acid batteries, which measures L260xW175xH201/221mm
By adopting Sodium ion battery technology, this battery has a characteristic of high discharge rate, wide operating voltage range, wide operating temperatures, long service life and deep discharge recover. It can be mounted in any position, resists shocks and vibration, has long lasting high performance in high and low temperatures.
And compare to Lithium car batteries, there is no voltage spike problem, because it can operate from 6V to 15.8V. Its lowest limitation is 0V(not suggest for usual using).
Also no need to worry about low cranking ability in cold weather, Sodium ion battery support operating until -40 degrees, with no changes of C-rate.
This battery is suitable for car, van and entrepreneur machinery.
Specification：
Battery Chemistry: Sodium ion
Replacing model: 80D26 / 65D26
Nominal voltage: 12V
CCA: 1500
Nominal capacity: 70Ah
Color: Black (support customization when order above 500pcs)

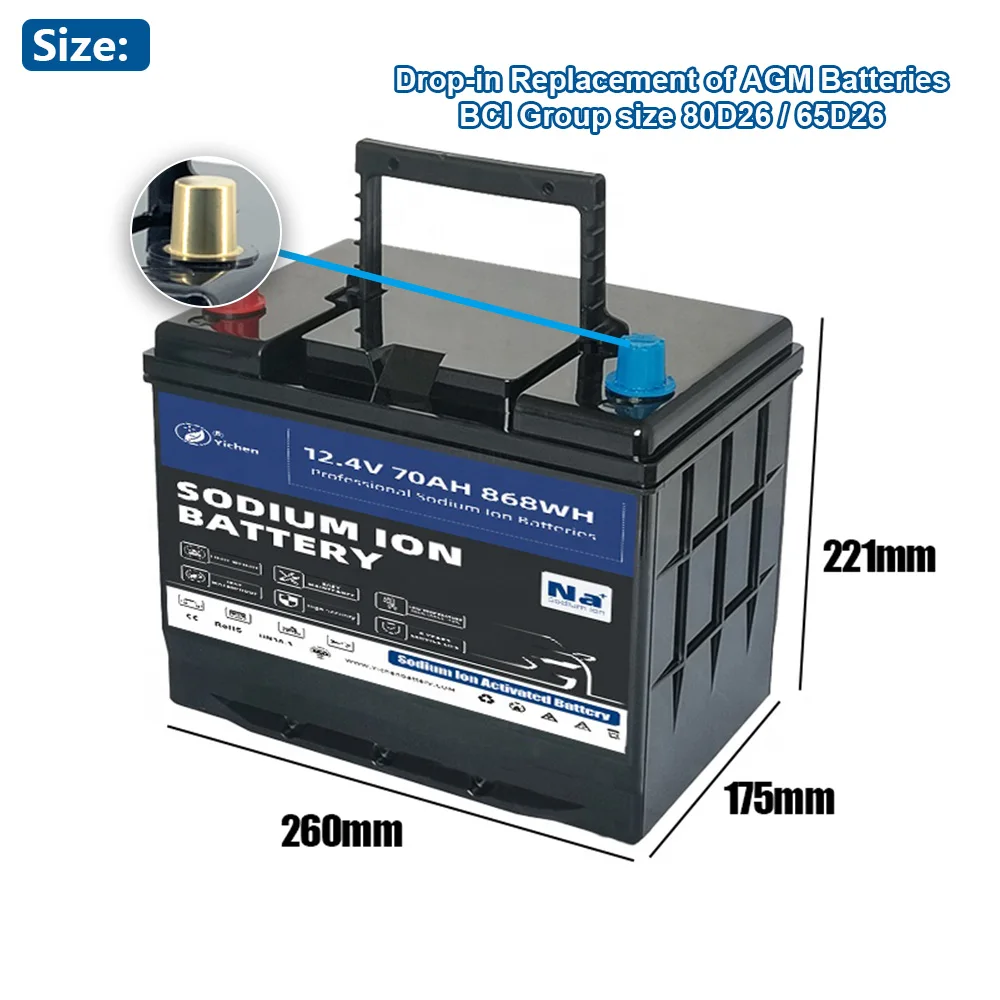

Battery dimensions: L260 x W175 x H201/221mm
Voltage range: 6V-15.8V
Color: Black (support customization when order above 500pcs)
Battery dimensions: L260 x W175 x H201/221mm
Voltage range: 6V-15.8V
Post Type: STD
Weight: 8.95kg
Weight: 8.95kg
Product Paramenters
Electrical Characteristics | Nominal Voltage | 12.4V |
Nominal capacity | 70Ah | |
Energy | 868Wh | |
Internal Resistance | ≤ 3mΩ | |
Cycle life | ≥2000 cycles @1C 80%DOD | |
Months Self Discharge | <3% | |
Efficiency of Charge | 100% @0.5C | |
Efficiency of Discharge | 96~99% @1C | |
Standard Charge | Charge Cut-off Voltage | 15.8±0.2V |
Charge Mode | 0.2C to 15.8V, then 15.8V,charge current to 0.02C (CC/CV) | |
Standard Charge Current | 20A | |
Max. Charge Current | 70A | |
Standard Discharge | Max Continuous Current | 70A |
Max. Pulse Current | 210A | |
CCA | 1500 | |
Discharge Cut-off Voltage | 6V | |
Environmental | Charge Temperature | 0 ℃ to 65 ℃ @60±25% Relative Humidity |
Discharge Temperature | -40 ℃ to 70 ℃ @60±25% Relative Humidity | |
Storage Temperature | 0℃ to 40 ℃ @60±25% Relative Humidity | |
Water Dust Resistance | IP66 | |
Plastic Case | ABS (Black) | |
Dimensions (mm) | L260 x W175 x H201/221mm | |
Weight | 8.95kg | |
Terminal | STD | |
Warranty | 18 Months |
IF YOU WANT TO KNOW MORE ABOUT THIS BATTERY,
PLEASE FEEL FREE TO LEAVE MESSAGE. THANK YOU.

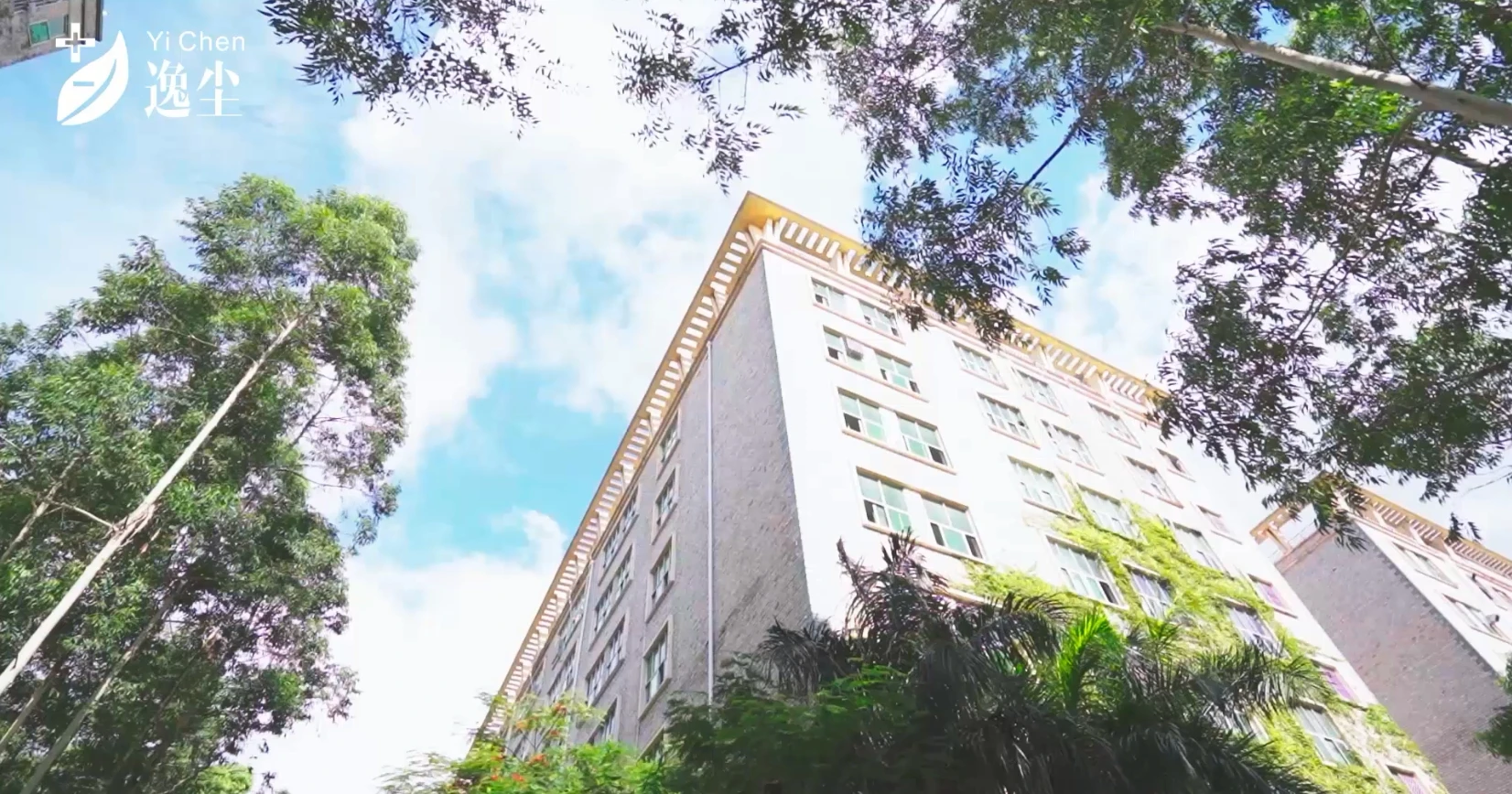

WHO WE ARE?
We're a direct factory of batteries!
Our company name: Shenzhen Yichen S-Power Tech Co., Ltd.
We started from 2009, already been in battery field for 15 years. We're a comprehensive battery manufacturer with the combination of R&D, manufacturing, marketing and service.
We have a professional technical team with over 10 years of experience per capita, developing BMS and design battery pack solutions by ourselves. Our products are in compliance with quality standards of ISO 9001, every batteries are shipped under 100% strict inspected and tested. Besides providing batteries, we also offer global technical support.
WHAT OTHER BATTERIES WE DO?
Yichen S-Power equipped with advanced production and testing facilities, to supply valuable and high quality products. Currently, we can support CANBUS/Bluetooth App/Rs485/Rs232/ solution, and developed battery self-heating and Self-cooling(Water cooling).Solve the High Temperatrue and Low Temperatrue environment battery problem.To have Longer Cycle life and More Power.These products are used on Solar, Home storage battery,UPS,AGV, RVcar, Telecom Base Station, Golf Trolley Cart,Fishing Boat, Car Start-Stop system battery.
LiFePO4 Car Starting battery
having 12V/24V
20Ah~150Ah.
for car/boat/truck.
LiFePO4 replace SLA
Normal 12V/24V/ 36V/48V 20Ah~ 400Ah.
RV specific battery
Metal/ABS case.
Normal 12V/48V 100Ah~400Ah.
Normal 12V/48V 100Ah~400Ah.
Home Battery 5KWh,7.5KWh,10KWh.Support solution design including Inverter.
Golf cart battery
Adopting EV class LiFePO4 cell.
12V/36V/48V,
support OEM.
12V/36V/48V,
support OEM.
Forklift battery
Normal 48V/80V 100Ah~400Ah.
Support design & customization.
Support design & customization.
DC Emergency battery
220V/110V DC Mobile Emergency Battery.20Ah/30Ah/40Ah
High Voltage battery
115V/268V/384V/460V/576V/614V/740V designed for special uses.
Container ESS
1MWh/1.5MWh/2MWh experiences.
Also support 100KWh~500KWh ESS.
Certificates approved
CERTIFICATION SUPPORT
Our products can pass TUV, UL, CE, CSA, CEC, JET, etc. At present, we has customers in more than 50 countries and regions, The cumulative production capacity in the past 4 years is greater than 500MWh, <0.3% after sale problem within 4 years. According to different marketing, we provide support to help clients get corresponding certs for stronger competitiveness.
Packing & Delivery
Item | Sample in Stock | Customized Sample | Mass Order for Cells | Mass Order for Packs |
EDT( Estimated Time of Departure) | 1-3 Days | 3-7 Days | 7-15 Days | 7- 20 Days |
