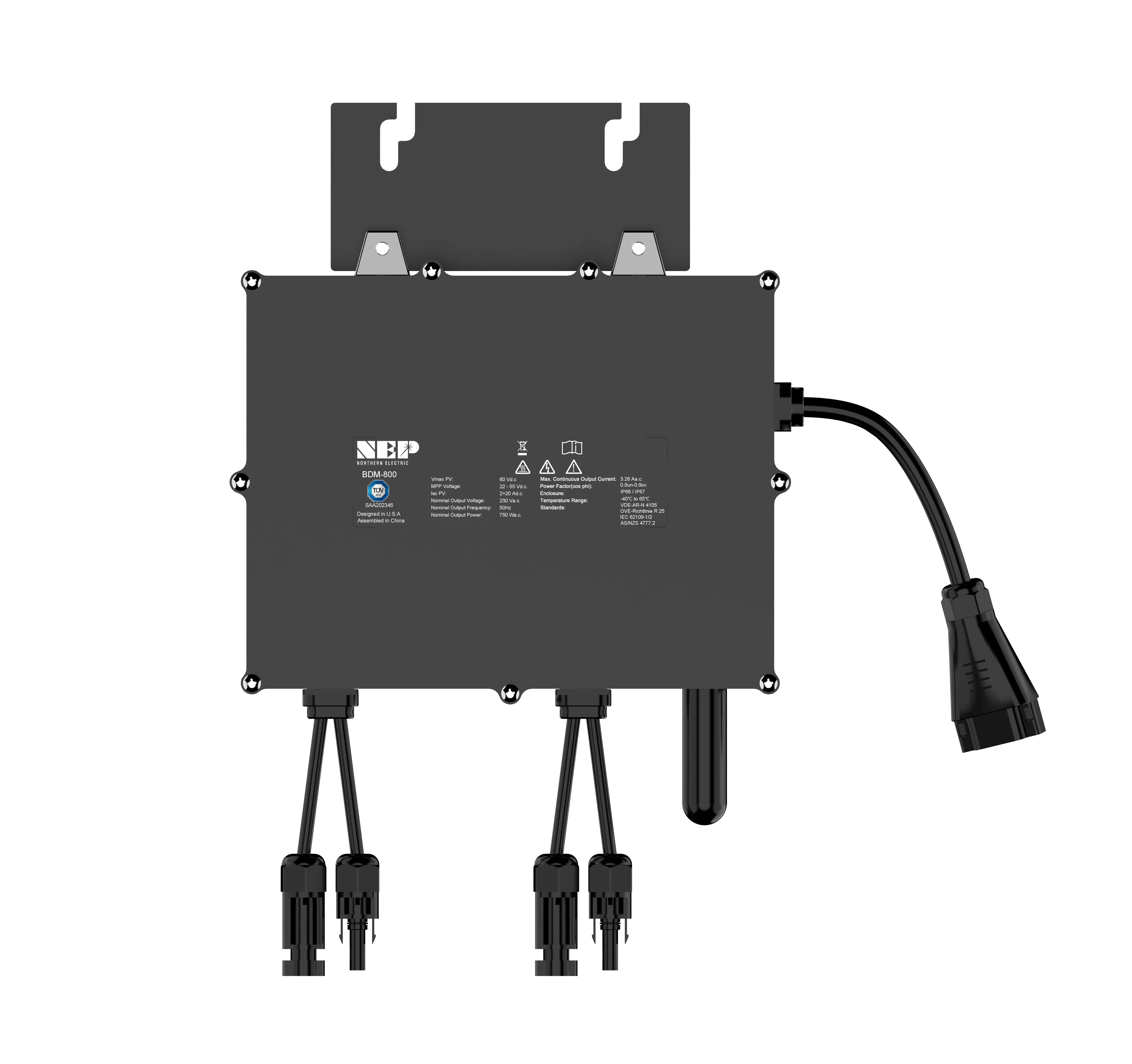

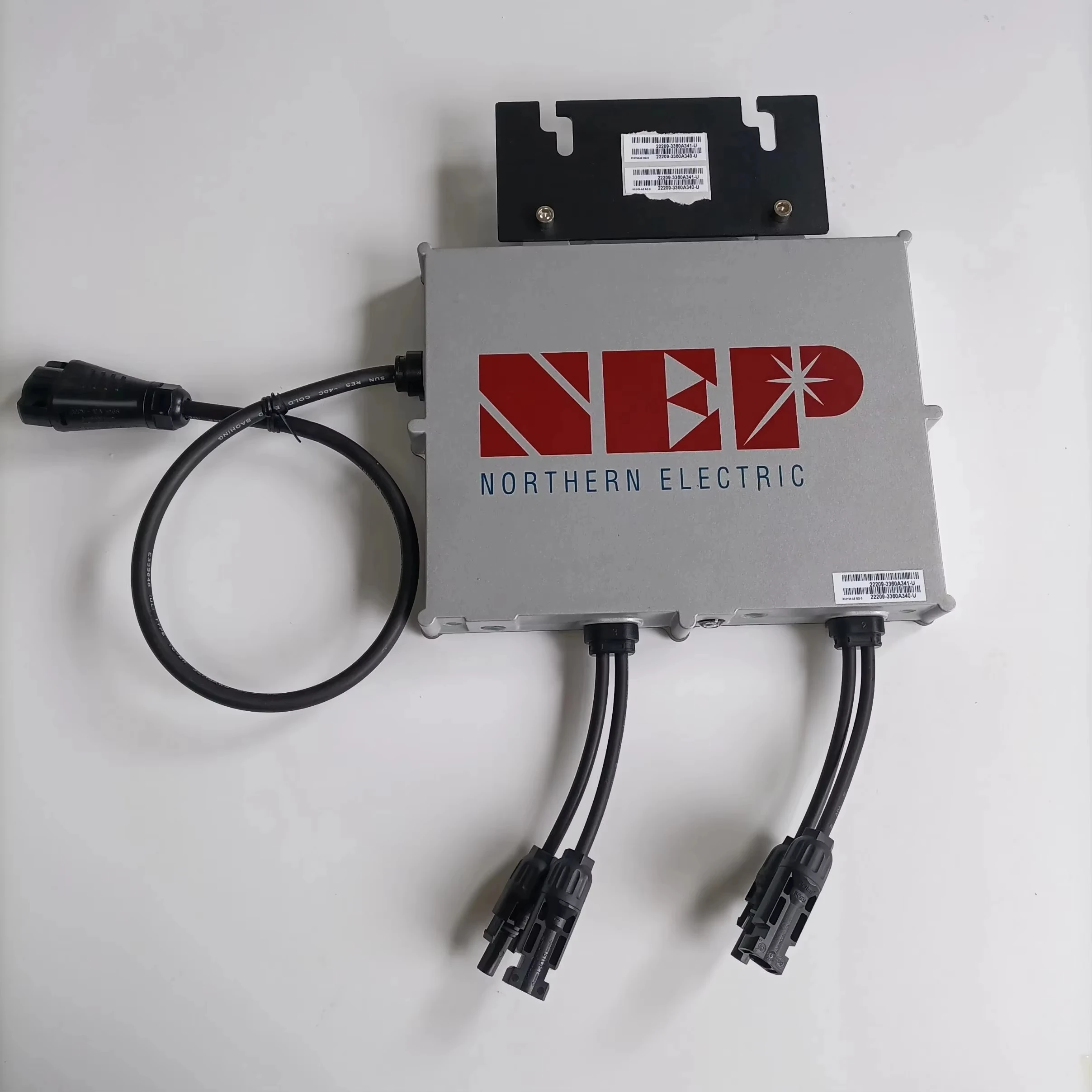

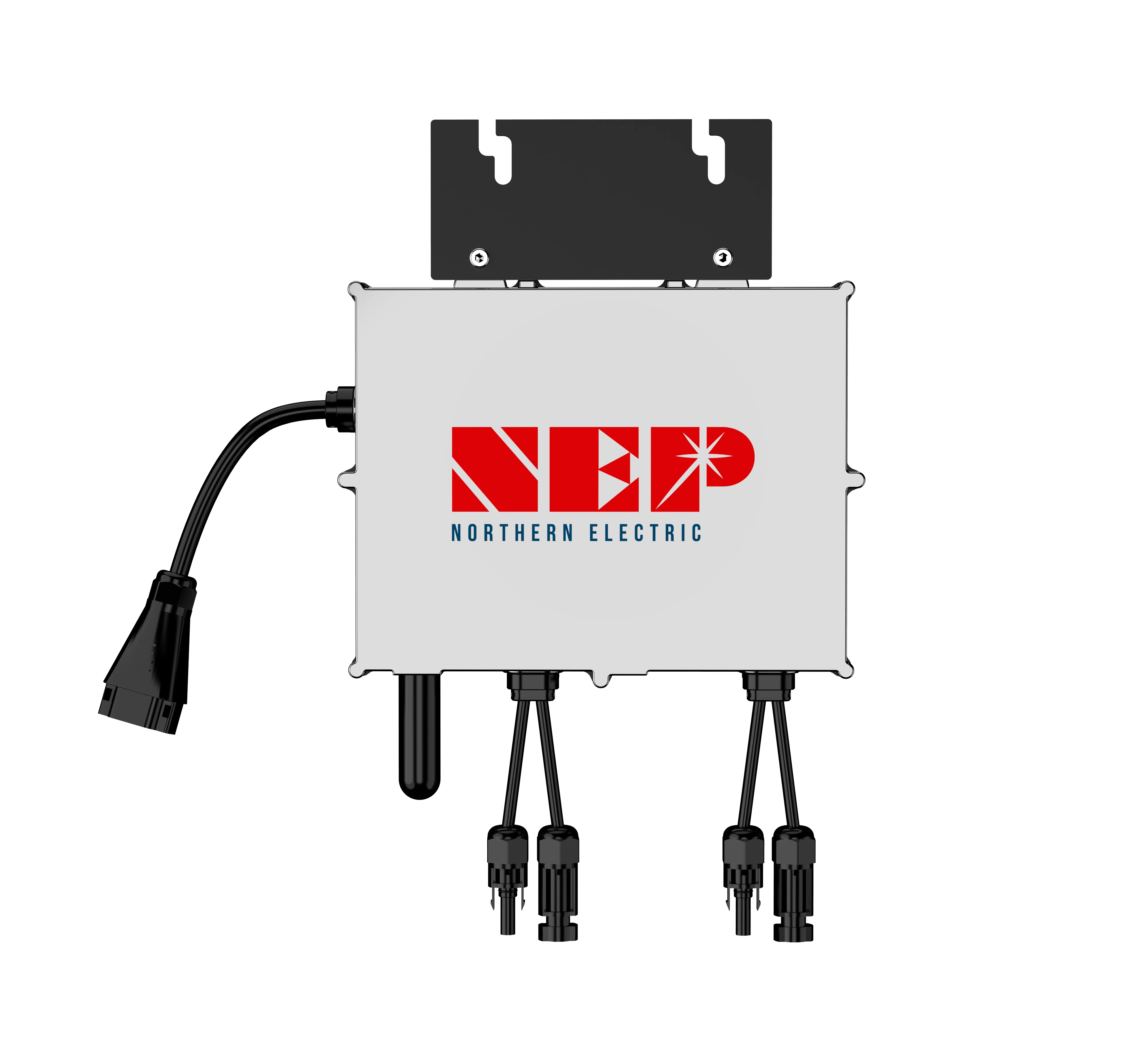

Model | BDM-800 | BDM-1000 | ||
Input DC | ||||
Recommended Max PV Power (Wp) | 600×2 | 750×2 | ||
MPPT Voltage Range/V | 22-55 | |||
Startup Voltage/V | 24 | |||
Max. Input Voltage/V | 60 | |||
Max DC Input Current (Adc) | 17×2 | 18×2 | ||
Output AC | ||||
Peak Output Power/VA | 800 | 1000 | ||
Max. Continous Output Power/VA | 750 | 960 | ||
Rated Output Voltage/V | 230 | |||
Nominal Output Voltage Range/V | Configurable | |||
Max. Continous Output Current/A | 3.26 | 4.17 | ||
Max. Units per 20A Branch | 5 | 4 |
