Price:$5,550.00-6,550.00

Quantity:


Product Overview

Description













Best Price Borehole Core Drilling Machines With Air Compressor Borehole Core Drilling Rig

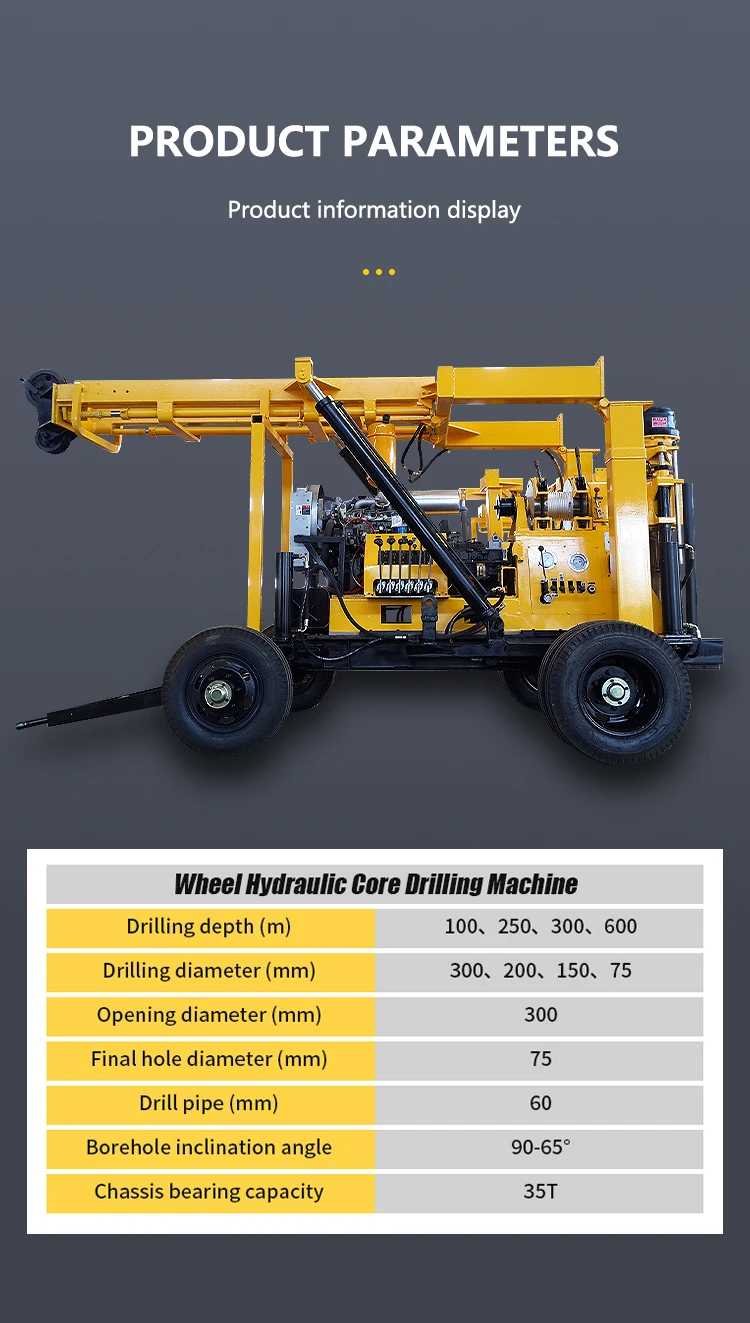

Specification








YG-XYX200 Core drilling rig is a kind of core drilling equipment, which is mainly used for the investigation and exploration of metal and non-metal solid minerals. In addition, it can also be used for engineering geological survey, hydrogeological survey, oil field survey and exploration, deep water well exploration, etc. Because core drilling rigs require relatively complete, non-mixed, and insensitive geological rock samples, core drilling rigs are all rotary drilling machines.


































































































































YG-XYX200


Drill Hole Depth

200M


Open hold diameter

325mm


End hold diameter

75mm


Take the initiative to drill pipe

53/59*4200mm


Drill Pipe Diamter

42-60mm


Borehole inclination

90-75°


Power (Diesel Engine)

15kw


Size

2700*900*1500mm



Vertical shaft


Vertical spindle speed

64/128/287/557 r/min


Vertical stroke

450mm



Hoist


Single rope lift

9.6kn


Single rope winding speed

0.41/0.82/1.64m/s


Drum diameter

140mm


Diameter of wire rope

9.3mm


Wire rope capacity

27m



Derrick


Rated load

2T


Effective height

6m


Towerleg specifications

73mm



Mud Pump


Model

BW145


Flow

145l/min


Maximum pressure

20 bar


Reciprocating frequency

93 rpm


Suction pipe diameter

51mm*4.5m


Diameter of high pressure pipe

38mm*6m

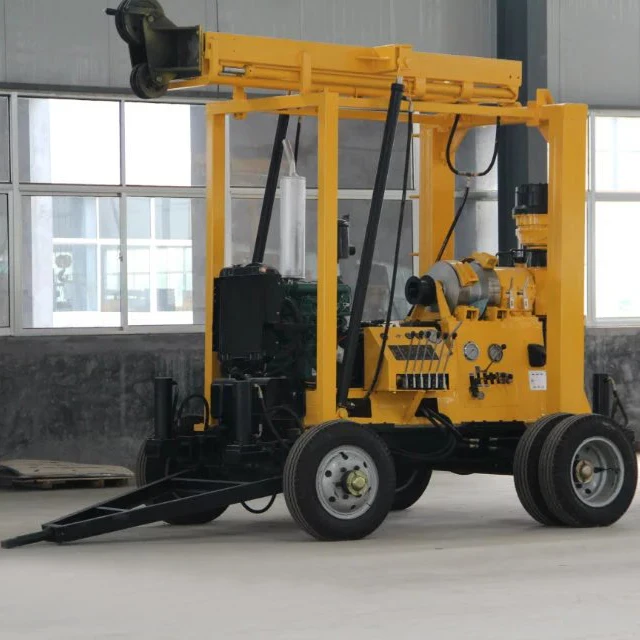

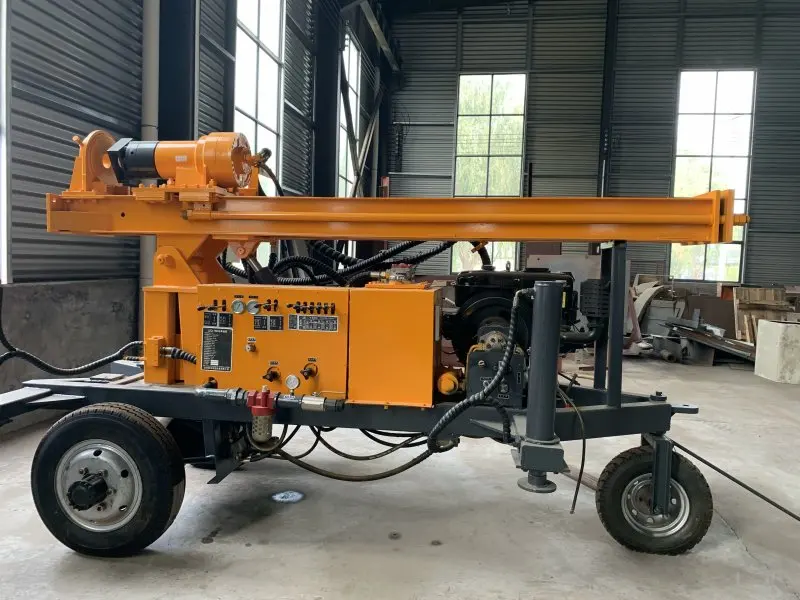

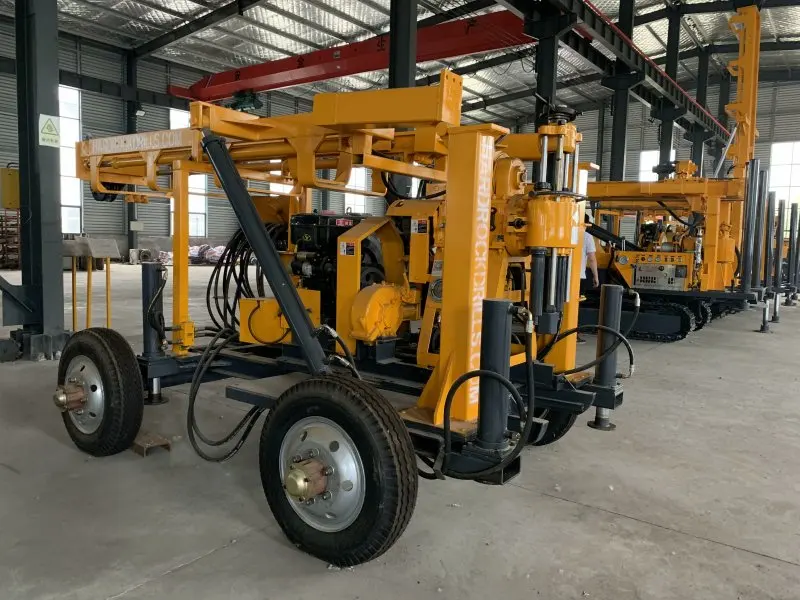

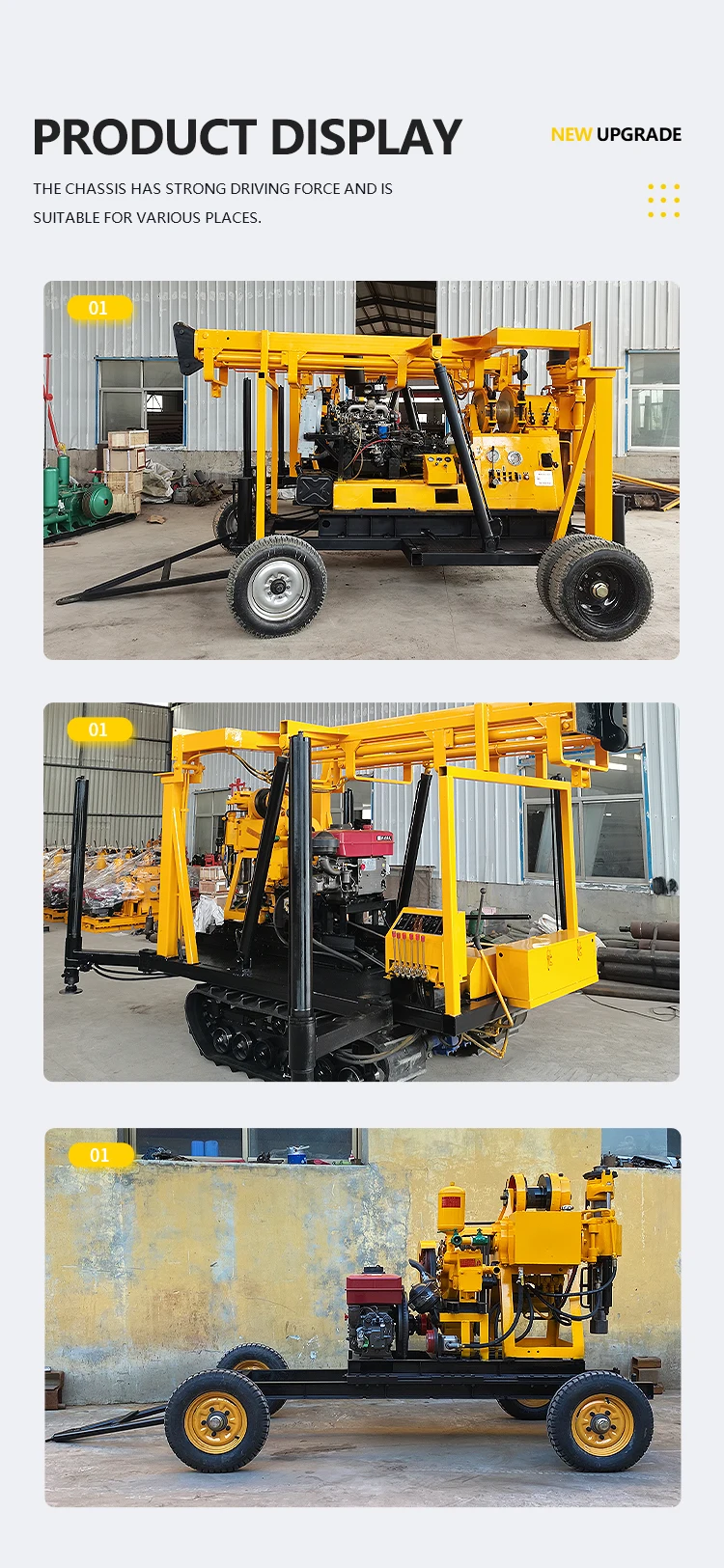

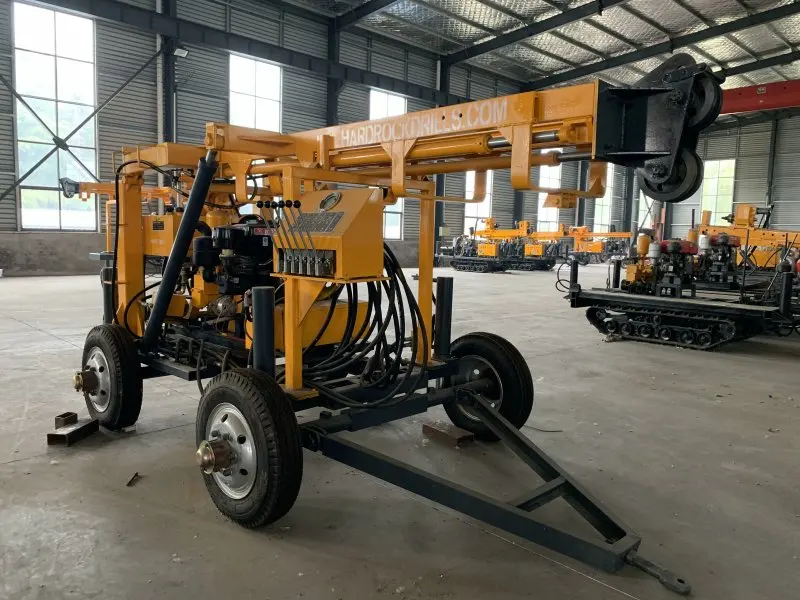

Product Show










































































Applications of hydraulic water well drilling rig YG-XYX180：
1、 this core drilling rig is suitable for drilling water well, soil exploration, geophysical exploration, road and building exploration and drilling blasting holes. ·2、drilling bits can be chosen according to the different soil condition, such as alloy, diamond and composite. ·3、2-9 grades of sandy clay and rock.









































Advantages of hydraulic water well drilling rig YG-XYX180 1、the automatic feed mechanism with oil pressure can improve the drilling efficiency and reduce the labor intensity of the workers. 2、 the ball card holding mechanism is used instead of the chuck, which can be operated without stopping the rod, and the operation is convenient, safe and reliable. ·3、hoist is installed with holder, forming structure of double support wheel so that it can withstand strong impact ·4、four groups of bearings are located in the vertical shaft box to ensure that the gyration is rigid enough to cope with the complicated geological conditions such as the gravel layer, the pebble layer and so on.















































Company profile & Customer visits








Henan Yugong Machinery Co.. Ltd, located in China's national central city-Zhengzhou, with abundant resources and convenient transportation, Our company is a integrated large scale manufacturing enterprise. Our company experienced 15 years of high-speed development, gathering large number of talents and winning sound reputation and credibility. Our product quality, rapid and healthy development! ensured by convenient transportation network, advanced management philosophy, and comprehensive management system.
