1064nm 10W COS AuSn bonding Laser Diode Module for Laser Equipment Parts
- Category: >>>
- Supplier: Wuhan Cs Tec Co. Ltd.Wuhan Ltd.
Share on (1601242564550):
Product Overview
Description
Products Description

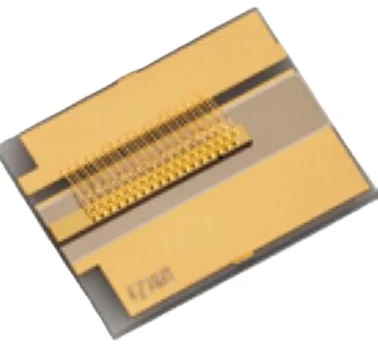

1064nm 10W COS AuSn bonding Laser Diode Module
TY -1064±10nm-10.0W-25C-COS-01 chip on submount diode lasers, employing AuSn bonding and P Down package with multiple advantages of high reliability, stable output power, high power, high efficiency, long lifetime and high compatibility, and are widely applied in the market.
The performance and aging tests have been performed upon the production line to ensure reliable, stable and long lifetime of products. To provide customers with high-quality, high cost performance products is
the company’s goal.
the company’s goal.
Product Paramenters
Specification：
Functional parameters are tested at the temperature of the heat sink is 25 degree, contact resistance of the component and heat sink is less than 1 CM2 K/W. Reduced lifetime if used above nominal operating conditions. A non-condensing environment is required for storage and operation below the ambient dew point.
Parameters | Min | Typ | Max | Unit | Conditions | ||
Output Power | 10 | w | |||||
Center Wavelength | 1054 | 1064 | 1074 | nm | |||
Spectral Width(FWHM) | 3.5 | nm | |||||
Spectral Width(90%) | 6.0 | nm | |||||
Fast-Axis Divergence | . | 58 | . | Collimating | |||
Fast-Axis Divergence(FWHM) | 30 | . | |||||
Slow-Axis Divergence | 11 | . | . | ||||
Slow-Axis Divergence(FWHM) | 8 | . | |||||
Polarization Mode | TE | ||||||
Wavelength Tuning vs.Temperature | . | 0.3 | nm/℃ | ||||
Emitter Size | . | 90 | - | μm | |||
Threshold Current | , | 0.5 | A | ||||
Operating Current | 12.0 | A | |||||
Operating Voltage | 1.65 | 2.0 | |||||
Power Conversion Efficiency | 60 | % | |||||
Slop Efficiency | 1.0 | W/A | |||||
Storage Temperature | 0 | . | 80 | ℃ | |||
Operating Temperature | 15 | 55 | ℃ | ||||
Apparent Size | 4.5x5.75x0.482 | mm | |||||

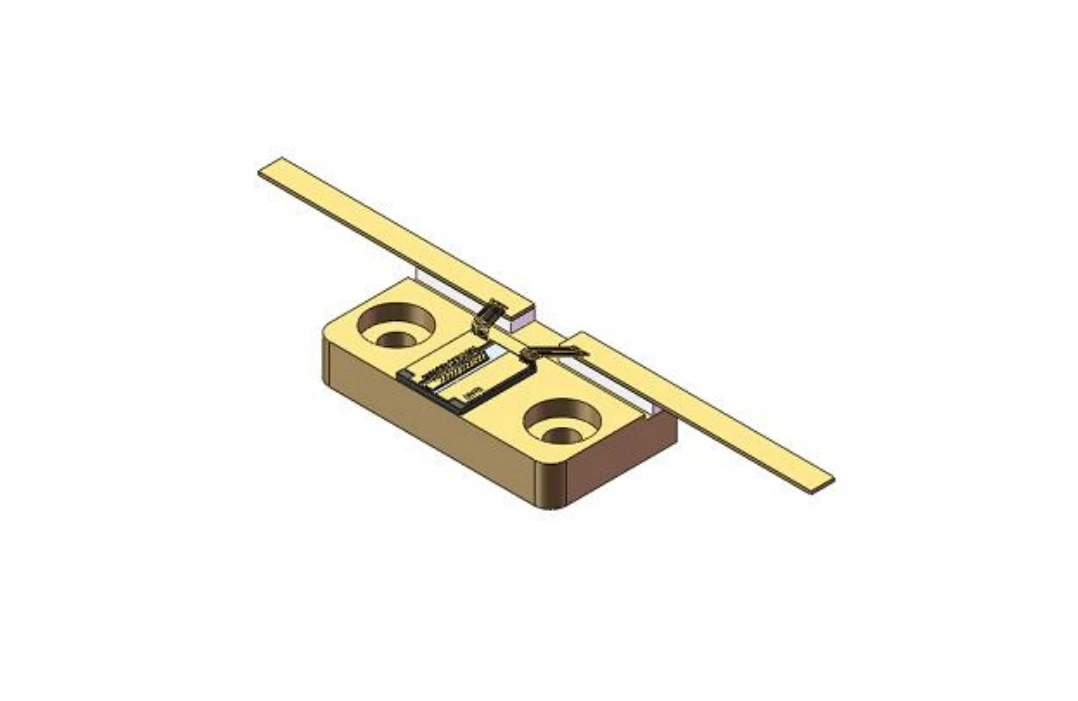

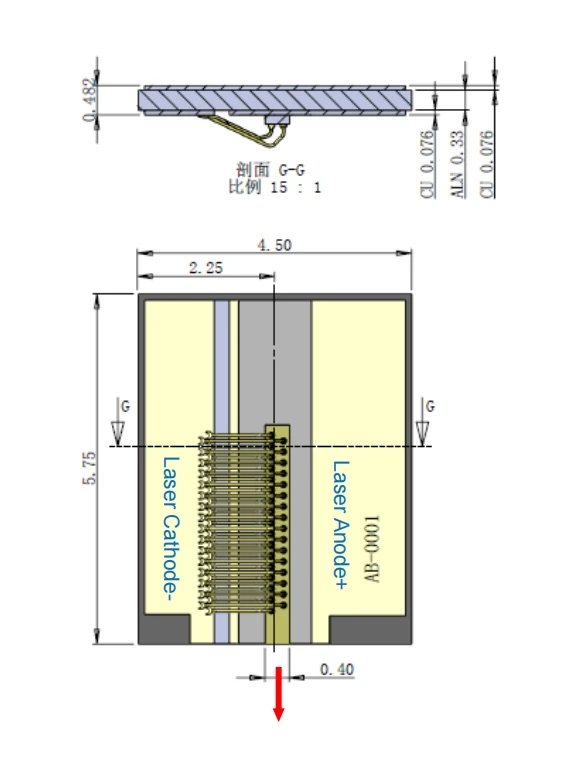

Product Structure
Instructions
1. Avoid eyes or skin exposure to direct or scattered radiation;
2. ESD protection is required for transportation, storage and operation; short-circuit protection between
1. Avoid eyes or skin exposure to direct or scattered radiation;
2. ESD protection is required for transportation, storage and operation; short-circuit protection between
pins is required for transportation and storage.
3. Max soldering temperature is 260℃;
4. Drive constant current power supply by laser and avoid surge while working;
5. Operate under rated current and rated power;
6. Good heat dissipation is required;
5. Operate under rated current and rated power;
6. Good heat dissipation is required;
7. Operating temperature is 15℃~55℃;
8. Storage temperature is 0℃~＋80℃.
8. Storage temperature is 0℃~＋80℃.
