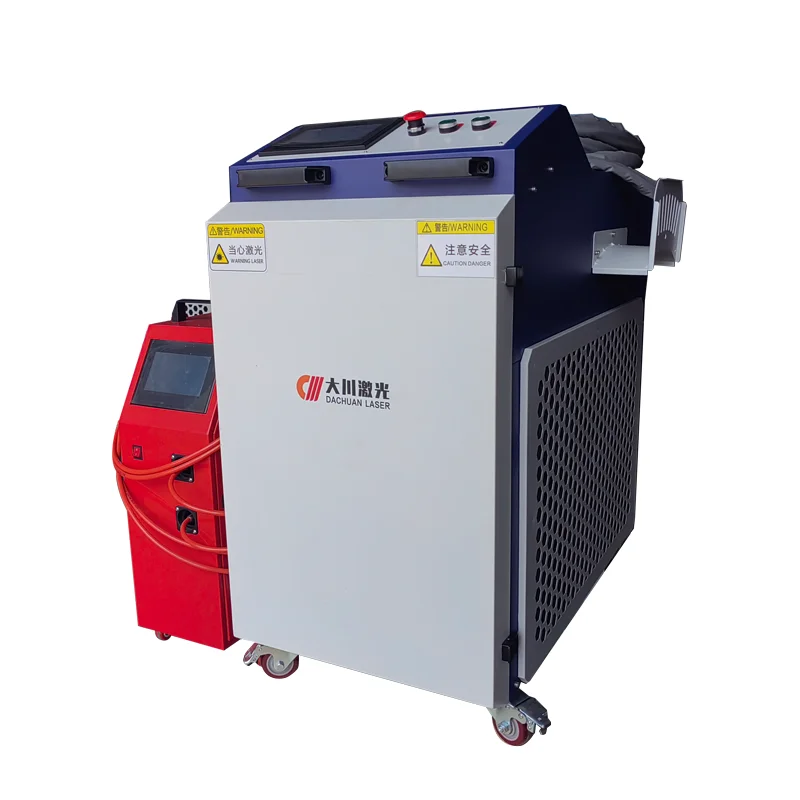

Factory direct sales 2000W portable type water cooled handed laser welding machine for circuit board welding
- Category: >>>
- Supplier: Hunan Dachuan Automation Technology Co. Ltd.
Share on (1601242602615):
Product Overview
Description
Product descriptions from the supplier
Overview
Video Description
Video Description

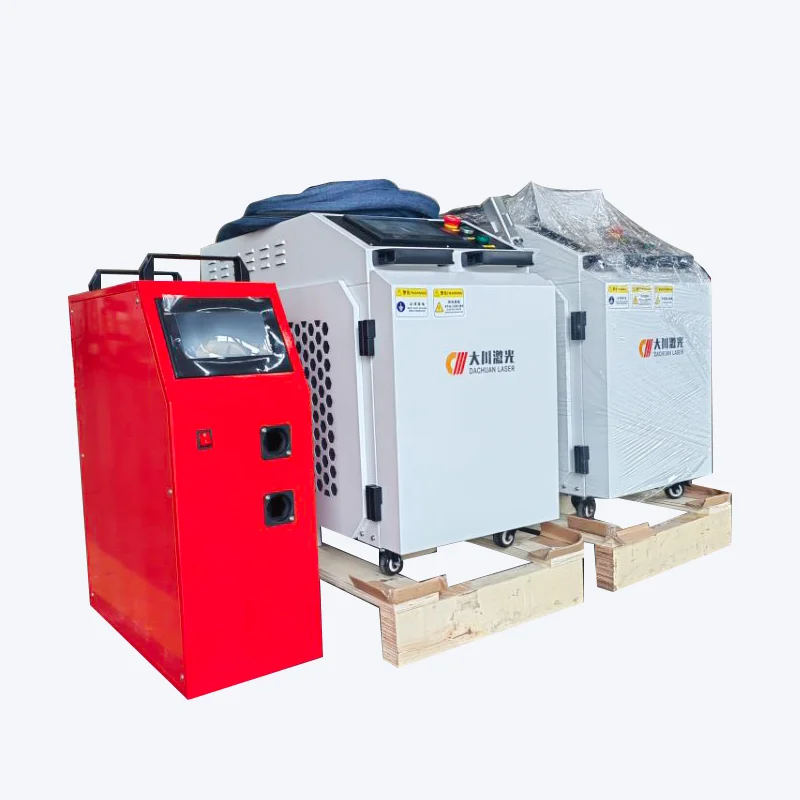

Backpack Handheld laser welding machine
Product description
Backpack Handheld laser welding machine, 3000W size 1000mm* 400mm* 710mm, weight only 110 kg, small and light, easy to use.
Product size drawing
External dimensions of main engine.
Approx. 575*250*670mm (including battery)

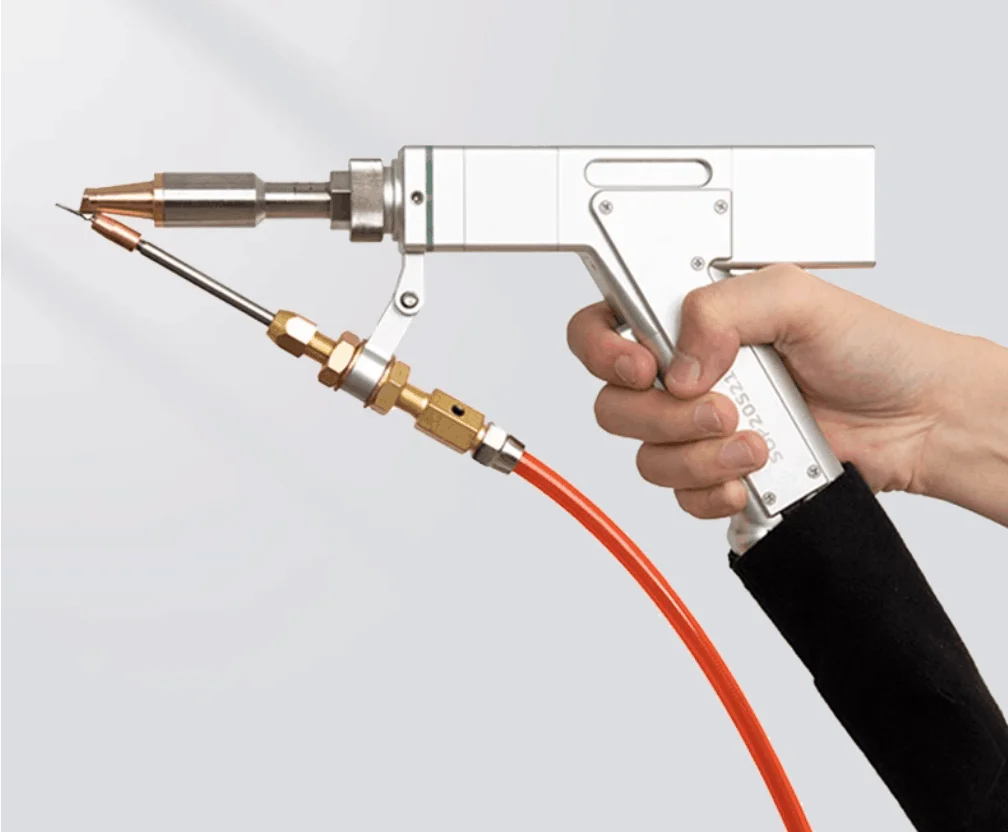

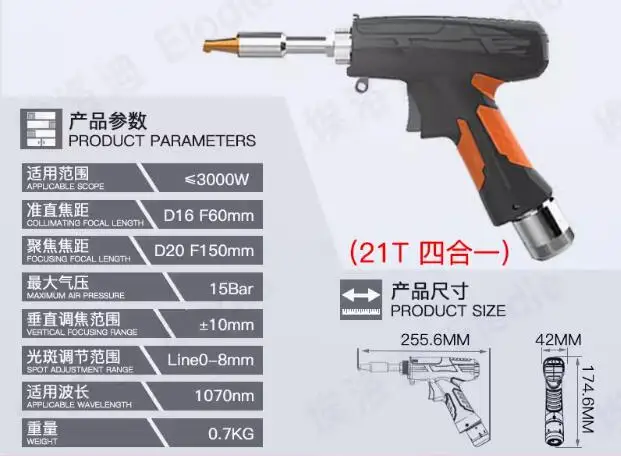

Dimensions of the gun head.
Cleaning head weight: < 0.7Kg, easy to use.
Technical product list
1500 W laser welding machine product attributes | ||
Name | Parameters | |
Device name | Handheld laser welder | |
Model number | DC-1500W | |
Laser power | 1500 watts | |
Laser brand | Chuangxin/Ryko/Keplin | |
Laser wavelength | 1080nm | |
Initiating mechanism | 1 optical fiber for 10 meters | |
Welding torch | Super Strong/Skye | |
Wire feeder | Super Strong/Skye | |
Control method (system) | Super Strong/Skye | |
Welding thickness | 0.3 5 mm | |
Function (4-in-1) | Weld/de-rust/cut/clean the weld | |
Penetration parameters | (Stainless steel, 1m/min,3mm) (Aluminum alloy, 1m/min,2.5mm) (carbon steel, 1m/min,3mm) | |
Positioning system | Semiconductor red light | |
Welding wire diameter | 0.8/1.0/1.2mm/1.6mm common welding wire | |
Gas protection | Argon | |
Cooling method | Hanli/Special Domain/Huaku (Water cooler) | |
Power DEMAND | 220V/50HZ/60HZ | |
Power consumption of the whole machine | 7.5 KW or less | |
Requirements for workpiece welds | 0.8 mm or less | |
Continuous working time | ≥24H | |
Speed range | 0-120mm/s(manual speed) | |
Operating ambient temperature range | 15-38° below zero | |
Suitable material | Stainless steel, iron, aluminum alloy | |
Product size | Length 1000mm* Width 400mm* height 710mm | |
2000 W laser welding machine product attributes | ||
Name | Parameters | |
Device name | Handheld laser welder | |
Model number | DC-2000W | |
Laser power | 2000 watts | |
Laser brand | Chuangxin/Ryko/Keplin | |
Laser wavelength | 1080nm | |
Initiating mechanism | 1 optical fiber for 10 meters | |
Welding torch | Super Strong/Skye | |
Wire feeder | Super Strong/Skye | |
Control method (system) | Super Strong/Skye | |
Welding thickness | 0.3 5 mm | |
Function (4-in-1) | Weld/de-rust/cut/clean the weld | |
Penetration parameters | (Stainless steel, 1m/min,4.5mm) (Aluminum alloy, 1m/min,3mm) (carbon steel, 1m/min,4.5mm) | |
Positioning system | Semiconductor red light | |
Welding wire diameter | 0.8/1.0/1.2mm/1.6mm common welding wire | |
Gas protection | Argon | |
Cooling method | Hanli/Special Domain/Huaku (Water cooler) | |
Power DEMAND | 220V/50HZ/60HZ | |
Power consumption of the whole machine | ≤10KW | |
Requirements for workpiece welds | 0.8 mm or less | |
Continuous working time | ≥24H | |
Speed range | 0-120mm/s(manual speed) | |
Operating ambient temperature range | 15-38° below zero | |
Suitable material | Stainless steel, iron, aluminum alloy | |
Product size | Length 1000mm* Width 400mm* height 710mm | |

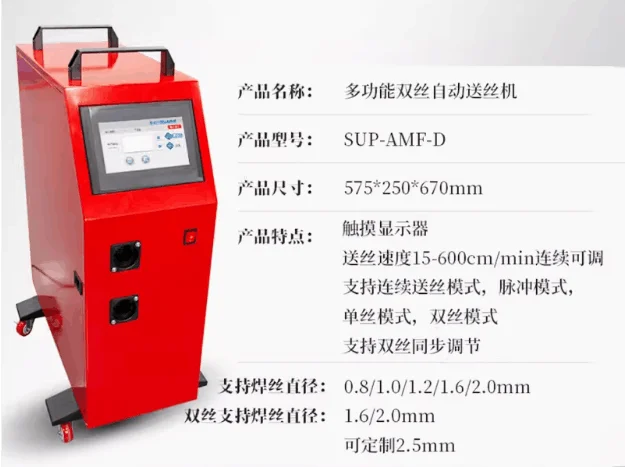

Size of wire feeder | Single wire feeding size: length 360mm* width 250mm* height 560mm, double wire feeding size: length 580mm* width 250mm* height 770mm | |
Product weight | 115KG | |
Package size | Length 1420mm x width 520mm x height 1010mm | |
With packing weight | 160KG | |
3000 W laser welding machine product attributes | ||
Name | Parameters | |
Laser power | 3000 watts | |
Laser brand | Chuangxin/Ryko/Keplin | |
Laser wavelength | 1080Um | |
Initiating mechanism | 1 optical fiber for 10 meters | |
Welding torch | Super Strong 23T | |
Wire feeder | Super strong double wire feed | |
Control method (system) | Super Strong | |
Welding thickness | 0.5 8 mm | |
Function 4-in-1 | Weld/de-rust/cut/clean the bead | |
Penetration parameters | (Stainless steel, 1m/min,6mm) (Aluminum alloy, 1m/min,5mm) (carbon steel, 1m/min,6mm) | |
Positioning system | Semiconductor red light | |
Welding wire diameter | 0.8/1.0/1.2/1.6mm ordinary welding wire | |
Gas protection | Argon | |
Cooling method | Hanli (water cooler) | |
Power demand | 380V | |
Power consumption of the whole machine | ≤15KW | |
Requirements for workpiece welds | 0.8 mm or less | |
Continuous working time | ≥24H | |
Speed range | 0-120mm/s(manual speed) | |
Operating ambient temperature range | 15-38° below zero | |
Suitable material | Stainless steel, iron, aluminum alloy, etc | |
Product size | Length 1130mm x width 500mm x height 1030mm | |
Size of wire feeder | Single wire feeding size: length 360mm* width 250mm* height 560mm, double wire feeding size: length 580mm* width 250mm* height 770mm | |
Product weight | 180KG | |
Package size | Length 1250mm x width 670mm x height 1600mm | |
With packing weight | 220KG | |
Handheld laser welding machine effect display
Q: How do we choose the most suitable laser cleaning machine?
A: In order to recommend the most suitable machine model to you, please tell us the following details:
1. What kind of surface material do you want to clean, such as metal surface, plastic surface, etc.?
2. Do you want to clean the surface of oil, rust, paint or other stains?
Q: When I receive this machine, I cannot operate it, how can I ask for help?
A: Our after-sales staff will send you the operation video and manual of the machine, and our technical engineers will conduct training and guidance online.
If necessary, we can send engineers to your site for training, or you can send operators to our factory for training.
Q: What should I do if something goes wrong with my device during use?
A: Our equipment is the whole machine warranty 1 year, laser warranty 2 years. Within the scope of the warranty, if there is any problem with the equipment, we will provide spare parts free of charge (except man-made damage). After the warranty period, we Lifetime service is still available. If you have any questions, please let us know and we will provide you with a solution.
Q: What are the payment options?
A: We accept payment terms including: T/T, VISA, Western Union online bank payment.
Q: What are the transportation methods of the equipment?
A: Shipping is the normal way, if there are special requirements, need to be confirmed by both parties.
A: In order to recommend the most suitable machine model to you, please tell us the following details:
1. What kind of surface material do you want to clean, such as metal surface, plastic surface, etc.?
2. Do you want to clean the surface of oil, rust, paint or other stains?
Q: When I receive this machine, I cannot operate it, how can I ask for help?
A: Our after-sales staff will send you the operation video and manual of the machine, and our technical engineers will conduct training and guidance online.
If necessary, we can send engineers to your site for training, or you can send operators to our factory for training.
Q: What should I do if something goes wrong with my device during use?
A: Our equipment is the whole machine warranty 1 year, laser warranty 2 years. Within the scope of the warranty, if there is any problem with the equipment, we will provide spare parts free of charge (except man-made damage). After the warranty period, we Lifetime service is still available. If you have any questions, please let us know and we will provide you with a solution.
Q: What are the payment options?
A: We accept payment terms including: T/T, VISA, Western Union online bank payment.
Q: What are the transportation methods of the equipment?
A: Shipping is the normal way, if there are special requirements, need to be confirmed by both parties.
