Product Overview
Description
Wet shotcrete cement concrete dry mix gunite machine for sale
Product Description

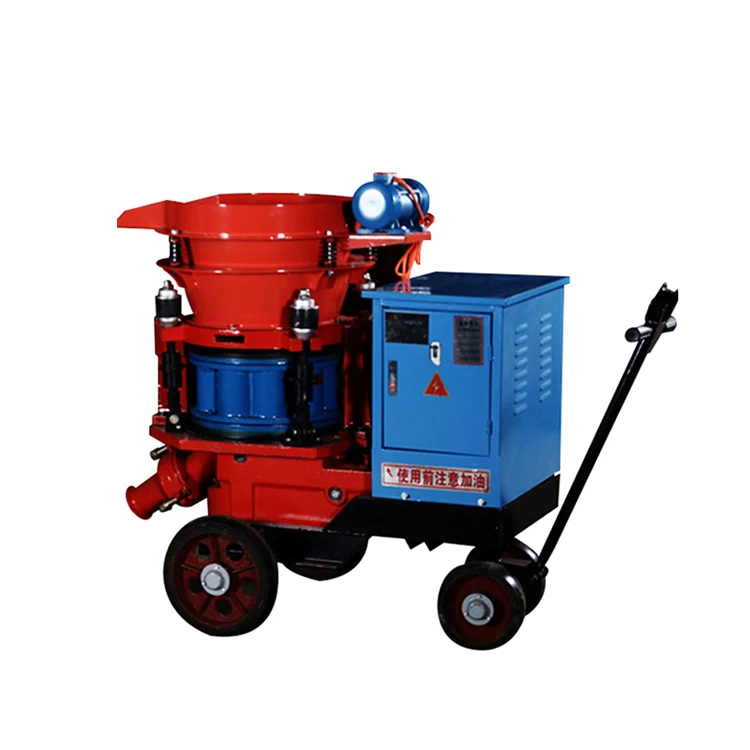

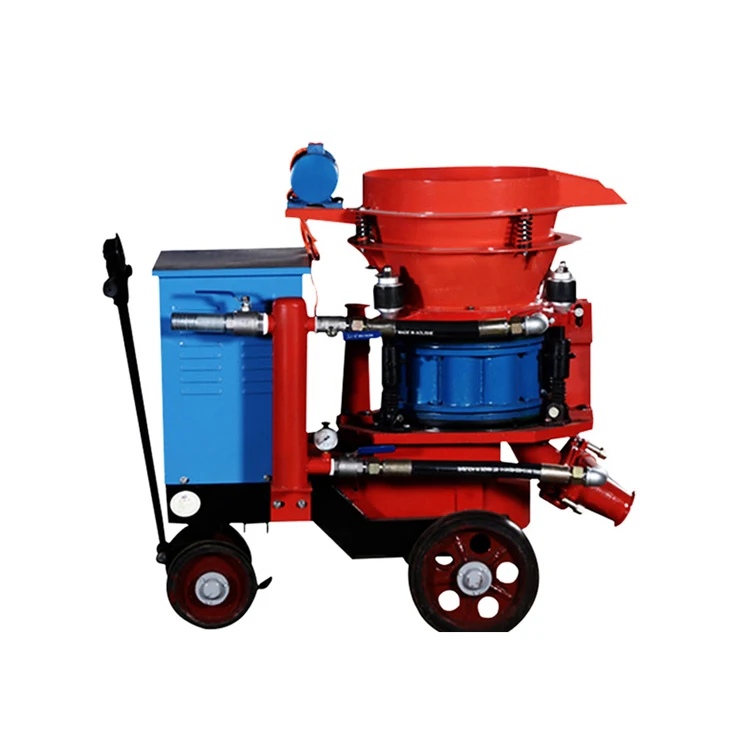

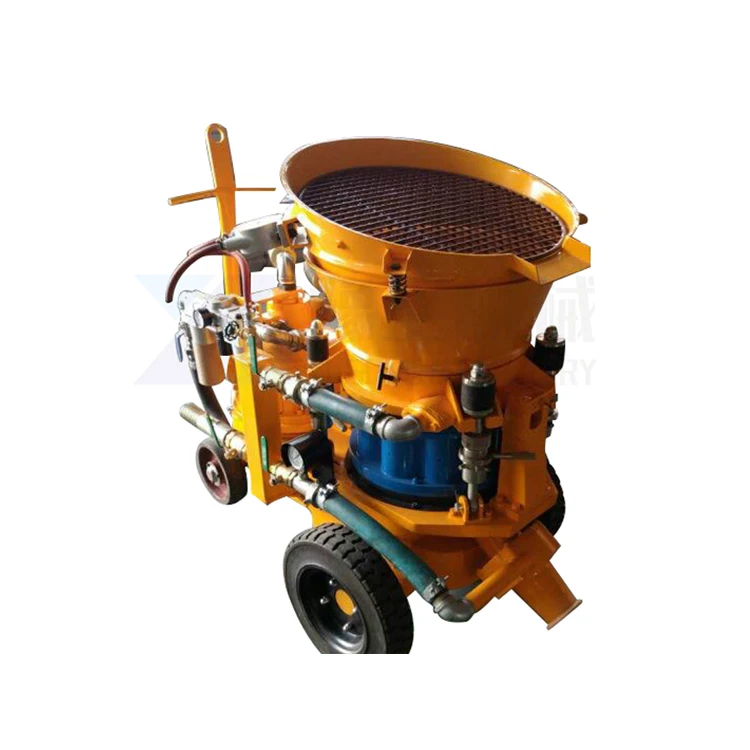

Yugong PZs rotor type shotcrete machine is a kind of concrete spraying machine which use the air power or diesel power to spray the concrete or cement to the surface of some project; for make a protecting coat for the projects.

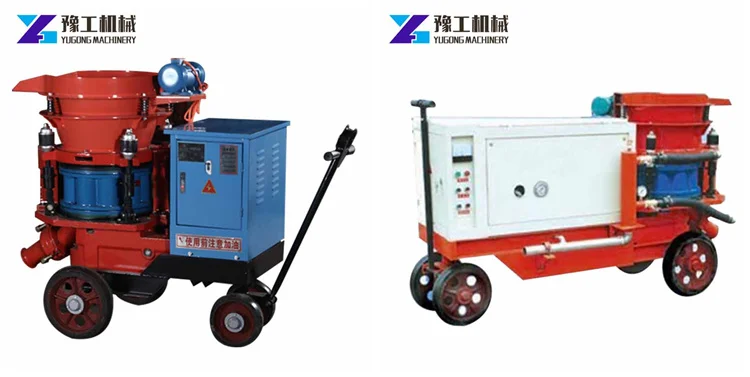

Dry type Wet type
Technical parameter

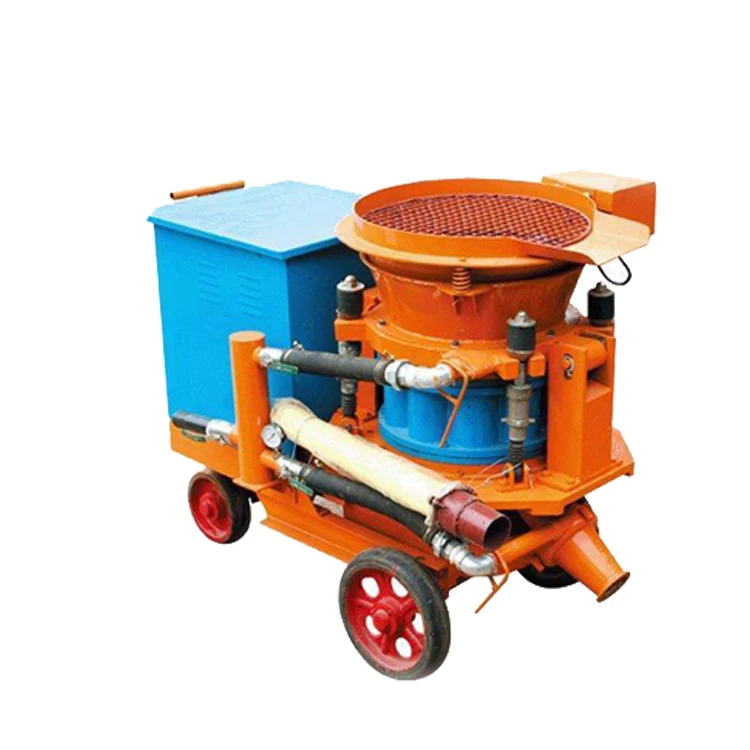

Dry shotcrete machine
Model | PZ-3 | PZ-5 | PZ-7 |
Capacity (cubic m/h) | 3 | 6 | 7 |
Rotor diameter (mm) | 350 | 440 | 480 |
Max conveying distance | 200m | 200m | 200m |
Max Aggregate (mm) | 20 | 20 | 20 |
Air Consumption | 3-4m3/min | 6-8m3/min | 7-8m3/min |
Air Pressure (mpa) | 0.4-0.6 | 0.4-0.6 | 0.6-0.8 |
Motor Power(kw) | 3 | 5.5 | 7.5 |
Dimension (mm) | 1040*550*950
| 1300*705*1300
| 1600*750*1200
|
Weight (kg) | 260 | 600 | 700 |

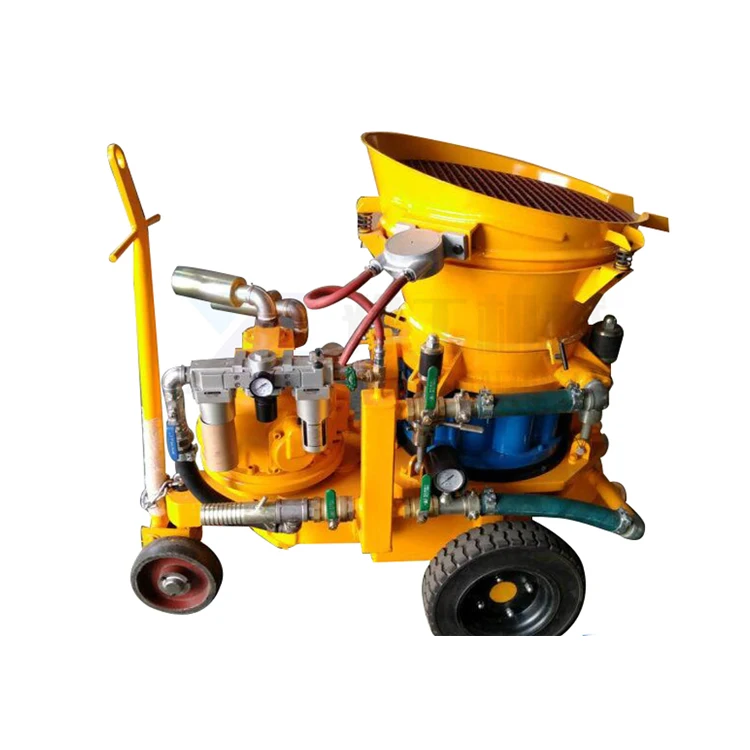

Wet shotcrete machine
Model | HSP-5 | HSP-7 |
Capacity (cubic m/h) | 5 | 7 |
Max Aggregate (mm) | 15 | 15 |
Max conveying distance | 30m(Horizontal) 20m (Vertical) | 30m(Horizontal) 20m (Vertical) |
Max Aggregate (mm) | 15 | 15 |
Air Consumption | 7-10m3/min | 7-10m3/min |
Air Pressure (mpa) | 0.2-0.6 | 0.2-0.6 |
Motor Power(kw) | 5.5 | 7.5 |
Weight (kg) | 700 | 800 |
Dimension(mm) | 1280*700*1280 | 200*800*1300 |

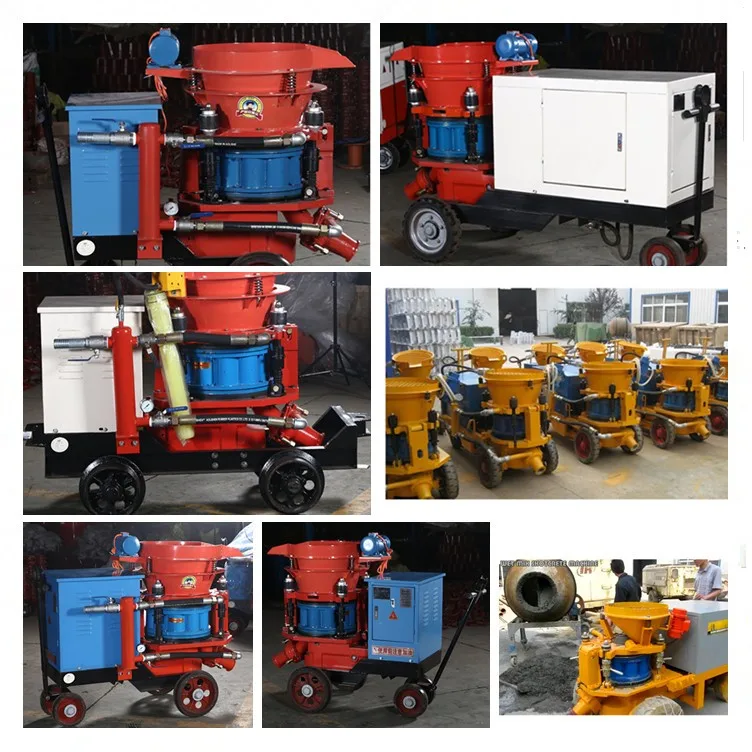

Product Overviews

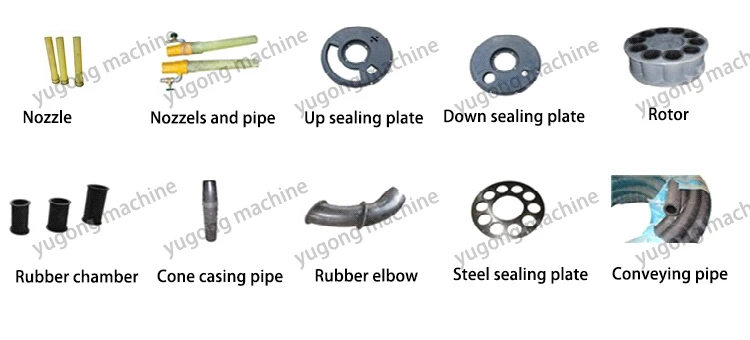

Spare parts
Besides the shotcrete machine, we also manufacture all accessories, such as concrete spraying Conveying Pipe, Upper Rubber Sealing Plate, Down Rubber Sealing Plate, Rubber Chamber, Rotor, Steel Linear Plate, Spray Head, Clamping Device, Hydrocyclone, Nozzle boss etc.

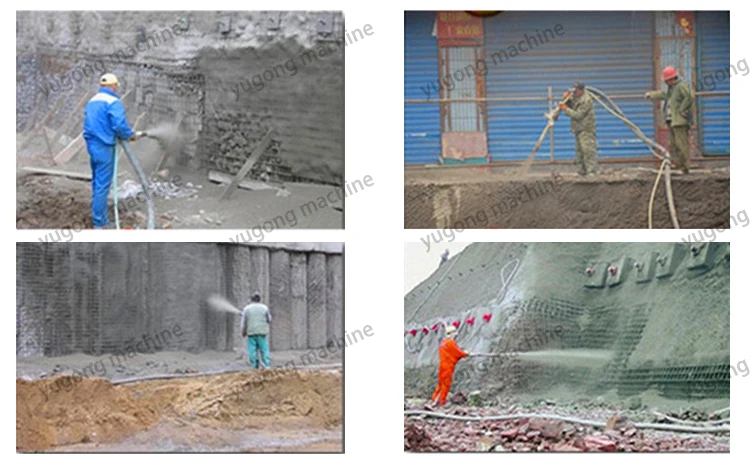

Working show
-Shotcreting for tunnels, hydro-power engineering, mines, underground engineering, civil engineering and slope stabilization;
-Artificial soil seeding for no soil surface, such as rock, sand, and for no fertility soil surface.
-Refractory concrete spraying and repair for industrial kilns or kilns' inner liner.
-Damping concrete for culvert constuction or protection.
-Metope shotcrete machine, concrete/ cement gunite.
-Dry or wet mix shotcrete is available.
-Swimming pool surface concrete placing shotcrete machine, swimming pool gunite.

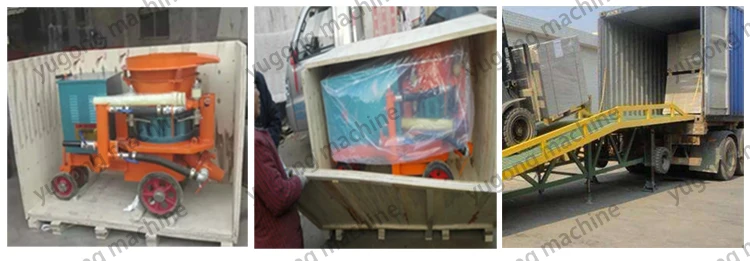

Packaging & Shipping
FAQ
Q1: How long is your delivery time?
A2: It is according to the model and quantity.
Generally it is 3-5 days if the machines are in stock.
It will be 7-10 days if you want to customize the machines.
Q2: What is your terms of payment?
A4: We accept T/T, Western Union, Money Gram, Paypal, Escrow etc.
Payment<=USD 5000, 100% in advance.
Payment>=USD 5000, 30% T/T in advance, balance before shipment.
