24090219 Aluminum cleaning nylon brush

Yudao Brush has long term supply cabinet wiring brushes and strip brush for companies such as Schneider, APC, HP, Microsoft Cloud,Google Cloud, Amazon Cloud, Baidu Cloud, Alibaba Cloud, Tencent, Whirlpool, Rittal, Foxconn,
Delta, Vertiv and charge-point, as well as hair dyeing combs for companies such as L'Oreal,
supply elevator safety brushes for Mitsubishi Elevator, wooden handle shoe brushes and cleaning brushes for supermarkets such as Auchan.

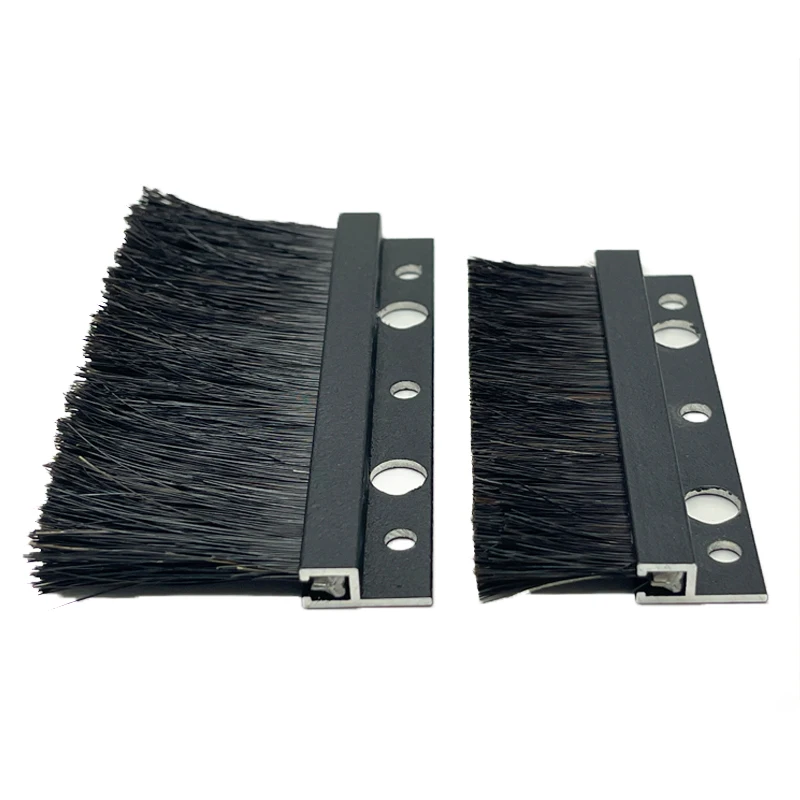

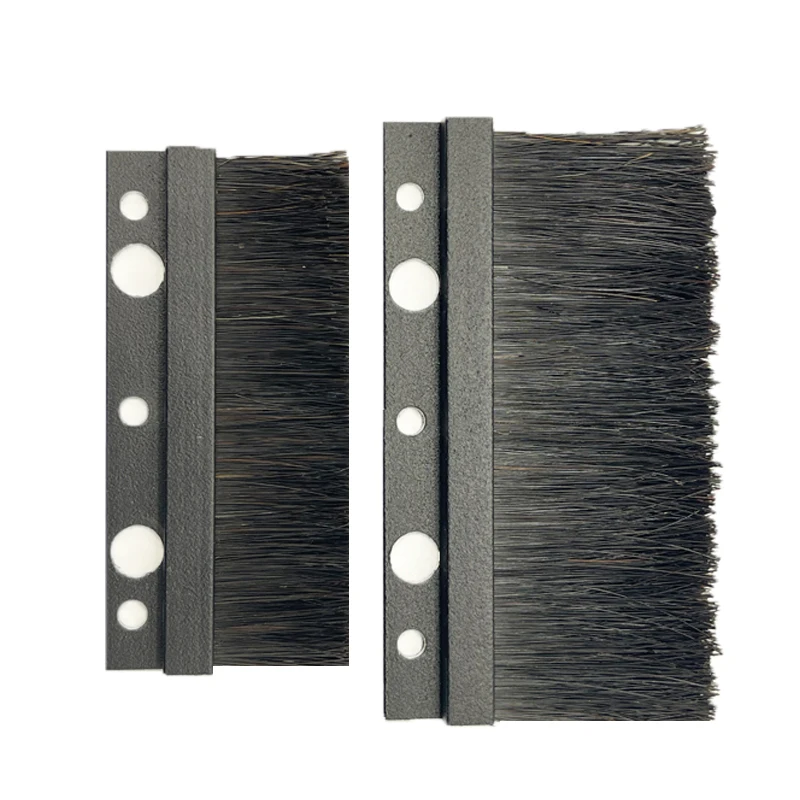

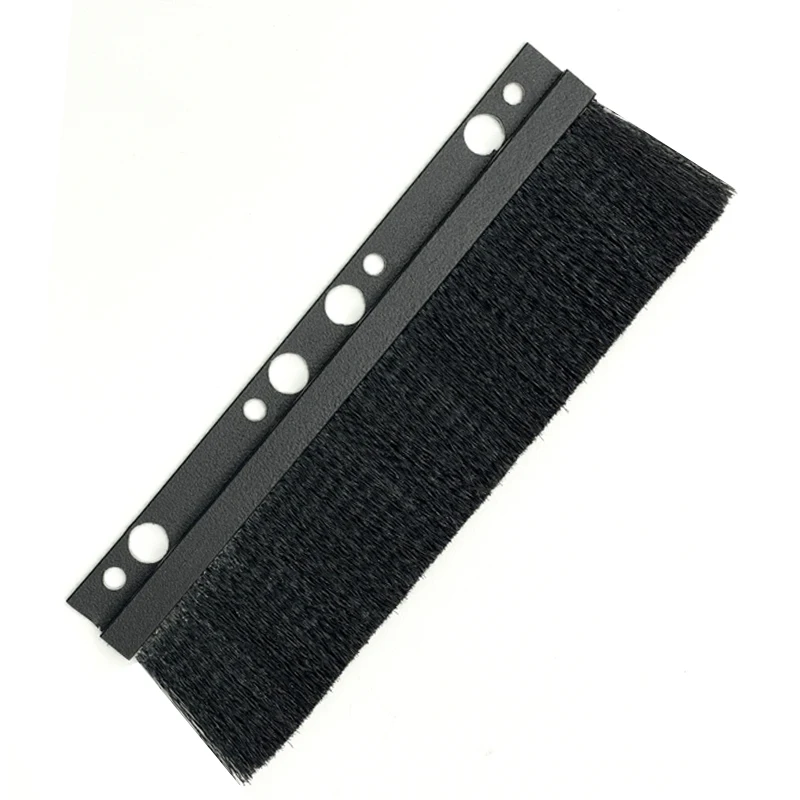

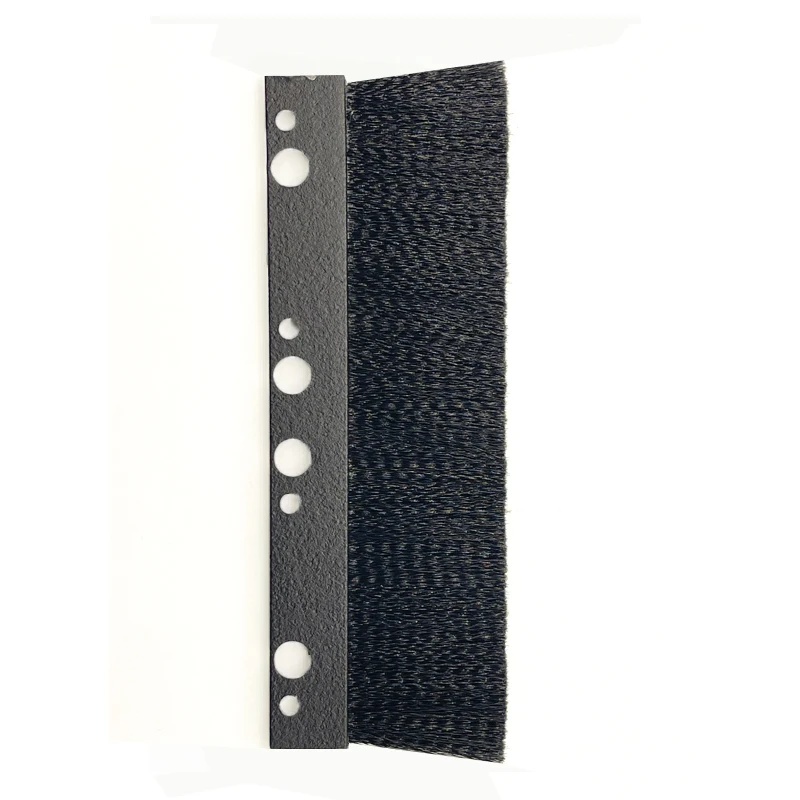

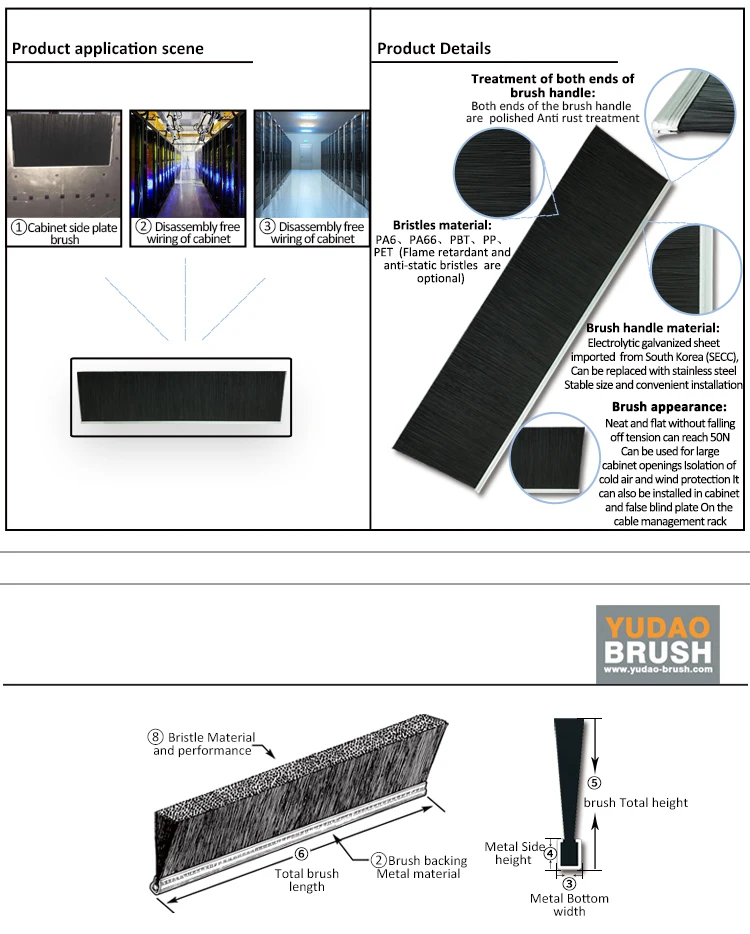

D Series - Iron Backing Strip Brush

Model

DA

DB

Brush backing material

SECC electrolytic galvanized sheet

SUS-304 stainless steel

RoHS

Pass (SGS test)

REACH

Pass (SGS test)

UL

Pass(with UL file number)

PAHs

Pass (SGS test)

Low Halogen

Pass (SGS test)

Bottom width of brush handle

3.0 | 3.5 | 4.0 |4.5 | 5.0 | 6.0 | 8.0 | 9.0 | 10.0 |11.0 | 12.0 | mm

Side height of brush handle

3.0 | 3.5 | 4.0 |4.5 | 5.0 | 6.0 | 8.0 | 9.0 | 10.0 |11.0 | 12.0 | mm

A

A: Common nylon6 PA6 (low cost, high recovery)

B

B: UL94-V0 flame retardant PA6 (nylon6) (high recovery, high flame retardant)

C

C: Anti static nylon PA6 （Anti static，high recovery，resistance value:1E10-1E12Ω，1E8-1E10Ω）

D

D: Common PBT wire brushing (low cost, high recovery, high hardness)

E

E: UL94-V0 flame-retardant PBT (high recovery, high flame retardancy and high hardness)

F

F: Common PP (low cost, high hardness)

G

G: UL94-V2 flame retardant PP (low cost, high flame retardancy)

H

H: Brass wire

J

J: Stainless steel wire(ten to the tenth-twelve times power)

K

K: Animal hair

L

L: Plant fibre

M

M: Abrasive wire

N

N:electric conduction PA6(resistance value:1E3-1E5Ω)

O

O:High temperature resistant PA66 bristles(170℃)

P

P:Low temperature resistant PA66 bristles(-40℃)

Q

Q:High temperature resistant PEEK bristles(220℃)

R

R:Food grade PP

S

S:Corrosion resistant PPS

T

T:Corrosion resistant PVDF

U

U:Common nylon66 PA66 (high recovery)

V

V:UL94-V0 flame retardant PA66 (nylon66) (high recovery, high flame retardant)

W

W:Common PET(low cost,high hardness)

X

X:Food grade PA610

Y

Y:Food grade PA612

Bristles diameter

0.15 | 0.2 | 0.25 | 0.3 | 0.4 | 0.5 | 0.6 | 0.8 | 1.0 | mm

Bristles shape

Straight or corrugated wire

Bristles color

Black, blue, white, red, yellow, green, orange, purple, transparent, gray

Bristles tension

＞ 50 N

RoHS

Pass (SGS test)

REACH

Pass (SGS test)

UL

Pass (with UL number)

PAHs

Pass (SGS test)

Low Halogen

Pass(except that the flame retardant bristles contains about 8.5% bromine)

Total height of brush

10-200mm customizable

Total brush length

20-3000mm customizable

 Whole RoHS

Pass (SGS test)

 Whole REACH

Pass (SGS test)

Whole UL

Pass(with UL number)

PAHs

Pass (SGS test)

Low Halogen

Pass(except the flame retardant bristles contains about 8.5% bromine)

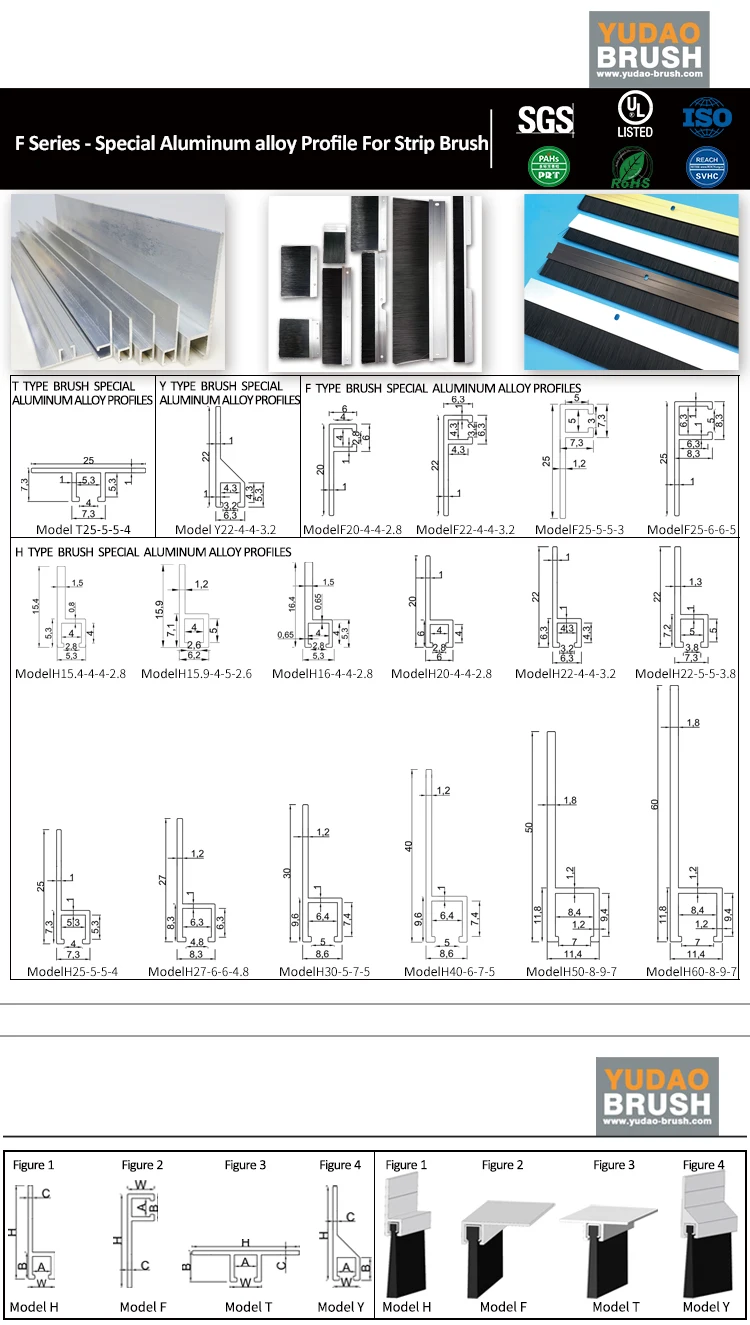

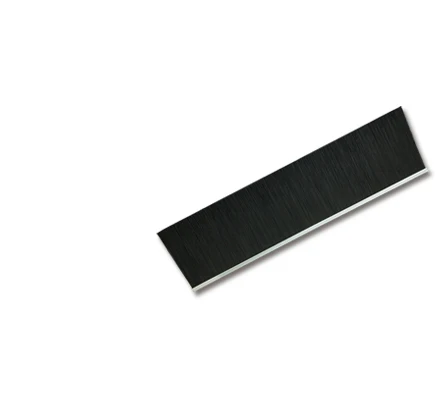

F Series - H / F / T / Y Shape Special Aluminum alloy Profile For Strip Brush

Aluminum Alloy Material

6063-T5 aluminium alloy

 RoHS

Pass (SGS test)

REACH

Pass (SGS test)

UL

Pass

Aluminum color

Natural color material/natural color oxidation/black baking varnish/black oxidation

Total length L

5-3000mm（Customizable）

Aluminum model：

H15.4-3.5-3.5-2.8

H15.9-4-5-2.6

H16.4-3.5-3.5-2.8

 H20-4-4-2.8

H22-4-4-3.2

H22-5-5-3.8

H

15.4mm

15.9mm

16.4mm

20mm

22mm

22mm

W

5.3mm

6.2mm

5.3mm

6mm

6.3mm

7.3mm

A

4mm

4mm

4mm

4mm

4.3mm

5mm

B

5.3mm

7.1mm

5.3mm

6mm

6.3mm

7.2mm

C

1.5mm

1.2mm

1.5mm

1mm

1mm

1.3mm

Aluminum model：

H25-5-5-4

H27-6-6-4.8

H30-6-7-5

H40-6-7-5

H50-8-9-7

H60-8-9-7

H

25mm

27mm

30mm

40mm

50mm

60mm

W

7.3mm

8.3mm

8.6mm

8.6mm

11.4mm

11.4mm

A

5.3mm

6.3mm

6.4mm

6.4mm

8.4mm

8.4mm

B

7.3mm

8.3mm

9.6mm

9.6mm

11.8mm

11.8mm

C

1mm

1.2mm

1.2mm

1.2mm

1.8mm

1.8mm

Aluminum model：

 F20-4-4-2.8

F22-4-4-3.2

F25-5-5-3

F25-6-6-5

H

20mm

22mm

25mm

25mm

W

6mm

6.3mm

7.3mm

8.3mm

A

4mm

4.3mm

5mm

6.3mm

B

6mm

6.3mm

7.3mm

8.3mm

C

1mm

1mm

1.2mm

1mm

Aluminum model：

T25-5-5-4

H

25mm

W

7.3mm

A

5.3mm

B

7.3mm

C

1mm

Aluminum model：

Y22-4-4-3.2

H

22mm

W

6.3mm

A

4.3mm

B

5.3mm

C

1mm

Note: Other colors can also be customized in batches.

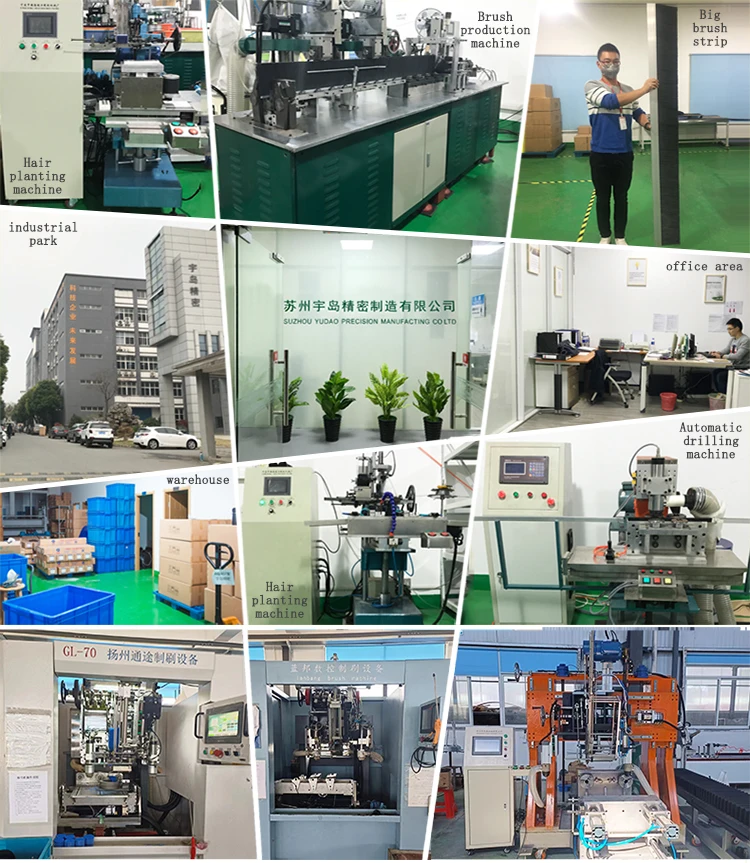

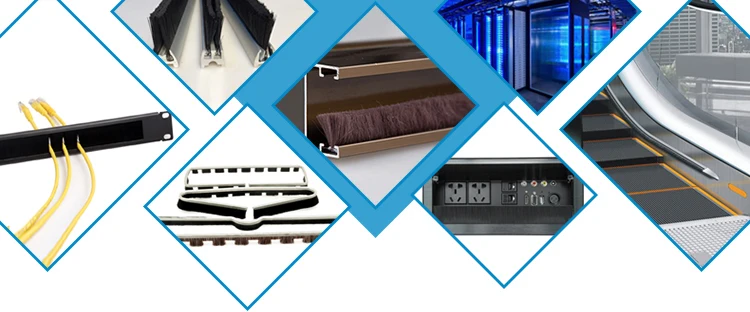

Suzhou Yudao Precision Manufacturing Co., Ltd. specializes in providing brush parts for European and American customers. The products mainly include various cabinet wiring brushes, cabinet channel brushes, raised floor threading boxes, charging pile waterproof brushes, automatic door brushes, office furniture dust brushes, various cleaning brushes, wooden handle brushes, and car wash hub brushes. The company's production capacity is about 12000 iron brushes per day, about 45000 plant bristles, and about 5000 meters of aluminum profiles for bristles. Brush products can be widely used in network energy cabinets, server chassis machinery, automatic doors, subway bus doors, office furniture, home and outdoor cleaning, car washing industry, beauty salon and other industries. The processing techniques used include CNC high-speed hair planting and iron sheet metal strip brush, hob hair smoothing, punch hair smoothing, etc. The main customers include APC, Schneider, HP, Amazon Cloud, Microsoft Cloud, Alibaba Cloud,Tencent, Baidu, Lake Vacuum Cleaner, Jiangnan Jiajie Elevator, etc.

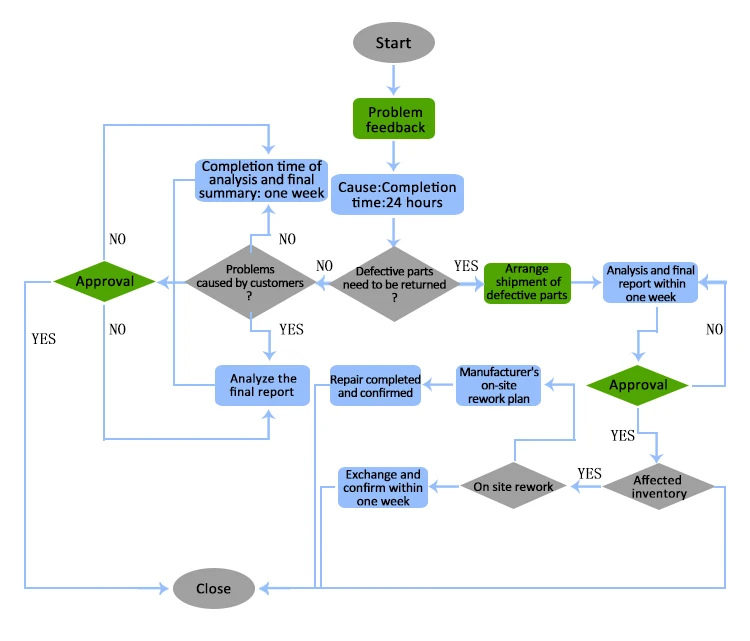

With many years of cooperation experience with European and American customers, the company has established a complete quality management system. The advanced American automotive industry CPK system is used for process capability analysis, and the American aviation industry PFMEA system is used to ensure product quality. International standards such as IS02768, ROHS, RAECH, and UL are used to control product size, material environmental protection, and flame retardance. The international standards followed by our company include IS09001 (quality management),ISO2768 (product tolerance), ROHS (environmental protection), REACHSVHC (environmental protection), PAHs (environmental protection), and UL (material performance and flame retardant).

 Suzhou Yudao Precision Manufacturing Co., Ltd. is recognized by customers with integrity, strength, and quality, striving to become the cornerstone of China's brush supply. Warmly welcome colleagues from all walks of life to visit and negotiate business!
