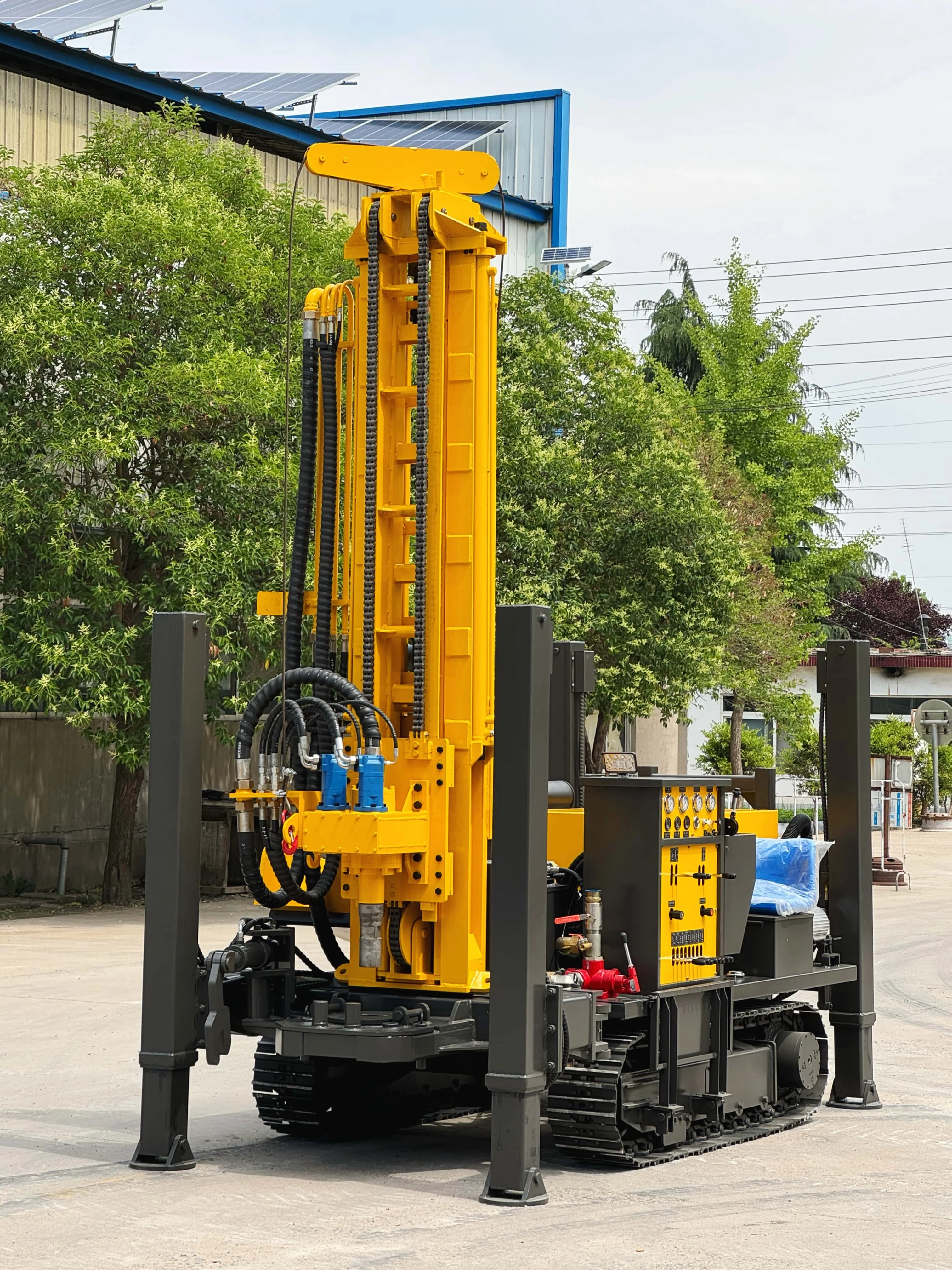

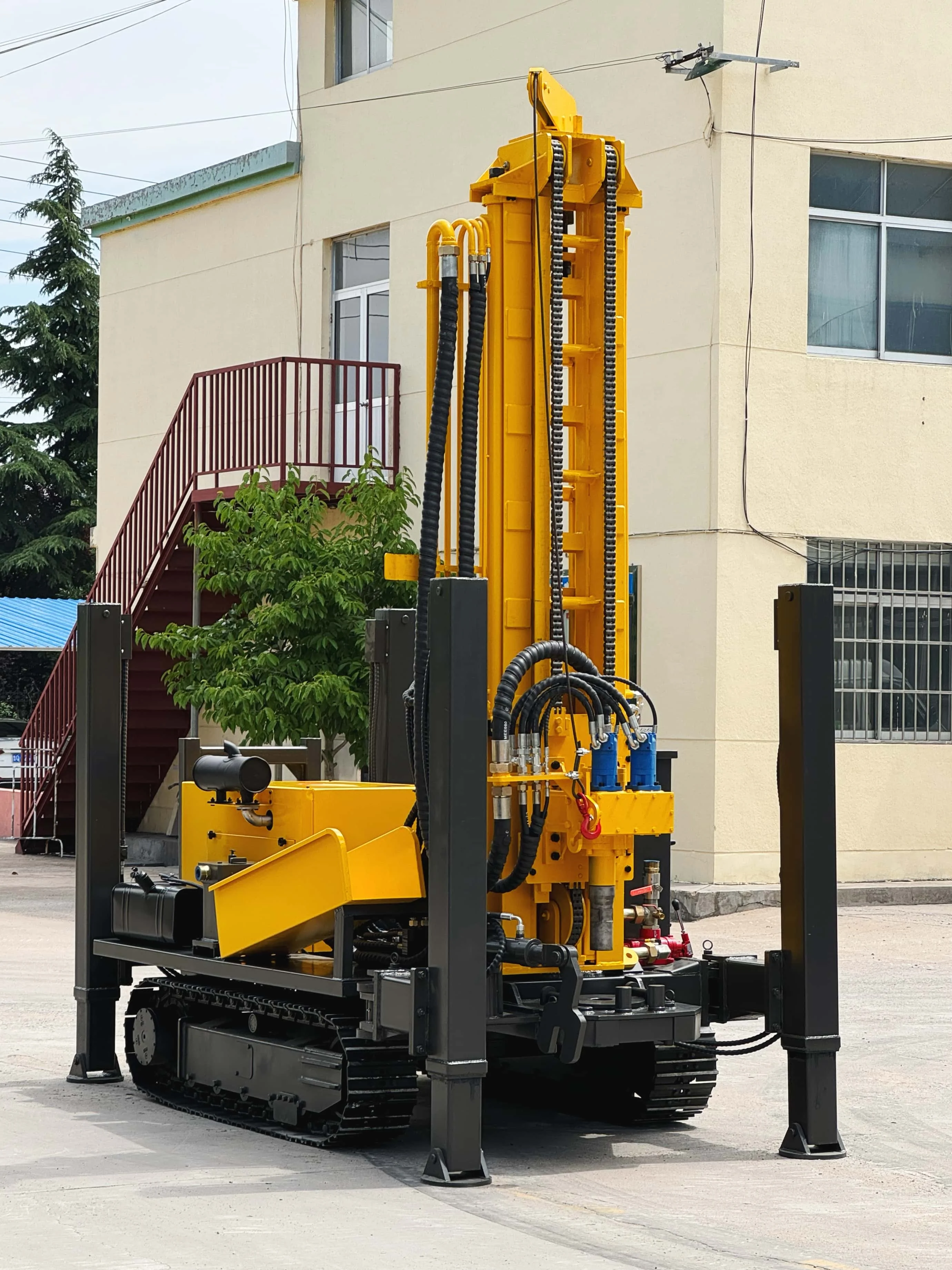

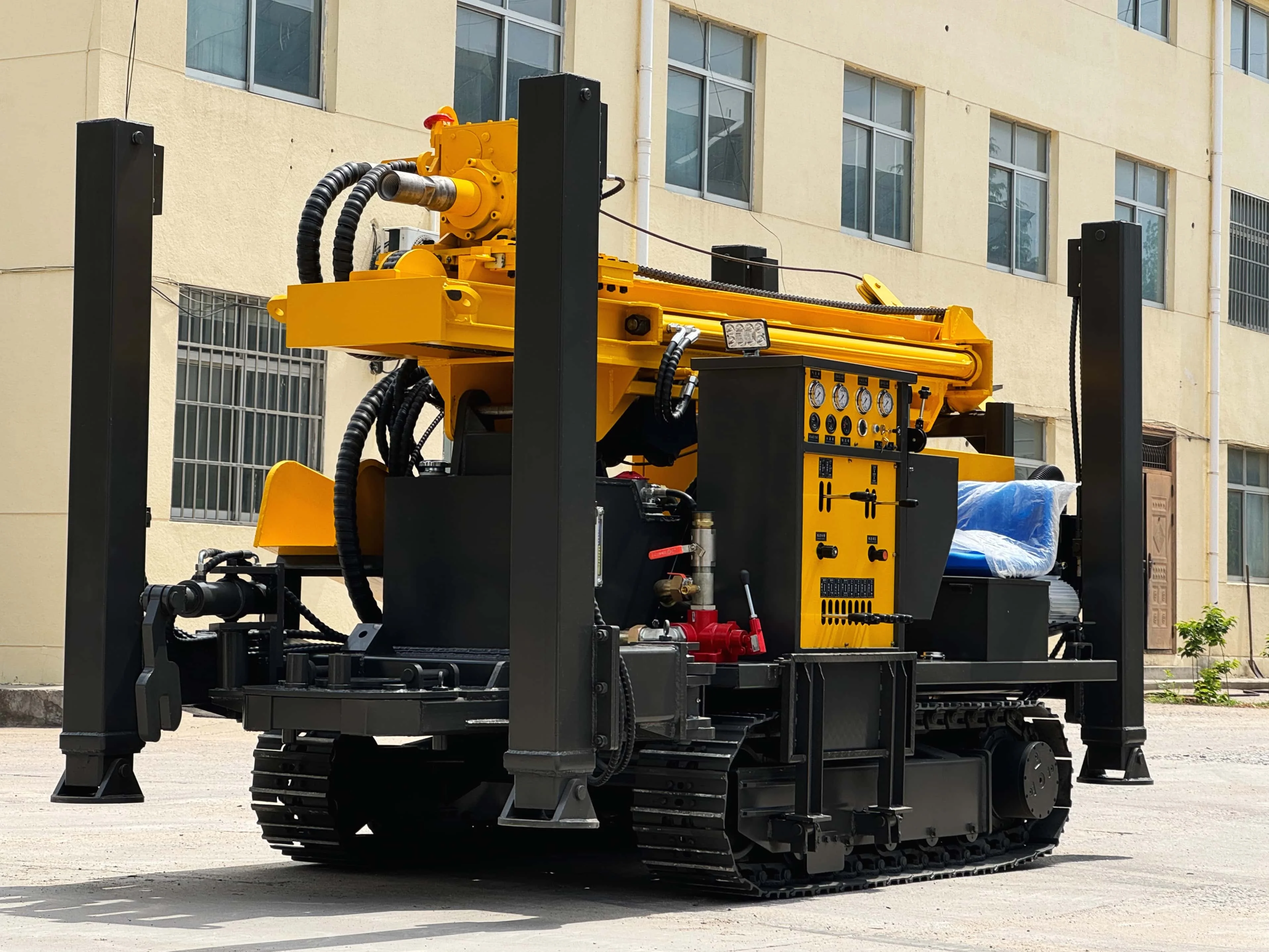

YC-260 Rotary Water-air Dual-purpose Steel Tracked Deep Water Well Drilling Rig
The YCL/YCSL series deep (water) well drilling rigs adopt full hydraulic control. The top-mounted power head drives the drilling tool to rotate, resulting in high drilling efficiency. The overall layout is reasonable. The rig is transported by crawler or all-terrain chassis, with good mobility and is suitable for operations in various harsh road conditions. It is widely used in resource exploration and exploitation projects such as hydrological wells, coalbed methane, shallow shale gas, and geothermal energy. It can also be used in occasions such as coal mine gas extraction and emergency rescue. The main shaft of the top drive power head has a large diameter and is suitable for multiple construction technologies such as mud drilling, air drilling, and air foam drilling, meeting the drilling needs of different strata.
2. The telescopic drill mast with adjustable clearance can meet the construction requirements of long casings and has high working efficiency.
3. Unique hydraulic matching technology for high system efficiency.
4. Integrated visual pressure-increasing and pressure-reducing feed system, which can finely adjust the drilling pressure according to the drilling depth.

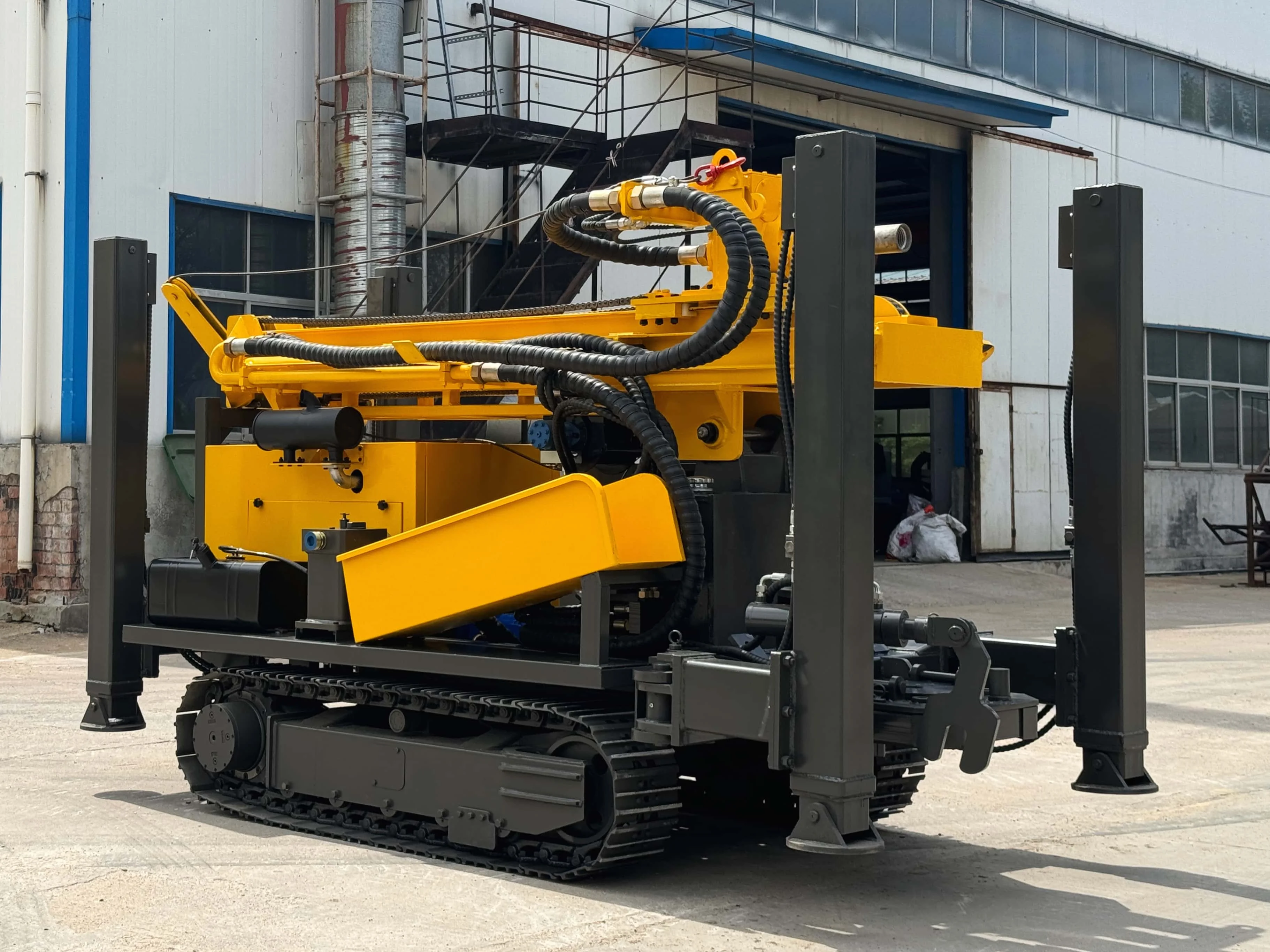

5. Equipped with four hydraulic high outriggers to realize rapid leveling of the drilling rig without the need for hoisting.
6. The swivel-type centering device provides a wide working space during operation.
YC-260 parameter | ||||||
The weight（T） | 6 | Equipped capacitor（kw） | Quanchai 76KW | |||
Drill pipe diameter（mm） | Φ76 Φ89 | Drill pipe length（m） | 1.5/2.0/3.0 | |||
The hole diameter（mm） | 140-305 | Drilling depth（m） | 260 | |||
One-time advance length（m） | 3.6 | The penetration efficiency（m/h） | 10-35 | |||
Swing speed（rpm） | 45-70 | Swing torque（N.m） | 3500-4800 | |||
Rig lifting force（T） | 15 | Hoisting force of winch（T） | 1.5 | |||
Rapid rise speed（m/min） | 24 | Fast feeding speed（m/min） | 40 | |||
Using air pressure（MPA） | 1.7-2.5 | Air consumption（m³/min） | 17-31 | |||
Walking speed（km/h） | 2.5 | Climbing angles（Max.） | 30 | |||
Width of loading（m） | 2.4 | Dimension（mm） | 4000×1800×2250 | |||
Related products
Drill pipe
Geological drill bit
DTH impactors
DTH bit
Adapter
Tube boots
Company Profile
FAQ
1.Payment terms: |
T/T 50% in advance ,the balance should be paid within 5days against the B/L date |
2.Delivery time: |
Within 20 days after receiving your advance payment |
3.Shipping way: |
Sample order: We suggest courier and express service or by air Bulk order: We suggest by air or by sea |
4.Packaging: |
1)Outside package:Standard export wooden cases 2)Inner package:Stretch film |
5.Whether customization is accepted: |
Yes, we accept customization of brand, color, appearance and performance. |
