CX-HL series high-pressure infusion pump is a high-precision, low-pulsation high-pressure infusion pump, which can achieve large flow and stable solvent delivery. The flow rate of liquid delivery can range from 0.001mL/min to 3000mL/min.
As an infusion system, in the process of sample purification, it can be used as a solvent delivery pump to provide stable mobile phase delivery for the purification process. In addition, it can also be used as an injection pump for the injection of large-volume samples during the preparation process to provide accurate injection volume.
Pump Head | Flow rate range | Maximum working pressure | Material |
10mL | (0.001~10.000)mL/min | 42MPa | 316LSS |
50mL | (0.001~50.000)mL/min | 30MPa | 316LSS |
100ml | (0.01~100.000)mL/min | 30MPa | 316LSS |
200ml | (0.01~200.000)mL/min | 20 MPa | 316LSS |
500ml | (0.01~500.000)mL/min | 20 MPa | 316LSS |
1000ml | (0.01~1000.000)mL/min | 15 MPa | 316LSS |
3000ml | (0.1~3000.000)mL/min | 10 MPa | 316LSS |
“36 years” focus on the manufacturing of instruments and meters
Among them, the manufacturing of Micro pump has entered the “top
10” nationwide Served over "100+" countries and "100000+" customers
Has obtained the "100+" patent certificate and the "National
High tech Enterprise Title" Provide a one-stop solution with customer satisfaction of "99%".
Specifications
Its main features are as follows:
1.Double plunger series mode, floating plunger design;
2.Advanced pump drive system makes the pump performance better, higher precision, and better stability;
3.Adopt electronic pulsation compensation technology, multi-point flow correction, to ensure flow accuracy in the full flow range, more accurate flow rate, more stable performance, reliable operation, and high cost performance
4.Open computer anti-control communication protocol, convenient for third-party software control;
5.Touch screen design;
6.Humanized interface design;
7.Flow multi-point calibration;
8.The firmware program can be updated online;
9.Power-off protection;
10.LAN connection, stable data transmission;
11.The instrument can alarm in time and automatically stop the operation of the pump according to the set procedure.
2.Advanced pump drive system makes the pump performance better, higher precision, and better stability;
3.Adopt electronic pulsation compensation technology, multi-point flow correction, to ensure flow accuracy in the full flow range, more accurate flow rate, more stable performance, reliable operation, and high cost performance
4.Open computer anti-control communication protocol, convenient for third-party software control;
5.Touch screen design;
6.Humanized interface design;
7.Flow multi-point calibration;
8.The firmware program can be updated online;
9.Power-off protection;
10.LAN connection, stable data transmission;
11.The instrument can alarm in time and automatically stop the operation of the pump according to the set procedure.
model | CX- HL0010 | CX-HL0050 | CX-HL0100 | CX-HL0200 | CX- HL0500 | CX- HL1000 | CX- HL3000 | ||||||
Set step size | 0.001ml/min | 0.01ml/min | 0.1ml/min | ||||||||||
Infusion mode | Double plunger in series | Double plunger in parallel | |||||||||||
Flow rate range mL/min | 0~10.000 | 0~10.000 | 0~10.000 | 0~200.00 | 0~500.00 | 0~1000.00 | 0~2999.9 | ||||||
Maximum Work pressure | 42Mp | 30Mpa | 20MPa | 15MPa | 10MPa | ||||||||
Reproducible RSD | 0.1% | ±0.5% | ±1% | ||||||||||
(stability) | Independent mode, set parameters through the panel buttons Serial port mode, through RS232 communication, controlled by PC Network port mode, communication via network cable, controlled by PC | ||||||||||||
display | 5.0 Inch Touch Screen | 5.6 Inch Touch Screen | |||||||||||
Size（L*W*H） | 368*260*140 | 488*380*215 | 610*460*275 | ||||||||||
Power | 75W | 150W | 750W | 1000W | 1500W | ||||||||
Weight | 6.9kg | 8.5kg | 27.2kg | 27.2kg | 73kg | ||||||||

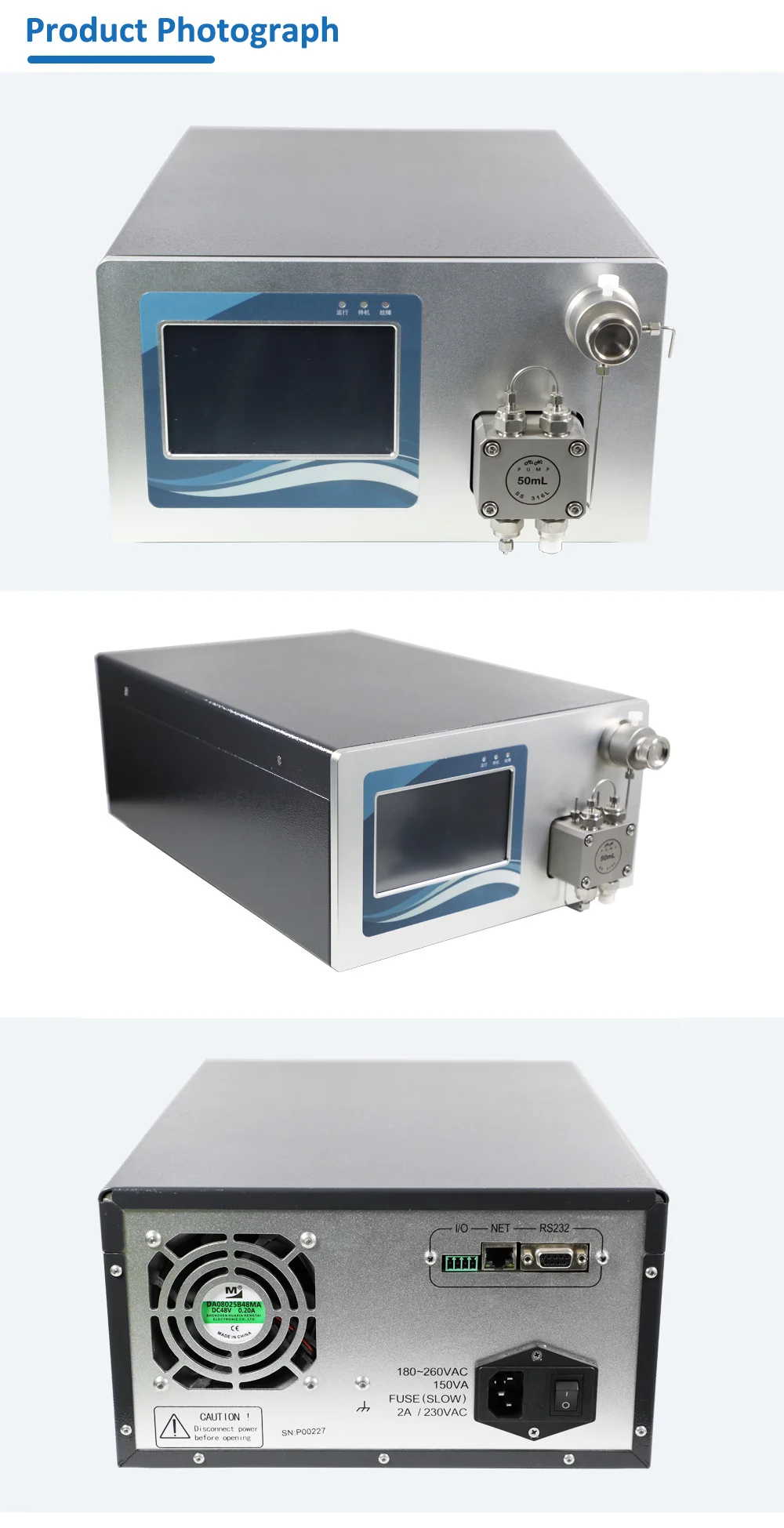

Product Show
