Equip SPD surge protection 3KW 3.6KW hybrid solar inverter 3000w 3600w off grid MPPT inverter 24v with lightning protection
- Category: >>>
- Supplier: Guangdong Techfine Electronic Co. Ltd.
Share on (1601243183079):
Product Overview
Description
*Strictly comply with ISO quality management system
products have passed [UL,CE,IEC, ROHS, SONCAP,SASO,PVOC] and other CERTIFICATIONS.

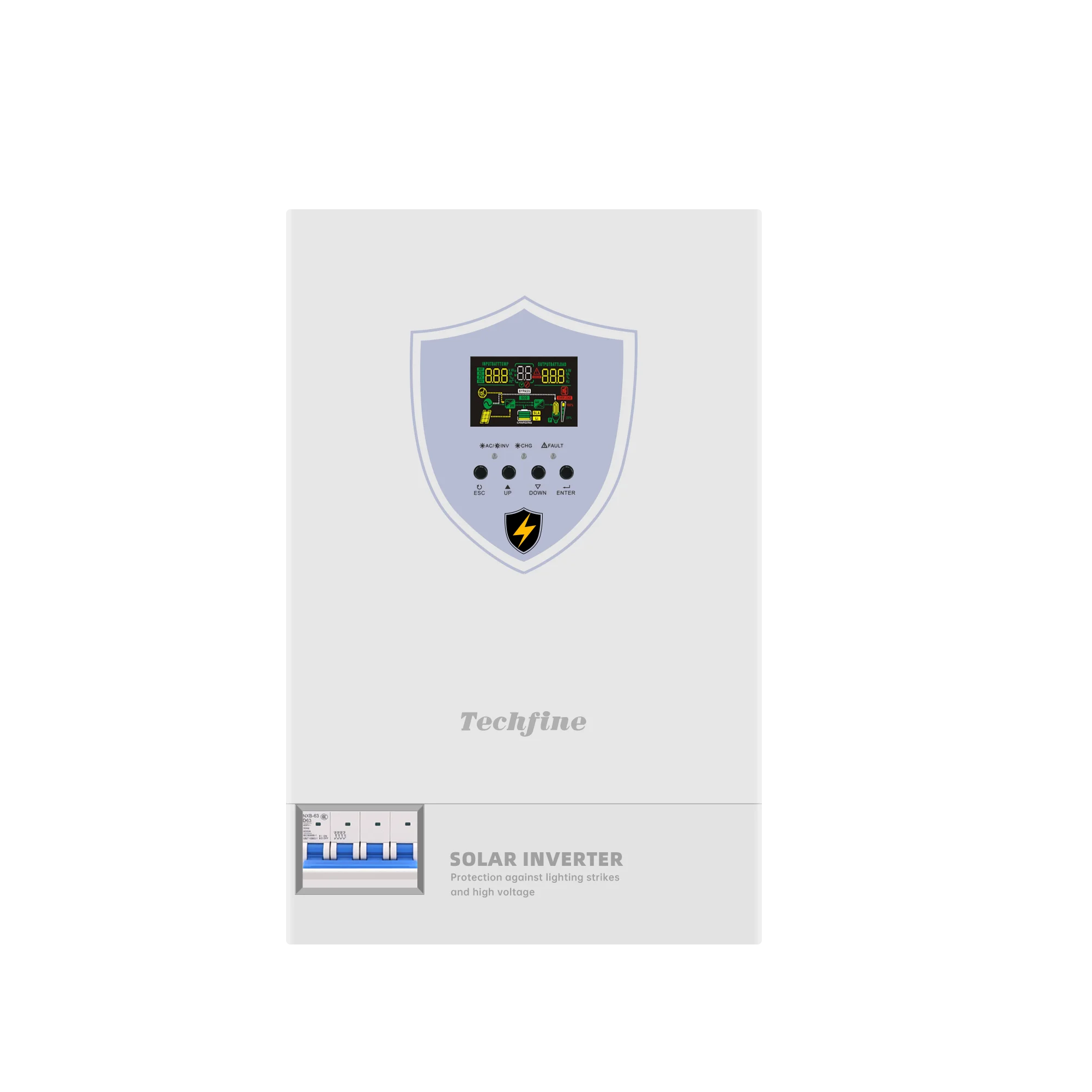

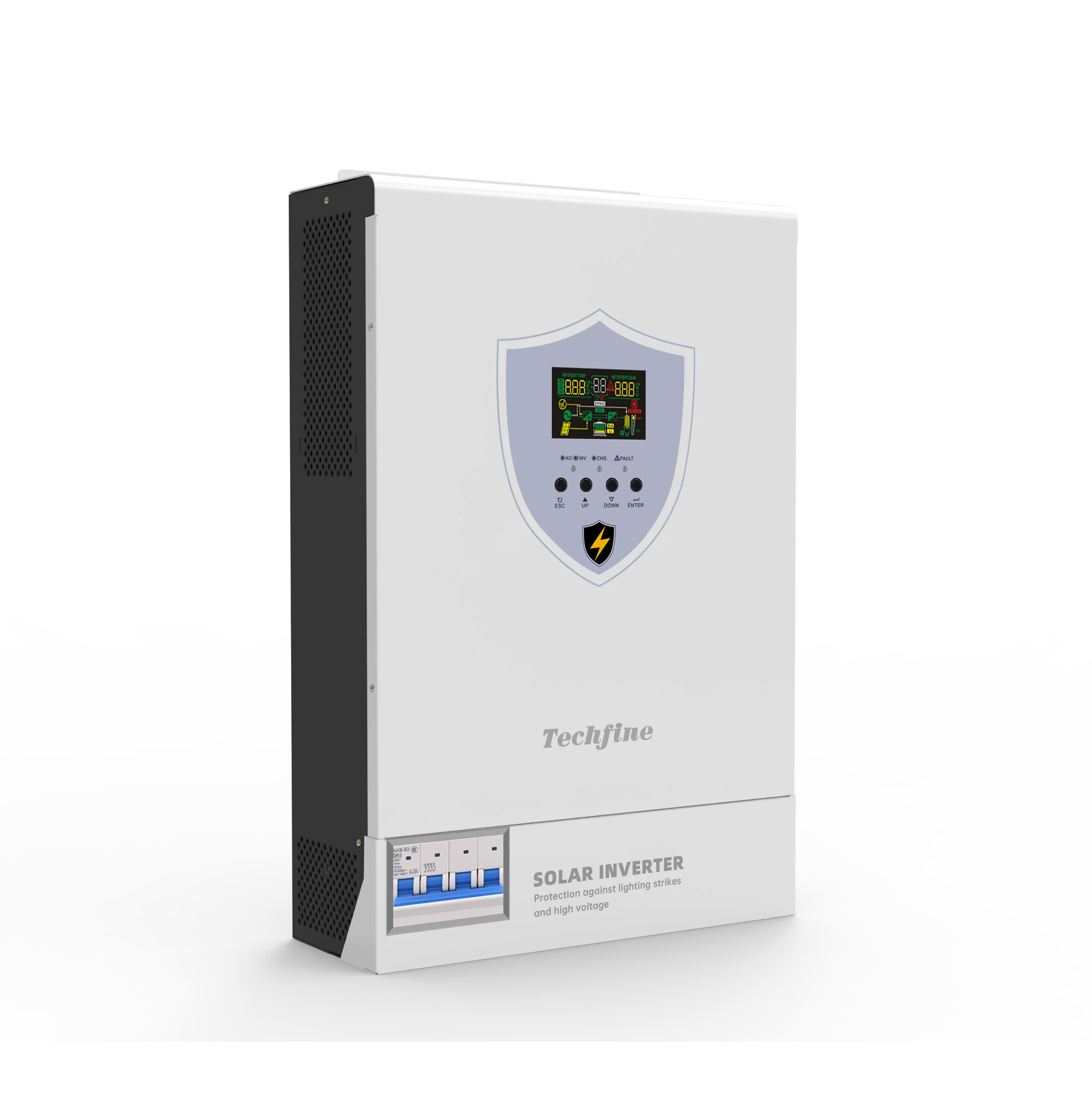

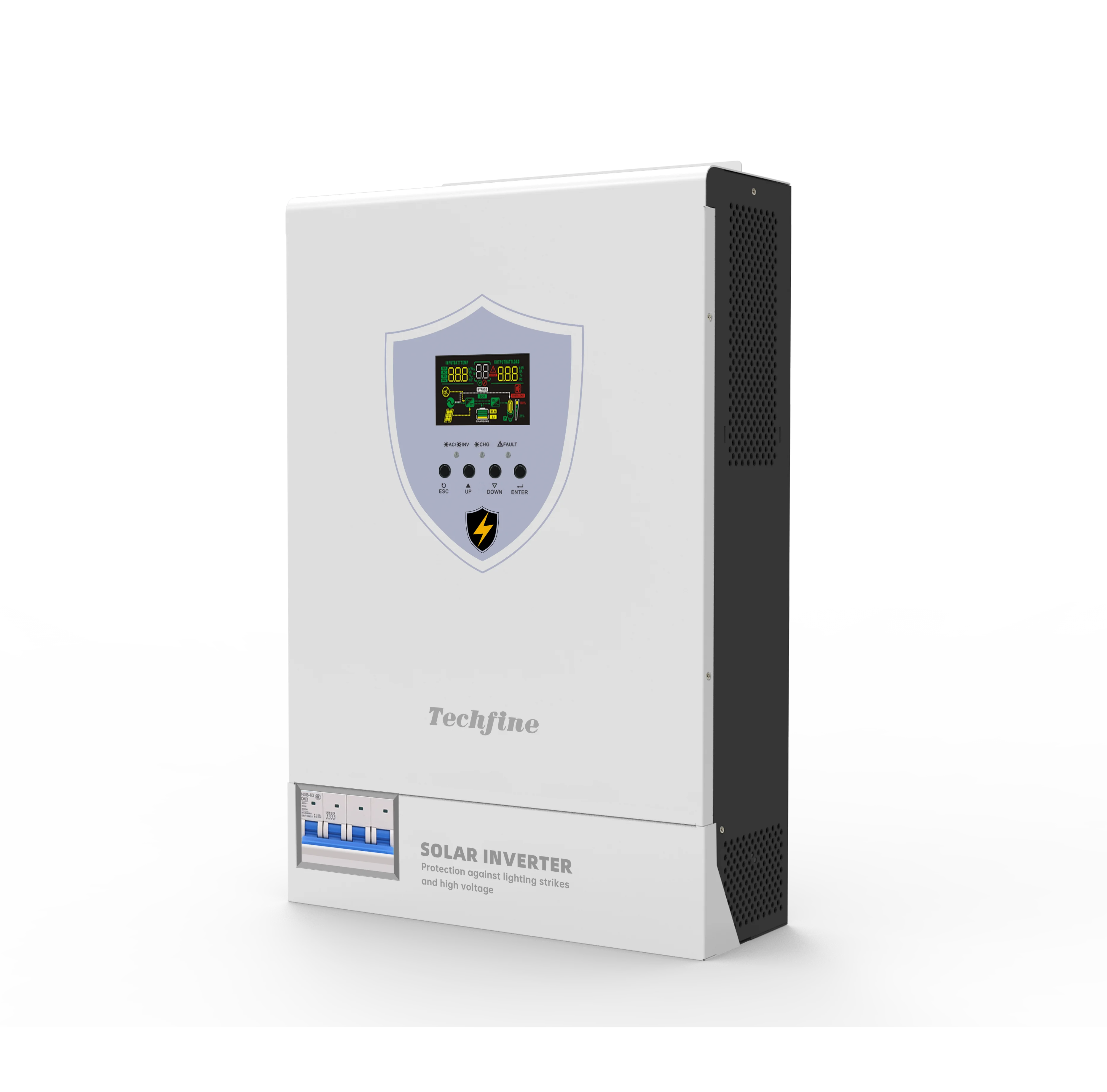

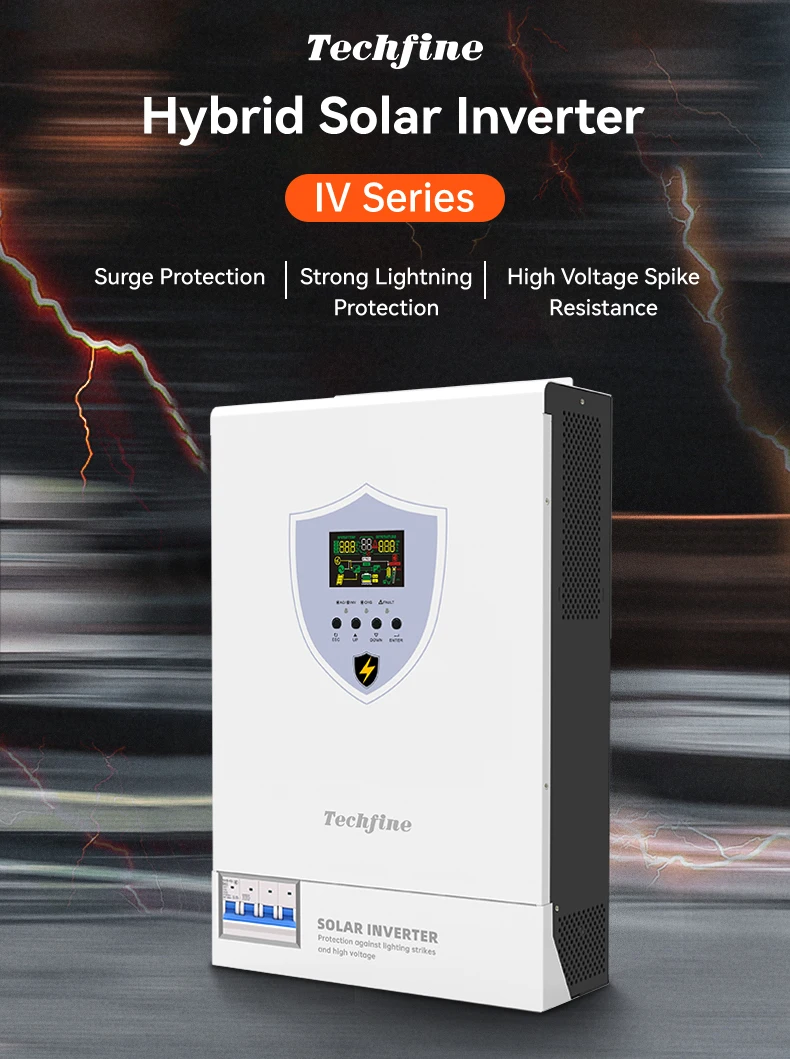

Techfine IV Series Hybrid Solar Inverter
Robust protection design ensures reliable operation of your equipment even in extreme environments!
Designed for harsh environments, integrating advanced protection technologies to ensure reliable power support, even under adverse weather conditions and unstable power sources. Whether for residential, commercial, or industrial applications, Techfine has you covered.
Key Features:

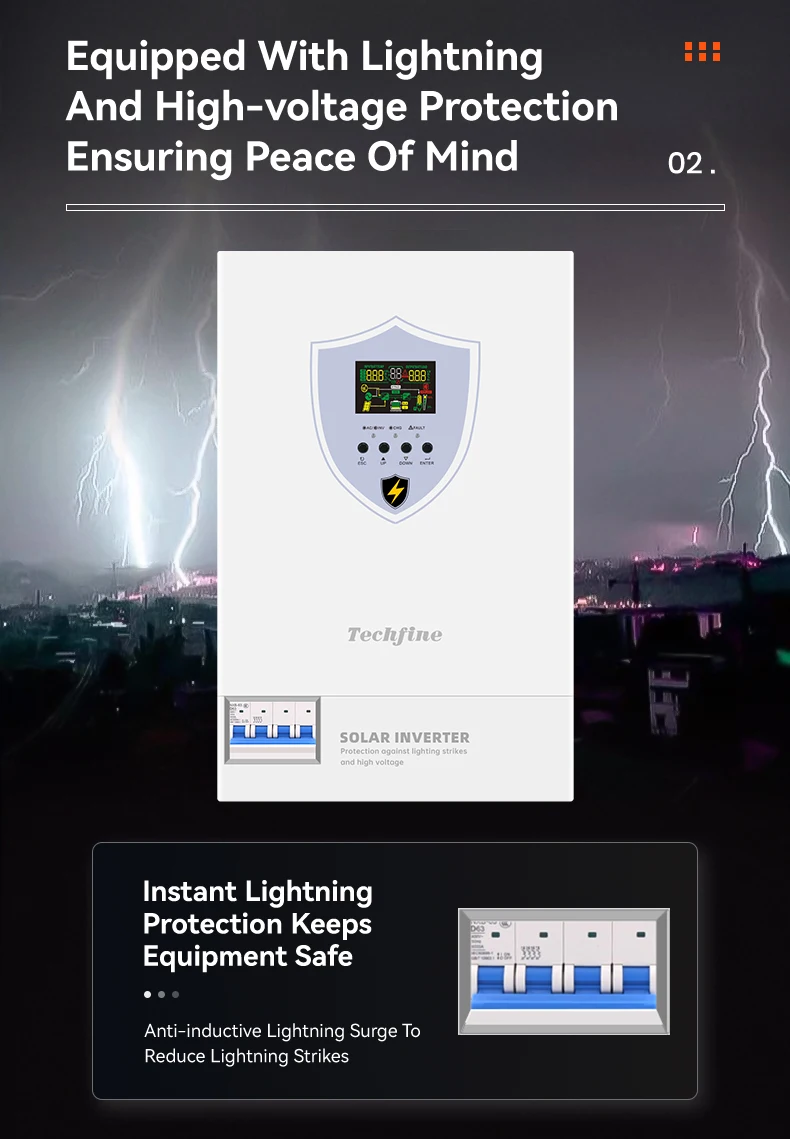

> Equipped with lightning and high-voltage protection: Effectively prevents damage from lightning and high voltage, ensuring safe operation of your equipment.

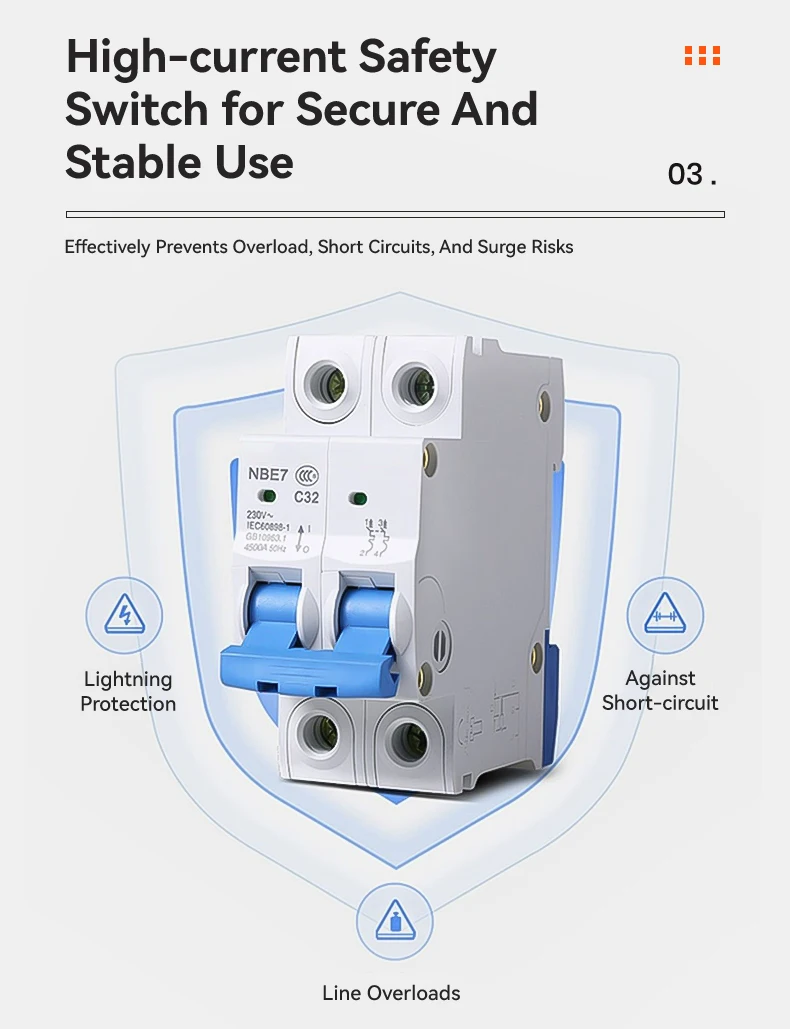

> Safety switch design for input and output: Provides additional safety, simplifies operation, and improves system reliability.

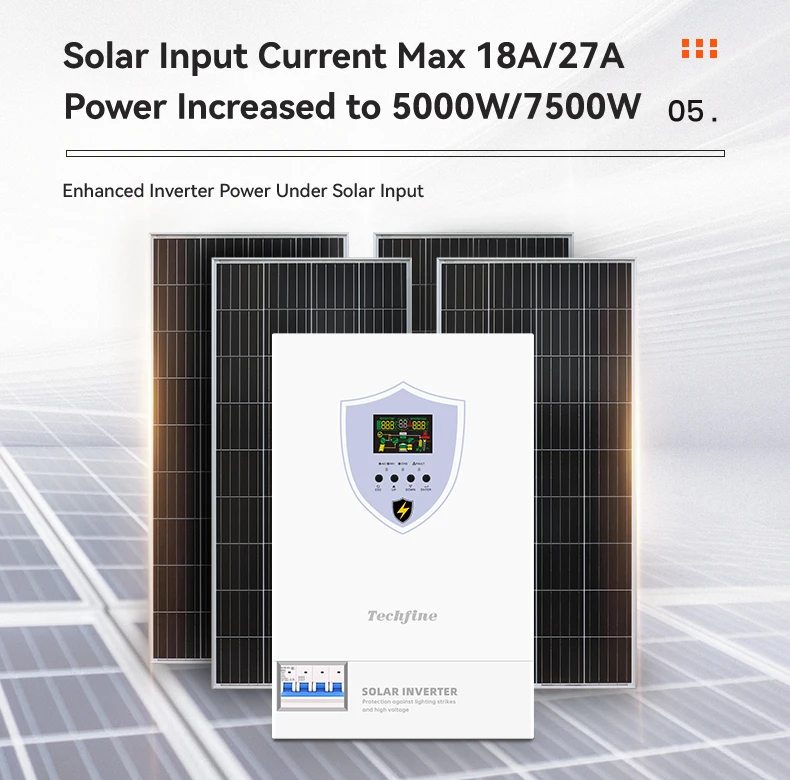

> Increased solar input current: Boosts power output and enhances overall system performance.

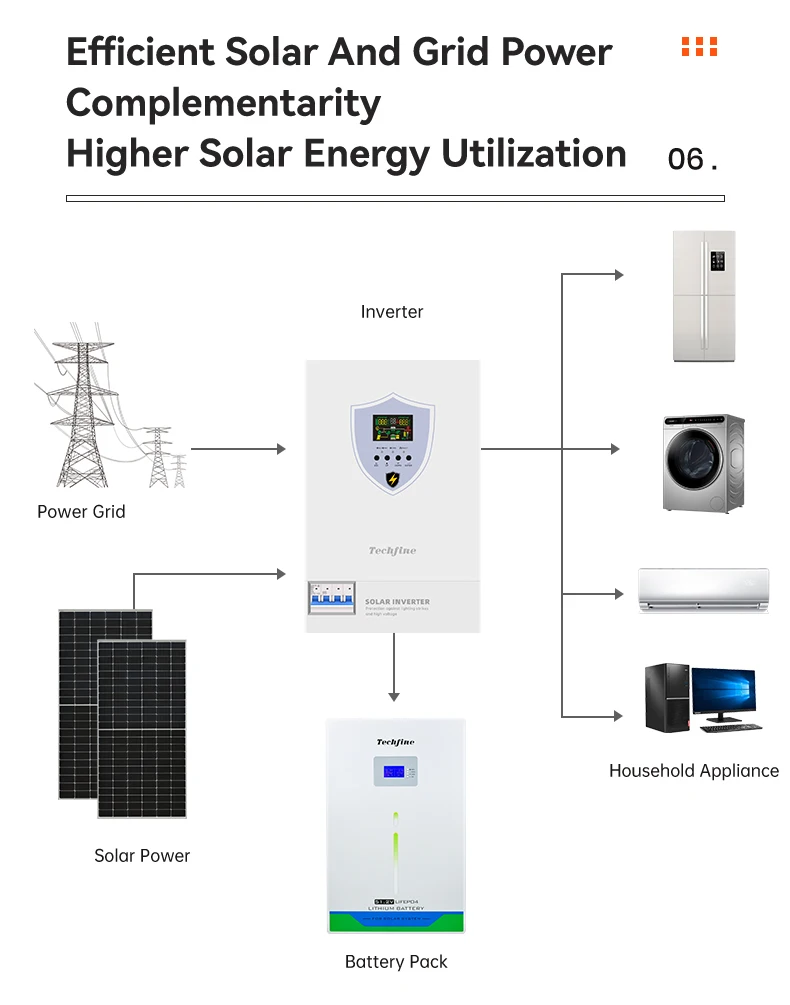

> Higher solar utilization when complemented by grid power: Maximizes energy conversion efficiency, making the most of clean energy.
> Enhanced inverter power under solar input: Delivers stronger power support when running on solar energy.
> EMI filtering reduces interference: Effectively minimizes electromagnetic interference, ensuring stable operation of the equipment.

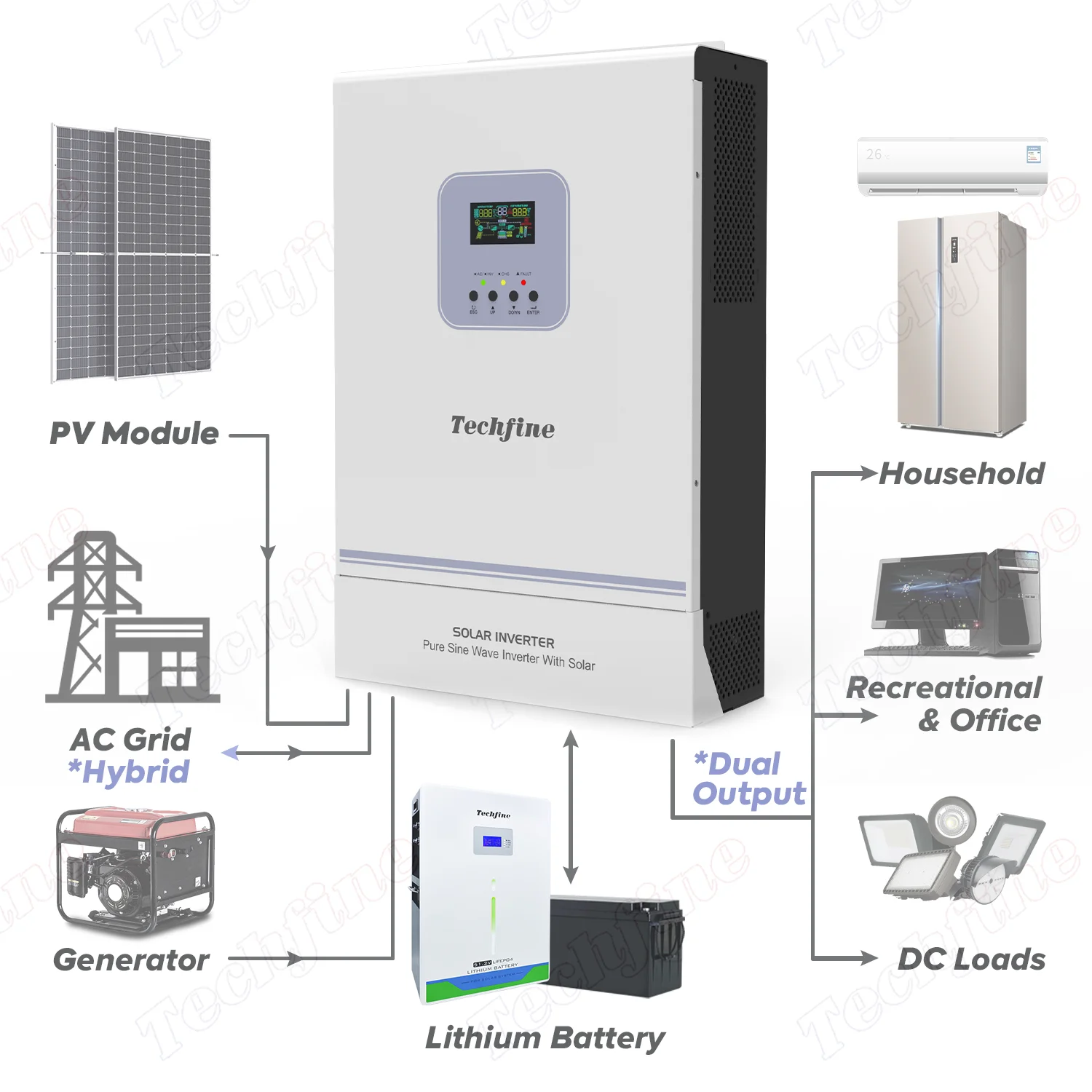

Whether for home or business, Techfine provides a one-stop solution for optimizing your energy structure, reducing electricity costs, while also enhancing the environmental friendliness of energy use.
Choose Techfine to embark on a new era of smart, efficient, and green energy.
Product Parameter
Model | 3024SMH | 3624SMH | 5548SMH | 6248SMH | ||||
Rated input voltage | 220/230/240VAC | |||||||
Voltage range | 90-280VAC±3V（normal mode) 170-280VAC±3V（UPS mode） | |||||||
Frequency range | 50Hz/60Hz(Adaptive) | |||||||
Output | ||||||||
Battery Inverter | 3000W | 3600W | 5500W | 6200W | ||||
Photovoltaic Inverter | 3000W | 4500W | 6500W | 6500W | ||||
Peak Power | 6000VA | 7200VA | 11000VA | 12400VA | ||||
Output voltage | 220/230/240VAC±5% | |||||||
Output frequency | 50/60Hz±0.1% | |||||||
Waveform | Pure sine wave | |||||||
Switching time (adjustable) | Computer equipment 10ms, home appliances 20ms | |||||||
Overload capacity | Battery Mode：11s@105%~150% Load;2s@150%~200% Load;400ms@>200% Load | |||||||
Grid-connected operation | ||||||||
Output voltage | 220/230/240VAC | |||||||
grid feeding voltage range | 195-253VA | |||||||
grid feeding frequency range | 49-51±1Hz/59-61±1Hz | |||||||
nominal output current | 13A | 15.7A | 23.9A | 26.9A | ||||
power factor range | >0.99 | |||||||
maximum conversion efficiency (DC/AC) | 98% | |||||||
Battery | ||||||||
rated voltage | 24Vdc | 48Vdc | ||||||
constant voltage charging voltage (configurable) | 28.2Vdc | 56.4Vdc | ||||||
float charging voltage (configurable) | 27Vdc | 54Vdc | ||||||
PV charger | ||||||||
PV charging method | MPPT | |||||||
maximum input power of PV | 5000W | 7500W | ||||||
MPPT input voltage range | 60-500Vdc | |||||||
optimal Vmp operating range | 300~400Vdc | |||||||
maximum PV input voltage | 500Vdc | |||||||
maximum PV input current | 18A | 18A | 27A | 27A | ||||
maximum PV charging current | 100A | 120A | 100A | 120A | ||||
maximum mains charging current | 60A | 100A | 100A | 100A | ||||
maximum charging current | 100A | 120A | 100A | 120A | ||||
display | ||||||||
LCD Interface | Can display operation mode/load/input/output, etc. | |||||||
interface | ||||||||
RS232 | Baud rate 2400 | |||||||
Expansion slot communication interface | Lithium battery BMS communication card, WIFI card, dry contact card, etc. | |||||||
Parallel interface | No parallel function | Parallel (network) function | ||||||
Environmental parameters | ||||||||
Operating ambient temperature | -10~50℃ | |||||||
Operating environment humidity | 20%~95%(No condensation) | |||||||
Storage temperature | -15~60℃ | |||||||
Altitude | The altitude should not exceed 1000m, and the rating will be reduced above 1000m, and the maximum altitude is 4000m, refer to IEC62040 | |||||||
noise | ≤50db | |||||||
Physical parameters | ||||||||
Depth × width × height (mm) | 495*312*135 | |||||||
Weight (for reference) KG | 7.5 | 7.5 | 8.5 | 8.5 | ||||
Standards and certifications | EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1 | |||||||

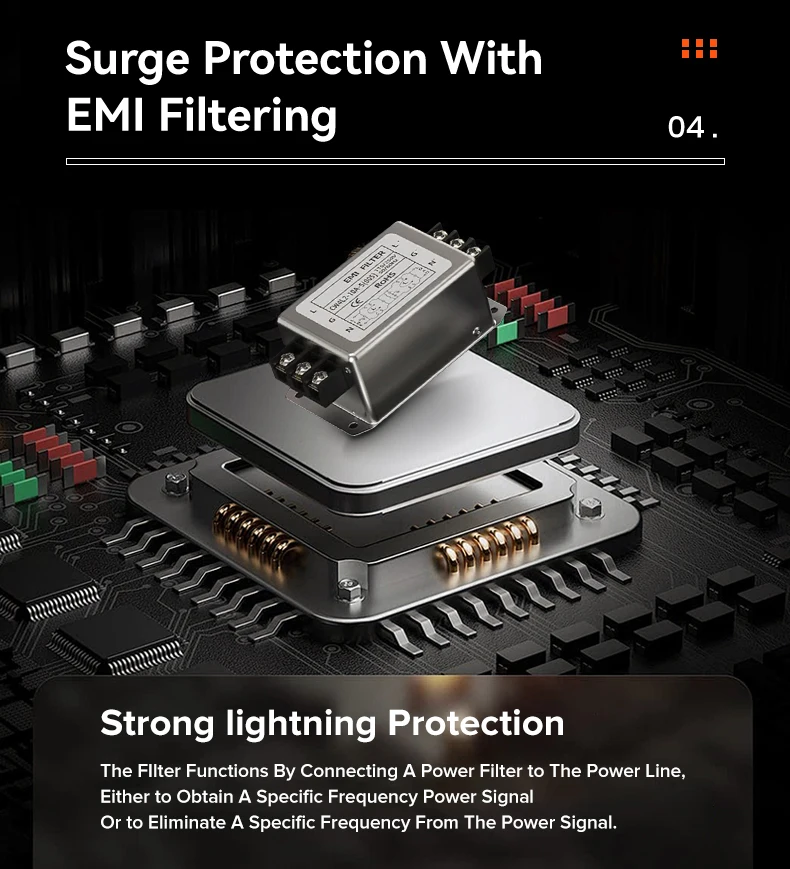

The latest Techfine Hybrid Solar Inverter incorporates advanced surge protection and EMI filtering technology, ensuring stable operation even in complex power environments.
By connecting a power filter to the power line, it effectively filters out specific frequency power signals or eliminates interference frequencies, significantly improving power quality. The strong lightning protection feature ensures that the device is safeguarded from lightning-induced current surges during extreme weather conditions, providing comprehensive security.
These optimized designs not only enhance system durability but also ensure efficient power output, making it ideal for applications requiring high stability and anti-interference capabilities.
Techfine is dedicated to advancing sustainability every step of the way.
Our commitment to the environment extends beyond our products to include every aspect of our operations, as highlighted by our adherence to eco-friendly packaging standards. With prestigious memberships and compliance with international environmental regulations, we are proud to contribute to a greener planet.
WHAT CAN WE OFFER YOU
Industry-leading One-stop Customized Services
Guangdong Techfine Electronic Co., Ltd.
Professional manufacturer for solar & UPS system products in China.
Offer stable quality products with reasonable price and nice sales/after-sales service.
You can get suitable products with long time service and market support from us.
Of course, we also support OEM/ODM cooperation.
Techfine will be your reliable partner!
VR

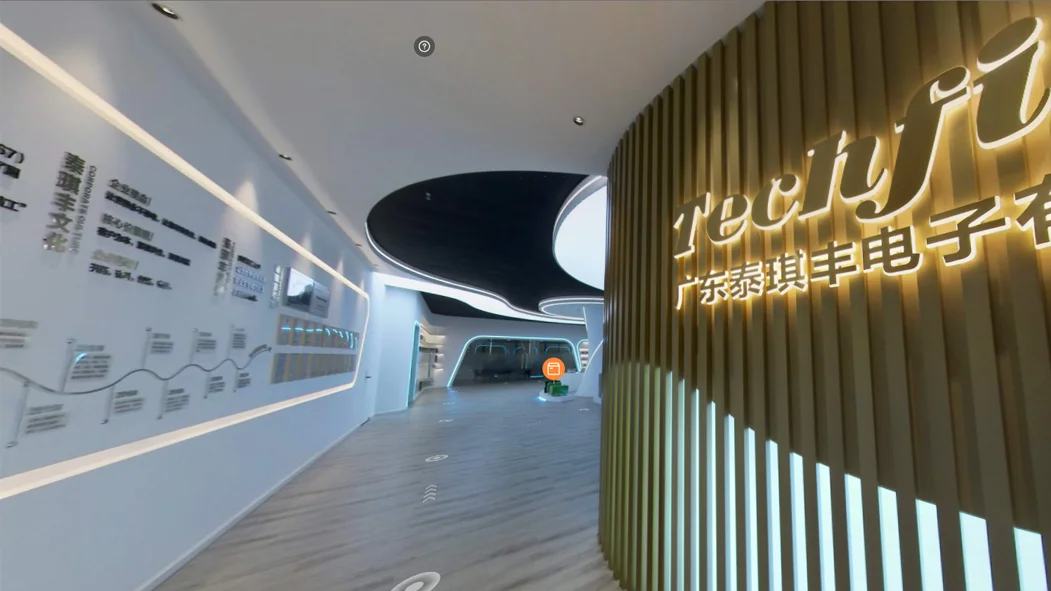

Factory Tour
FAQ
Q1: Why you should choose us?
---More than 20 years Electrical Equipment factory experiences
---Professional sales team and R & D team
---Qualified product and competitive price
---Delivery in time
---Sincerely services
Q2: How is your after-sale service?
---We provide 1-2years warranty and 1% sapre parts for free
---We will repair the PCB or provide new one
Q3: What kind of certification you have?
---ISO9001,ISO14001, CE,ROHS,UL,and so on
---All series product pass different labor testing according to different countries’ requirements.
Q4: Delivery time:
---Standard products could be delivered within 15 days;
Q5. Can I have a sample order?
---Yes, we welcome sample order to test and check quality.
Q6. Do you have any MOQ?
---Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ,1 pc
for sample checking is available.
Q7. Do you support OEM?
---Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
---More than 20 years Electrical Equipment factory experiences
---Professional sales team and R & D team
---Qualified product and competitive price
---Delivery in time
---Sincerely services
Q2: How is your after-sale service?
---We provide 1-2years warranty and 1% sapre parts for free
---We will repair the PCB or provide new one
Q3: What kind of certification you have?
---ISO9001,ISO14001, CE,ROHS,UL,and so on
---All series product pass different labor testing according to different countries’ requirements.
Q4: Delivery time:
---Standard products could be delivered within 15 days;
Q5. Can I have a sample order?
---Yes, we welcome sample order to test and check quality.
Q6. Do you have any MOQ?
---Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ,1 pc
for sample checking is available.
Q7. Do you support OEM?
---Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
