Ki5 5W UV 3D Laser Engraving Machine Inner Crystal Acrylic Cutter for Jewelry Glass Block Acrylic Wood MDF Laser Cutting Printer
- Category: >>>
- Supplier: Keyso Co. Ltd.
Share on (1601243251023):
Product Overview
Description
Products Description

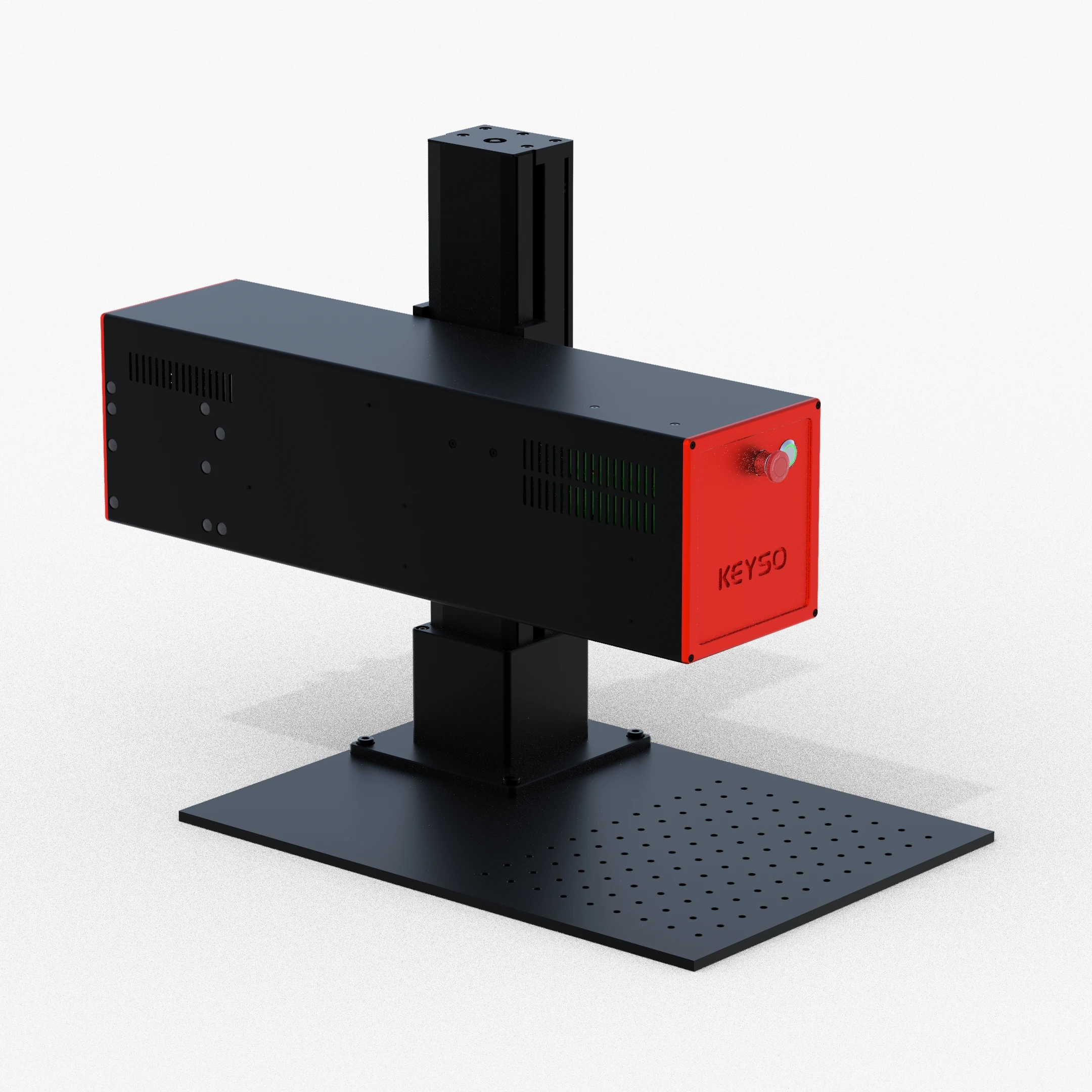

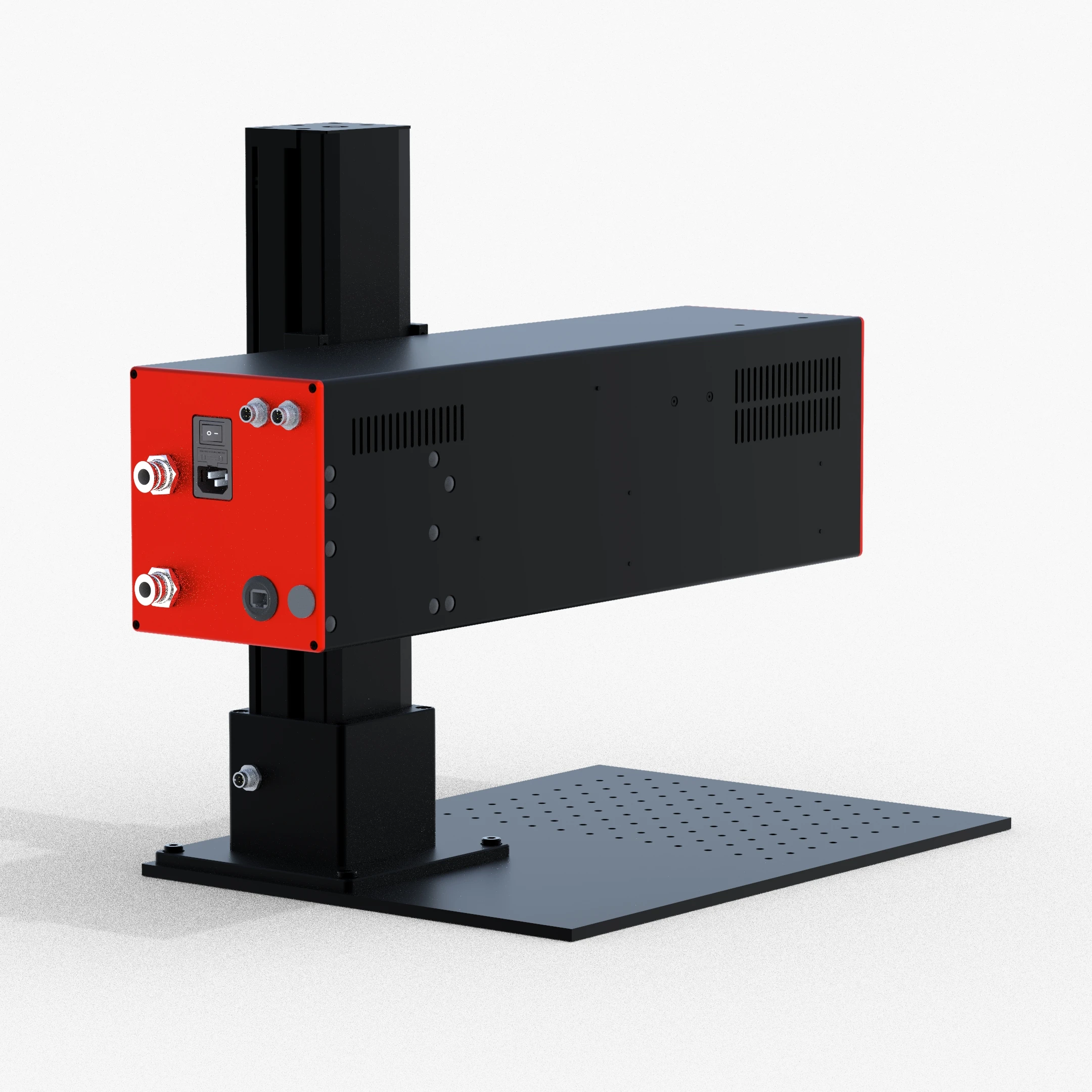

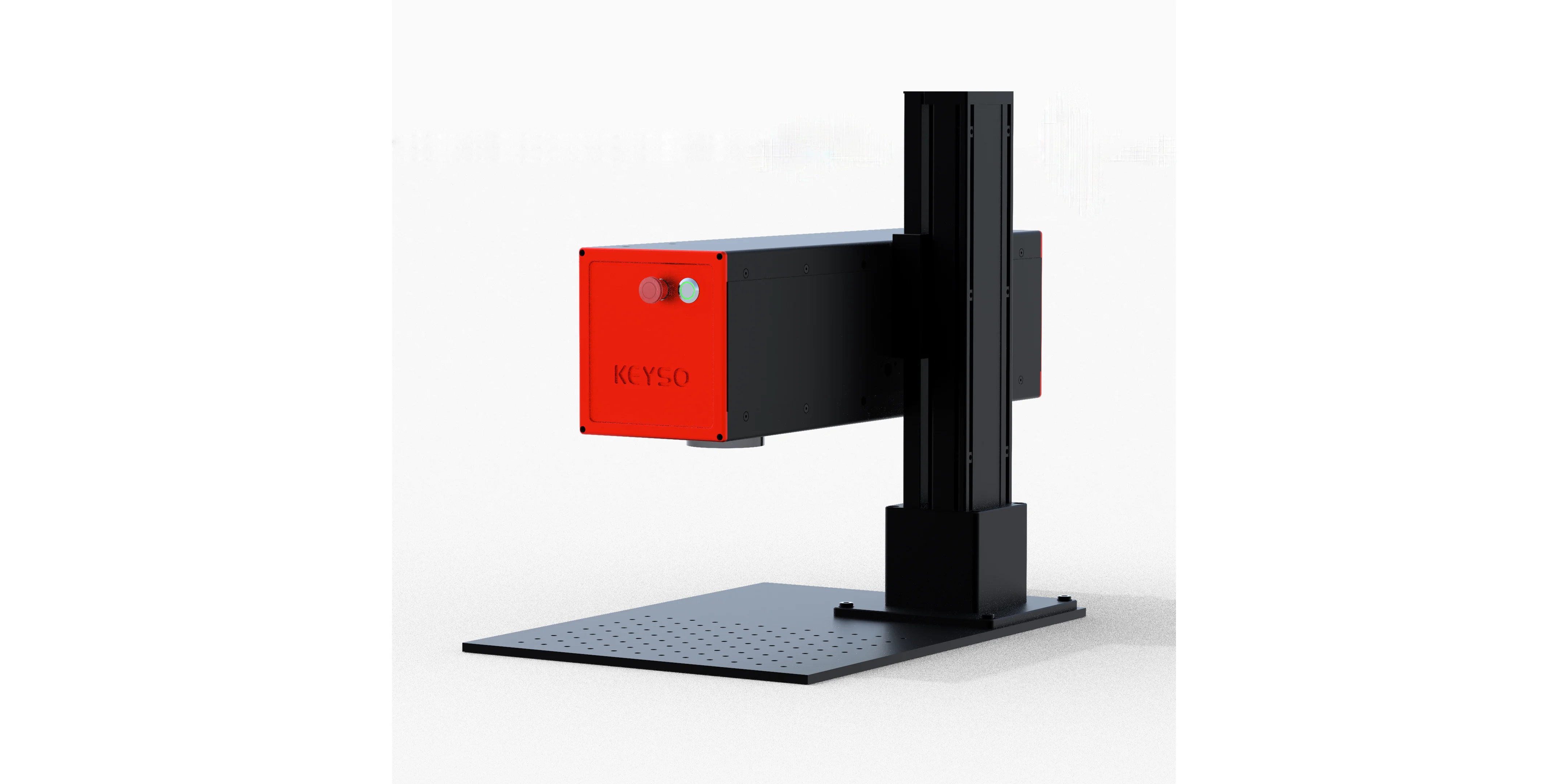

Powerful Industrial 3D Crystal Inner Engraver
Heavy-duty design, based on cast aluminum structure, and high-quality optical components guarantee strength and low maintenance.
Technical Specifications
Model | Ki5 inner 3D |
Laser technology | UV laser, wavelength 355 nm |
Laser power | 5w |
Frequency | 10~150 kHz |
Pulse width | 12ns@30kHz |
Scanner speed | Up to 5 m/s (198 in/s) |
Lens quantity | 2 pcs |
Lens size/Engrave size (mm) | 110*110mm, 50*50mm |
Filed lens size (in) | 4.3*4.3 in, 2*2 in |
Communication interfaces | Ethernet |
Compatible software | Keyso 3D inner |
Laser safety classification | Class 4 |
Z axis stroke | 300 mm |
Power consumption rate | 480 W without water chiller 840W with water chiller |
Rated voltage | 110~250 VAC, 50~60 Hz |
Operating temperature | 10 to 40°C (50 to 104 F) |
Humidity level | 10-85% |
Net weight | 30 kg (without water chiller) |
Package size | L*W*H=80*50*45 cm |
Package weight | 35 kg (without water chiller) |

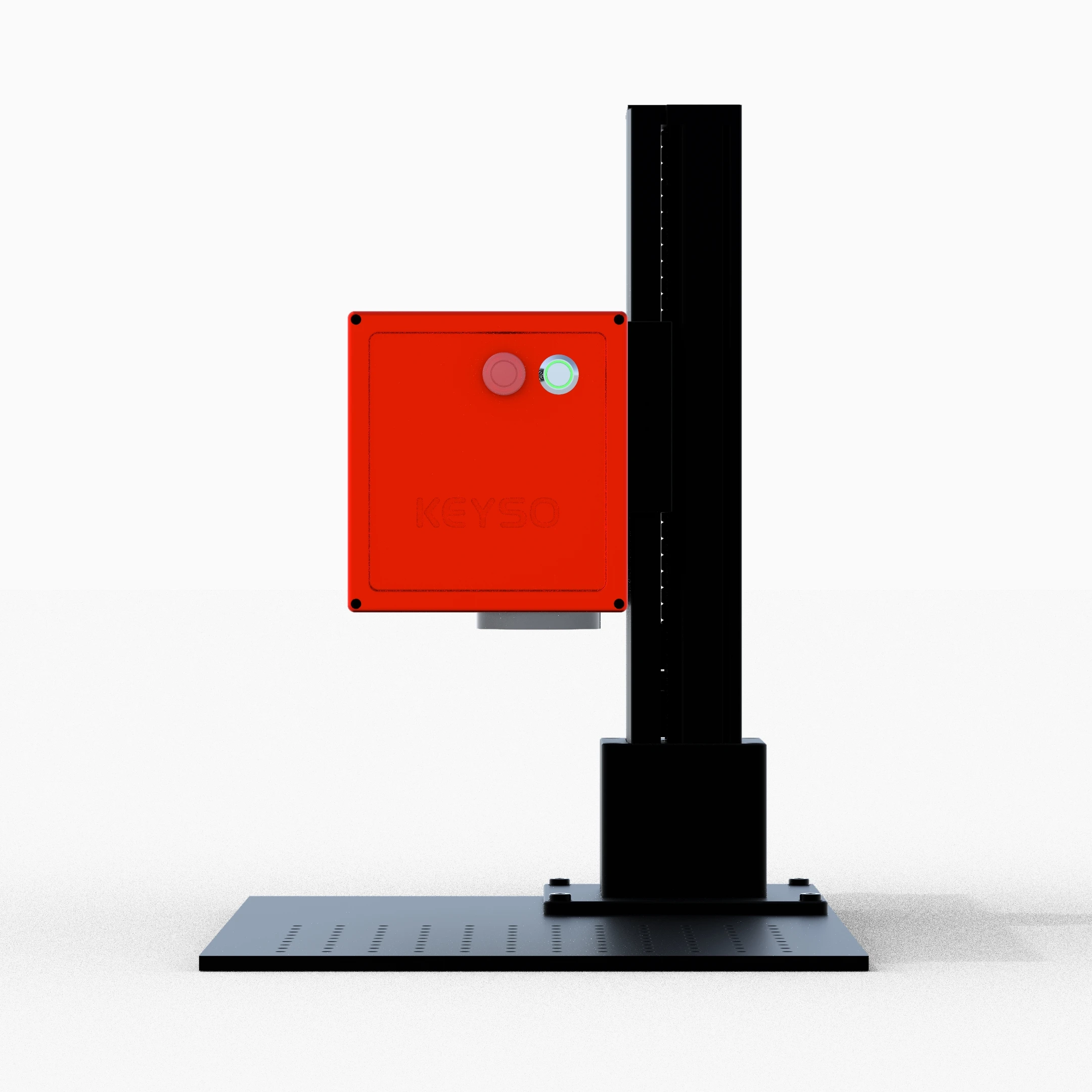

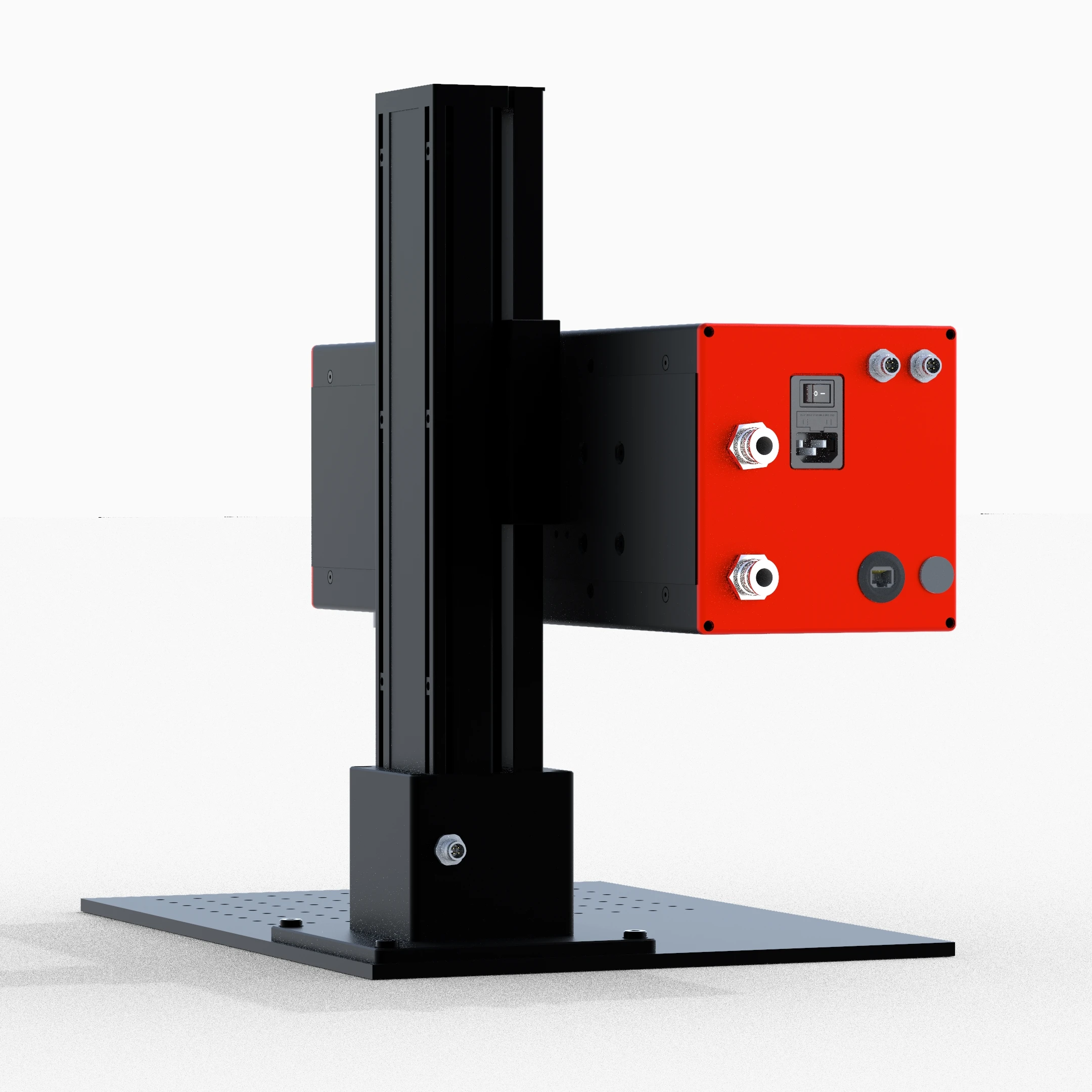

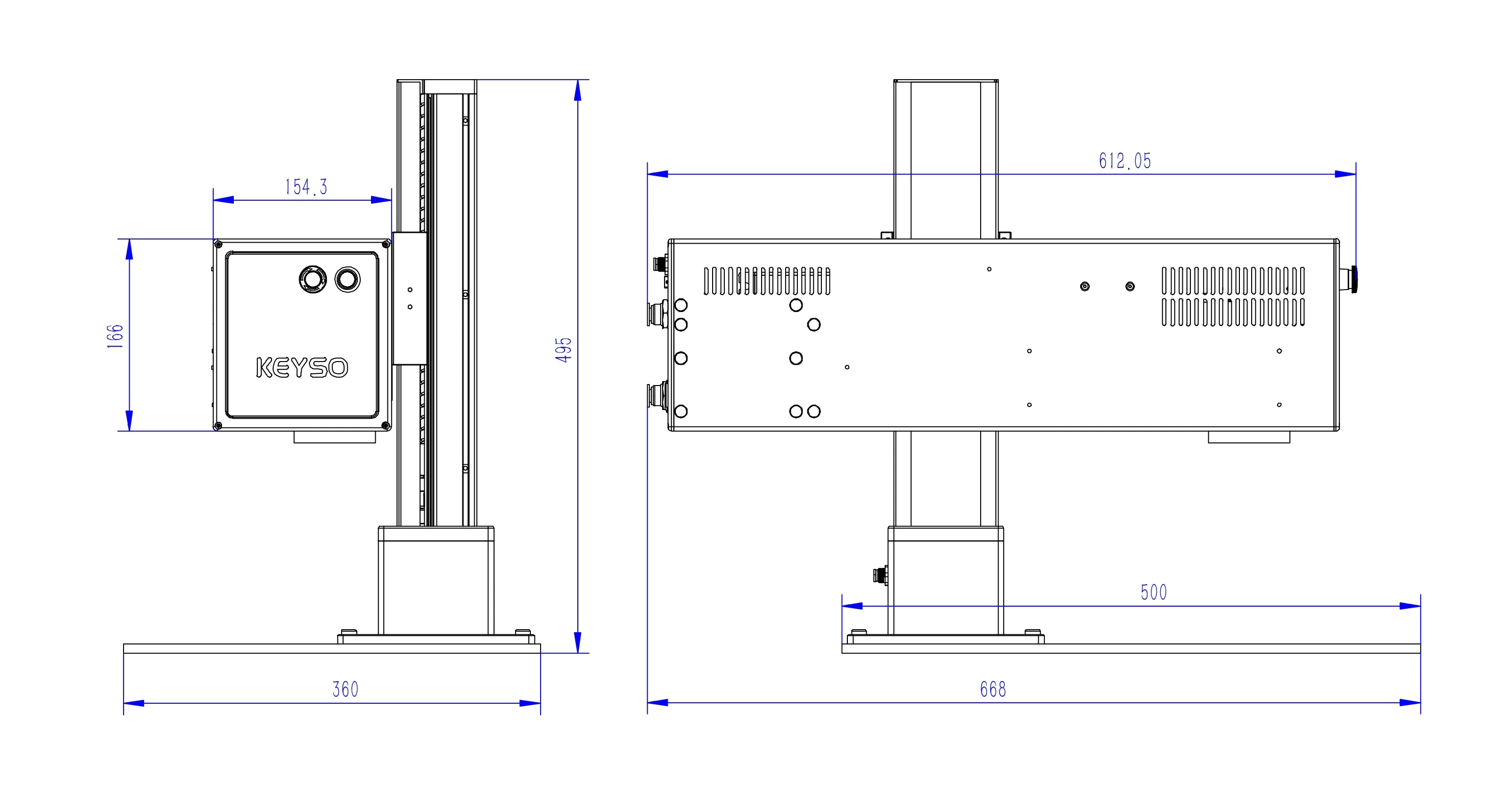

Overall Dimension
Compact design, small size, space saving
Features of KEYSO K fiber Series

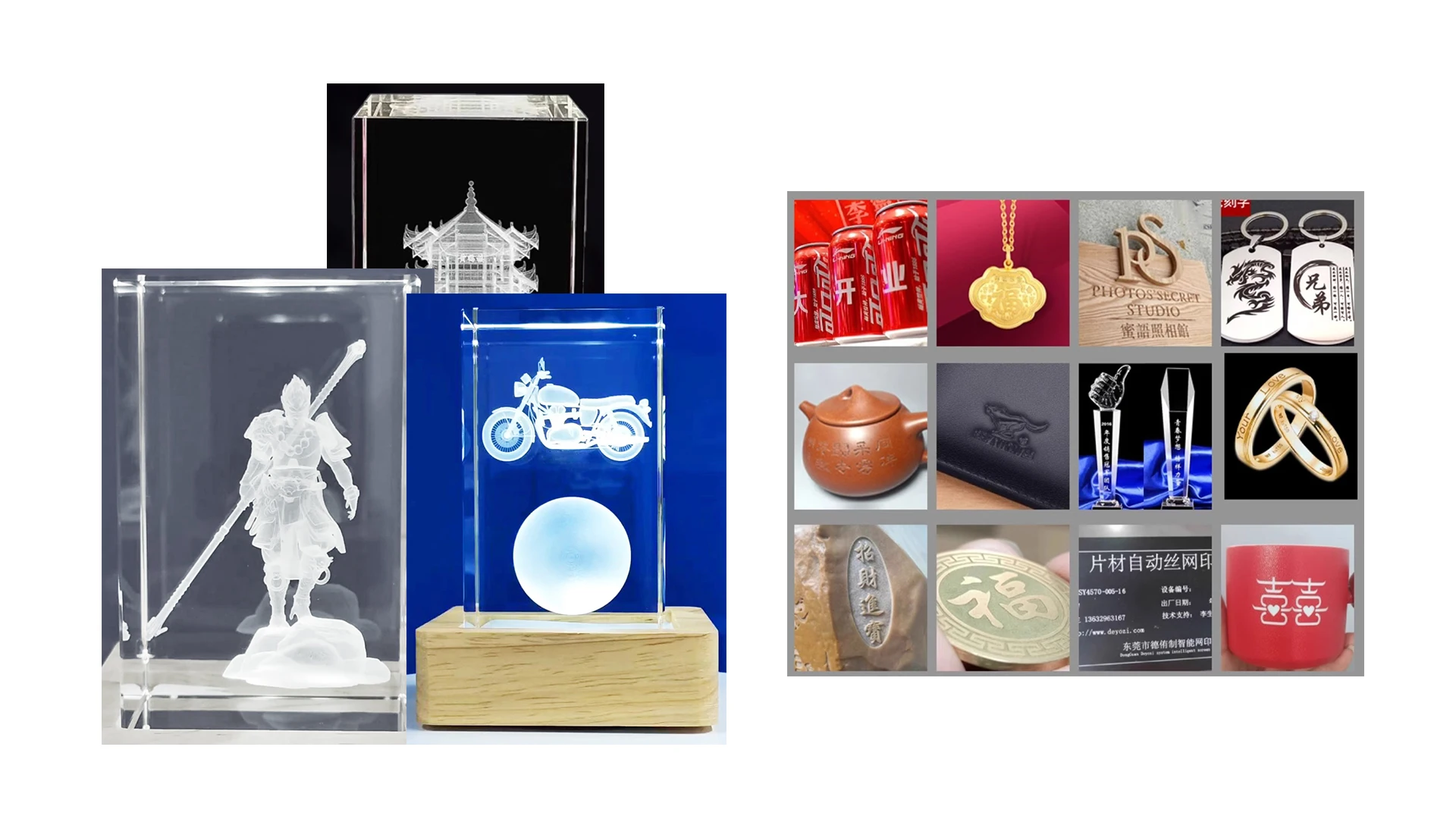

3D crystal inner engraver & UV laser marking
1 machine for 2 functions, budget saving for 3D crystal inner engraving and UV laser marking

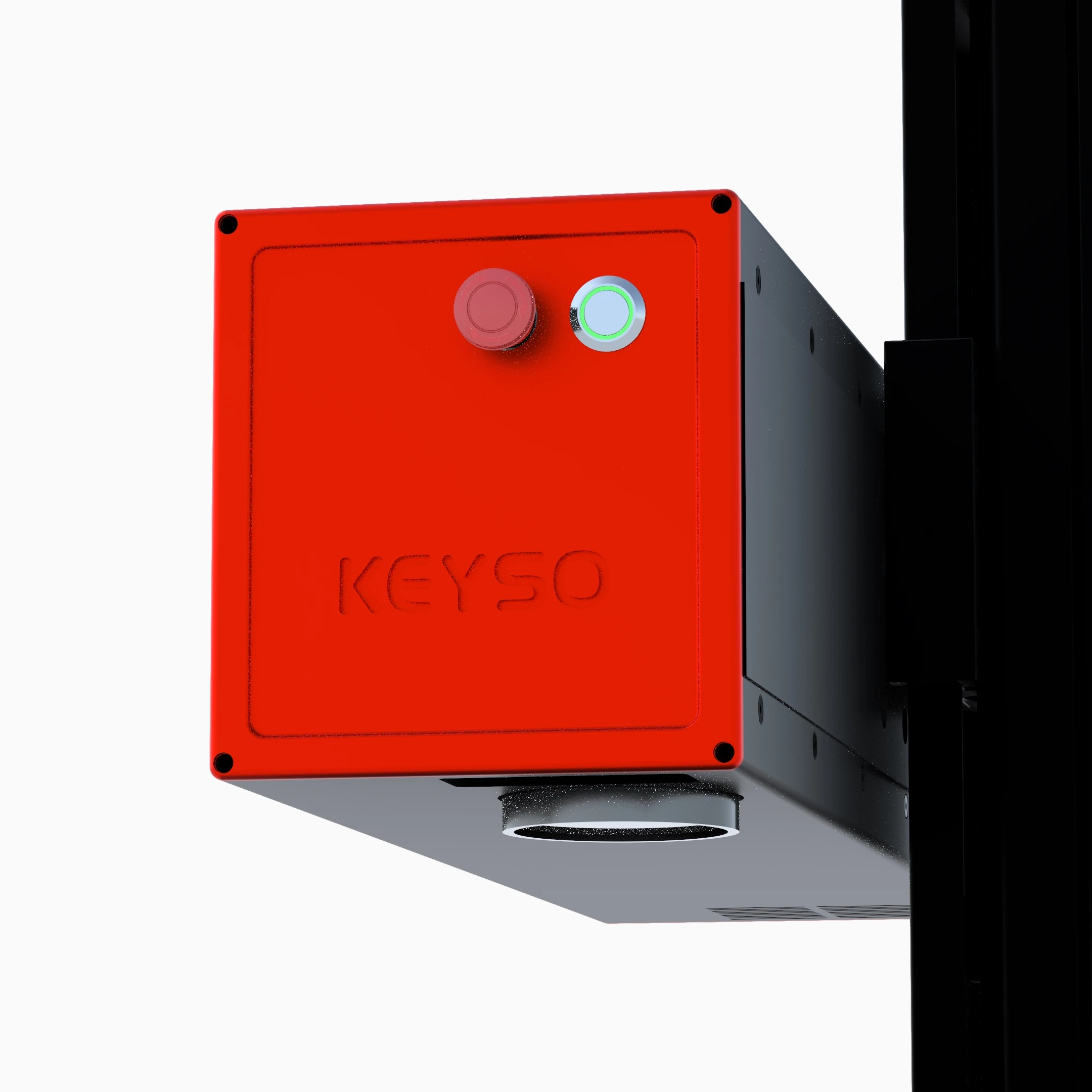

Extruded aluminum head and case
Integrated design, small size, cut by high accuracy CNC center
Anodized dyeing for durable color
Anodized dyeing for durable color

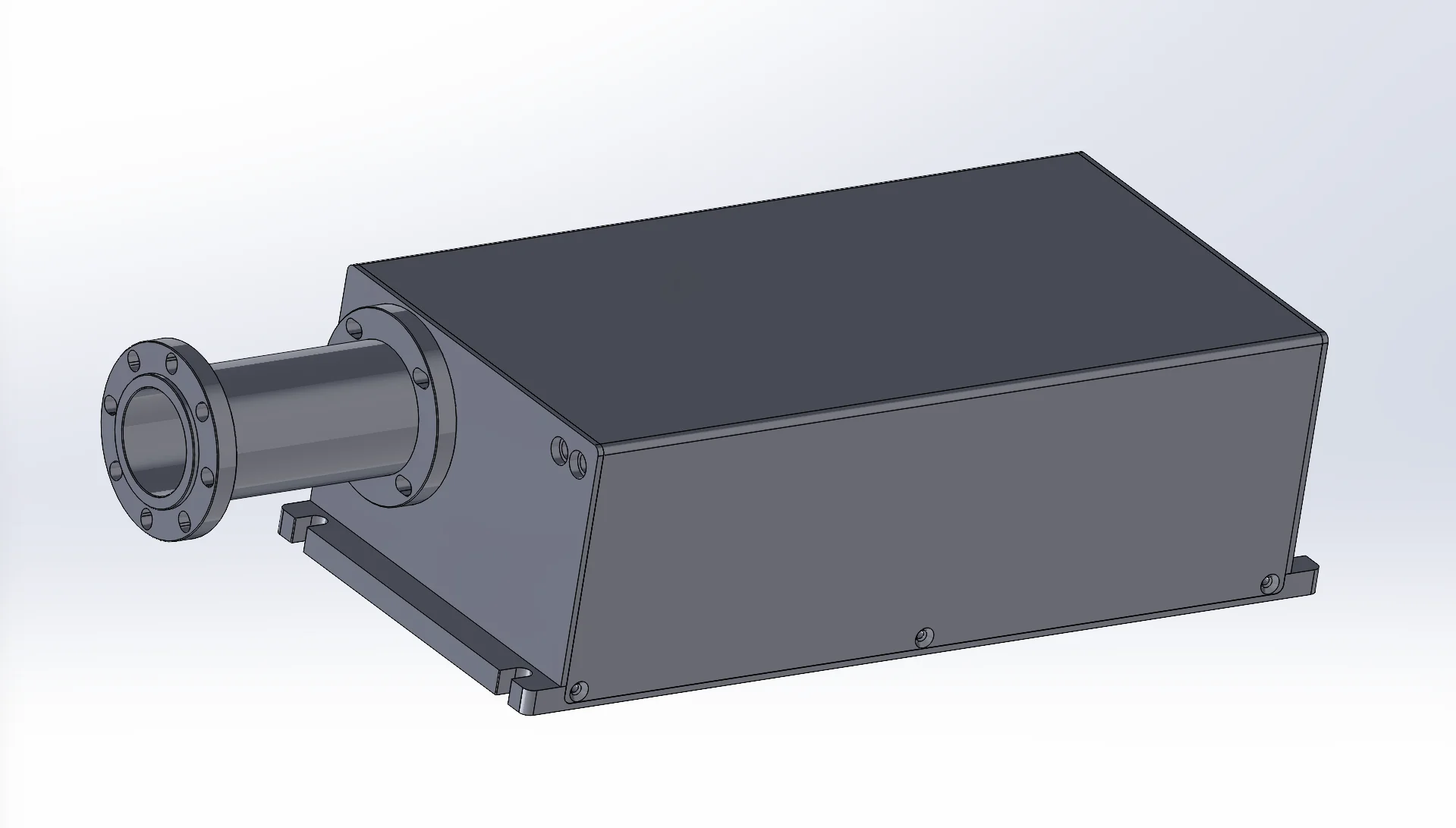

Industrial standard laser source
5W UV laser source, 355 nm wavelength, 15000 hours laser life
A real high-speed scanner
Rated marking speed 5m/s
Rated positioning speed 10m/s
With 2 red light indicator
**Note:
5m/s tested in condition of 2mm front in 150*150mm lens.
Rated positioning speed 10m/s
With 2 red light indicator
**Note:
5m/s tested in condition of 2mm front in 150*150mm lens.
Integrated laser path
Small size, fully enclosed laser path
With 2 red light indicator

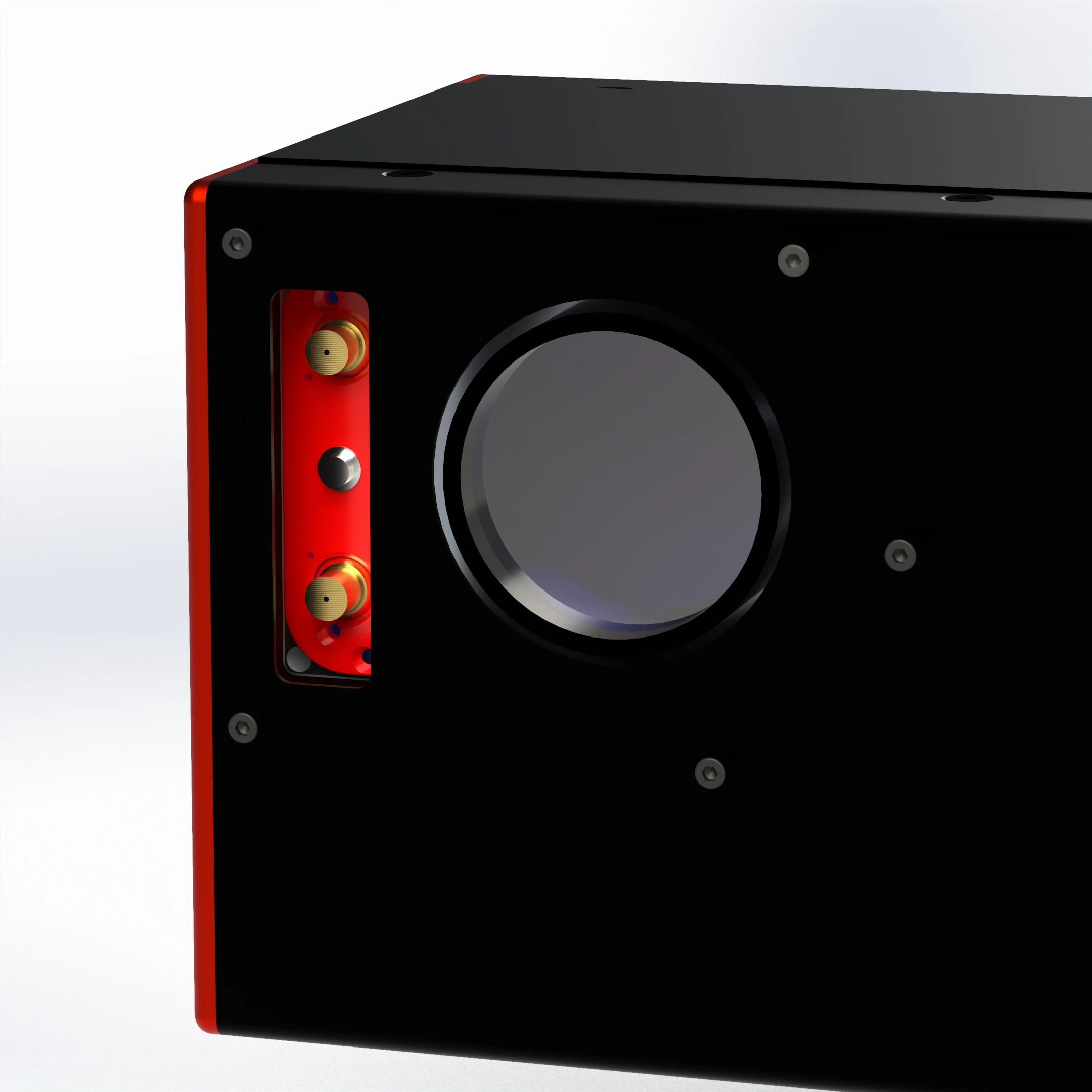

Double lens
Equipped with 2 field lenses as standard
50mm lens for higer power density
110mm lens for bigger engrave area
Easy maintenance
Fully screw mounted, easy access to all parts, low maintenance cost

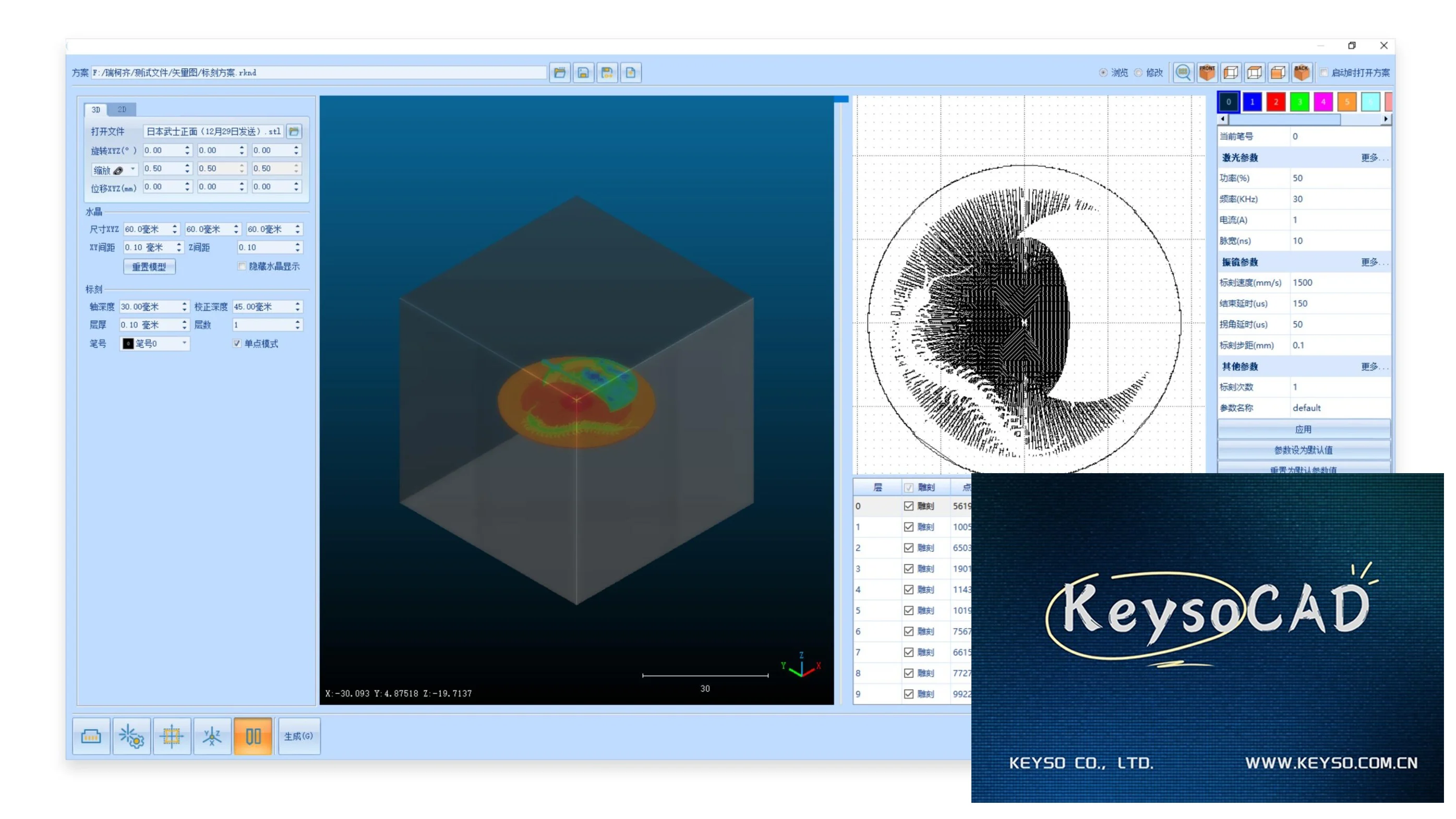

Software KeysoCAD 3D inner
KeysoCAD 3D inner software support Windows 7 to windows 11
Support 3D inner engrave
Support UV flat surface laser marking
Exquisite accessory package
CE certified OD6+ grade protective goggles 1 pcs
*Optical density (OD) is used to express the percentage of laser light of a specific wavelength that can pass through laser protective glasses.
*For example: OD1+: indicates that 10% of laser of a specific wavelength can pass through laser protective glasses.
*The same principle is as follows:
OD5+:0.0001%
OD6+:0.00001%
*For example: OD1+: indicates that 10% of laser of a specific wavelength can pass through laser protective glasses.
*The same principle is as follows:
OD5+:0.0001%
OD6+:0.00001%
Multiple function clamp
Used for fixing cylindrical, flat and spherical materials
High quality tools
Short stroke foot switch
Branded allen wrench
Imperial + Metric folding ruler
Branded 64GB USB disk
Branded USB cable
Sample gift package
Package include: Portable 8 oz bottle, painted aluminun card, brass coin, blue stone slate, dog tag, key tag, stainless ring.
**Note: We may change gift package according to purchase availability
**Note: We may change gift package according to purchase availability
Power cable choice
USA plug, EU plug, UK plug, AU plug
Optional: Smoke and dust filter
200W power, 280m³/h
AC220V (AC110V available)
Software functions
The supported function and file types are listed as following
Logo/Graphic/Image |
Texts & Numbers (in any fonts) |
QR code/2D code/Barcode |
Deep Marking/Etching |
Batch Number/Serial Number/Vin Number |
Ring & Rotate Marking |
3D format for inner engraving: stl, obj |
