High Quality 4mm / 6mm /10mm Solar Cable Customized DC Solar Cable with TUV PV Wire for Solar Panel

Share on (1601243302818):


Price:$0.40 - $0.45

Quantity:


Product Overview

Description



Product Description


Main Features
---Dual wall insulation, electron beam cross-linked.
---Excellent resistance to UV, water, ozone, fluids, salt, general weathering.
---Excellent resistance to abrasion.Halogen free, flame retardant, low toxicity.
---Excellent flexibility and stripping performance
---High current carrying capacity.
---TUV and UL approved.


Specification


Conductor
Insulation / Sheath
Thickness
Maximum DC
Resistance
@20°C
(Ohms/km)
Maximum
AC Voltage
(V/5min)
Outer
Diameter
(mm)
Approx
Weight
(kg/km)
Section
(mm2)
Construction
(n/mm)
Outer
Diameter
(mm)
Insulation
(mm)
Outer Sheath
(mm)
1.50
12/0.22
1.70
0.70
0.70
13.700












6500
4.50
31.76
2.50
49/0.25
2.20
0.70
0.70
8.210
5.00
43.63
4.00
56/0.3
2.90
0.70
0.70
5.090
5.70
61.13
6.00
84/0.3
3.80
0.70
0.70
3.390
6.60
84.28
10.00
80/0.4
4.90
0.70
0.70
1.950
7.70
126.41
16.00
127/0.4
6.10
0.70
0.70
1.240
8.90
186.93
25.00
199/0.4
7.50
0.90
0.90
0.195
11.10
293.50
35.00
278/0.4
8.90
0.90
0.90
0.565
12.50
393.18
50.00
398/0.4
9.50
1.00
1.00
0.393
13.50
542.55
70.00
357/0.5
12.80
1.10
1.10
0.277
17.20
762.96
95.00
458/0.5
14.90
1.10
1.10
0.321
19.30
1005.05
120.00
611/0.5
16.70
1.20
1.20
0.164
21.50
1262.41
150.00
764/0.5
18.30
1.40
1.40
0.132
23.90
1585.57



Technical Parameters.

>Rated voltage: AC - U0/U 0.6/1kV | DC - 1.8kV
>Test voltage: AC - 6.5kV | DC - 15kV
>Ambient temperature: -40 - +90°C
>Max. temperature at: +120°C
>Max.Short circuit temperature: The permitted short-circuit-temperature refer to a period of 5s is 200°C
>Ozone Resistance: Accord wit EN50396
>UV-resistance: Accord wiht HD 605/A1
>Flammability: Accord with EN 60332-1-2

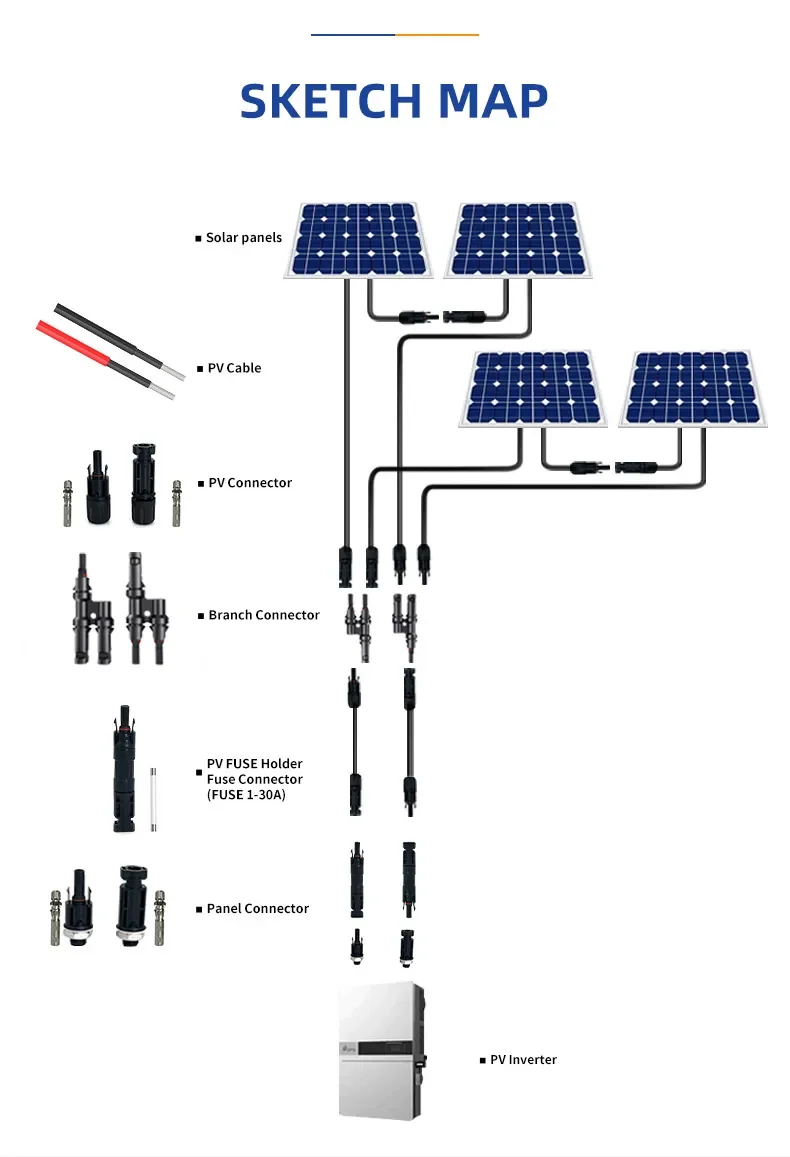

Application


How does it work?
which is designed for connecting photovoltaic system components inside and outside of buildings and equipment with high mechanical requirements and extreme weather conditions. It has the characteristics of UV resistance, wears resistance, and aging resistance, and the service life is more than 25 years.

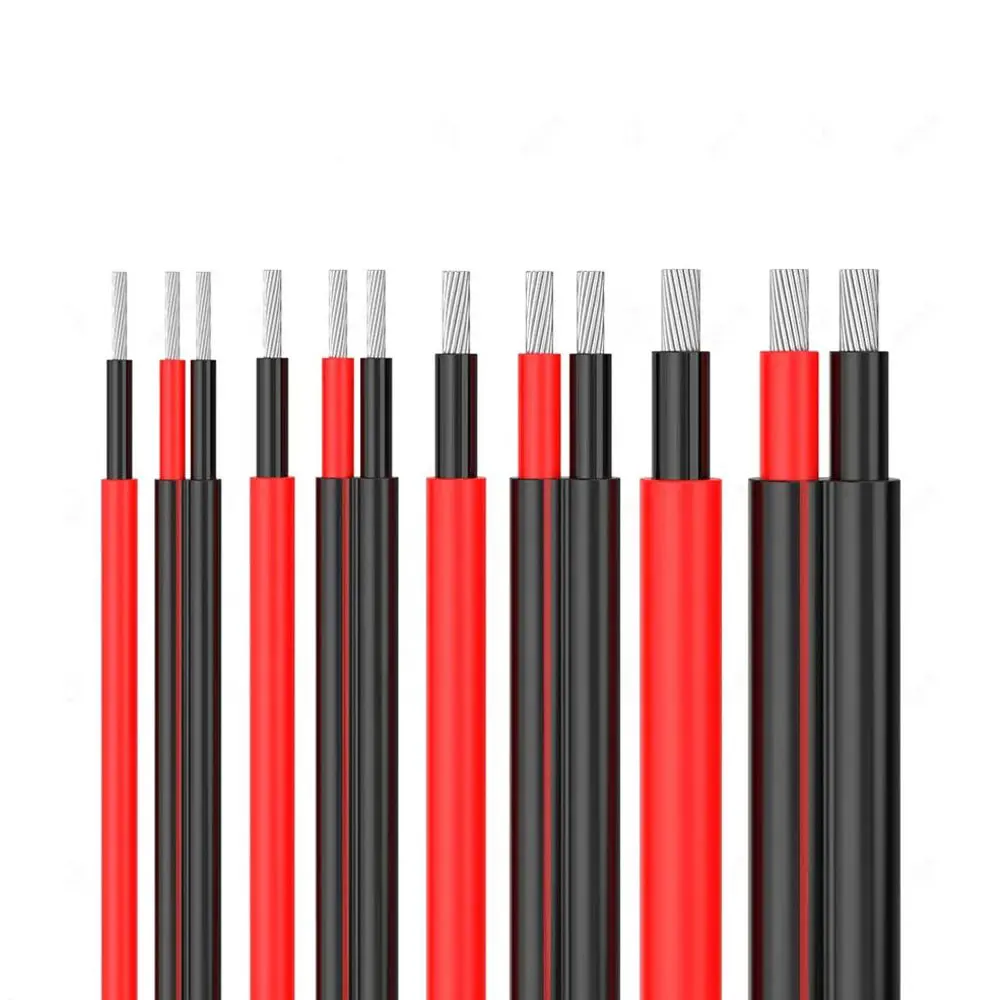

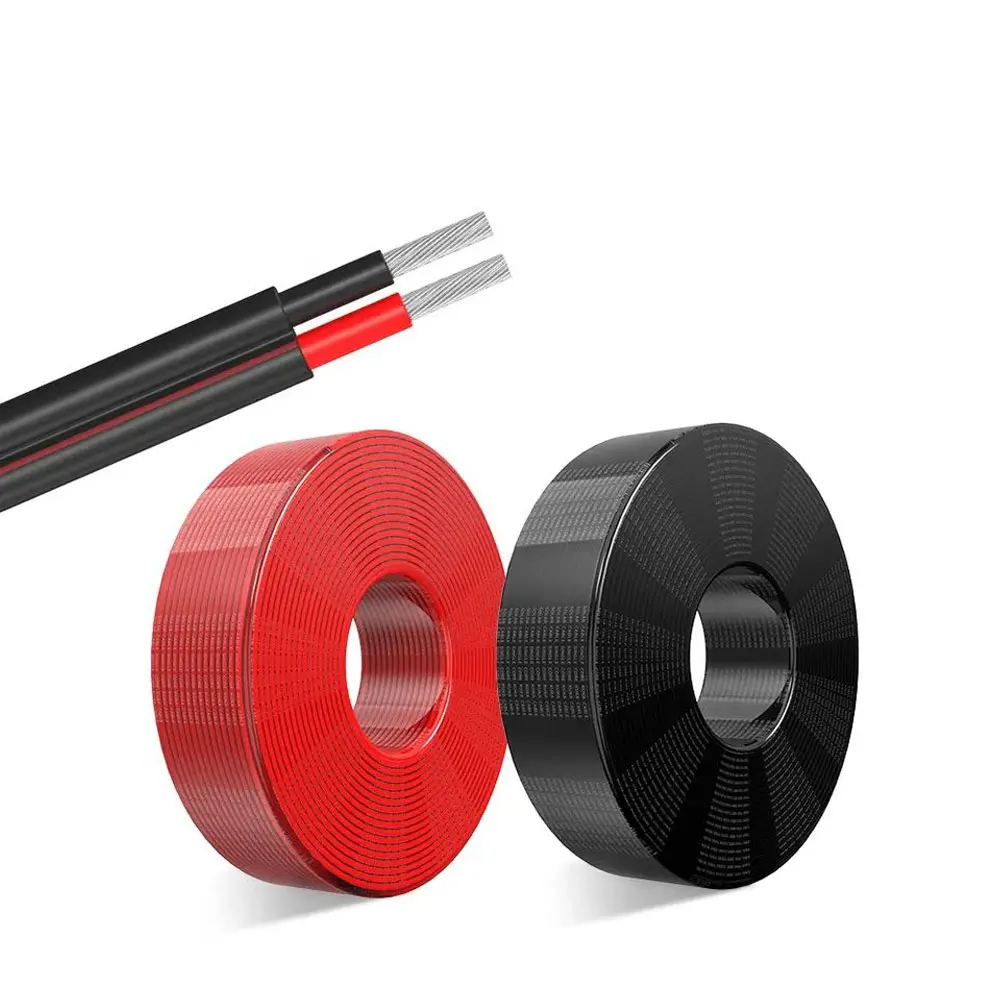

Details Images

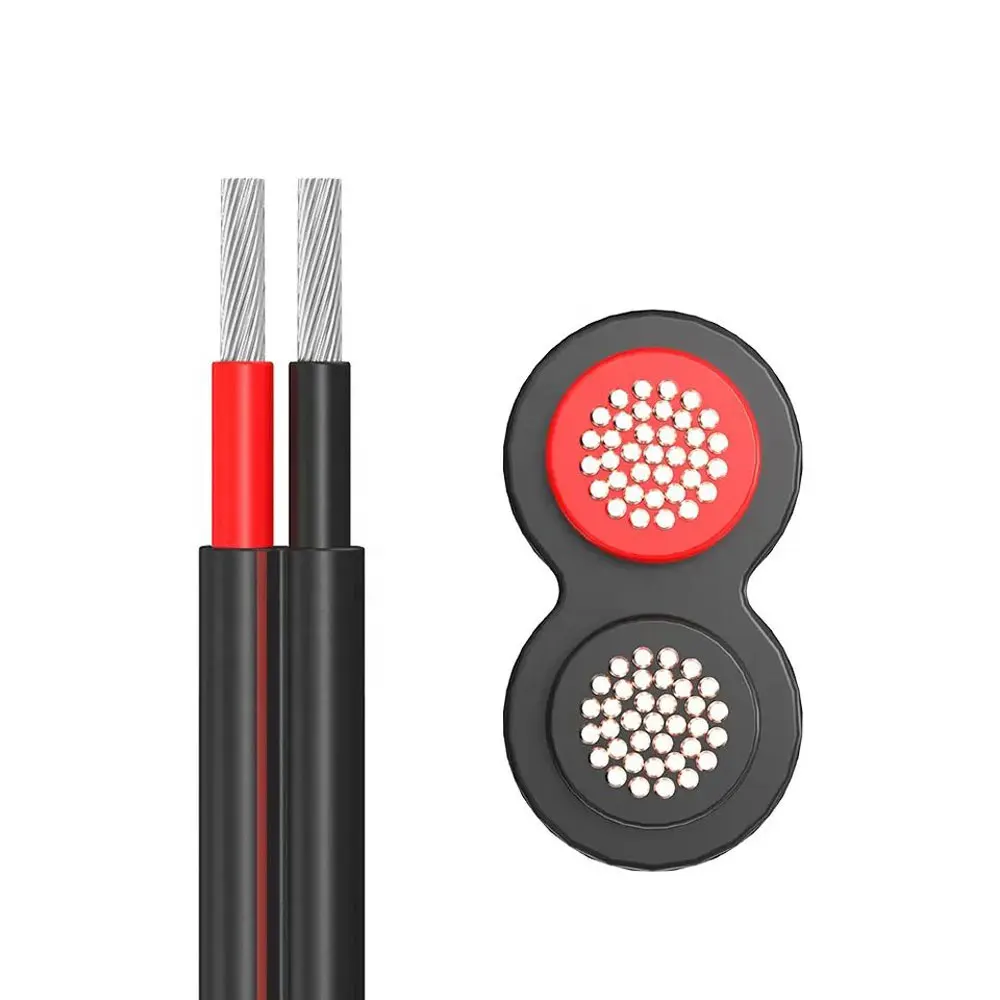

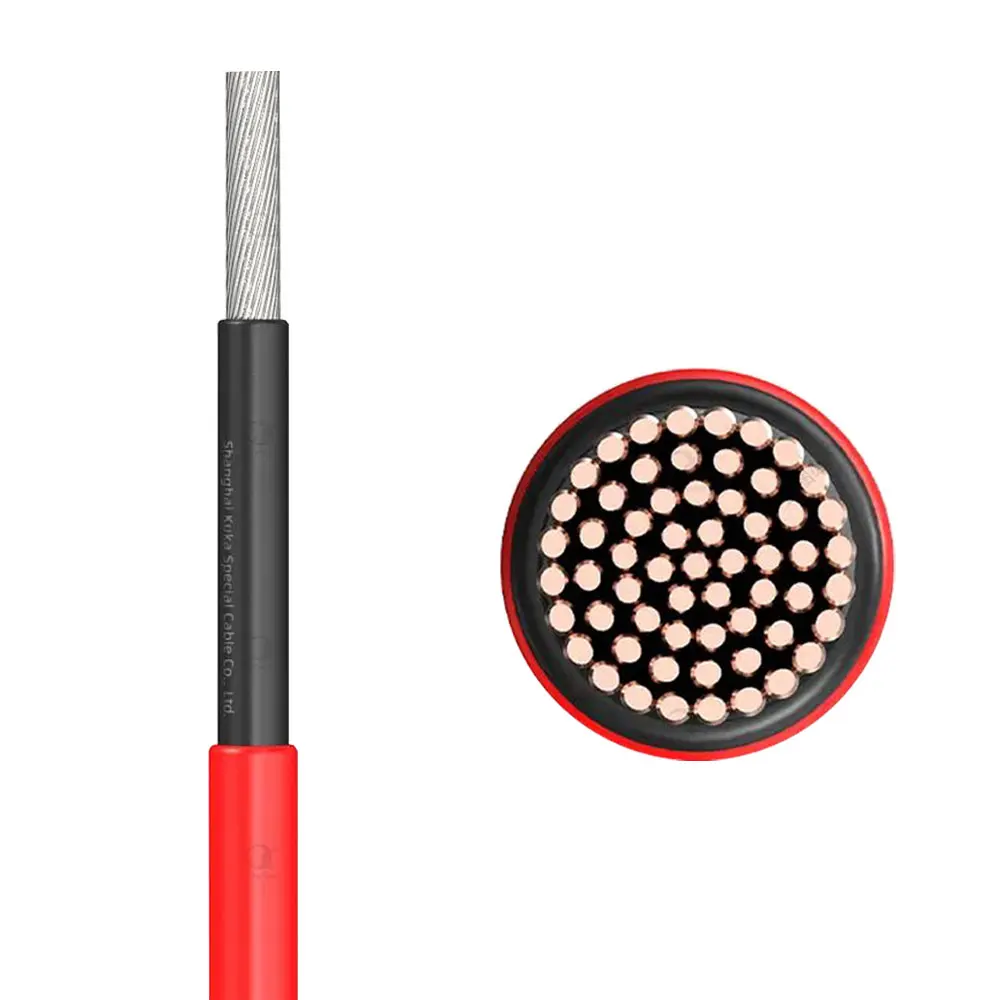

Insulation Material

>Jacket Material: XLPO, flame retardant, halogen free electron-beam cross-linked.
>Jacket Color: Black & Red Optional









Tinned Copper
>Oxidation and aging resistance.
>Excellent resistance to abrasion, strong current overload capacity.
>Tinned fine copper strands acc. to VDE 0295/IEC 60228, Class 5.

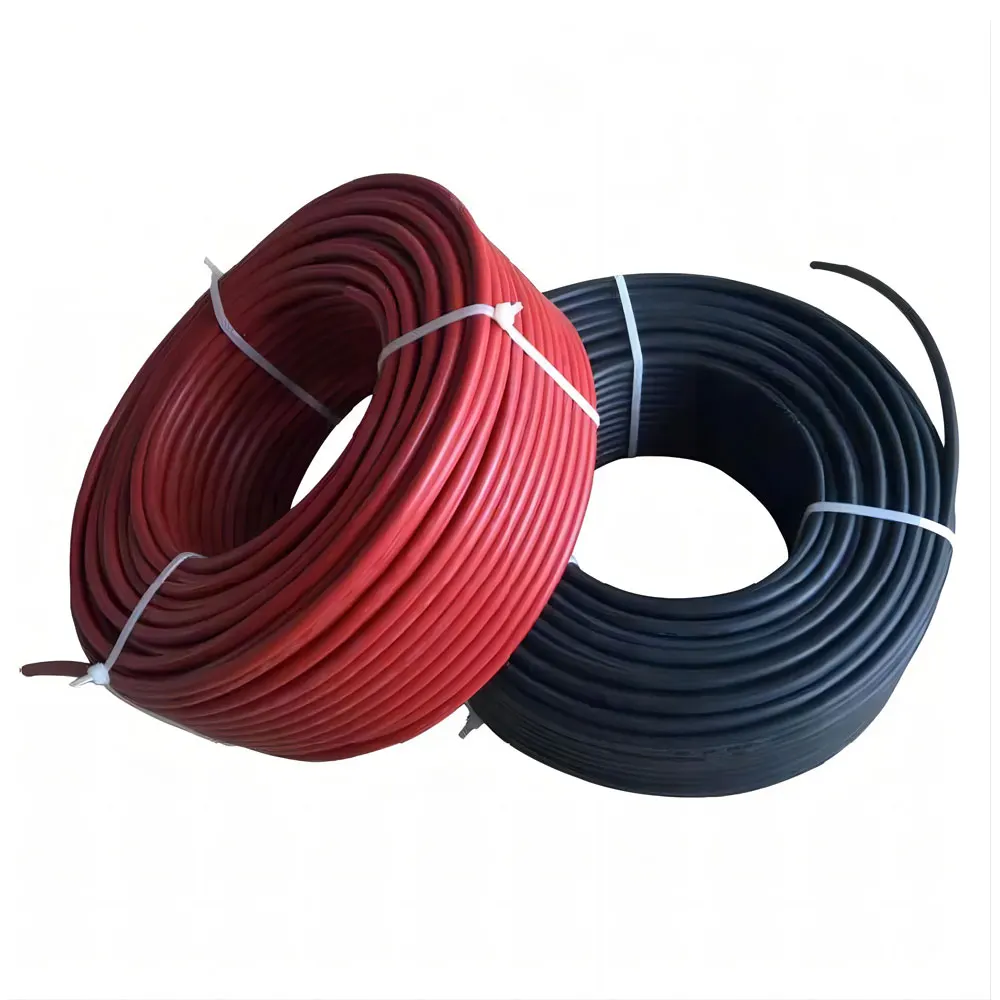

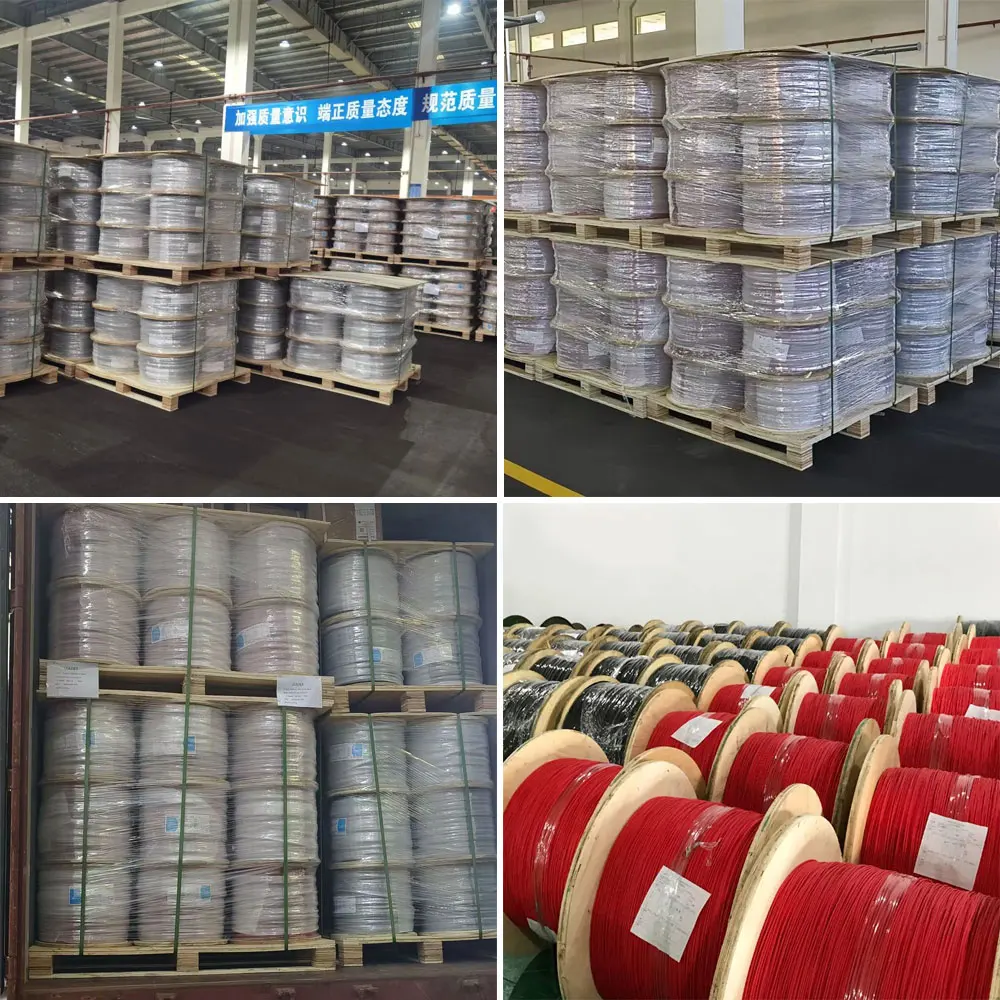

Packing & Delivery


Package Standards
100m-500m-----Hollow Roll
100m-200m------On Plastic
500m-2000m-------Woodiness
100m/200m/300m/500m/Roll, wooden drum or as per requirements.
