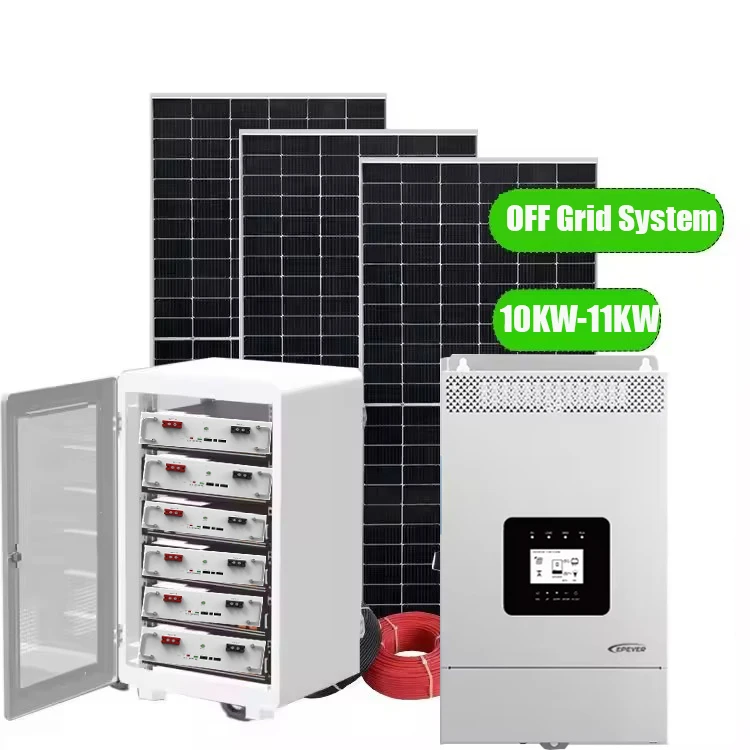

EPEVER Hybrid Solar Off Grid System 10KW/11KW 4.8KWH Lithium Ion Two Parallel Inverter Machines Home Use MPPT Ukraine Kit
- Category: >>>
- Supplier: Beijing Shan Hu International Technology Co. Ltd.
Share on (1601243323705):
Product Overview
Description

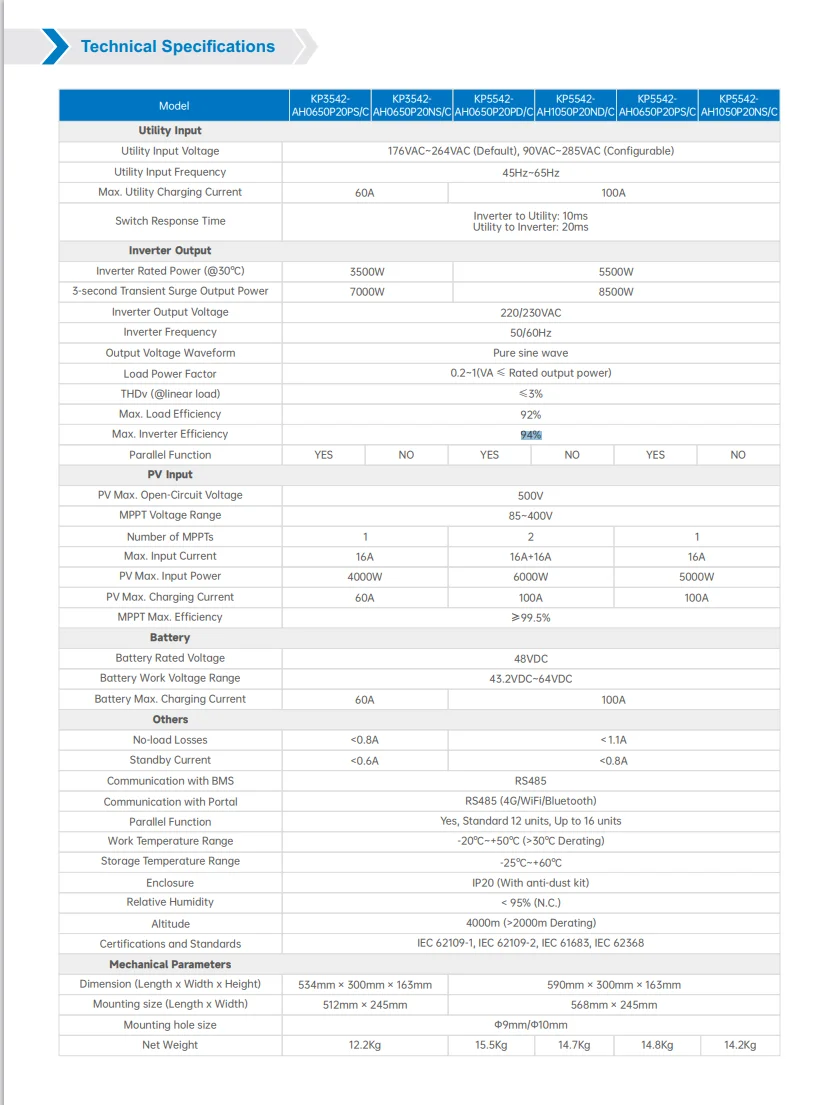

Technical Specifications
Model | KP3542- AH0650P20PS/C | KP5542 -AH0650P20PD/C | KP5542 AH0650P20PS/C | KP5542-AH1050P20NS/C | ||||
Utility Input | ||||||||
Utility Input Voltage | 176VAC~264VAC (Default), 90VAC~285VAC (Configurable) | |||||||
Utility Input Frequency | 45Hz~65Hz | |||||||
Max. Utility Charging Current | 60A | 100A | ||||||
Switch Response Time | Inverter to Utility: 10msUtility to Inverter: 20ms | |||||||
Inverter Output | ||||||||
Inverter Rated Power (@30℃) | 3500W | 5500W | ||||||
3-second Transient Surge Output Power | 7000W | 8500W | ||||||
Inverter Output Voltage | 220/230VAC | |||||||
Inverter Frequency | 50/60Hz | |||||||
Output Voltage Waveform | Pure sine wave | |||||||
Load Power Factor | 0.2~1(VA ≤ Rated output power) | |||||||
THDv (@linear load) | ≤3% | |||||||
Max. Load Efficiency | 92% | |||||||
Max. Inverter Efficiency | 94% | |||||||
Products Description
