High efficiency gold refinery equipment rotary trommel screening and washing alluvial gold
- Category: >>>
- Supplier: Zhengzhou Sinolion Machinery Co. Ltd.Zhengzhou Ltd.
Share on (1601243369703):
Product Overview
Description
Product Description

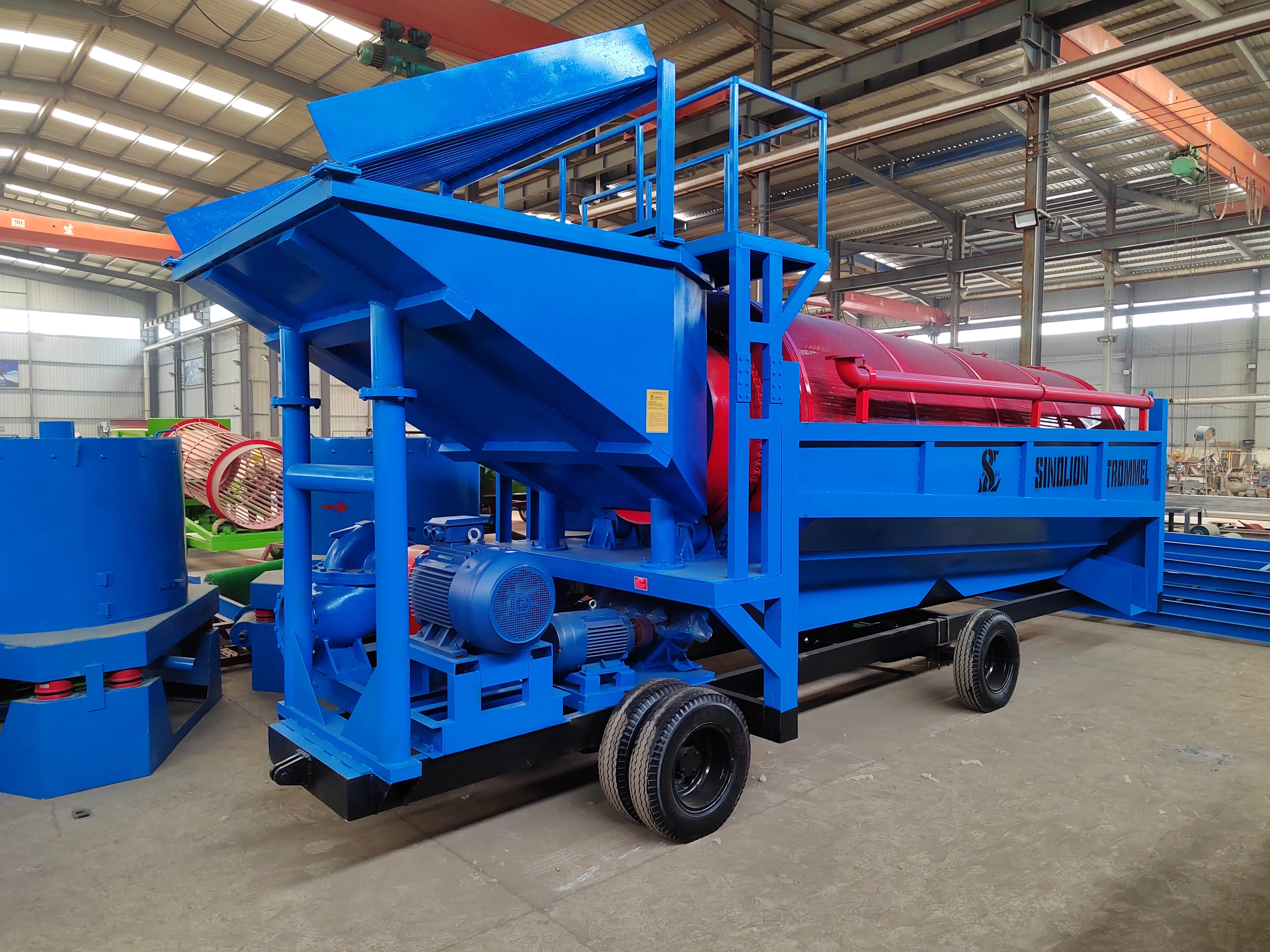

Our Gold Trommel Screen is a robust and efficient gold mining equipment designed for separating gold from other materials. Ideal for both small and large-scale operations. Perfect for gold prospecting, placer gold mining, and alluvial gold recovery. Suitable for use in various terrains, including riverbeds and mining pits. Features a high-capacity drum for effective sifting and screening, with customized mesh sizes to suit different gold mining needs. Ensures precise separation of gold from gravel and other materials.
Working princple
I.Raw material loading
The raw materials input through the hopper inlet will be pushed into the screen by the strong water pressure of the nozzle
installed in the hopper.
II.Washing and selection
Through the rotation of the trommel screen, the raw materials are washed with water and selected through the gold sluice box.
III.Fine gold collection
The light soil and sand are washed away by the water, while the heavier gold will gather in the gold panning blanket.
The raw materials input through the hopper inlet will be pushed into the screen by the strong water pressure of the nozzle
installed in the hopper.
II.Washing and selection
Through the rotation of the trommel screen, the raw materials are washed with water and selected through the gold sluice box.
III.Fine gold collection
The light soil and sand are washed away by the water, while the heavier gold will gather in the gold panning blanket.

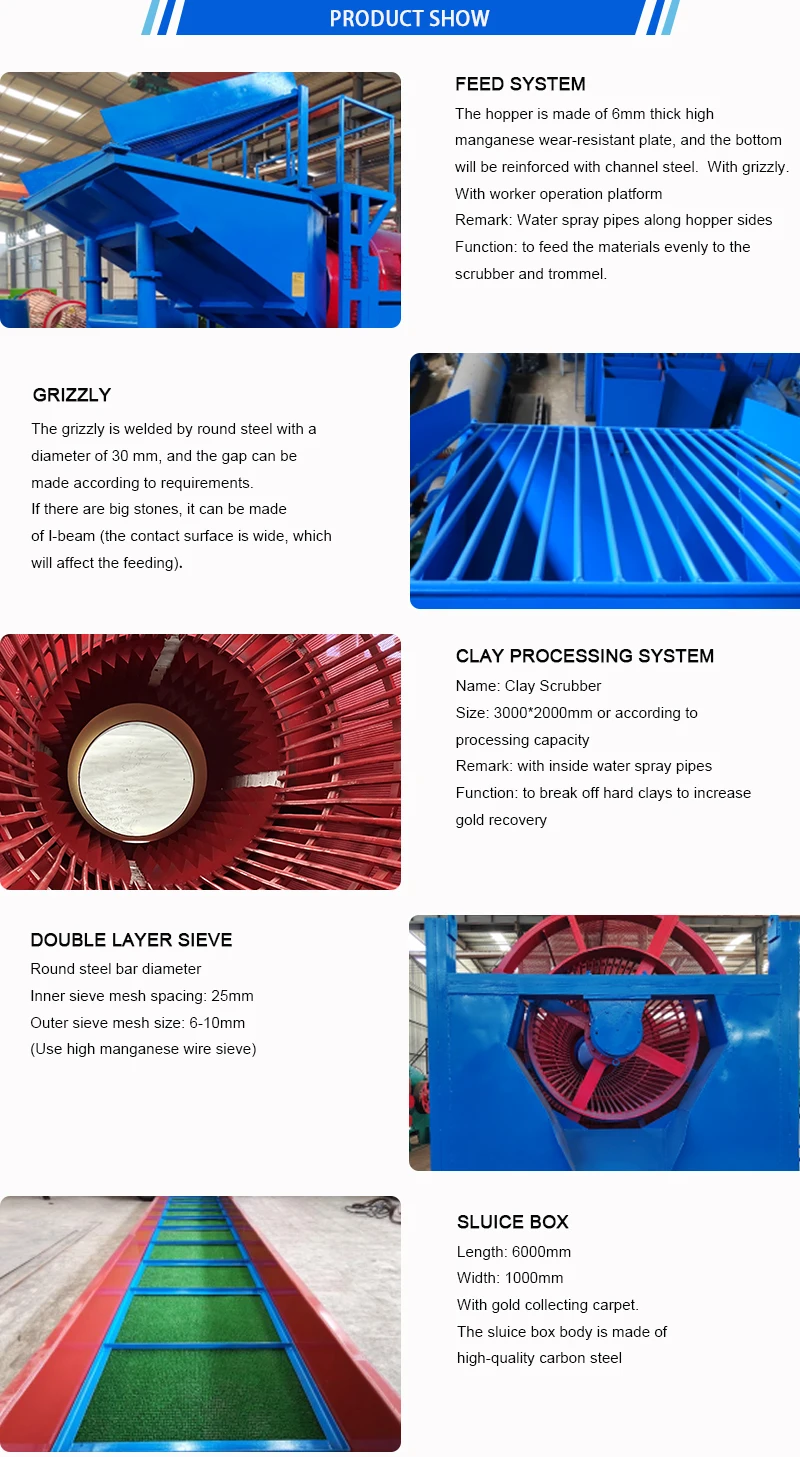

Production Details
Product Paramenters
Model | Capacity (t/h) | Screen diameter (mm) | Screen length (mm) | Input size (mm) | Discharge size (mm) |
GMTS0519 | 5-10 | 500 | 1910 | ≤300 | 0-100 |
GMTS1020 | 10-30 | 1000 | 2000 | ≤300 | 0-100 |
GMTS1225 | 30-50 | 1200 | 2500 | ≤300 | 0-100 |
GMTS1548 | 80-150 | 1500 | 4800 | ≤400 | 0-100 |
GMTS1848 | 150-200 | 1800 | 4800 | ≤400 | 0-100 |
Related Products
Centrifugal concentrator
Shaking table
Gold sluice box
Certificate
Company Introduction
Zhengzhou Sinolion Machinery Co., Ltd, is a Chinese company which specialized in designing manufacturing and selling mining equipment; Our company manufactures rock gold plant, gold washing plant and stone crushing plant.
After more than 30 years of development, it has developed into a large-scale equipment group that integrates R&D, production, marketing and technical services, with a complete industrial chain and multi machinery management.
After more than 30 years of development, it has developed into a large-scale equipment group that integrates R&D, production, marketing and technical services, with a complete industrial chain and multi machinery management.

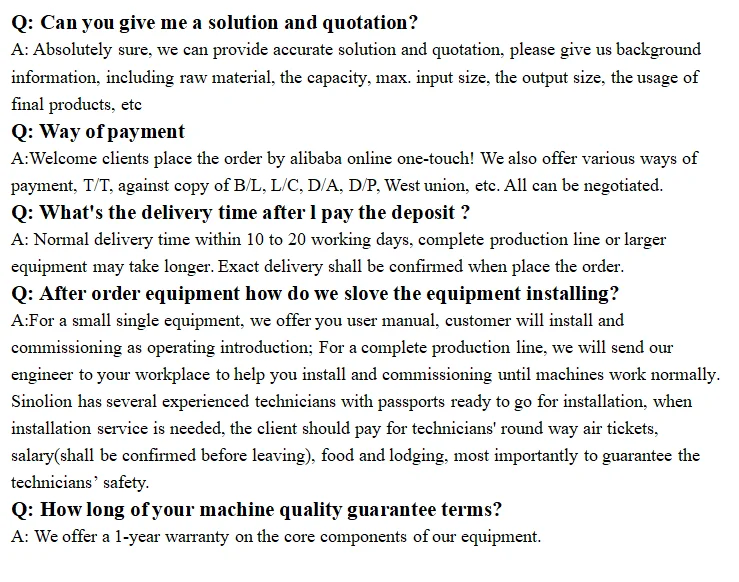

FAQ
