High CRI 2835 SMD LED 90 Degree RA95 Warm White LED Domed Lens LED 2800K 0.5W Dome Lens White SMD LED 2700K 3000K
- Category: >>>
- Supplier: Shenzhen Best Led Opto-Electronic Company Limited
Share on (1601243452693):
Product Overview
Description
Product Description

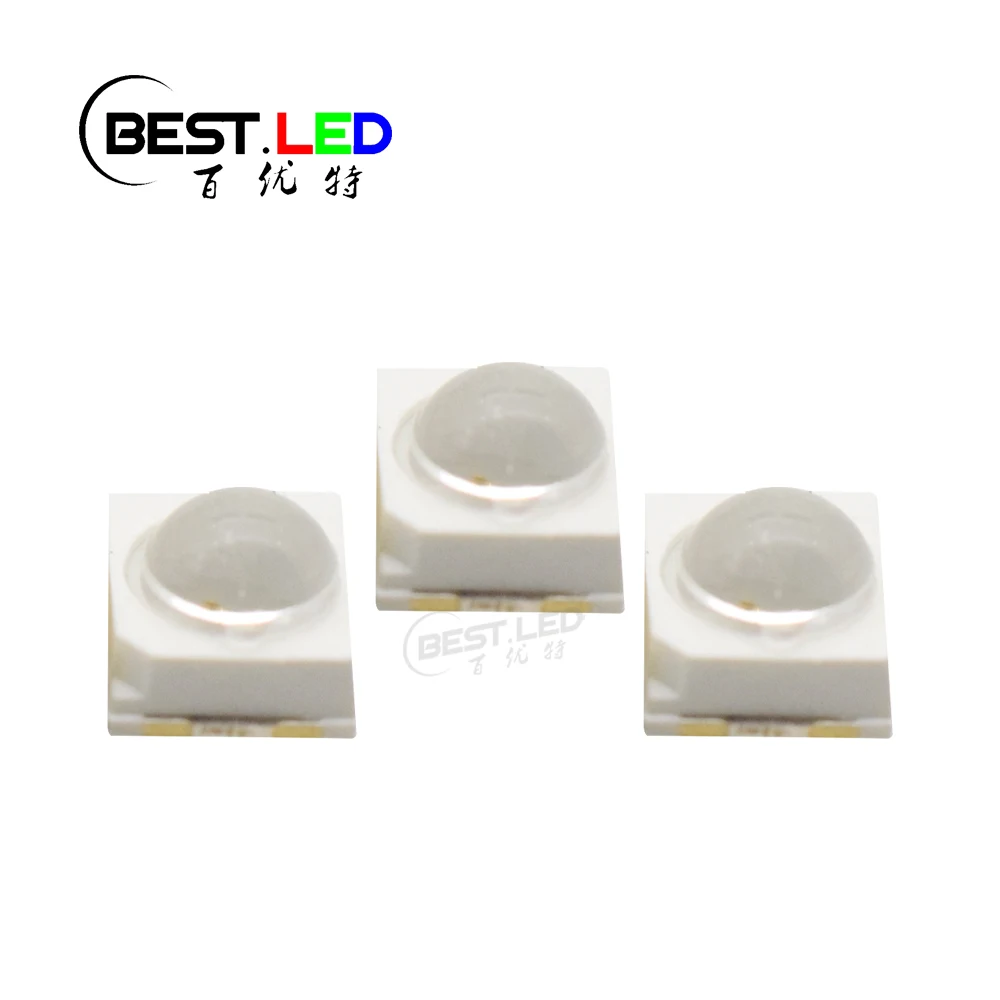

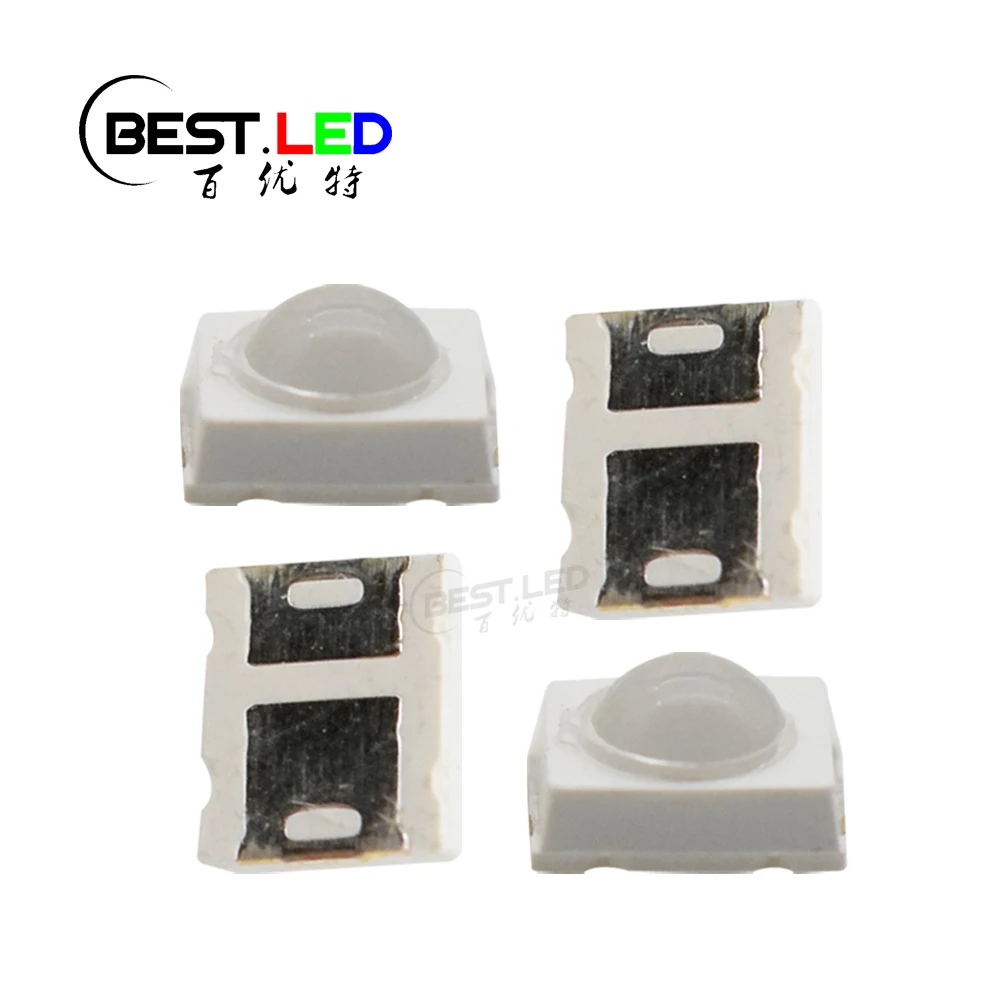

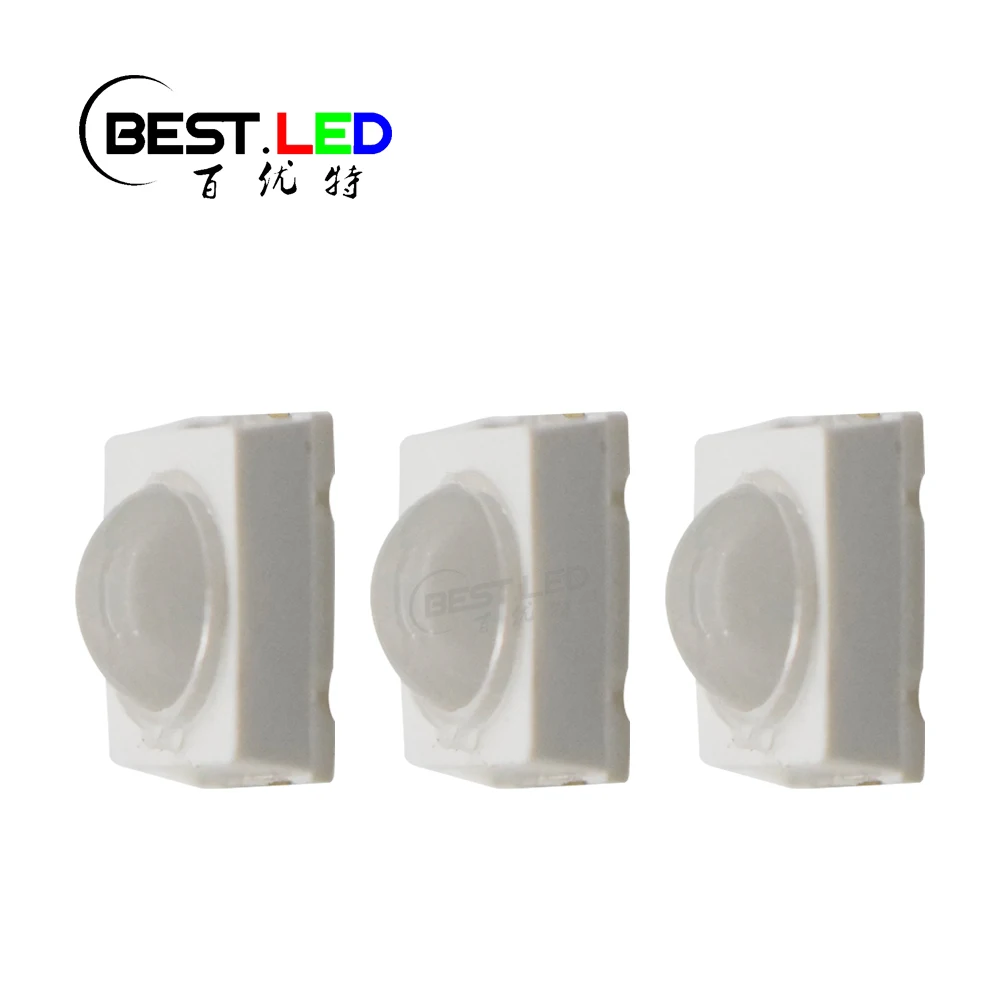

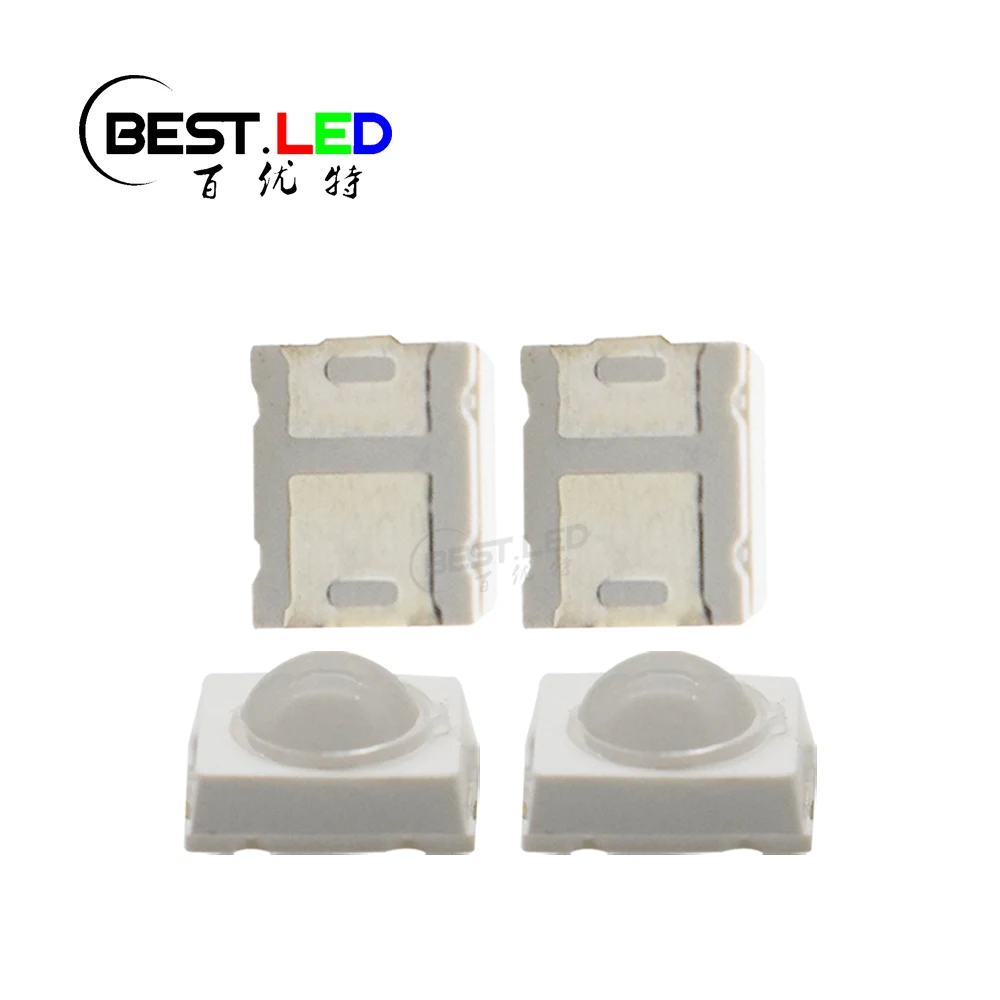

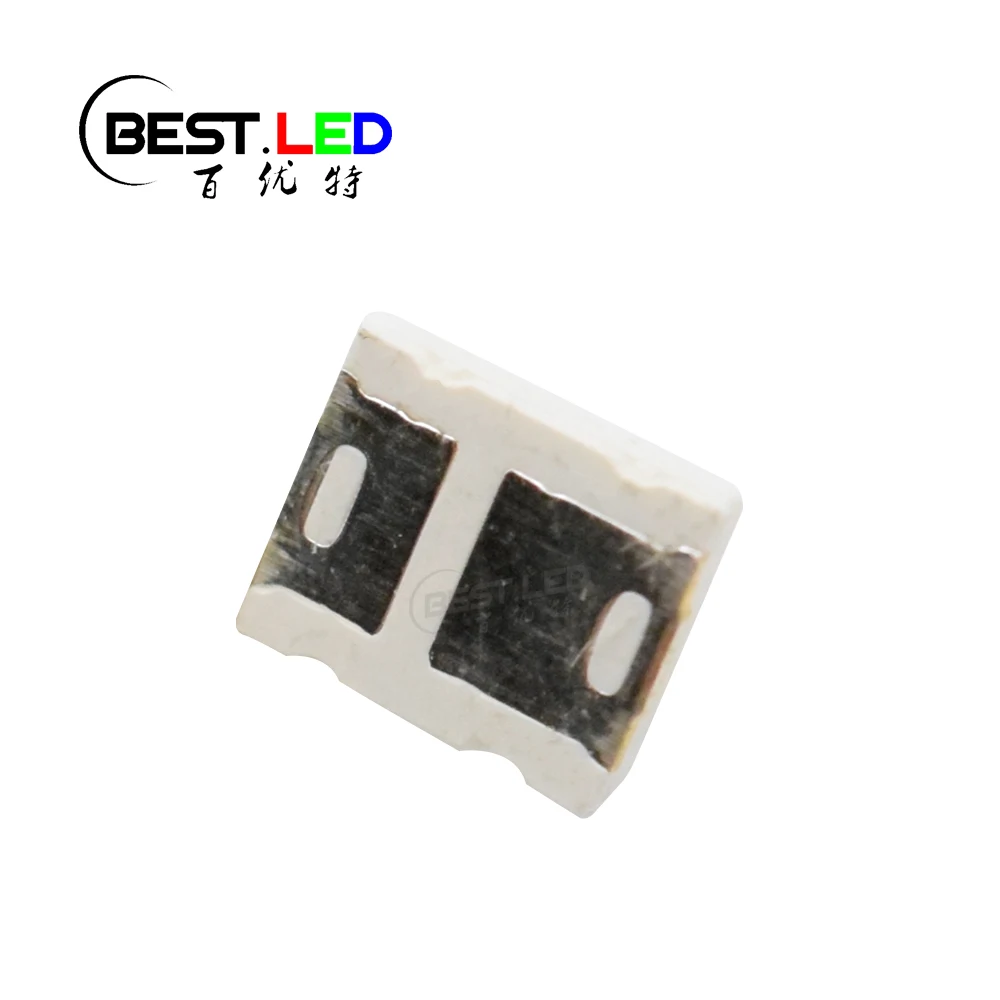

2835 Domed Lens SMD LED 90 degree
This 90 degree warm white LED is perfect for a variety of applications, including living rooms, dining areas, bedrooms, and anywhere a warm and comfortable lighting effect is preferred.
Technical Specifications:
- LED Type: Warm White LED
- CCT: 2700-3000K
- CRI: ≥95
- Power: 0.5W
- Beam Angle: 90 degrees
- Voltage: Typically operates at 3.0-3.2V
- Luminous Flux: Depending on the specific model, this can range from about 45-50 lumens
- Dimensions: Compact size, which can vary by manufacturer
When selecting an LED, it's important to check the specific datasheet for the exact specifications, as these can differ slightly between manufacturers. The luminous flux, dimensions, and voltage can vary, so it's always a good idea to verify these details to ensure the LED will meet your application requirements.
Technical Specifications:
- LED Type: Warm White LED
- CCT: 2700-3000K
- CRI: ≥95
- Power: 0.5W
- Beam Angle: 90 degrees
- Voltage: Typically operates at 3.0-3.2V
- Luminous Flux: Depending on the specific model, this can range from about 45-50 lumens
- Dimensions: Compact size, which can vary by manufacturer
When selecting an LED, it's important to check the specific datasheet for the exact specifications, as these can differ slightly between manufacturers. The luminous flux, dimensions, and voltage can vary, so it's always a good idea to verify these details to ensure the LED will meet your application requirements.
Product Name | 2835 SMD LED Domed Lens 90 Degree PLCC-2 |
Material | Copper, gold wire, epoxy |
Power | 0.5W |
Voltage | 3.0-3.2V |
CRI | Ra 95 |

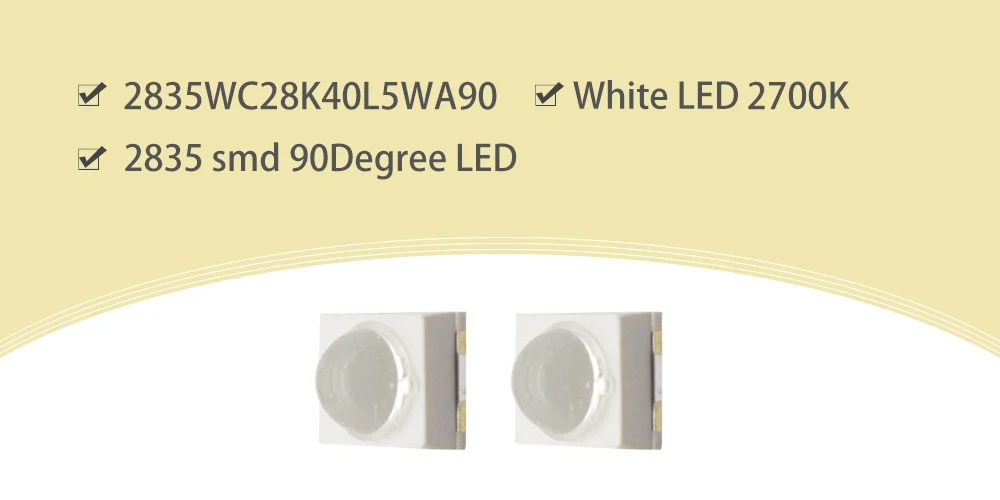

Model | 2835WC28K40L5WA90 |
CCT | 2700-3000K |
Parameter | Symbol | Rating | Unit | Size | ||
Forward current | IF | 90 | mA | 2835 SMD LED | ||
CCT | CCT | 2700-3000K | K | 2835 SMD LED | ||
Viewing angle | 2θ1 | 90° | Deg | 2835 SMD LED | ||
Packing | / | 2000 | Reel | 2835 SMD LED | ||
Available color | Red, Yellow, Blue, Green, White, IR, UV, Orange, Cyan, Amber, Pink ect | 2835 SMD LED | ||||
Available angle | 15°, 30°, 60°, 90° | 2835 SMD LED | ||||
