GT DMTG VMC850 Vertical Milling Machine Cnc Machining Center Tools 4 Spindles Machining Centre VMC855 Fresadora CNC
- Category: >>>
- Supplier: Genertec Dalian Machine Tool(Wafangdian) Co. Ltd.
Share on (1601243580385):
Product Overview
Description
VR
Product Details

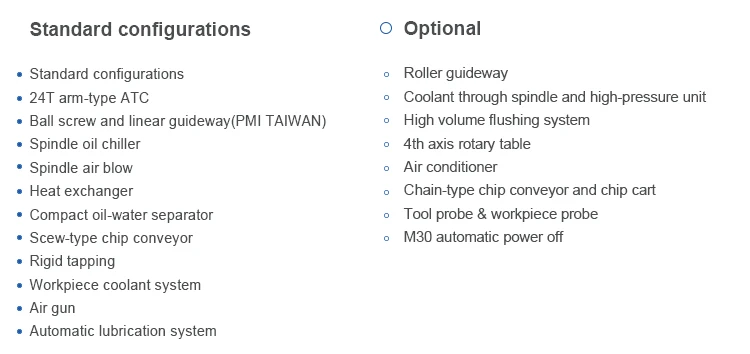

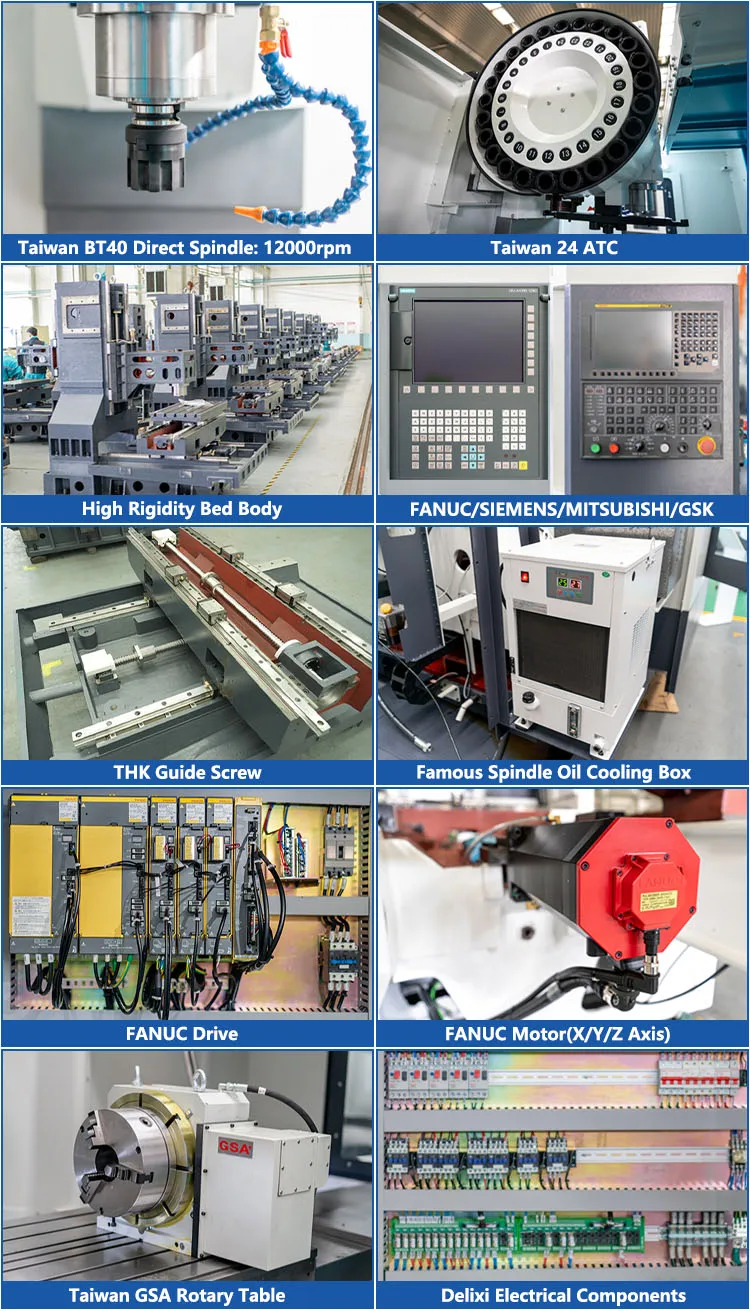

Standard Configurations

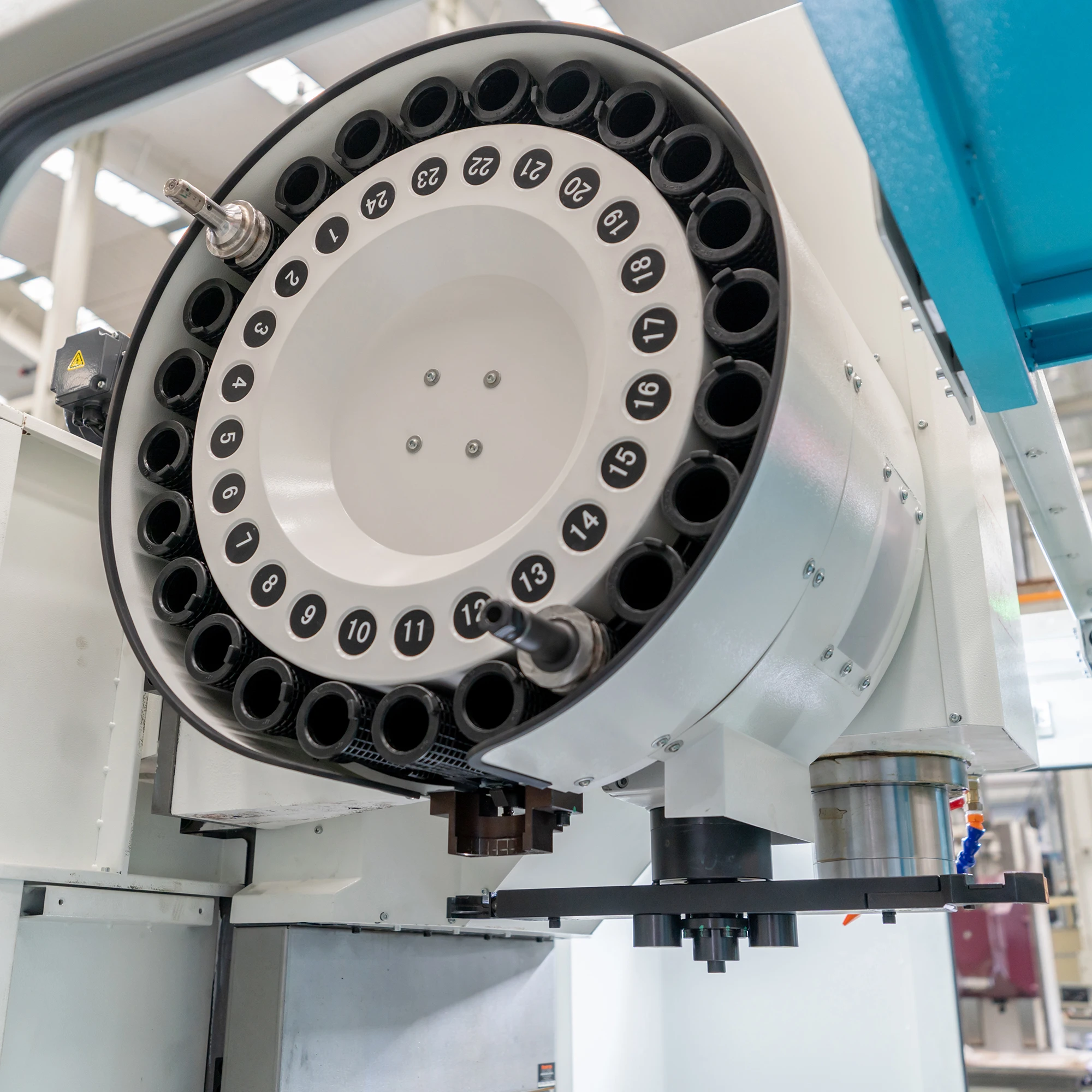

1.24Tarm-type ATC 2.Ball screw and linear guideway3.Spindle oil chiller

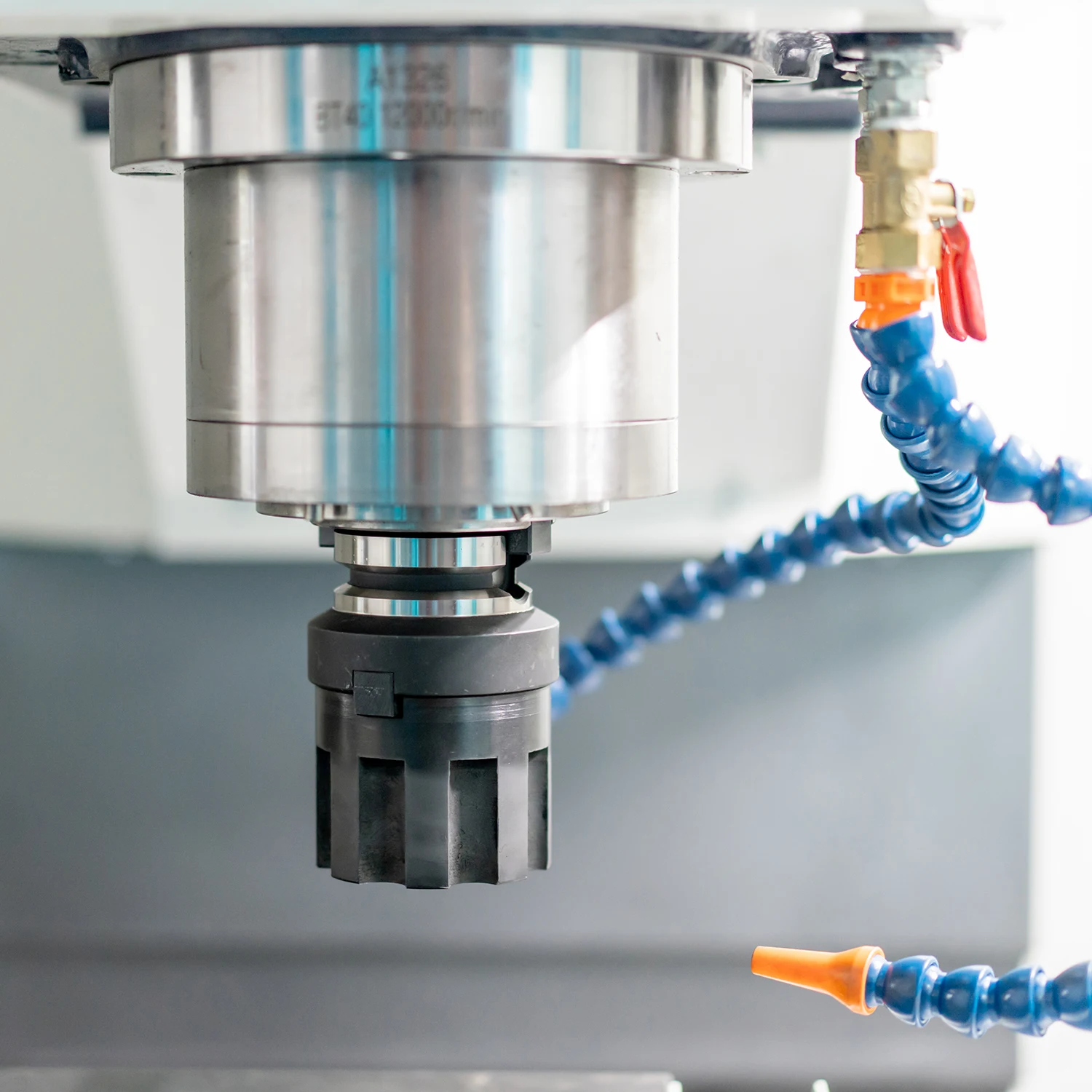

4.Spindle coolant ring
5.Spindle air blow 6.Heat exchanger 7.Compact oi-water separator
8.Screw-type chip conveyor
9.Rigid tapping
10.Workpiece coolant system
11.Air gun
12.Automatic lubrication system
1.24Tarm-type ATC 2.Ball screw and linear guideway3.Spindle oil chiller
4.Spindle coolant ring
5.Spindle air blow 6.Heat exchanger 7.Compact oi-water separator
8.Screw-type chip conveyor
9.Rigid tapping
10.Workpiece coolant system
11.Air gun
12.Automatic lubrication system

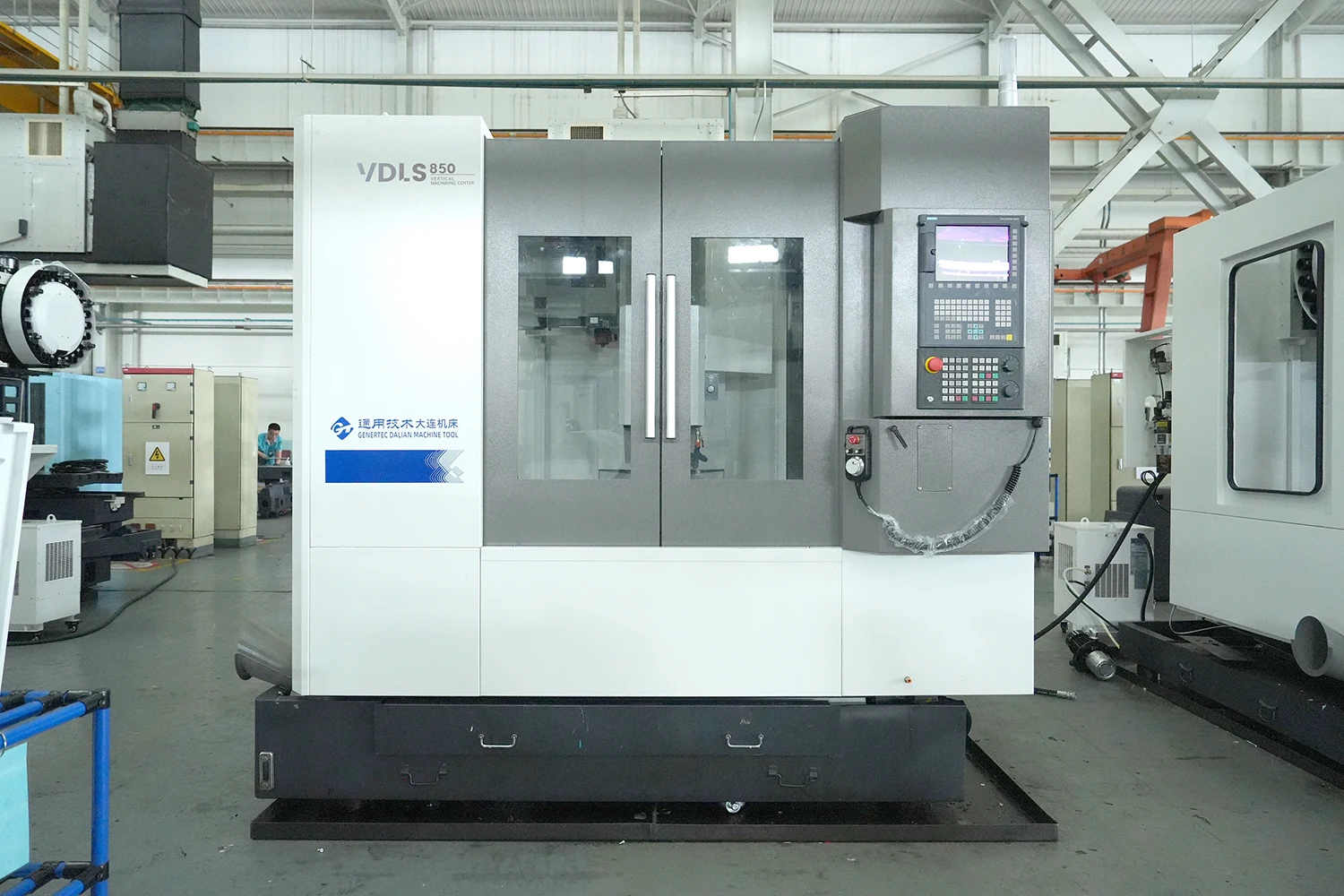

Specification | Unit | VDLS850 | VDLS1000 | |||||
Worktable size(LxW) | mm | 1000X500 | 1120X560 | |||||
Max. load | kg | 600 | 750 | |||||
T-slots (numbers*width* centre distance) | mm | 5X18X100 | 5X18X100 | |||||
X/Y/Z axis travel | mm | 860/510/560 | 1040/580/620 | |||||
X/Y/Z axis guide way type | Linear guideway | Linearguideway | X/Y Linear guide way Z Bok way | |||||
Distance from spindle center to column | mm | 607 | 629 | 666 | ||||
Distance from spindle nose to table | mm | 145~705 | 125~745 | |||||
Spindle motor power | KW | 7.5/11 | 7.5/11 | 11/15 | ||||
Max. spindle speed | r/min | 12000 Direct-driven | Opt:8000 Belt-driven | 12000 Direct driven | Opt:8000 Belt driven/Gear- driven | |||
Spindle taper | No.40(7:24) | No.40(7:24) | ||||||
Rapid traver of X/Y/Z axis | m/min | 36/36/30 | 36/36/30 | 24/24/20 OPT:(36/36/20) | ||||
Max. cutting feed rate | m/min | 10 | 10 | |||||
Tool magazine capacity | 24T/Arm | 24T/Arm | ||||||
Tool shank type | BT40 | BT40 | ||||||
Max. tool weight | kg | 8 | 8 | |||||
Max. tool diameter (w/o adjacent tools) | mm | Φ78/155 | Φ78/155 | |||||
Tool change time (T-T) | S | 2.7 | 2.7 | |||||
X/Y/Z axis positioning accuracy | mm | 0.008/0.008/0.008 | 0.016/0.008/0.008 | |||||
X/Y/Z axis repeatability accuracy | mm | 0.005/0.005/0.005 | 0.006/0.005/0.005 | |||||
CNC controller | FANUC 0i-MF(5)Plus,FANUC 0i-MF(1)PIUS, SIEMENS 828D MITSUBISHI M80B | |||||||
Machine dimensions(L×W×H) | mm | 2496X2530X2679 | 2800X2671X2820 | |||||
Machine weight | kg | 5600 | 7000 | |||||
Company Profile
After-Sales Service

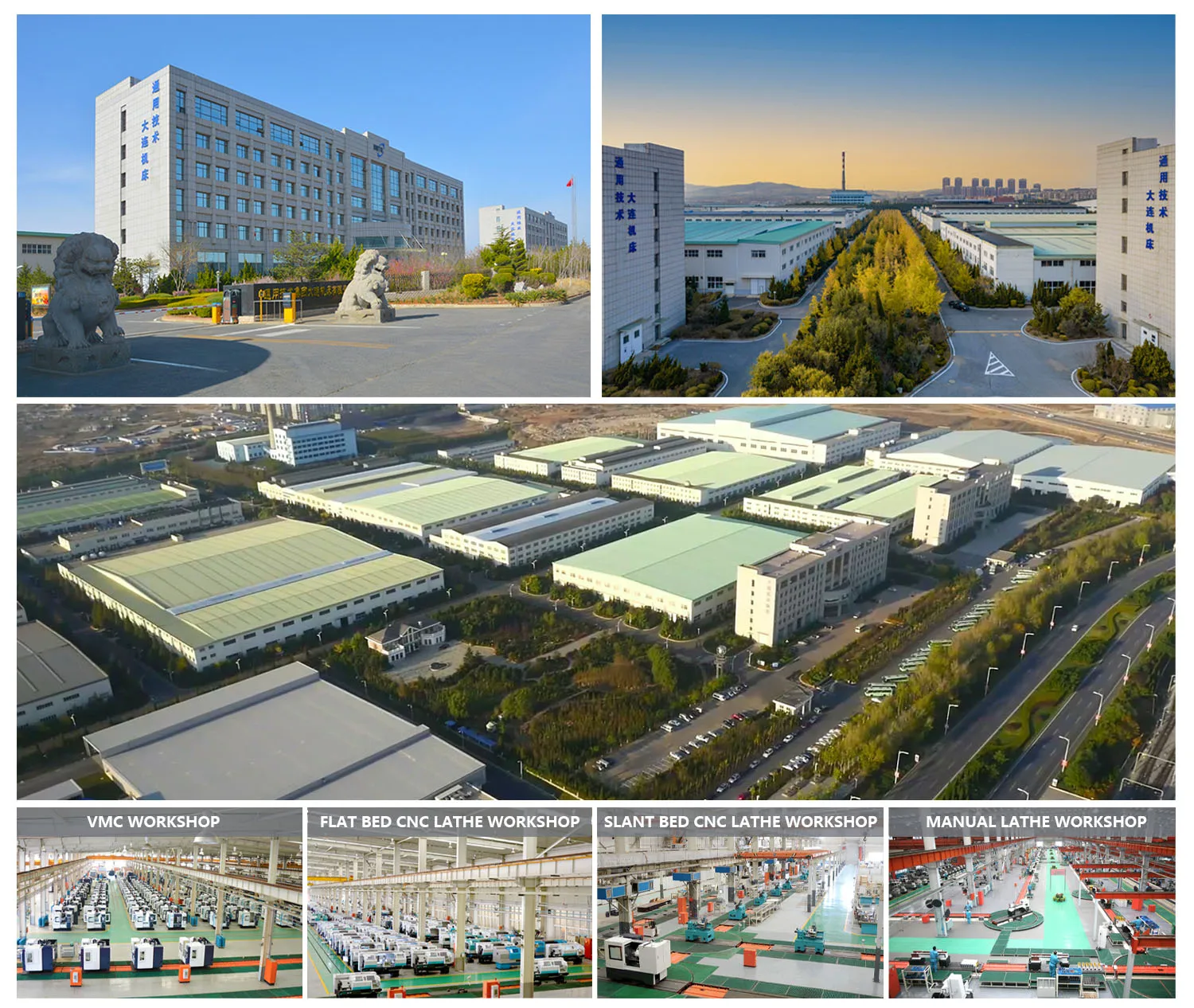

7 Production Bases
