Price:$255.00 - $291.00

Quantity:


Product Overview

Description



Product Description




Single Screw Pump

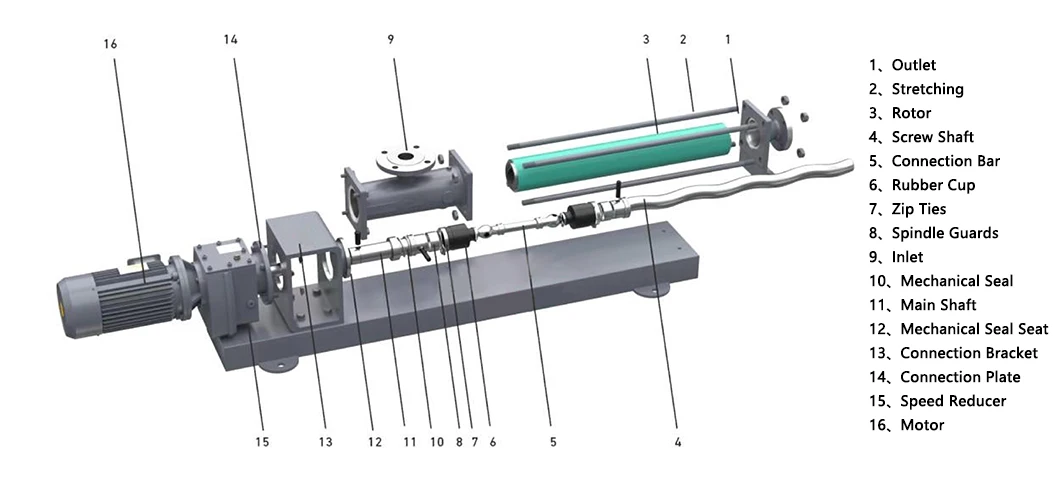

Single screw pump is a kind of internal mesh rotary displacement pump, the main working parts are eccentric screw (rotor) and fixed liner (stator), due to the special geometry of the rotor, stator, respectively, to form a number of separate sealing cavity, rotor operation, the sealing cavity of the media continuously, uniformly, volumetrically unchanged from the suction end of the conveyor to the end of the pressure out. Because of these characteristics, progressive cavity pumps are particularly suitable for the following conditions.
1、Conveying high-viscosity media;
2、Conveying media containing solid particles or fibres;
3、The requirements of continuous, stable pressure, no periodic pressure fluctuations;
4、The requirements of small churning, do not destroy the inherent structure of the medium being conveyed;
5、Low noise.


 Model
Speed
Flow
Pressure
Power
Headlift
Inlet
Outlet
r/min
m³/h
Mpa
kw
m
mm
mm
G15-1
960
0.5
0.6
0.75
60
25
25
G15-2
960
0.5
1.2
1.5
120
25
25
G20-1
960
1
0.6
0.75
60
25
25
G20-2
960
1
1.2
1.5
120
25
25
G25-1
960
2
0.6
1.5
60
32
25
G25-2
960
2
1.2
2.2
120
32
25
G30-1
960
5
0.6
2.2
60
50
40
G30-2
960
5
1.2
3
120
50
40
G35-1
960
8
0.6
3
60
65
50
G35-2
960
8
1.2
4
120
65
50
G40-1
960
12
0.6
4
60
80
65
G40-2
960
12
1.2
5.5
120
80
65
G50-1
960
20
0.6
5.5
60
100
80
G50-2
960
20
1.2
7.5
120
100
80
G60-1
960
30
0.6
11
60
125
100
G60-2
960
30
1.2
15
120
125
100
G70-1
720
45
0.6
11
60
150
125
G70-2
720
45
1.2
15
120
150
125
G85-1
720
55
0.6
15
60
150
150
G85-2
450
55
1.2
22
120
150
150




Customisation

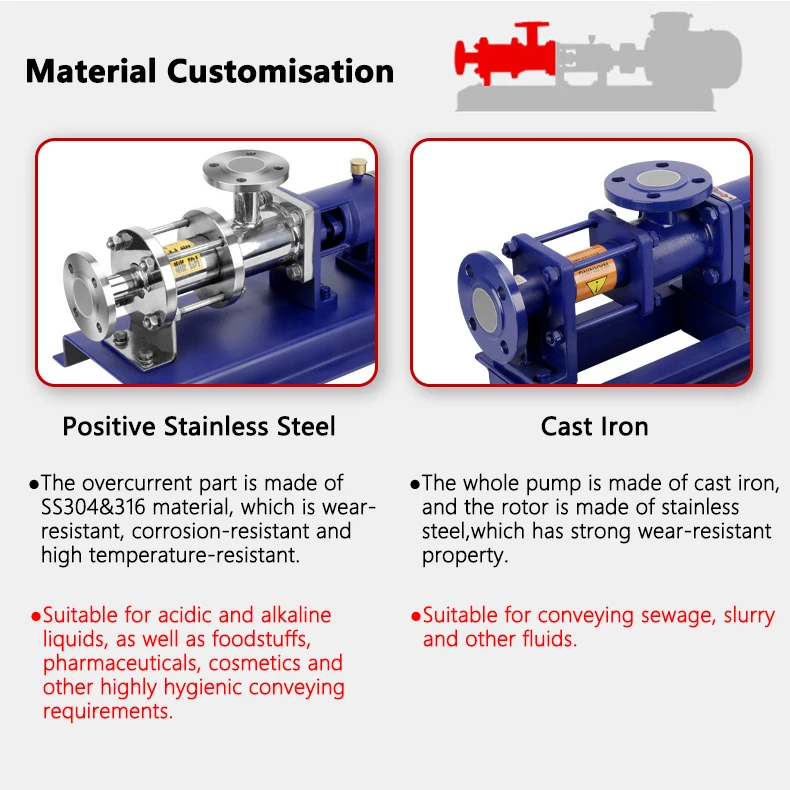

Positive Stainless Steel
●The overcurrent part is made of SS304&316 material, which is wear-resistant, corrosion-resistant and high temperature-resistant.
●Suitable for acidic and alkaline liquids, as well as foodstuffs, pharmaceuticals, cosmetics and other highly hygienic conveying requirements.
Cast Iron
●The whole pump is made of cast iron,and the rotor is made of stainless steel,which has strong wear-resistant property.
●Suitable for conveying sewage, slurry and other fluids.

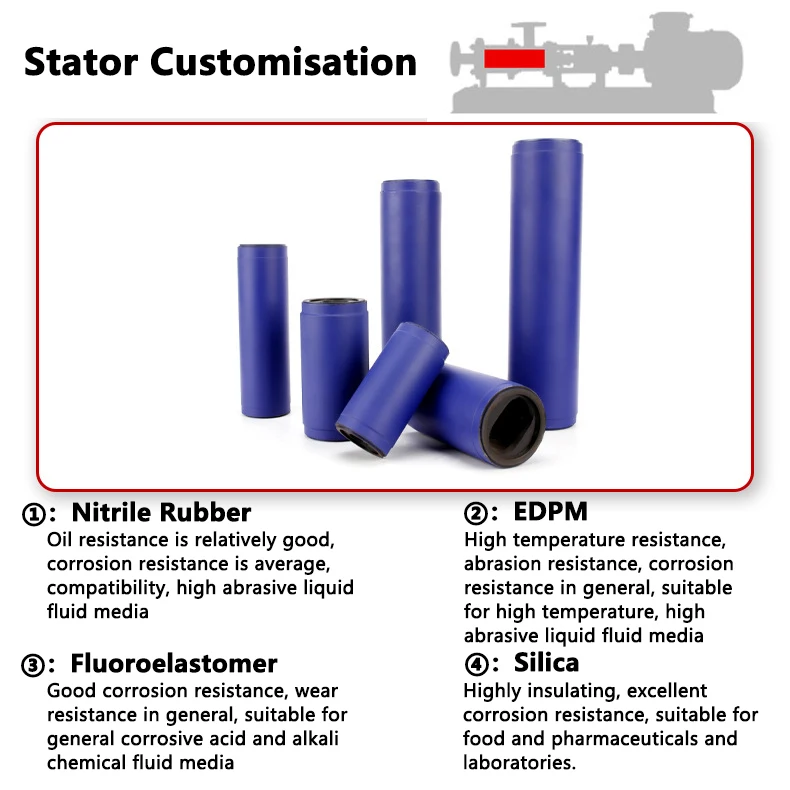

①:Nitrile Rubber Material
Advantages:
Oil resistance is relatively good,corrosion resistance is average,compatibility, high abrasive liquid fluid media
②:EDPM Material
Advantages:
High temperature resistance,abrasion resistance, corrosion resistance in general, suitable for high temperature, high abrasive liquid fluid media


③:Fluoroelastomer Material
Advantages:
Good corrosion resistance, wear resistance in general, suitable for general corrosive acid and alkali chemical fluid media
④:Silica Material
Advantages:
Highly insulating, excellentcorrosion resistance, suitable forfood and pharmaceuticals andlaboratories.

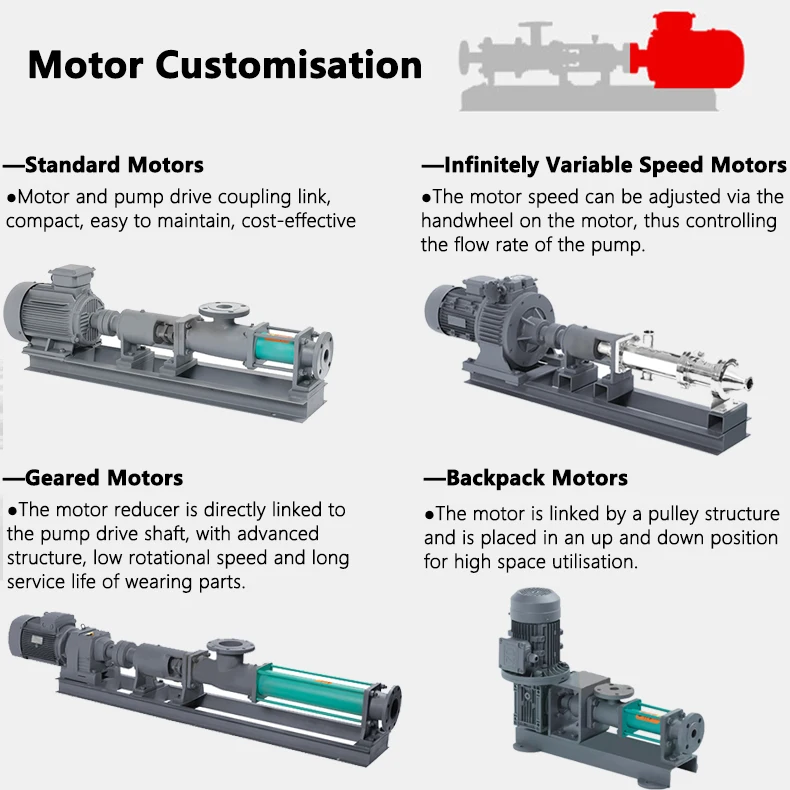

—Standard Motors
Motor and pump drive coupling link,compact,easy to maintain, cost-effective
—Infinitely Variable Speed Motors
The motor speed can be adjusted via the hand wheel on the motor, thus controlling the flow rate of the pump


—Geared Motors
The motor reducer is directly linked to the pump drive shaft, with advanced structure, low rotational speed and long service life of wearing parts.
—Backpack Motors
The motor is linked by a pulley structureand is placed in an up and down positionfor high space utilisation.


Liquid conveying




Foodstuffs:hotpot base, honey, jelly, juice, yoghurt, milk, cream, ice-cream, eight-pole congee, ketchup, sesame paste, pasta sauce, maltose, mincemeat, mustard paste, mashed potatoes, soya bean paste, salad dressings, chocolate, yeast, butter, animal fats and oils, wines, olive oils, liquors.
Daily chemicals:shampoo, shampoo, shower gel, bath salts, bath milk, soap, hand cream, hand sanitiser, perfume, sunscreen, gel,nail polish, lotion, essence oil, toothpaste, facial cleanser, windex, silicone, rubbing mud treasure, detergent, laundry detergent, bleach.
Other categories: poultry feed, pet rations, petroleum jelly, cough syrup, industrial glue, white latex, dextrose, gelatin,dacron, saline, paint, waterproof glue，Cement, slurry, concrete

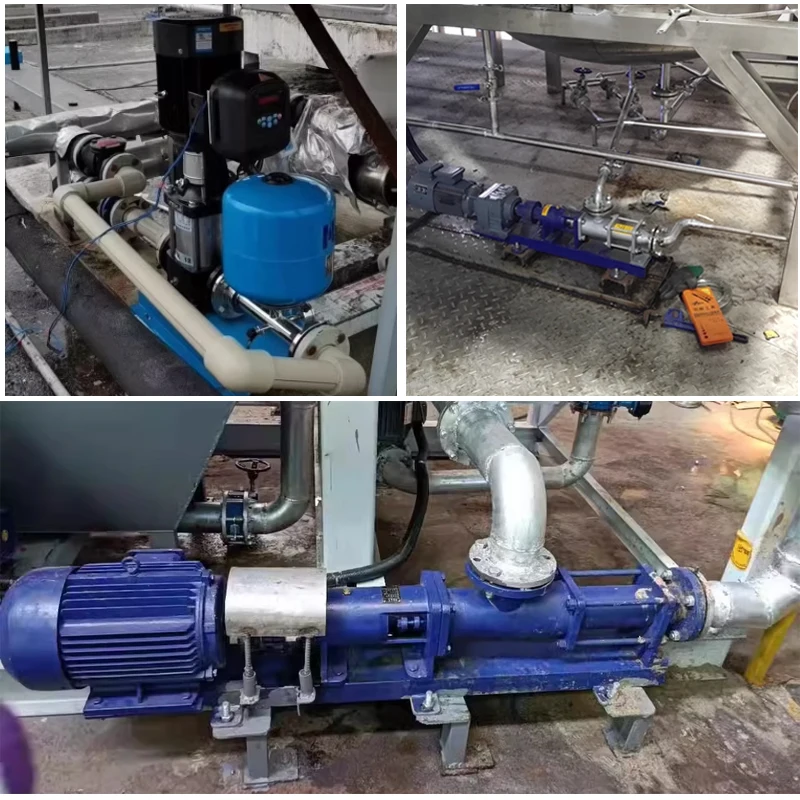

Customer Feedback

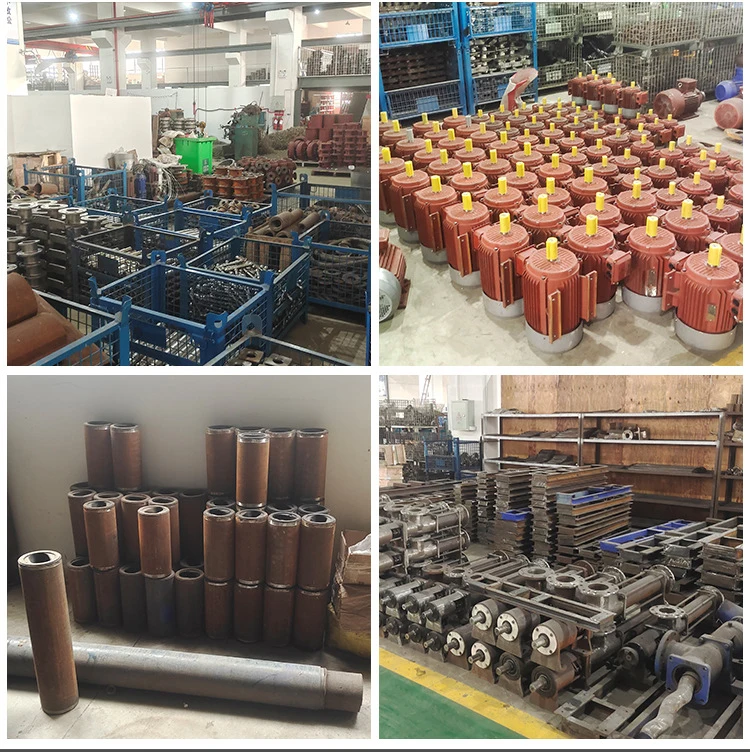

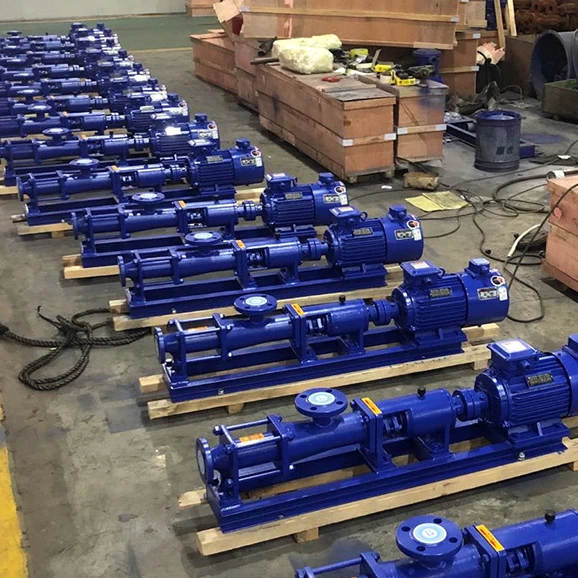

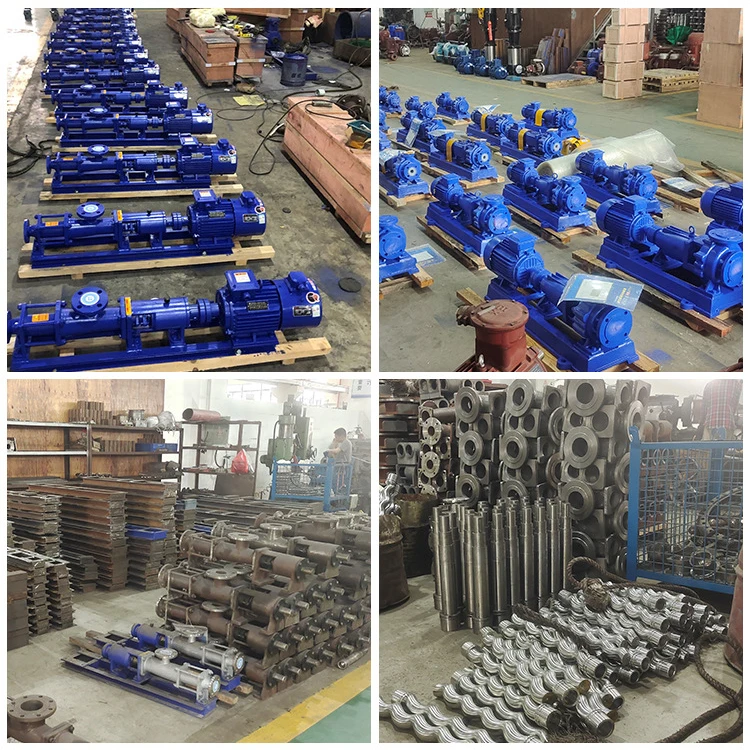

Our Factory
