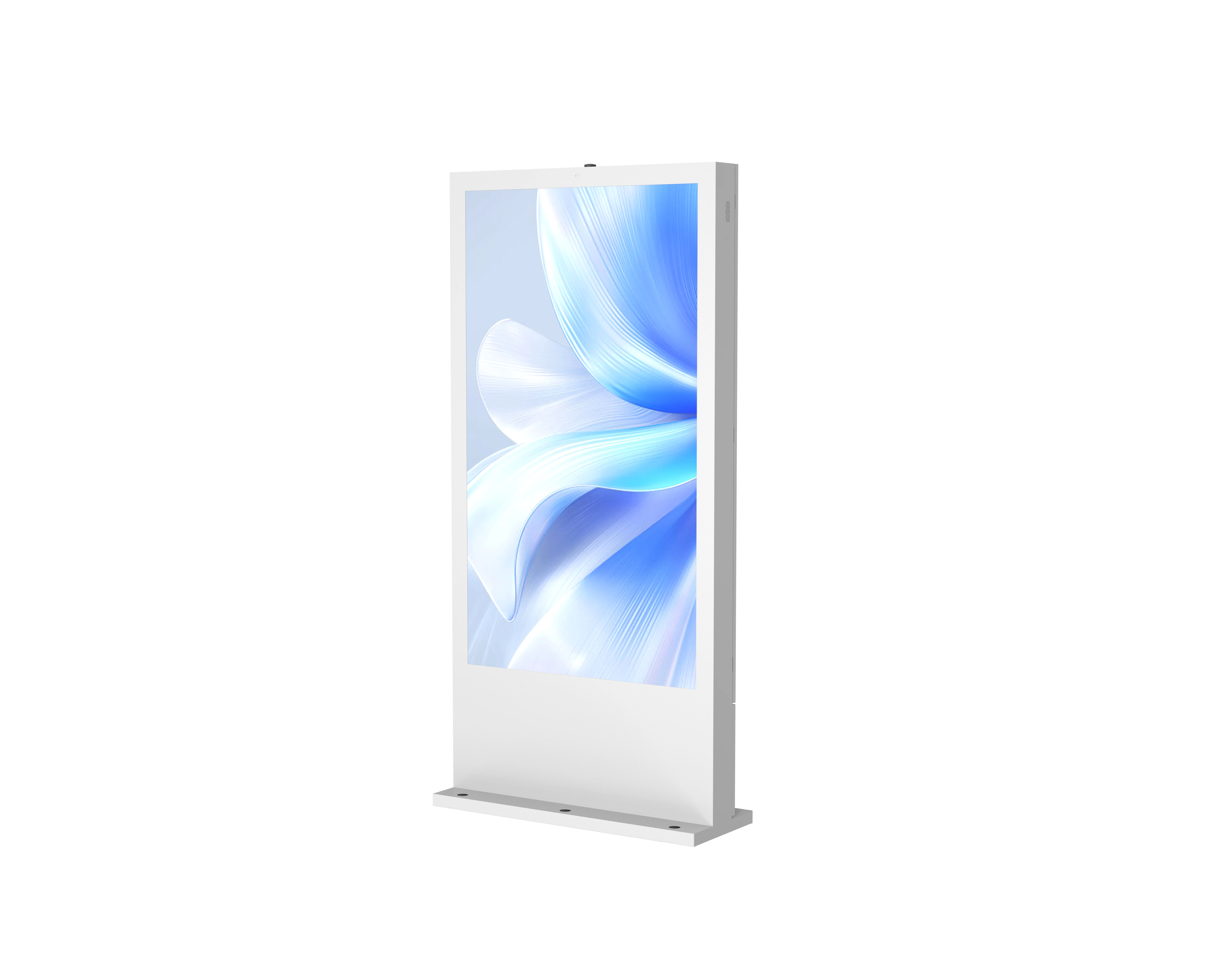

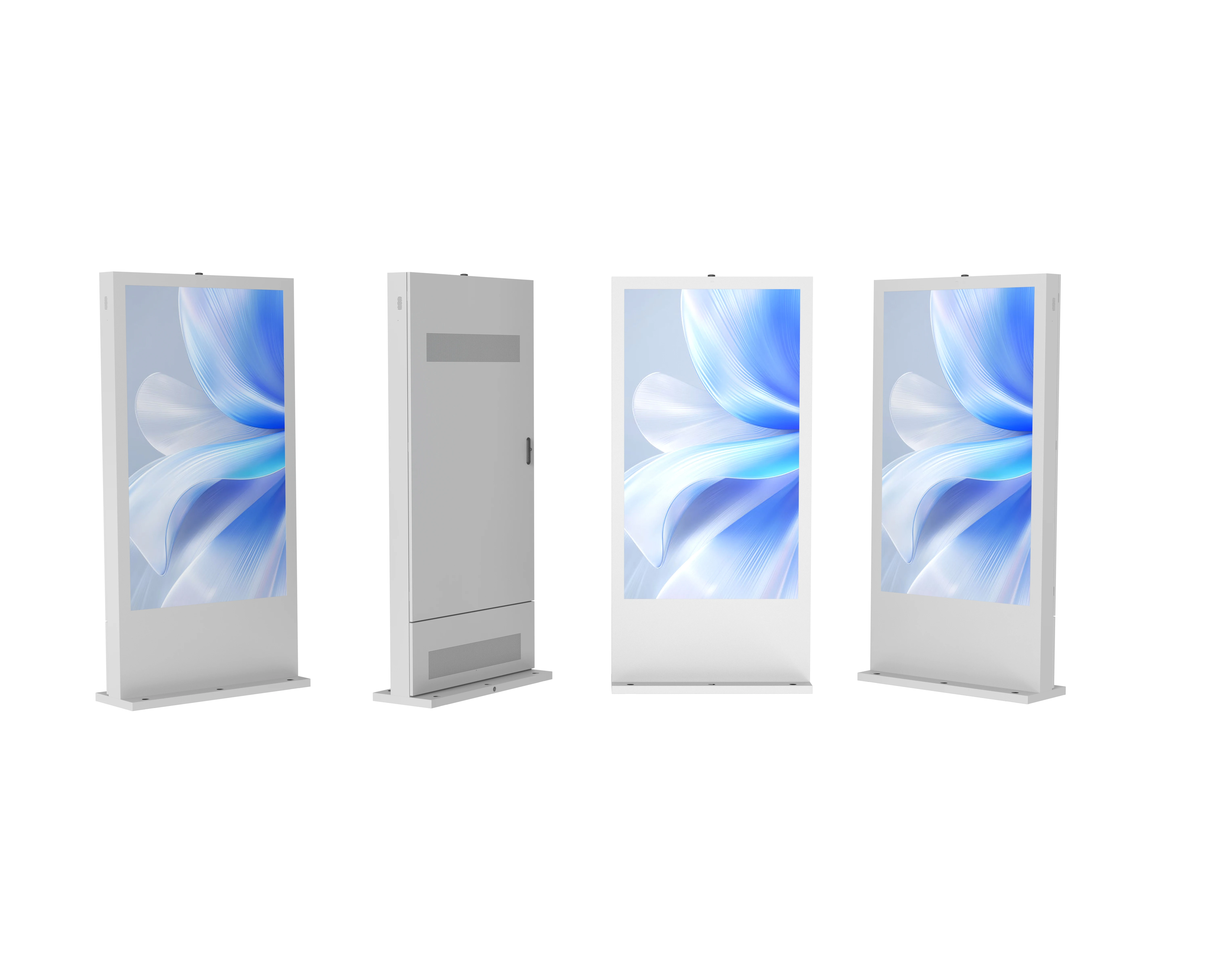

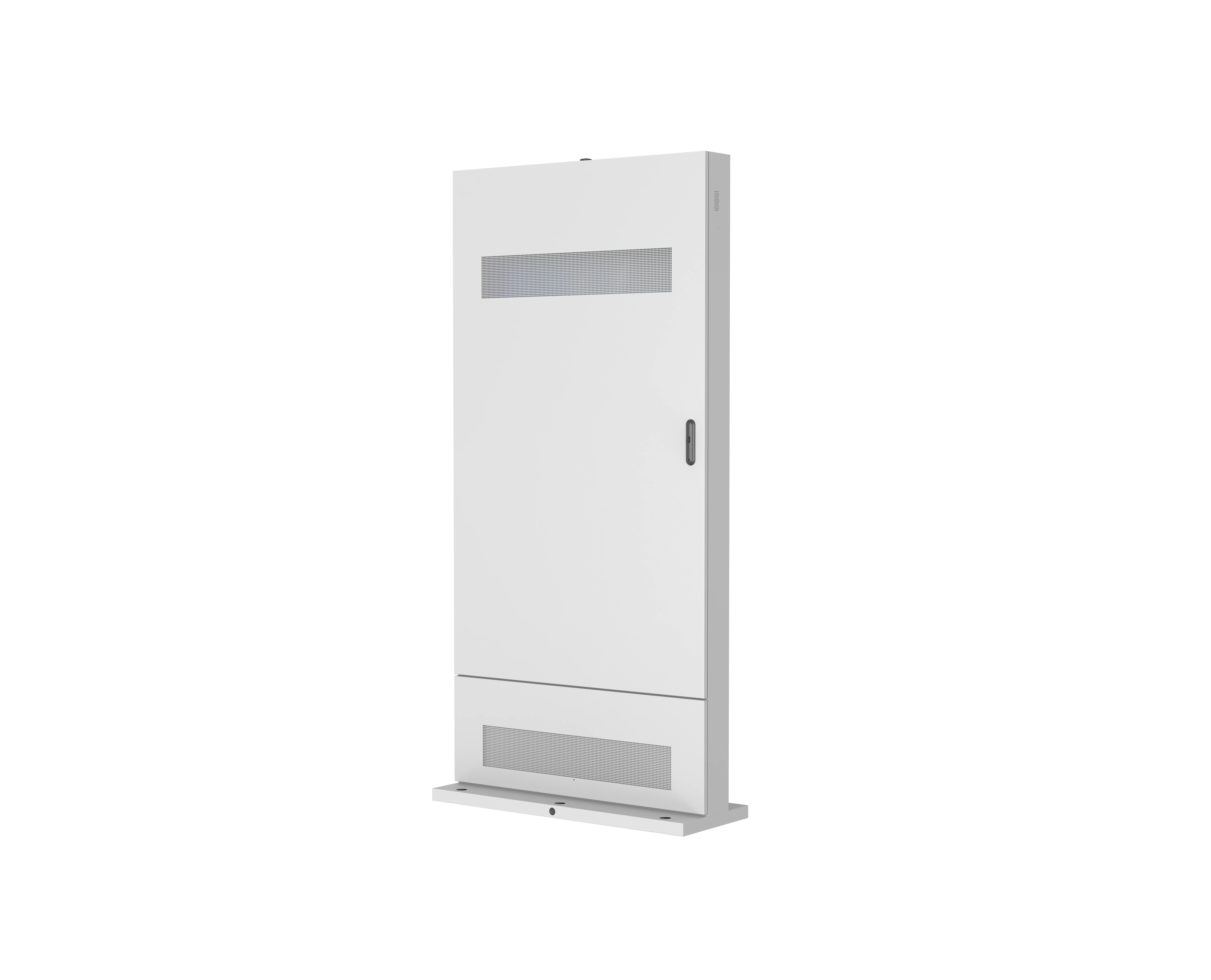

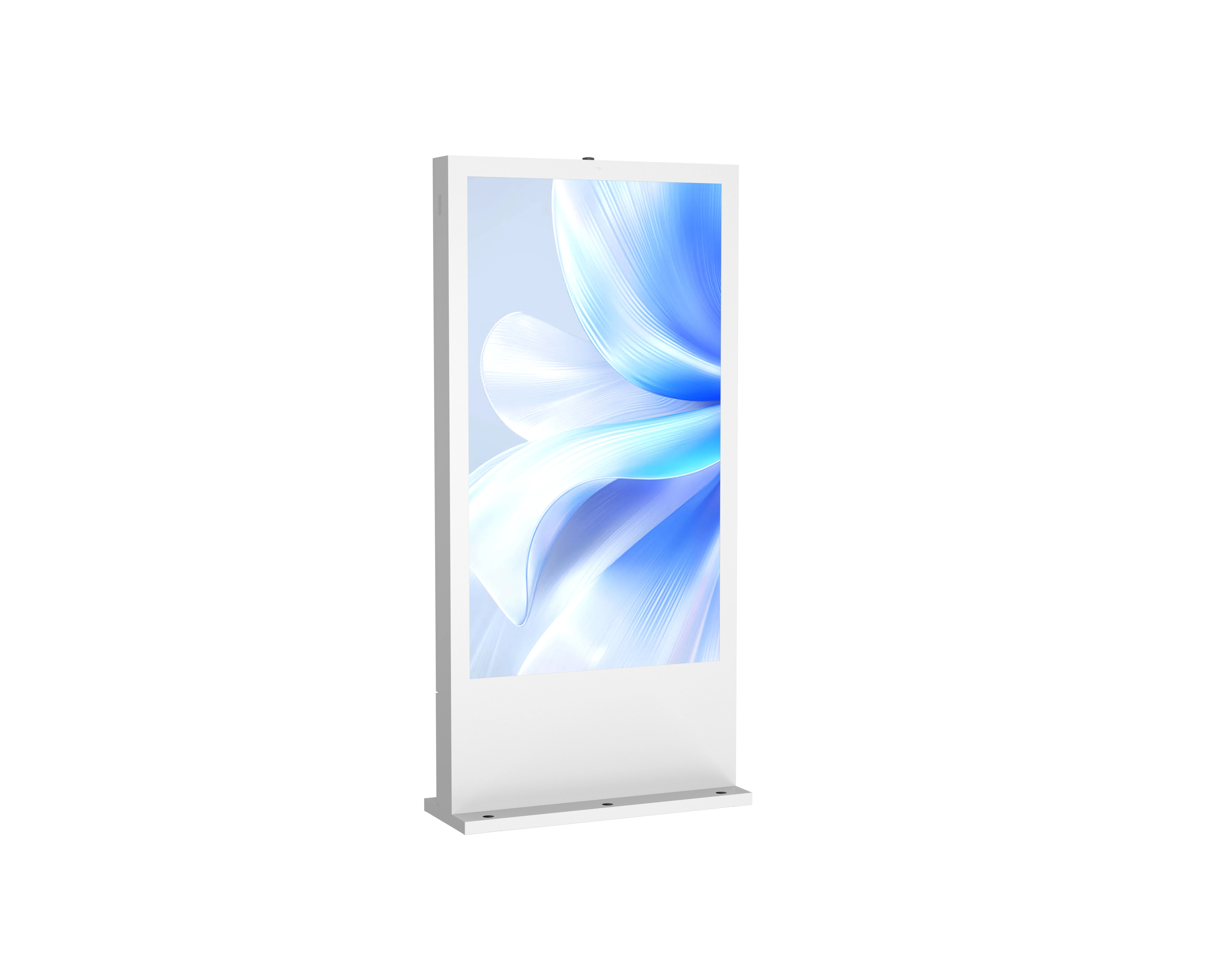

Best Selling LED Outdoor Green Energy Saving Vertical Screen Landing Air Cooled Display Lcd Advertising Screen
- Category: >>>
- Supplier: Shenzhen Lean Kiosk Systems Co. Ltd.
Share on (1601243749843):
Product Overview
Description
Commercial intelligent bright LCD advertising machine, widely used in scenic spots, parks,communities, streets, media business district and other outdoor places where people gather, through the terminal display equipment, release commercial advertising information and some information related to the application scene of the multimedia professional audio-visual system. The system products can be in a specific place, a specific period of time for a specific group of people to play advertising information. We specialize in the R&D and production of outdoor intelligent liquid crystal display equipment, so that the products have stronger competitiveness than our friends, both in technology and in practical application.
Products Description
1 . Structural Design：
In accordance with the standard GB4208-93 for protective level 4 of exteriors, this equipment employs an integrated case and a temperature control system with a protection rating of IP65. The design is predicated on the adherence to the subsequent principles.
(1) The shell is made of 1.2-3.0mm SGCC galvanized steel plate, coated with AkzoNobel outdoor special plastic powder, with a protection period of 5-8 years.
(2) The shell structure design includes waterproof troughs and waterproof air inlets and outlets, meeting the IP65 protection level.
(3) Dustproof design: The inlet and outlet are designed with special medium and high efficiency dust filters to filter out fine dust in the air and prevent insects from entering the machine. The simple disassembly design makes it convenient for customers to perform regular maintenance.
(4) The front protective glass of the whole machine adopts 5-8mm high-transparency tempered glass with a light transmittance of ≥96%. It is highly transparent, anti-reflective, and explosion-proof.
(5) The whole machine adopts a modular design, and the internal display screen, heat dissipation components, and electronic components can be easily repaired by opening the door.
The bottom of the machine is designed with installation holes, which can be fixed and installed with expansion bolts or embedded threaded rods.
(1) The shell is made of 1.2-3.0mm SGCC galvanized steel plate, coated with AkzoNobel outdoor special plastic powder, with a protection period of 5-8 years.
(2) The shell structure design includes waterproof troughs and waterproof air inlets and outlets, meeting the IP65 protection level.
(3) Dustproof design: The inlet and outlet are designed with special medium and high efficiency dust filters to filter out fine dust in the air and prevent insects from entering the machine. The simple disassembly design makes it convenient for customers to perform regular maintenance.
(4) The front protective glass of the whole machine adopts 5-8mm high-transparency tempered glass with a light transmittance of ≥96%. It is highly transparent, anti-reflective, and explosion-proof.
(5) The whole machine adopts a modular design, and the internal display screen, heat dissipation components, and electronic components can be easily repaired by opening the door.
The bottom of the machine is designed with installation holes, which can be fixed and installed with expansion bolts or embedded threaded rods.
2.Display：
(1) Adopting LG\\BOE\\AUO brand LCD screen with brightness of 2000-2500cd/m2, the video
image is brighter and more vivid, and the sense of three-dimensionality is stronger.
(2) High resolution, high contrast, high brightness, greatly enhance the sense of picture hierarchy, and better display picture
details.
(3) It has an automatic ghosting elimination function, UV protection, heat insulation, automatic light-sensing green energy
saving, and long-term protection for LCD screens.
(4) It has a black level extension adaptive function, enhancing the depth of field of the image.
(5)16.7 million colors, more natural and delicate images with no motion blur.
(6) Long lifespan, 7*24H continuous operation, with a lifespan of up to 50,000 hours.
image is brighter and more vivid, and the sense of three-dimensionality is stronger.
(2) High resolution, high contrast, high brightness, greatly enhance the sense of picture hierarchy, and better display picture
details.
(3) It has an automatic ghosting elimination function, UV protection, heat insulation, automatic light-sensing green energy
saving, and long-term protection for LCD screens.
(4) It has a black level extension adaptive function, enhancing the depth of field of the image.
(5)16.7 million colors, more natural and delicate images with no motion blur.
(6) Long lifespan, 7*24H continuous operation, with a lifespan of up to 50,000 hours.
3. Electrical:

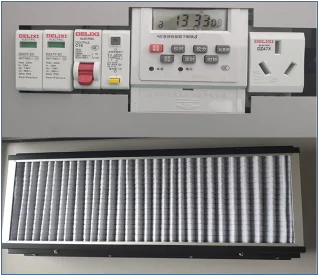

(1) Electrical protection: surge protection, leakage, overload,overvoltage protection,high temperature protection, etc.
(2) Audio: Dual-channel, stereo surround amplifier system with an output power of 8 ohms and 10W.
(3) Design standard for working environment temperature: -20℃ to+50℃
(4) Adopt modular design principles for sustainability and maintainability.

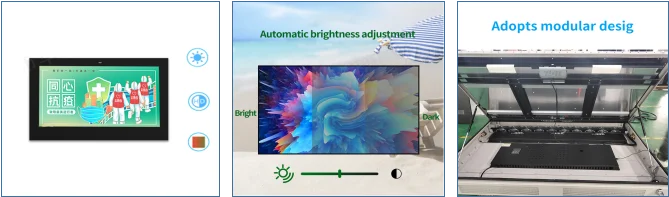

(5) Automatic light adjustment: The screen backlight adopts automatic ambient light sensing, which adjusts the screen brightness in real time to meet the requirements of clear image display in strong sunlight, and also makes the screen not dazzling at night,saving energy and protecting the environment.
(2) Audio: Dual-channel, stereo surround amplifier system with an output power of 8 ohms and 10W.
(3) Design standard for working environment temperature: -20℃ to+50℃
(4) Adopt modular design principles for sustainability and maintainability.
(5) Automatic light adjustment: The screen backlight adopts automatic ambient light sensing, which adjusts the screen brightness in real time to meet the requirements of clear image display in strong sunlight, and also makes the screen not dazzling at night,saving energy and protecting the environment.
4.Heat dissipation：

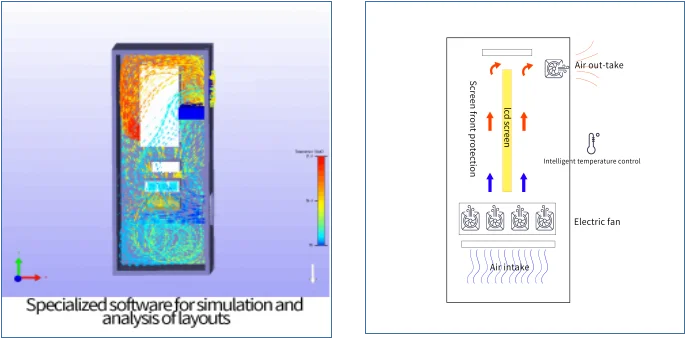

(1) Adopt integrated intelligent direct ventilation cooling system, with professional and special air duct cooling design.
(2) The internal air and external air of the machine are exchanged in a circulating manner. The external air enters through the dustproof net, is filtered, and then divided into two air circulations in front of and behind the screen, ensuring that the internal temperature is 8-10 degrees higher than the external temperature.
(3) Independently developed temperature control motherboard, which can automatically adjust fan speed according to the internal temperature of the machine.
(4) Equipped with high-temperature automatic power-off protection function. When the internal temperature of the machine is abnormally high and exceeds the normal working range, the control system will cut off the power supply to the main components such as the display screen to protect them. At the same time, the fan will continue to operate at full speed for heat dissipation,fully protecting the display screen and main components.
(2) The internal air and external air of the machine are exchanged in a circulating manner. The external air enters through the dustproof net, is filtered, and then divided into two air circulations in front of and behind the screen, ensuring that the internal temperature is 8-10 degrees higher than the external temperature.
(3) Independently developed temperature control motherboard, which can automatically adjust fan speed according to the internal temperature of the machine.
(4) Equipped with high-temperature automatic power-off protection function. When the internal temperature of the machine is abnormally high and exceeds the normal working range, the control system will cut off the power supply to the main components such as the display screen to protect them. At the same time, the fan will continue to operate at full speed for heat dissipation,fully protecting the display screen and main components.

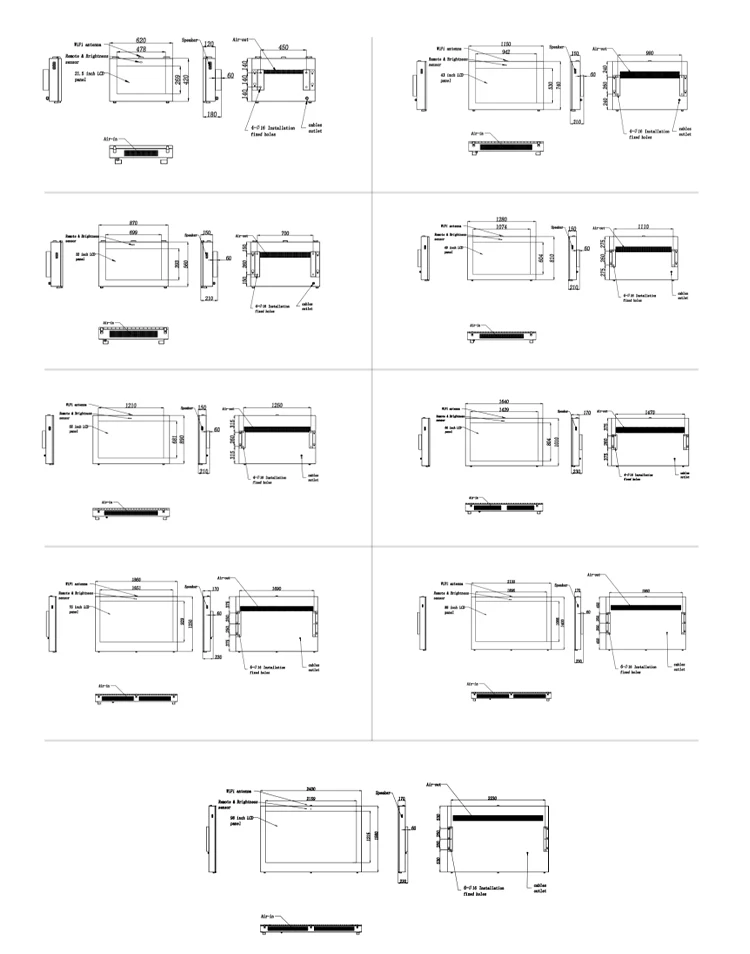

5.Product Dimension Diagram
The specific size of the product is displayed
Model | 21.5 inch | 32 inch | 43 inch | 49 inch | 55inch | |||||
Backlight type | ELED | DLED | ||||||||
Display size(mm) | 478*269 | 697*392 | 941*530 | 1074*604 | 1210*680 | |||||
Display ratio | 16:9 | |||||||||
Resolution | 1920*1080 | |||||||||
Brightness | 1500cd/㎡ | 2000-2500cd/㎡ | ||||||||
Contrast Ratio | 3500:1 | |||||||||
View angle | 178°（H）/178°（V） | |||||||||
Response time | 6ms | |||||||||
Lifespan | 50000H | |||||||||
CPU | Android RK3288 or X86 chip | |||||||||
ROM | 1G/2G/4G/8G..., DDR3 | |||||||||
RAM | 8G/16G/32G/64G/128G/256G,etc | |||||||||
OS | Android/Windows | |||||||||
Video format | MPG, MPG-1, MPG-2, MPG-4, AVI, MP4, TS, MKV, WMV | |||||||||
Image format | GIF, JPEG, PNG, BMP | |||||||||
Audio output | 8Ω10W * 2 | |||||||||
Other format | MP3, 24bit linear PCM7.1 PDF/ RSS News/Weather Forecast | |||||||||
Networking methods | LAN wired network, WiFi wireless network | |||||||||
Update methods | Network remote update, USB flash drive update | |||||||||
CMS | Controllable full-screen, split-screen playback (to create a multi-screen display, logo area, calendar area, video area, picture area, subtitle area, etc.) arbitrarily divided, their own layout of the screen display) | |||||||||
Program upgrade | Remote upgrade, remote control upgrade | |||||||||
Timer on/off | Support to set any time period | |||||||||
Networking methods | 4G Module/4G Router Wireless Networking | |||||||||
Touch type | G+F Nano Touch Film/G+G Capacitive Touch Screen | |||||||||
Working temp. | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) | |||||||||
Storage temp. | -10℃～+60℃ | |||||||||
Working humidity | 10%～90% | |||||||||
Storage humidity | 5%～95% | |||||||||
Noise | <65dB | |||||||||
Machine seize H*W*D(mm) | 620*420*120 | 870*560*150 | 1150*740*150 | 1280*810*150 | 1420*890*150 | |||||
Net weight(Kg) | 30 | 45 | 70 | 75 | 85 | |||||
Package size H*W*D(mm) | 690*770*270 | 830*1210*300 | 1010*1300*300 | 1080*1430*300 | 1160*1570*300 | |||||
Gross weight(Kg) | 50 | 65 | 95 | 105 | 115 | |||||
Power Consumption | Input voltage | AC110-240V,50/60Hz | ||||||||
Current dissipation(W) | ≤180 | ≤230 | ≤300 | ≤400 | ≤450 | |||||
Model | 65 inch | 75 inch | 86 inch | 98 inch | ||||
Panel Spec | Backlight type | DLED | ||||||
Display size(mm) | 1429*804 | 1651*929 | 1896*1066 | 1896*1066 | ||||
Display ratio | 16:9 | |||||||
Resolution | 3840*2160 | |||||||
Brightness | 2000-2500cd/㎡ | |||||||
Contrast Ratio | 3500:1 | |||||||
View angle | 178°（H）/178°（V） | |||||||
Response time | 6ms | |||||||
Lifespan | 50000H | |||||||
Main board | CPU | Android RK3288 or X86 chip | ||||||
ROM | 1G/2G/4G/8G..., DDR3 | |||||||
RAM | 8G/16G/32G/64G/128G/256G,etc | |||||||
OS | Android/Windows | |||||||
Video format | MPG, MPG-1, MPG-2, MPG-4, AVI, MP4, TS, MKV, WMV | |||||||
Image format | GIF, JPEG, PNG, BMP | |||||||
Audio output | 8Ω10W * 2 | |||||||
Other format | MP3, 24bit linear PCM7.1 PDF/ RSS News/Weather Forecast | |||||||
Networking methods | LAN wired network, WiFi wireless network | |||||||
Update methods | Network remote update, USB flash drive update | |||||||
CMS | Controllable full-screen, split-screen playback (to create a multi-screen display, logo area, calendar area, video area, picture area, subtitle area, etc.) arbitrarily divided, their own layout of the screen display) | |||||||
Program upgrade | Remote upgrade, remote control upgrade | |||||||
Timer on/off | Support to set any time period | |||||||
Networking methods | 4G Module/4G Router Wireless Networking | |||||||
Touch type | G+F Nano Touch Film/G+G Capacitive Touch Screen | |||||||
Working Environment | Working temp. | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) | ||||||
Storage temp. | -10℃～+60℃ | |||||||
Working humidity | 10%～90% | |||||||
Storage humidity | 5%～95% | |||||||
Noise | <65dB | |||||||
Machine seize H*W*D(mm) | 1640*1010*170 | 1860*1250*170 | 2130*1400*170 | 2400*1560*170 | ||||
Net weight(Kg) | 110 | 180 | 230 | 330 | ||||
Package size H*W*D(mm) | 1280*1790*320 | 1520*2010*320 | 1670*2280*320 | 1830*2500*320 | ||||
Gross weight(Kg) | 145 | 220 | 280 | 400 | ||||
Input voltage | AC110-240V,50/60Hz | |||||||
Current dissipation(W) | ≤700 | ≤860 | ≤1300 | ≤2000 | ||||

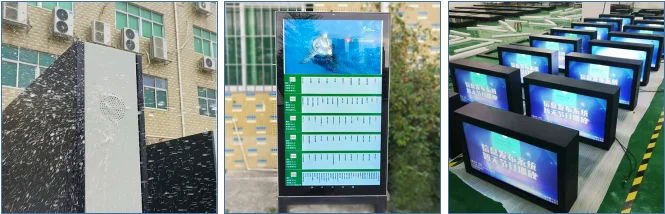

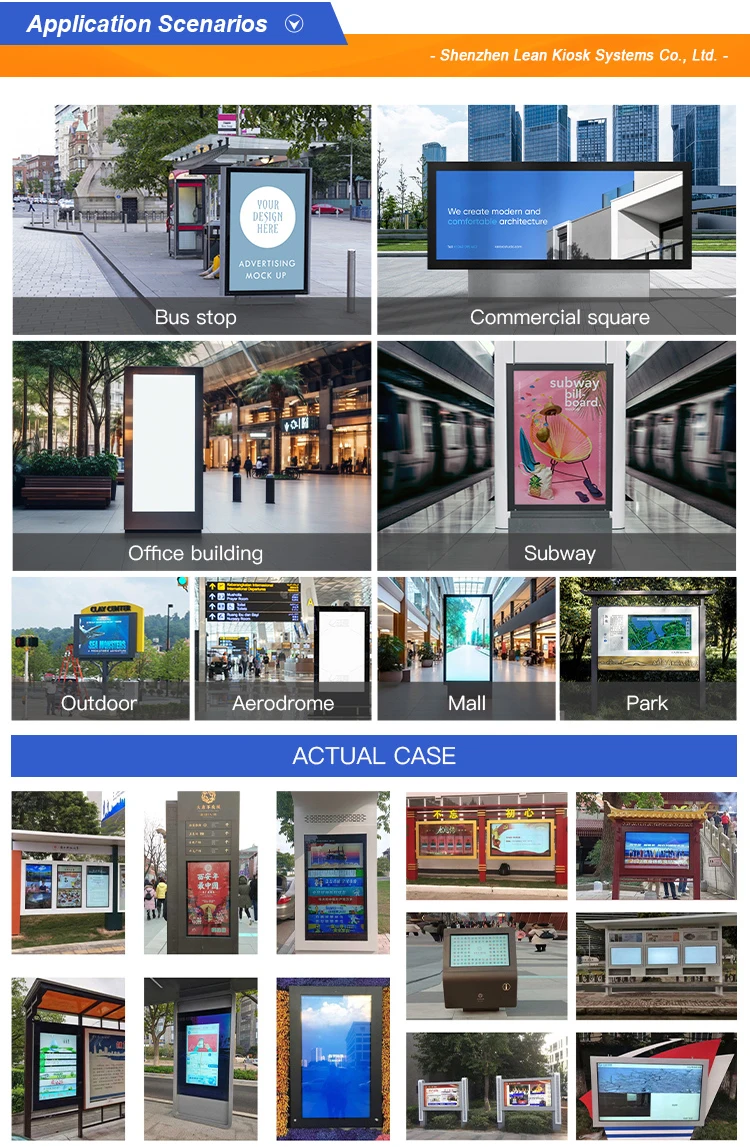

Application Scenarios
Company Profile

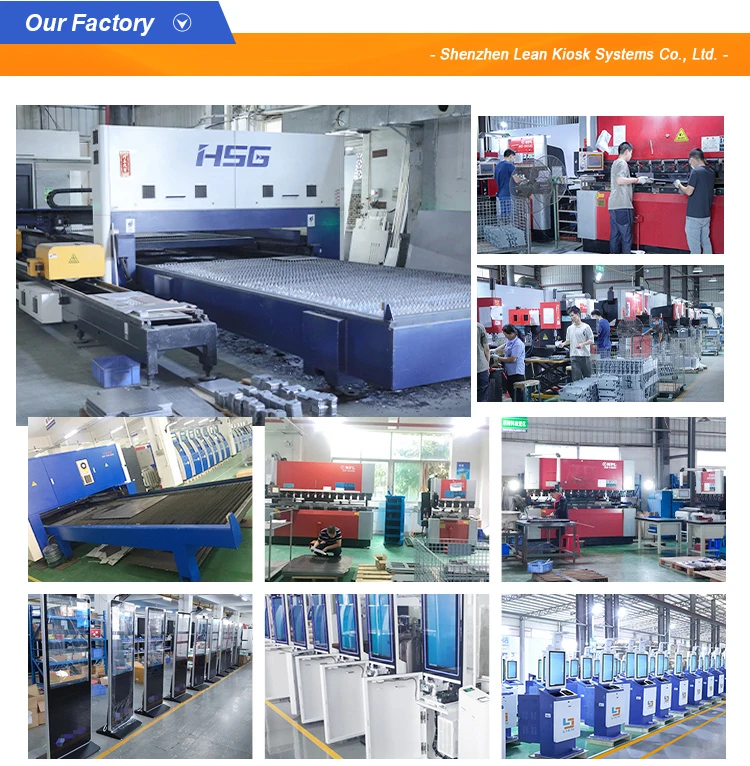

Our Factory
Our Certificate
Packing And Delivery
FAQ
Q1: Can you provide OEM service for the all in one interactive flat panel? A: Yes, well supported. We can customize it according to your requests. Q2: Do you have stock? A: We keep 3000-5000 units in Stock every single Month.
Q3: Is your company a real manufacturer?
A: Our company is the professional manufacturer in Panyu district, Guangzhou city, you are the mostly welcomed to visit our factory anytime.
Q4: How is the quality of the product? A: Our products have been strictly tested high quality by QC before shipping to
customers.And we do own brand selling in domestic China market on line, our brand is “RUIGUAN”. So quality is the first thing for us!
Q5: Does the product only use for school? A: Our products are widely used in Hospital, School, office etc.
Q6: How can I trust your product quality? A: We have more than 14 years export experience. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by CE
ROHS etc.
Q7: What's your after-sale service? A: lf any problems, you will get our reply within 24 hours. Solution will be offered
instantly.
Q3: Is your company a real manufacturer?
A: Our company is the professional manufacturer in Panyu district, Guangzhou city, you are the mostly welcomed to visit our factory anytime.
Q4: How is the quality of the product? A: Our products have been strictly tested high quality by QC before shipping to
customers.And we do own brand selling in domestic China market on line, our brand is “RUIGUAN”. So quality is the first thing for us!
Q5: Does the product only use for school? A: Our products are widely used in Hospital, School, office etc.
Q6: How can I trust your product quality? A: We have more than 14 years export experience. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by CE
ROHS etc.
Q7: What's your after-sale service? A: lf any problems, you will get our reply within 24 hours. Solution will be offered
instantly.
