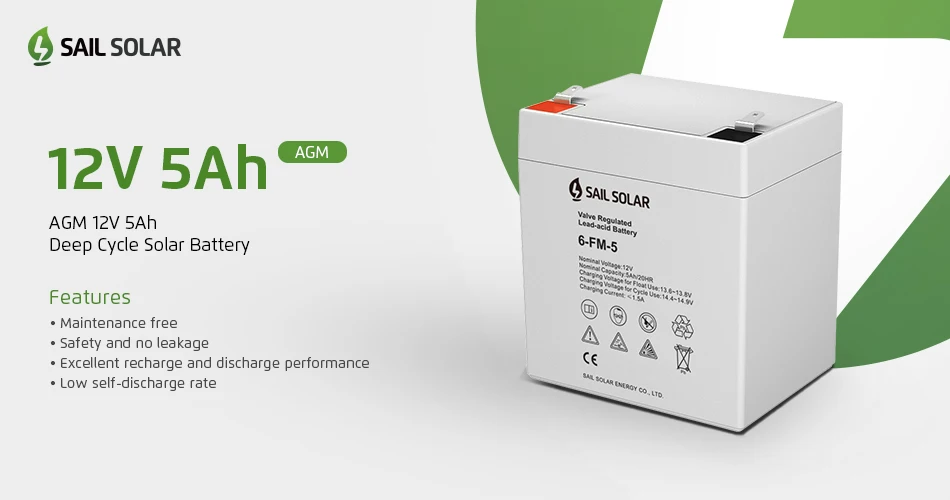

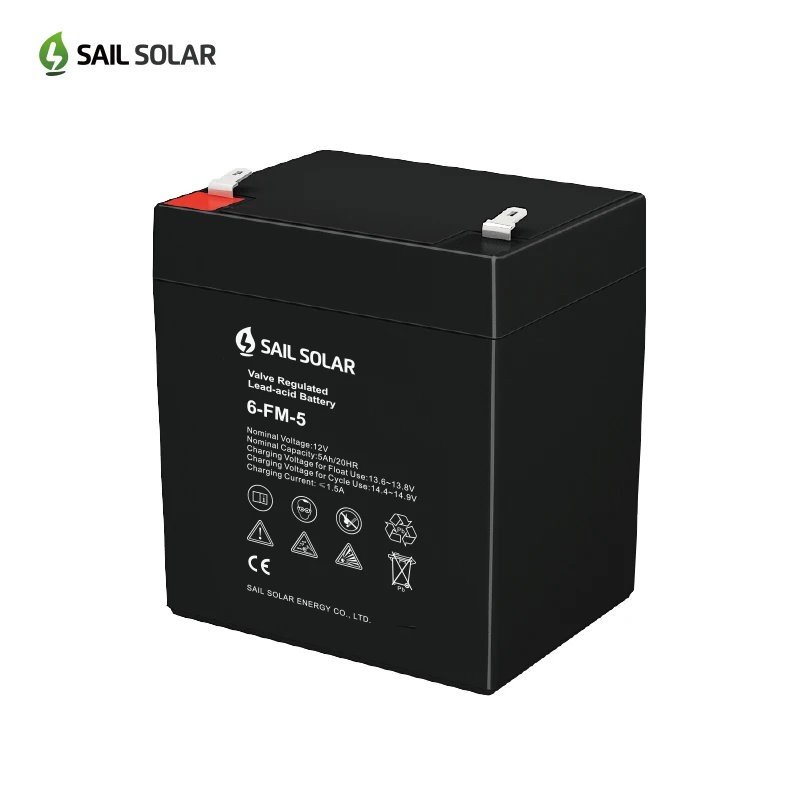

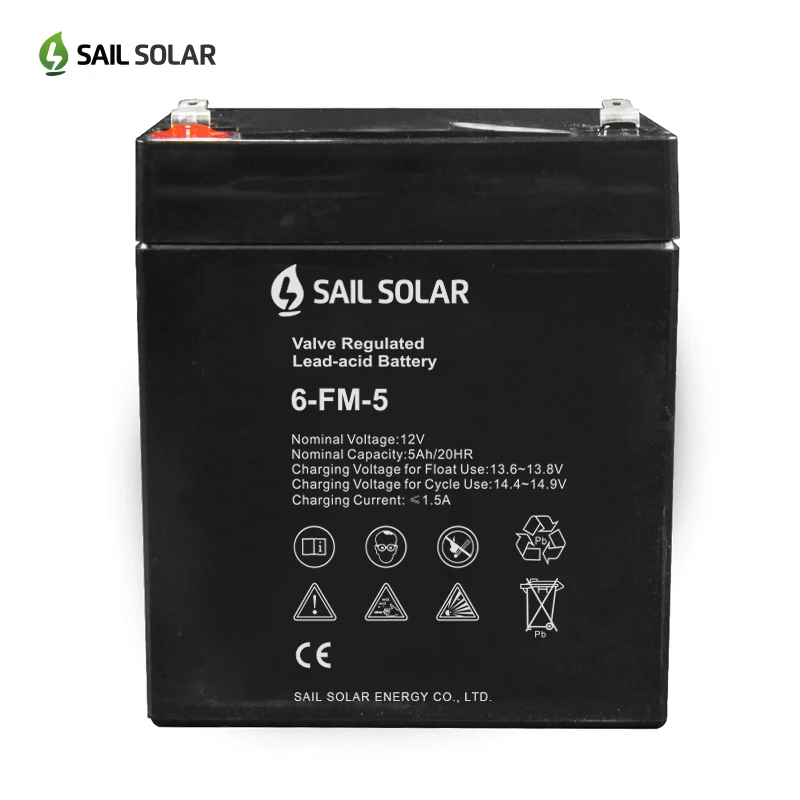

Hot Selling 12V 5Ah 7AH 9Ah 10Ah Lead Acid Deep Cycle AGM Battery For Solar System
Hot Selling 12V 5Ah 7AH 9Ah 10Ah Lead Acid Deep Cycle AGM Battery For Solar System
Hot Selling 12V 5Ah 7AH 9Ah 10Ah Lead Acid Deep Cycle AGM Battery For Solar System
Hot Selling 12V 5Ah 7AH 9Ah 10Ah Lead Acid Deep Cycle AGM Battery For Solar System
Hot Selling 12V 5Ah 7AH 9Ah 10Ah Lead Acid Deep Cycle AGM Battery For Solar System
Hot Selling 12V 5Ah 7AH 9Ah 10Ah Lead Acid Deep Cycle AGM Battery For Solar System
Hot Selling 12V 5Ah 7AH 9Ah 10Ah Lead Acid Deep Cycle AGM Battery For Solar System

Hot Selling 12V 5Ah 7AH 9Ah 10Ah Lead Acid Deep Cycle AGM Battery For Solar System

Share on (1601243791519):


Price:

Quantity:


Product Overview

Description



Products Description





Key Features:
*Gelled electrolyte made by mixing sulfuric acid with silica fume.*High rate discharge performance due to tight assembly
technology
*Strong heat dissipation and wide operating temperature range
*Avoid acid mist being separated out , environment friendliness
*Efficient venting system release excessive gas automatically
Applications:
*EPS and UPS battery backup
*Solar and wind energy storage system
*Telecommunication Equipment
*Power plant and transmission system
*Signal system , emergency lighting system , security system


Rated Voltage
12V
Numbers of cells
6 Cells
Capacity
5Ah@20hr-rate to 1.80V per cell @25°C
Weight
1.6kg
Internal Resistance
Approx. 34mΩ
Terminal
F1 / F2
Max. Discharge Current
75A(5s)
Short Circuit Current
250A
Max. Charging Current
1.5A
Reference Capacity
C20 5.0AH/C5 4.2AH/C1 2.9AH
Design Life
10~15 years
Float Charging Voltage
13.6 V~13.8 V @ 25°C, Temperature Compensation: -20mV/°C/Cell
Cycle Use Voltage
14.4 V~14.9 V @ 25°C, Temperature Compensation: -30mV/°C/Cell
Operating Temperature Range
Discharge: -15°C~50°C, Charge: 0°C~40°C, Storage: -15°C~40°C
Normal Operating Temperature Range
25°C±5°C
Self Discharge
Less than 3% at 25°C per month
Container Material
A.B.S. UL94-HB, UL94-V0 Optional.

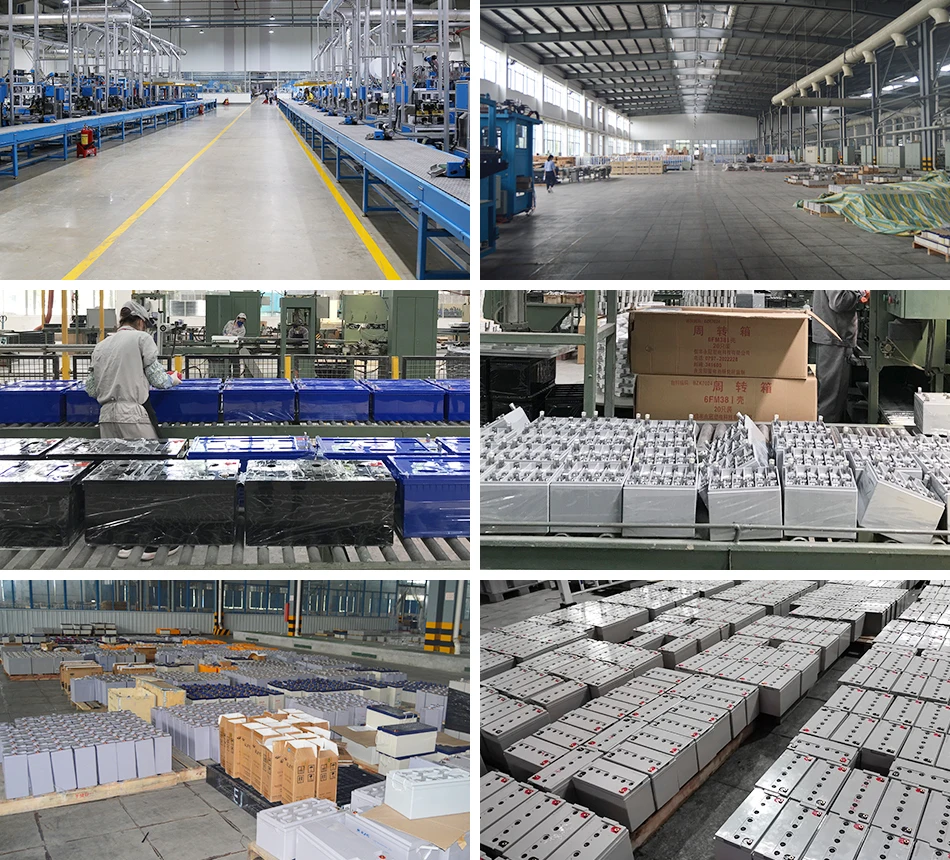

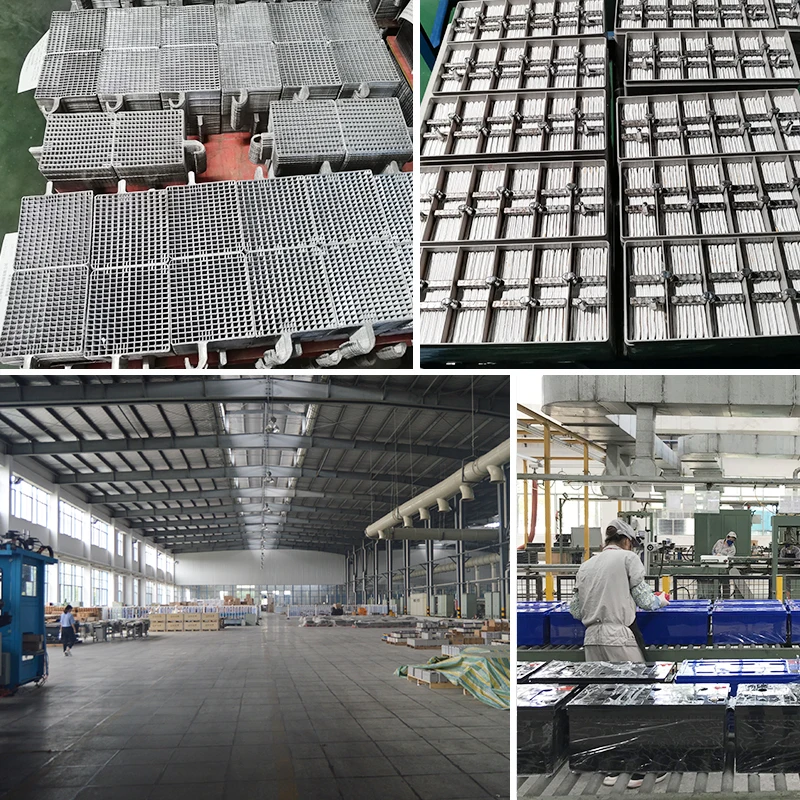

Our Factory




Certifications

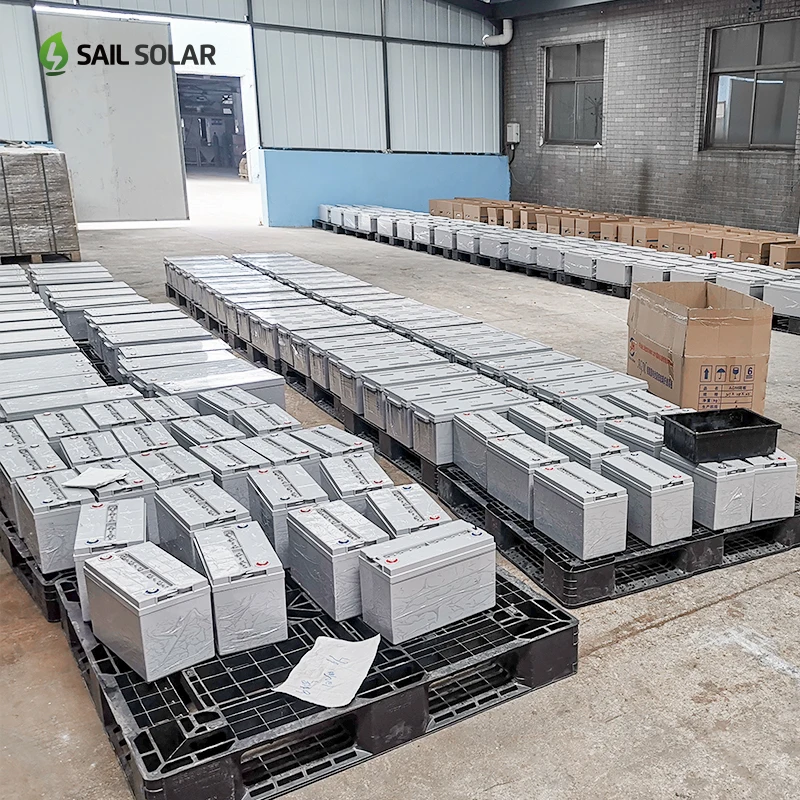

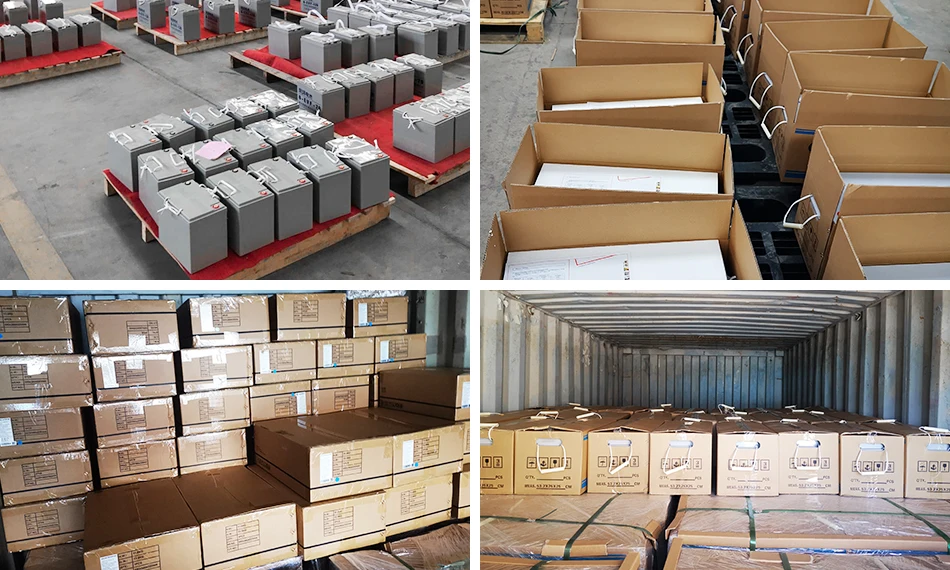

Package and Delivery


Note：
The Above packing information contained in this web is subject to change without notice. We will offer wooden box packing with extra material and labor costs if your order less than a pallet, we accept any customized packing as per your requests.

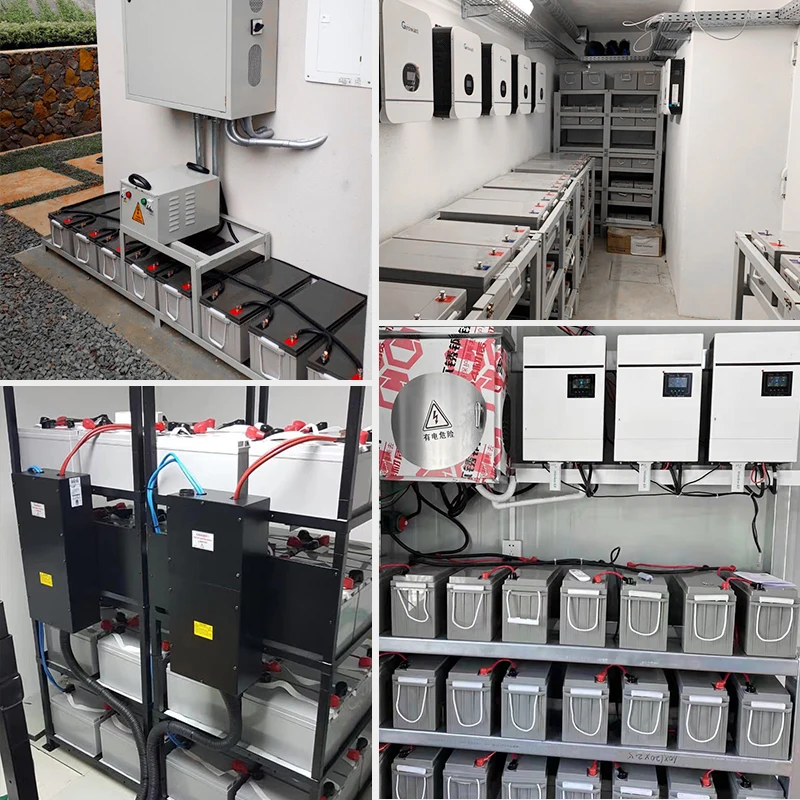

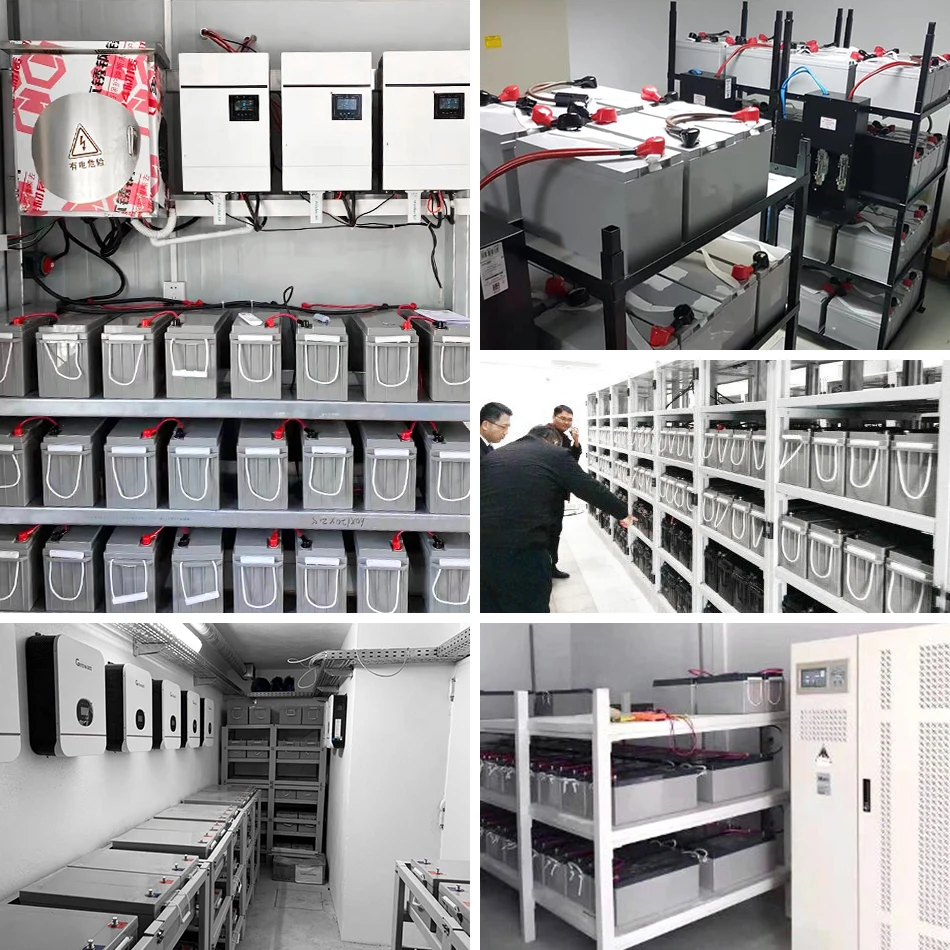

Projects
