Wind Solar Hybrid Energy Storage Battery 384VDC High Voltage 280AH Lithium Battery 108kwh Wind Solar storage power supply
- Category: >>>
- Supplier: Zhejiang Bangzhao Electric Co. Ltd.
Share on (1601243795667):
Product Overview
Description
Wind Solar Hybrid Energy Storage Battery 384VDC High Voltage 280AH Lithium Battery 108kwh Wind-Solar storage power supply
About BANGZHAO
Bangzhao Electric Co.,Ltd is a company who was established in 2008 and specialized in developing and supplying of power products. The high performance of its products stems from the cutting-edge technology developed by the domestic top 100 engineers. During the past 10 years, we have been providing the best system solutions of pure sine wave inverter,solar pump inverter,explosion-proof inverter,DC combiner box,controller,AC to DC battery cabinet ,power phase converter,lithium battery storage system etc. to customers, it is widely applied in the industry of solar energy,wind power,water power,car,ship,train,hospital, aviation, automation,etc.
Product Description

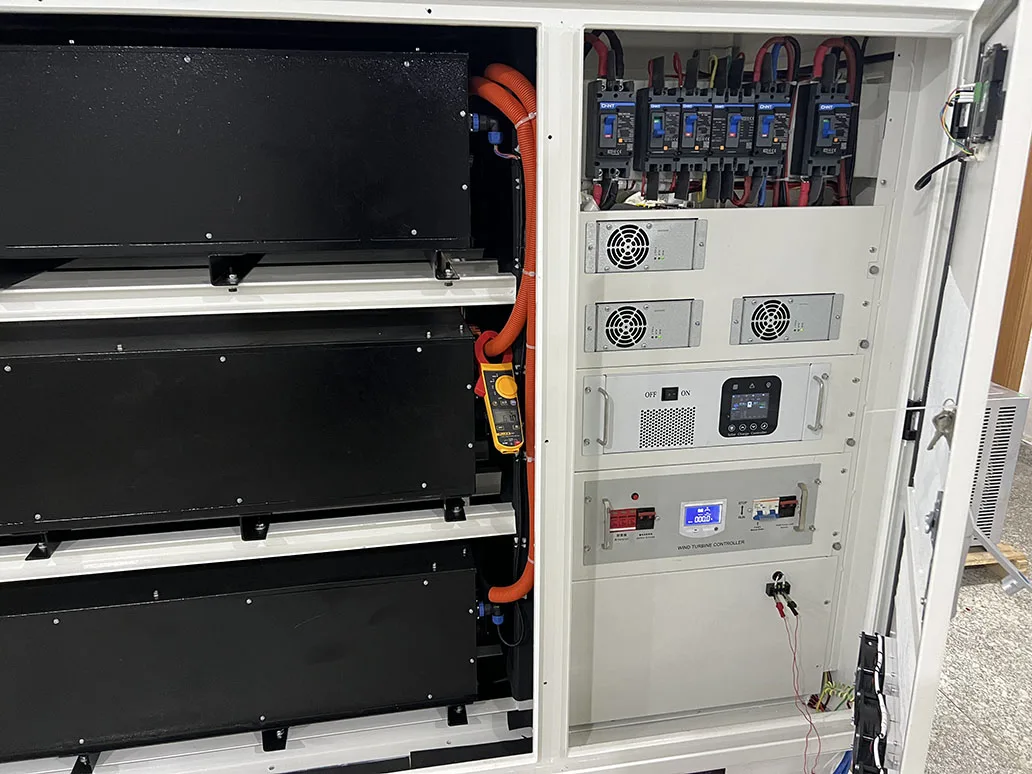

Bangzhao Electric ESS lithium battery system is composed of lithium battery modules, BMS system, PV charge controller or AC/DC Charger, central control unit CCU, temperature detector, integrated structure and other parts; the solar panels in the system are battery storage and power for output; BMS module completes the detection and control of voltage, current, temperature, SOC, SOH and charging and discharging related parameters of power battery pack; photovoltaic controller and inverter realize bidirectional AC/DC function to meet the charging and discharging conversion demand of power battery pack; each detector is used to monitor the ambient temperature in real time to ensure the safety of the system.
Product advantages:
1. All-in-one design, high integration and space saving installation;

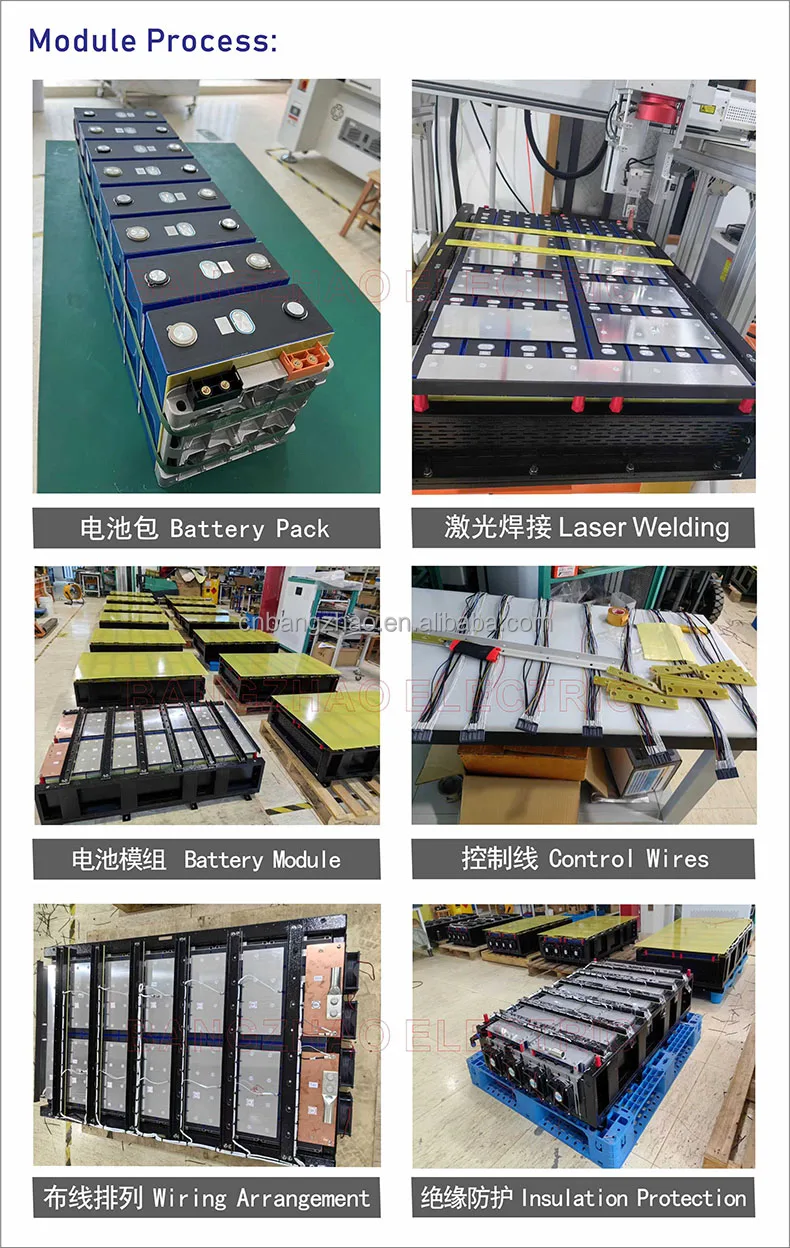

2. Using high-performance lithium iron phosphate cells, laser welding, good cell consistency, designed service life of more than 10 years;
3. Charging and discharging are controlled separately, which is convenient and reliable to control charging and discharging. The discharge port will not be disconnected when over-charging, and the charging port will not be disconnected when over-discharging, the system has good stability;
4. Master-slave mode, passive equalization, can manage the equalization resistance, can set the equalization start voltage difference, and monitor the equalization resistance temperature, more intelligent and safe, and reduce the impact of barrel effect on system energy storage;
5. BMS adopts NXP(USA) automotive-grade high-performance chips, with strong anti-interference, good reliability and wide temperature range;
6. CAN2.0 communication interface, has the advantages of strong real-time performance, long transmission distance, strong anti-electromagnetic interference ability;

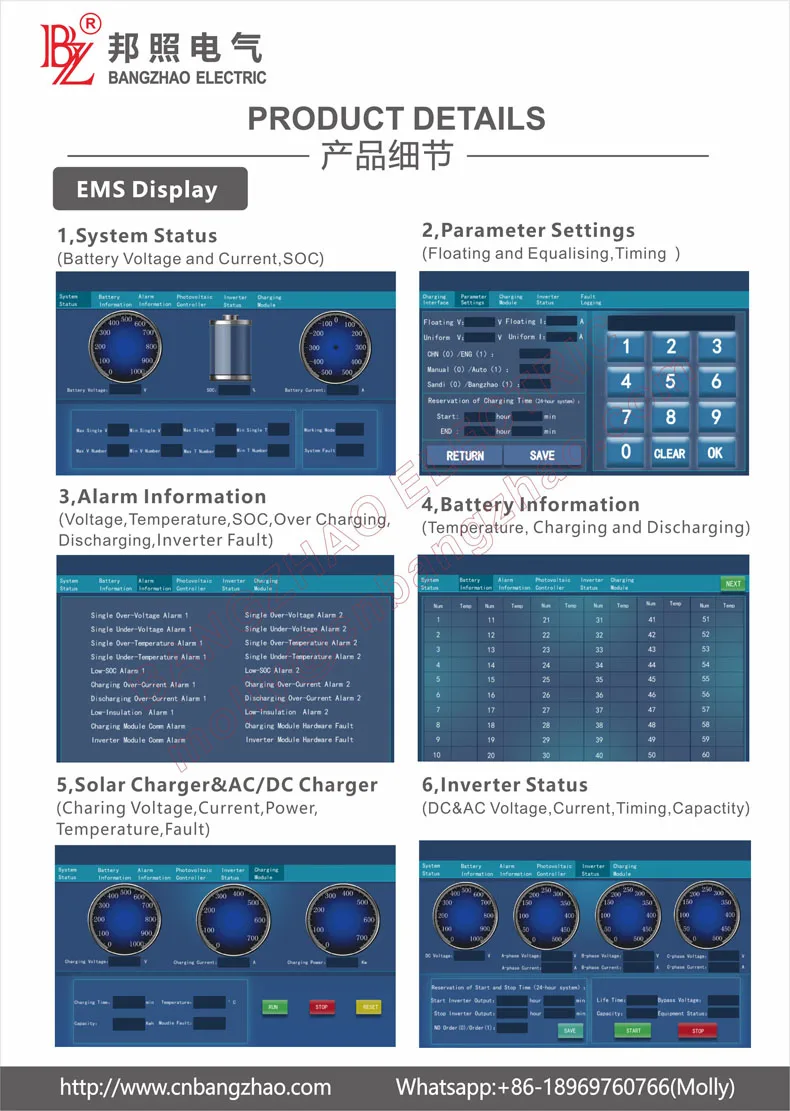

7. System parameters can be set through the host computer, such as fan start/stop temperature, charger maximum current setting, charge and discharge current correction, SOC correction, with insulation leakage detection function to prevent oil leakage and short circuit of the cell;
8. Integrate solar controller, AC charger, BMS communication control, more safe and reliable;
9. Cell temperature management, can be automatically controlled with the air conditioner heater according to the cell condition to make the cell works at the most suitable temperature, and can be linked with the fire protection system as needed

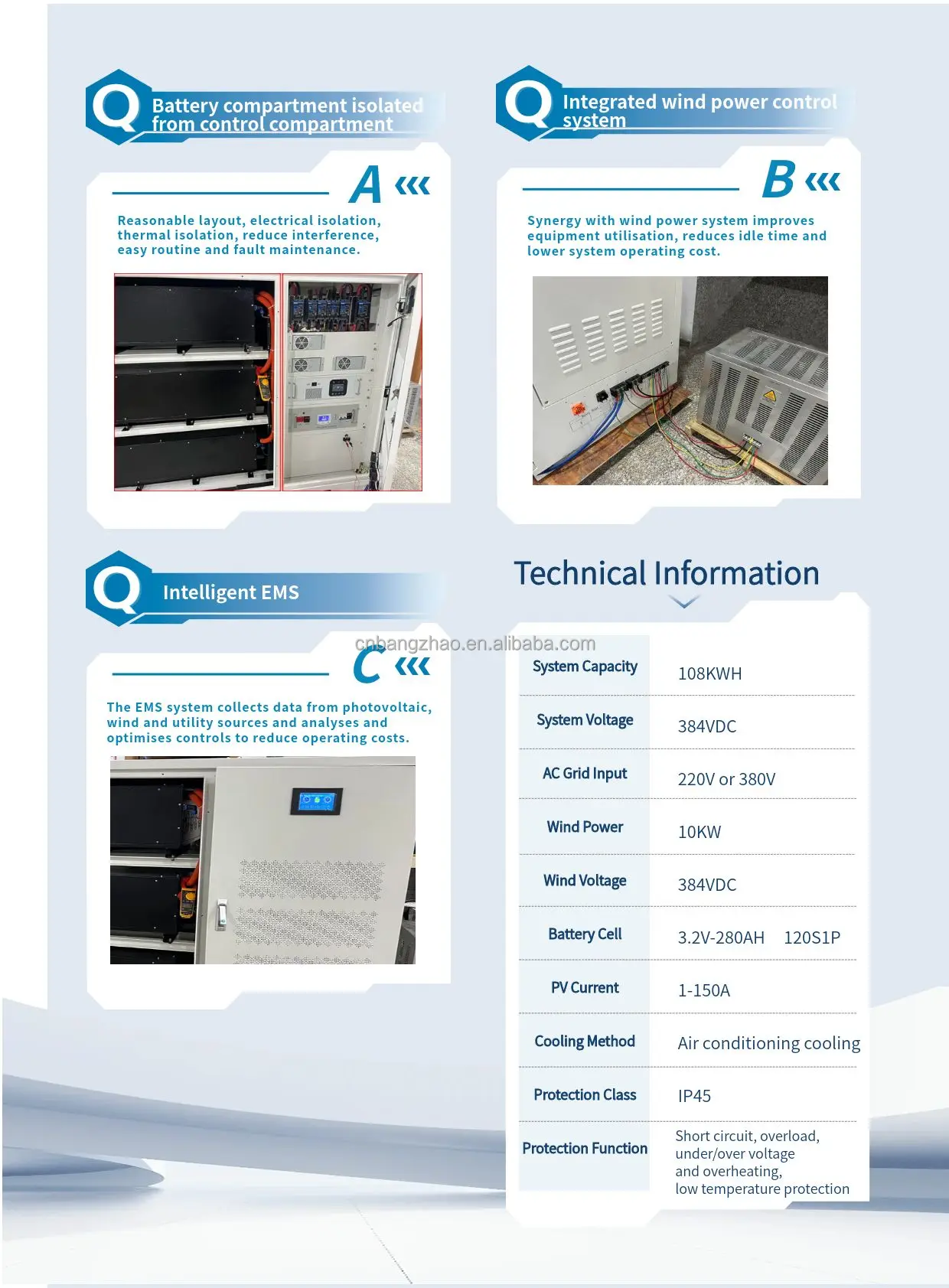

Technical Data for Wind Solar Hybrid Energy Storage Battery 384VDC High Voltage 280AH Lithium Battery 108kwh Wind-Solar storage power supply
Model | SPVLI-108KWH | |
System Part | ||
Battery Input | Rated Voltage (Vdc) | 384VDC |
Voltage range (Vdc) | 324-432V | |
Wind Charger Part | ||
Wind power | Rated Power(Kw) | 10KW |
Wind voltage | Rated voltage(V) | 384V |
AC-DC Charger Part | ||
AC Input | Voltage range(Vac) | 220V |
DC Output | Rated battery bank voltage(Vdc) | 384V |
Max charge current(A) | 1-60A | |
DC-DC Charger Part | ||
PV Input | Max PV Voltage range(Vdc) | 700Vdc |
DC Output | Rated battery bank voltage(Vdc) | 384Vdc |
Max charge current(A) | 100A | |
Control Method | PWM | |
Lithium Battery Part | ||
Cell/Number | 280AH/120PCS | |
Rated voltage | 384V | |
Max charge current | 140A | |
Max discharge current | 140A | |
Charge temperature range | 0ºC ~ 50ºC | |
Discharge temperature range | -20ºC ~ 50ºC | |
Cell charge end voltage | 3.6V | |
Cell discharge end voltage | 2.7V | |
Protection Function | Protection | Input reverse polarity, under voltage, over voltage, output over-current, short circuit, overheating etc. |
Cooling method | Fan-cooled | |
Degree of protection | IP20(indoor) | |

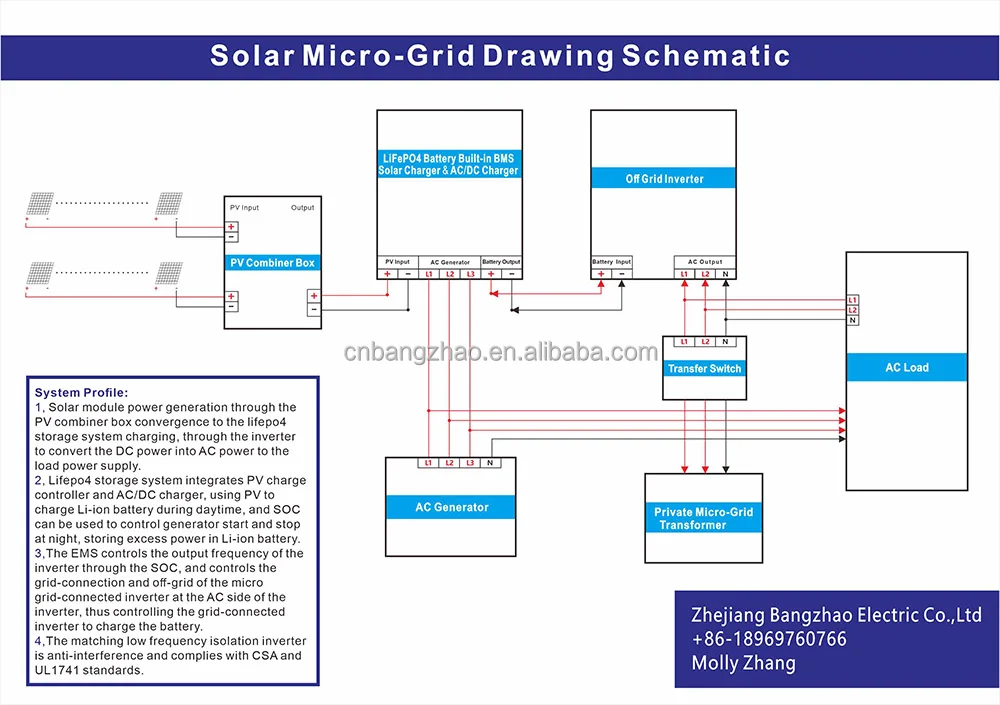

Other Hybrid Micro-Grid storage system:
|
Bangzhao Electric other products for your choose:

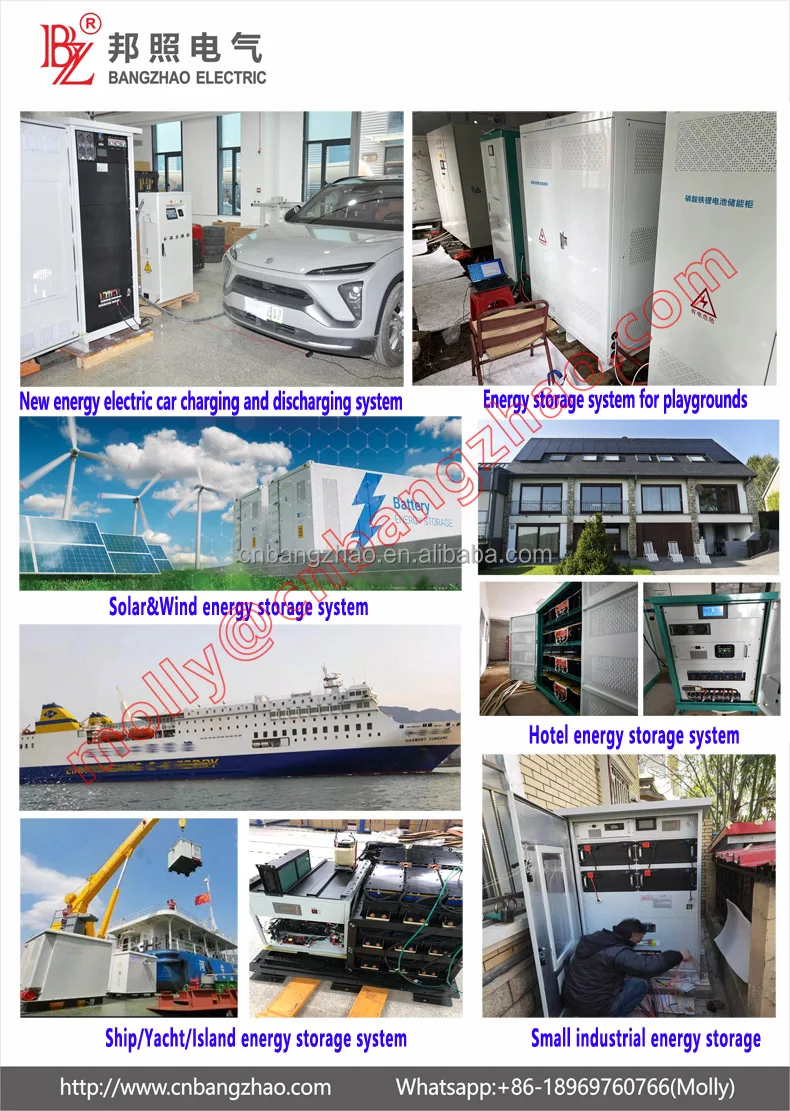

Installation Case
