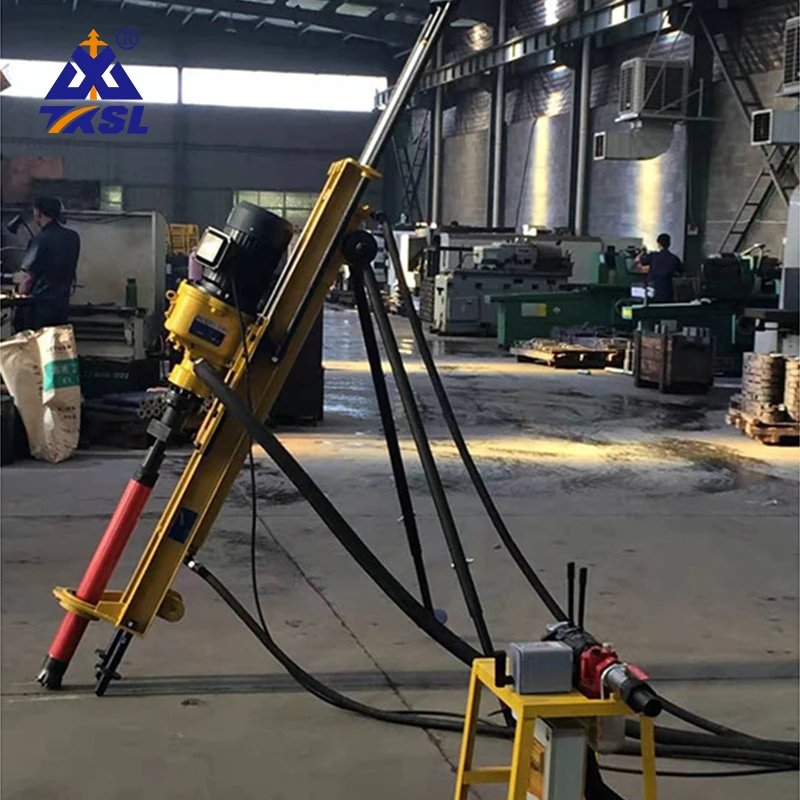

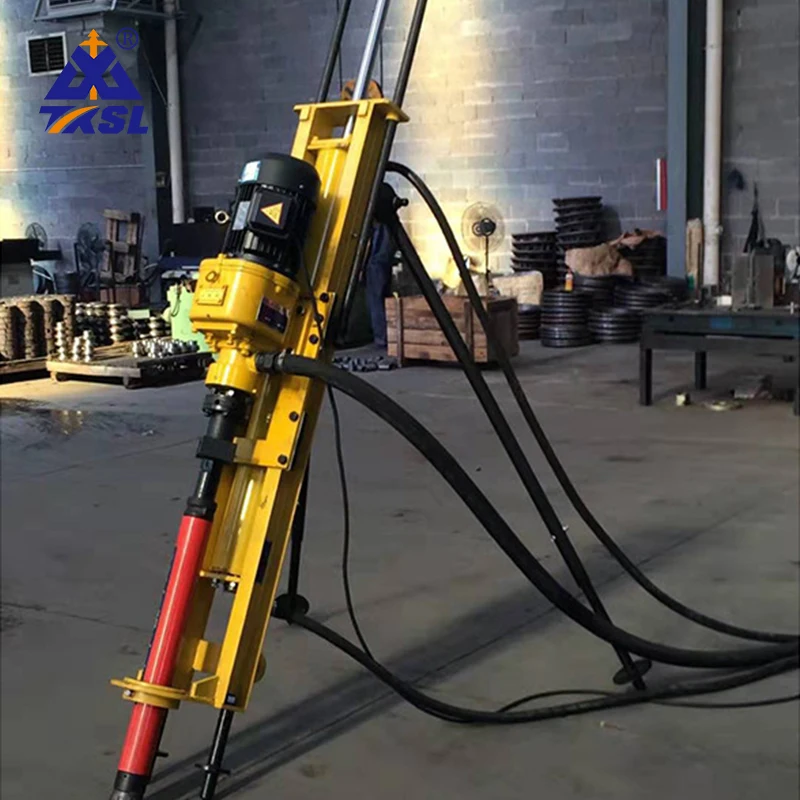

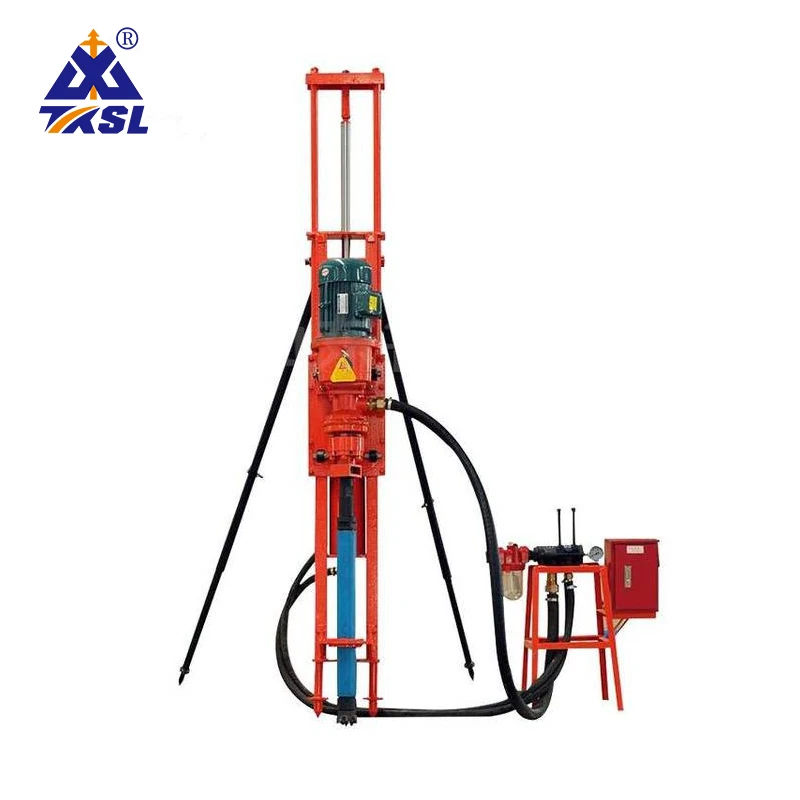

Factory price Light weight multifunctional mini borehole drilling rig&bore pile Anchor drilling machine

Product Description

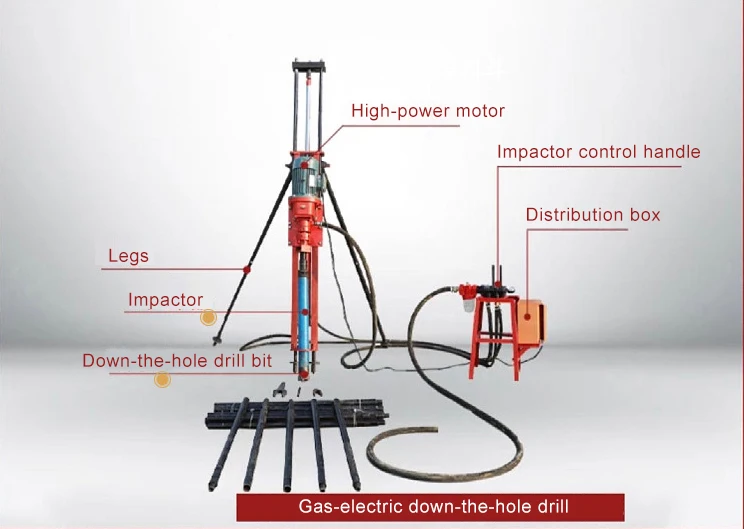

Diving drill is an impact rotary drill. Its internal structure is different from that of a general rock drill. Its gas distribution and piston reciprocating mechanism are separate, namely the impactor. The front end is directly connected to the drill bit, and the rear end is directly connected to the drill rod. When drilling, the impactor dives into the hole, and through the gas distribution device (valve), the piston (cone) in the impactor reciprocates to hit the drill tail, so that the drill bit generates a gyratory force on the rock at the bottom of the hole.



Applications

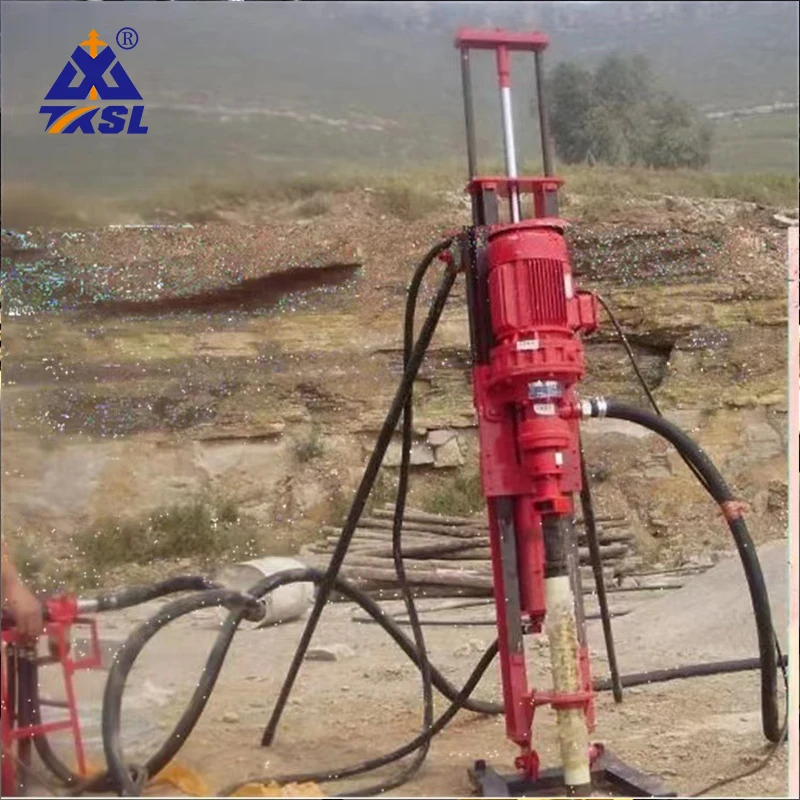

Down-the-hole drill is a new type of high-efficiency rock drilling equipment, which is widely used in medium and small mines and large-diameter blasthole rock drilling operations in road construction, national defense, water conservancy, and stone engineering. It is also an indispensable rock drilling equipment for the early stage of open-pit mining, especially for rugged terrain where other vehicle-mounted drills cannot operate normally. The machine has a simple structure, convenient operation, safety and reliability, and especially good disassembly of the whole machine, which is extremely convenient to carry.











Advantages



› Small size, light weight, suitable for large and medium-sized drilling rigs can not be used in places, convenient and flexible. Down-the-hole drilling rigs use electric energy as power, low noise, strong power. The drilling speed is 3-8 times that of ordinary rock drills, rock hardness DA up to 9, the drilling depth per hour is 8-16 meters.

› The propulsion, rotation and impact are all powered by compressed air, with a simple structure, single power and easy relocation. There are three support structures to choose from: single top, double top and support type, which can adapt to any location and terrain. The control mechanism is centralized, and the operation is convenient and fast. The unique double muffler has good muffler effect and reduces environmental pollution.







Working Principle



The down-the-hole drill is an impact rotary drill. Its internal structure is different from that of a general rock drill. Its gas distribution and piston reciprocating mechanism are independent, namely the impactor. The front end is directly connected to the drill bit, and the rear end is connected to the drill rod. When drilling, the impactor dives into the hole, and through the gas distribution device (valve), the piston (hammer) in the impactor reciprocates to hit the drill tail, so that the drill bit generates a gyratory force on the rock at the bottom of the hole.



Structures







Parameters



Model	Fully pneumatic down-the-hole drilling rig	Gas-electric down-the-hole drill
Drilling diameter	50-80mm	50-80mm
Drill rod	42	42
Drilling depth	10-15m	10-15m
Motor power	3Kw	3Kw
Drilling tool rotation speed	90-100r/min	90-100r/min
Main unit length	1524mm	1524mm
Thrust cylinder diameter	90mm	90mm
Main unit weight	110kg	148kg
