Privacy Window Tint Glass Switchable Electric PDLC Smart Film for Glass
US $78.00-$149.00
Switchable Smart Film Decorative Electrochromic Film for Smart Window Glass EPC/SPD Smart Film for sale
- Category: >>>
- Supplier: Sichuan Dagui Special Glass Technology Co. ltd.
Share on (1601244072276):
Product Overview
Description
PDLC, Polymer Dispersed Liquid Crysta, is a smart film that can adjust transparency and light. The main way of expression is to control transparency and opaque by current .The PDLC film integrates multiple functions, such as transparency adjustment, UV and infrared blocking, advertising and security. It consumes only 4~5W per square meter, which is about the same as a light bulb.
GET THE FREE SAMPLES

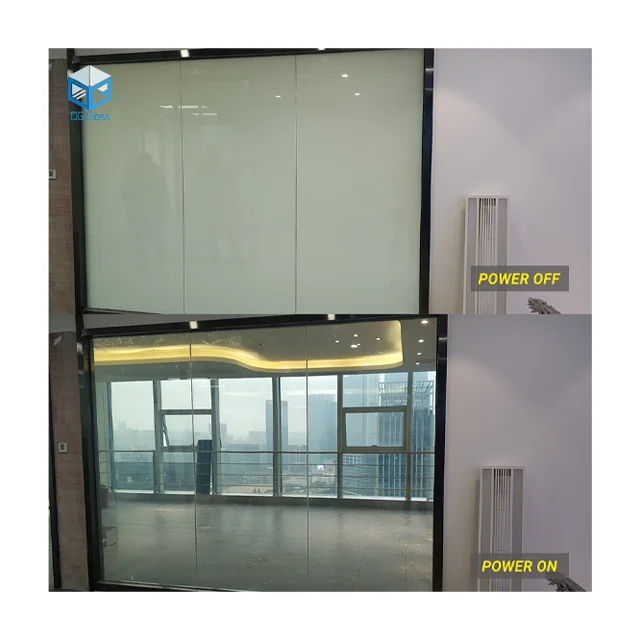

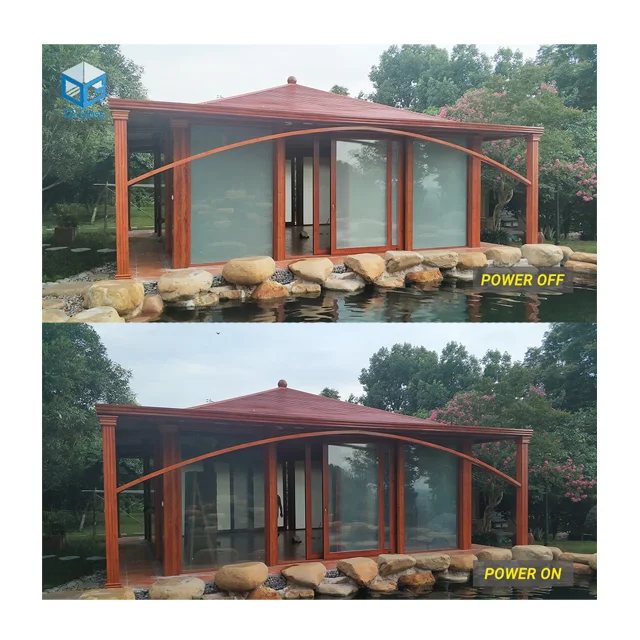

Switch On | Transparency | Switch Off | Opaque | ||
Thickness | 0.38mm/0.65mm | L/W | Customized | ||
Voltage | 48V/60V | Power Consumption | 5w/M2 | ||
MOQ | 1 piece | Warranty | 1 years | ||
Transmittance | >83% | UV Blocking | >99% | ||
Infrared Blocking | >60% | Parallel light transmittance | >75% | ||
Operation Temperature | -35℃~75℃ | ||||
Switching Speed | ON-OFF | <200ms | |||
OFF-ON | <10ms | ||||
Sample size | 200mm*300mm or others | Visual Angle | 140℃ | ||
Life Time | >50000hours | Color | White,Gery,Yellow,Blue,Red,Green | ||
Controlling Ways | Switch, voice, remote control, remote network control are available, any combination can be worked out according to customer request | ||||
Features of dimming film:
1. Controllable transparency, privacy protection, and building safety.
2. Isolate ultraviolet and infrared rays.
3. No need for curtains or blinds.
4. Interactive projection, replacing whiteboards and projection screens.
1. Controllable transparency, privacy protection, and building safety.
2. Isolate ultraviolet and infrared rays.
3. No need for curtains or blinds.
4. Interactive projection, replacing whiteboards and projection screens.
Self-adhesive dimming film has natural advantages compared with dimming glass:
Light weight, convenient packaging and transportation;
Production costs are reduced and the overall sales price is low;
The production cycle is short and meets the requirements of rapid construction period.
On the basis of existing glass, transparency control can be achieved by pasting a dimming film. The surface of the dimming film has been specially treated, so there is no need to worry about being scratched by external hard objects. It can be used indoors for a long time: offices, homes, subway stations, shops and other places.
Light weight, convenient packaging and transportation;
Production costs are reduced and the overall sales price is low;
The production cycle is short and meets the requirements of rapid construction period.
On the basis of existing glass, transparency control can be achieved by pasting a dimming film. The surface of the dimming film has been specially treated, so there is no need to worry about being scratched by external hard objects. It can be used indoors for a long time: offices, homes, subway stations, shops and other places.

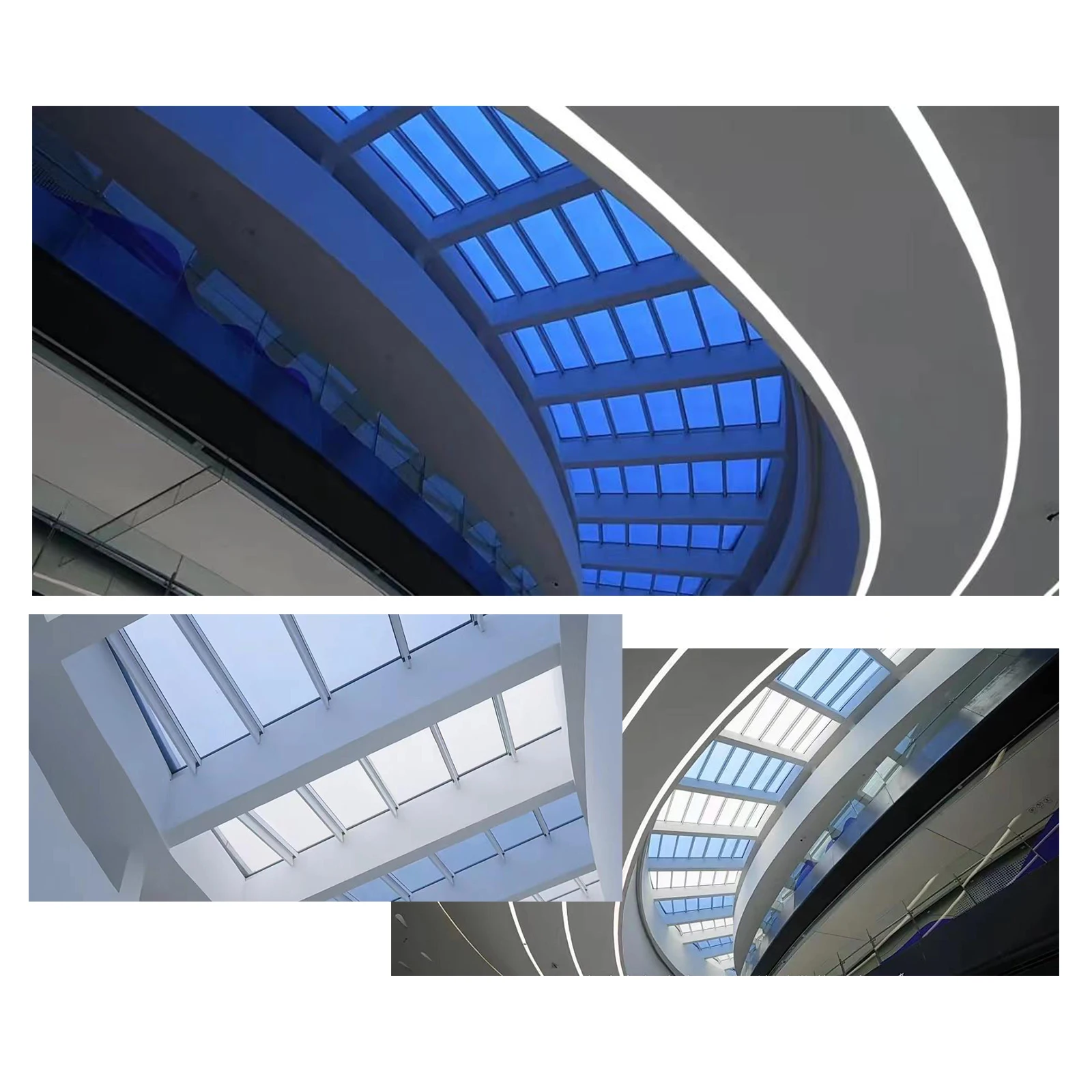

Diverse project examples for your reference
Sichuan Dagui Special Glass Technology Co.,Ltd
was established in 2016. We focus on the design, research and development, manufacturing, and provision of special glass system solutions. We have a well-equipped glass processing production line, equipped with complete hollow and laminated production lines, and advanced production equipment such as three edge grinding machines, tempering furnaces, punching machines, cutting machines, roller presses, and curing furnaces. We can produce special characteristic glass such as bulletproof and explosion-proof glass, fire-rated glass, Smart Glass, curved glass, electrically heated glass, and art glass, with an annual output of over 500,000 square meters.\t
Our Advantages
1.Over 10 years of experience in product design, research and development, and customization.
2.Annual production of special glass
exceeding 500,000 square meters.
3.We can provide authoritative certification and testing reports for special glass such as bullet-proof glass, fire-proof glass,and explosion-proof
exceeding 500,000 square meters.
3.We can provide authoritative certification and testing reports for special glass such as bullet-proof glass, fire-proof glass,and explosion-proof
glass.
4.12 utility model invention patents. 5.Professional logistics, fast shipping, and guaranteed transportation time.
Q1. Are you a factory?
A: Yes. Visit our factory.
Q2. How can I get a quote for your products?
A: Please tell me the size, color, quantity, whether further processing is needed and other detailed requirements, etc.
Q3. Can you produce according to customization? Are the dimensions accurate?
A: Yes, we can produce bulletproof glass according to your requirements. Cutting tolerance ±0.3MM; Glass thickness: 3-19MM
Grinding tolerance: ±0.3MM; Grinding size: 55-1500MM.
Q4. Do you provide samples? Is it free or extra?
A: Yes, we can provide samples. All sample costs will be refunded after you have placed the appropriate order.
Q5. What are your payment terms?
A: T/T 30% as deposit, and 70% before delivery. We'll show you photos of the products and packages before you pay the balance.
Q6. How about your delivery time?
A: Generally, it will take 7 to 10 days after receiving your advance payment. The specific delivery time depends on the items and quantity of your order.
A: Yes. Visit our factory.
Q2. How can I get a quote for your products?
A: Please tell me the size, color, quantity, whether further processing is needed and other detailed requirements, etc.
Q3. Can you produce according to customization? Are the dimensions accurate?
A: Yes, we can produce bulletproof glass according to your requirements. Cutting tolerance ±0.3MM; Glass thickness: 3-19MM
Grinding tolerance: ±0.3MM; Grinding size: 55-1500MM.
Q4. Do you provide samples? Is it free or extra?
A: Yes, we can provide samples. All sample costs will be refunded after you have placed the appropriate order.
Q5. What are your payment terms?
A: T/T 30% as deposit, and 70% before delivery. We'll show you photos of the products and packages before you pay the balance.
Q6. How about your delivery time?
A: Generally, it will take 7 to 10 days after receiving your advance payment. The specific delivery time depends on the items and quantity of your order.
