Constant Pressure Valve
- Category: >>>
- Supplier: Linch Machinery Co. Ltd.Linch Ltd.
Share on (1601244225936):
Product Overview
Description

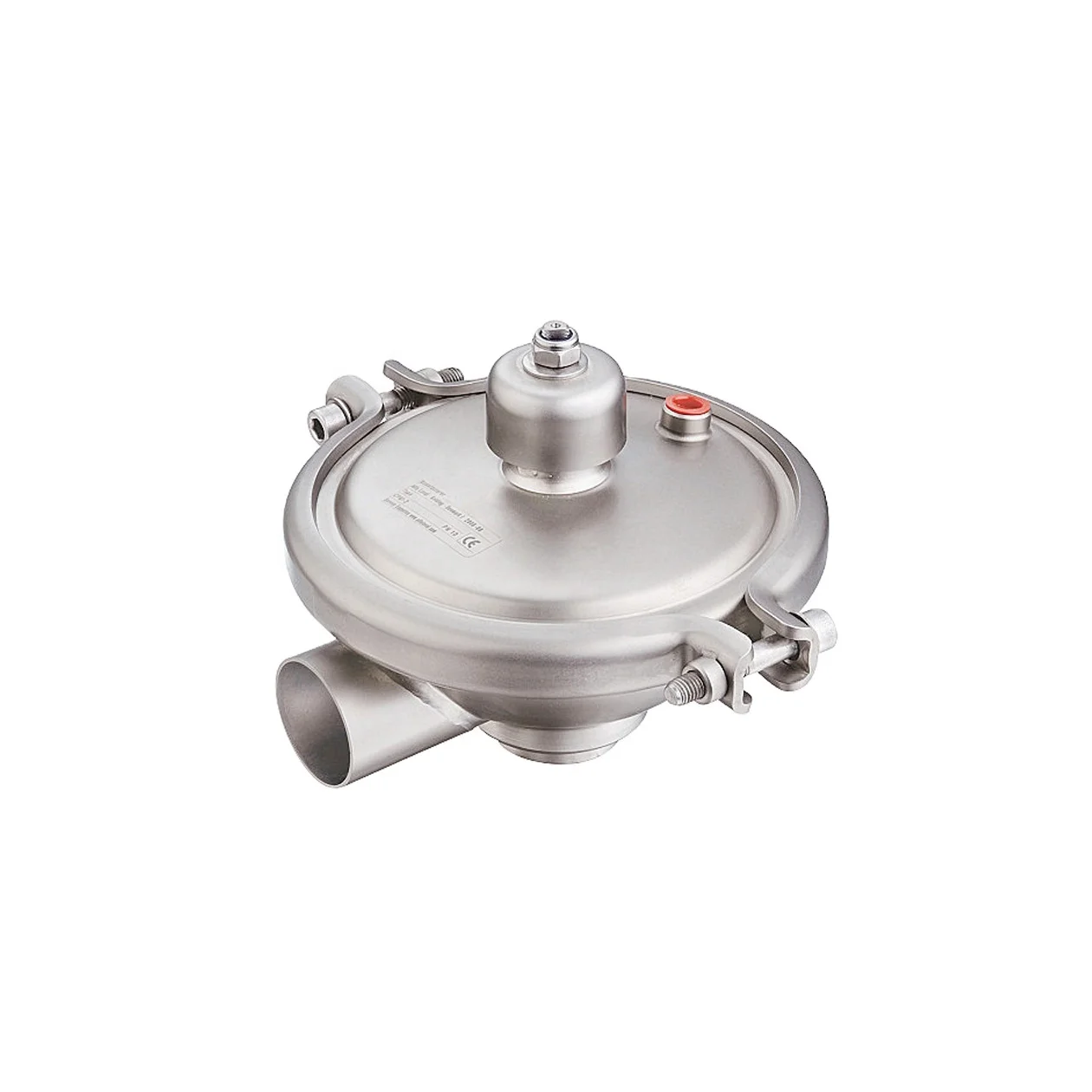

Sanitary Constant Pressure Valve
* The valve body, valve core, and all components of constant pressure valve are made from AISI316L or 304 materials.
* The position of the valve core is controlled by adjusting the pressure of the compressed air, thereby achieving the desired pressure and flow rate.
* The exterior surface of constant pressure valve body is sandblasted and polished.
* The diaphragm is made of high-quality rubber and can withstand temperatures up to 140 degrees Celsius.
Size | 1” ~ 2”, DN25 ~ DN50 |

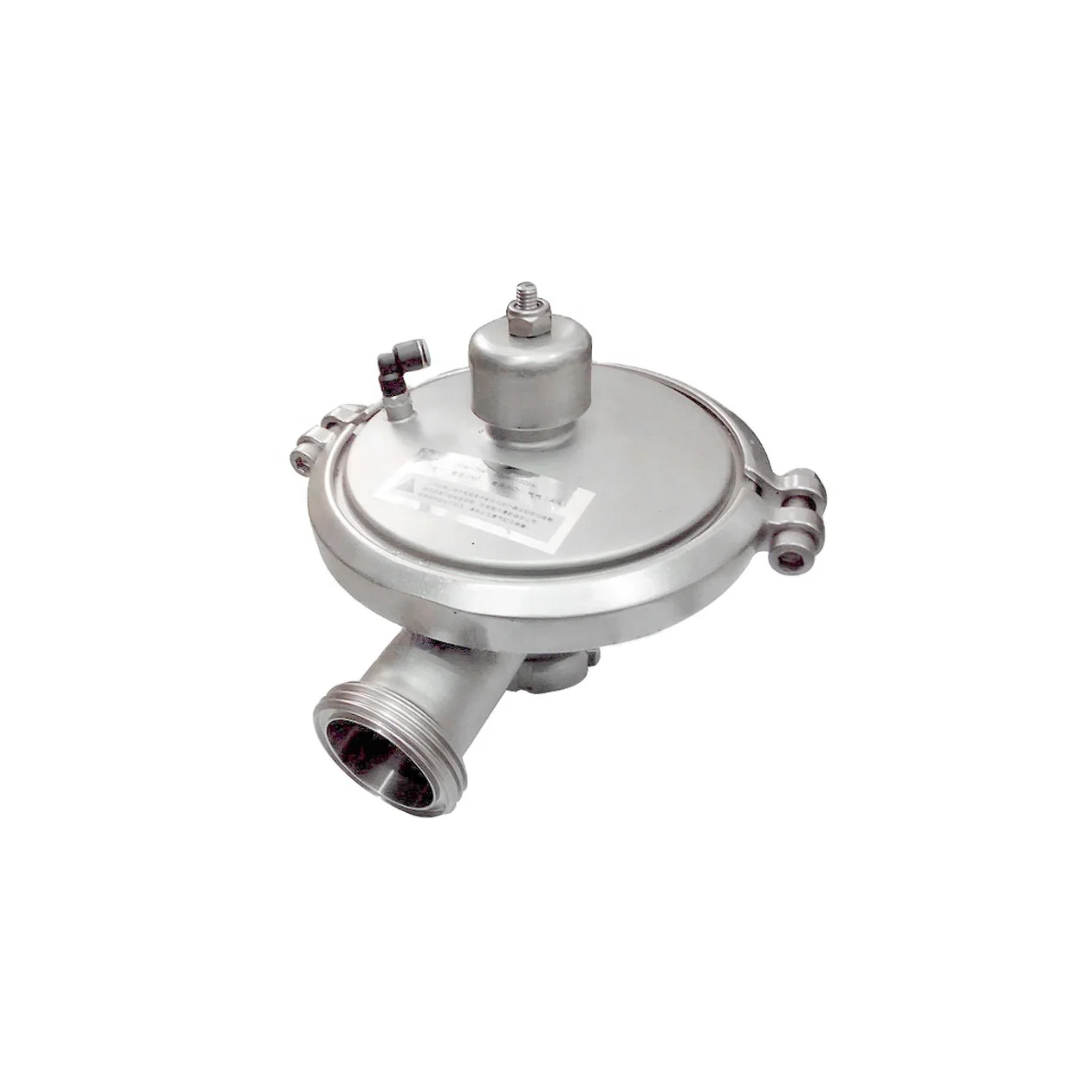

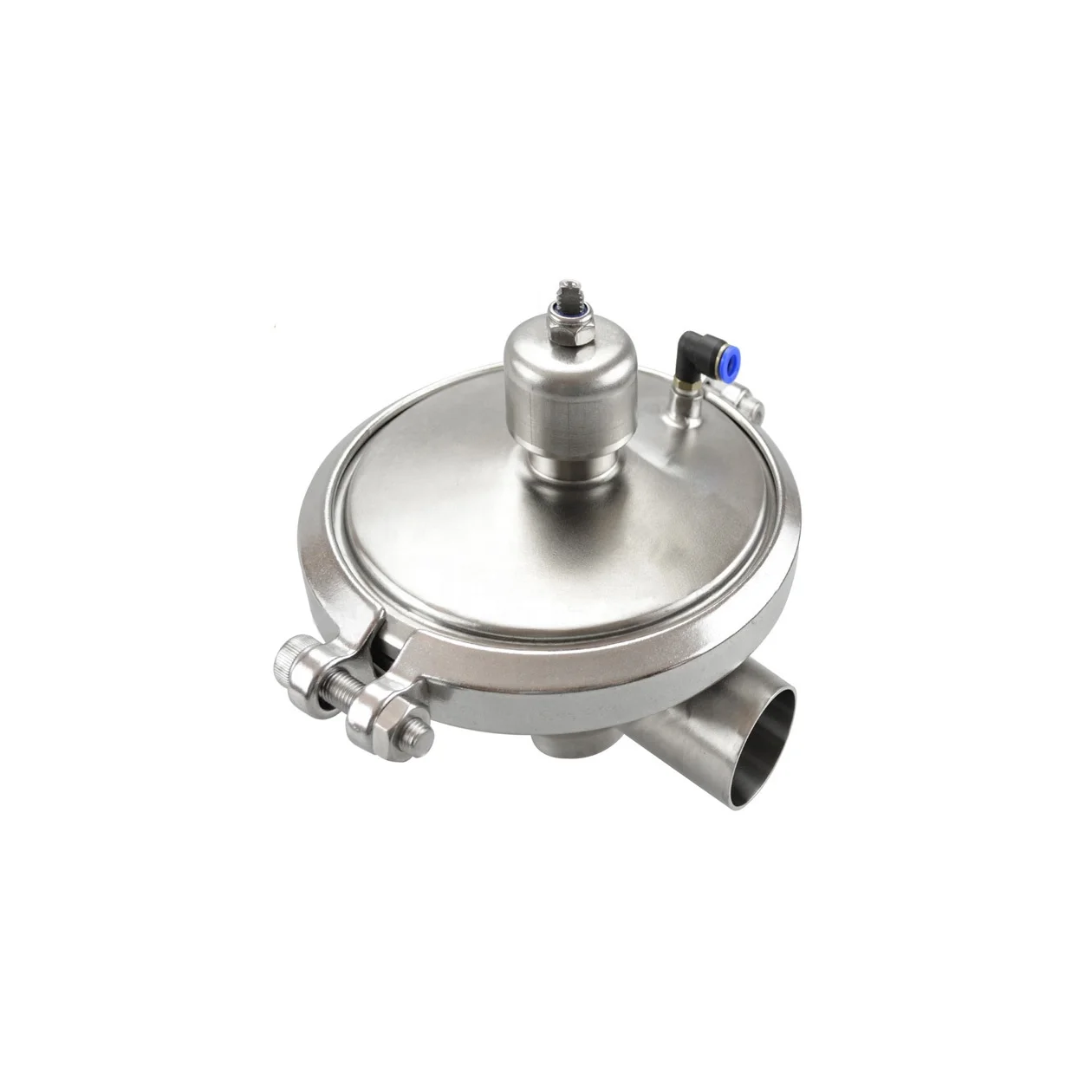

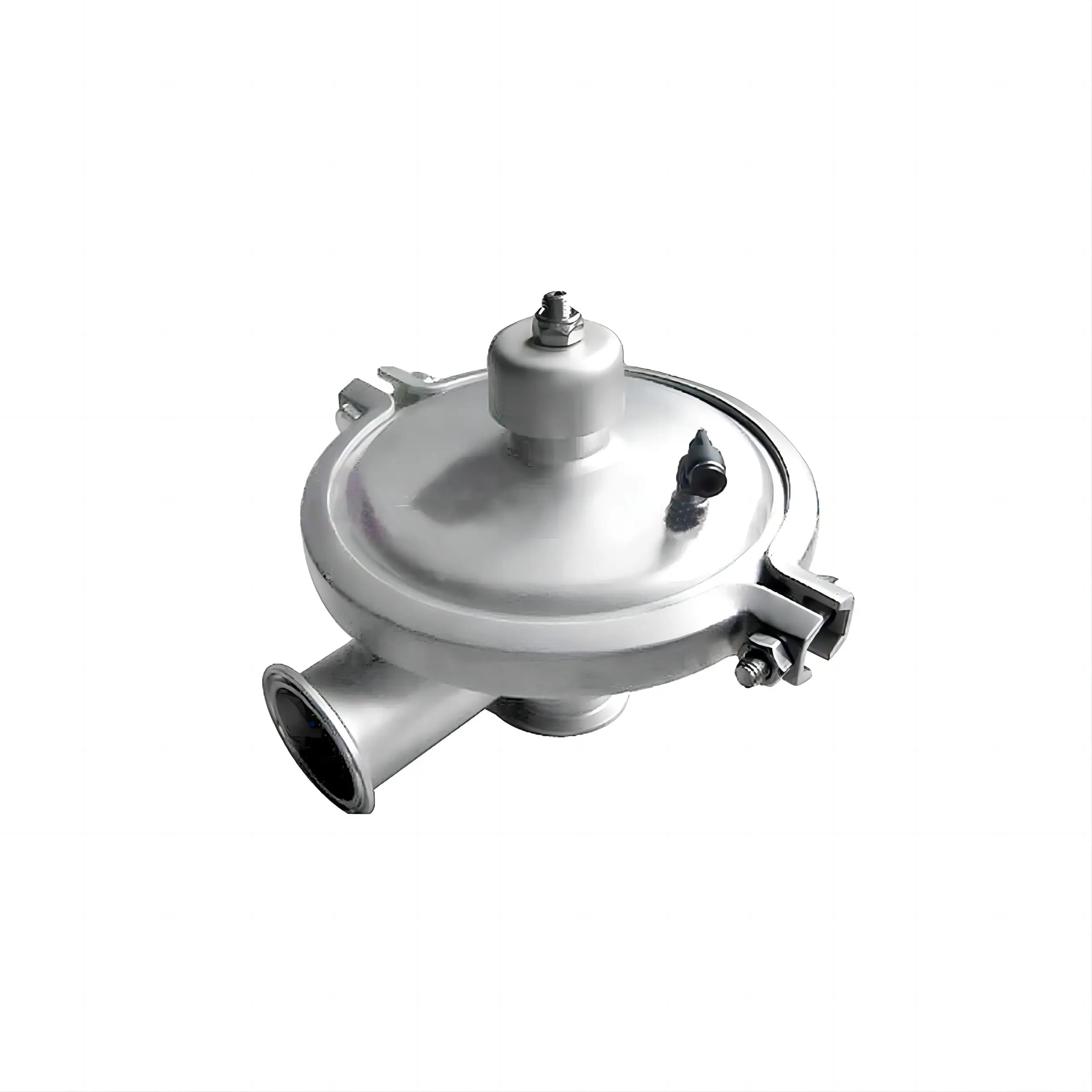

Connection End | Weld, Clamp, Male Thread |
Valve Closing Pressure | 10 bar |
Valve Opening Pressure | 5 bar |
Working Pressure | 0 ~ 8 bar |
Working Temperature | -10 ~ 135°C |
Air Supply Pressure | 0 ~ 6 bar |
Inside Surface Finishing | Ra≤0.8μm |
Outside Surace Finishing | Sand blast |
Kv in Completely Open condition | 23M3/h |
Kv in Low Flow Condition | 2M3/h |
Kv for CIP | 15M3/h |

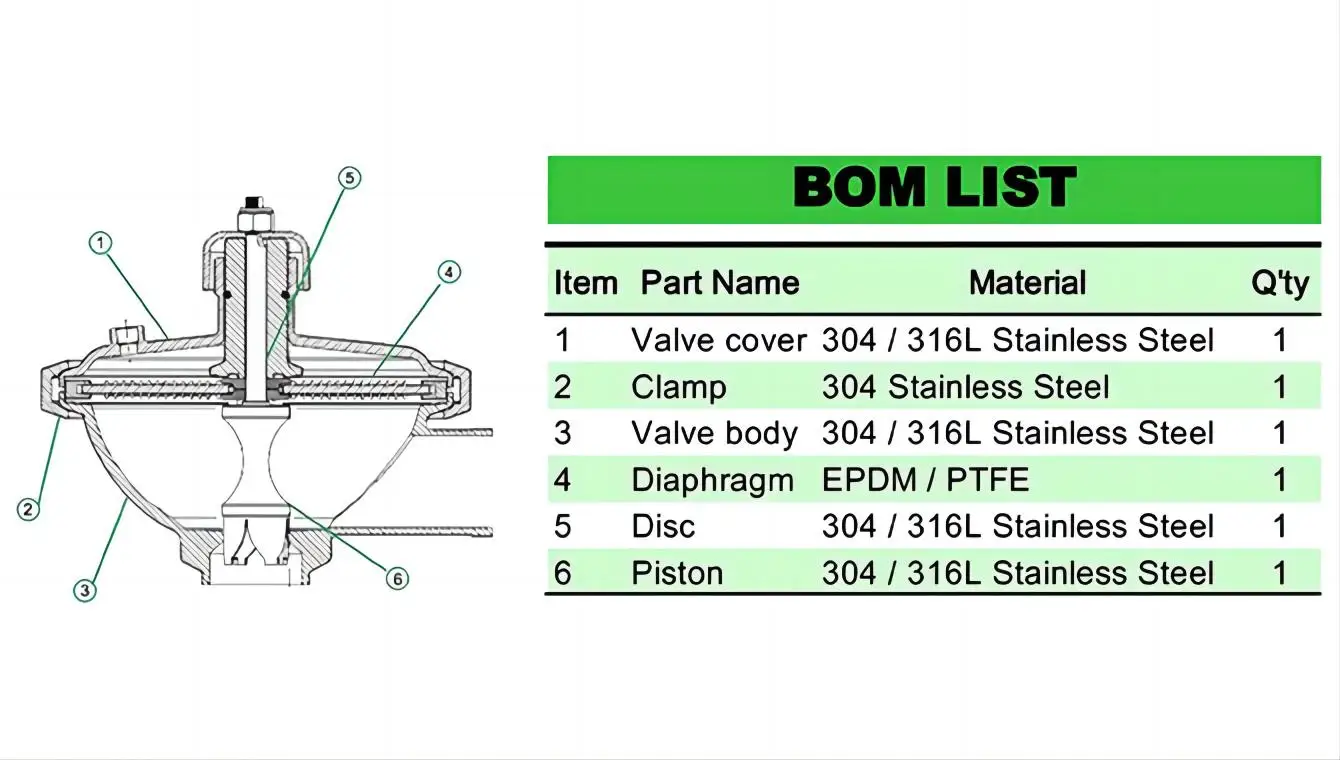

Constant Pressure Valve Configuration
The basic components of constant pressure valve include a valve body with a valve seat, a valve cover, a valve stem with a diaphragm unit, and a clamp.
Due to the 90-degree angle between the inlet and the bottom of the valve body, residual liquid cannot accumulate, making it more effective in cleaning.
Additionally, the special plunger design allows for a smaller liquid flow and a higher CIP (Clean-in-Place) flow.
Working Principle

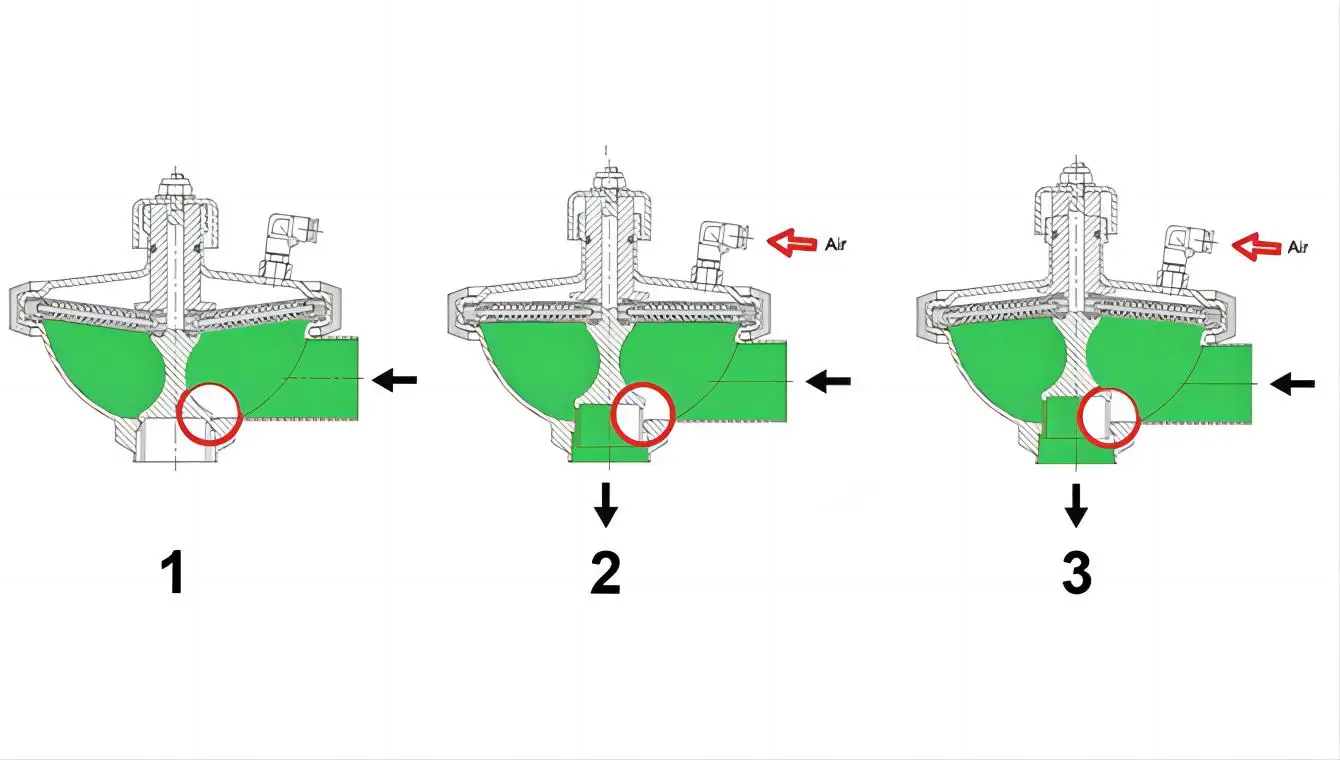

Working Principle of Constant Pressure Valve
The Constant Pressure Valve is remotely operated using compressed air.
This series of valves does not rely on any sensors in the product pipeline for operation. It only requires a pressure regulating device for the compressed air and a pressure gauge on the product pipeline to monitor the pressure in real-time.
A diaphragm/valve stem system can quickly respond to any pressure changes in the conveyed product and adjust the valve stem position accordingly to maintain the preset pressure.
When the pressure of the conveyed product increases, the valve will open; conversely, when the pressure decreases, the valve will close.
Production Process
Why Choose Us
We are one of the best suppliers of sanitary stainless steel products in China, specializing in the production of various high-precision sanitary stainless steel products.
Products cover: sanitary valves, stainless steel pipes, pipe fittings, flanges, fasteners, reducing pipes, etc., and various sanitary stainless steel products can also be customized according to customer requirements.
Products cover: sanitary valves, stainless steel pipes, pipe fittings, flanges, fasteners, reducing pipes, etc., and various sanitary stainless steel products can also be customized according to customer requirements.
In order to ensure that product quality meets all relevant standards, we have developed 8 special processing technologies and have more than 10 technical patents.
Currently, all our products comply with ISO, SMS, IDF, 3A and DIN standards, as well as GMP and food industry requirements.
Among all Chinese suppliers, we have the most extensive range of models and the safest certification
We provide customized services to customers all over the world
* We have technical team with more than 15 years’ experience in R & D and design of sanitary stainless steel products
* A complete system of control process to meet customer’s specific needs and applications
* Our management mechanism is one-on-one project for each client
* More stringent process technology team, more skillful technology processing workers
* A full set of non-standard products processing equipment
* We have technical team with more than 15 years’ experience in R & D and design of sanitary stainless steel products
* A complete system of control process to meet customer’s specific needs and applications
* Our management mechanism is one-on-one project for each client
* More stringent process technology team, more skillful technology processing workers
* A full set of non-standard products processing equipment
Certifications
FAQ
Q:What is MQO?
A:No MOQ required for products in stock.Others can be discussed.
A:No MOQ required for products in stock.Others can be discussed.
Q:What is your lead time?
A:7-10 days for standard products.For custom made products lead time to be negotiated.
A:7-10 days for standard products.For custom made products lead time to be negotiated.
Q:How do you ensure to meet our requirement?
A:Yes, we fabricate samples for your approval, and arrange trial order production before mass production.
A:Yes, we fabricate samples for your approval, and arrange trial order production before mass production.
A:We can fabricate non-standard stainless steel valves and fittings as per your drawings. We can also provide technical support in design according to your special requirement.
