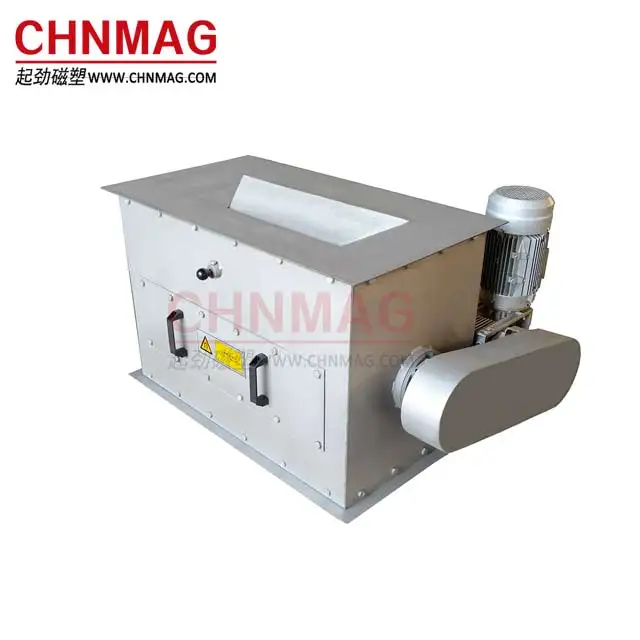

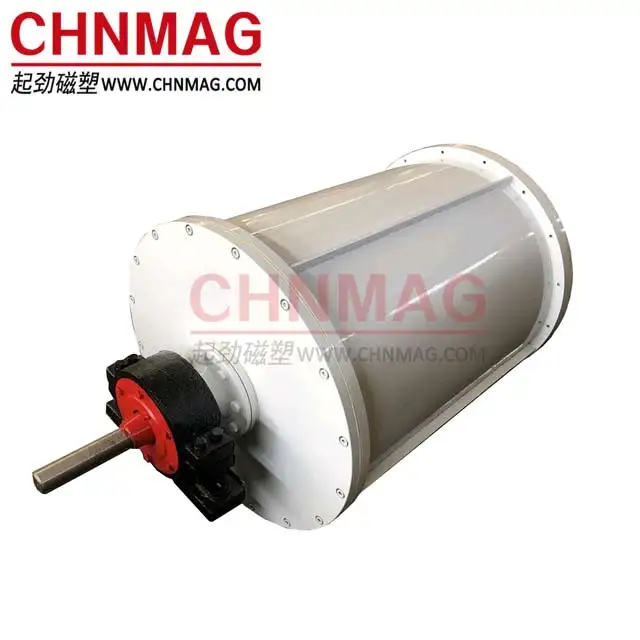

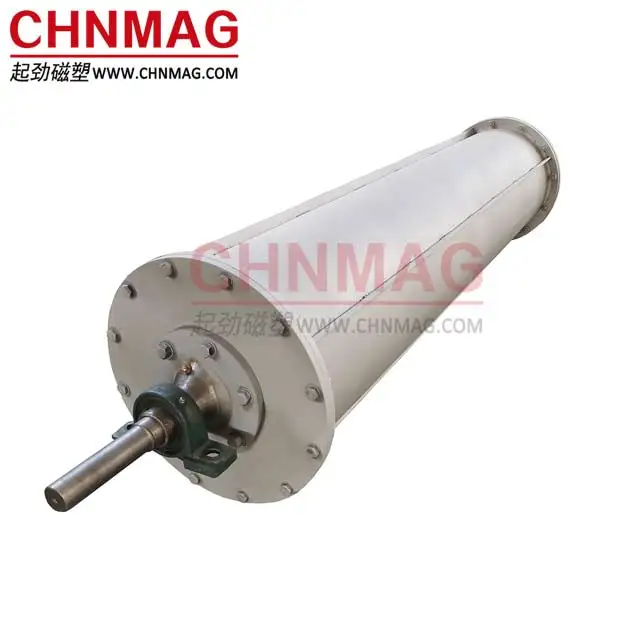

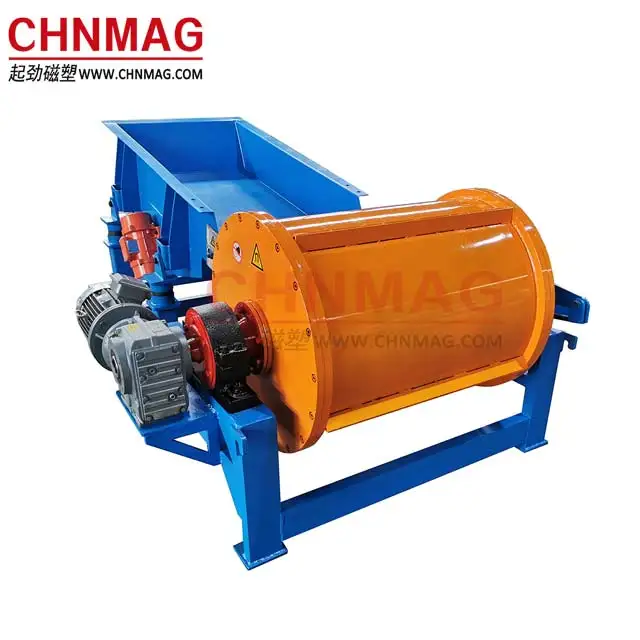

Metal Scrap Separation Bottom Feeding Drum Magnet Separator for Ferrous Metal
- Category: >>>
- Supplier: Qijin Magnet Co. Ltd.
Share on (1601244339110):
Product Overview
Description
Product Description

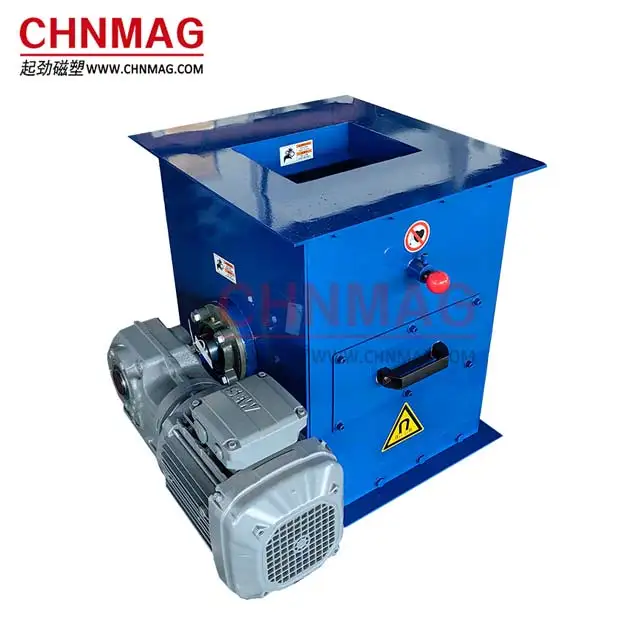

CHNMAG Magnetic Drum Separator/Drum Magnet Separator is a separation machine designed for the continuous extraction of ferrous metal contamination from dry bulk material. Material is fed uniformly to the drum magnet from a conveyor, vibration feeder or chute, ensuring continuous metal contamination removal.
Working Principle
As the outer stainless steel shell rotates, clean product material is allowed to free fall through the one side, while powerful magnets hold ferrous contamination to the point where the magnetism ends, discharging the metal trough the other side.
Working Principle
As the outer stainless steel shell rotates, clean product material is allowed to free fall through the one side, while powerful magnets hold ferrous contamination to the point where the magnetism ends, discharging the metal trough the other side.

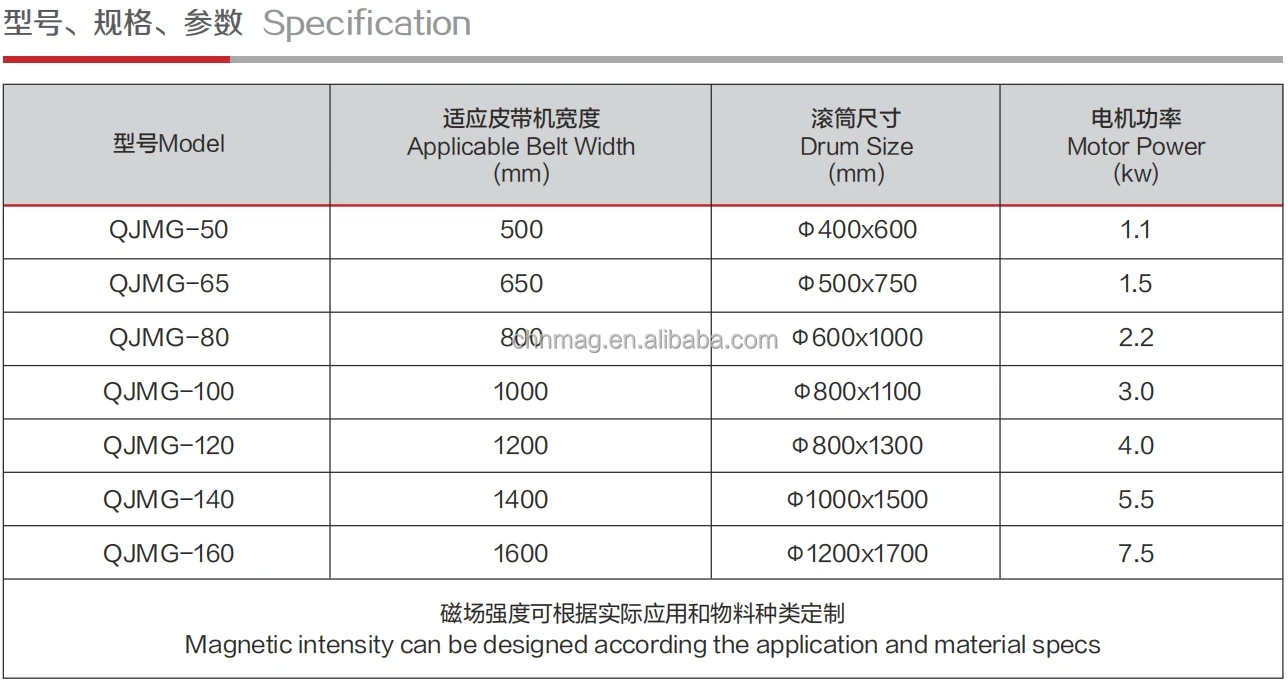

Magnet System | Permanent Magnet |
Frame Material | Steel Frame |
Drum Bearing | Double Row Bearing |
Drum Shell | Stainless Steel |
Drum End Cover | Stainless Steel |
Motor | IP 55 |
Standard Color | RAL 5010 |
Power Supply | Client's Site Specs |
Feeding Position | Top or Bottom Optional |
Top Feeding Position
Top Feeding Drum Magnet is applicable for ferrous contamination materials are small or fine size, the magnet system of drum magnet
will catch the ferrous pieces for particles when the material feeding on to the drum magnet surface, then material will stick to
the drum magnet surface, rotates to the area where there is no magnetic field and finish the discharging of ferrous material.
will catch the ferrous pieces for particles when the material feeding on to the drum magnet surface, then material will stick to
the drum magnet surface, rotates to the area where there is no magnetic field and finish the discharging of ferrous material.

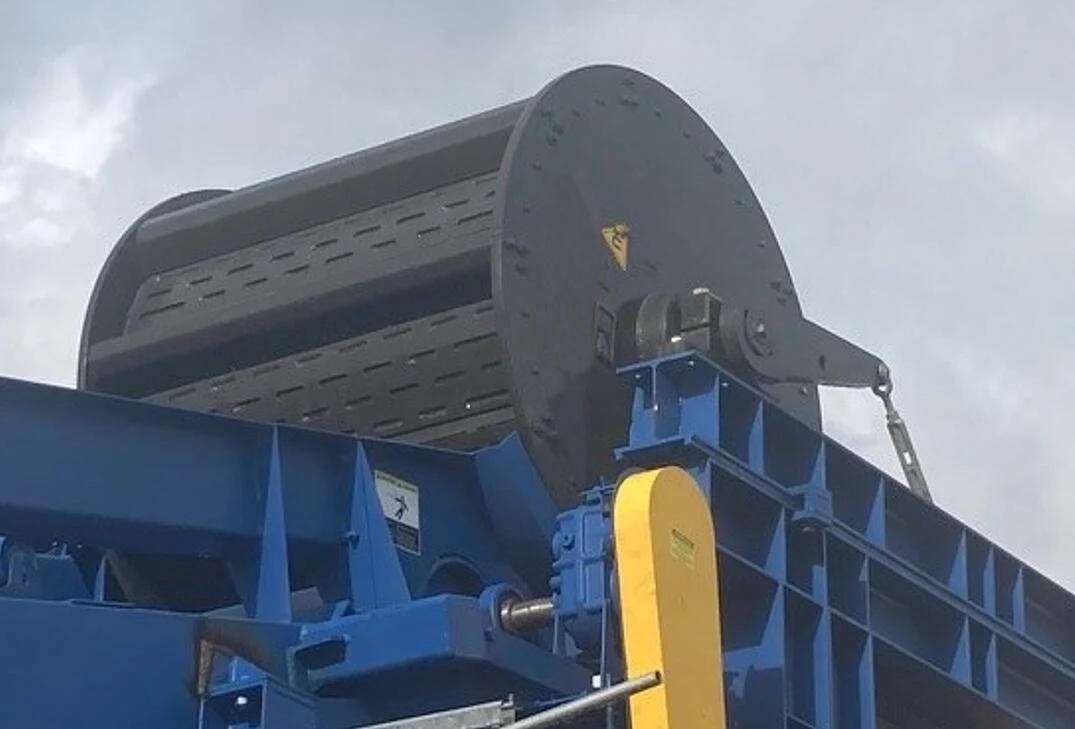

Bottom Feeding Position

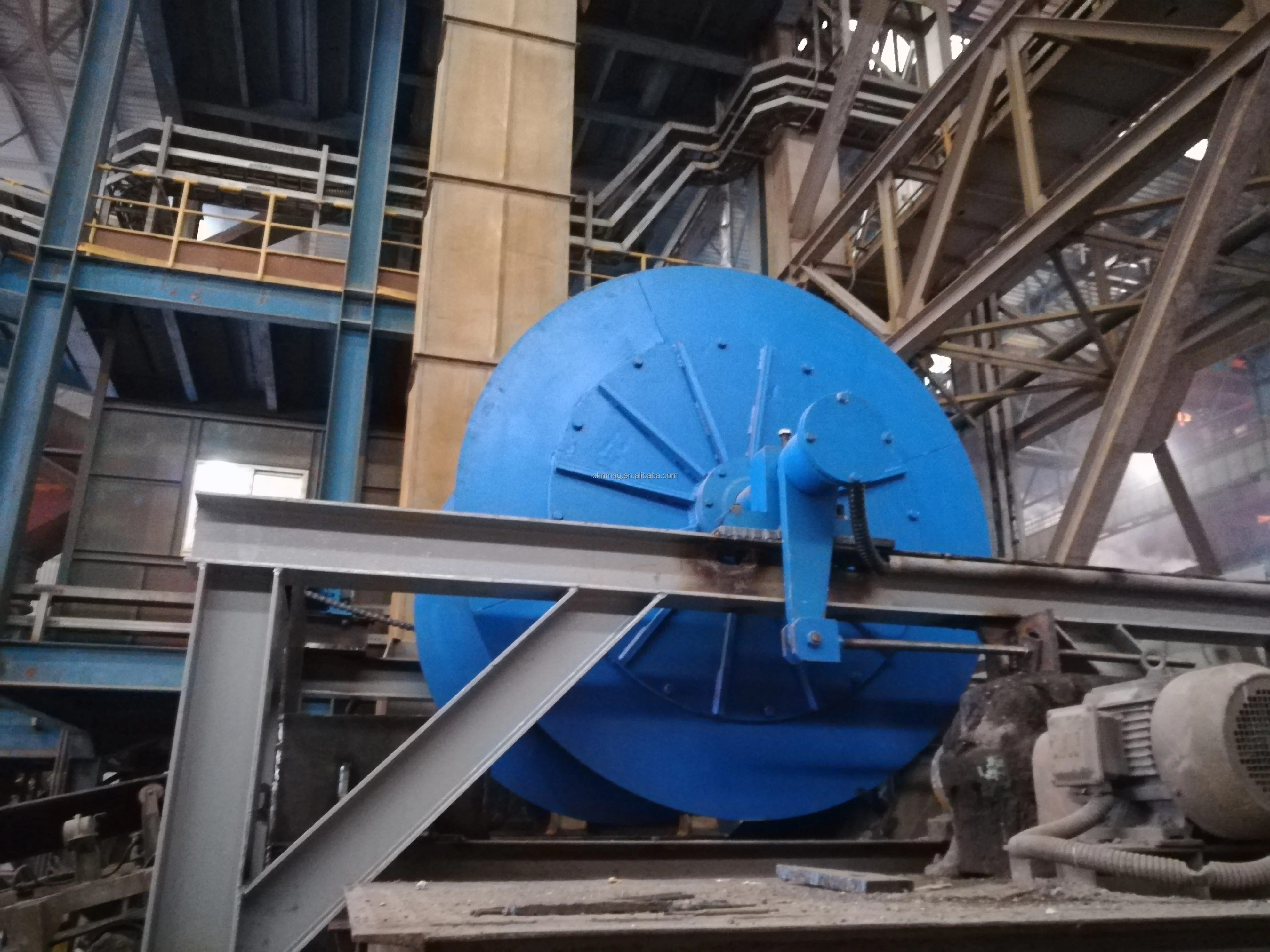

Bottom Feeding Drum Magnet Separator is efficient in handling large volumes of large size material encountered in scrap processing
and mineral concentration applications where there is a need to extract ferrous parts from material stream such as scrap Shredding
,slag reclamation ,tramp iron removal ,ore cobbing.
and mineral concentration applications where there is a need to extract ferrous parts from material stream such as scrap Shredding
,slag reclamation ,tramp iron removal ,ore cobbing.
Features:
1.Magnetic drums increase the efficiency of sorting plants by generating clean ferrous scrap.
2.Magnetic drums are used wherever the belt of an overhead suspension magnet wears too quickly or where material that is difficult to collect magnetically has to be separated after the overhead suspension magnet.
3. Magnetic drum separators also ensure optimal results in the processing of incineration bottom ash from incineration plants before the eddy current separator recovers valuable non-ferrous metals.
1.Magnetic drums increase the efficiency of sorting plants by generating clean ferrous scrap.
2.Magnetic drums are used wherever the belt of an overhead suspension magnet wears too quickly or where material that is difficult to collect magnetically has to be separated after the overhead suspension magnet.
3. Magnetic drum separators also ensure optimal results in the processing of incineration bottom ash from incineration plants before the eddy current separator recovers valuable non-ferrous metals.

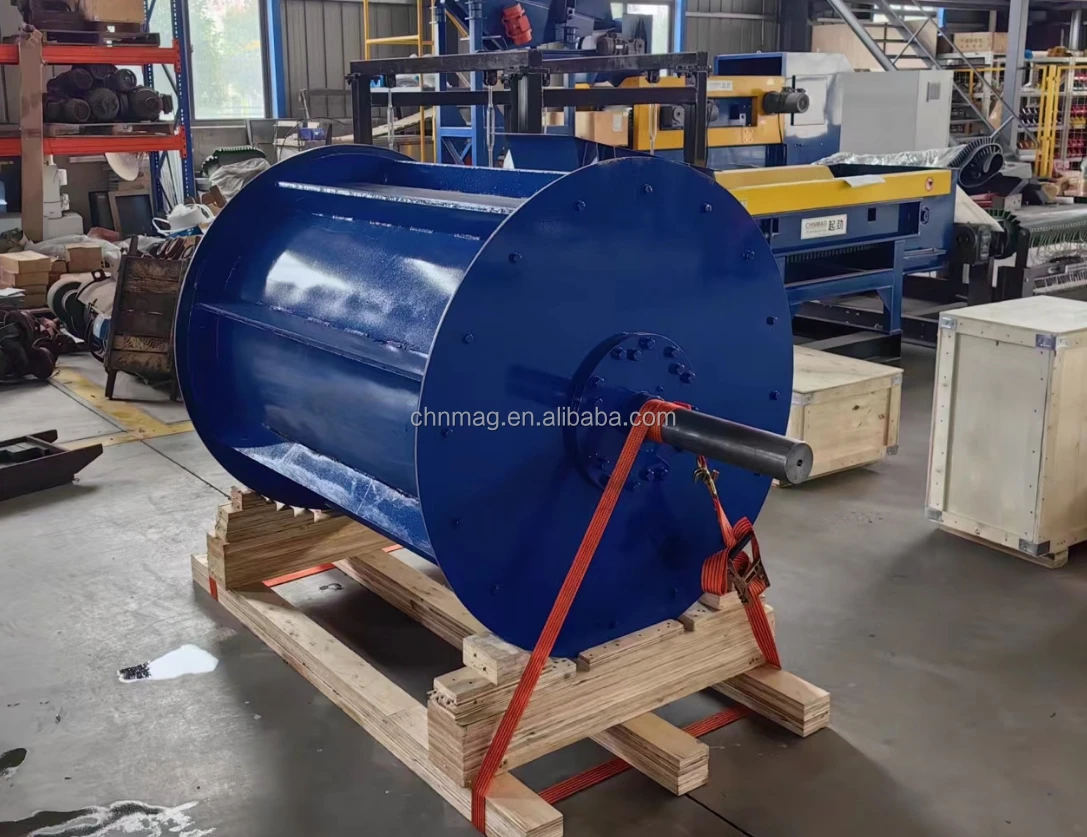

Packing&Shipping
Related Products
Company Introduction
Since founded in Year 2002 , our company devoted to manufacturing high-end permanent magnetic equipment and magnets. Our company covers an area of 15,000sqm with modernized workshops and we have successfully designed and built several magnetic separation lines in more than ten countries such as America, Thailand, Mexico, the Philippines, Indonesia, Europe etc. Our magnetic separators have been exported to more than 70 countries and commonly applied in raw material recovery, metal recycling industry, waste industry, refuse processing and mining industry to select magnetic materials out of material stream or to purify material.
Our major products are eddy current separator, over band magnetic separator, magnetic drum and suspended magnets. All these equipment can be designed and manufactured in accordance with the specific requirements of our customers.
Our major products are eddy current separator, over band magnetic separator, magnetic drum and suspended magnets. All these equipment can be designed and manufactured in accordance with the specific requirements of our customers.
