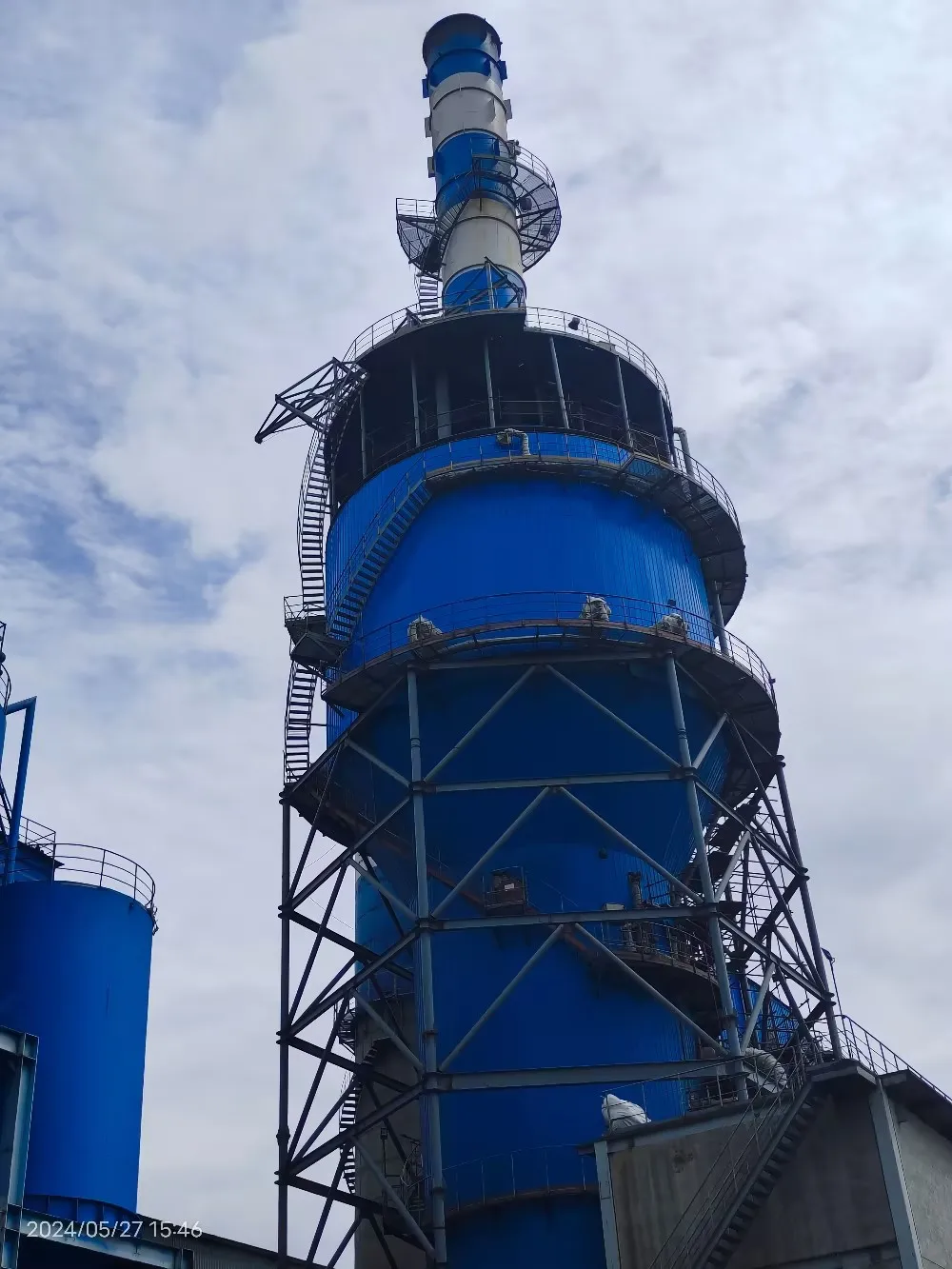

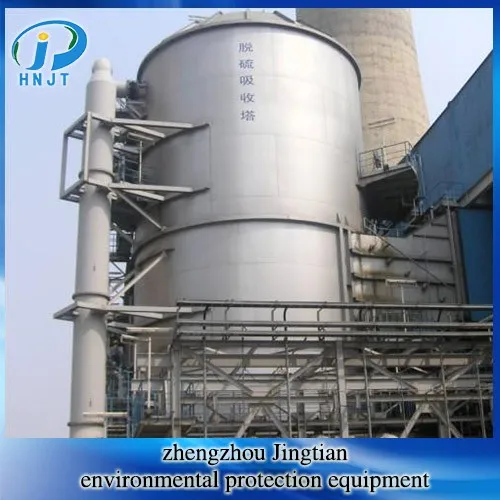

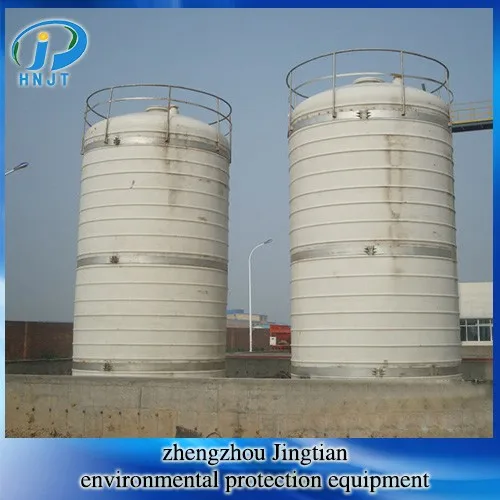

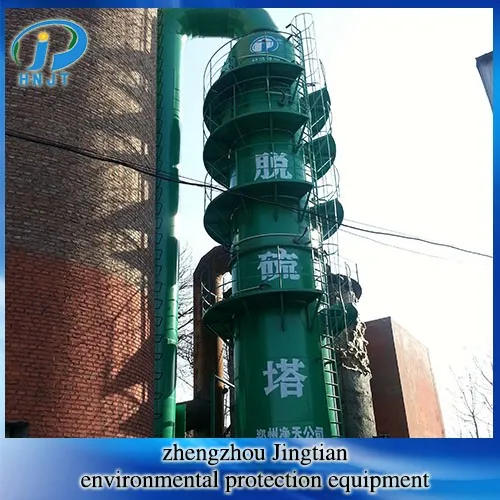

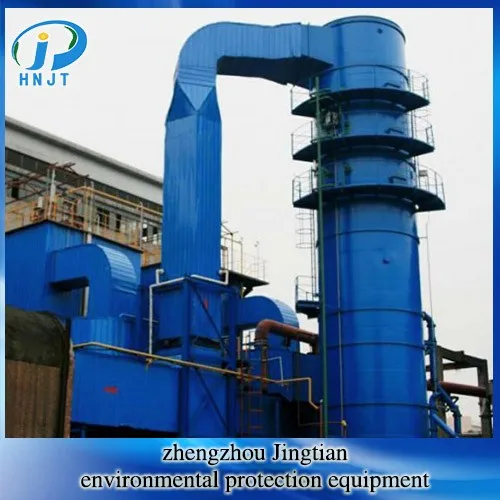

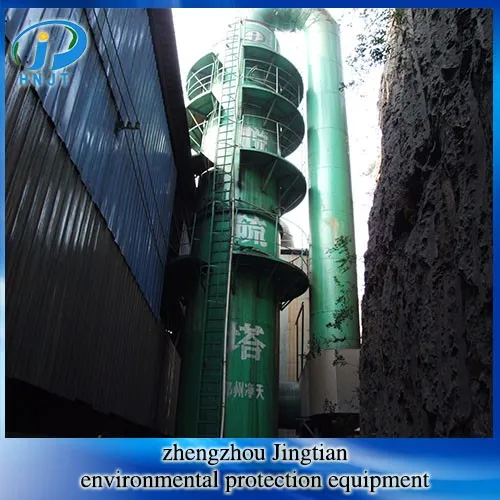

Industrial waste gas wet desulfurization and denitrification vertical tower equipment
- Category: >>>
- Supplier: Zhengzhou Jingtian Environmental Protection Equipment Co. Ltd.
Share on (1601244357769):
Product Overview
Description
Enterprise scale
The company was established in 2008 with a registered capital of 50 million yuan. It is a professional enterprise engaged in the production of industrial gas purification equipment, with a professional R&D, manufacturing, design, and construction team. The equipment is widely used in industries such as chemical, coking, steel, and metallurgy, and is currently committed to exploring foreign markets. Jingtian Environmental Protection makes unremitting efforts to return a blue sky to the earth.
product details
Equipment working principle

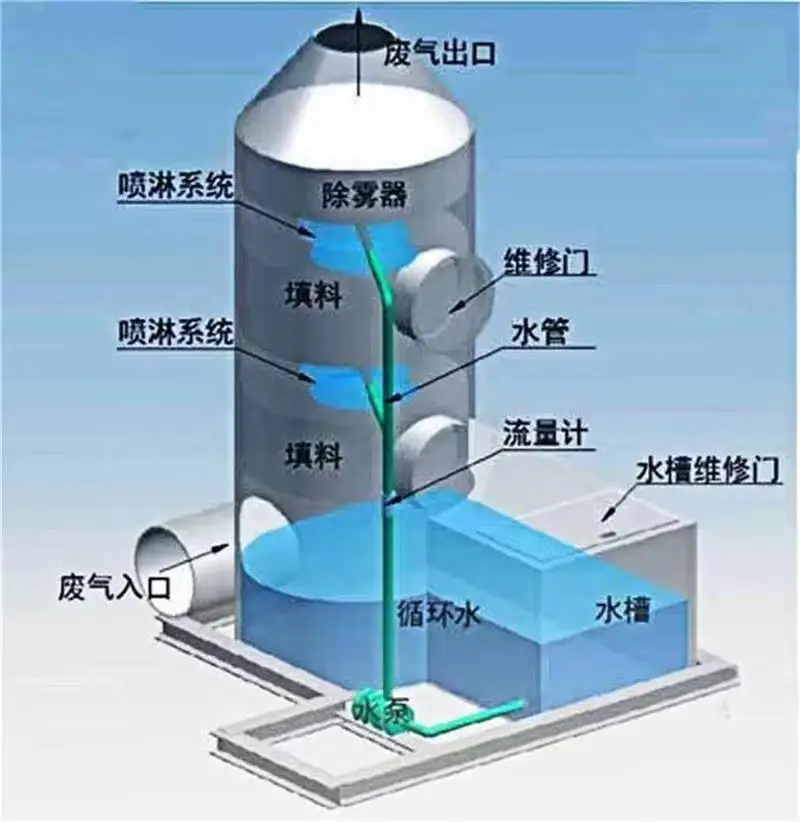

The working principle of the desulfurization tower is mainly achieved by the synergistic effect of components such as the spray layer, defogger, and slurry pool area to remove sulfur dioxide from the flue gas. After entering the desulfurization tower, the flue gas first passes through the spray layer, where the slurry is atomized by the nozzle and comes into contact with the flue gas in reverse flow to absorb the sulfur dioxide.
Main components and functions
Spray system | Spray desulfurizer evenly in the flue gas, fully contact and react with the flue gas |
Packing layer | Increasing the contact area to improve desulfurization efficiency |
Smoke inlet and outlet | Ensure that the flue gas enters and exits the desulfurization tower channel through the forest |
Slag discharge system | Used for collecting and discharging waste residue |
Circulating fluid system | Provide desulfurizer and absorbent and maintain appropriate concentration and temperature |
Dust removal system | Capture and collect particulate matter in flue gas |
Application scenarios
Related products

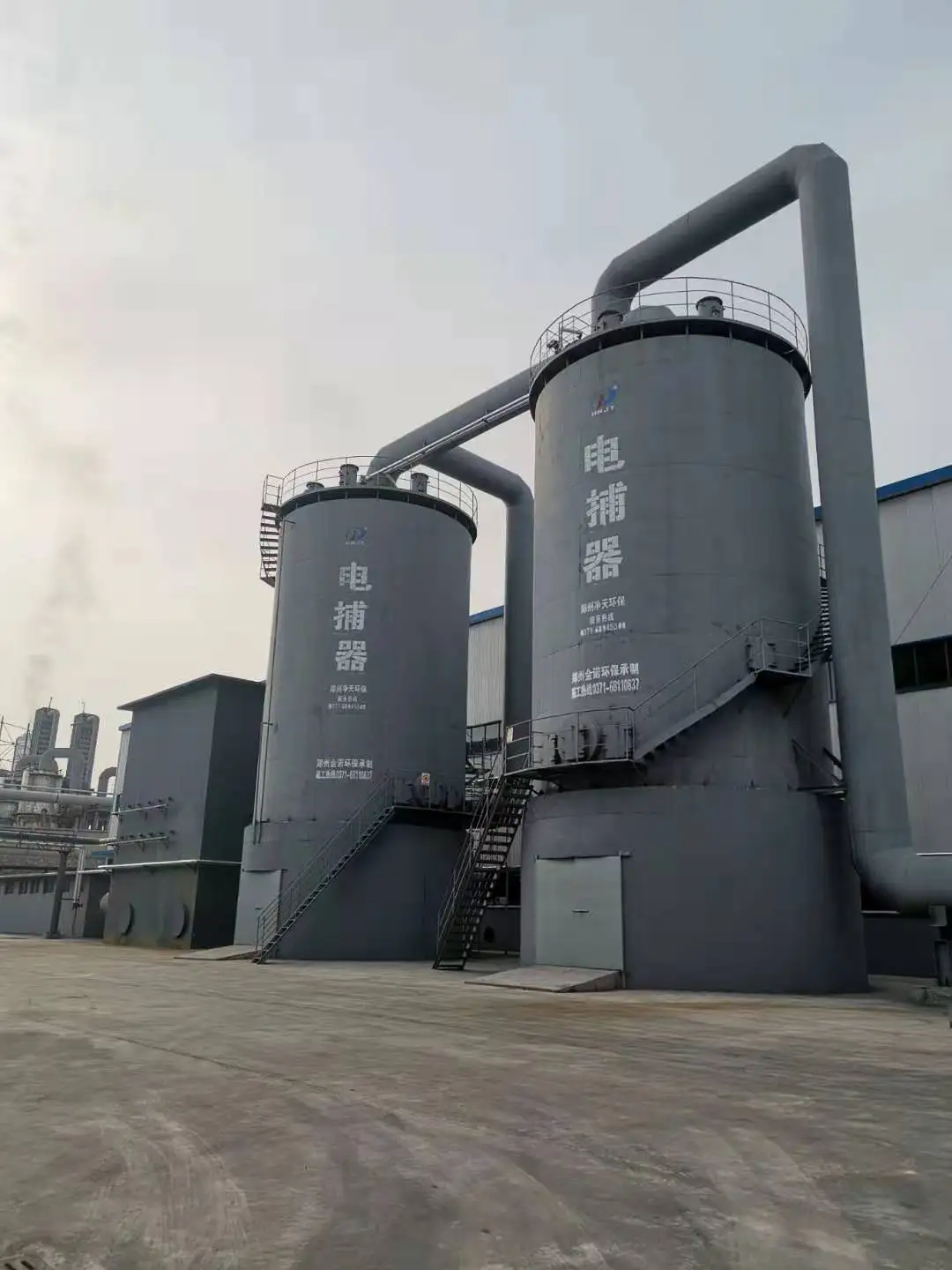

Figure 1: Electric tar catcher
Figure 2: Pulse bag filter
Figure 3: Cyclone Dust Collector
A high-voltage electric field is formed inside the electrostatic tar precipitator equipment, which charges the particles in the passing flue gas and pushes them towards the dust collection electrode under the action of the electric field force, thereby achieving flue gas purification.
The desulfurization tower is usually used in conjunction with dust removal equipment to achieve desulfurization and dust removal effects. The function of the dust removal system is to capture and collect solid particles in the flue gas. Dust removal equipment is used to clean and maintain the working condition of dust collectors
Figure 2: Pulse bag filter
Figure 3: Cyclone Dust Collector
A high-voltage electric field is formed inside the electrostatic tar precipitator equipment, which charges the particles in the passing flue gas and pushes them towards the dust collection electrode under the action of the electric field force, thereby achieving flue gas purification.
The desulfurization tower is usually used in conjunction with dust removal equipment to achieve desulfurization and dust removal effects. The function of the dust removal system is to capture and collect solid particles in the flue gas. Dust removal equipment is used to clean and maintain the working condition of dust collectors
