LONGi Solar Bifacial 420W 580W PV Solar Panel N Type PERC Half Cell Technology
LONGi Solar Bifacial 420W-580W PV Solar Panel N-Type PERC Half Cell Technology
LONGi Solar Bifacial 420W-580W PV Solar Panel N-Type PERC Half Cell Technology
LONGi Solar Bifacial 420W-580W PV Solar Panel N-Type PERC Half Cell Technology
LONGi Solar Bifacial 420W-580W PV Solar Panel N-Type PERC Half Cell Technology
LONGi Solar Bifacial 420W-580W PV Solar Panel N-Type PERC Half Cell Technology
LONGi Solar Bifacial 420W-580W PV Solar Panel N-Type PERC Half Cell Technology

LONGi Solar Bifacial 420W 580W PV Solar Panel N Type PERC Half Cell Technology

Share on (1601244381814):


Price:$0.16-0.20

Quantity:


Product Overview

Description





Solar Panel Description






Mechanical Data


Hi-MO 5m
LR5-72HPH540~560M
Maximum Power（Pmax/W）
540
545
550
555
560
Voltage at Maximum Power(Vmp/V)
41.65
41.80
41.95
42.10
42.25
Current at Maximum Power(Imp/A)
12.97
13.04
11.04
13.19
13.26
Open Circuit Voltage（Voc/V)
49.50
49.65
49.80
49.95
50.10
Short Circuit Current(lsc/A)
13.85
13.92
13.98
14.04
14.10
Module Efficiency(%)
20.9
21.1
21.3
21.5
21.7


Hi-MO 6
LR5-72HTH565~600M
Maximum Power（Pmax/W）
565
570
575
580
585
590
595
600
Voltage at Maximum Power(Vmp/V)
43.61
43.76
43.91
44.06
44.21
44.36
44.51
44.66
Current at Maximum Power(Imp/A)
12.96
13.03
13.10
13.17
13.24
13.31
13.37
13.44
Open Circuit Voltage（Voc/V)
51.76
51.91
52.06
52.21
52.36
52.51
52.66
52.81
Short Circuit Current(lsc/A)
14.01
14.07
14.14
14.20
14.27
14.33
14.40
14.46
Module Efficiency(%)
21.9
22.1
22.3
22.5
22.6
22.8
23.0
23.2


Hi-MO 7
LR5-72HGD 560~590M
Maximum Power（Pmax/W）
560
565
570
575
580
585
590
Voltage at Maximum Power(Vmp/V)
42.82
42.91
43.00
43.11
43.22
43.33
43.44
Current at Maximum Power(Imp/A)
13.08
13.17
13.26
13.34
13.42
13.51
13.59
Open Circuit Voltage（Voc/V)
50.99
51.09
51.19
51.30
51.41
51.52
51.63
Short Circuit Current(lsc/A)
13.89
13.97
14.05
14.14
14.22
14.30
14.38
Module Efficiency(%)
21.7
21.9
22.1
22.3
22.5
22.6
22.8

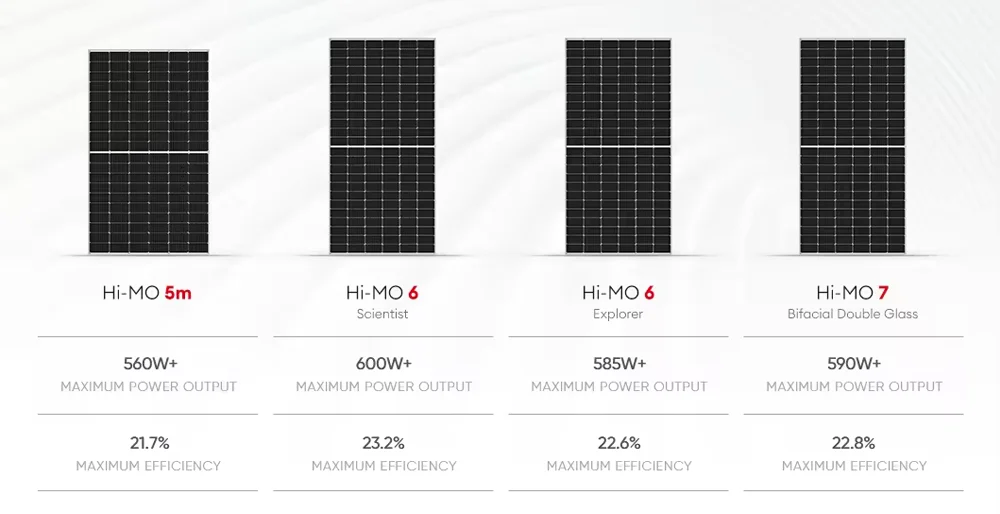

Hi-MO 5m
LR5-72HPH540~560M
Power Range: 540-560W
No. of Cells: 144 cells
Dimension: 2278x1134x35 mm
Weight: 27.5 kg
Modules per box: 31pcs
Modules per 40' container: 620pcs
Hi-MO 6
LR5-72HTH565~585M
Power Range: 565-585W
No. of Cells: 144 cells
Dimension: 2278×1134×35 mm
Weight: 27.5 kg
Modules per box: 31pcs
Modules per 40' container: 620pcs


Hi-MO 6
LR5-72HTH590~600M
Power Range: 590-600W
No. of Cells: 144 cells
Dimension: 2278×1134×35 mm
Weight: 27.5 kg
Modules per box: 31pcs
Modules per 40' container: 620pcs
Hi-MO 7
LR5-72HGD 560~590M
Power Range: 560-590W
No. of Cells: 144 cells
Dimension: 2278×1134×30 mm
Weight:31.8 kg
Modules per box: 36pcs
Modules per 40' container: 720pcs






Why Choose Us




we have cooperated with Tier 1 solar panels, many well-known solar inverters brands. And we can supply large solar energy series products, comprehensive solar-tech support.




Tier 1 Solar

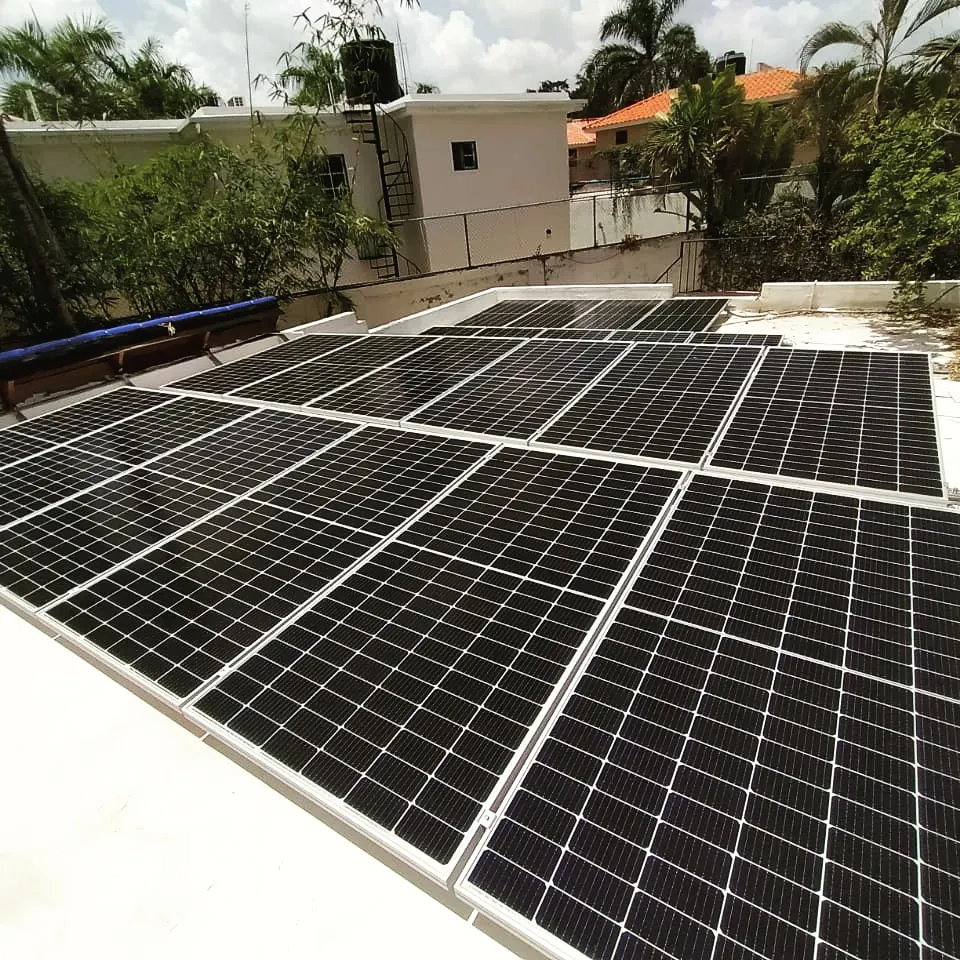

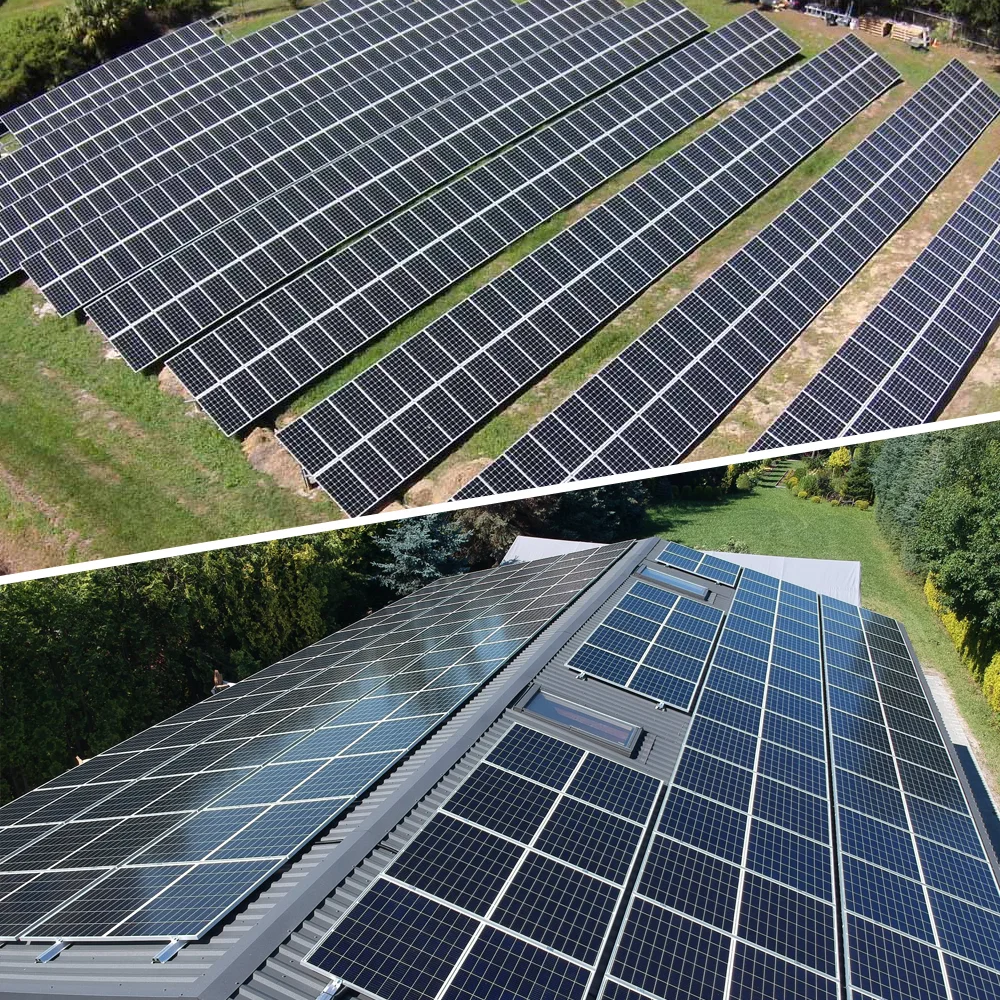

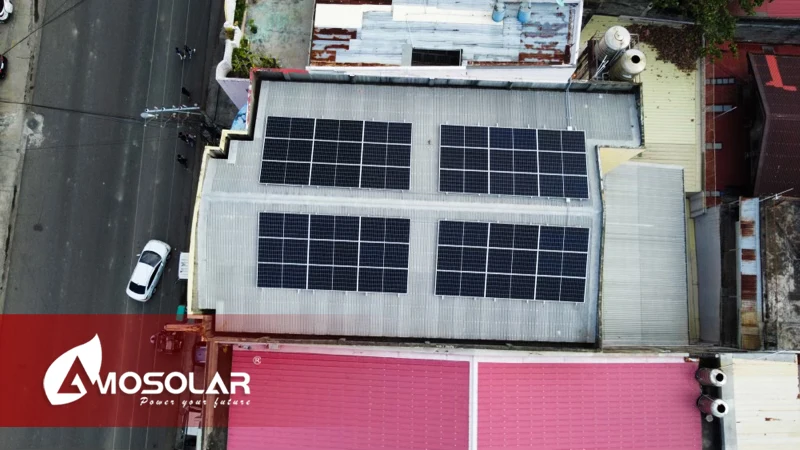

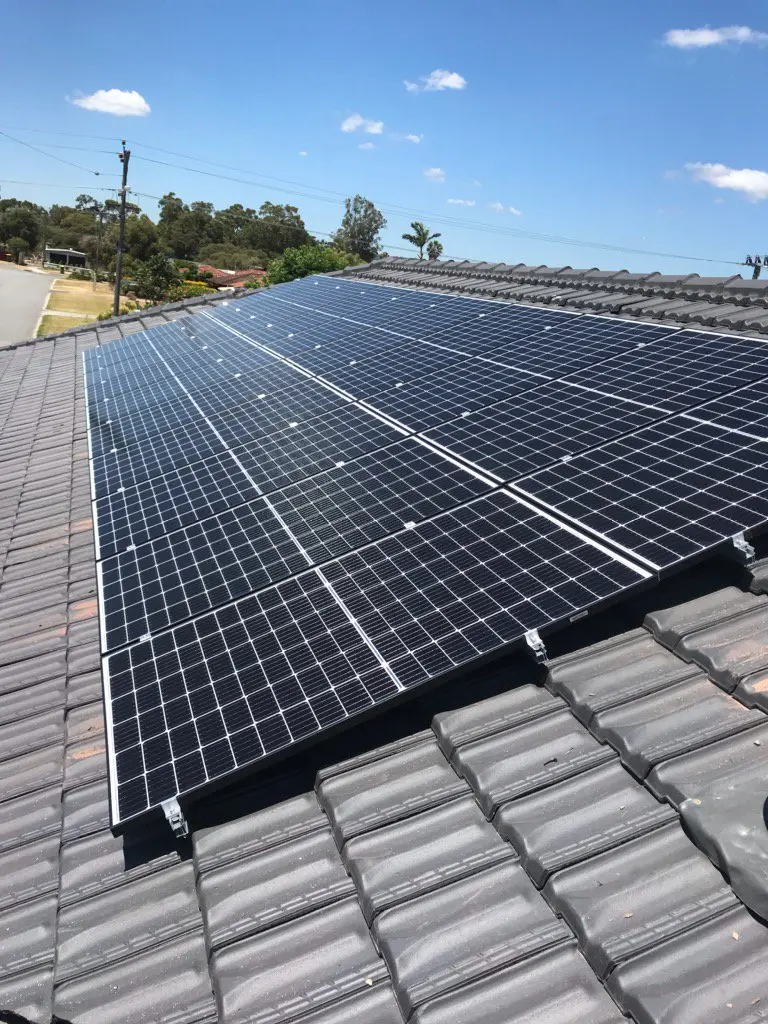

Project





FAQ

A: What are your main products?
We have many series of solar products, mainly producing solar systems, solar panels, solar inverters, powerwall, solar lithium ion batteries,solar application solutions and solar mounting systems, and all related solar accessories.

B: Are you a factory or trading company?
We are a factory with more than nine years of experience in producing solar energy series products. You are welcome to visit our factory.

C: Can you support OEM and field installation?
Yes, as a professional solar system manufacturer, we can provide customers with OEM and on-site installation, comprehensive tech support, and after-sales services.

D: How does your factory conduct quality control?
Quality first. We have a professional QC team to control the quality strictly. Only when the quality meets the requirements, will it be packaged out of the factory.

E: What are your strengths in solar systems?
Fully automatic production line using international advanced production equipment such as Japan and Germany. The price and quality are very competitive, and we have cooperated with many well-known brands. And we can supply large solar energy series products.

F: How can I do if I need more help with the order?
You can chat with our sales online or send inquiry email, we will respond to you immediately. Any problem after delivery, we will offer you video call anytime, our engineer will also go to oversea help our customers if necessary.

G: Is sample available and free?
Sample will charge cost, but the cost will be refund after bulk order.

If you want to know more information, you can send inquiry to our team, we will cover more details.
