80 160T/H Mobile Asphalt Plant Machine Price

ZAP-M(ZOOMLINE mobile asphalt mixing plant) models are available from 80TPH to 160TPH

Features of ZAP-M series 80-160t/h mobile type asphalt plant, hot asphalt mixing machine

Main components of ZAP-M series mobile type asphalt plant, hot asphalt mixing machine

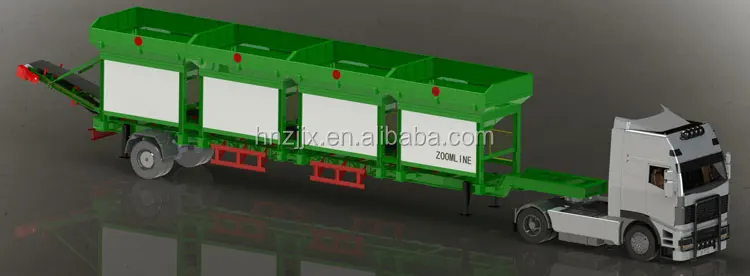

Cold Aggregate Feeding System

- The belt feeder use frequency conversion speed control, speed adjust rang is wide, high working efficiency.
- Every hopper discharge gate have material shortage alarming device, if material shortage or material arching, it will alarm automatically.
- On the sand bin, there is vibrator, so it can guarantee normal working.
- There is isolation screen on top of cold bin, so can avoid large material input.
- The conveyor belt use circular belt without joint, steady running and long performance life.
- At the input port of feeding belt conveyor, there is one simple screen can avoid big material input which can enhance hot efficiency and make sure the drying drum, hot aggregate elevator and vibration screen work reliability.
- Landing legs with support bases to ensure adequate stability.

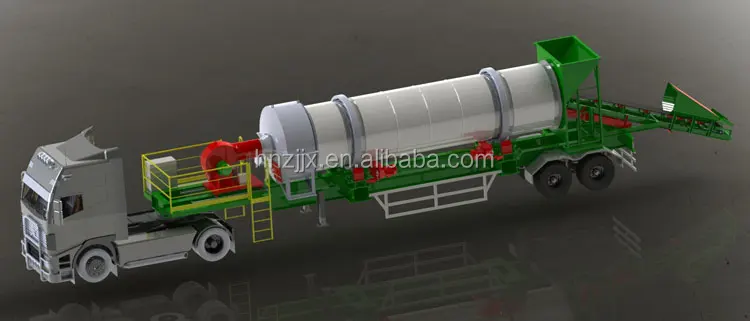

Drying System

- The blade geometry of the dryer has been optimized to deliver an exceptionally efficient drying and heating process with reduced energy consumption,improve heating efficiency 30% than conventional design; Because of High heating efficiency, drum surface temperature is relatively low, so the cooling time after operation is considerably shorted.
- Fully insulated and clad aggregate dryer. Drive by electric motors and gear unit through polymer friction drive support rollers.
- Adopt famous brand HONEYWELL temperature intelligent control system.
- Adopt high combustion efficiency Italian brand burner, make sure low exhaust gas emission (like CO2,low No1 & No2, So2).
- Diesel, heavy oil, gas, coal or multi-fuel burners.
- Landing legs with support bases to ensure adequate stability.
- Integrated highly efficient burner on one mobile chassis

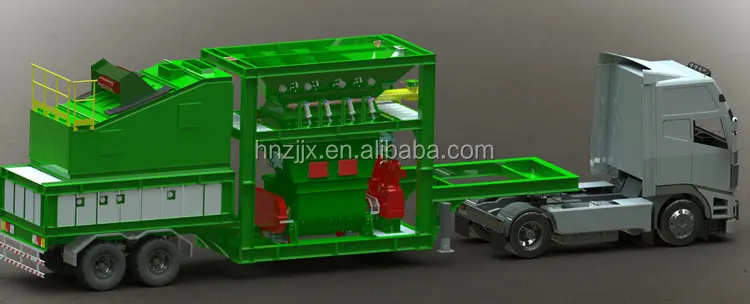

Mixing Tower

- Integrated vibrating screen and hot storage and weighing and mixer in one mobile chassis, easily transportable and installation.
- Improved vibration and amplitude to optimize impact on the available screen. the best combination of vibrating direction & screen box dip angle, ensure ratio and screening efficiency.
- Adopt famous brand METTLER TELEDO weighing sensor, make sure accurate weighing, in order to make sure the asphalt mixture quality.
- Mixer are designed by 3D mixing design, with long arms, shortened shaft diameter and a bi-directional mixing blades array. the discharging process has been completely redesigned, the discharge time is minimal. the distance between blades and bottom of the mixer is also restrained to the optimal minimum.
- Bitumen is sprayed from multi-points evenly over aggregate by one pressurized bitumen pump to achieve full coverage and high mixing efficiency.
- Landing legs with support bases to ensure adequate stability.

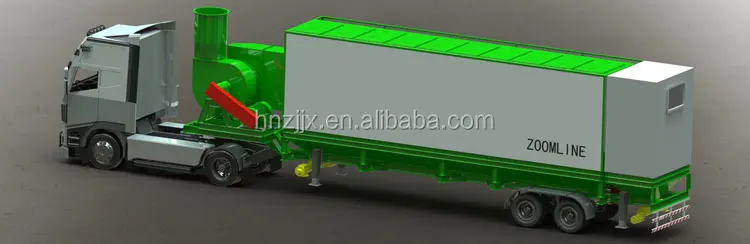

Dust Collecting System

- Gravity primary dust collector collecting and recycling bigger fine, saving consumption.
- Bag house secondary dust filter control emission be lower than 20mg/Nm3, eco-friendly.
- Adopt USA Dopont NOMEX filter bags, high temperature resistance and long service life, and the filter bags ban be replaced easily and quickly with no need for special tools.
- Intelligent temperature and control system, when the dust air temperature is higher than set data, cold air valve will be opened automatically for cooling, avoid the filter bags are damaged by high temperature.
- Adopt high voltage pulse cleaning technology, contributing to a lower bag wearing, longer lifespan and better dust removal performance.
- Mobile chassis as optional according to project solution.

Control system

- Adopt Germany SIEMENS electrical element, working stably even in harsh working environment.
- Adopt Japan ORMON PLC and touch screen, have high data processing capacity, with automatic data sheet control, various operation data can be saved real-times.
- All system power switches can be controlled via control panel,easy operation and control.
- Multi-language compatibility, display language can be selected according to the customer’s preference.
- Control cabinet adopt IP55 safety protection class which can match highest industrial standard in whole global.
- Containerized control room, with heat insulation and sound insulation layer.
- Global remote automatic detection function.
- Mobile chassis as optional according to project solution

Technical parameters of mobile type asphalt plant, 80-160t/h hot asphalt mixing machine

The whole asphalt plant equipment is designed according to standard high cabinet container, suitable for the construction requirement in both home and abroad.

All the components of ZOOMLINE asphalt plant can be put into the container, can greatly reduce transport cost for customers.

Our asphalt mixing plant have been used in highways, high-grade highways, urban roads and airport construction and got high reputation for their excellent performance.

Based in Nanyang Longsheng Industrial Park of Henan, ZOOMLINE Machinery is a professional manufacturer of asphalt mixing plant,coal burner,oil burner,gas burner and support equipments that draws on years' experiences and technology developments.

Our main asphalt mixing plants include:

Stationary Asphalt Mixing Plant 40-320TPH

Mobile Asphalt Mixing Plant 40-160TPH

Continuous asphalt mixing plant 20-160TPH

One trailer mounted asphalt plant 20-120TPH

Recycling asphalt mixing plant 60-120TPH

Asphalt Plant Parts: Drying drum, vibration screen, control system, bag house filter, mixer, bitumen tank.

Bitumen Melting Machine

Emulsion Bitumen Equipment

Stabilized Soil Mixing Plant

Asphalt Mixing Plant Burner: Coal burner, oil burner, gas burner

Concrete Batching Plant

ZOOMLINE Machinery Factory

ZOOMLINE Machinery working site

ZOOMLINE Machinery office

Pre-sale Service

We can customize project design and process design for you (OEM service provided), produce machinery and equipment procurement plans suitable for you, and design and manufacture products according to your special needs.

Sales Service

Accompany you to complete the equipment acceptance, and assist in the preparation of construction plans and detailed procedures.

After-sale Service

All the company’s equipment provide a one-year warranty period.
We supply the installation and commissioning service and original spare parts for clients.
We guarantee to provide technical support to users in the whole working life of the ZOOMLINE equipment.
After sales service 7 x 24hrs Hotline:
Phone/WhatsApp/Wechat:+86-18838114766, E-mail: info(at)zoomline.biz
