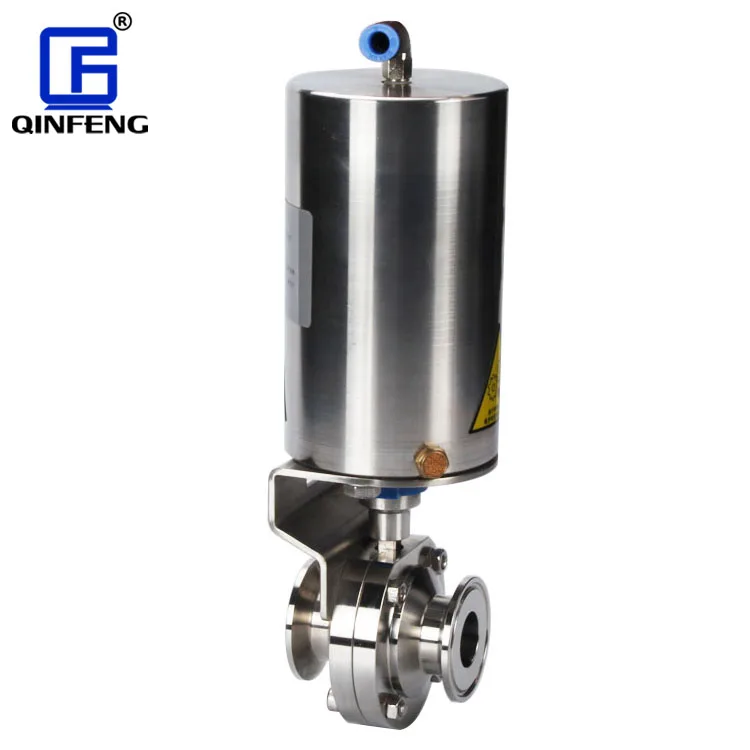

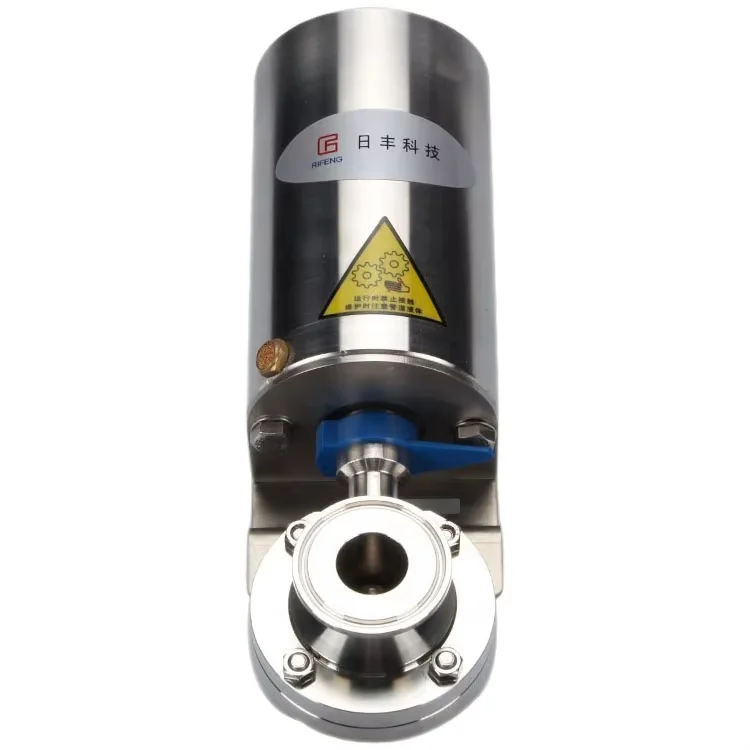

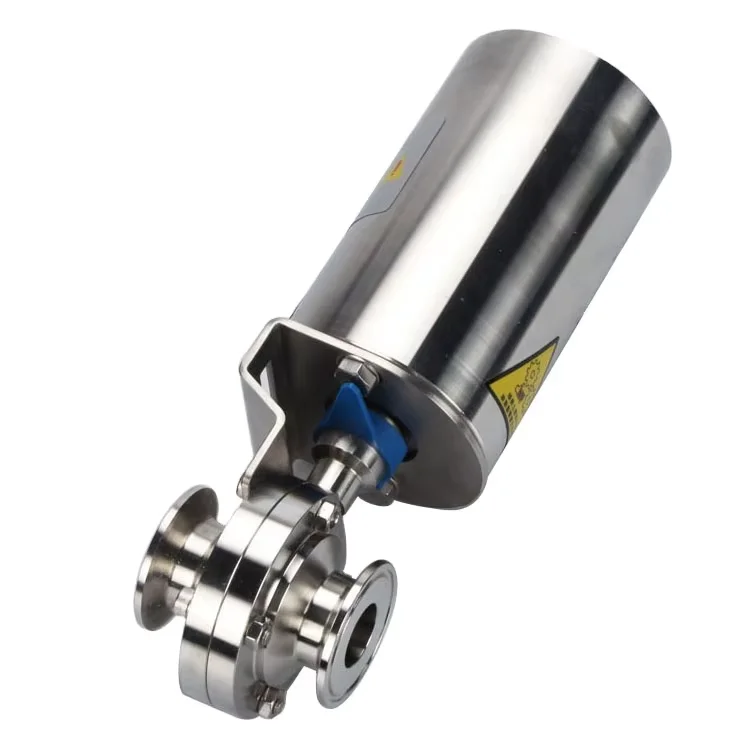

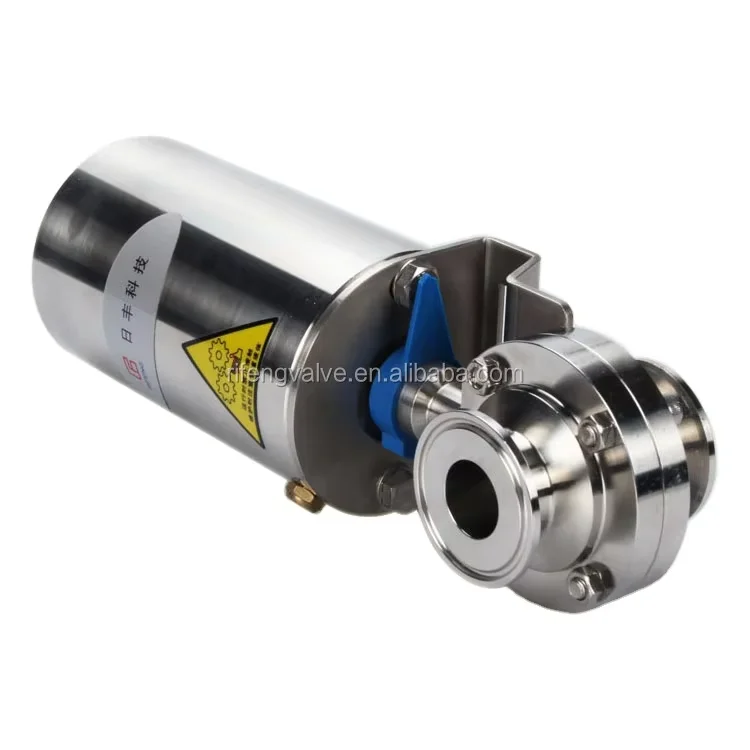

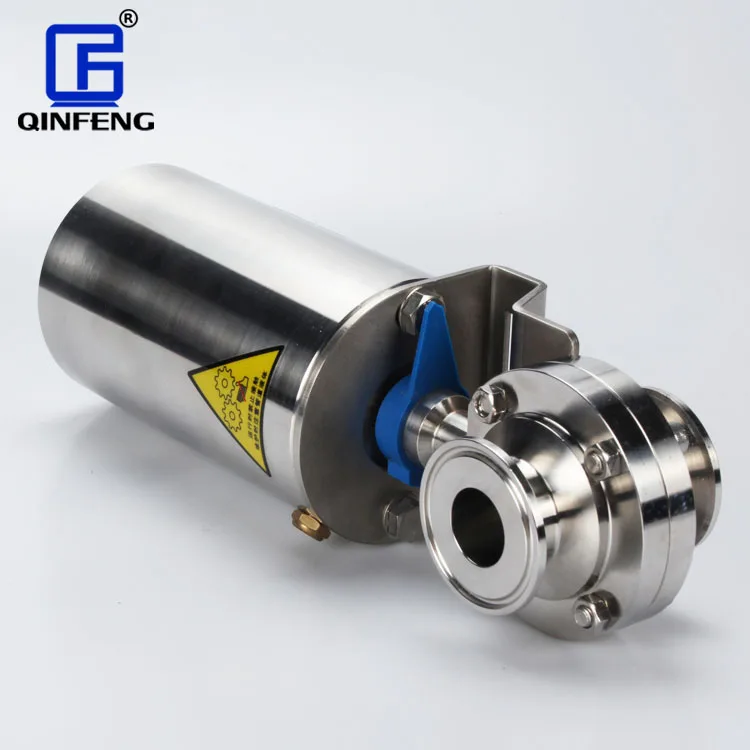

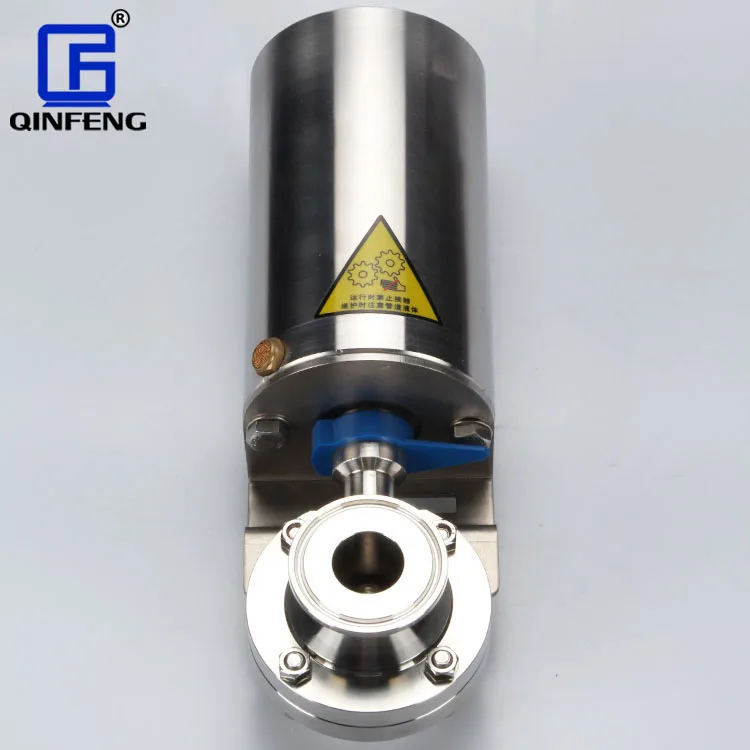

Food Beverage Cosmetics Sanitary 3A DIN SMS Ball Check Vacuum Stainless Steel Pneumatic Actuator Butterfly Valve
- Category: >>>
- Supplier: QINFENG TECHNOLOGY(ZHEJIANG) CO. LTD.
Share on (1601244470106):
Product Overview
Description
Products Description
Product Name | Butterfly valve |
Material | stainless steel |
Surface treatment | Mirror polish, matte etc. |
Gasket | EPDM, Silicone, Viton etc |
Continuous working temperature | -20°C ~ +135°C (EPDM, Silicone) |
Pressure | 0~10bar |
Drive | manual, pneumatic, electric etc. |
Used | Dairy, food, drink, beer, cosmetics, fine chemical etc. |
Applications:
The series of this valve is a kind of sanitary pneumatic or manual handle buttrfly valve,which is widely used in the stainless steel pipeline system to control and regulate medium flow.
Work Principle:
● This kind of valve can be handled both by manual or an electric actuator,and also can be handled by a pneumatic actuator.
● The actuator converts the steering motion of a piston into a 90 degree rotation of the valve shaftso the valve can be open or close to achieve the requirement of control and open/close for the pipeline system.
● They have three types of actuator: Normal open(NO) ,Normal closed(NC), air/air(AVA).
● Multi Position handle regulates the valve by 15° in its open or close 12 seats, and achieve control or medium flow purpose.
● The Pull handle regulates the valve through three multi -function positioning, in its open or close three positions,and also achieves control of medium flow purpose.
● The actuator converts the steering motion of a piston into a 90 degree rotation of the valve shaftso the valve can be open or close to achieve the requirement of control and open/close for the pipeline system.
● They have three types of actuator: Normal open(NO) ,Normal closed(NC), air/air(AVA).
● Multi Position handle regulates the valve by 15° in its open or close 12 seats, and achieve control or medium flow purpose.
● The Pull handle regulates the valve through three multi -function positioning, in its open or close three positions,and also achieves control of medium flow purpose.
Design Features:
● Valve body can be replaced in any connections, and the length will not change.
● Connection: clamp, weld, thread, flange
● Material for the part contacted with media is 304/316L, other parts are 304. Sealing material: EPDM, VMQ FPM
● Pressure of work: 0~ 10bar control air pressure: 5~8bar
● Working temperature: EPDM (-40~+ 120°C). VMQ(-40~+ 130°C)、FPM (~40~+180°C )
● Size: 3/4"-4"/DIN-100
● Standard: 3A, DIN, SMS, IDF, ISO
● Connection: clamp, weld, thread, flange
● Material for the part contacted with media is 304/316L, other parts are 304. Sealing material: EPDM, VMQ FPM
● Pressure of work: 0~ 10bar control air pressure: 5~8bar
● Working temperature: EPDM (-40~+ 120°C). VMQ(-40~+ 130°C)、FPM (~40~+180°C )
● Size: 3/4"-4"/DIN-100
● Standard: 3A, DIN, SMS, IDF, ISO
Applicable Scene
Company Profile
Certifications
Shipping&Packing
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer.
Q:The Industries We Serve?
A:We hope to make business with companies from all over the world. And for now, our products have been exported to especially in Europe, Russia, America, Australia,Peru,South Asia,Middle East and so on.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: How about the packing?
A: Normally, we have carton for packaging then packing the cartons in the plywood case.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q:Can you do OEM?
A: Yes
Q:How can you guarantee the quality of products?
A:First of all, We have the numerical control device to manufacture products accurately. Then our quality inspectors will test products one by one to make sure every product or fitting we sell is qualified.
Q:What is your price level?
A:Quick return and small profit. Never make price reduction at the reputation of quality.
A: We are manufacturer.
Q:The Industries We Serve?
A:We hope to make business with companies from all over the world. And for now, our products have been exported to especially in Europe, Russia, America, Australia,Peru,South Asia,Middle East and so on.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: How about the packing?
A: Normally, we have carton for packaging then packing the cartons in the plywood case.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q:Can you do OEM?
A: Yes
Q:How can you guarantee the quality of products?
A:First of all, We have the numerical control device to manufacture products accurately. Then our quality inspectors will test products one by one to make sure every product or fitting we sell is qualified.
Q:What is your price level?
A:Quick return and small profit. Never make price reduction at the reputation of quality.
