Products Description

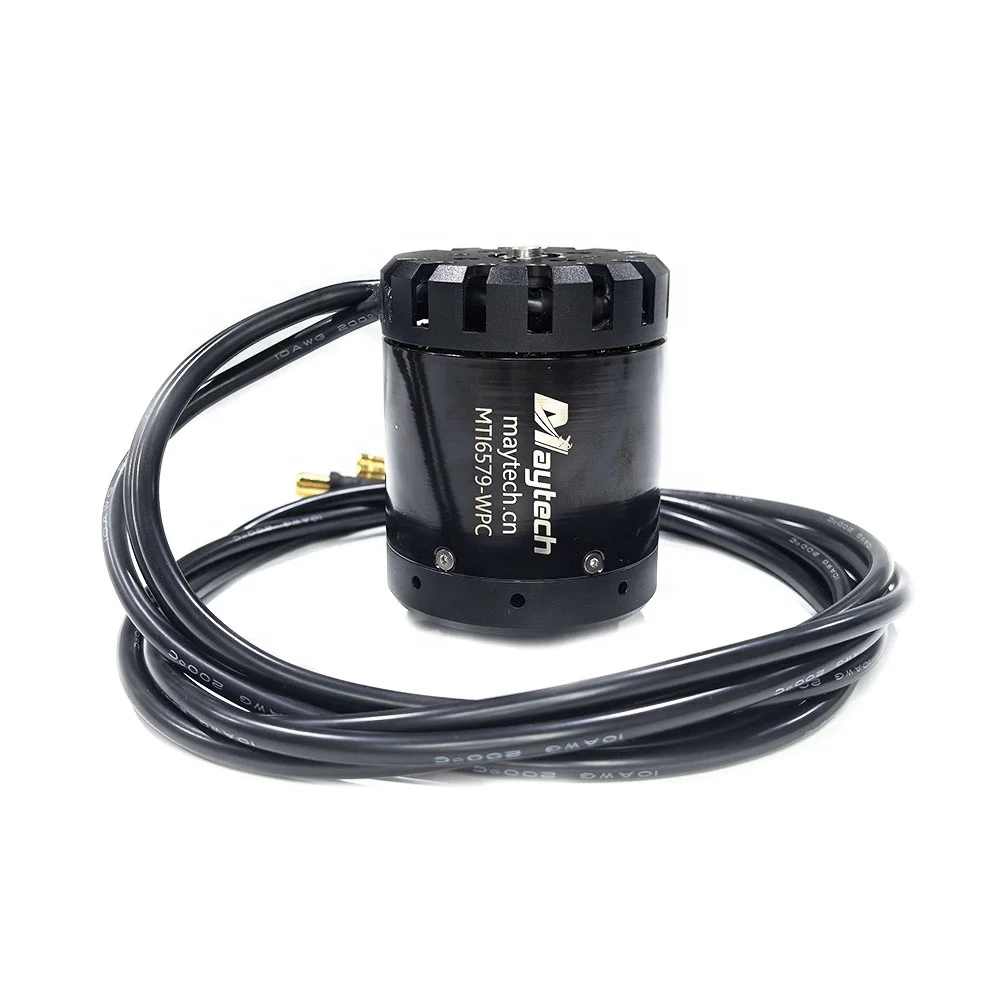

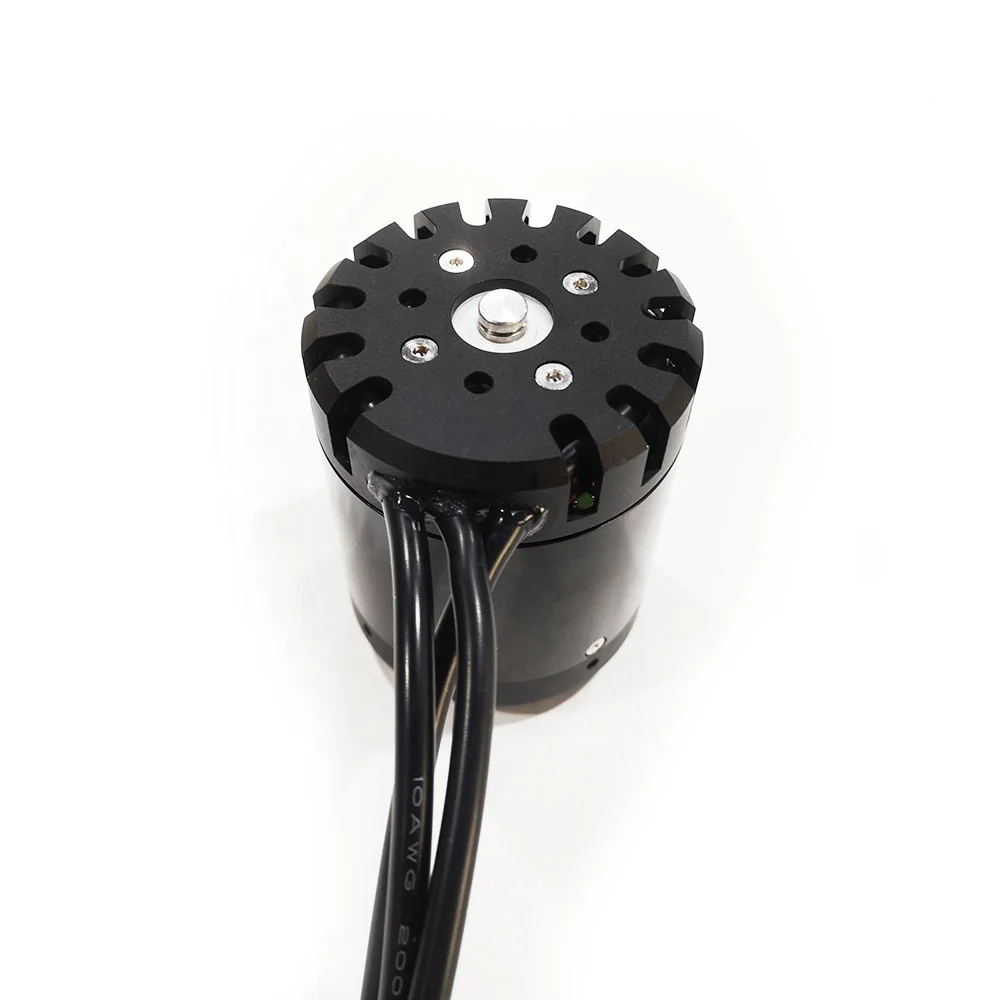

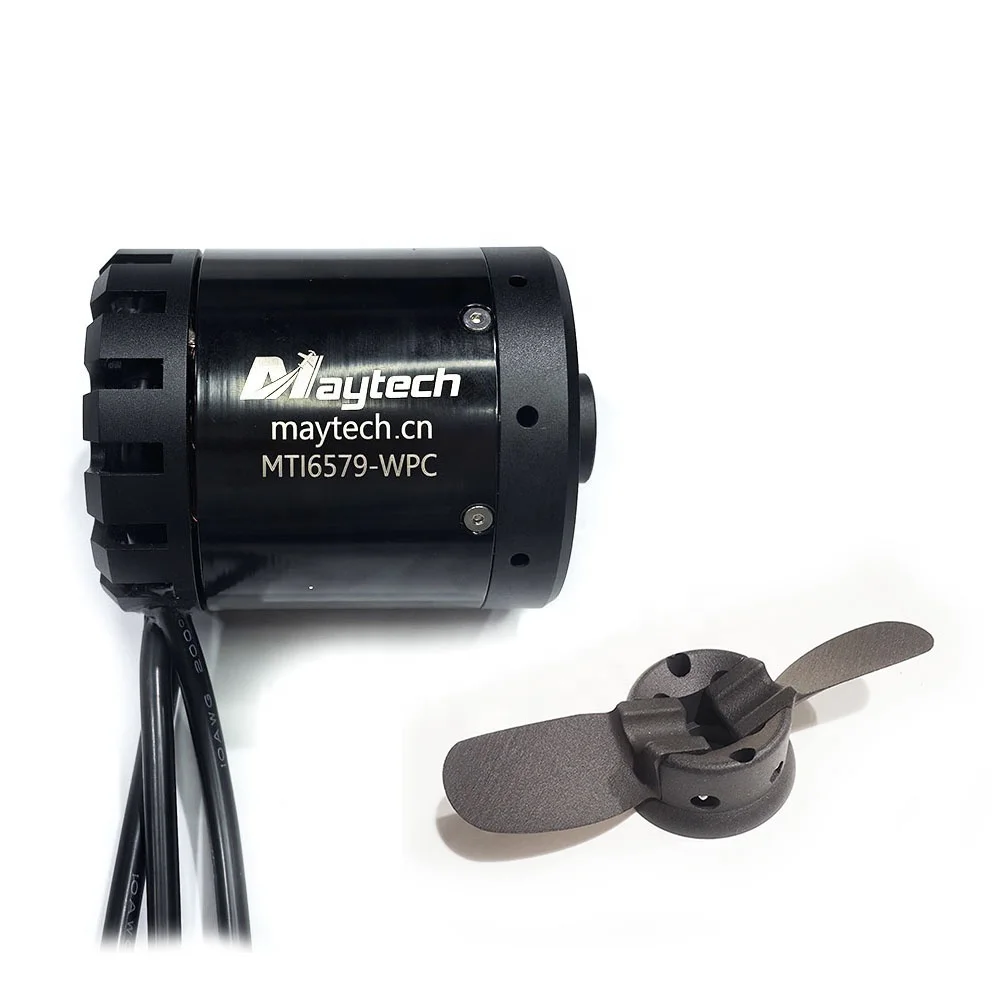

Maytech 6579 110KV Efoil Waterproof Motor with Plastic Propeller Max 30Kg Thrust for Esurf Kayak SUP Assist
Specifications:
MTO6579-110-WPC 6579 Outrunner Motor Waterproof Rating: IP68 Fully Waterproof (can be immersed in water)
Motor KV: 110 (RPM/V) KV can be customized.
Shaft: No output shaft
Max. Current: 150A
Input Volt: 20-90V
Max. Output Watt: 7.5KW
Max Torque 6.1N.M

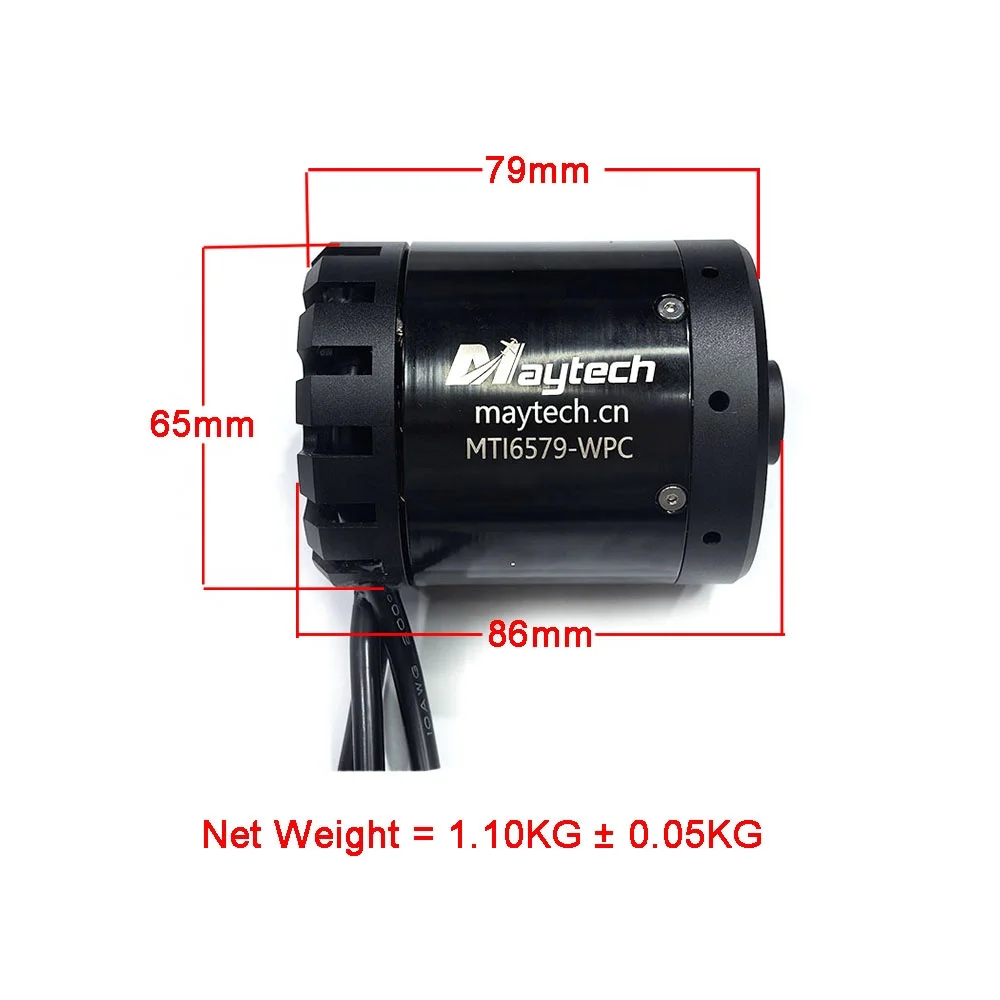

Motor size: 65x79 mm (please subject to drawing)
Motor next weight: about 1.1kg
Motor structure: 24N/20P
Bearing: Ceramic bearings
Wire length: about 1meter
Cable Guage: 3x 10AWG
Connector: 3x 8.0mm golden connectors
Without Hall Sensor

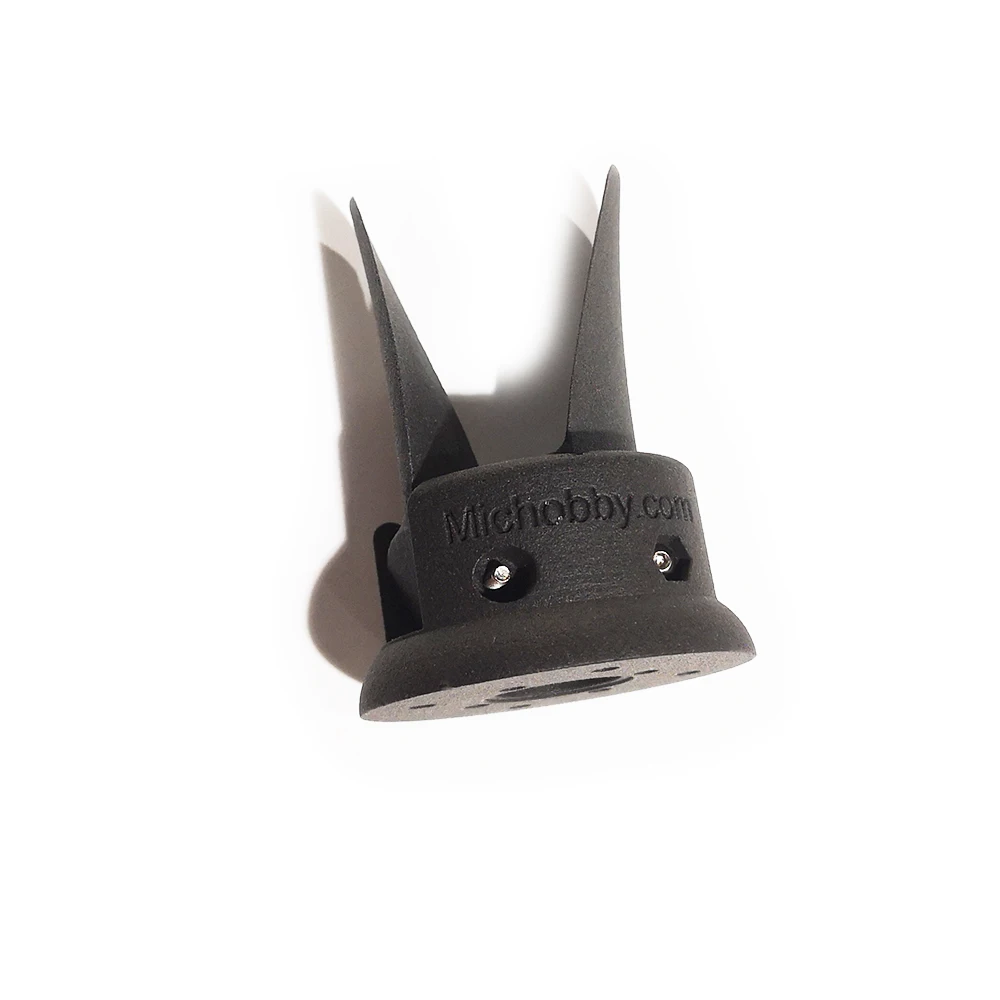

MICHOBBY MICP27F 3D Printed Plastic (nylon) folding propeller
Propeller Model: MICP27F (unassembled)
Material: Nylon Powder
Color: Black
Mounting Holes: 8xM4
Max Rotation Diameter: 165mm/6.5'' (Approx.)
Height: 32mm/1.25'' (Approx.)
Material: Nylon Powder
Color: Black
Mounting Holes: 8xM4
Max Rotation Diameter: 165mm/6.5'' (Approx.)
Height: 32mm/1.25'' (Approx.)
Application: For Wing foil, wind surf foil, sup foil board, electric foil board, kite foil board, underwater thruster, underwater
robot, ROV, Electric Kayaks, etc.
robot, ROV, Electric Kayaks, etc.
Waterproof Treatment:
The stator and rotor are waterproofed, the slots are coated with epoxy resin, and the copper wire is coated with epoxy resin in addition to the waterproof insulation layer.
Test datas with different propellers for your reference:
