30TPH Small Mobile Hot Mix Asphalt Plant
Product Description
SUMMARY

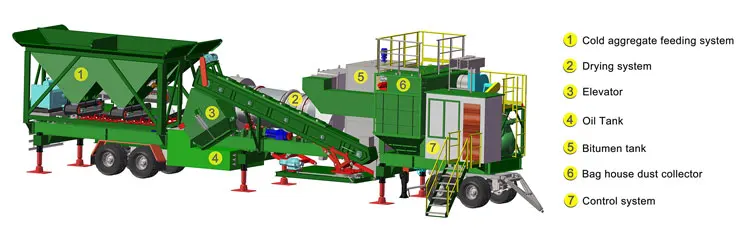

- “one-trailer-mounted ” continuous asphalt mixing plant is optimized and redesigned based on our stationary continuous asphalt mixing station
and semi-mobile continuous asphalt mixing station.

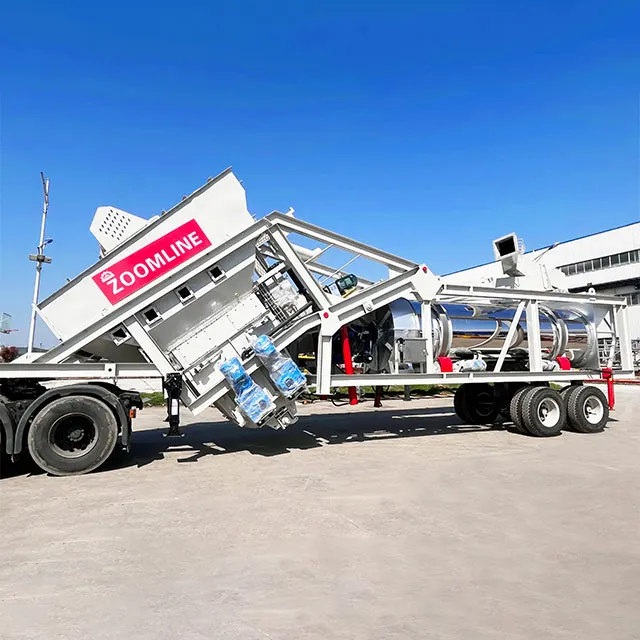

- “one-trailer-mounted ” continuous asphalt mixing plant realizes the high integration of asphalt plant, and one transport trailer can realize
all the functional requirements of the asphalt mixing station (filling, drying, mixing, storage of finished products, operation),
which meets the user's requirements for fast installation, fast transition, and rapid production.
- Up to now, our “one-trailer-mounted ” continuous asphalt mixing plant” has been exported to Europe, Africa, North America etc.
The convenience of fast transportation, transfer, and rapid recommissioning greatly saves the costs and improves the construction efficiency.
Continuous Drum Mix Asphalt Plant is very different with batch asphalt mixing plant. It produce the asphalt mixture in the drum which also dry the aggregate continuously.
• The structure is simple and modular design, easily transport and installation
• The investment of plant is lower than batch mixing plant
• Cocurrent flow drying drum design, drying efficiency is high, save energy
• Scraper type elevator delivery asphalt mixture cleaning and smoothly
• Multi-function burner
• Fully automatic control
| One-trail-pulled continuous asphalt plant main parameters | ||||||
| Model | ZAP-C20M | ZAP-C40M | ZAP-C60M | ZAP-C80M | ZAP-C120M | Note |
| Rated output(T/H | 20 | 40 | 60 | 80 | 120 | 5% water content, standard condition |
Oil consumption(tons/hour) (Less than or equal) | 7 | 7 | 7 | 7 | 7 | light oil/heavy oil/fuel gas |
| Total power(KW) | 50 | 69 | 110 | 150 | 210 | Standard configuration |
| Dimension(L×W×H)m | 15.5×3.1×4.48 | 17.9×3.1×4.48 | 21×3.1×4.48 | 21×3.1×4.48 | 21.5×3.1×4.48 | |
| Amount of axles | 2 | 2 | 2 | 2 | 3 | |
| Volume of cold feed bins | 4.5m³ | 2×4.5m³ | 3×4.5m³ | 3×4.5m³ | 4×4.5m³ | Optional |
| Size of drum(Diameter×Length) | ∅1.2m×3.8m | ∅1.2m×5.3m | ∅1.5m×7m | ∅1.5m×8m | ∅1.8m×8.5m | |
| Driving power of drum(Kw) | 11 | 15 | 22 | 22 | 7.5×4 | |
| Type of dust collector | Bag house filter | Other types are also optional | ||||
| Filter area | 115m² | 150m² | 210m² | 260m² | 340m² | |
| Power of induced draft fan(Kw) | 11 | 18.5 | 30 | 30 | 55 | |
| Volume of finished product silo(m³) | 1 | 1 | 1.5 | 1.5 | 2 | |
| Operation methods | Manual/Automatic | |||||
| Type of mixing | Continuous type | |||||
| Bitumen heating way | electrical heating,thermal conductin oil heating, direct heating | Optional | ||||
| Measurment of bitumen | flow measurement | |||||
| Temperature of finished asphalt(℃) | 130℃~160℃ | |||||
Company Information
Henan ZOOMLINE Machinery CO., Ltd is a professional supplier of asphalt mixing plant and support equipments that draws on years' experiences and technology developments.
Our main asphalt mixing plants include:
Stationary asphalt mixing plant(ZAP-S series)
Mobile asphalt mixing plant(ZAP-M series)
Continuous asphalt mixing plant(ZAP-C series)
Certifications
Nowadays, our asphalt plant products have been sold to Russia, Cambodia, Bangladesh, Egypt, Pakistan, Georgia, Indonesia, Belgium and Thailand etc. Our asphalt mixing plants have got CE,ISO,EAC certificate and we hold 18 patents which own to the concerted efforts of our employees.
Customers visit us

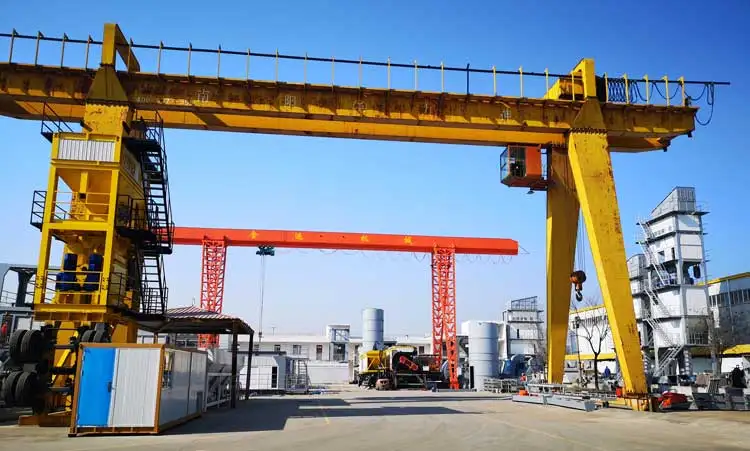

Welcome to our factory to visit asphalt batch mixing plant.

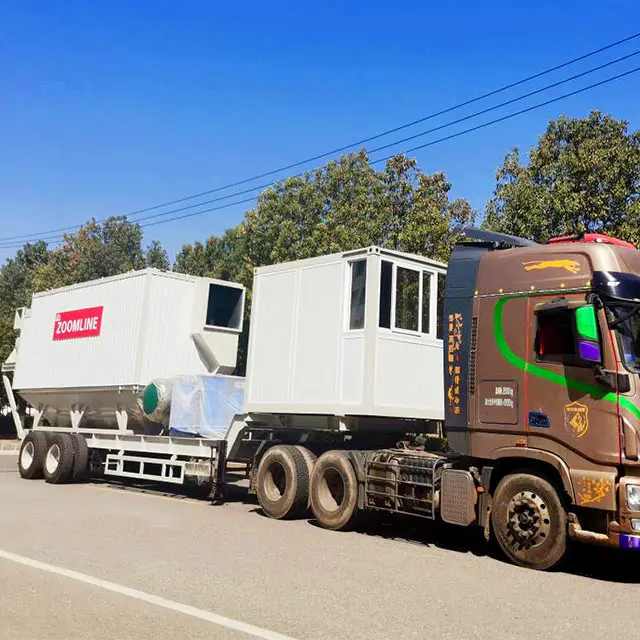

Packaging & Shipping

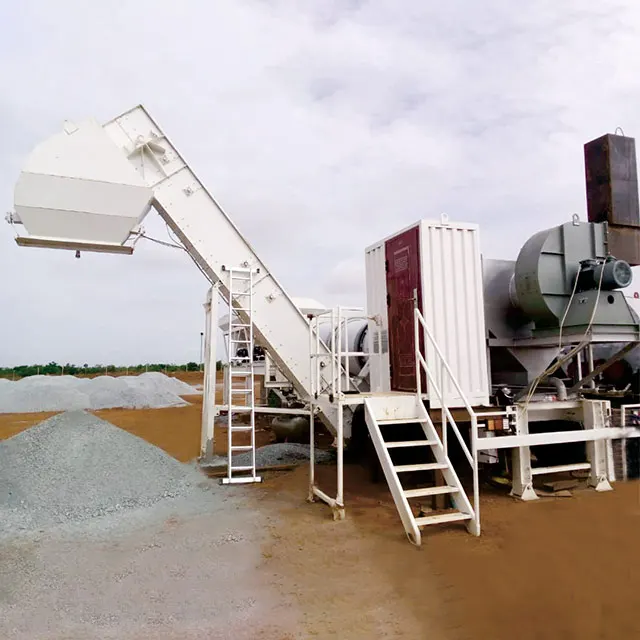

Asphalt plant case
Since ZOOMLINE start-up, we have become one of the most reliable partners of construction projects at home thorough ongoing technical investment. Our asphalt mixing plant have been used in highways, high-grade highways, urban roads and airport construction and got high reputation for their excellent performance. Nowadays, our asphalt plant products have been sold to Russia, Cambodia, Bangladesh, Egypt, Uzbekistan, Kyrgyzstan, Pakistan, Georgia, Indonesia, Belgium and Thailand etc.
After-Sales Service
Our professional after-sales services team could provide timely and reliable service for any of our customers who need support.
1. Professional technical team, to provide users with equipment selection, layout program design, construction programs and other consultation services.
2. Technical guidance during equipment operation, PLC with remote monitoring, large capacity recipe storage,special needs customization.
3. Equipment installation, commissioning, training technical support. Provide a full range of technical training on operation, maintenance for users and equipment manager, to provide multiple technical advice.
4. The equipment upgrades, relocation technical support in the future. To provide seamless equipment technology upgrades,perfect and efficient removal plan.
FAQ
Q1
What payment terms are available for ZOOMLINE company?
T/T (Telegraphic Transfer), L/C(Letter of credit), BG (bank guarantee), D/P(Documents against Payment), D/A((Documents against Acceptance), Western Union and other.
Q2
How long of the delivery time?
Usually 40-80T plant needs 25-30 working days, 120-200T plant needs 35-45 working days.
Q3
How long is needed for installation working of one set asphalt mixing plant ?
20-30 working days for batch asphalt mixing plant, and 10-20 working days for continuous(drum) asphalt mixing plant.
Q4
How many person are needed for the operation of whole asphalt mixing plant ?
Six persons
Q5
What’s your asphalt mixing plant model means ?
For example ZAP-S160: “ZAP” means ZOOMLINE Asphalt Plant, “S” means Stationary, “160” means the capacity of asphalt plant is 160TPH. “ZAP-S160” model mean ZOOMLINE stationary asphalt mixing plant with capacity of 160TPH.
While “ZAP-M120” model mean ZOOMLINE mobile asphalt mixing plant with capacity of 120TPH.
Q6
How long is the service life of your asphalt mixing plant ?
Normally, the service life of our batch asphalt mixing plant is over 15 years, and it of our continuous (drum) asphalt mixing plant is over 10 years.
Q7
How about the quality guarantee period of your asphalt mixing plant ?
The guarantee period of our asphalt mixing plan is 15 months, we will bear the quality issue of all parts except wearing parts in guarantee period.
Q8
How about the spare parts supply of your company?
We will provide some wearing parts along with whole asphalt mixing plant to user freely, and user can purchase more wearing parts along with whole asphalt mixing plant. We will keep the spare parts supply to user in the whole service life of asphalt mixing plant.
Q9
How about the after sales service of your company?
We will send professional technical staff to user’s project working site to guide installing work, and commissioning the plant and training the operators of the buyer. And ZOOMLINE provide the technical support service to user’s within the whole service life of asphalt mixing plant.
Q10
How can I receive remote support for my asphalt plant?
To receive remote assistance your plant must be fitted with a support module and the connection must be ensured by cable or GSM.
