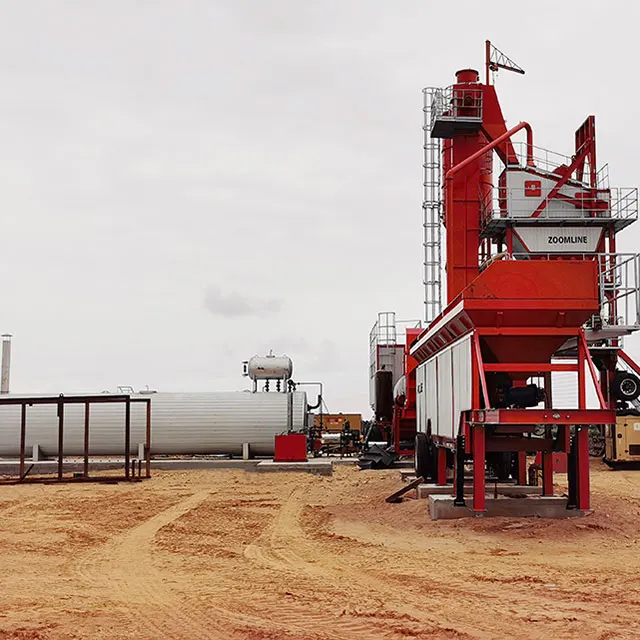

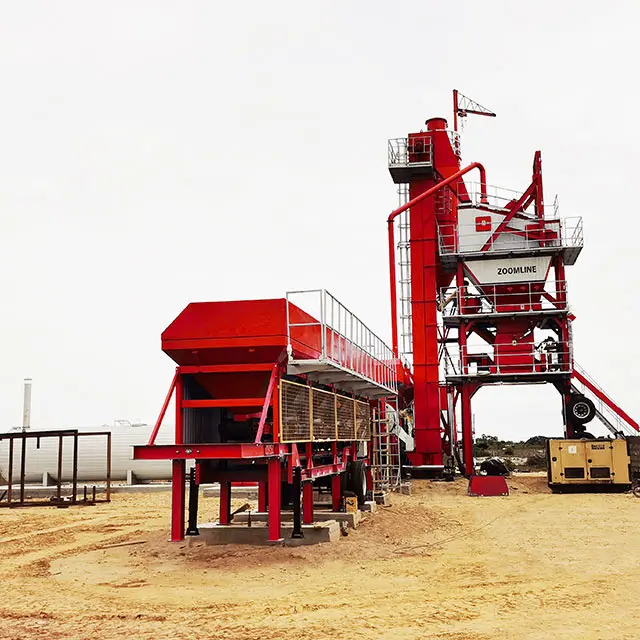

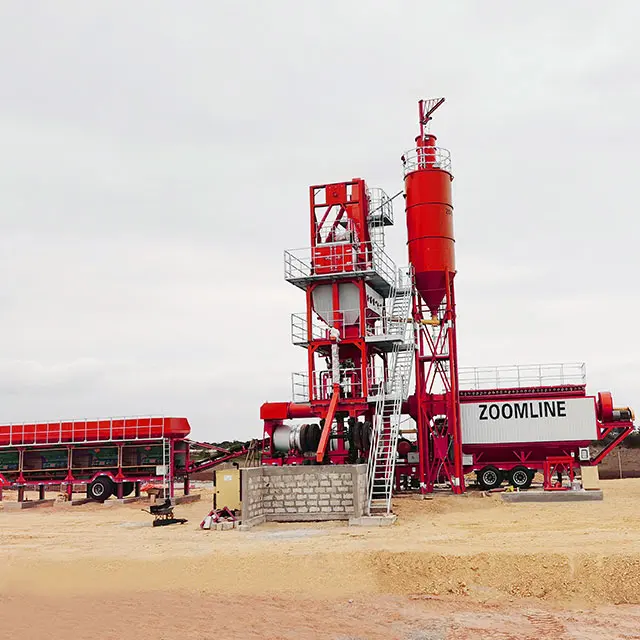

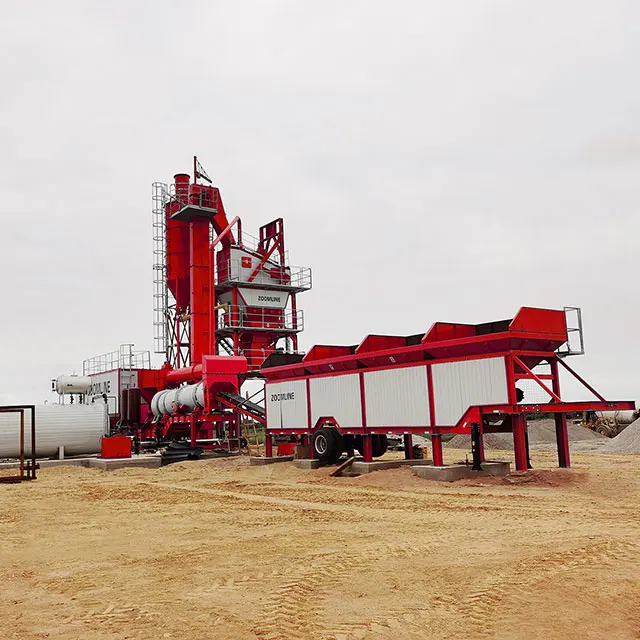

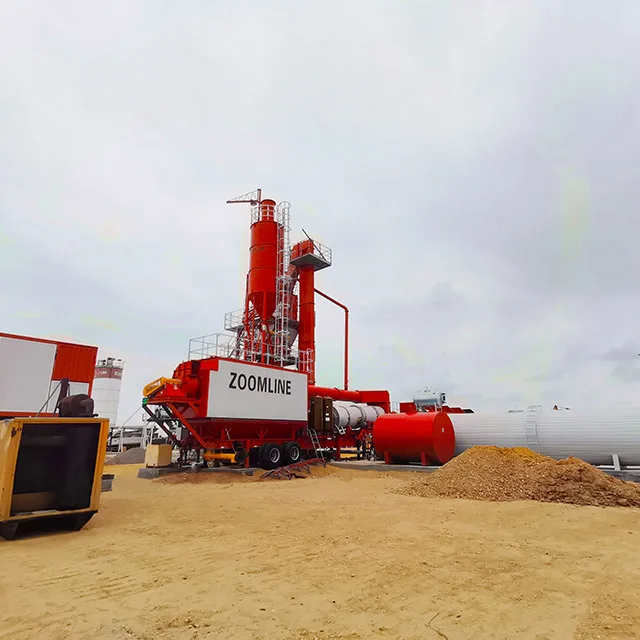

60-160TPH Mobile Asphalt Plant with Factory Price
Product Description
Mobility, efficiency, easily transportable mobile/portable batch asphalt mixing plant
ZAP-M models mobile/portable wheeled batch asphalt mixing plant are available from 60TPH to 160TPH.
Features of hot mix equipment 80-160TPH hot mix mobile asphalt plant:
1. Modular design, convenient and fast to move and install.
2. Screening, hot storage, weighting are on one folding frame, can realize main tower one truck to trail.
3. Few transport vehicle, installation foundation need no special handle.
4. Compact design, cover very small area.
5. Accurate screening, weighting, batch mix can guarantee high quality.
6. International classic quality control system, has long distance fault detect and maintain function.
7. Each integration trailer is designed with distributed power distribution cabinet; all the connecting cables are connected before delivery, more convenient and safe.
Technical Parameter
Technical parameters of 60-160t/h mobile hot mix asphalt plant
| Items | ZAP-M60 | ZAP-M80 | ZAP-M100 | ZAP-M120 | ZAP-M160 |
| Plant Capacity | 60t/h | 80t/h | 100t/h | 120t/h | 160t/h |
| Cold Aggregate Feeding System | |||||
| Hopper capacity | 4 x 4.5m3 | 4 x 6.5m3 | 4 x 6.5m3 | 4 x 6.5m3 | 5 x8m3 |
| Belt capacity | 80t/h | 100t/h | 120t/h | 140t/h | 180t/h |
| Drying System | |||||
| Drying drum size | 1500x6000mm | 1500x6600mm | 1500x6600mm | 1800x8000mm | 1900x9000mm |
| Drying capacity | 60-80t/h | 80-100t/h | 100-120t/h | 120-140t/h | 160-180t/h |
| Burner (oil) | 60-400kg/h | 60-600kg/h | 100-1000kg/h | 100-1000kg/h | 140-1400kg/h |
| Fuel consumption (oil) | 6-7kg/t | 6-7kg/t | 6-7kg/t | 6-7kg/t | 6-7kg/t |
| Mixing Tower | |||||
| Screen | 4 layers | 4 layers | 4 layers | 4 layers | 4/5 layers |
| Aggregate weighing | 3x800kg | 3x1000kg | 3x1500kg | 3x1500kg | 3x2000kg |
| Bitumen weighing | 3x80kg | 3x100kg | 3x200kg | 3x200kg | 3x200kg |
| Filler weighing | 3x100kg | 3x100kg | 3x200kg | 3x200kg | 3x200kg |
| Mixer capacity | 800kg | 1000kg | 1300kg | 1500kg | 2000kg |
| Mixing cycle | 45s | 45s | 45s | 45s | 45s |
| Dust Collecting System | |||||
| Bag house filtering | 300m2 | 380m2 | 400m2 | 500m2 | 550m2 |
| Exhaust Fan power | 30kw | 45kw | 55kw | 2x45kw | 2x55kw |
| Asphalt Temperature | 140-180 ℃ | 140-180 ℃ | 140-180 ℃ | 140-180 ℃ | 140-180 ℃ |
| Finished Asphalt Silo (Optional) | 15 ton | 30 ton | 30 ton | 30 ton | 60 ton |
| Total Power | ≈185kw | ≈270kw | ≈300kw | ≈390kw | ≈500kw |
Main Features

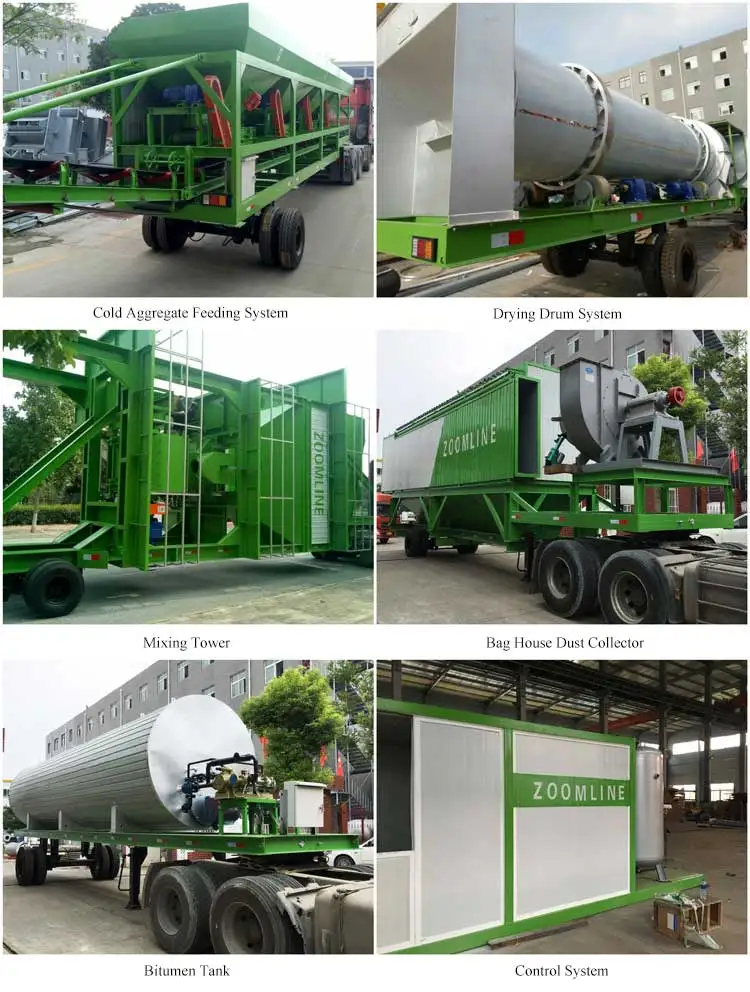

Basic Configuration
1.Cold aggregate supply mobile modular (include elevator)
2.Inclined belt feeder
3.Dry drum moving module(include oil burning system)
4.Hot aggregate elevator(put in cold supply modular during transportation)
5.Dust moving module(include leve one dust collector and draught fan chimney)
6.Mix tower mobile module
7.Filter supply mobile module(include filter elevator)
8.Bitumen supply mobile module(include thermal oil furnace system)
9.Set aside type finished product bin (optional)
10.Air circuit system
11. Electrical control system
Company Information
| ZOOMLINE Machinery Company Profile |
Based in Nanyang Longsheng Industrial Park of Henan, ZOOMLINE Machinery is a professional manufacturer of asphalt mixing plant,coal burner,oil burner,gas burner and support equipments that draws on years' experiences and technology developments.
Our main asphalt mixing plants include:
Stationary Asphalt Mixing Plant 40-320TPH
Mobile Asphalt Mixing Plant 40-160TPH
Continuous asphalt mixing plant 20-160TPH
One trailer mounted asphalt plant 20-120TPH
Recycling asphalt mixing plant 60-120TPH
Asphalt Mixing Plant Burner: Coal burner, oil burner, gas burner
ZOOMLINE Machinery factory
ZOOMLINE Machinery working site
ZOOMLINE Machinery office
Our advantage
- 14 years of OEM experience.
- Professional services and expert opinions.
- Professional asphalt plant manufacture in China
- Direct factory, full quality control.
- CE,ISO and SGS Certificate ensure you of security.
- Custom orders are accepted, we also help customers to design what he wants.
- Quick response to your inquiries.
- After-sales service is available.
Our certificate
After almost 20 years of development, we have won many honors. This proves the role of our company in the industry and our attitude towards products and customers. This years, our equipment have got CE,EAC,EMC and ISO9001 certification and we hold 18 patents which own to the concerted efforts of our employees.

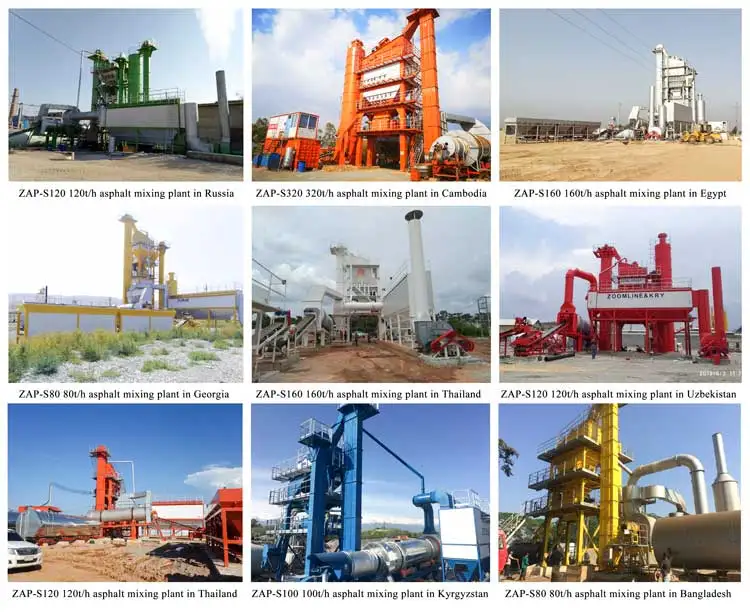

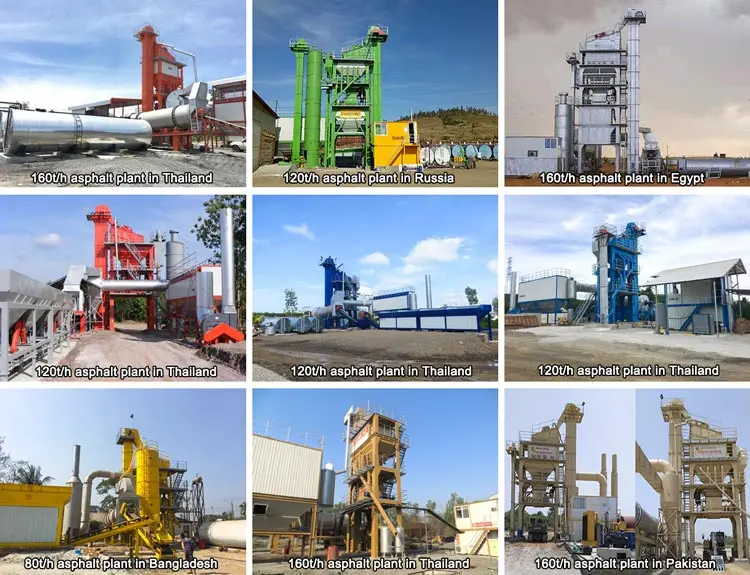

Projects
Our asphalt mixing plant have been used in highways, high-grade highways, urban roads and airport construction and got high reputation for their excellent performance.
FAQ
Q1
What payment terms are available for ZOOMLINE company?
T/T (Telegraphic Transfer), L/C(Letter of credit), BG (bank guarantee), D/P(Documents against Payment), D/A((Documents against Acceptance), Western Union and other.
Q2
How long of the delivery time?
Usually 40-80T plant needs 25-30 working days, 120-200T plant needs 35-45 working days.
Q3
How long is needed for installation working of one set asphalt mixing plant ?
20-30 working days for batch asphalt mixing plant, and 10-20 working days for continuous(drum) asphalt mixing plant.
Q4
How many person are needed for the operation of whole asphalt mixing plant ?
Six persons
Q5
What’s your asphalt mixing plant model means ?
For example ZAP-S160: “ZAP” means ZOOMLINE Asphalt Plant, “S” means Stationary, “160” means the capacity of asphalt plant is 160TPH. “ZAP-S160” model mean ZOOMLINE stationary asphalt mixing plant with capacity of 160TPH.
While “ZAP-M120” model mean ZOOMLINE mobile asphalt mixing plant with capacity of 120TPH.
Q6
How long is the service life of your asphalt mixing plant ?
Normally, the service life of our batch asphalt mixing plant is over 15 years, and it of our continuous (drum) asphalt mixing plant is over 10 years.
Q7
How about the quality guarantee period of your asphalt mixing plant ?
The guarantee period of our asphalt mixing plan is 15 months, we will bear the quality issue of all parts except wearing parts in guarantee period.
Q8
How about the spare parts supply of your company?
We will provide some wearing parts along with whole asphalt mixing plant to user freely, and user can purchase more wearing parts along with whole asphalt mixing plant. We will keep the spare parts supply to user in the whole service life of asphalt mixing plant.
Q9
How about the after sales service of your company?
We will send professional technical staff to user’s project working site to guide installing work, and commissioning the plant and training the operators of the buyer. And ZOOMLINE provide the technical support service to user’s within the whole service life of asphalt mixing plant.
Q10
How can I receive remote support for my asphalt plant?
To receive remote assistance your plant must be fitted with a support module and the connection must be ensured by cable or GSM.
