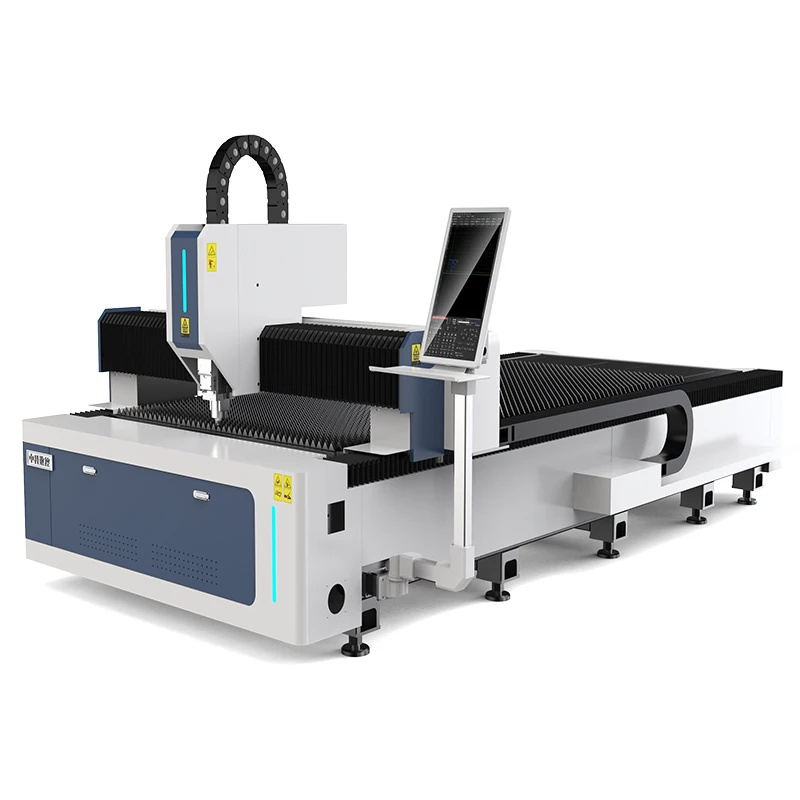

Prima Power Genius Laser Cutting Machine 4020
$13,550.00-15,800.00

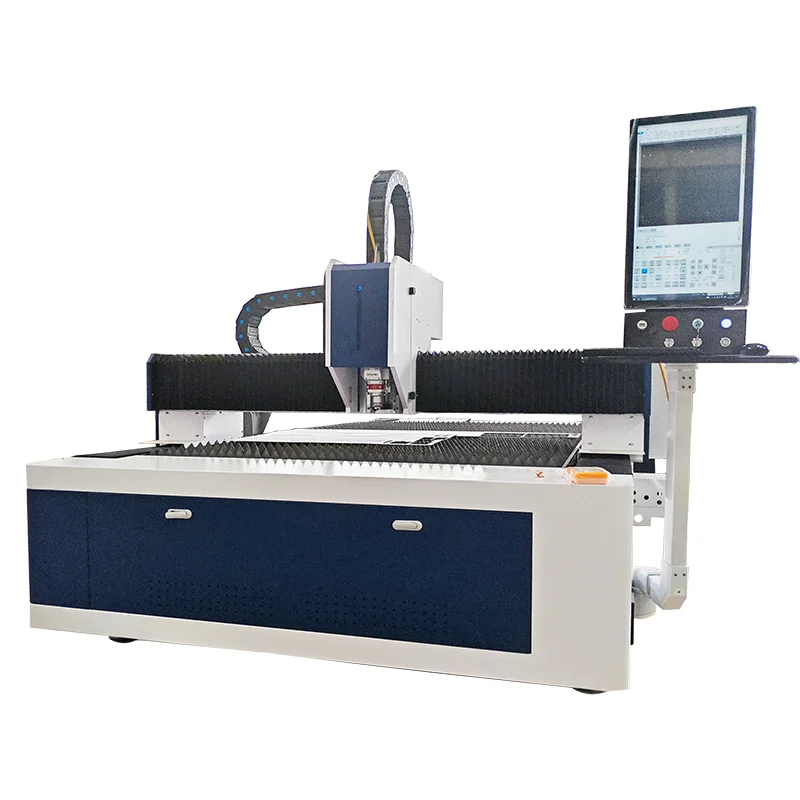

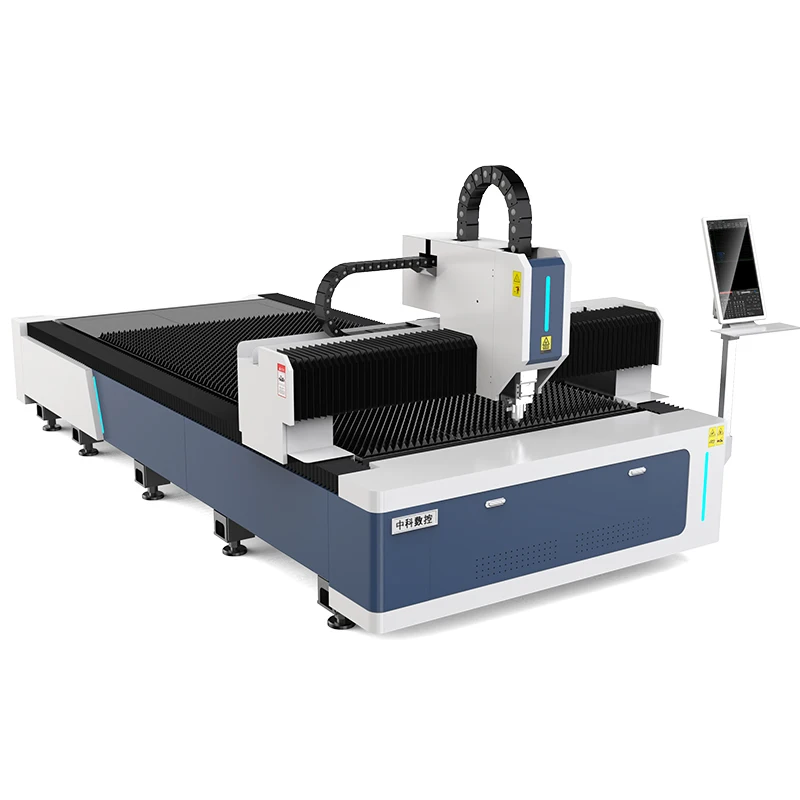

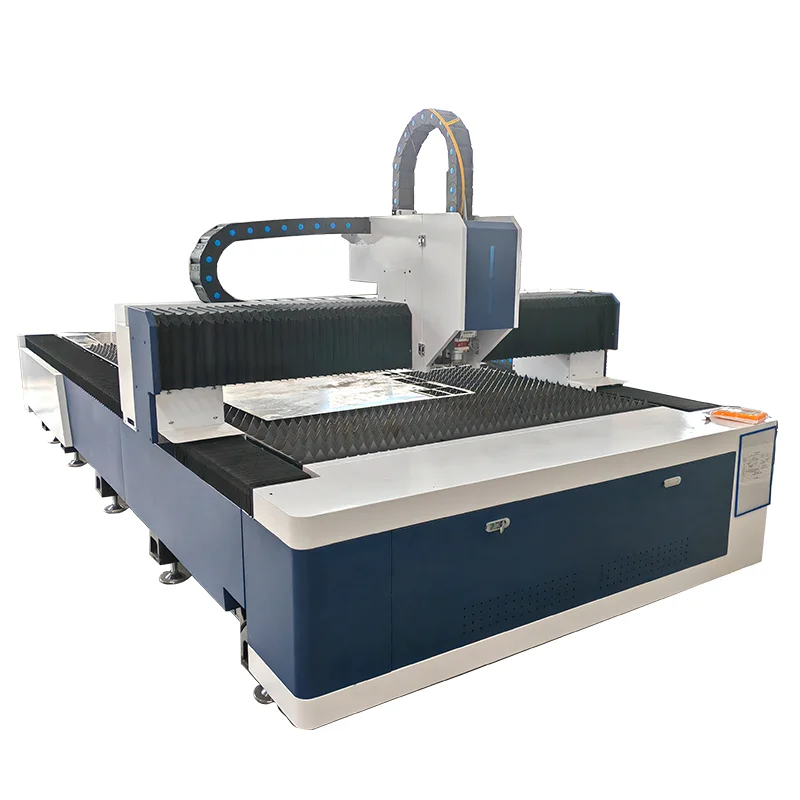

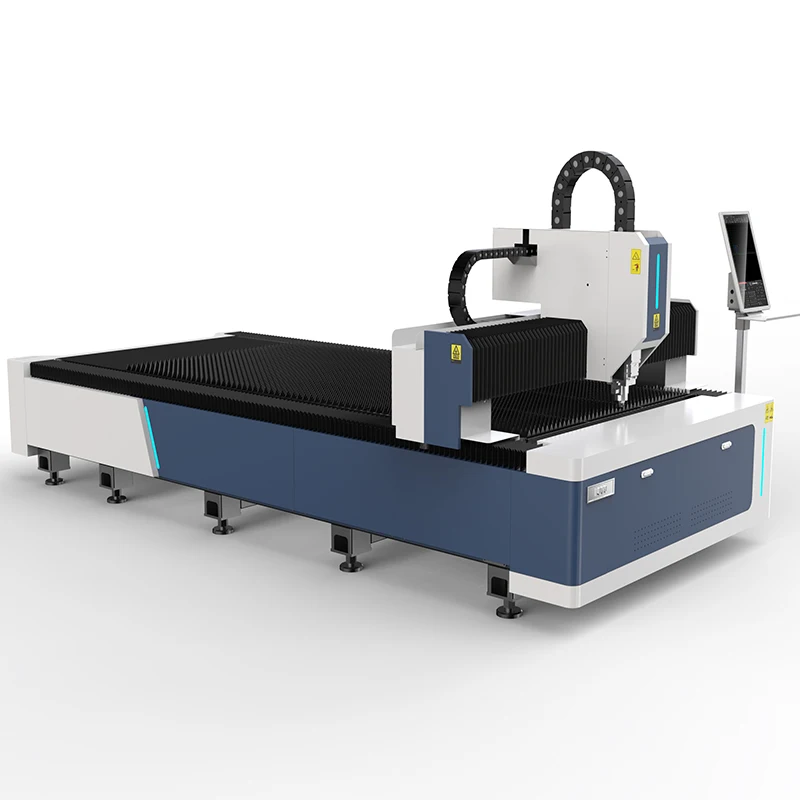

Fiber laser cutting machine with 1500W 2000W 3000W
- Category: >>>
- Supplier: Jinan Zhongke Cnc Equipment Co. Ltd.
Share on (1601244594064):
Product Overview
Description
Product Description
1. The optical fiber laser cutting speed is fast, the operation and maintenance cost is low, and the operation is simple and easy to learn.
2. The machine adopts the moving gantry structure, gear rack and linear guide rail, with stable transmission and high accuracy.
3. The machine tool and cross beam can keep high strength, high precision and deformation free through high temperature and precision gantry milling.
4. Imported servo motors are used for x, y and z axes, with high precision, high speed, large torque, large inertia, stable and durable performance. It ensures the high speed and acceleration of the whole machine.
5. The special CNC system of Shanghai bochu optical fiber laser cutting machine based on Windows operating system is adopted, which integrates the special function module of laser cutting control, with powerful functions, good man-machine interface and simple operation.
Bed structure
The bed adopts the national brand Q235 as the welding master plate, and the special specification measuring tool, so that the overall blanking accuracy of the bed is less than or equal to 1mm
The bed shall be placed in the natural environment for aging treatment for 3 months to remove the internal stress of the bed, so as to ensure that the equipment will not be deformed in long-term use and ensure the accuracy
The bed shall be placed in the natural environment for aging treatment for 3 months to remove the internal stress of the bed, so as to ensure that the equipment will not be deformed in long-term use and ensure the accuracy
Control system
It can read ISG format files exported from solidworks, support one button calibration of square tube level, automatic positioning of luminous rotation center, support segmented piercing, progressive piercing, pre piercing, and allow processing of some pictures
Aluminum beam
The cast aluminum beam has an integrated structure, which is subject to complex heat treatment process to ensure the stability of the beam
laser head-Raytools
The laser head made of a new manufacturing process is strong in cutting, waterproof, dust-proof, scratch resistant and wear-resistant
Taiwan DELTA servo motor and driver
Good stability, positioning control, simple operation,

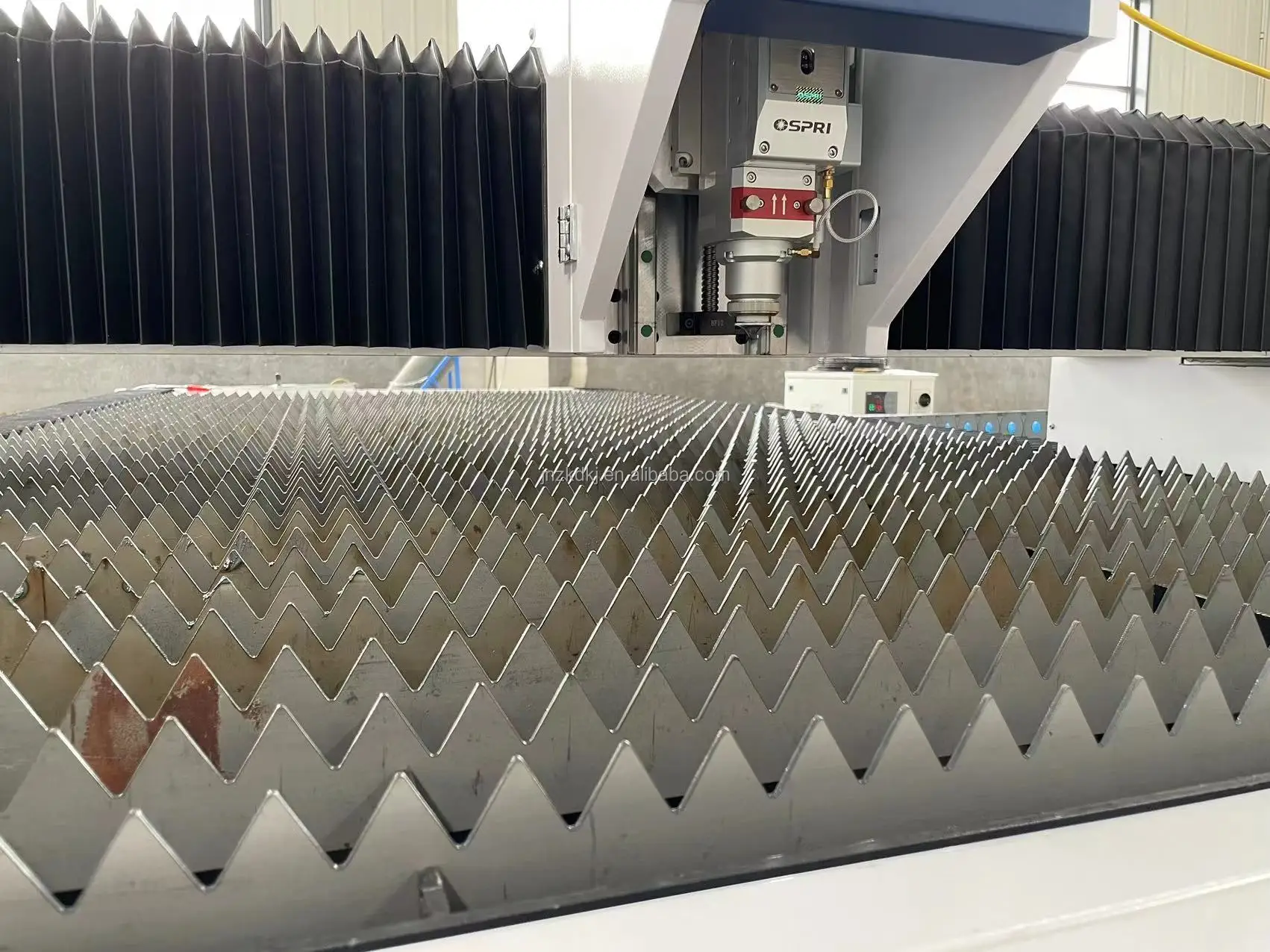

knife table , dust cover to protect the guide rails and racks

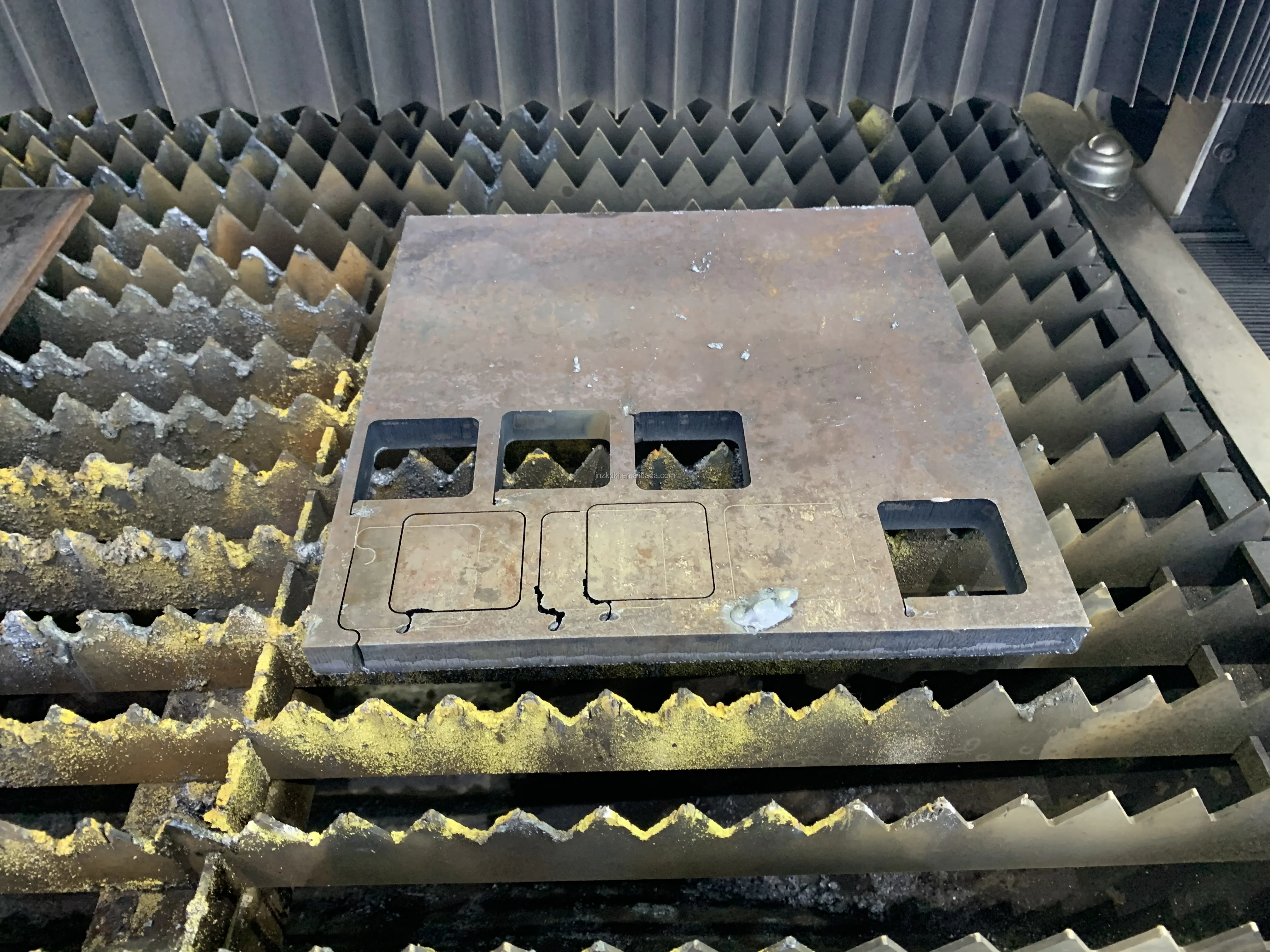

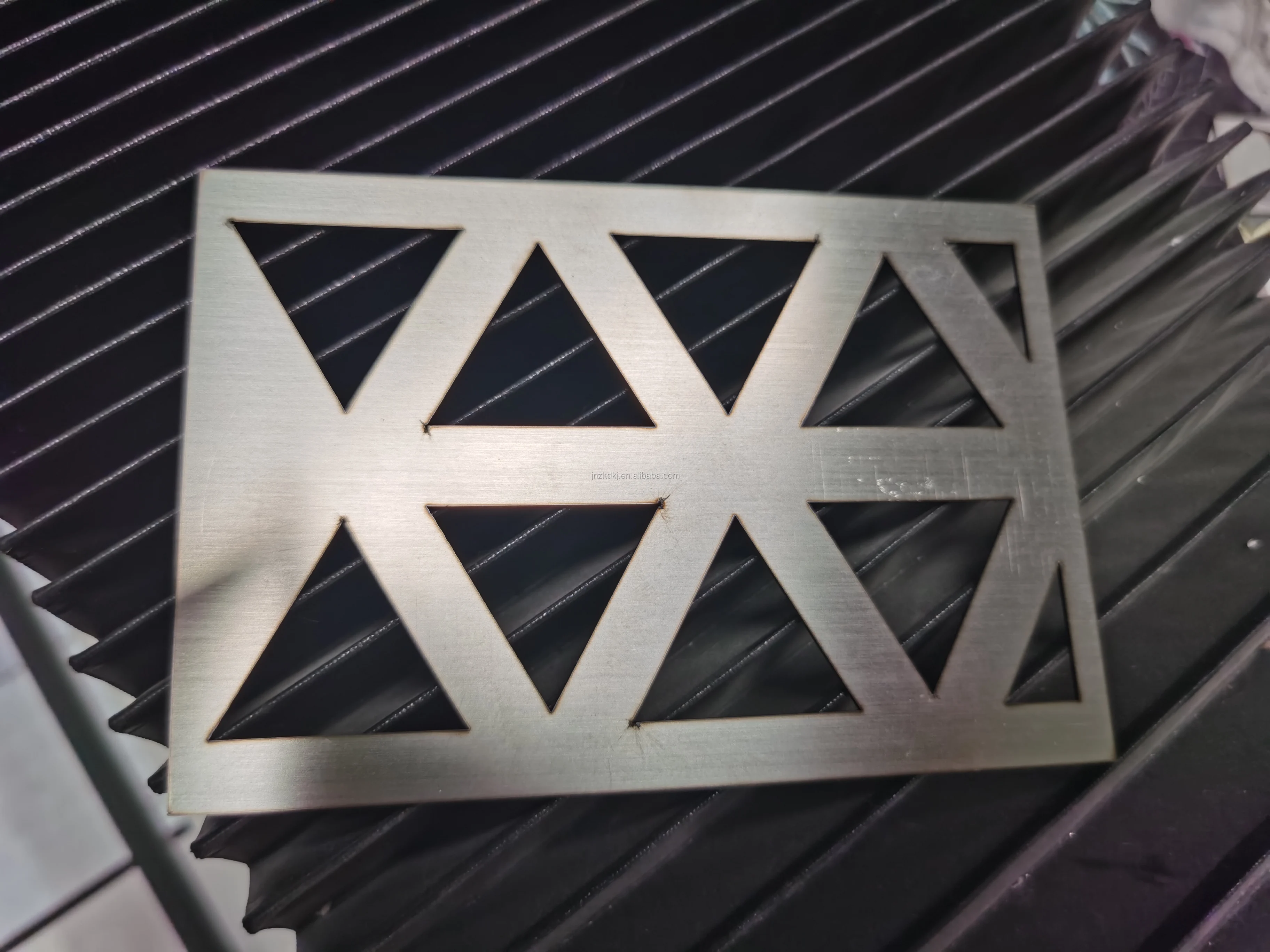

cutting iron sheet

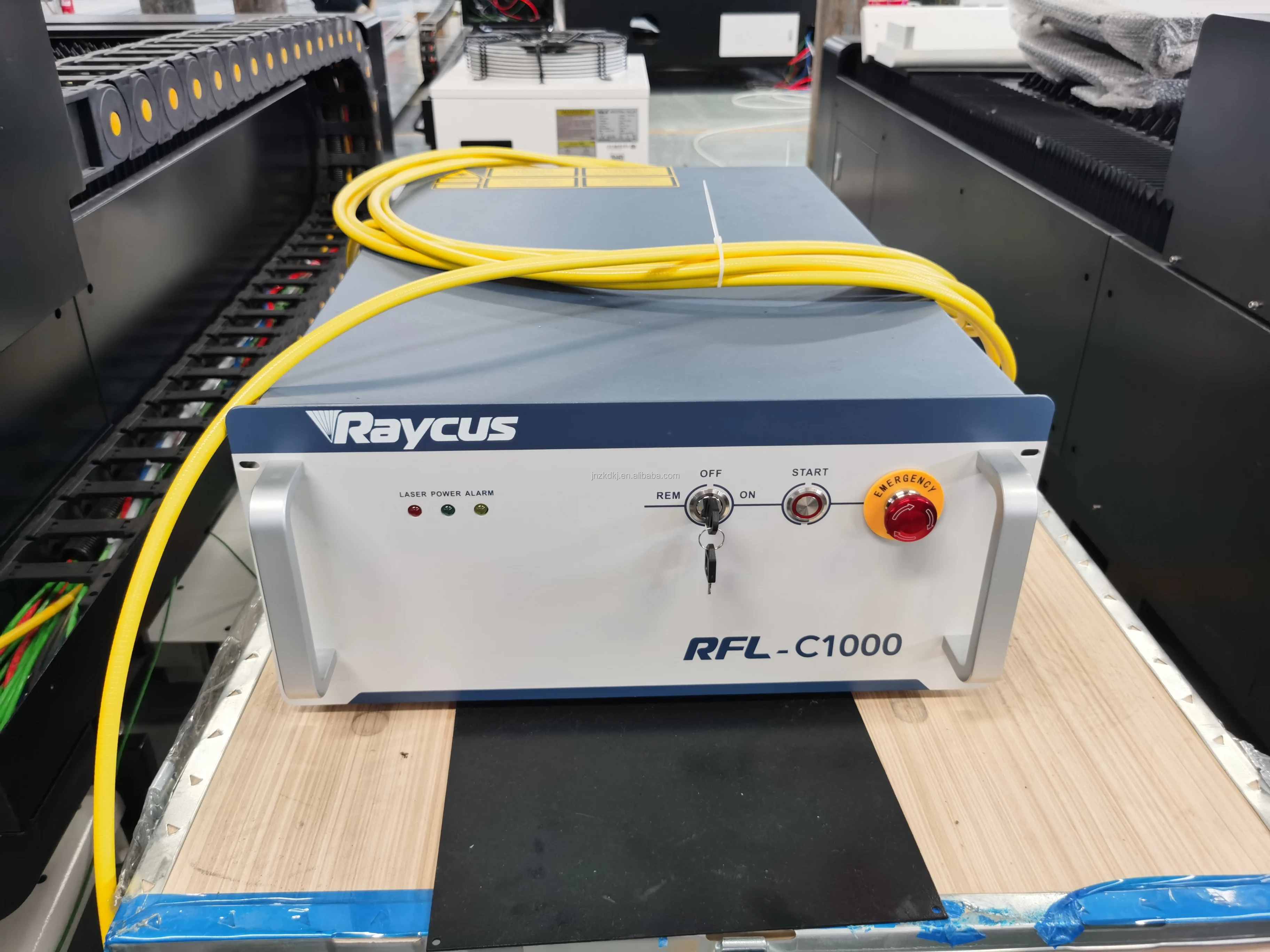

Raycus laser device
Specification
Machine model | ZK-1530F |
Applicable Material | Metal |
Cutting area | 1500*3000 mm*150mm |
Cutting Speed | 680mm/sec |
Graphic Format Supported | AI, Dwg, DXF, PLT, Dst |
Cooling Mode | WATER COOLING |
Laser Source Brand | MAX |
Weight (KG) | 1000KG |
Warranty | 1 Year |
Core Components | Pressure vessel, Motor, Bearing, Gear, PLC |
Laser power | 1000W / 2000W / 3000W |
Laser source | Raycus IPG NLIGHT Laser Source |
Control system | CYPCUT System |
Driving system | servo motor and driver |
Power supply | 380V/50HZ |
Transmission | YYC Helical Rack |
delivery time | 30 working days |
Voltage | 380V 3 phase 50HZ |
Packing & Delivery
exporting plywood package for laser cutting machine

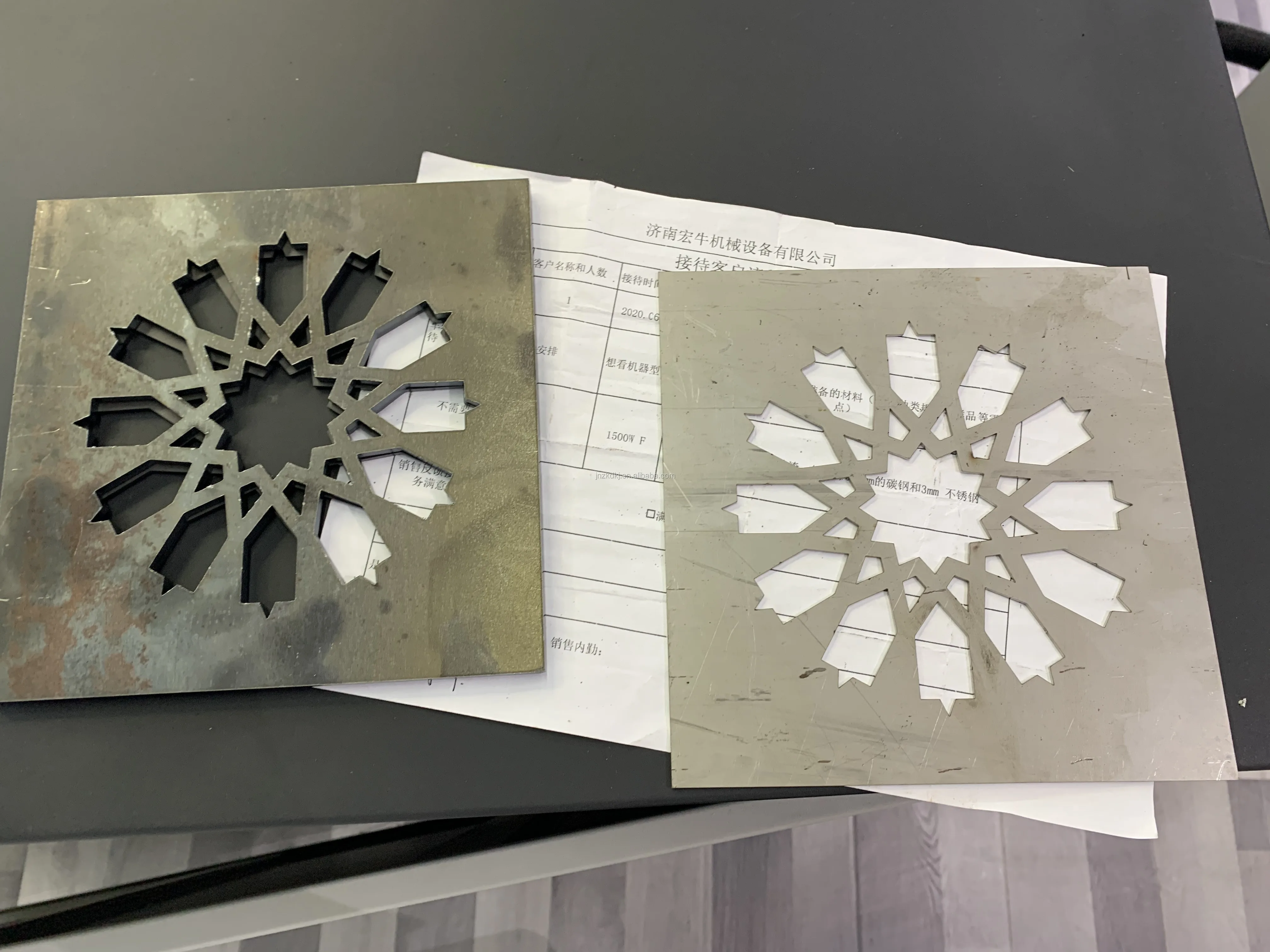

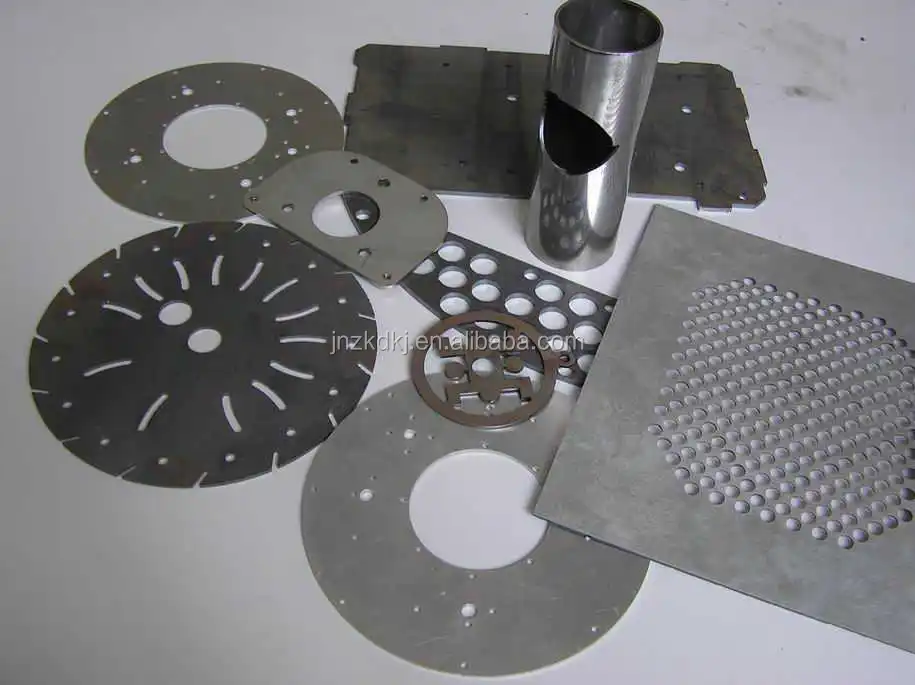

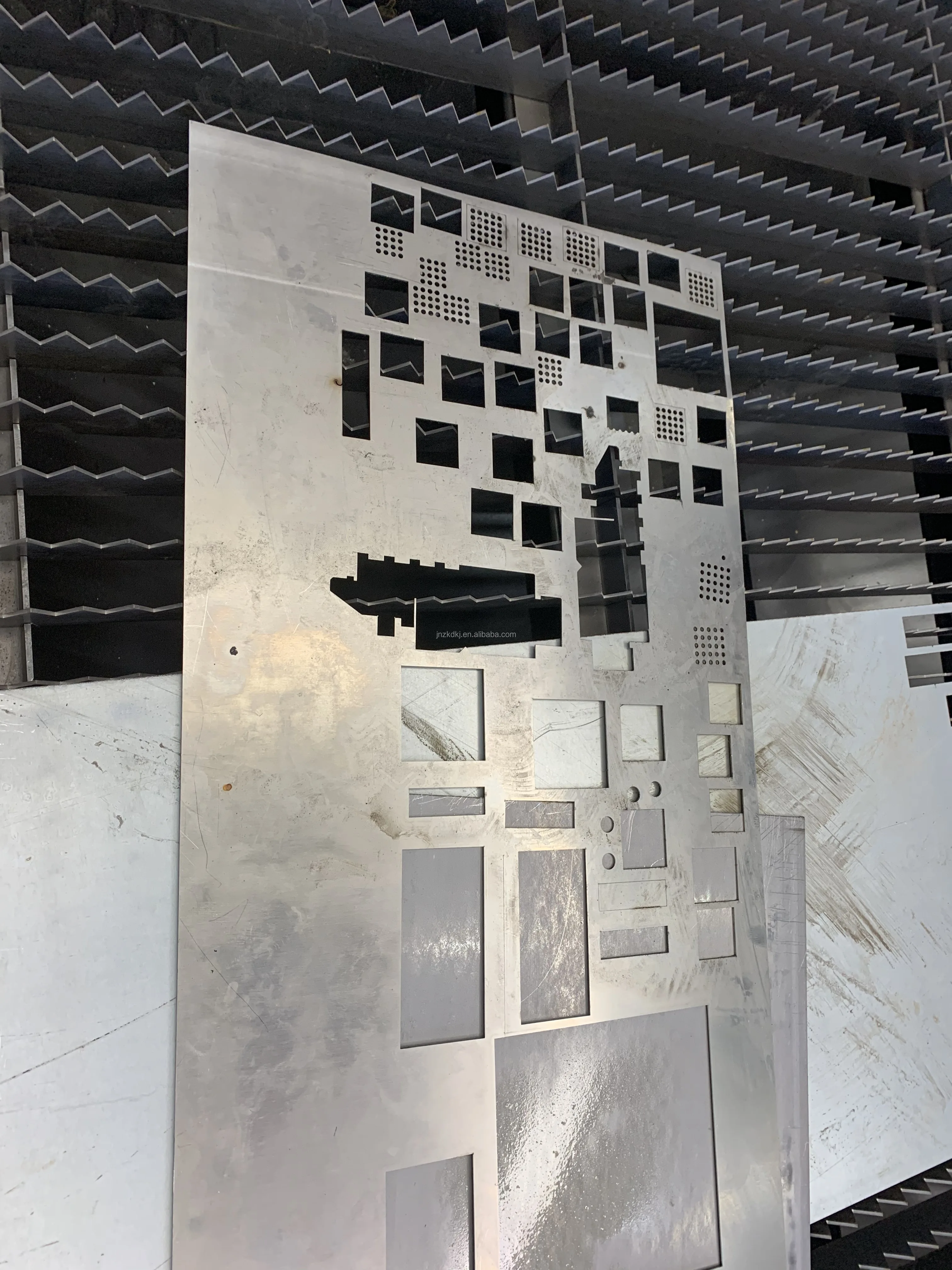

Sample photos

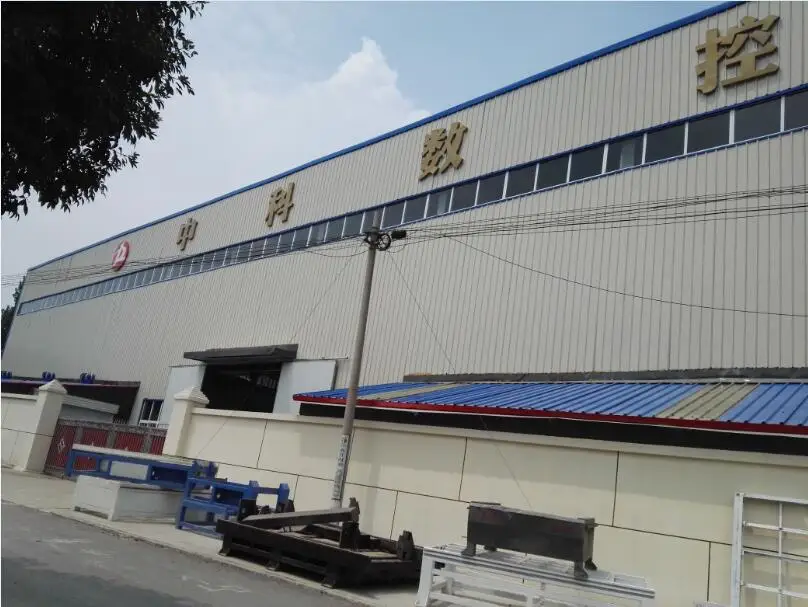

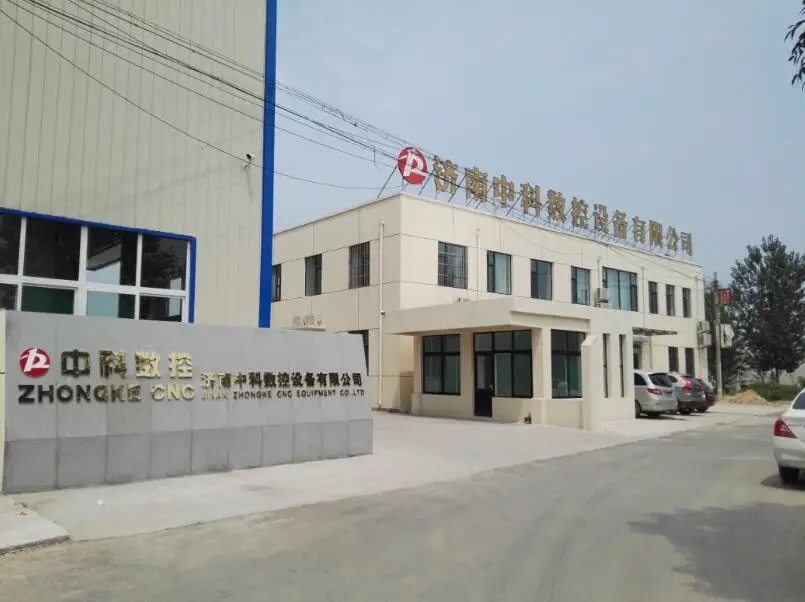

Company Profile

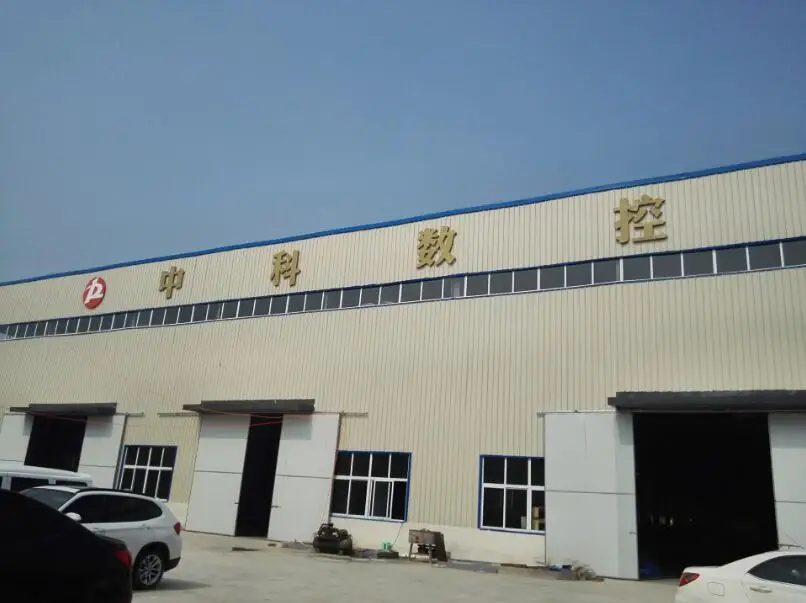

Jinan Zhongke CNC Equipment Co., Ltd. is located in Jinan City ,Shandong province and is specialized in manufacturing CNC routers, CNC plasma cutting machines, laser cutting machines and engraving machines. With an experienced and professional team, we have exported our products to many countries and regions all over the world, especially America, Europe, Oceania and Southeast Asia. We enjoy a good reputation among our customers. We welcome customers, business associations and friends from all parts of the world to contact us and seek cooperation for mutual benefits.
Welcome to Jinan Zhongke CNC Equipment Co.,ltd to visit our machines!
Welcome to Jinan Zhongke CNC Equipment Co.,ltd to visit our machines!
Other CNC machines

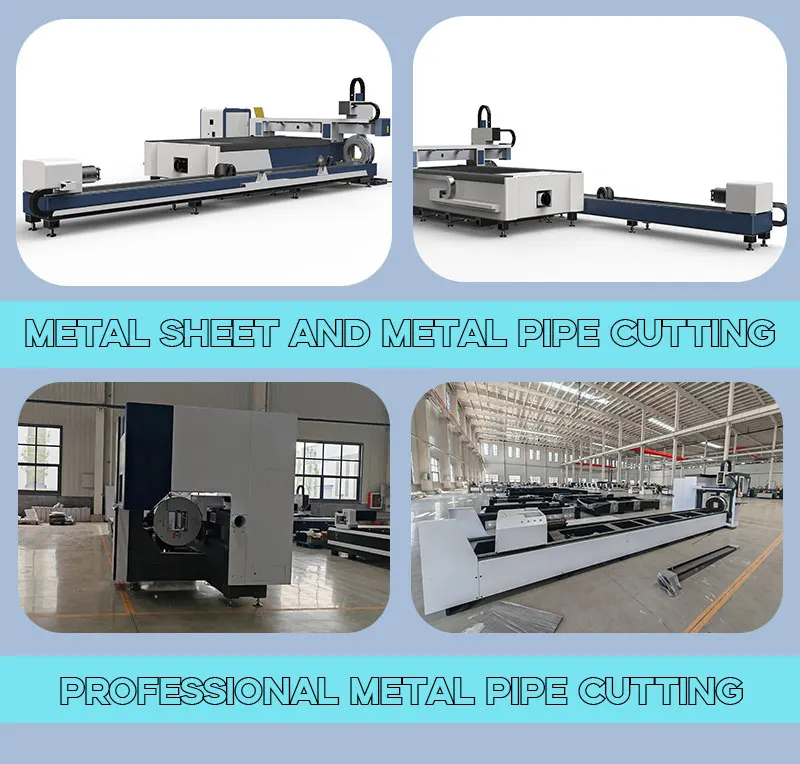

Double use fiber laser cutting machine, can be used for flat metal sheet cutting, also can be used for cutting square and round steel pipe, double using machine
exchangable movable table model fib er laser cutting machine, these 3 tables can be exchanged, can save a lot of time to change metal sheet
3015 model fiber laser cutting machine, the working area can be customized to 2030 2040 2060 model, etc
