IR ZOOM LENS
- Category: >>>
- Supplier: Nanjing Wavelength Opto-Electronic Science & Technology Co. Ltd.Nanjing Ltd.
Share on (1601244650976):
Product Overview
Description
Product Description
IR Zoom Lenses
IR zoom lenses are mostly used in relatively wide outdoor scenes with the aim to increase focal length for getting long-range detection. Since the focal length can be changed during operation, the key part of the scene can be zoomed in and observed, thus providing a better monitoring system. With the continuous development and improvement of the security industry and outdoor infrastructure, zoom lenses are being utilized in many industries and fields such as highways, railways and bridges, coastal and border surveillance, and many other scenarios.
IR zoom lenses are mostly used in relatively wide outdoor scenes with the aim to increase focal length for getting long-range detection. Since the focal length can be changed during operation, the key part of the scene can be zoomed in and observed, thus providing a better monitoring system. With the continuous development and improvement of the security industry and outdoor infrastructure, zoom lenses are being utilized in many industries and fields such as highways, railways and bridges, coastal and border surveillance, and many other scenarios.

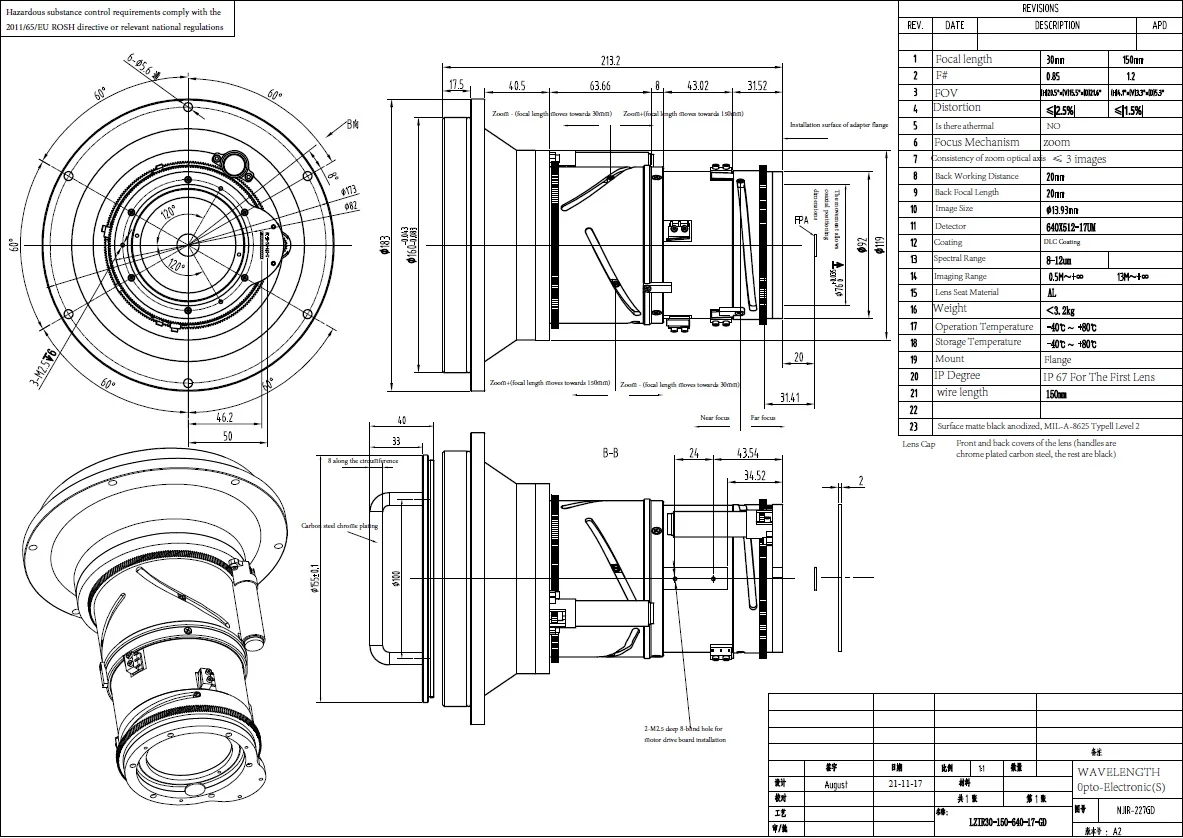

Specification
Optical | ||||
Focal Length | 30mm | 150mm | ||
F# | 0.85 | 1.2 | ||
Spectral Range | 8-12um | |||
FOV | (H)20.5°x(V)15.5°x(D)21.6° | (H)4.1°x(V)13.3°x(D)5.3° | ||
Detector | 640X512-17um | |||
Consistency of zoom optical axis | ≤ 3 images | |||
Back Working Distance | 20mm | |||
Back Focal Length | 20mm | |||
Distortion | ≤ | 2.5% | | ≤ | 1.5% | | ||
Imaging Range | 0.5M~+∞ | 13M~+∞ | ||
Image Size | Φ13.93mm | |||
Coating | DLC | |||
Mechanical | ||||
Lens Seat Material | AL | |||
Focus Mechanism | Zoom | |||
Zoom motor/focusing motor wire length | 150mm | |||
Mount | Flange | |||
IP Degree | IP 67 For The First Lens | |||
Weight | ＜3.2KGS | |||
Surface Treatment | Surface matte black anodized, MIL-A-8625 Typell Level 2 | |||
Environmental | ||||
Operation Temperature | -40℃ to +80℃ | |||
Storage Temperature | -40℃ to +80℃ | |||

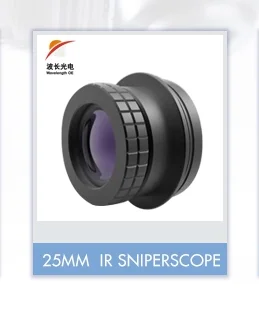

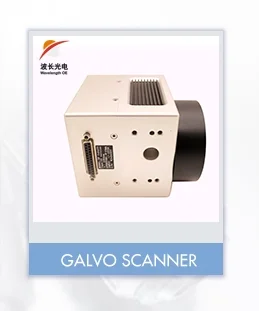

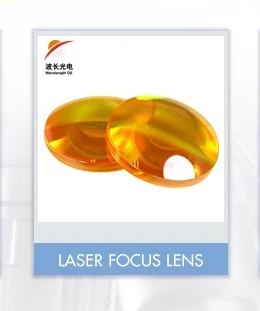

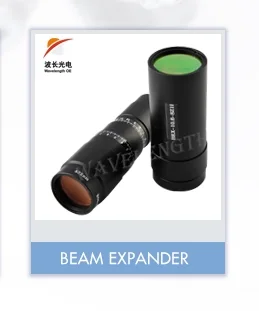

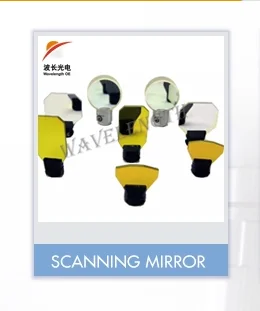

Hot Products
