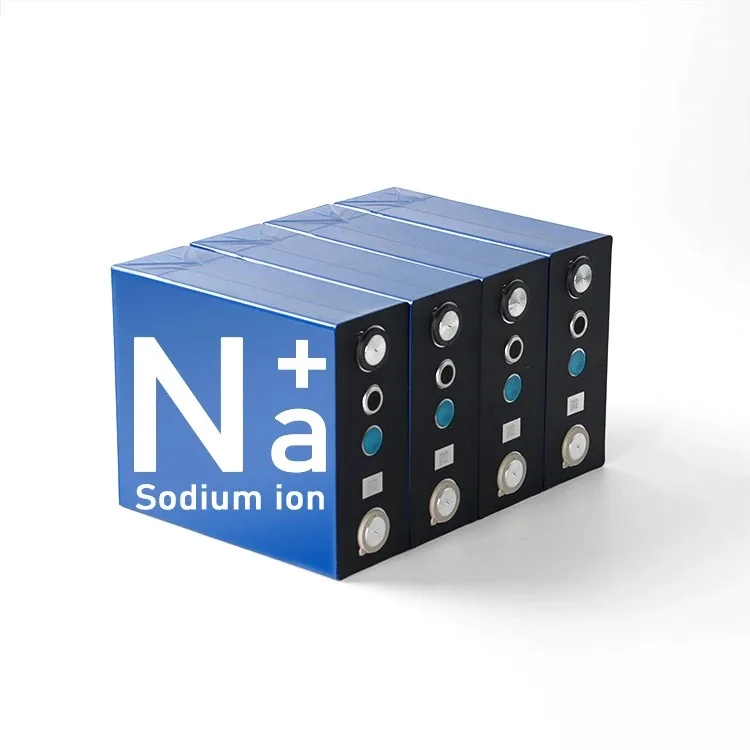

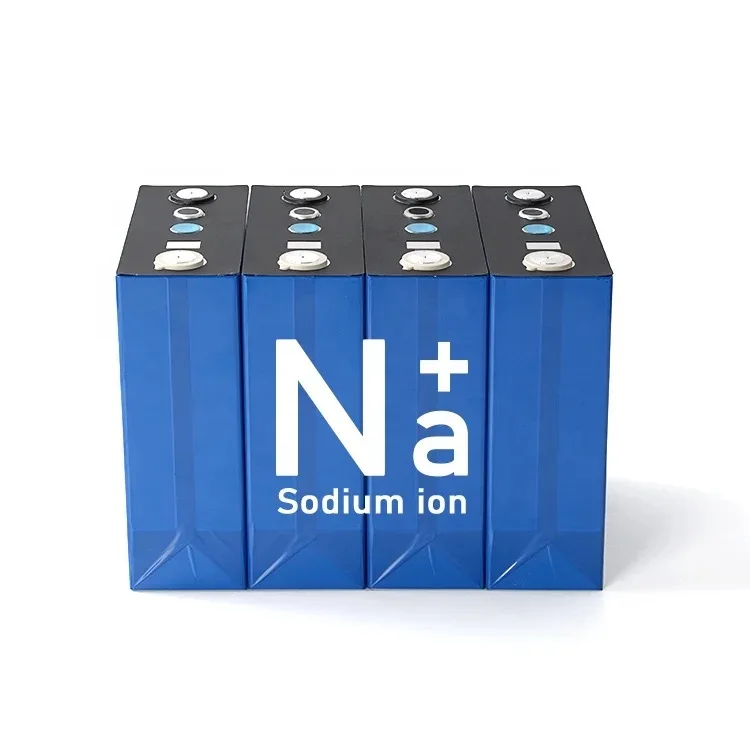

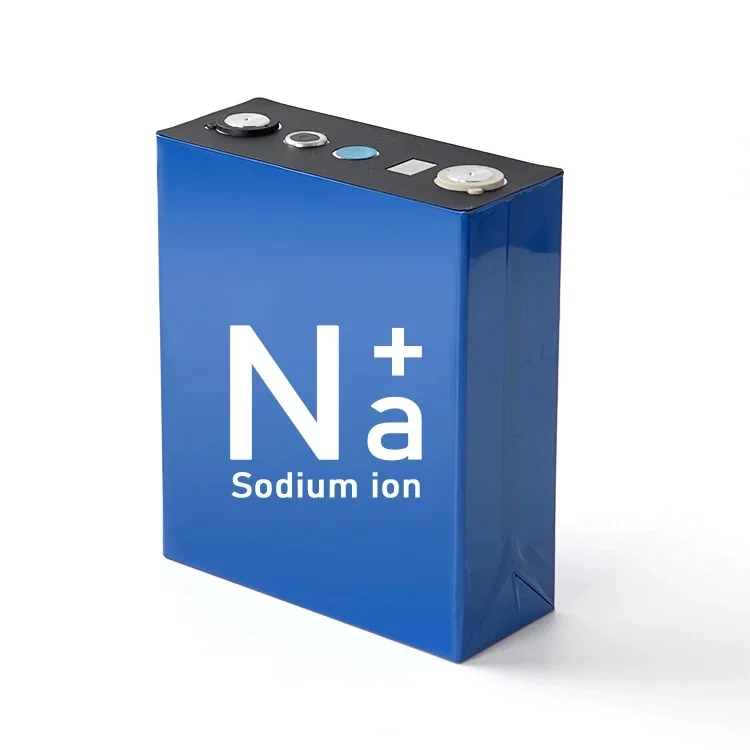

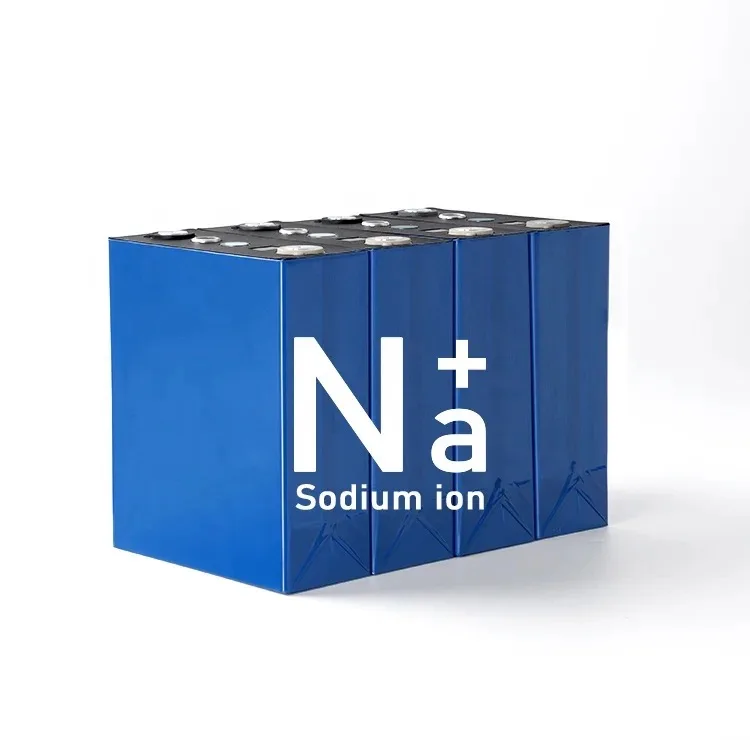

220Ah 3.1V sodium ion battery 48v na ion battery deep Cycles na/sodium ion battery for Electric Forklifts/Electric Cargo Trucks
- Category: >>>
- Supplier: Changsha Enook Technology Co. Ltd.Changsha Ltd.
Share on (1601244684721):
Product Overview
Description
Enook have enough stock in PL/DE Warehouse,
Sufficient supply/ Fast delivery/ Considerate service！！
Check it with Kelly at any time! :)
Products Description
Item | Data information |
Nominal Capacity | 210Ah@0.50C |
Typical Capacity | 225Ah@0.50C |
Nominal Voltage | 3.10V |
Charge Voltage | 3.95 ±0.05 V |
Discharge cut-off Voltage | 1.50 ±0.05 V |
Internal Resistance | ≤0.50mΩ |
Cell Dimension | Length： 173.60±0.50mm Width: 71.25±0.50mm Height： 203.70±0.50mm |
Energy Density | 155.00Wh/Kg |
Weight | 4.40±0.20Kg |
Inquire to sales | Raina Qu |
Storage Temperature | -20~40°C |
Maximum Continuous Charging Rate | ≤-10°C : can not charging temperature -10~0°C : ≤0.20C 0~45°C : ≤0.50C ≥45°C： can not charging temperature |
Maximum Continuous Discharge Rate | ≤-30°C : can not discharging temperature -30~0°C： ≤0.20C O-45°C ：≤1.00C 45〜60°C： ≤0.50C ≥60°C : can not discharging temperature |
Maximum Constant Charge Current | Constant Current 0.50C Constant Voltage 3.95V 0.05C cut-off |
Maximum Constant Discharge Current | Constant Current 1.00C Constant Voltage 1.50V |
Product packaging
FAQ
BMS：
1. Battery management systems can not be used in series.
2. BMS power component swith stand voltage 100V.
3. If the battery module is assembled in the form of long wire and long copper bar, it must communicate with
the BMS manufacturer for impedance compensation.Otherwise, it will affect the consistency of the cell.
4. The external switch on BMS is prohibited to connect with other equipment. If necessary, please confirm
with the technology for docking. Otherwise, BMS will not bear any responsibility for damage.
5. Do not touch the surface of the core directly when assembling, so as not to damage the core. The
assembly should be firm and reliable.
6. In use pay attention to lead wire head, soldering iron, solder and so on do not touch the components
on the circuit board, otherwise it may damage the circuit board.
7. Use process should pay attention to anti-static, moisture-proof, waterproof and so on.
8. Please follow the design parameters and use conditions during use, must not exceed the value in this
specification, otherwise it may damage the protection board.
9. After combining the battery pack and the protection plate, if you find no voltage output or charge,
please check the wiring is correct.
Lifepo4 Battery：
1. Are the batteries Top Quality,Brand NEW?
Yes, Top quality. the QR code is intact, Brand new from original factory.
2. Are the batteries come with busbars+bolts?
The price come with Bus bars and Bolts，One Battery will come with one set bus bar and bolt（e.g.,If buy 4pcs battery,we will send 4pcs cells with 4pcs busbars and 8pcs bolts）If need more please contact us online.
3. Can you test each battery PRIOR to shipping?
We will test all the battery Voltage and Internal resistance before shipping.
4. What kind of the package of the cells?

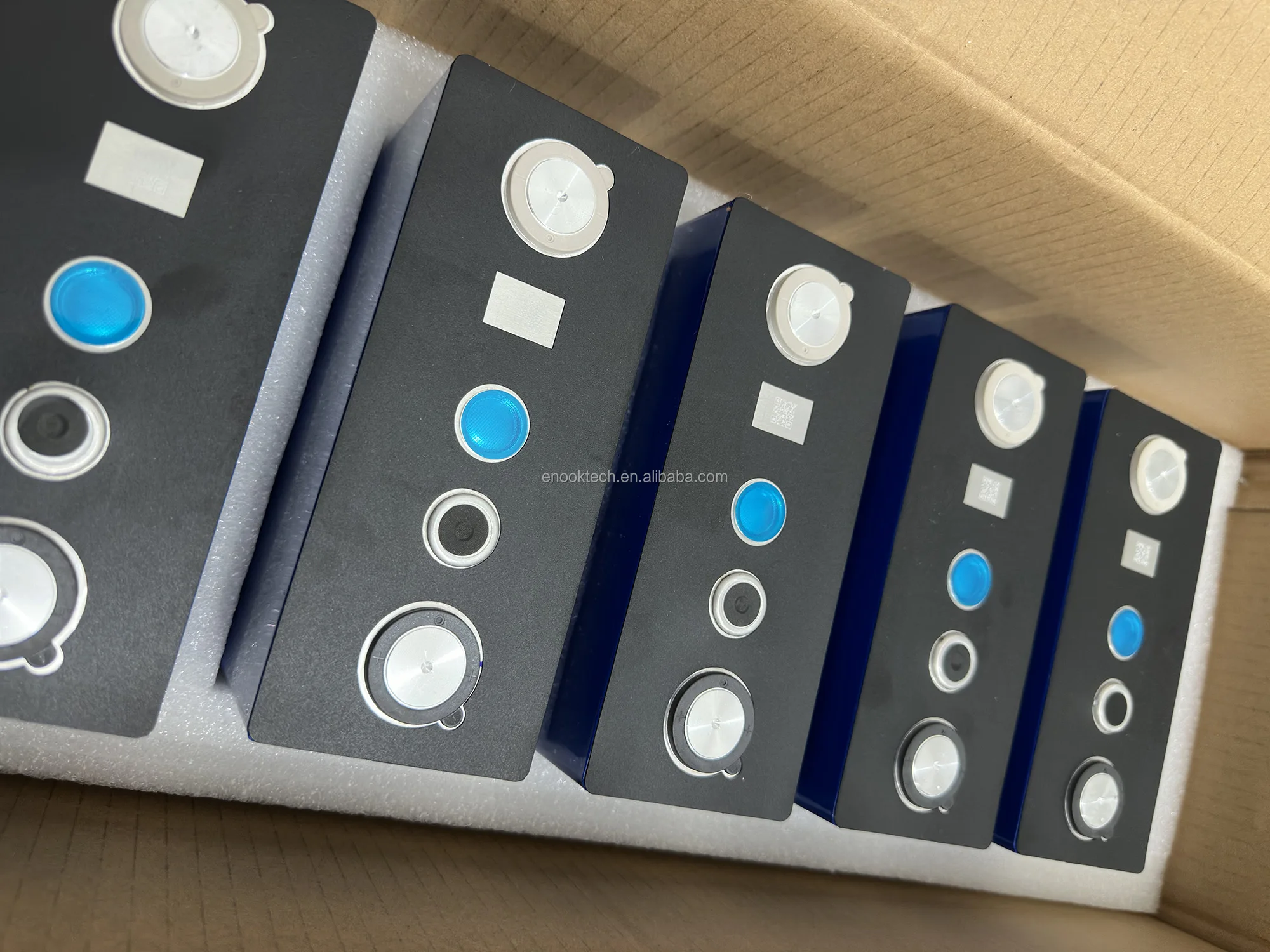

Pack with strong package, each cell into thickness PE foam or bag, then into 5 layers strong carton.
5. How can I place the order?
Usually we accept order online，and you can send us inquiry or chat with us online they will create online order for you.
6. How can I do if I need more help for the order?
You can chat with our sales online or send inquiry email,we will respond you ASAP.
7. What is delivery time if we place an order?
It depends order quantities. Usually, we can deliver goods within 1-2 working days for small orders, for mass order, let's confirm when you send inquiry.
8. How should I pay?
Paypal, Bank Wire, Visa, Mastercard, Amercian Express, Discover, If you prefer other payment terms, please contact us freely.
9. Why received scuff marks LiFePO4 Prismatic cells?
Scuff marks is normal factor, due to factory QC has been inspected several times. There will be a little scuff marks in various inspections through all the batteries are placed together to check at our warehouse by QC; And All prismatic cells will make the Laser Welded studs, check each cell Voltage and Internal resistance to make sure the battery cells get ully matched and batched at our warehouse.
1. Battery management systems can not be used in series.
2. BMS power component swith stand voltage 100V.
3. If the battery module is assembled in the form of long wire and long copper bar, it must communicate with
the BMS manufacturer for impedance compensation.Otherwise, it will affect the consistency of the cell.
4. The external switch on BMS is prohibited to connect with other equipment. If necessary, please confirm
with the technology for docking. Otherwise, BMS will not bear any responsibility for damage.
5. Do not touch the surface of the core directly when assembling, so as not to damage the core. The
assembly should be firm and reliable.
6. In use pay attention to lead wire head, soldering iron, solder and so on do not touch the components
on the circuit board, otherwise it may damage the circuit board.
7. Use process should pay attention to anti-static, moisture-proof, waterproof and so on.
8. Please follow the design parameters and use conditions during use, must not exceed the value in this
specification, otherwise it may damage the protection board.
9. After combining the battery pack and the protection plate, if you find no voltage output or charge,
please check the wiring is correct.
Lifepo4 Battery：
1. Are the batteries Top Quality,Brand NEW?
Yes, Top quality. the QR code is intact, Brand new from original factory.
2. Are the batteries come with busbars+bolts?
The price come with Bus bars and Bolts，One Battery will come with one set bus bar and bolt（e.g.,If buy 4pcs battery,we will send 4pcs cells with 4pcs busbars and 8pcs bolts）If need more please contact us online.
3. Can you test each battery PRIOR to shipping?
We will test all the battery Voltage and Internal resistance before shipping.
4. What kind of the package of the cells?
Pack with strong package, each cell into thickness PE foam or bag, then into 5 layers strong carton.
5. How can I place the order?
Usually we accept order online，and you can send us inquiry or chat with us online they will create online order for you.
6. How can I do if I need more help for the order?
You can chat with our sales online or send inquiry email,we will respond you ASAP.
7. What is delivery time if we place an order?
It depends order quantities. Usually, we can deliver goods within 1-2 working days for small orders, for mass order, let's confirm when you send inquiry.
8. How should I pay?
Paypal, Bank Wire, Visa, Mastercard, Amercian Express, Discover, If you prefer other payment terms, please contact us freely.
9. Why received scuff marks LiFePO4 Prismatic cells?
Scuff marks is normal factor, due to factory QC has been inspected several times. There will be a little scuff marks in various inspections through all the batteries are placed together to check at our warehouse by QC; And All prismatic cells will make the Laser Welded studs, check each cell Voltage and Internal resistance to make sure the battery cells get ully matched and batched at our warehouse.
