EPEVER UC Series UC3542 0650P20/C 3500W 48VDC Inverter/Charger Parallel Inverter Dual Pure Sine Wave Output Solar Power Inverter
- Category: >>>
- Supplier: Hangzhou Maixi Electronics Co. Ltd.
Share on (1601244690489):
Product Overview
Description
EPEVER UC Series UC3542-0650P20/C 3500W 48VDC Inverter/Charger Parallel Inverter Dual Pure Sine Wave Output Solar Power Inverter
Products Description
The UC Series Inverter/Charger, a high-capacity inverter charger, is designed for a variety of applications including residential, educational, and healthcare facilities. Offering models ranging from 3500W to 5500W, these inverters ensure stable and efficient power management. They support both single-phase and three-phase parallel operations, ideal for areas with unstable electricity.
Advanced features include dual pure sine wave outputs, smart energy management, and compatibility with multiple battery types.
These enhancements increase flexibility and efficiency in energy utilization.
The series incorporates cutting-edge DSP technology for rapid response and high conversion rates, further supported by comprehensive electronic protection for safe and reliable operation.
Advanced features include dual pure sine wave outputs, smart energy management, and compatibility with multiple battery types.
These enhancements increase flexibility and efficiency in energy utilization.
The series incorporates cutting-edge DSP technology for rapid response and high conversion rates, further supported by comprehensive electronic protection for safe and reliable operation.
Features
Applicable for pure off grid / backup power / self-consumption
PV input voltage range: 80Vdc-500Vdc
PV input current up to 32A
Supports battery mode & non battery mode Battery&PV reverse polarity protection
Supports battery mode & non battery mode Battery&PV reverse polarity protection
Pure sine wave output Supports single-phase or three-phase parallel operation (up to 16 units)

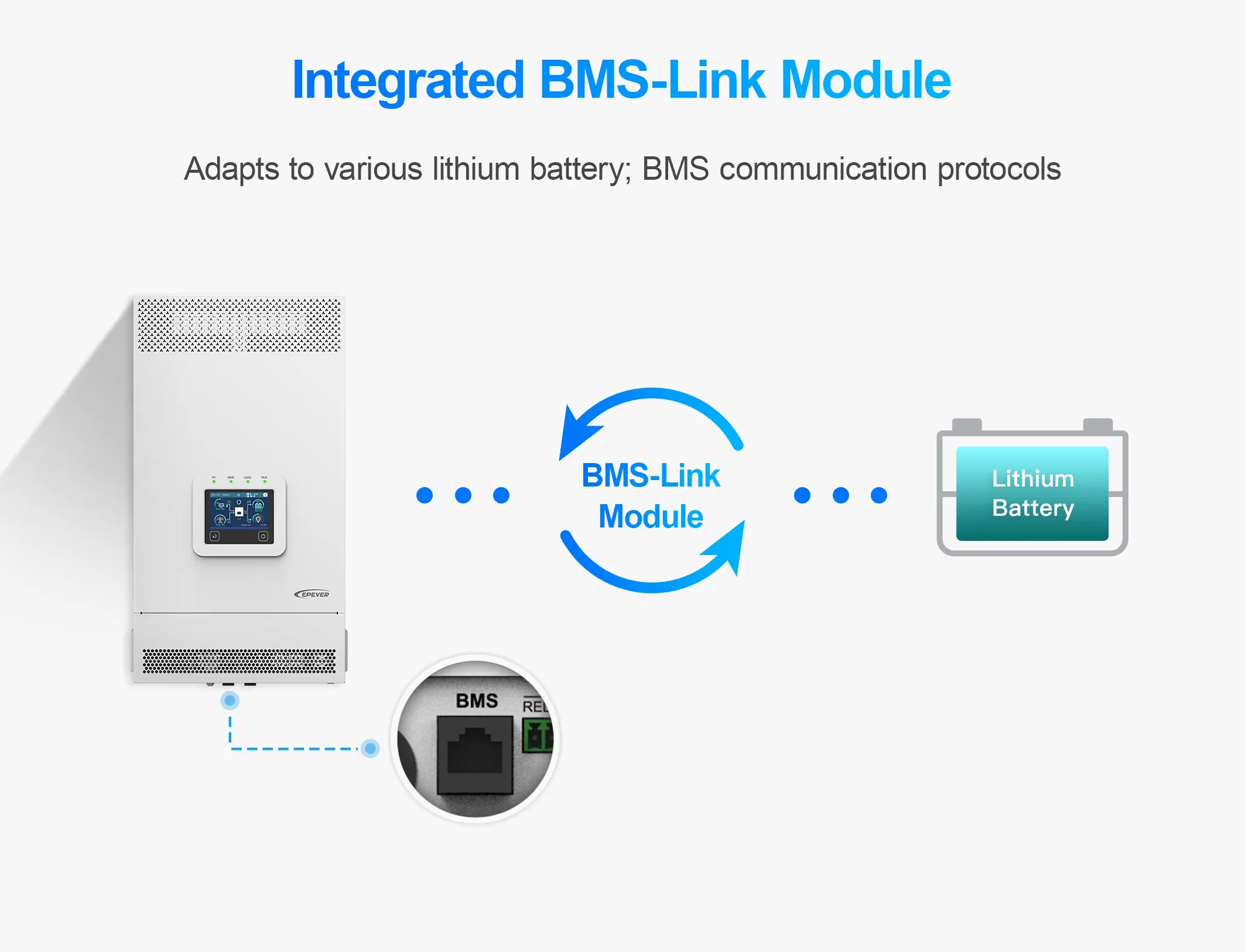

Independent BMS communication interface

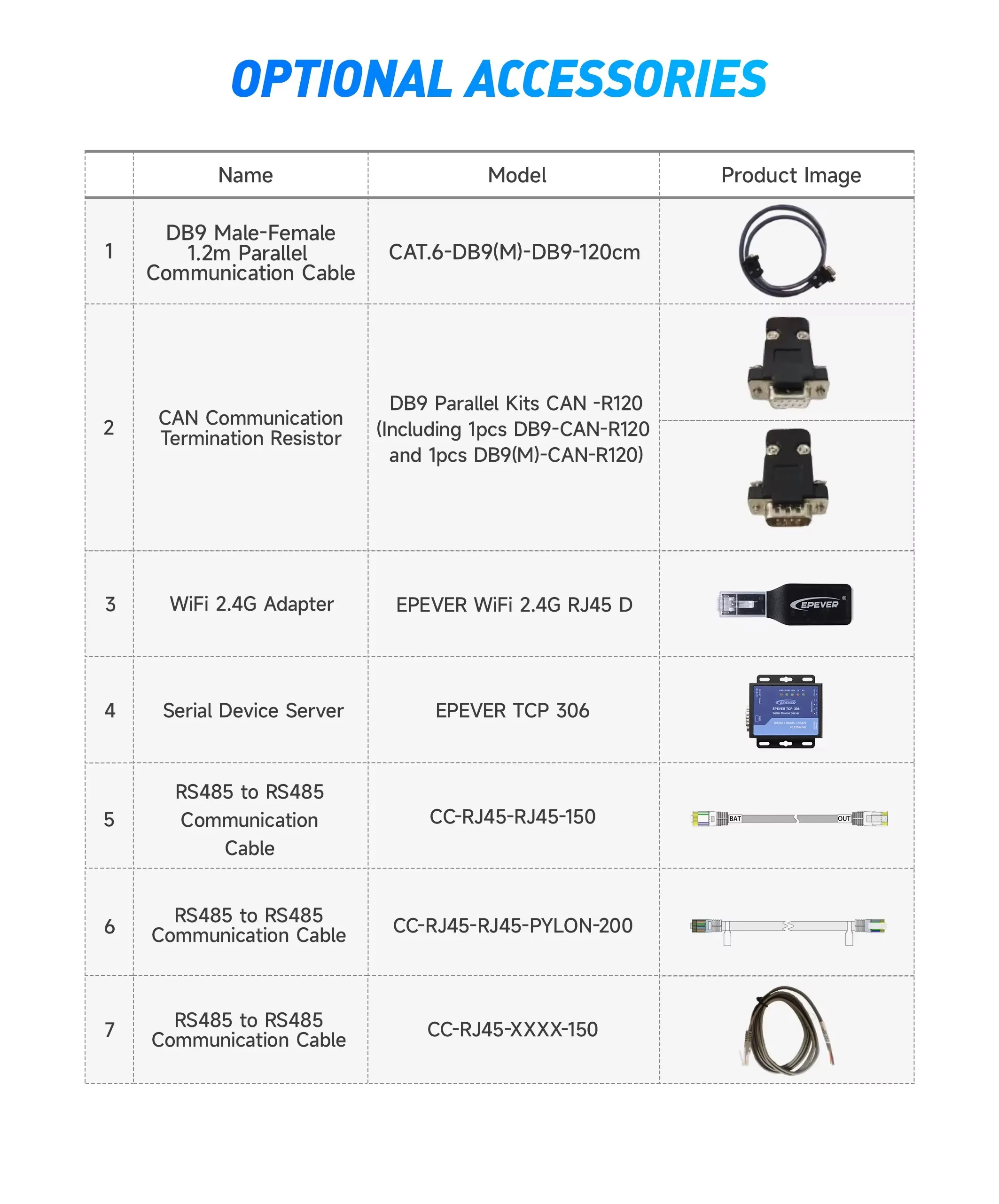

Isolated RS485 interface：Connects with Bluetooth, WiFi, 4G, etc.

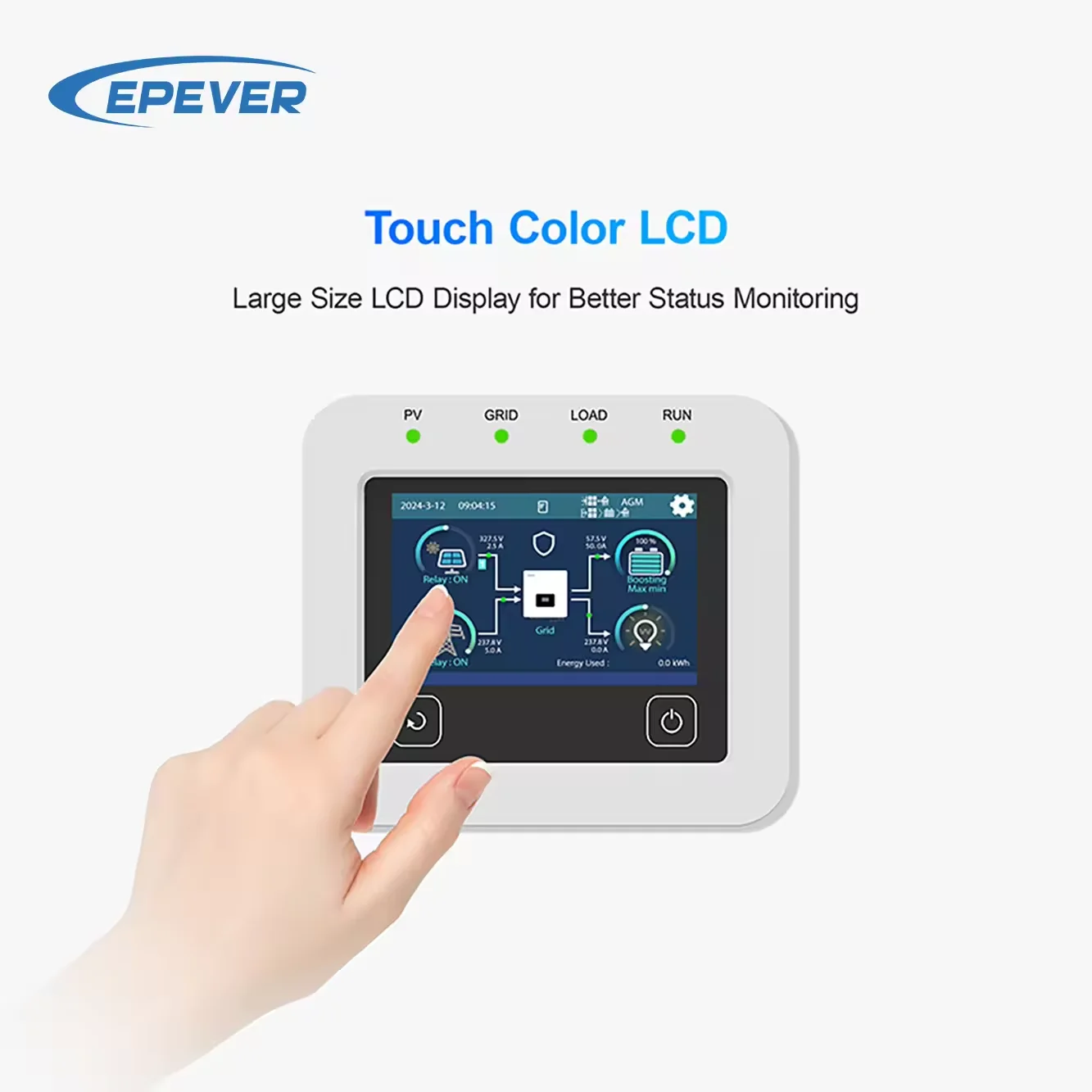

Optional 320 x 480 high-resolution color LCD screen or monochrome screen
Historical data recording function, storage capacity of 25000 records
Comprehensive electronic protection ensures safer and more stable operation
IP20 enclosure design with anti-dust kit
Paramenters
Model | UC3522-1250P20/C | UC3542-0650P20/C | UC5542-1050P20/C | ||
Utility Input Voltage | 176VAC to 264VAC (Default) 90VAC to 285VAC (Configurable) | ||||
Utility Input Frequency | 45Hz to 65Hz | ||||
Maximum Utility Charging Current | 110A | 60A | 100A | ||
Switch Response Time | Switch Response Time – Inverter to Utility: 10ms Switch Response Time – Utility to Inverter (when the load power is higher than 100W): 20ms | ||||
Inverter Rated Power (@30℃) | 3500W | 3500W | 5500W | ||
3-second Transient Surge Output Power | 7000W | 7000W | 8500W | ||
Inverter Output Voltage | 220/230VAC±3% | ||||
Inverter Frequency | 50/60Hz±0.2% | ||||
Output Voltage Waveform | Pure sine wave | ||||
Load Power Factor | 0.2－1(VA ≤ Rated output power) | ||||
THDu (Total Harmonic Voltage Distortion) | ≤3% (24V resistive load) | ≤3% (24V resistive load) | |||
Maximum Load Efficiency | 92% | ||||
Maximum Inverter Efficiency | 94% | ||||
Maximum Main Load | 3500W | 3500W | 5500W | ||
Maximum Second Load | 3500W | 3500W | 5500W | ||
PV Maximum Open-circuit Voltage | 500V (At minimum operating environment temperature) 440V (At 25℃) | ||||
MPPT Voltage Range | 85V to 450V | ||||
Number of MPPTs | 1 | 1 | 2 | ||
PV Maximum Input Power | 4200W | 4200W | 2×3300W | ||
PV Maximum Charging Current | 120A | 60A | 100A | ||
Battery Rated Voltage | 24VDC | 48VDC | 48VDC | ||
Battery Work Voltage Range | 20.4VDC to 32.0VDC | 40.8VDC to 64.0VDC | |||
Battery Maximum Charging Current | 120A | 60A | 100A | ||
Communication with BMS | RS485 | ||||
Communication with Portal | RS485 | ||||
Parallel Function | Yes, 12 units in standard, 16 units at most | ||||
Work Temperature Range | -20℃ to +50℃ (When the environment temperature exceeds 30℃, the actual output power is reduced appropriately) | ||||
Storage Temperature Range | -25℃ to +60℃ | ||||
Enclosure | IP20 (With ANTI-DUST KIT) | ||||
Relative Humidity | < 95% (N.C.) | ||||
Altitude | <4000M (If the altitude exceeds 2000 meters, the actual output power is reduced appropriately) | ||||
Certifications and Standards | IEC 62109-1, IEC 62109-2, IEC 61683, IEC 62368 | ||||
Dimension | 590mm × 300mm × 163mm | 534mm × 300mm × 163mm | 590mm × 300mm × 163mm | ||
Mounting size | 568mm × 245mm | 512mm × 245mm | 568mm × 245mm | ||
Net Weight | 13.8Kg | 12.7Kg | 15.5KG | ||
