500W 600W 800W 1000W Small Home Wind Turbine Generator Portable Wind Generator For Boat Corrosion Resistance
- Category: >>>
- Supplier: Nantong R&x Energy Technology Co. Ltd.
Share on (1601244743670):
Product Overview
Description
500W 600W 800W 1000W Small Home Wind Turbine Generator Portable Wind Generator For Boat Corrosion Resistance
Feature
1. Higher Power Output: Horizontal wind turbines have a larger blade and rotor radius, which allows them to generate more power compared to vertical wind turbines.
2. Lower Cost: Horizontal-axis wind turbines are much more widely used and mass-produced, which leads to lower manufacturing costs.
3. Compatibility with existing infrastructure: Horizontal-axis turbines are more easily integrated into existing power grids and infrastructure since they generate power in the same way as traditional power plants.
4. Simpler Maintenance: Horizontal-axis wind turbines have a simpler design and require less maintenance when compared to vertical-axis turbines.
Overall, horizontal wind turbines provide greater efficiency, power output, and lower maintenance costs, making them a more cost-effective and practical option for widespread deployment.
2. Lower Cost: Horizontal-axis wind turbines are much more widely used and mass-produced, which leads to lower manufacturing costs.
3. Compatibility with existing infrastructure: Horizontal-axis turbines are more easily integrated into existing power grids and infrastructure since they generate power in the same way as traditional power plants.
4. Simpler Maintenance: Horizontal-axis wind turbines have a simpler design and require less maintenance when compared to vertical-axis turbines.
Overall, horizontal wind turbines provide greater efficiency, power output, and lower maintenance costs, making them a more cost-effective and practical option for widespread deployment.
Technical Data
Model | RX-600M | RX-800M | RX-1000M | RX-1200M | RX-1500M | RX-2000M | |||||
Rated Power | 600W | 800W | 1000W | 1200W | 1500W | 2000W | |||||
Max Power | 650W | 850W | 1050W | 1500W | 2000W | 2500W | |||||
Blades Length | 750mm | 810mm | 900mm | 950mm | 1000mm | 1080mm | |||||
Wheel Diameter | 1550mm | 1750mm | 1830mm | 1950mm | 2100mm | 2300mm | |||||
Blades Quantity | 3/5 | 3 | 3 | 3 | 3 | 3 | |||||
Rated Voltage | 12/24/48V | 12/24/48V | 24/48V | 24/48/96V | 24/48/96V | 24V-120V | |||||
Start Up Speed | 2.5m/s | 2.5m/s | 2.5m/s | 2.5m/s | 2.5m/s | 2.5m/s | |||||
Rated Speed | 12m/s | 12m/s | 12m/s | 12m/s | 12m/s | 12m/s | |||||
Cut-in Speed | 3m/s | 3m/s | 3m/s | 3m/s | 3m/s | 3m/s | |||||
Survival Speed | 45m/s | 45m/s | 45m/s | 45m/s | 45m/s | 45m/s | |||||
Blades Material | Nylon fiber | ||||||||||
Generator Type | Three Phase Permanent Magnet Generator | ||||||||||
Working Temperature | -80℃~+80℃ | ||||||||||
Protection Level | IP54 | ||||||||||
Working environment humidness | ≤90% | ||||||||||
Altitude | ≤4500m | ||||||||||
Tower Type | Guyed Cable Tower | ||||||||||
Overload Protection | Electromagnetic Brake | ||||||||||
Gross Weight | 15kg | 16.5kg | 26kg | 38kg | 40kg | 45kg | |||||
Packing List(cm) | 24*42*94 | 24*42*95 | 32*42*122 | 34*135*44 | 34*135*44 | 34*135*44 | |||||

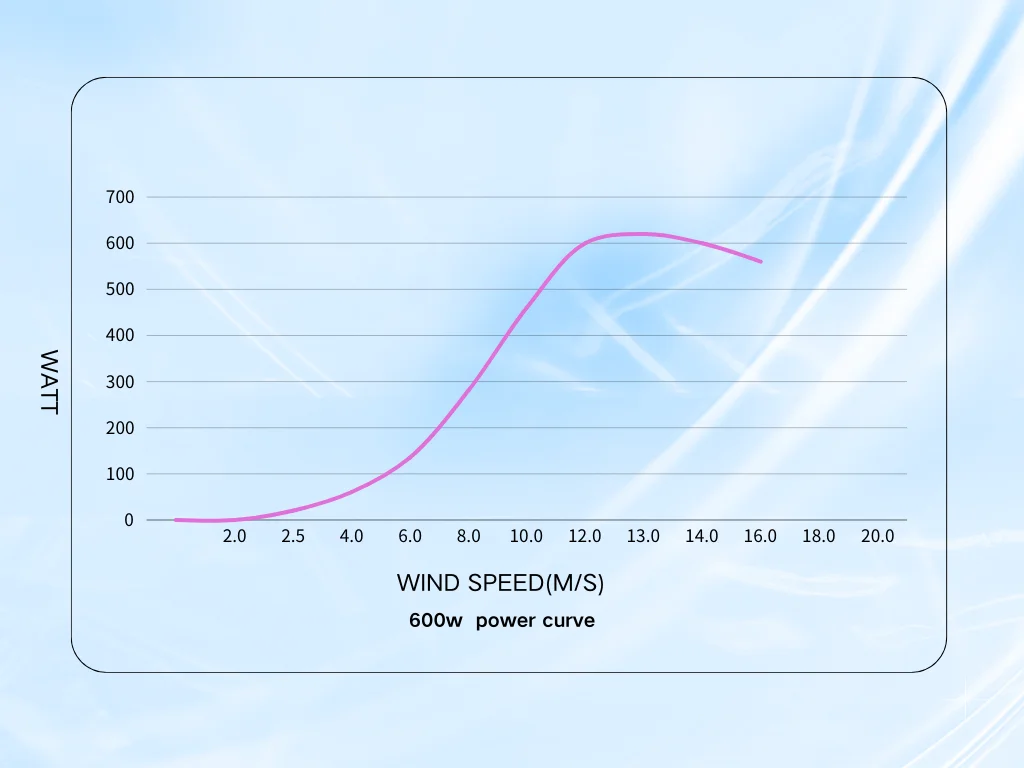

Power curve

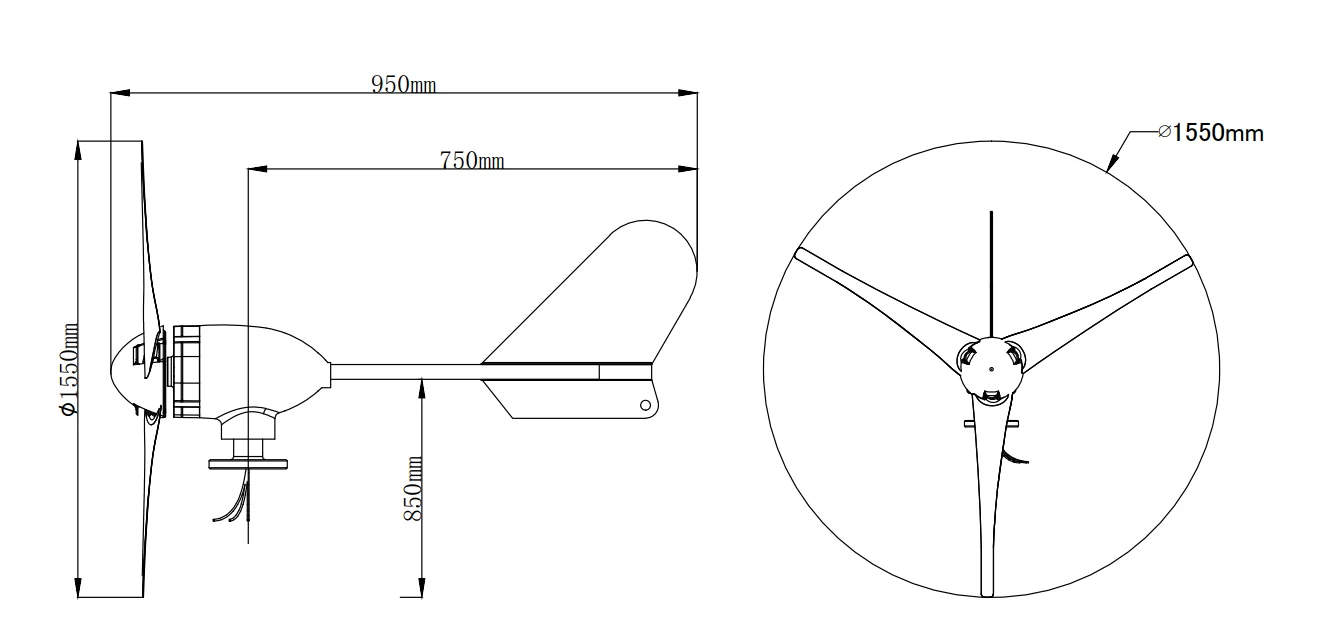

Dimension & Drawing

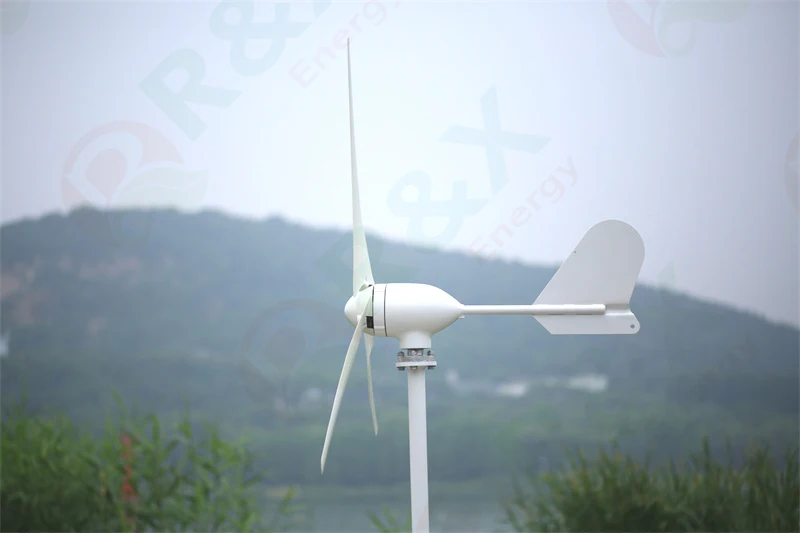

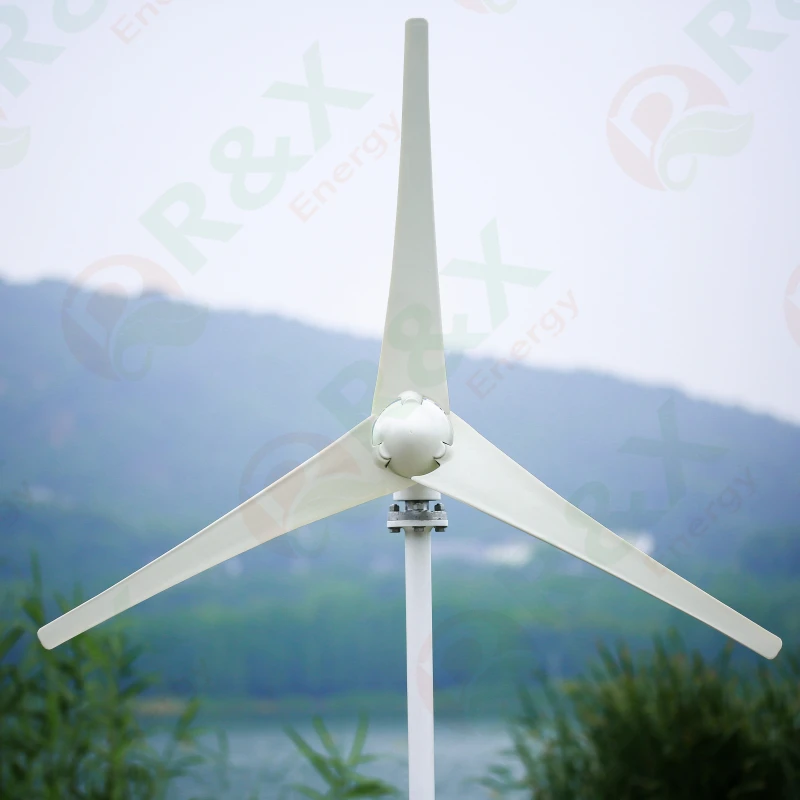

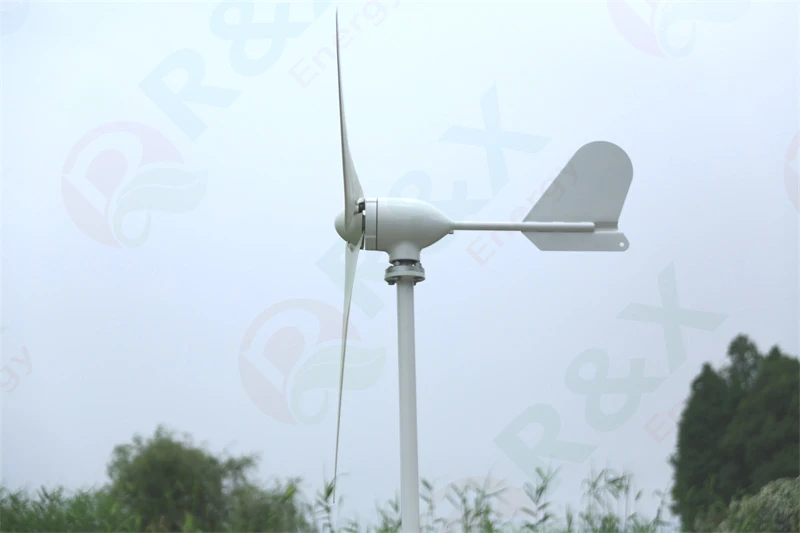

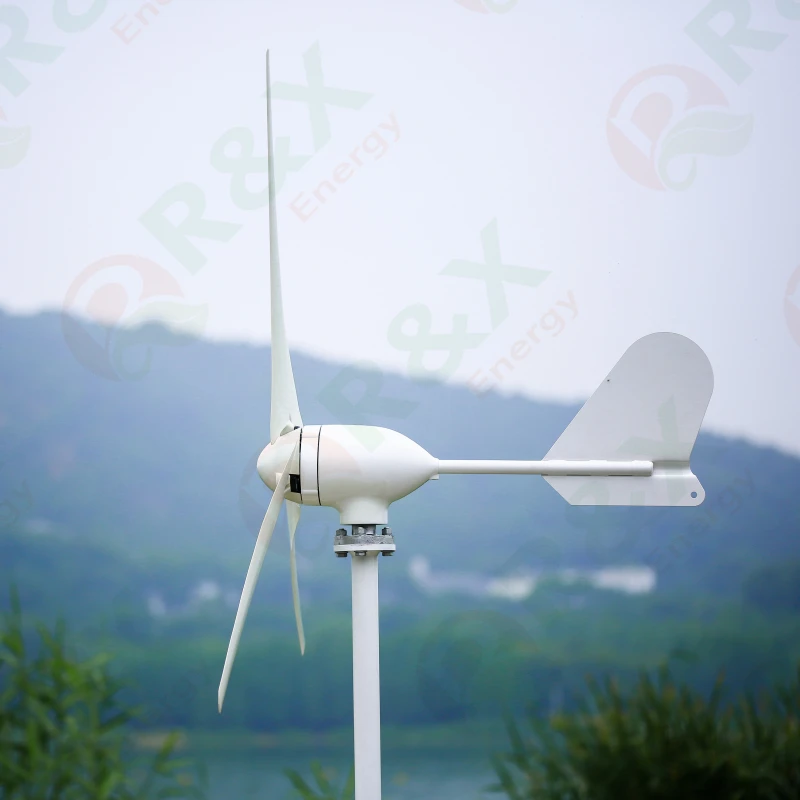

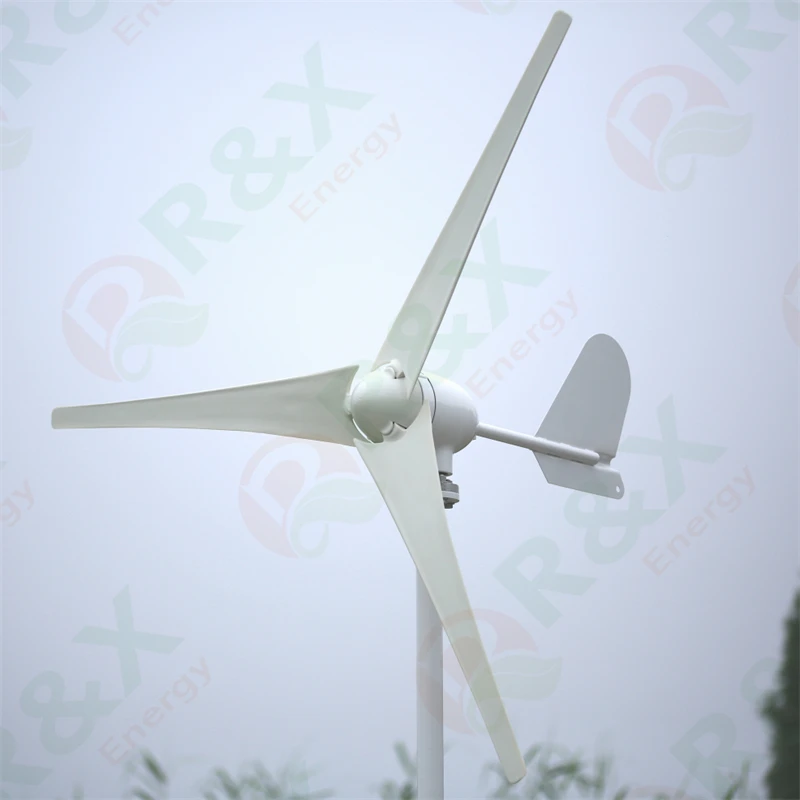

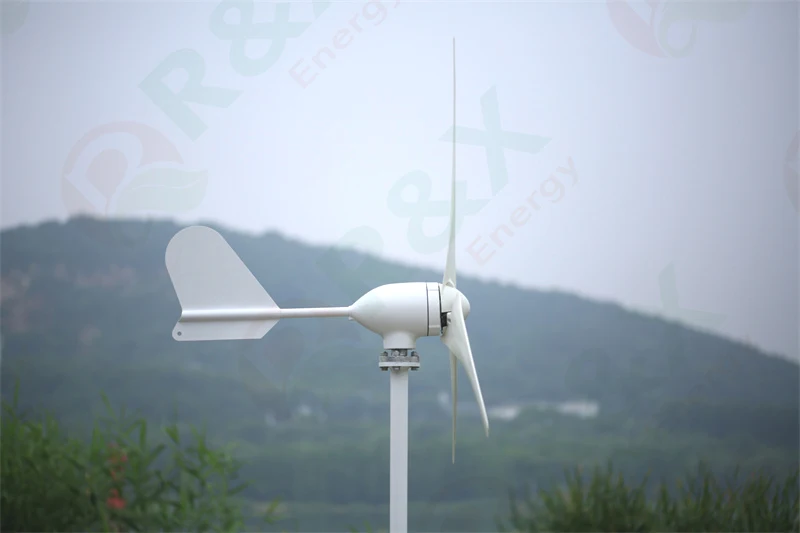

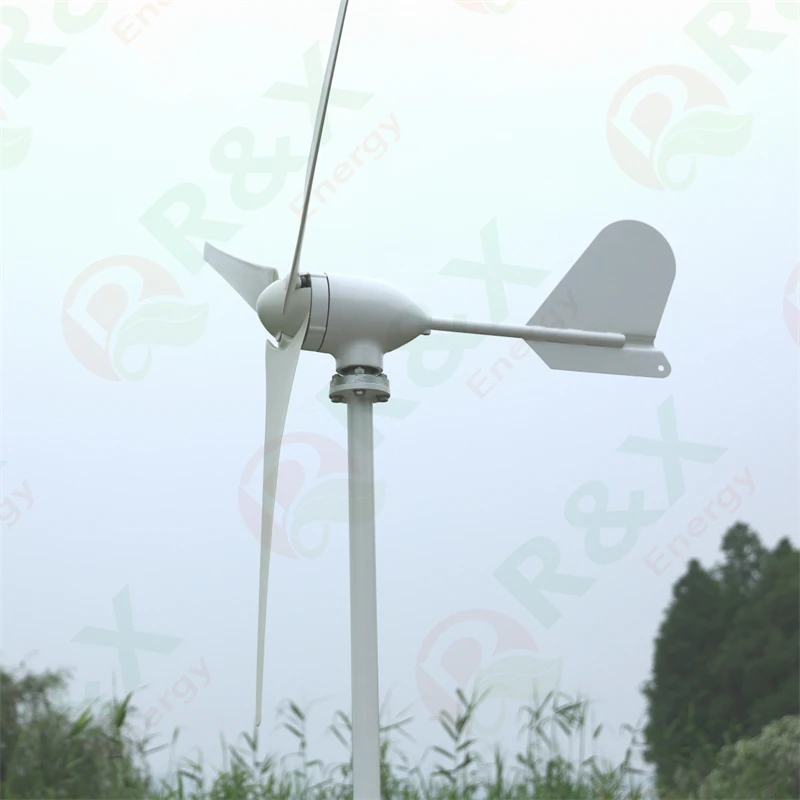

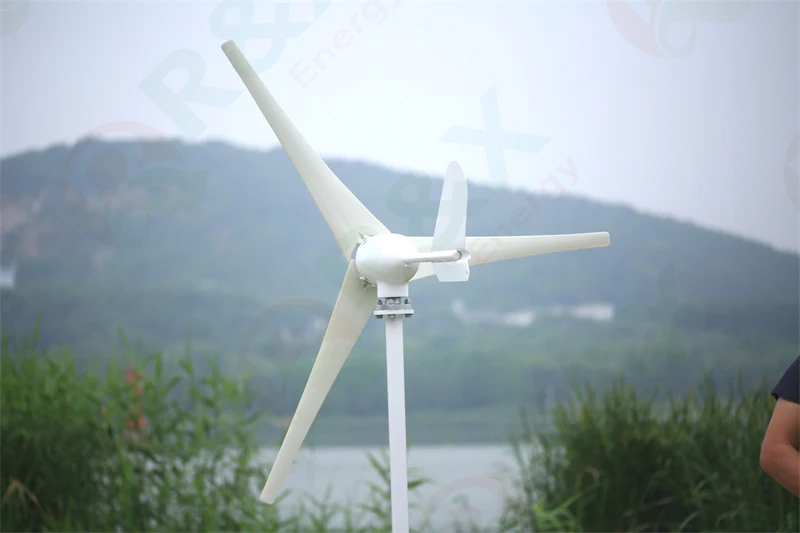

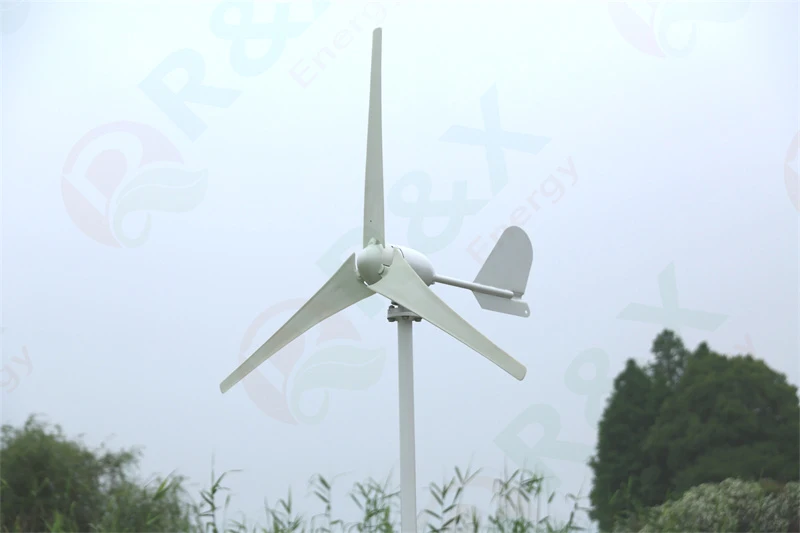

Detailed Images

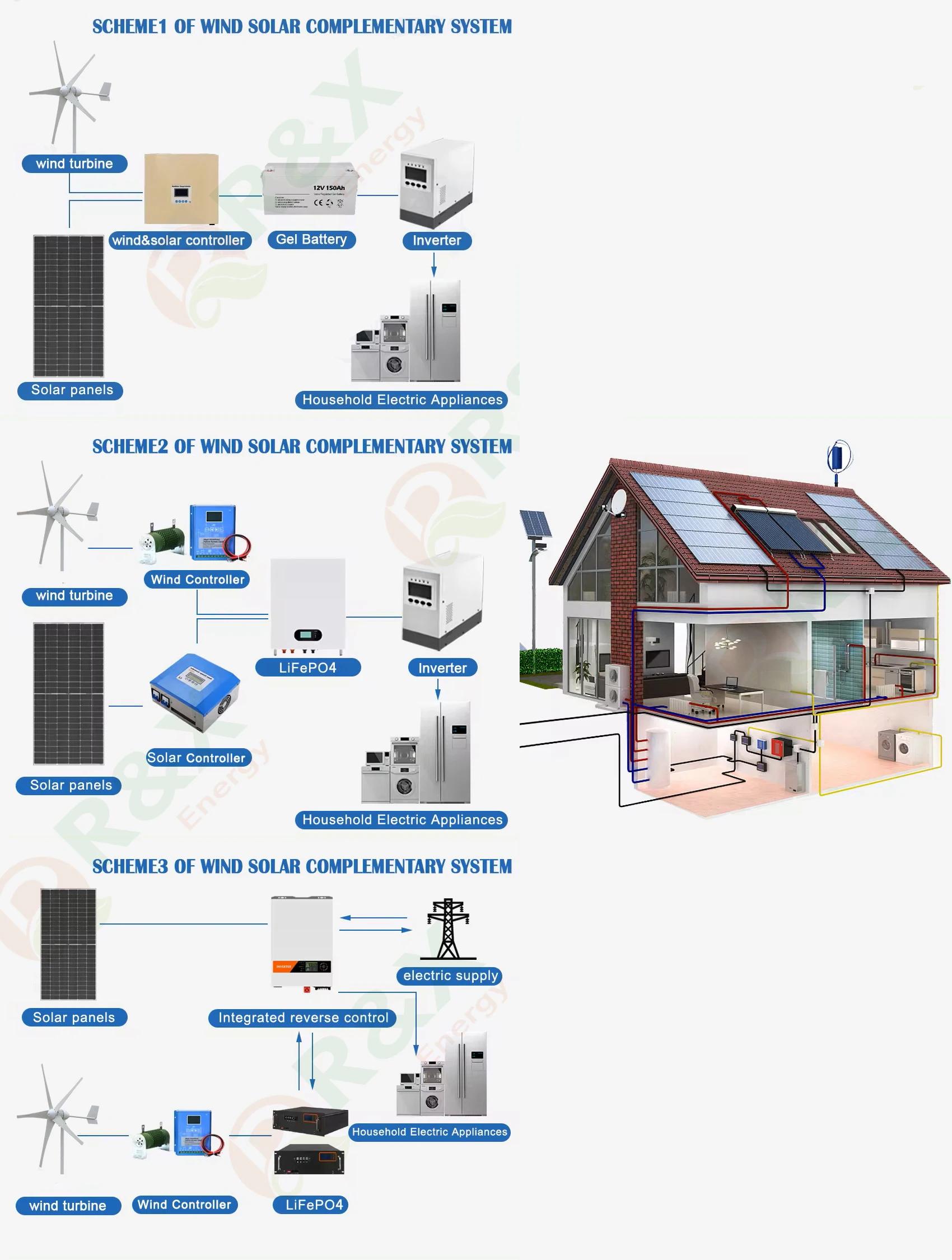

Wind Power System
