Product Description

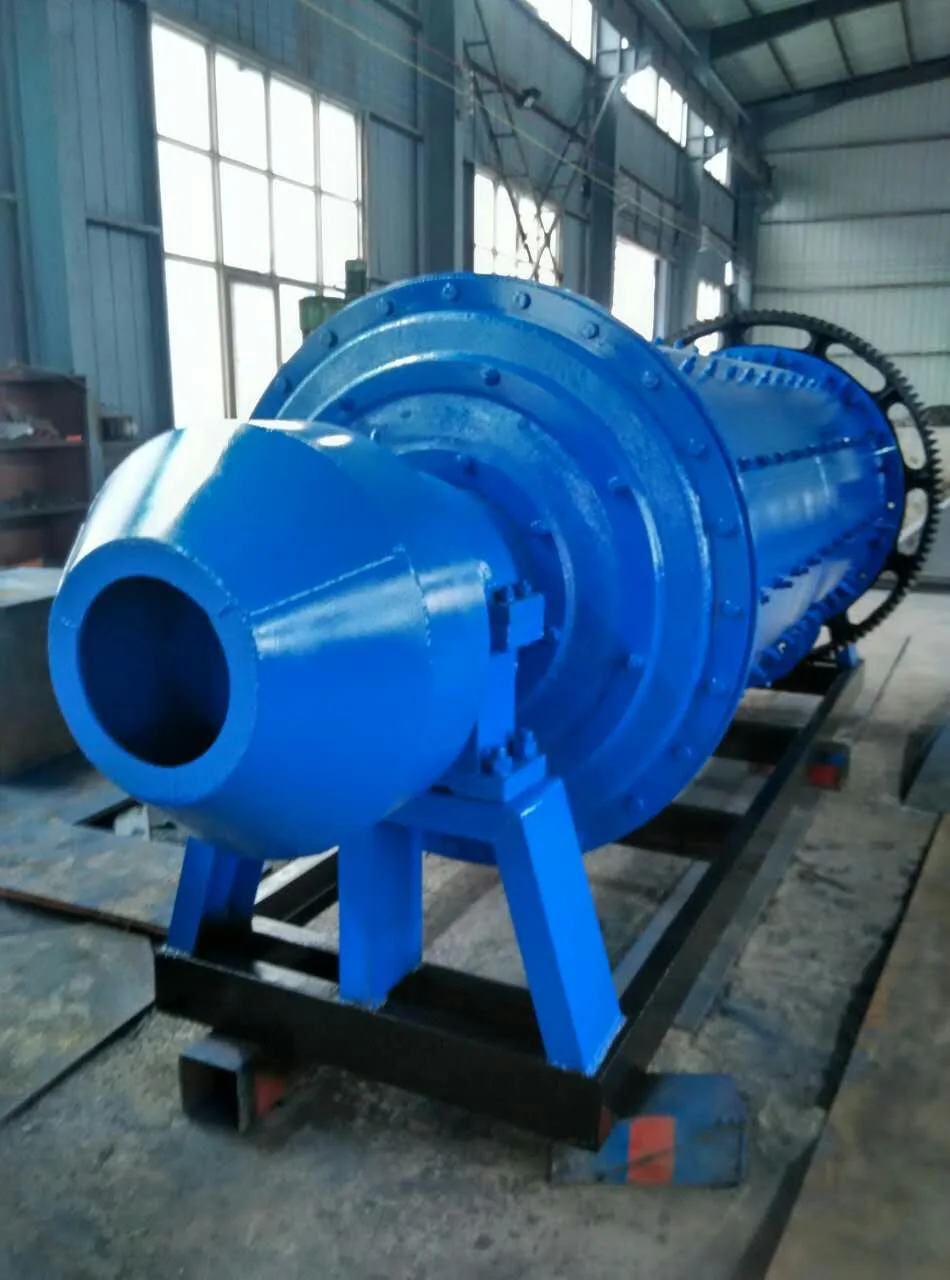

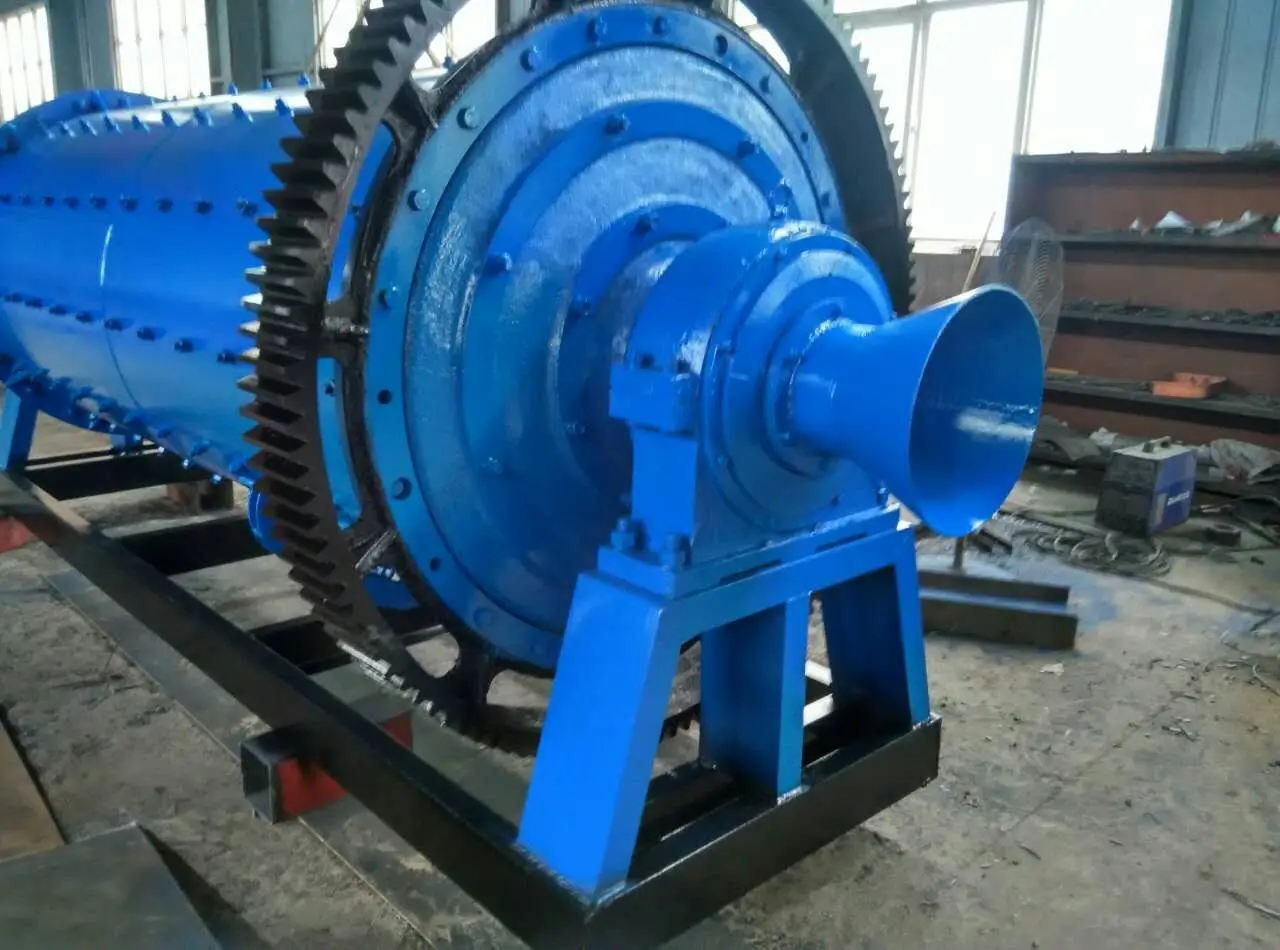

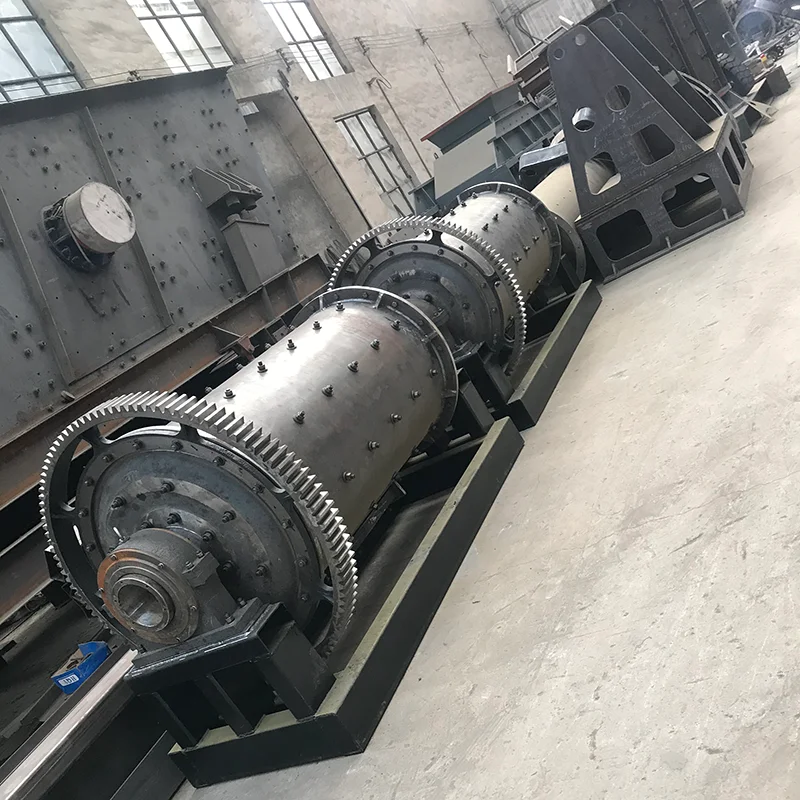

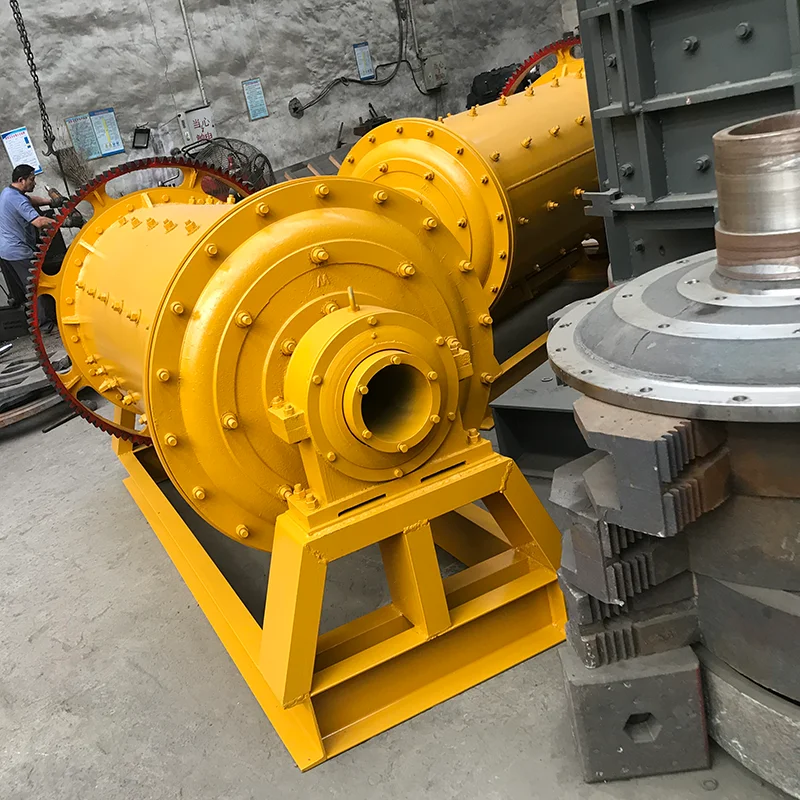

Ball mill is the key equipment for grinding after the crushing process, which is widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics and can be used for the dry and wet grinding for all kinds of ores and other grind-able materials. ball mill (25).jpgball mill (9).png


1. High-efficiency. Our ball mill adopts rolling bearing support instead of sliding bearing support with bearing bush. Therefore, it can save energy by 10-20%.


2. Simple structure, easy maintenance. Ball mill is mainly composed of feeding part, discharging part, turning part and driving part (reducer, small driving gear, electric motor and electric control). Convenient installation and debugging , easy to operate.


3. High processing capacity,obvious continuous operation advantages. The capacity can get 4.6-260 t/h.


4. Wide-range usage. Ball mill as an old grinding equipment in market, the technology is mature and operated steadily.








Technical Parameter






































































































































































Model



Rotary Speed(r/min)



Weight of Inner Ball (t)



Feeding Size (mm)



Output Size (mm)



Capacity (t/h)



Motor Power(kw)



Weight (t)



φ900×1800



38



1.5



≤20



0.075-0.89



0.65-2



18.5



3.6



φ900×3000



38



2.7



≤20



0.075-0.89



1.1-3.5



22



4.6



φ1200×2400



32



3.8



≤25



0.075-0.6



1.5-4.8



45



12.5



φ1200×3000



32



5



≤25



0.075-0.4



1.6-5



45



12.8



φ1200×4500



32



7



≤25



0.075-0.4



1.6-5.8



55



13.8



φ1500×3000



27



8



≤25



0.075-0.4



2-5



90



17



φ1500×4500



27



14



≤25



0.075-0.4



3-6



110



21



φ1500×5700



27



15



≤25



0.075-0.4



3.5-6



132



24.7



φ1830×3000



24



11



≤25



0.075-0.4



4-10



180



28



φ1830×6400



24



23



≤25



0.075-0.4



6.5-15



210



34



φ1830×7000



24



25



≤25



0.075-0.4



7.5-17



245



36



φ2200×5500



21



30



≤25



0.075-0.4



10-22



370



48.5



φ2200×6500



22



30



≤25



0.075-0.4



14-26



280



52.8



φ2200×7500



22



33



≤25



0.075-0.4



16-29



380



56



φ2200×9500



21



38



≤25



0.074-0.4



18-35



475



62

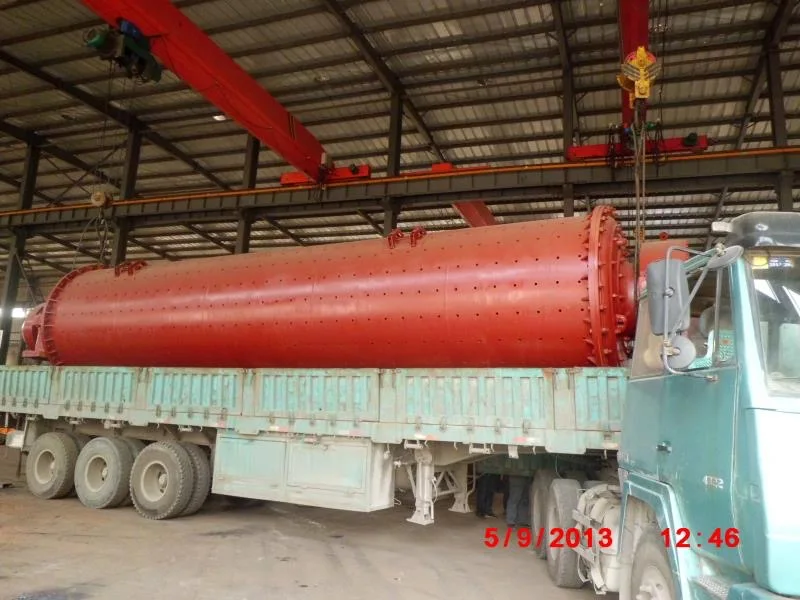

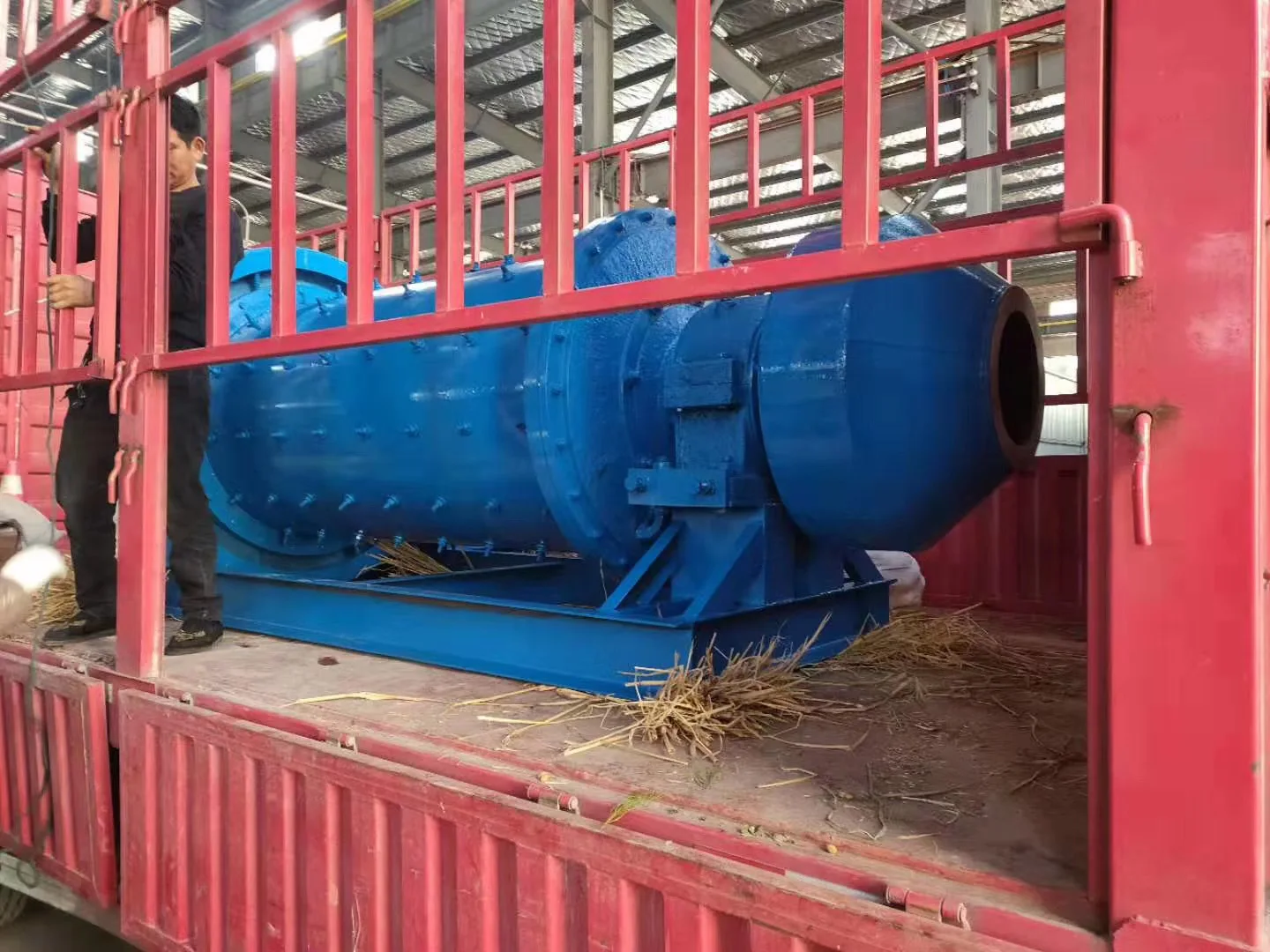

Packaging & Shipping


 ball mill (5).pngball mill (49).pngball mill (33).png














Our Services






Pre-sales




*Help customers to choose product.
*Freely send engineers to the working field to plan the installation site and design the best technical production process.
*Design the special product according to the contract.



After-sales




*Send the engineers to guide the installation.
*Install and adjust the equipment for customers.
*Train the operator for customers.
*We also provide the technical service for our customers after the installation.

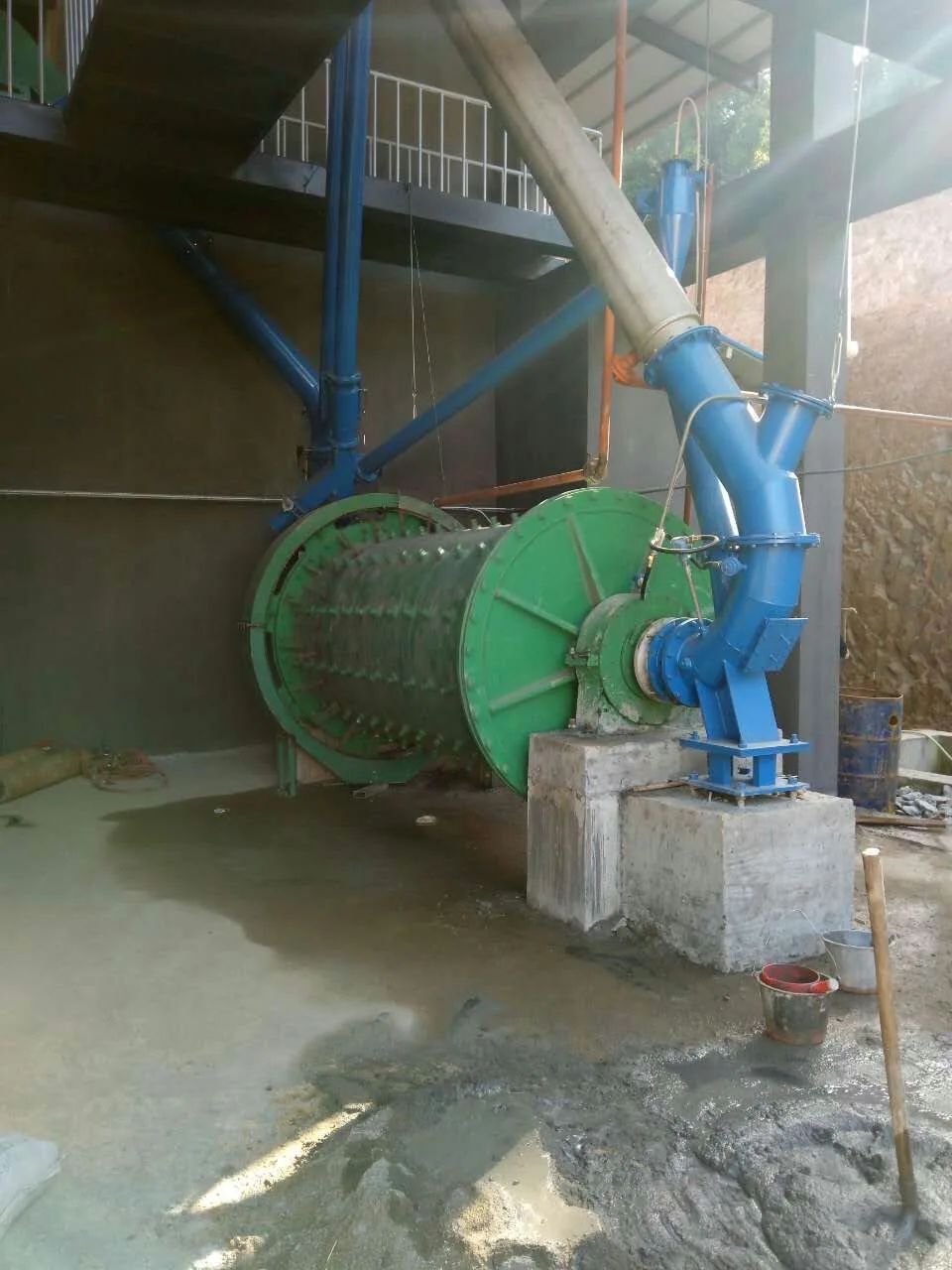

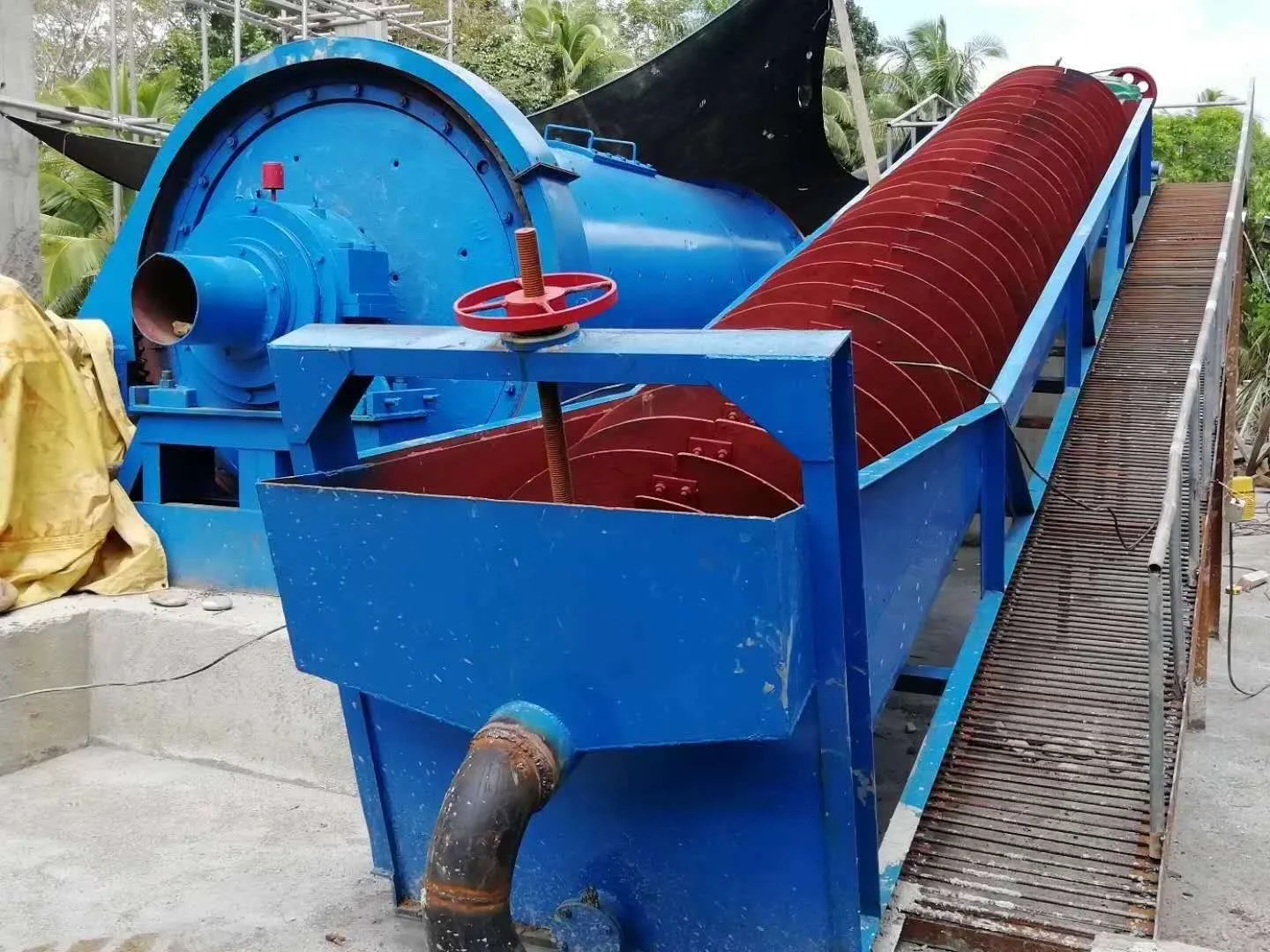

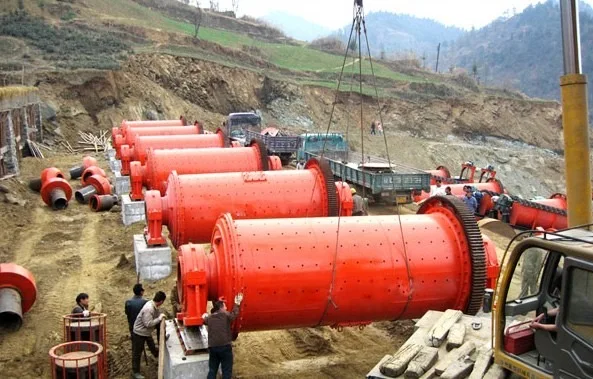

customer size (1).pngcustomer size (15).pngcustomer size (64).png
