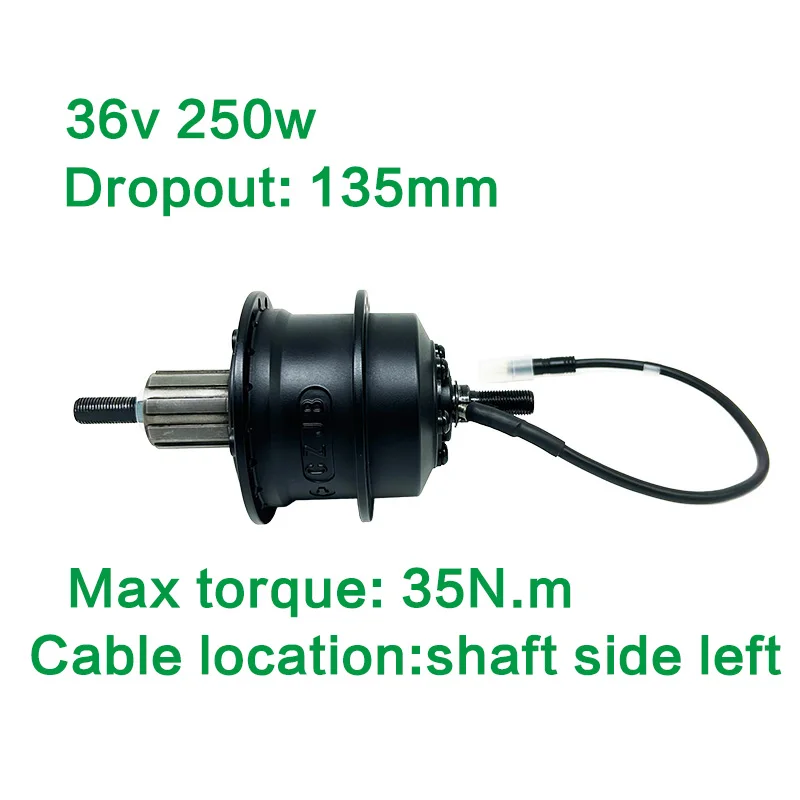

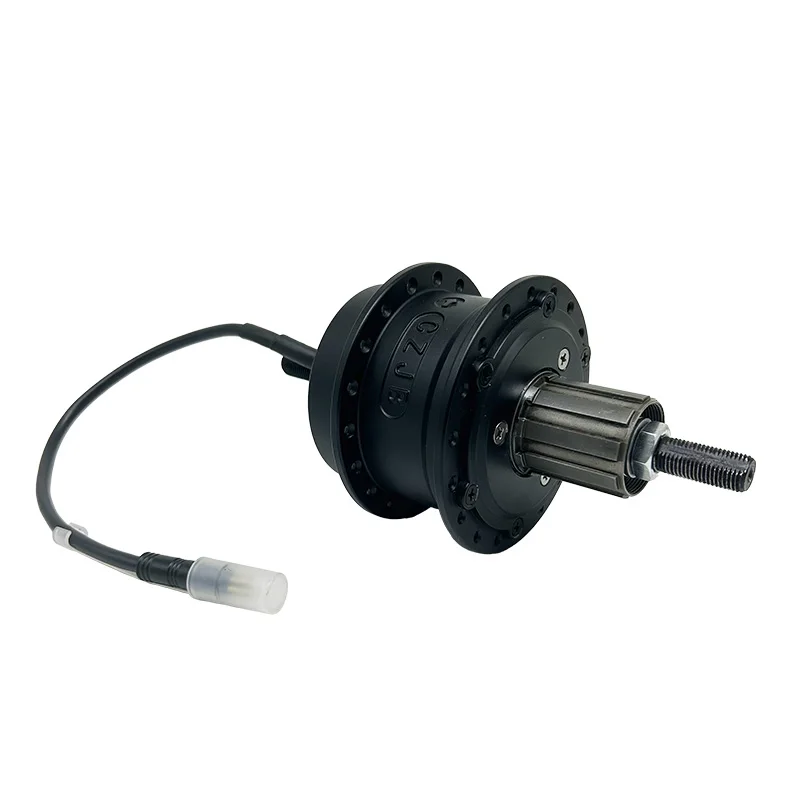

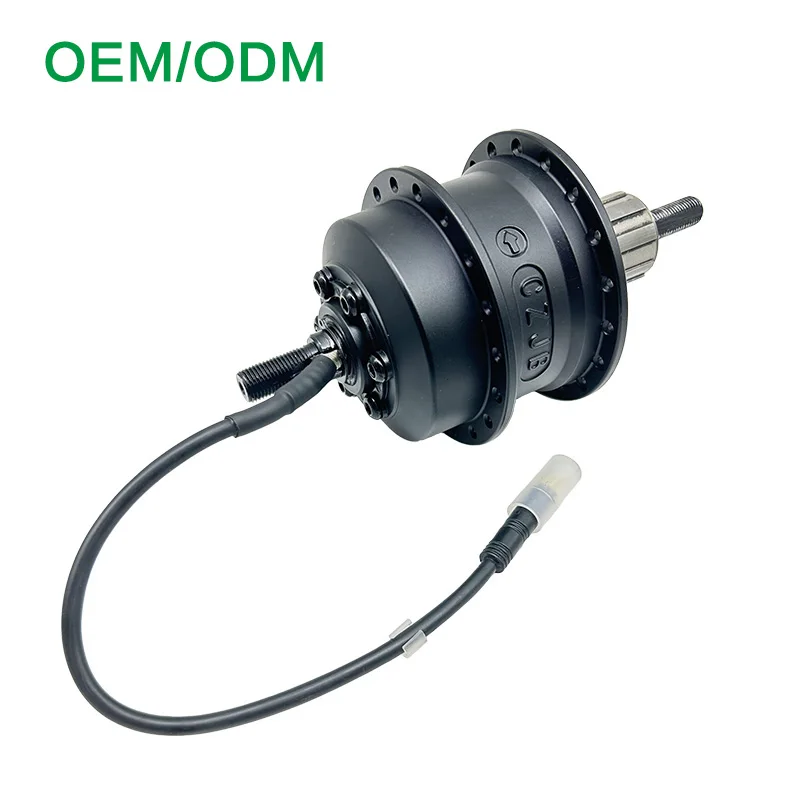

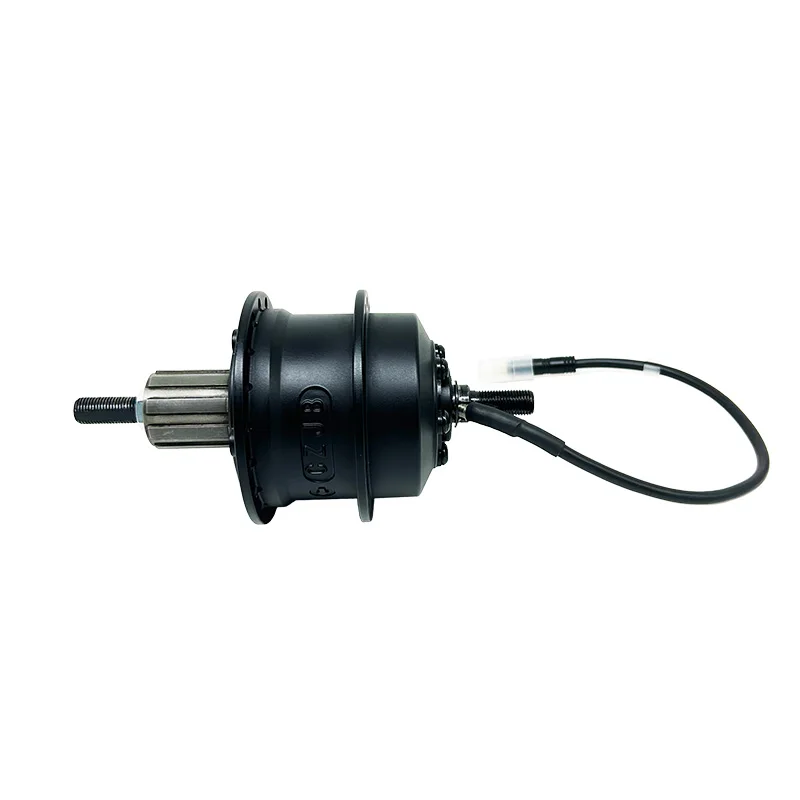

CZJB IH45H01 36v inner rotor ebike hub motor dropout 135mm electric bike motor 250 watt
- Category: >>>
- Supplier: Changzhou Jiabo Machinery Manufacturing Co. Ltd.
Share on (1601244769007):
Product Overview
Description
Product Paramenters
Rated Voltage（V） | 36 | ||||||
Rated Power（W） | 250 | ||||||
Weight（Kg） | 1.6 | ||||||
Reduction Ratio | 1：12 | ||||||
Max Torque（N.m） | 35 | ||||||
Wheel Diameter（Inch） | 16-28 | ||||||
Rated Speed（km/h） | 25 | ||||||

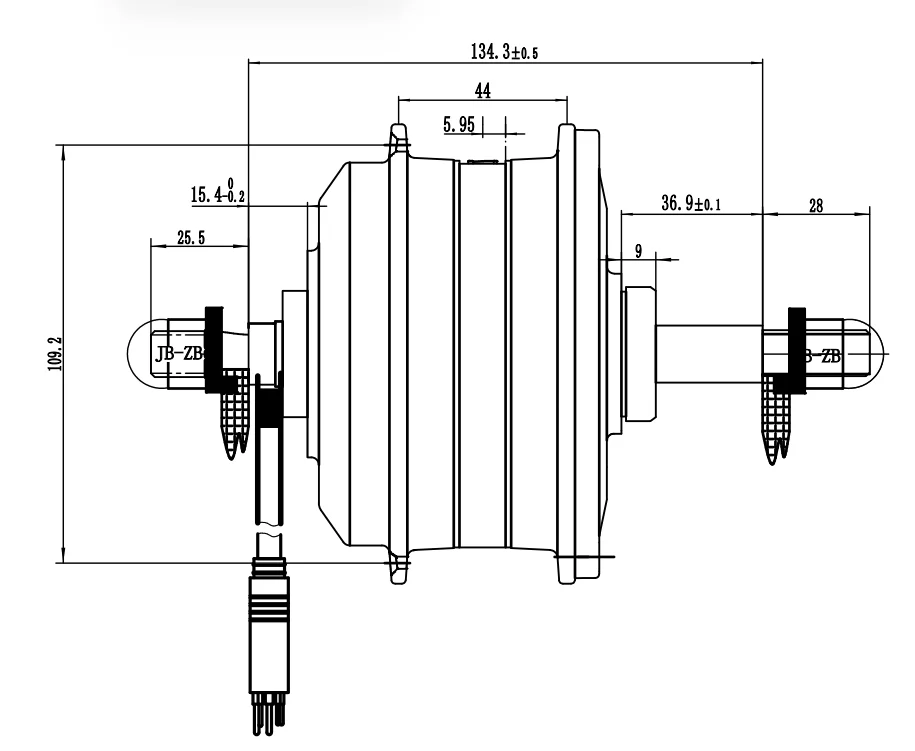

Dropout(mm) | 135 | ||||||
Brake Type | V/Disc brake | ||||||
Operating Temperature（℃） | -20-45 | ||||||
Efficiency（%） | ≥82 | ||||||
Color | Matt black | ||||||
Cable Location | Shaft side left | ||||||
Noise Grade（dB） | ≤55db | ||||||
IP Grade | IP65 | ||||||
Drive and Freewheel | 6-7S | ||||||
Spoke Specification | 36H*12G/13G | ||||||
Salt spray Test Standard（h） | 24/96 | ||||||

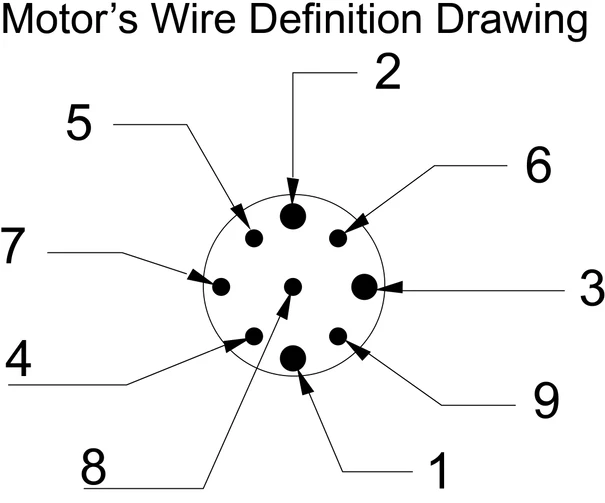

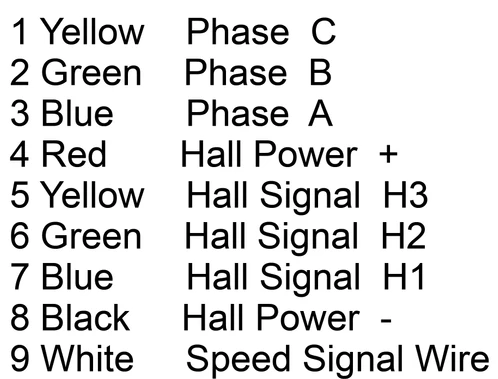

Nine pins waterproof cables(1.2 square for 250w)

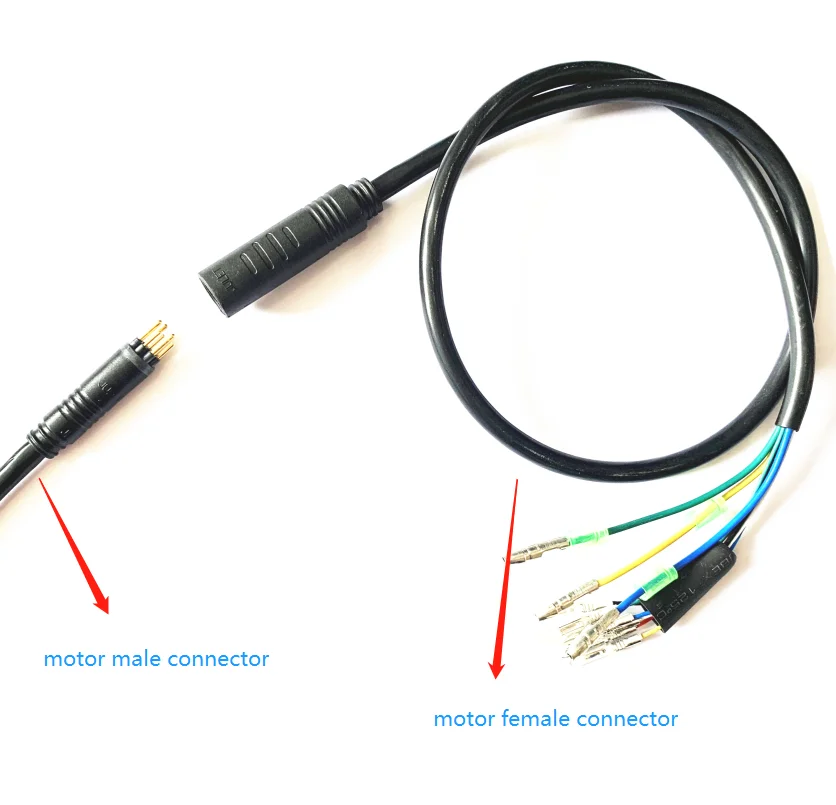

motor male connector:200mm female: rear :800mm
If you need longer cables,customize is possible.We also can provide motor extension cables
motor male connector:200mm female: rear :800mm
If you need longer cables,customize is possible.We also can provide motor extension cables
Product Advantages
1.light weight 1.6kg
2.Reduction Ratio 1:12 high torque
