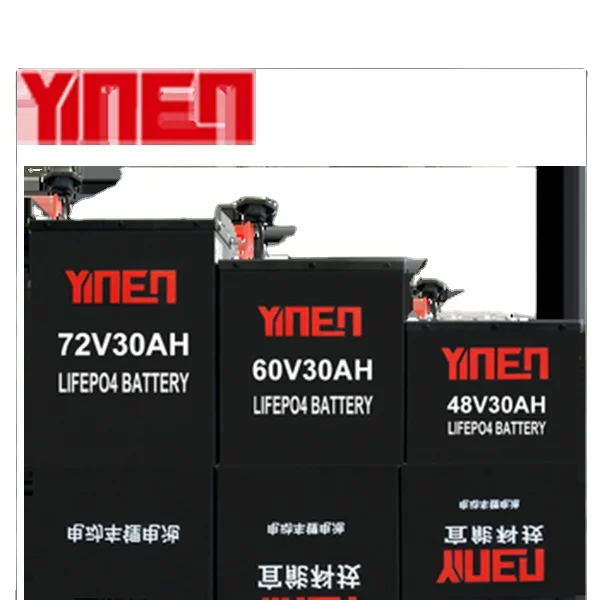

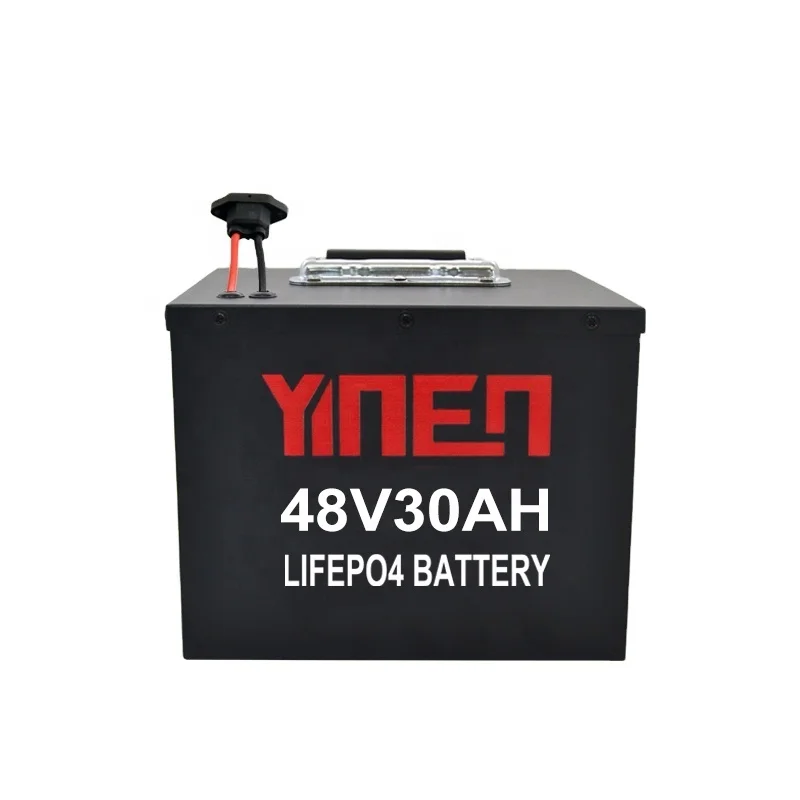

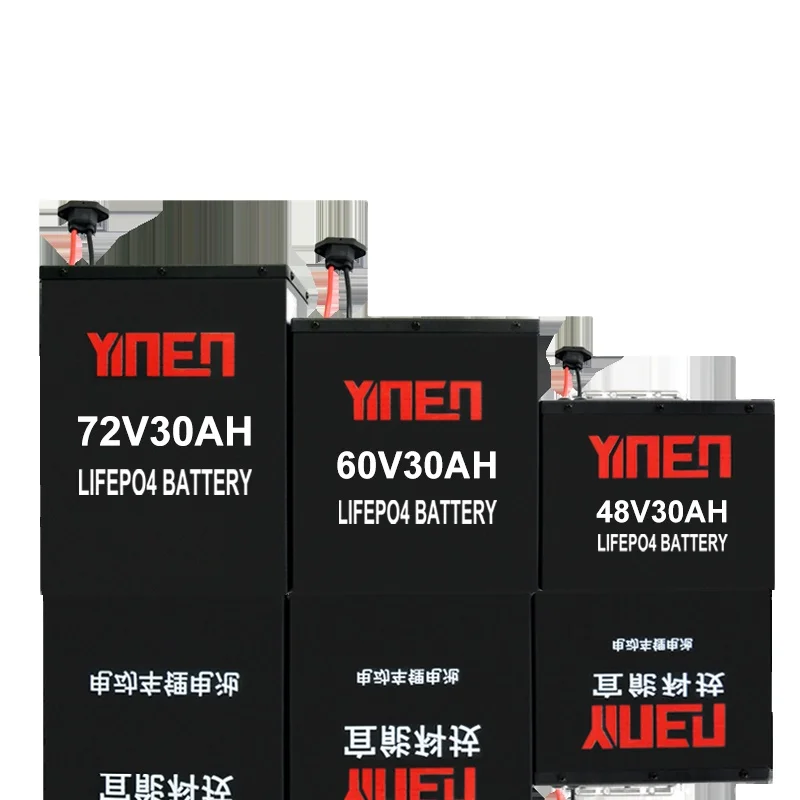

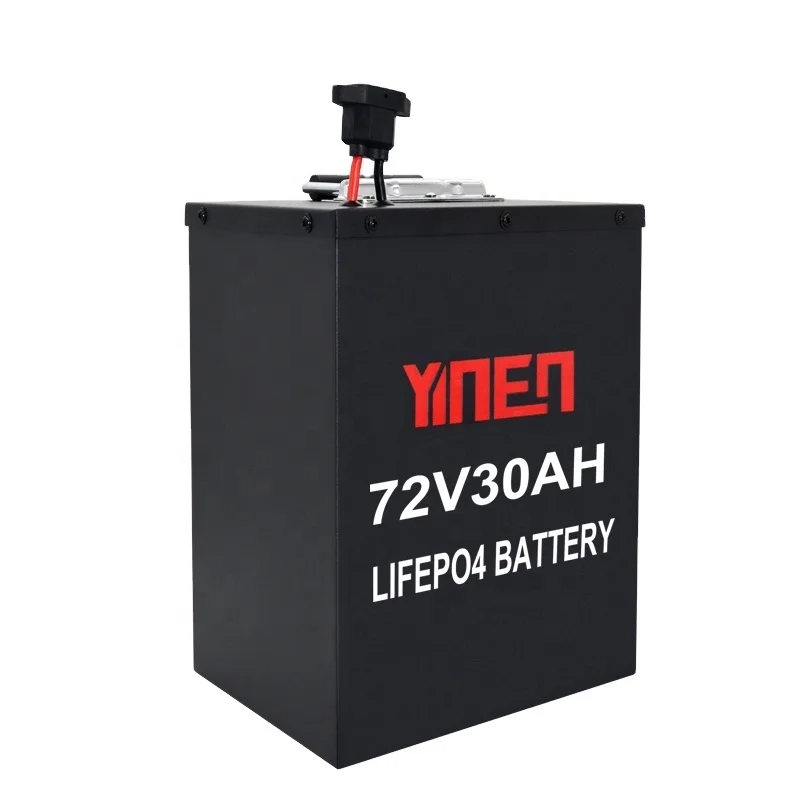

48v 60v 72v 30ah lithium ion electric vehicle power battery
- Category: >>>
- Supplier: Anhui Yinen Technology Co. Ltd.
Share on (1601244782033):
Product Overview
Description
PRODUCT SPECIFICATIONS
Item | 48-30 | 60-30 | 72-30 | Remarks | |||
Unit | Cell type | LFP20100140-30Ah | |||||
Size | 20mm*100mm*140mm | ||||||
Nominal voltage | 3.2V | ||||||
AC Resistance | 0.6-1.5（m） | ||||||
Rate capacity | 30Ah | ||||||
System | Platform voltage | 51.2V | 64V | 76.8V | |||

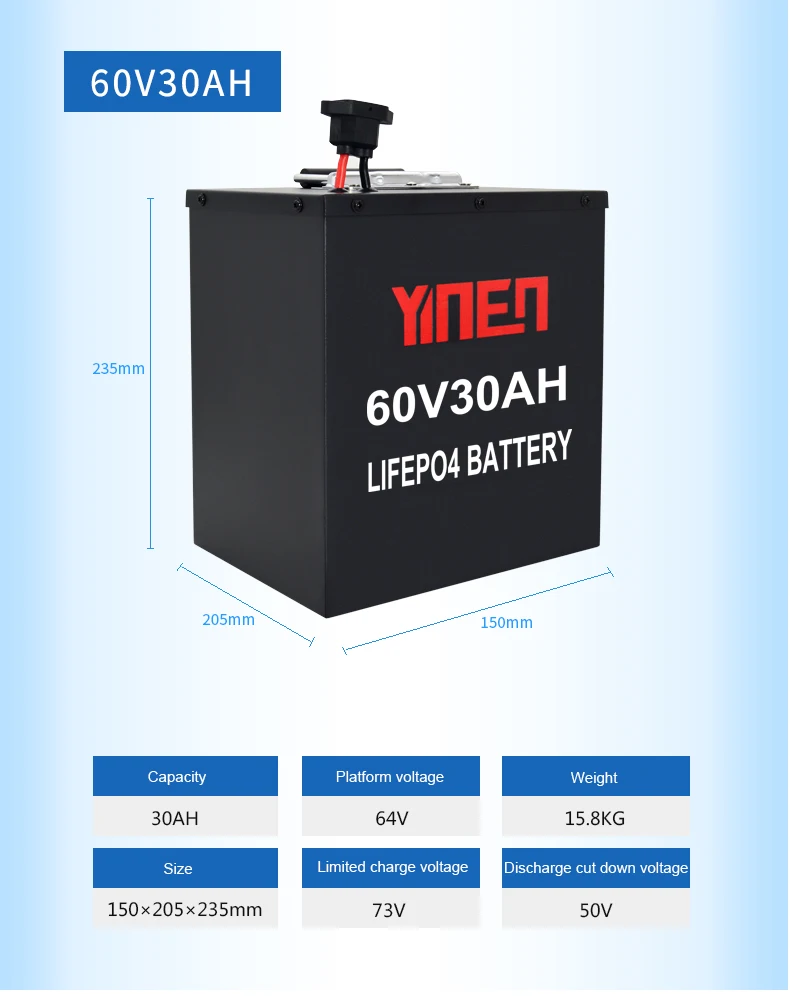

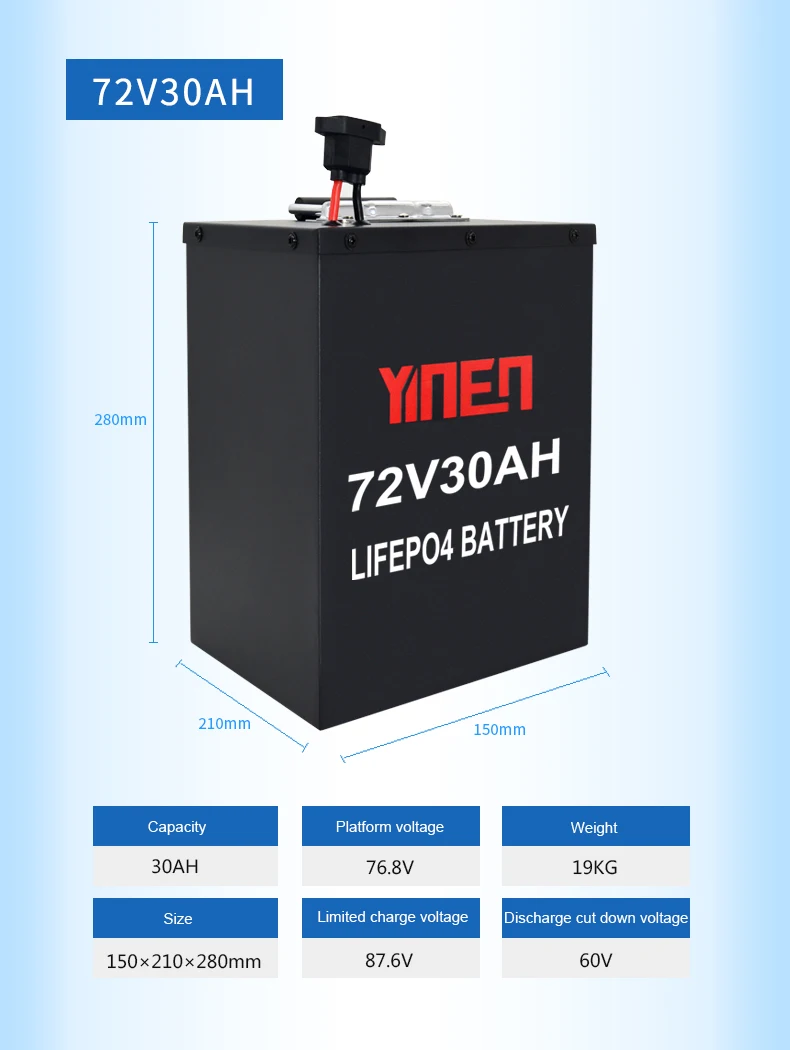

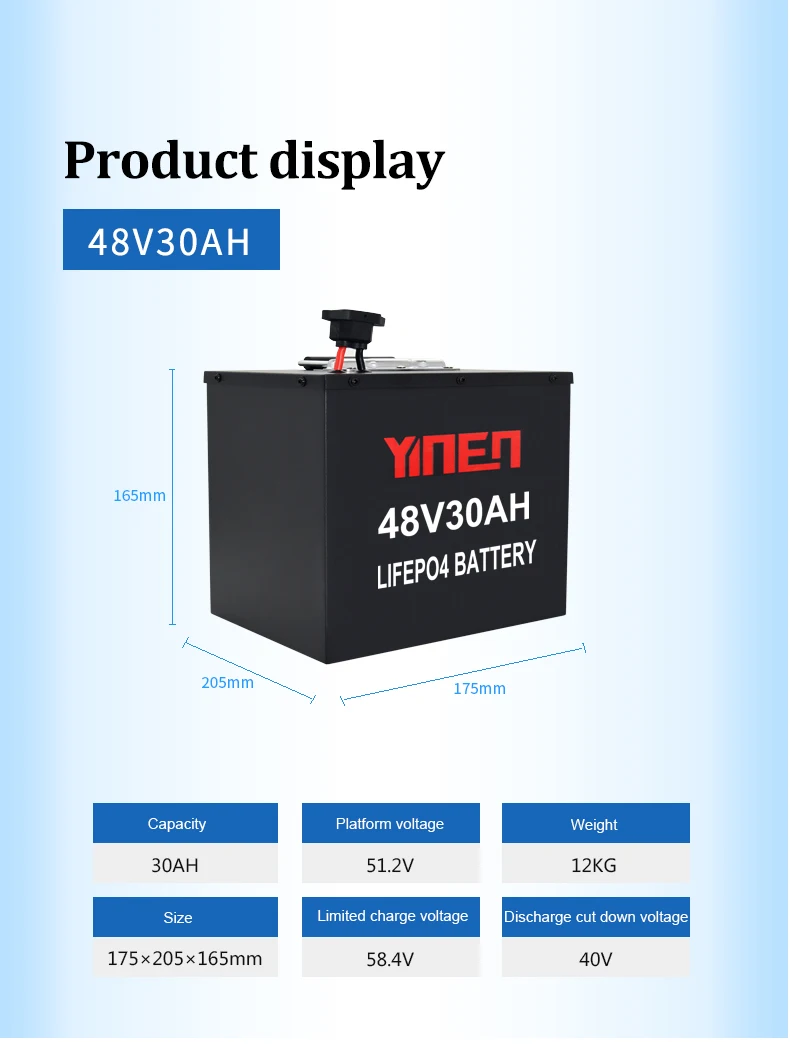

Size | 175mm×205mm×165mm | 150mm×205mm×235mm | 150mm×210mm×280mm | L*W*H（withouthandle） | |||
Charge port | UK plug standard | ||||||
Discharge port | UK plug standard | 50A Anderson | |||||
MODBUS | / | ||||||
Series parallel mode | 16s1p | 20s1p | 24s1p | ||||
BMS | 48V16S40A(Passiveequilibrium) | 60V20S40A(Passive equilibrium） | 72V24S40A（Passive equilibrium） | ||||
Weight | 12kg | 15.8kg | 19kg | ||||
Max.continuousdischarge current | 30A | ||||||
Instantaneous discharge current | 40A | It could cause irreversible damage when over 40A | |||||
Limited charge voltage | 58.4V | 73V | 87.6V | ||||
Charging platform voltage | 51.2V | 64V | 76.8V | ||||
Discharge cut down voltage | 40V | 50V | 60V | ||||
Optimal operating temperature range | 10－35℃ | If the battery surface temperature exceeds this range,stop discharging | |||||
Discharge temperature range | -30－＋60℃ | If the battery surface temperature exceeds this range,stop charging | |||||
Charge temperature range | -10－＋55℃ | If the battery surface temperature exceeds this range,stop charging | |||||
Storage temperature range | -10℃－＋30℃ | The recommended ambient temperature for long-term storage is 25℃±2℃ | |||||
Cycle life | ≥3000cycles | 100% depth charge and discharge at 0.33C rate | |||||
Hull | Sheet metal spraying | Sheetmetal spraying(white) | Sheet metal spraying | ||||

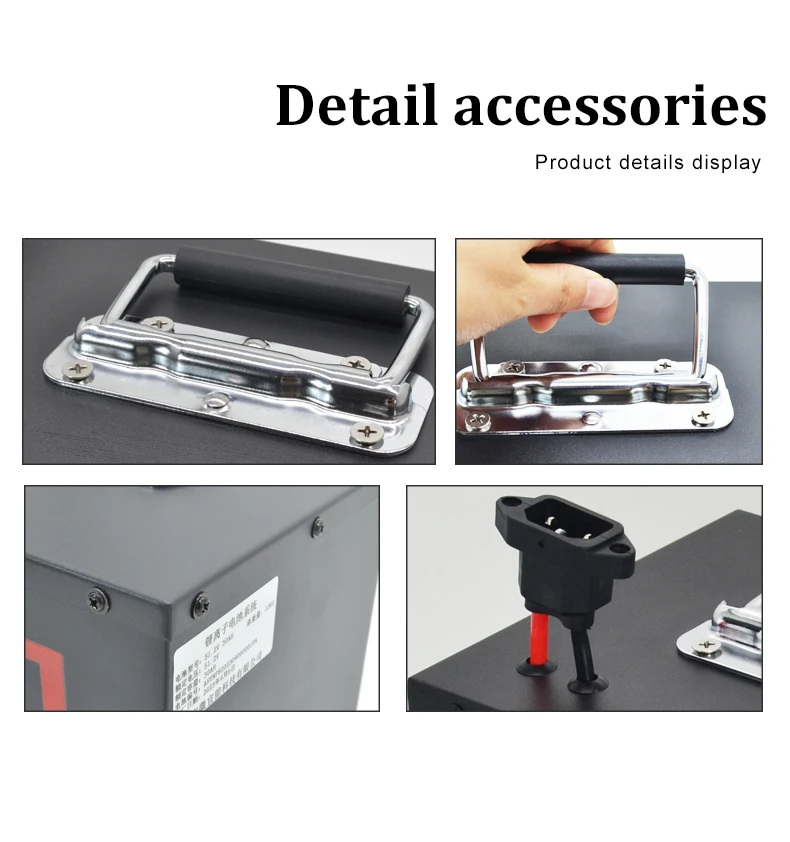

Accessory | GPS | 304 Stainless Steel handle | |||||
Charger | / | ||||||
Product Details
YINEN LIFEPO4 POWER BATTERY
1. CE ROHS Certificated
2. Grade A+ Prismatic Power Cells
3.>3000cycles Reliable Performance
4.Applied to electric vehicles, tricycles, four-wheeled vehicles, golf carts, etc
5.Vehicle grade battery cells;Safe and stable;Long cycle life;High-capacity;High temperature resistance;Light weight
6.Compatible with 99% of electric vehicles on the market

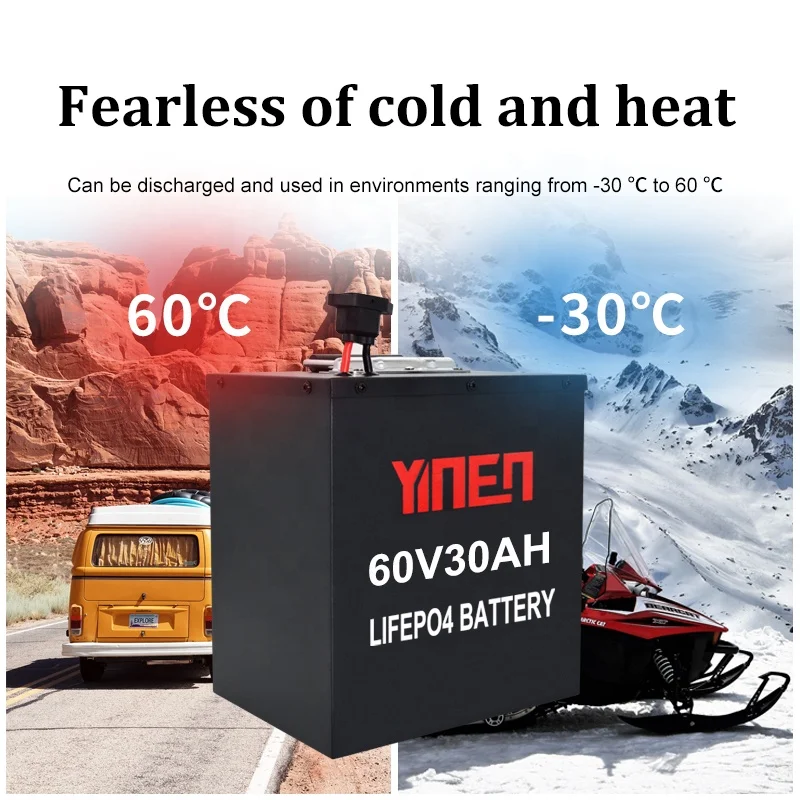

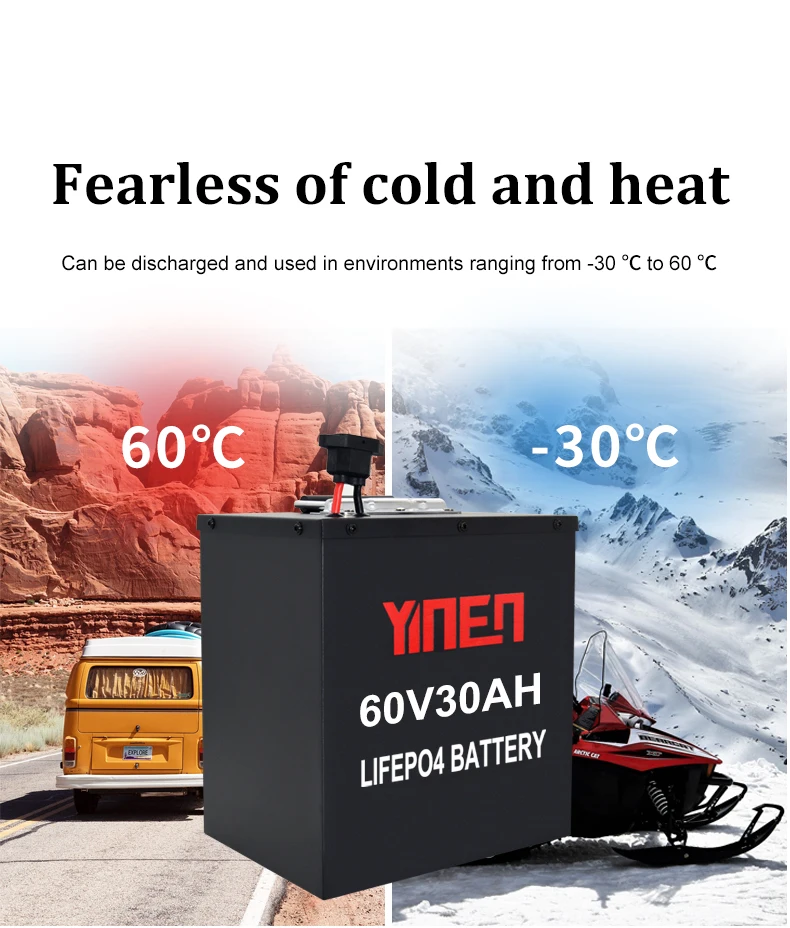

7.Can be discharged and used in environments ranging from -30 °C to 60 °℃
2. Grade A+ Prismatic Power Cells
3.>3000cycles Reliable Performance
4.Applied to electric vehicles, tricycles, four-wheeled vehicles, golf carts, etc
5.Vehicle grade battery cells;Safe and stable;Long cycle life;High-capacity;High temperature resistance;Light weight
6.Compatible with 99% of electric vehicles on the market
7.Can be discharged and used in environments ranging from -30 °C to 60 °℃
Application
Certifications
Installation Instructions
We are a leading manufacturer specialized in solar, wind and other renewable energy products. We have a complete set of R&D, production, sales and service systems; and produce off-grid pure sine wave inverters, solar charge controllers, and wind-solar hybrid charge controllers. We also provide solar power system, designs for solar street-light system, and service for production and installation.
Since our establishment, we Yinen Technology have acquired the awards of the national high-tech enterprises and Anhui provincial software enterprises. By having won more than thirty patents of Intellectual Property and EU certificates of CE and RoHS, we have also registered the Trademark “YINEN” (Registration No. 57674929), to become an influential enterprise with its brand force in the green energy industry.
We believe and also hold innovation as the driving force for our long-lasting development. The members of our R&D team are a group of well-educated and highly-qualified professionals with rich R&D experience in the renewable energy power industry and a strong sense of independent innovation. They have also gained a wealth of experience in a large number of major governmental projects.
Since our establishment, we Yinen Technology have acquired the awards of the national high-tech enterprises and Anhui provincial software enterprises. By having won more than thirty patents of Intellectual Property and EU certificates of CE and RoHS, we have also registered the Trademark “YINEN” (Registration No. 57674929), to become an influential enterprise with its brand force in the green energy industry.
We believe and also hold innovation as the driving force for our long-lasting development. The members of our R&D team are a group of well-educated and highly-qualified professionals with rich R&D experience in the renewable energy power industry and a strong sense of independent innovation. They have also gained a wealth of experience in a large number of major governmental projects.
1. Experience - More than ten years of experience specialized in off-grid power industry, proficient in technology.
2. R&D Team - Experienced R&D team with OEM ODM customized service.
3. Quality - From raw materials to production and to testing, a strict quality management and control system, making sure the trustworthy products.
2. R&D Team - Experienced R&D team with OEM ODM customized service.
3. Quality - From raw materials to production and to testing, a strict quality management and control system, making sure the trustworthy products.
4. Certification - CE, RoHS, ISO9001 and domestic patent and design certificates.

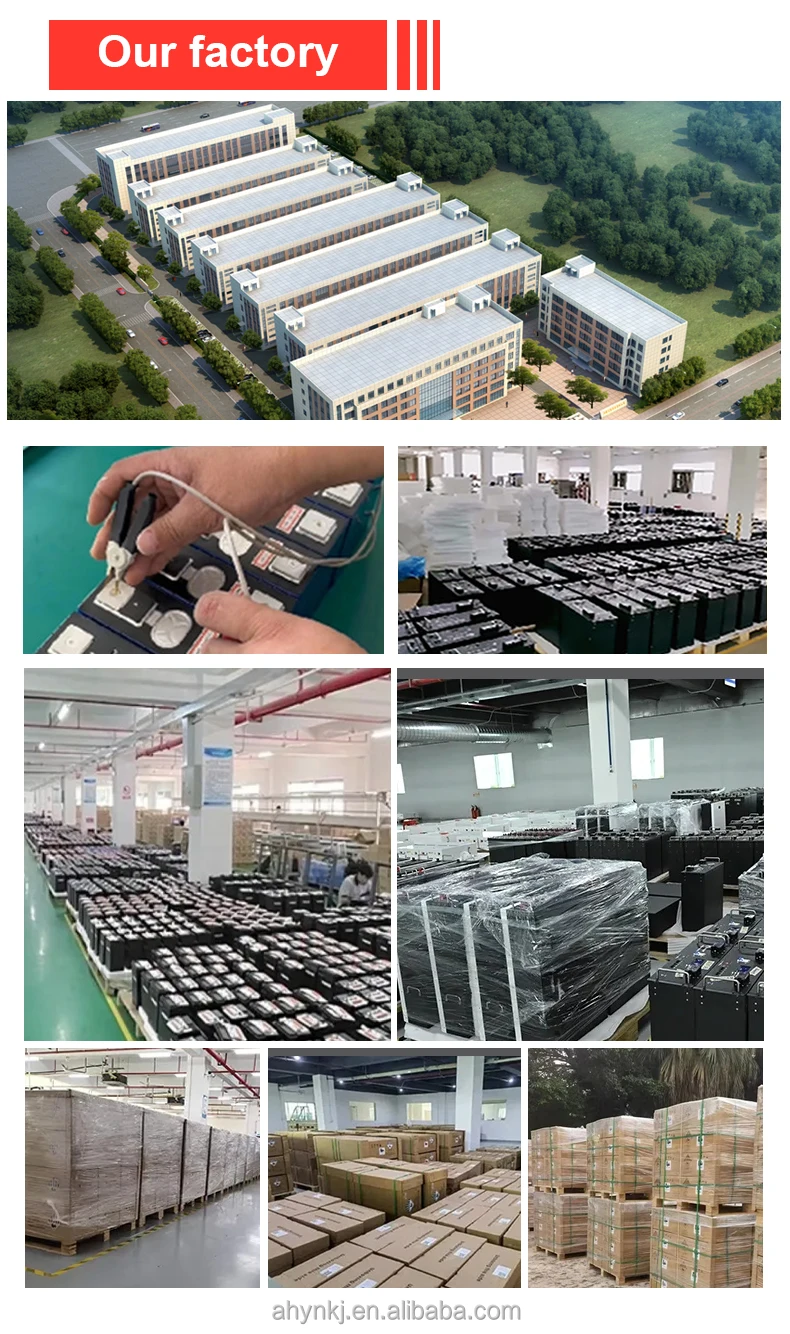

5. Service - 7*24 after sales service and a lifelong technical support.Production Line
Packaging & Logistics
FAQ
1. Q: Are you a factory or trading company?
A: We are factory.
2. Q: What kind of payment do you accept?
A:We accept all payment terms and you are also welcomed to make an order online through Alibaba.
3. Q: Do you have any MOQ for OEM?
A: We have no quantity limit for our regular series product. But for OEM or any other type of customization, our MOQ is 1pcs.
4. Q: May I take one piece or several pieces of samples to test before placing an order ?
A: Yes,we actually very much encourage new customers to start from samples. Customers who wanna have samples could just pay for it/them and the express freight if customers don't have their own express user account.
5. Q: How long can you offer the samples?
A: Two days after the deposit received.
6. Q: What is your lead-time for my order?
A: The lead-time is decided by the quantity of your order, normally ranging from 5-35 days from 50pcs to 1000pcs.
7. Q: What's your guarantee?
A: Our standard regular guarantee is 12-month as the norm requires, but we could also provide customers who need a particular prolonged guarantee much longer warranty increased from 18-month to 5-year by selecting much refined material with much stricter and exquisite production to ensure it.
A: We are factory.
2. Q: What kind of payment do you accept?
A:We accept all payment terms and you are also welcomed to make an order online through Alibaba.
3. Q: Do you have any MOQ for OEM?
A: We have no quantity limit for our regular series product. But for OEM or any other type of customization, our MOQ is 1pcs.
4. Q: May I take one piece or several pieces of samples to test before placing an order ?
A: Yes,we actually very much encourage new customers to start from samples. Customers who wanna have samples could just pay for it/them and the express freight if customers don't have their own express user account.
5. Q: How long can you offer the samples?
A: Two days after the deposit received.
6. Q: What is your lead-time for my order?
A: The lead-time is decided by the quantity of your order, normally ranging from 5-35 days from 50pcs to 1000pcs.
7. Q: What's your guarantee?
A: Our standard regular guarantee is 12-month as the norm requires, but we could also provide customers who need a particular prolonged guarantee much longer warranty increased from 18-month to 5-year by selecting much refined material with much stricter and exquisite production to ensure it.
